OBDSTAR  |  SKU: TCM-025

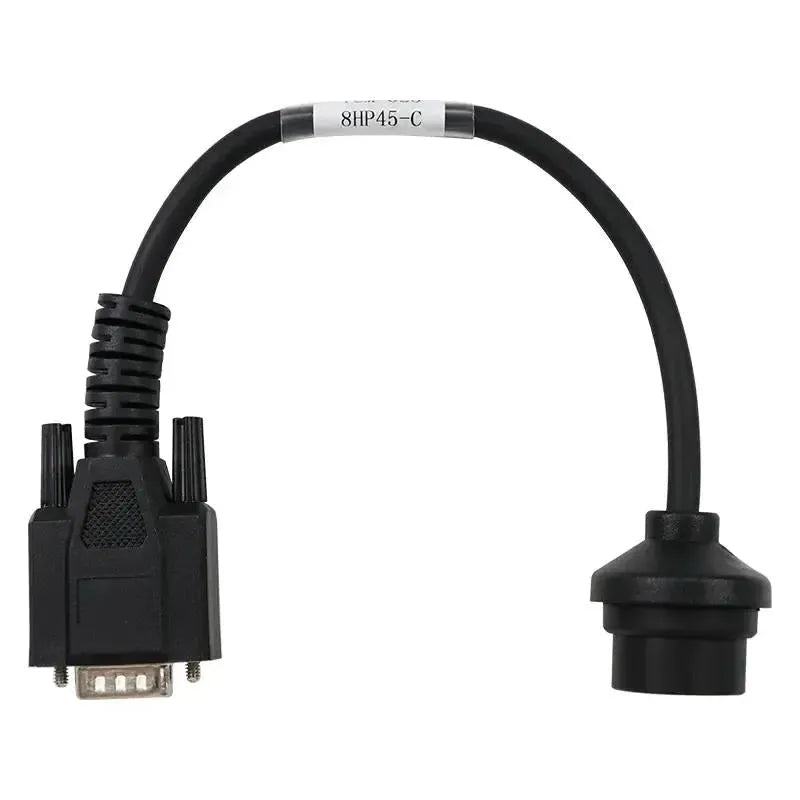

OBDSTAR (TCM-025) | ZF (8HP45-TC275) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€31,95 incl.
€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

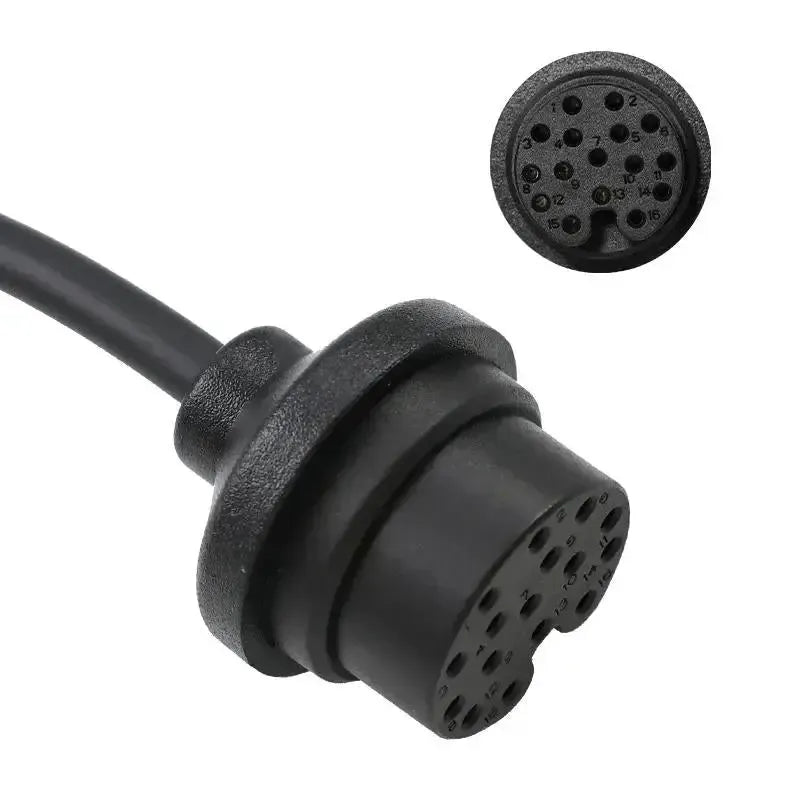

The OBDSTAR TCM-025 is an adapter cable featuring a 16-pin round connector on the vehicle side for the transmission control module and a 15-pin DB15-connector on the device side. The 16-pin side connects directly to the housing connector of a ZF 8HP45 Gen 3 unit located on the transmission casing; you can also connect a removed unit directly to it.

This cable is specifically designed for TCMs equipped with the Infineon TC275 processor, the third generation of the ZF 8HP45 automatic transmission. This variant is commonly found in Jaguar, Land Rover, BMW, Mini and various FCA/Stellantis models from 2013 onwards. The connection operates entirely independently of the vehicle's OBD2 system: the DB15 side passes signal lines to the programmer, which uses the protocols and data lines relevant to the TC275 for TCM service operations. The cable provides access to this control unit only. Earlier generations and other ZF transmission types are not supported, nor are variants with different processors. The service operations available depend on your OBDSTAR device's software; the cable itself does not add any coverage.

KEY BENEFITS

✔Independent of OBD2 — reprogramming is possible without using the vehicle's diagnostic system.
✔Works on a standalone unit — a removed TCM can be connected directly for service work outside the vehicle.
✔Broad manufacturer range — compatible with Jaguar, Land Rover, BMW, Mini and FCA/Stellantis models featuring the TC275 processor.
✔Useful for replacement — supports cloning from a faulty unit to a replacement TCM and subsequent initialisation.

IMPORTANT NOTES

✕OBDSTAR only — the cable works with OBDSTAR diagnostic devices and programmers; you cannot use it with diagnostic hardware from other manufacturers.
✕No additional coverage — the cable makes the control unit accessible; which service operations you can perform is determined by your device's software.
✕Gen 3 with TC275 only — earlier generations or other ZF transmission types are not supported; a separate cable exists for the TC277 variant.
✕Varies on BMW and Mini — whether the TC275 processor is present depends on production year and variant; pre-verification is required.

Applications and functionality

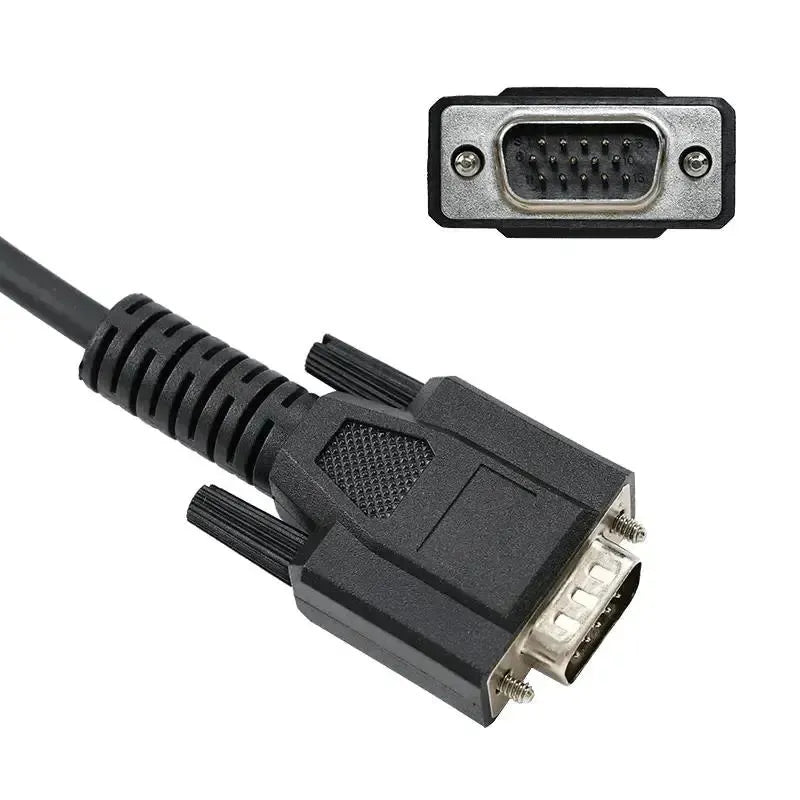

The TCM-025 connects a ZF 8HP45 Gen 3 unit with TC275 processor to the DB15 port of your OBDSTAR device.

Control units you can access

  • ZF 8HP45 Gen 3 TCM: The transmission control module with Infineon TC275 processor, via the 16-pin round connector on the housing.
  • Removed unit: The same connection can be used when the TCM is on the workbench outside the vehicle.

What you can do

  • Read TCM data: Retrieve control module data via the cable connection for analysis or as a backup.
  • Write or flash software: Write replacement or updated software to the TC275 processor to upgrade or restore the firmware level.
  • Perform cloning: Read the original TCM data and write it to a replacement unit, allowing a faulty TCM to be replaced without vehicle-specific recoding through the dealer.
  • Initialise after replacement: After writing the correct software version, perform the initialisation steps that prepare the new TCM for use.
  • Note: Which of these steps are available depends on your OBDSTAR programmer's software and licence; the cable only provides the connection.

Compatible vehicles and applications

The processor variant of the TCM is what matters, not the model. The vehicles listed below are equipped with the ZF 8HP45 Gen 3 unit with TC275 processor. Always verify the exact processor variant of the TCM present before use.

BMW:

  • 1 Series F20 / F21 LCI (118i, 120i, M140i): (2015–2019)
  • 2 Series F22 / F23 (220i, M240i): (2014–2021)
  • 3 Series F30 / F31 / F34 LCI (320i, 330i, 340i): (2015–2019)
  • 4 Series F32 / F33 / F36 LCI (420i, 430i, 440i): (2015–2021)
  • 5 Series G30 / G31 (520i, 530i, 540i early versions): (2017–2020)

Chrysler:

  • 300 (V6 models): (2015–2021)

Dodge:

  • Charger (V6 models): (2015–2021)
  • Challenger (V6 models): (2015–2021)

Jaguar:

  • F-Pace X761: (2016–2021)
  • F-Type X152: (2013–2020)
  • XE X760: (2015–2021)
  • XF X260: (2015–2021)
  • XJ X351: (2013–2019)

Jeep:

  • Grand Cherokee WK2 (V6 models): (2015–2021)

Land Rover:

  • Discovery 4: (2013–2016)
  • Discovery 5: (2017–2021)
  • Range Rover Sport L494: (2013–2022)
  • Range Rover Vogue L405: (2013–2021)

Mini:

  • Various models with 8HP45 Gen 3 (LCI versions): (2015–2019)

Ram:

  • 1500 Classic / V6 Pentastar models: (2015–2021)
💡
Good to know: The TCM connector on the ZF 8HP45 Gen 3 is mounted directly on the transmission housing, and you can connect a standalone unit to it directly. On BMW and Mini models, the presence of the TC275 processor depends on the model year and production variant, so two apparently identical vehicles may differ. Verify the exact processor variant of the installed TCM before ordering.

Package contents

  • 1x OBDSTAR (TCM-025) | ZF (8HP45-TC275) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification Description
Brand OBDSTAR
Part number TCM-025
Type Adapter cable
Application Reading, programming, cloning and initialising ZF 8HP45 Gen 3 units with TC275 processor
Vehicle-side connection ZF (8HP45-TC275) 16-pin TCM
Device-side connection 15-pin DB15
Control units Transmission control unit (TCM) with Infineon TC275 processor
Segment Passenger vehicle
Supported brands BMW, Chrysler, Dodge, Jaguar, Jeep, Land Rover, Mini and Ram
Model range Models with a ZF 8HP45 Gen 3 unit with TC275 processor, model years 2013 and later
Required to use OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight 0.1 kg
