OBDSTAR (TCM-023) | ZF (9HP) 58-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

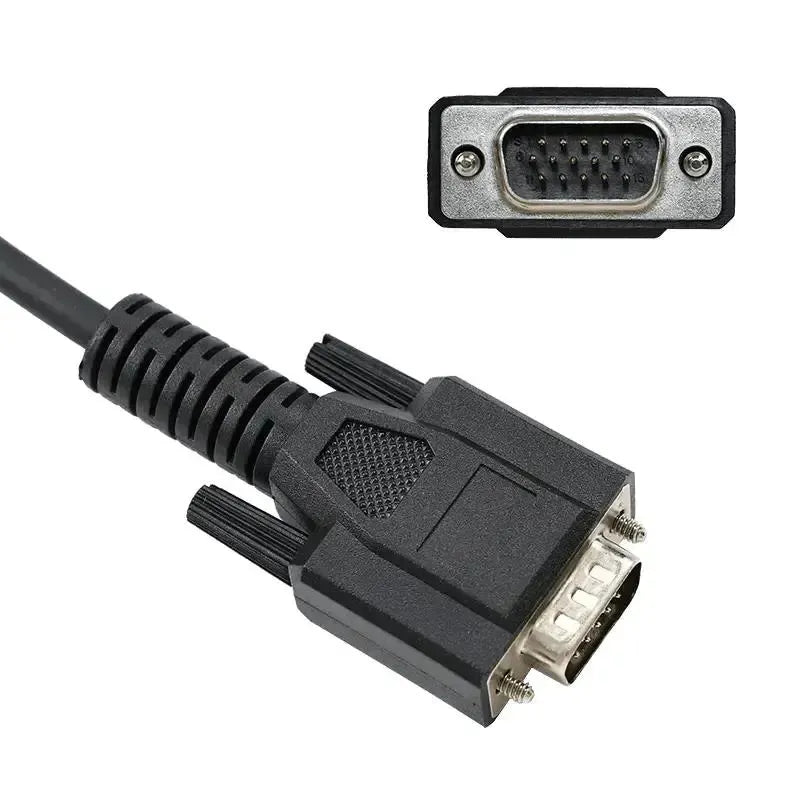

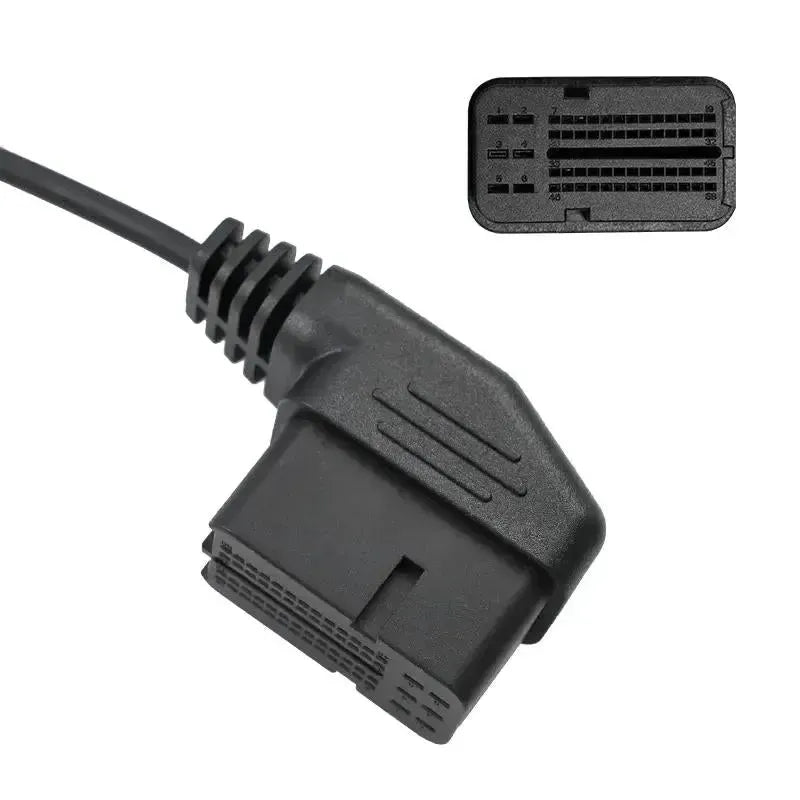

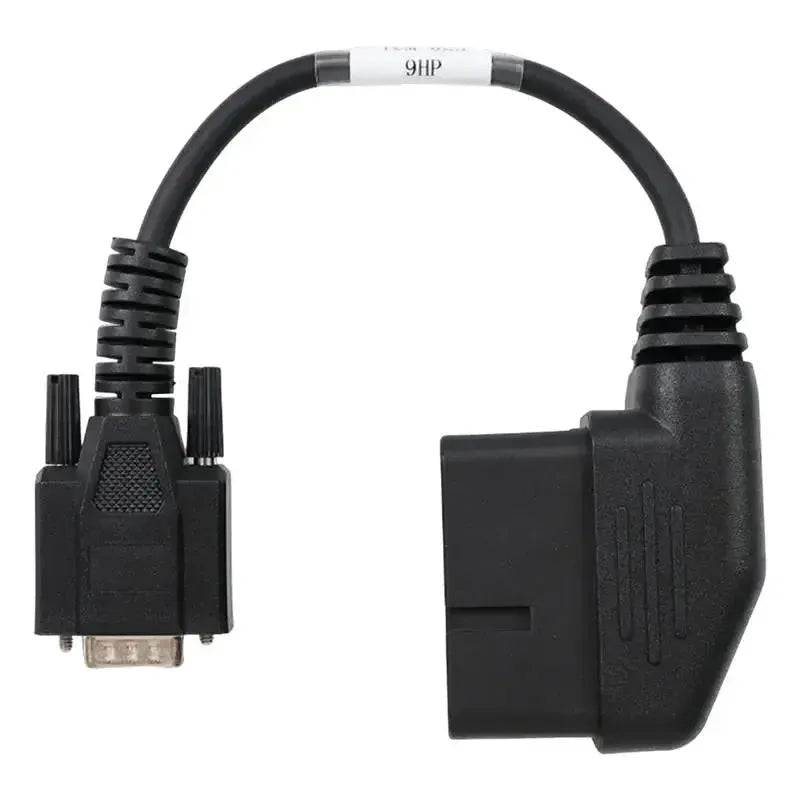

The OBDSTAR TCM-023 is an adapter cable featuring a 58-pin connector on the vehicle side for the transmission control module and a 15-pin DB15 connector on the device side. The 58-pin side connects directly to the original TCM connector of the ZF 9HP automatic gearbox, whose control unit is typically mounted internally within the transmission; the vehicle's OBD2 port remains unused.
The ZF 9HP is a nine-speed automatic transmission deployed under licence by various manufacturers; in Stellantis models, the same transmission carries the licensed designation Chrysler 948TE. Its proprietary, highly-pinned TCM connection enables bench programming: the diagnostic system bypasses the vehicle network and communicates directly with the control unit. This allows software data to be read and written even when vehicle network communication fails—for example, with a faulty or non-responsive TCM. The cable provides access to this transmission control module only. Which operations are actually possible depends on the connected OBDSTAR device and its software support; the cable itself adds no additional vehicle coverage. For bench use, the TCM must also be supplied with separate power and ground connections.
ADVANTAGES
CONSIDERATIONS
Applications and capabilities
The TCM-023 establishes a bench connection between a ZF 9HP transmission control module and the DB15 port of your OBDSTAR device.
Control units you can access
- ZF 9HP transmission control module: The nine-speed automatic TCM via the original 58-pin connector.
- Non-communicating unit: Even a faulty or silent TCM remains accessible via this method, independently of the vehicle network.
What you can do
- Read TCM data: Retrieve current software content and configuration data through the 58-pin connection, independent of the vehicle network.
- Write TCM software: Write modified or replacement software, for example when replacing the control unit or performing a software update.
- Identify TCM: Read hardware version, software version and calibration identifiers for verification before or after a programming operation.
- Perform bench programming: Access and programme the unit outside the vehicle, even if the control module is non-communicating.
- Note: The functions listed are only available if the connected OBDSTAR device supports them; the cable provides the connection only.
Compatible vehicles and applications
The presence of the ZF 9HP transmission is the determining factor, not the vehicle model. In Stellantis models, the same transmission is known under the licensed name Chrysler 948TE. The vehicles listed below are equipped with this automatic.
Acura:
- MDX: (2016–2020)
- TLX V6: (2015–2020)
Chrysler:
- 200: (2015–2017)
Fiat:
- 500X: (2015–present)
- Toro (Pick-up): (primarily South America)
Honda:
- Civic 1.6 i-DTEC (European diesel models): (2018–2020)
- CR-V 1.6 i-DTEC (European diesel models): (2015–2018)
- Passport: (2019–2023)
- Pilot (higher trim levels): (2016–2020)
Jaguar:
- E-Pace X540: (model year 2017–present)
Jeep:
- Cherokee KL: (2014–present)
- Compass MP: (2017–present)
- Renegade BU: (2015–present)
Land Rover:
- Discovery Sport L550: (model year 2015–present)
- Range Rover Evoque L538 / L551: (model year 2014–present)
Ram:
- ProMaster City: (2015–2022)
Package contents
- 1x OBDSTAR (TCM-023) | ZF (9HP) 58-pins TCM – 15-pins DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | TCM-023 |
| Type | Adapter cable |
| Application | Bench reading and programming of the ZF 9HP TCM (Chrysler 948TE) |
| Vehicle-side connection | ZF (9HP) 58-pin TCM |
| Device-side connection | 15-pin DB15 |
| Control units | Transmission control module (TCM) |
| Segment | Passenger vehicle |
| Supported manufacturers | Acura, Chrysler, Fiat, Honda, Jaguar, Jeep, Land Rover and Ram |
| Model range | Models equipped with the ZF 9HP nine-speed automatic transmission, also marketed under the Chrysler 948TE designation |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Additional requirements | External power supply and earth connection for the TCM during bench operation |
| Weight | 0.1 kg |
