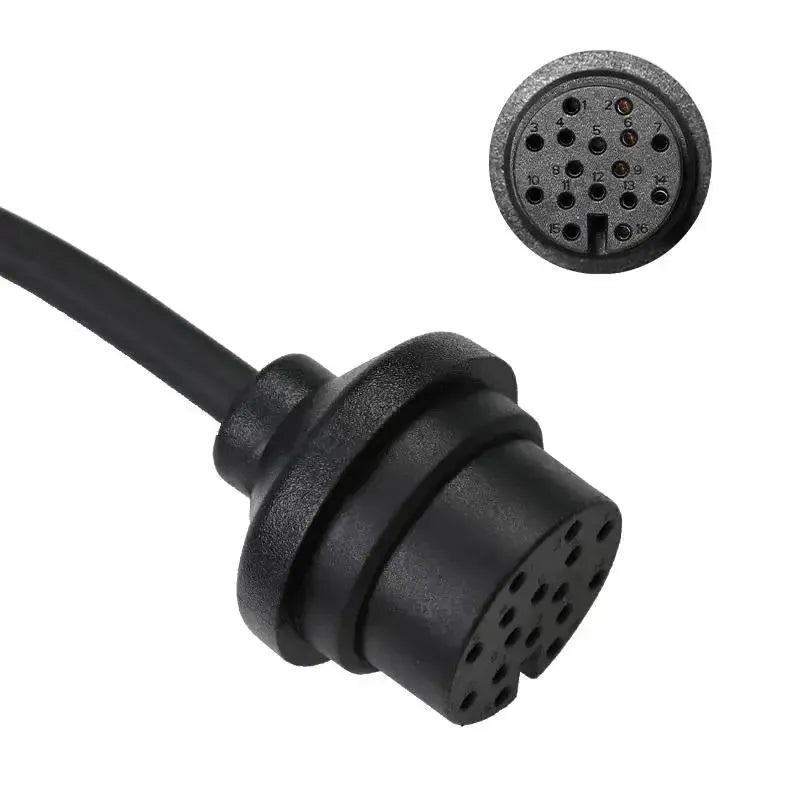

The OBDSTAR TCM-022 is an adapter cable with a 16-pin connector on the vehicle side for the Continental transmission control module and a 15-pin DB15-connector on the device side. The 16-pin side connects to the Continental TCU port in the mechatronic unit of a ZF 6HP automatic gearbox, as fitted to the 6HP19, 6HP21, 6HP26 and related variants.

The mechatronic unit is located internally within the gearbox housing and therefore has its own connector on the module itself. Via this connection, wired access to the TCM is possible outside the vehicle OBD2 port, even when the CAN-bus or K-line is not accessible through the standard diagnostic coupling. This route is used when the gearbox is serviced separately from the vehicle on the workbench, or when communication problems via the vehicle block diagnosis. The cable supports Continental units in the ZF 6HP series only; the same gearbox fitted with a TCU from another supplier falls outside its scope. Reading, reprogramming and calibration is only possible to the extent that your own OBDSTAR device software supports.

ADVANTAGES

✔Works during communication failure — direct TCM communication outside the OBD2 port, even with a non-functional CAN-bus or K-line.
✔Suitable for bench work — the ZF 6HP gearbox can be read or programmed independently of the vehicle.
✔Precisely matched connector — tailored to the 16-pin port of Continental mechatronic units in the 6HP19, 6HP21 and 6HP26.
✔Wide range of applications — the Continental TCU is common in BMW E- and F-series and in various Land Rover models.

LIMITATIONS

✕OBDSTAR only — the DB15 side is designed for OBDSTAR diagnostic devices and programmers; diagnostic hardware from other manufacturers cannot be used with it.
✕No additional coverage — the cable provides the connection; whether reading, programming and calibration succeeds depends on your own device software.
✕Continental units only — TCUs from other suppliers, such as Siemens or Bosch, in the same ZF 6HP gearboxes are not supported.
✕Not an OBD2 adapter cable — the cable requires direct connection to the TCM connector of the mechatronic unit and is not intended for the diagnostic port.

Applications and functionality

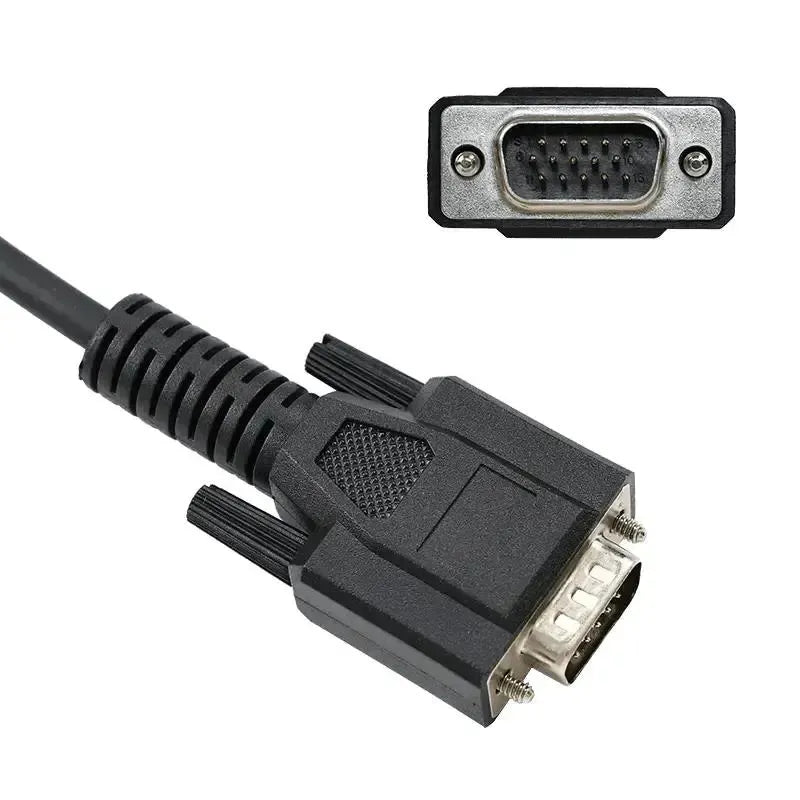

The TCM-022 connects the Continental transmission control unit in a ZF 6HP automatic gearbox to the DB15 input of your OBDSTAR device.

Control units you can access

  • Continental TCU in the ZF 6HP:The transmission control unit in the mechatronic module, via the 16-pin port on the unit.
  • Removed gearbox:The same connection can be used when the gearbox is removed and powered externally.

What you can do

  • Read TCM:Retrieve the current software version, calibration parameters and fault codes from the Continental unit via the wired connection.
  • Programme TCM:Write new software or modifications, even when communication via the vehicle is not possible due to CAN-bus faults.
  • Calibrate TCM:Reset the adaptive parameters of the gearbox after replacement or repair of the mechatronic unit.
  • Perform bench diagnostics:Access the TCM with the gearbox removed and powered externally.
  • Note:Which of these operations are possible depends on the software and licence of your OBDSTAR device; the cable only provides the connection path.

Compatible vehicles and applications

The TCM supplier in the ZF 6HP gearbox is the determining factor, not the vehicle model.The vehicles listed below are equipped with a Continental TCM in the ZF 6HP automatic gearbox and are therefore suitable for this cable in combination with OBDSTAR equipment.

BMW:

  • 1 Series E81 / E82 / E87 / E88:120i, 125i, 130i, 135i, 120d, 123d (2004–2013)
  • 3 Series E90 / E91 / E92 / E93:320i, 325i, 330i, 335i, 320d, 330d, 335d (2005–2013)
  • 5 Series E60 / E61 LCI:520i, 523i, 525i, 530i, 535i, 550i, 520d, 525d, 530d, 535d (2007–2010)
  • 6 Series E63 / E64 LCI:630i, 650i, 635d (2007–2010)
  • 7 Series E65 / E66 LCI:730d, 740i, 750i – early 6-speed models (2005–2008)
  • 7 Series F01 / F02:Early 6-speed models 730d, 740i, 750i (2008–2012)
  • X1 E84:With 6-speed automatic (2009–2015)
  • X3 E83 LCI:With 6-speed automatic (2006–2010)
  • X5 E70:With 6-speed automatic (2006–2013)
  • X6 E71: With 6-speed automatic transmission (2008–2014)
  • Z4 E89: 23i, 30i, 35i (2009–2016)

Land Rover:

  • Discovery 4: Early 6-speed models (2010–2013)
  • Range Rover Sport L320 Facelift: 5.0L V8 and 3.0 TDV6 (2010–2013)
  • Range Rover Vogue L322: 5.0L V8 (2010–2012)
💡
Good to know: The Continental TCM in the ZF 6HP series features a 16-pin connector mounted on the mechatronic unit, located internally within the transmission housing cover. Direct access therefore requires removal of the transmission or the sump pan. Additionally, identical housings have also been supplied with TCU units from other manufacturers. Verify that the unit is genuinely Continental before ordering.

Package contents

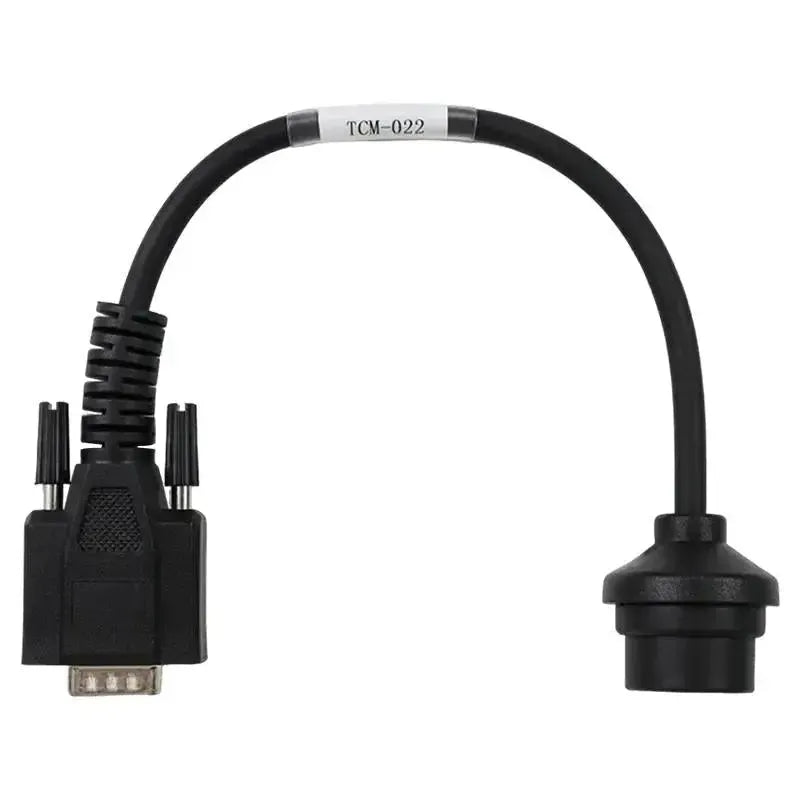

  • 1x OBDSTAR (TCM-022) | Continental (6HP) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification Description
Brand OBDSTAR
Part number TCM-022
Type Adapter cable
Application Reading, programming and calibration of Continental TCM units in ZF 6HP automatic transmissions
Vehicle-side connection Continental (6HP) 16-pin TCM
Device-side connection 15-pin DB15
Communication Direct TCM connection, even when CAN-bus or K-line is unreachable
Control units Continental transmission control unit (TCU) in the mechatronic unit
Segment Passenger vehicle
Supported brands BMW and Land Rover
Model range Models with ZF 6HP automatic transmission featuring Continental mechatronic unit
Required for use OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight 0.1 kg
