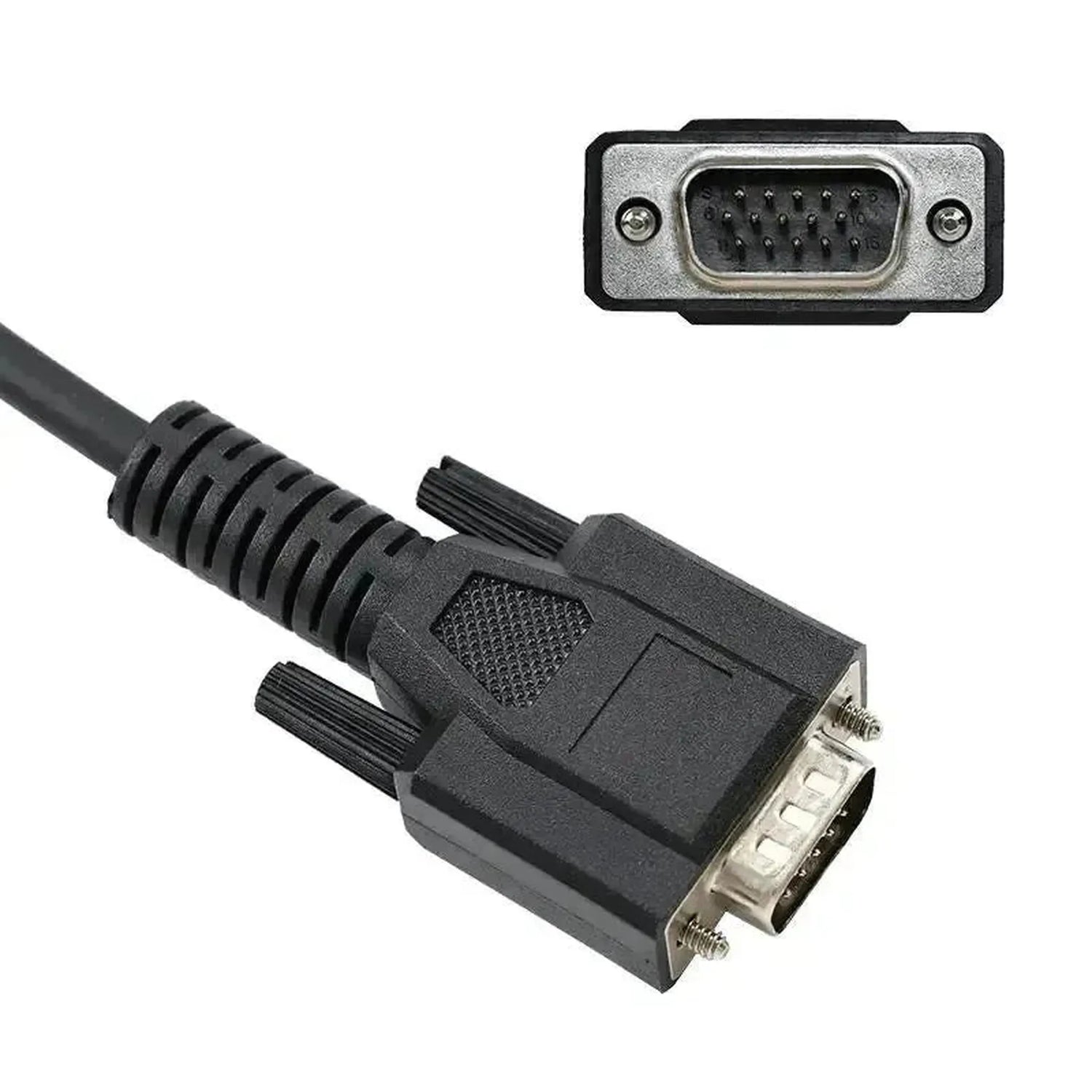

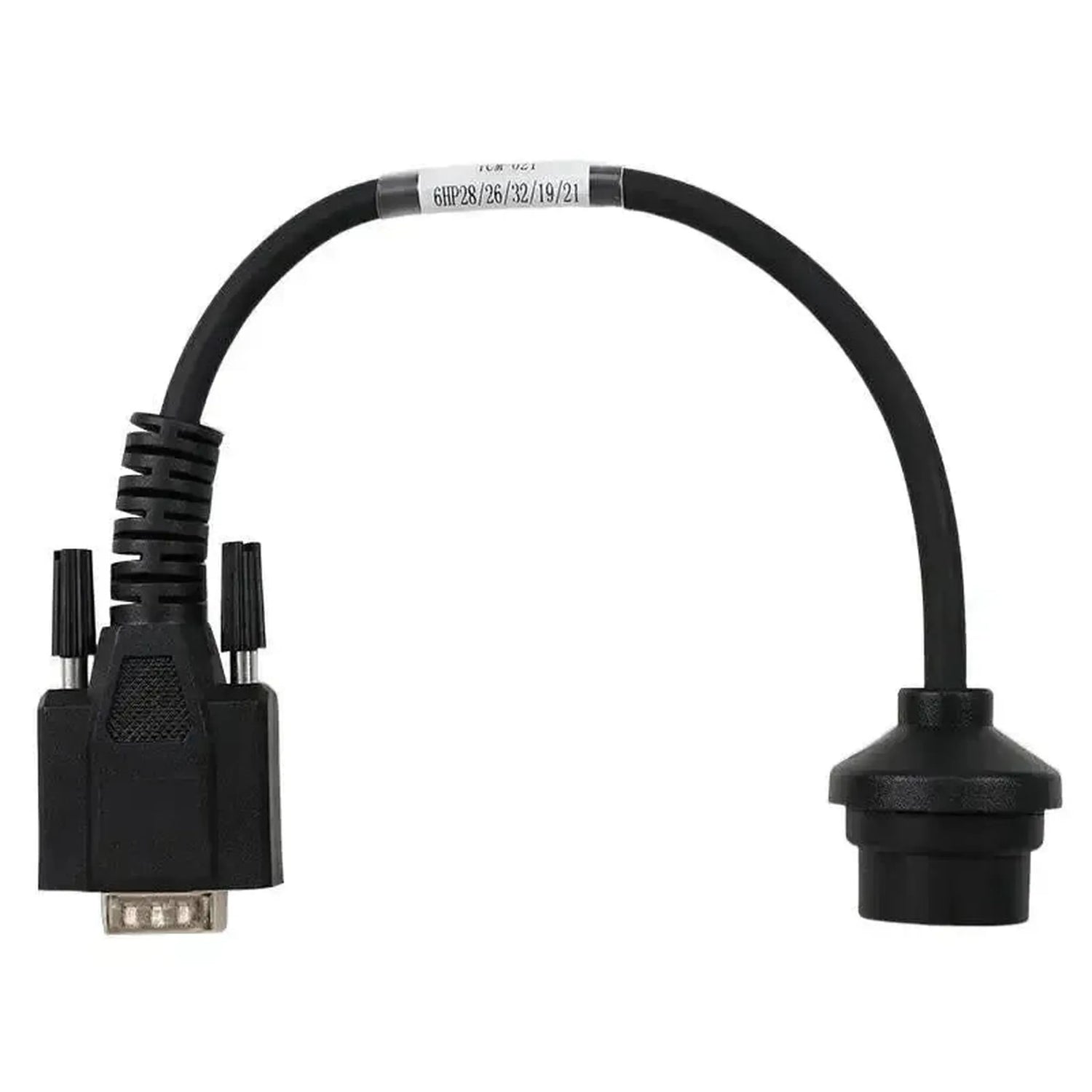

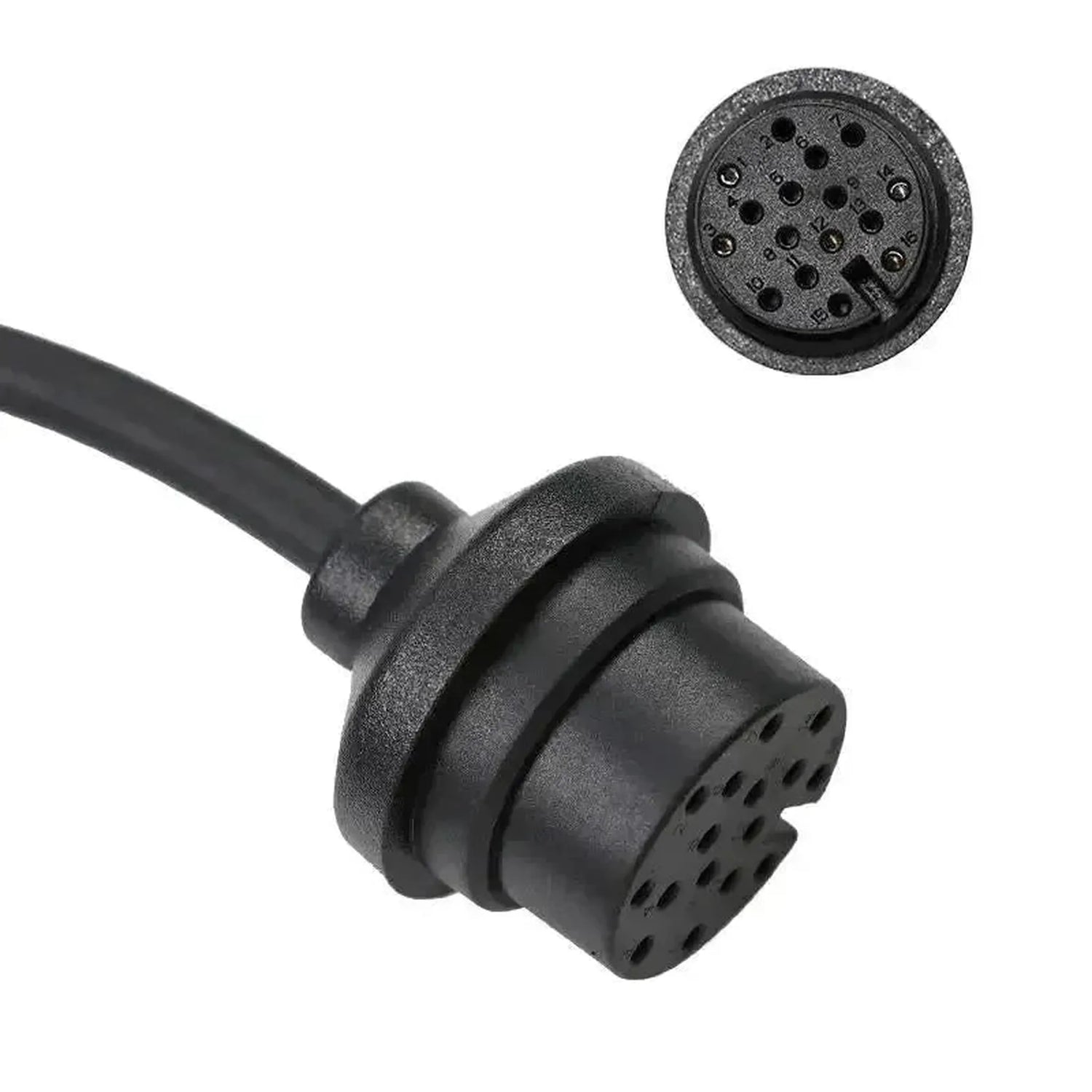

The OBDSTAR TCM-021 adapter cable is designed to establish a direct connection with ZF transmission control units. This cable features a specific 16-pin TCM connector on the mechatronics side and a 15-pin DB15 connection on the hardware side. It enables automatic transmissions of the 6HP type to be connected to OBDSTAR diagnostic devices or programmers for bench diagnostics and data manipulation outside the vehicle.
Within a diagnostic setup, the adapter facilitates stable signal transfer between the transmission control unit and the interface. The wiring configuration is precisely matched to the pin-out of the ZF 6HP series (including the 6HP19, 6HP21, 6HP26, 6HP28, and 6HP32), ensuring correct transmission of CAN-bus communication and power lines. This allows safe reading and writing of module data, provided the cable is combined with the required Converter V2.
ADVANTAGES
ATTENTION POINTS
Applications and functionalities
This adapter cable supports various technical procedures when connected to compatible OBDSTAR equipment on a workbench (bench).
- Transmission diagnosis: Establishing communication to read parameters and fault codes from the TCM.
- Data acquisition: Safely reading and writing EEPROM and flash memory of the transmission control unit.
- Module cloning: Transferring original software and settings to a replacement control unit in case of defects.
Compatible vehicles and applications
This adapter cable is specifically developed for use on ZF 6HP automatic transmission modules (6HP19, 6HP21, 6HP26, 6HP28, and 6HP32), which are installed in vehicles of the brands listed below.
Brand:
- Alpina: Models equipped with ZF 6HP
- Aston Martin: Models equipped with ZF 6HP
- Bentley: Models equipped with ZF 6HP
- BMW: Models equipped with ZF 6HP
- Daimler: Models equipped with ZF 6HP
- David Brown: Models equipped with ZF 6HP
- Ford: Models equipped with ZF 6HP
- Hyundai: Models equipped with ZF 6HP
- Jaguar: Models equipped with ZF 6HP
- Kia: Models equipped with ZF 6HP
- Land Rover: Models equipped with ZF 6HP
- Lincoln: Models equipped with ZF 6HP
- Maserati: Models equipped with ZF 6HP
- Morgan: Models equipped with ZF 6HP
- Rolls Royce: Models equipped with ZF 6HP
- Wiesmann: Models equipped with ZF 6HP
Package Contents
- 1x OBDSTAR (TCM-021) | ZF (6HP19/21/26/28/32) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
