OBDSTAR | SKU: TCM-020

OBDSTAR (TCM-020) | GM (6T70/75/80) 23-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-020) | GM (6T70/75/80) 23-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-020
Price: 31.95 EUR
Availability: InStock

€31,95 incl.

€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

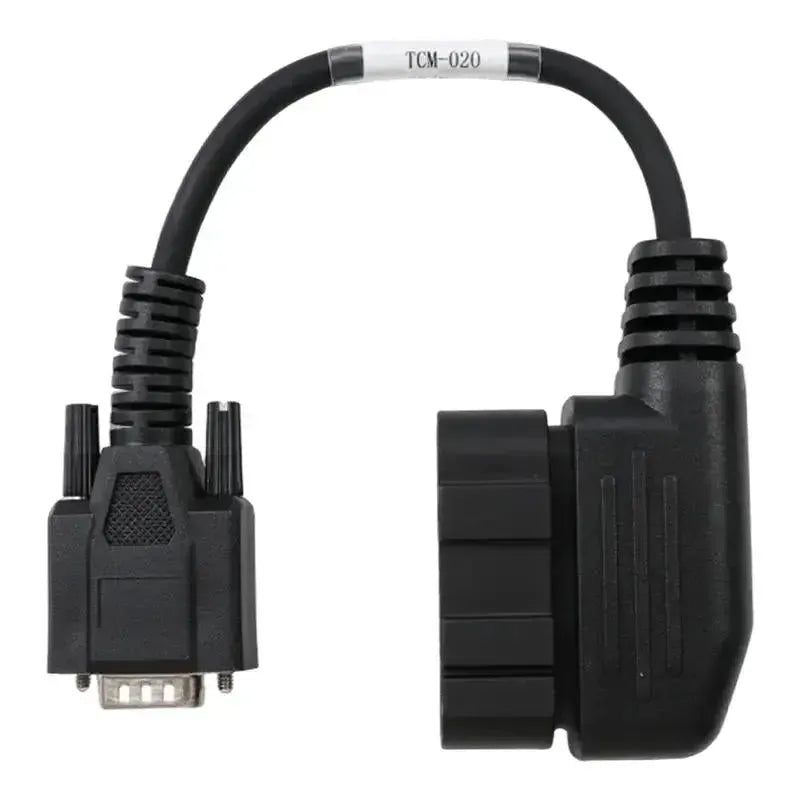

The OBDSTAR TCM-020 is an adapter cable featuring a 23-pin connector on the vehicle side for the transmission module and a 15-pins DB15-connector on the device side. The 23-pin side connects directly to the TEHCM of a GM 6T70, 6T75 or 6T80 Hydra-Matic six-speed automatic transmission — the integrated module housing the transmission computer, solenoids and sensors in a single unit.

Because the TEHCM is an integrated assembly physically located within the gearbox, it has its own 23-pin connector. Via this connector, the cable establishes a bench connection to your OBDSTAR programmer, allowing the module to be read and written outside the vehicle. This means you can perform transmission programming without a running or fully wired vehicle, including GM Generation 1, Gen 2 or Gen 3 modules. The cable is designed exclusively for bench operation: connection via the vehicle's OBD2 port is not possible. It provides access to the transmission module only, and whether reading, programming or cloning is supported depends on your OBDSTAR device's software.

KEY BENEFITS

✔Bench programming — the TEHCM can be accessed without a running or fully wired vehicle.

✔Three transmission variants — 6T70, 6T75 and 6T80 in one cable, compatible with multiple torque ratings and drivetrain configurations.

✔Broad vehicle coverage — applications across Buick, Cadillac, Chevrolet, GMC, Opel / Vauxhall and Saab, roughly manufactured between 2007 and 2020.

✔No intermediate adapters — the 23-pin connector connects directly to the integrated transmission module without additional wiring.

IMPORTANT NOTES

✕OBDSTAR only — the cable is designed for OBDSTAR diagnostic and programming devices and cannot be used with diagnostic equipment from other manufacturers.

✕No extended coverage — the cable provides access to the module; which read and write operations are available depends on your device's software.

✕Module must be removed — the TEHCM is located within the gearbox and must be removed before connection.

✕Not via the OBD2 port — the cable is intended for bench use only and cannot be connected to the vehicle's diagnostic port; longitudinal or other GM automatics outside the 6T70/6T75/6T80 family are not supported.

Applications and functionality

The TCM-020 connects the TEHCM of a GM 6T70, 6T75 or 6T80 transmission to the DB15 port on your OBDSTAR device.

Control units you can access

TEHCM of the GM 6T70/6T75/6T80:The integrated module combining transmission computer, solenoid valves and sensors in a single housing.
Standalone module:The connection is designed for a TEHCM that has been removed from the transmission and placed on the workbench.

What you can do

Read TCM data:Retrieve programming data and calibration parameters from the TEHCM, including software version and transmission configuration.
Programme the TCM:Write new software or calibrations to the module via bench connection, without an active or fully wired vehicle.
Clone the module:Copy the programming from a donor module to a replacement TEHCM within the same transmission family.
Identify the module:Read module-specific data such as Part Number and Calibration ID for verification before and after programming.
Please note:Which operations are actually available depends on your OBDSTAR device's software and licence; the cable only provides the connection.

Compatible vehicles and applications

The transmission type is what matters, not the model.The vehicles listed below are equipped with a GM 6T70, 6T75 or 6T80 Hydra-Matic transmission; only confirmed models and production years are included.

Buick:

Enclave (GMT Lambda):(2008–2017)
LaCrosse:(2010–2016)
Regal (AWD Turbo variants):(2012–2017)

Cadillac:

SRX:(2010–2016)
XT5 (early models):(2017–2019)
XTS:(2013–2019)

Chevrolet:

Captiva / Captiva Sport (V6 variants):(2008–2015)
Equinox (3.0L & 3.6L V6):(2008–2017)
Impala (3.6L V6): (2012–2020)
Malibu (V6 models): (2008–2012)
Traverse: (2009–2017)

GMC:

Acadia: (2007–2016)
Terrain (3.0L & 3.6L V6): (2010–2017)

Opel / Vauxhall:

Antara (3.2 V6 / AWD variants): (2007–2015)
Insignia A (2.8 V6 Turbo OPC / AWD): (2009–2017)

Saab:

9-4X (3.0L & 2.8T V6): (2011)
9-5 II (2.8T V6 Aero XWD): (2010–2011)

💡

Good to know: The GM 6T70, 6T75 and 6T80 transmissions feature an integrated TEHCM that is physically located within the gearbox. For bench programming, this module must first be removed from the transmission; without this removal, you cannot connect the TCM-020. Verify that you can remove the module and that the transmission type is correct before ordering.

Package contents

1x OBDSTAR (TCM-020) | GM (6T70/75/80) 23-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	TCM-020
Type	Adapter cable
Application	Bench reading and programming of the TEHCM for GM 6T70/6T75/6T80 transmissions

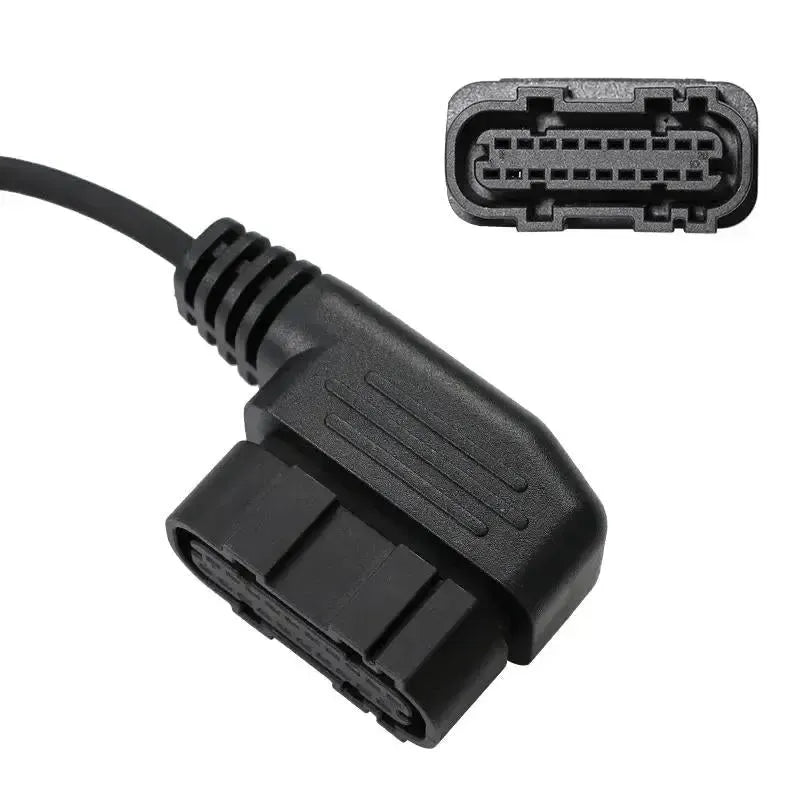

Vehicle-side connection	GM (6T70/75/80) 23-pin TCM

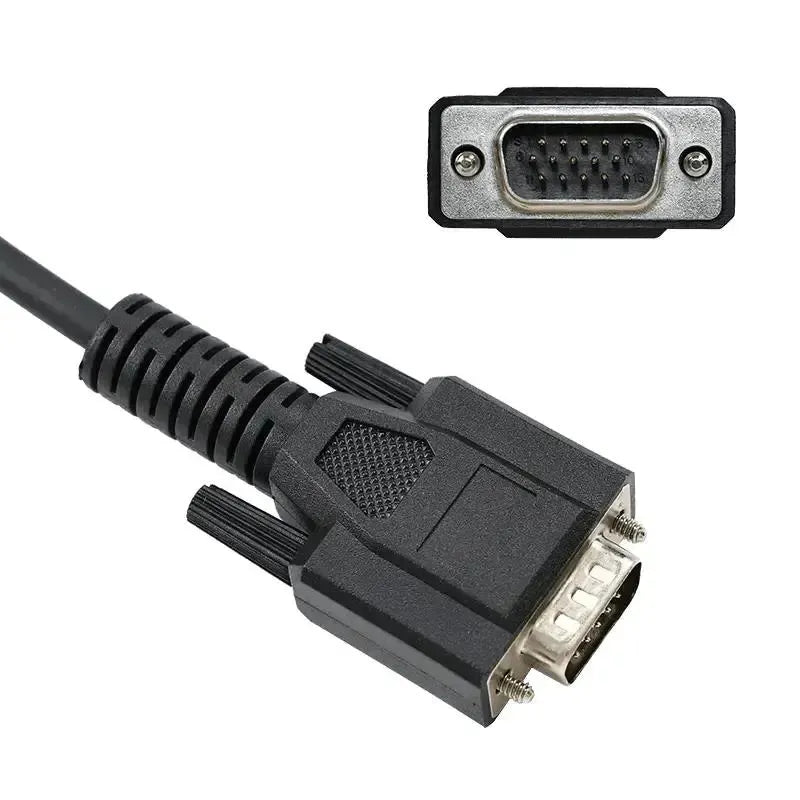

Device connection	15-pin DB15
Control units	Integrated transmission control module (TEHCM)
Segment	Passenger vehicle
Supported manufacturers	Buick, Cadillac, Chevrolet, GMC, Opel / Vauxhall and Saab
Model range	Models equipped with a GM 6T70, 6T75 or 6T80 Hydra-Matic transmission (2007–2020)
Required to use	OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight	0.1 kg
