OBDSTAR  |  SKU: TCM-019

OBDSTAR (TCM-019) | GM (6L45/50/80/90) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€31,95 incl.
€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

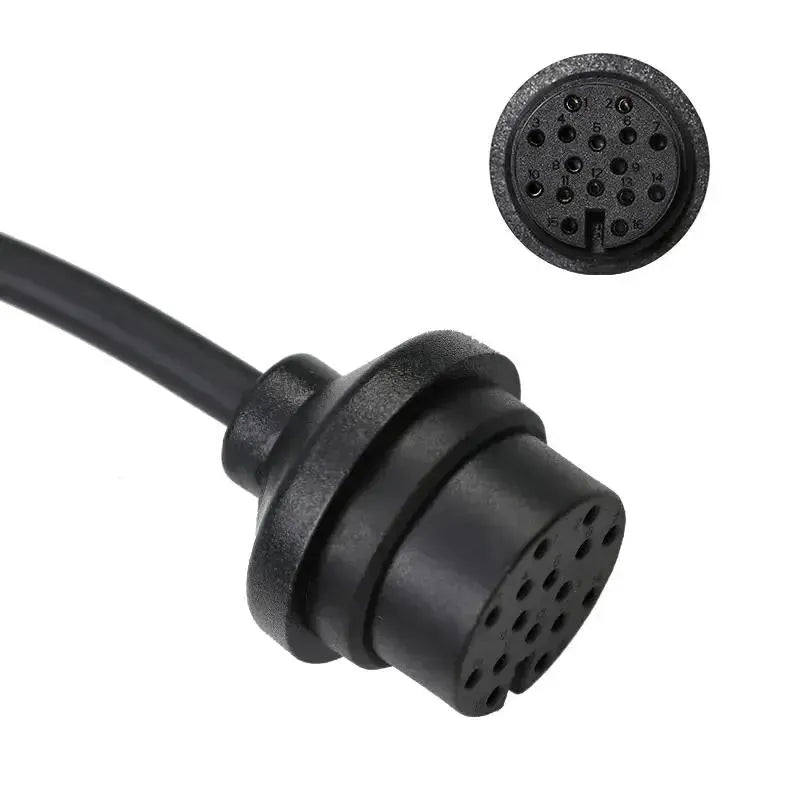

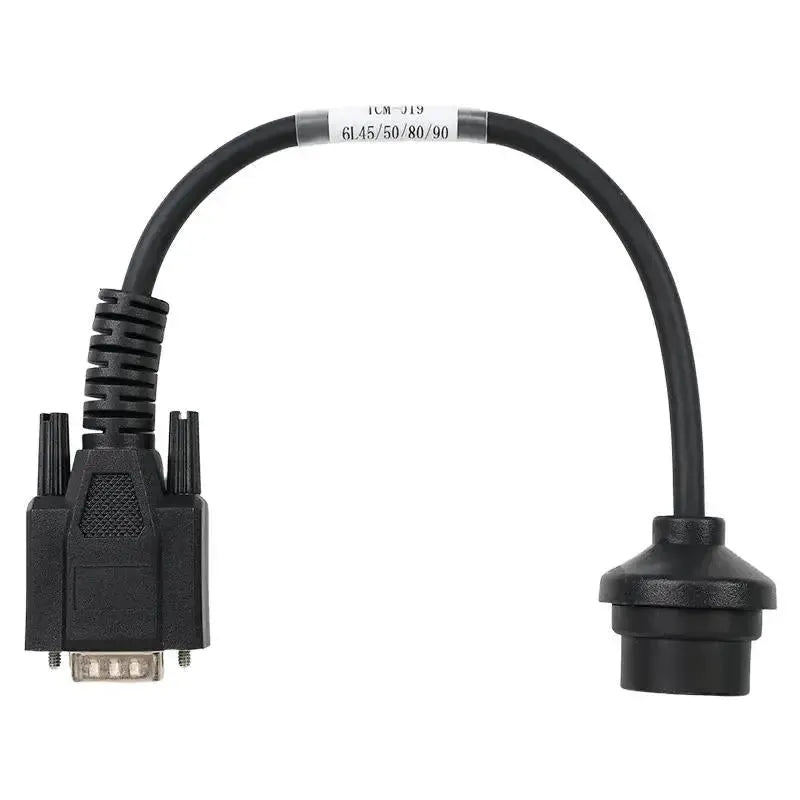

The OBDSTAR TCM-019 is an adapter cable featuring a 16-pin connector on the vehicle side for the transmission control module and a 15-pin DB15-connector on the device side. The 16-pin end connects directly to the TCM connector on the transmission, located on the transmission housing rather than the OBD2 port of the vehicle.

The cable is designed for GM 6L45, 6L50, 6L80 and 6L90 automatic transmissions. This dedicated TCM connection exists because the module must be accessible independently of the vehicle: via the DB15 output, the programmer gains access to functions such as reading and writing calibration data and resetting adaptive values. This approach is used when communication through the standard OBD2 diagnostic cable is insufficient or when the TCM is being programmed on the bench. The cable provides only this connection; it unlocks the transmission control module exclusively and no other modules. Which read, write and reset functions are available depends on the software of your own OBDSTAR device. Other automatic transmissions with a different TCM connector are not compatible with this cable.

KEY BENEFITS

✔Programming without OBD2 — direct connection to the 16-pin TCM connector enables work outside the vehicle diagnostic port.
✔Four transmission types — 6L45, 6L50, 6L80 and 6L90 are all serviced with the same cable type.
✔In-vehicle or bench work — compatible with the TCM installed and with the module removed from the vehicle.
✔Wide vehicle coverage — the GM 6L-series automatic is fitted to Cadillac, Chevrolet, GMC, Holden and BMW models.

LIMITATIONS

✕OBDSTAR only — the DB15 connector requires an OBDSTAR interface; the cable is not compatible with diagnostic equipment from other manufacturers.
✕No additional functionality — the cable establishes the connection, but which TCM functions you can perform depends on your own device's software.
✕Disassembly required — on some vehicles, access to the TCM connector requires partial removal of the centre console tunnel or undercarriage components.
✕6L series only — exclusively for GM 6L45, 6L50, 6L80 and 6L90; automatic transmissions with a different TCM connector are not supported.

Applications and functionality

The TCM-019 connects the transmission control unit of a GM 6L series automatic gearbox to the DB15 port on your OBDSTAR device.

Control units you can access

  • GM 6L transmission control unit: The TCM of the 6L45, 6L50, 6L80 and 6L90 automatic, via the 16-pin connector on the transmission.
  • Removed unit: The same connector can be used when the TCM is removed from the vehicle for bench programming.

What you can do

  • Read TCM data: Retrieve current calibration data, software version and configuration parameters from the control unit.
  • Write TCM data: Write back modified or new calibration files, including for a reconditioned or replacement transmission control unit.
  • Reset adaptation values: Clear stored shift patterns and adaptive learning values, allowing the transmission to relearn after repair or overhaul.
  • Perform bench programming: Programme the TCM outside the vehicle via the direct 16-pin connection, without the vehicle needing to be present.
  • Note: Which operations are actually possible depends on your OBDSTAR device's software and licence; the cable only provides the connection path.

Compatible vehicles and applications

The transmission type is what matters, not the model. The vehicles listed below are equipped with a GM 6L45, 6L50, 6L80 or 6L90 automatic; only confirmed applications are included, with the corresponding gearbox type for each variant.

BMW:

  • 1 Series E81/E82/E87/E88: 125i, 128i (2004–2013) — 6L45
  • 3 Series E90/E91/E92/E93: 323i, 325i, 325xi, 328i, 328xi (2005–2013) — 6L45
  • X1 E84: xDrive25i, xDrive28i (2009–2015) — 6L45
  • X3 E83 LCI: 2.5si, 3.0i, 3.0si (2006–2010) — 6L45

Cadillac:

  • ATS: V6 models (2013–2015) — 6L50
  • CTS / CTS-V: V6 (2008–2015) — 6L50; 6.2L Supercharged V8 (2009–2015) — 6L90
  • Escalade: 6.2L V8 (2007–2014) — 6L80
  • STS / XLR: V6 and V8 Northstar (2006–2011) — 6L50/6L80

Chevrolet:

  • Camaro SS / ZL1: V8 (2010–2015) — 6L80/6L90
  • Caprice PPV / SS: V8 — 6L80
  • Corvette C6: V8 (2006–2013) — 6L80
  • Express: V8 (2008–2020) — 6L80
  • Silverado 1500 / 2500HD / 3500HD: 4.8L, 5.3L, 6.0L, 6.2L V8 (2007–2019) — 6L80/6L90
  • Suburban / Tahoe: 5.3L & 6.2L V8 (2007–2020) — 6L80

GMC:

  • Savana: V8 (2008–2020) — 6L80
  • Sierra 1500 / 2500HD / 3500HD: 4.8L, 5.3L, 6.0L, 6.2L V8 (2007–2019) — 6L80/6L90
  • Yukon / Yukon XL: 5.3L & 6.2L V8 (2007–2020) — 6L80

Holden:

  • Commodore / Ute VE & VF: V6 and V8 models — 6L45/6L50/6L80
💡
Useful to know: The TCM connector on the GM 6L series is mounted directly on the transmission housing. On many passenger vehicles, access is from underneath or only after removing the centre tunnel, so allow time for this work. Verify the vehicle type and TCM connector accessibility before ordering.

Package contents

  • 1x OBDSTAR (TCM-019) | GM (6L45/50/80/90) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification Description
Brand OBDSTAR
Part number TCM-019
Type Adapter cable
Application Read, write and reset the TCM on GM 6L45/50/80/90 automatic transmissions, including bench programming
Vehicle-side connection GM (6L45/50/80/90) 16-pin TCM

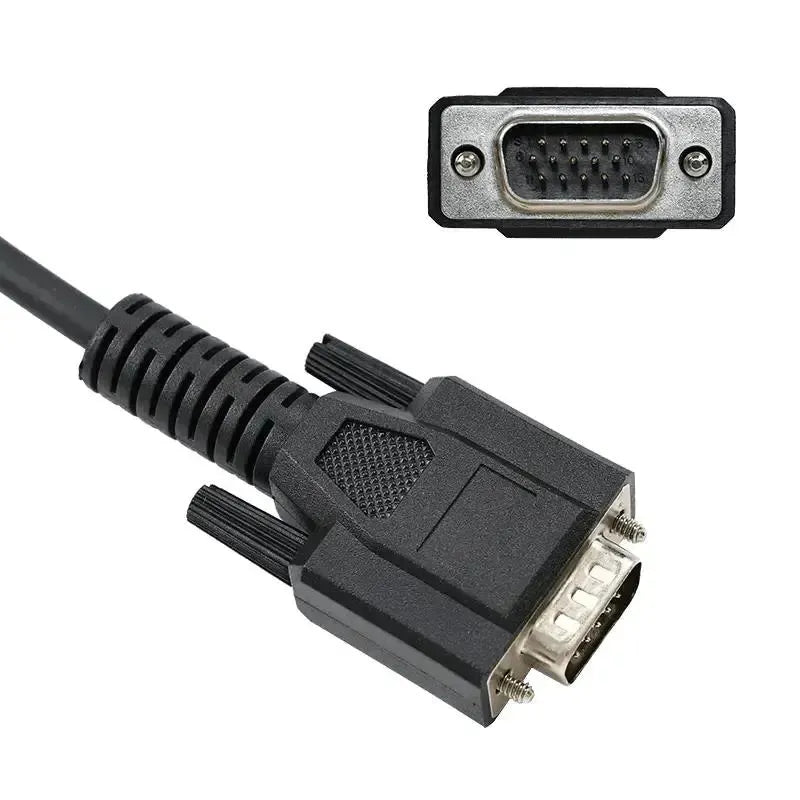

Device-side connection 15-pin DB15
Control units Transmission control module (TCM)
Segment Passenger vehicles
Supported brands BMW, Cadillac, Chevrolet, GMC and Holden
Model range Models equipped with a GM 6L45, 6L50, 6L80 or 6L90 automatic transmission
Required to use OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight 0.1 kg
