OBDSTAR | SKU: TCM-011

OBDSTAR (TCM-011) | Getrag (VGS2-FCVT) 6-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-011) | Getrag (VGS2-FCVT) 6-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-011
Price: 31.95 EUR
Availability: InStock

€31,95 incl.

€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

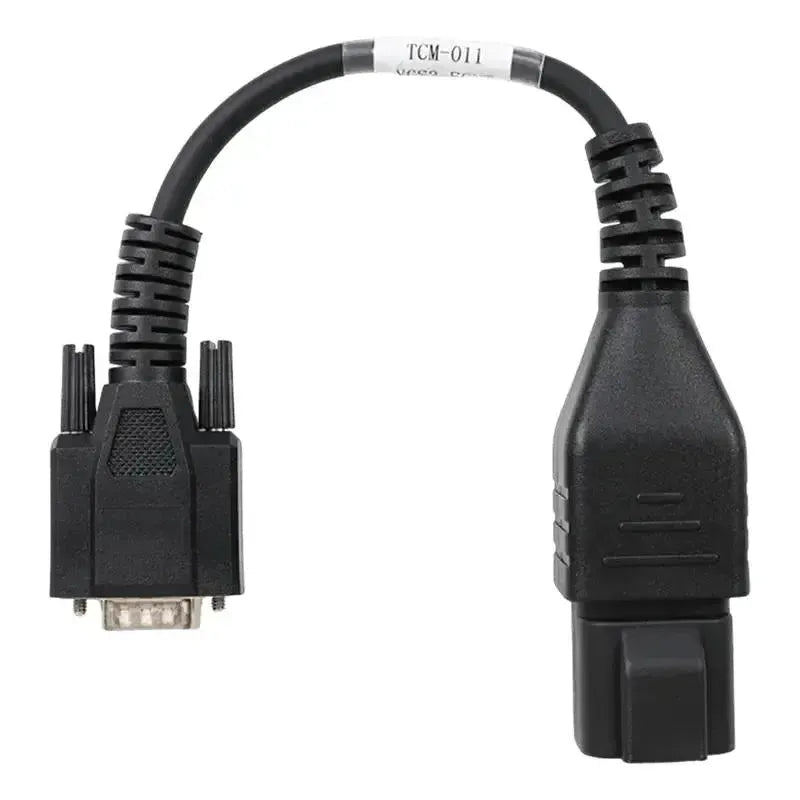

The OBDSTAR TCM-011 is an adapter cable featuring a 6-pin connector on the vehicle side for the Getrag VGS2-FCVT transmission control module and a 15-pin DB15-connector on the device side. The 6-pin side connects directly to the TCM connector, which is located within the transmission itself and becomes readily accessible once the module is removed from the vehicle.

The VGS2-FCVT is the control unit for a continuously variable transmission (CVT) supplied by Getrag for compact Mercedes-Benz-passenger vehicles. Its dedicated 6-pin connection allows targeted access to the module, independent of the OBD2 port and vehicle network. This is precisely what is required for operations such as cloning or reprogramming the TCM outside the vehicle. The cable length and connector configuration are designed for workshop use. The cable provides access exclusively to this CVT control unit and no other modules. Which TCM functions you can perform depends on the connected OBDSTAR device and its corresponding software version; the cable itself does not add vehicle coverage.

KEY BENEFITS

✔Direct connection — contact with the Getrag VGS2-FCVT TCM without reliance on the OBD2 port or vehicle network.

✔Correct connector — the plug matches the 6-pin connection of the VGS2-FCVT, ensuring a mechanically sound connection.

✔Off-vehicle operation — suitable for TCM programming on a module removed from the vehicle and placed on the workbench.

✔Workshop-ready design — cable length and construction are optimised for workshop environments.

IMPORTANT NOTES

✕OBDSTAR only — the DB15 side is designed for OBDSTAR diagnostic devices and programmers; equipment from other manufacturers cannot be connected.

✕No additional coverage — available TCM functions depend on the connected OBDSTAR device and its software version, not on the cable.

✕Module must be removed — the 6-pin connector is located on the transmission; in practice, you will remove the module from the vehicle first.

✕Single transmission type — for vehicles with the Getrag VGS2-FCVT only; other transmission types or control modules are not supported.

Applications and functionality

The TCM-011 connects the Getrag VGS2-FCVT transmission control unit to the DB15 port of your OBDSTAR device.

Control units you can access

Getrag VGS2-FCVT TCM: The continuously variable transmission control unit, via the 6-pin connector on the module.
This module only: Other control units in the vehicle cannot be reached with this cable.

What you can do

Read TCM data: Retrieve the current programming data and configuration settings from the control unit.
Clone TCM: Copy the complete contents of an original module to a replacement unit, preserving the transmission settings.
Reprogram TCM: Overwrite or update the software via direct connection to the 6-pin connector, independent of the vehicle network.
Convert signal to DB15: Transmit the 6-pin TCM signal to the DB15 port of the device for stable data transfer.
Note: Which of these operations are possible depends on the software version of your OBDSTAR device; the cable provides the connection only.

Compatible vehicles and applications

The presence of the Getrag VGS2-FCVT transmission is the determining factor, not the model. Only vehicles with this specific transmission control unit are compatible; the variants listed below were supplied with it.

Mercedes-Benz:

A-Class W169 – A 150 / A 160 (Petrol): (2004–2012)
A-Class W169 – A 170 / A 180 (Petrol): (2004–2012)
A-Class W169 – A 200 / A 200 Turbo (Petrol): (2004–2012)
A-Class W169 – A 160 CDI / A 180 CDI / A 200 CDI (Diesel): (2004–2012)
B-Class W245 – B 150 / B 160 (Petrol): (2005–2011)
B-Class W245 – B 170 / B 180 / B 180 NGT (Petrol / Natural Gas): (2005–2011)
B-Class W245 – B 200 / B 200 Turbo (Petrol): (2005–2011)
B-Class W245 – B 180 CDI / B 200 CDI (Diesel): (2005–2011)

💡

Important information: The VGS2-FCVT control unit is located within the transmission itself. The 6-pin TCM connector is only directly accessible after the module has been removed from the vehicle, so you should allow for disassembly work before you can make the connection. Verify that the vehicle is equipped with the VGS2-FCVT and that you can remove the module before ordering.

Package contents

1x OBDSTAR (TCM-011) | Getrag (VGS2-FCVT) 6-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	TCM-011
Type	Adapter cable
Application	Reading, cloning and reprogramming of the Getrag VGS2-FCVT transmission control unit

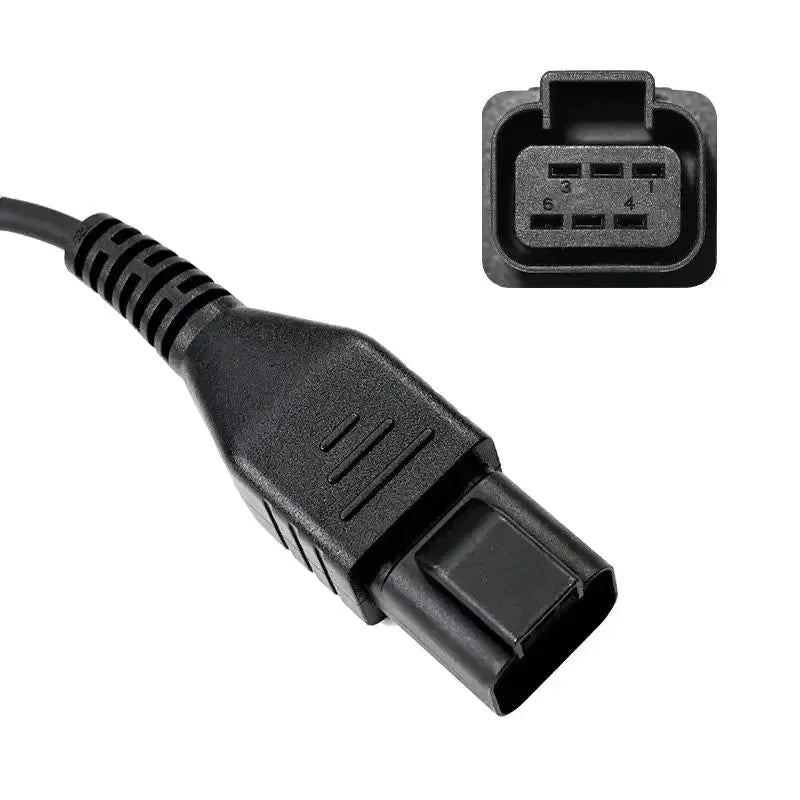

Vehicle-side connector	Getrag (VGS2-FCVT) 6-pin TCM

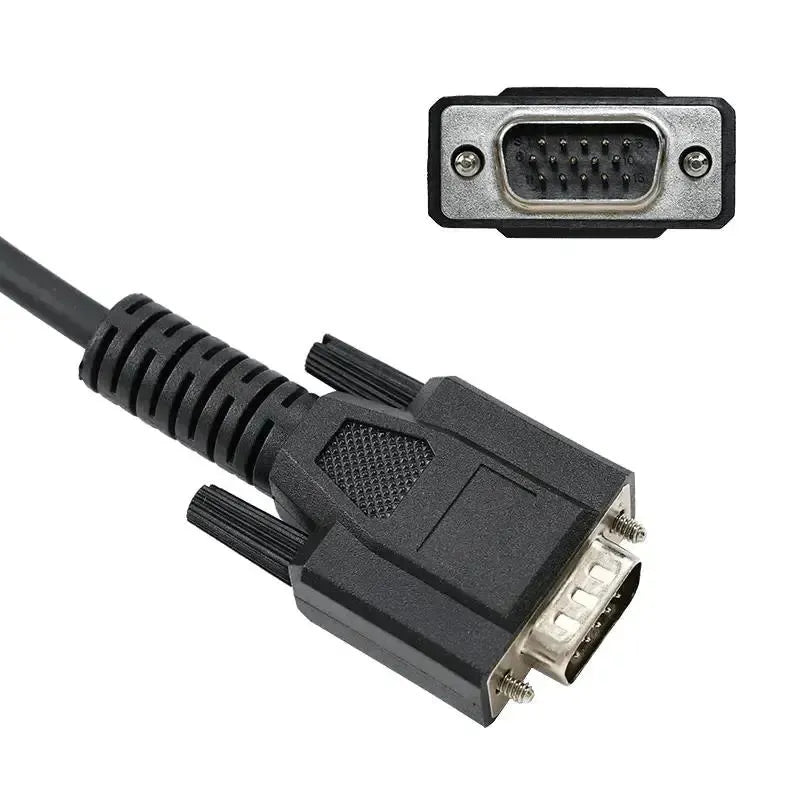

Device-side connector	15-pin DB15
Control units	Continuously variable transmission (CVT) control module (TCM)
Segment	Passenger vehicle
Supported brands	Mercedes-Benz
Model range	Mercedes-Benz A-Class W169 (2004–2012) and B-Class W245 (2005–2011) with VGS2-FCVT
Required to use	OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Weight	0.1 kg
