OBDSTAR | SKU: TCM-003

OBDSTAR (TCM-003) | Temic (DL501) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-003) | Temic (DL501) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-003
Price: 31.95 EUR
Availability: InStock

€31,95 incl.

€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

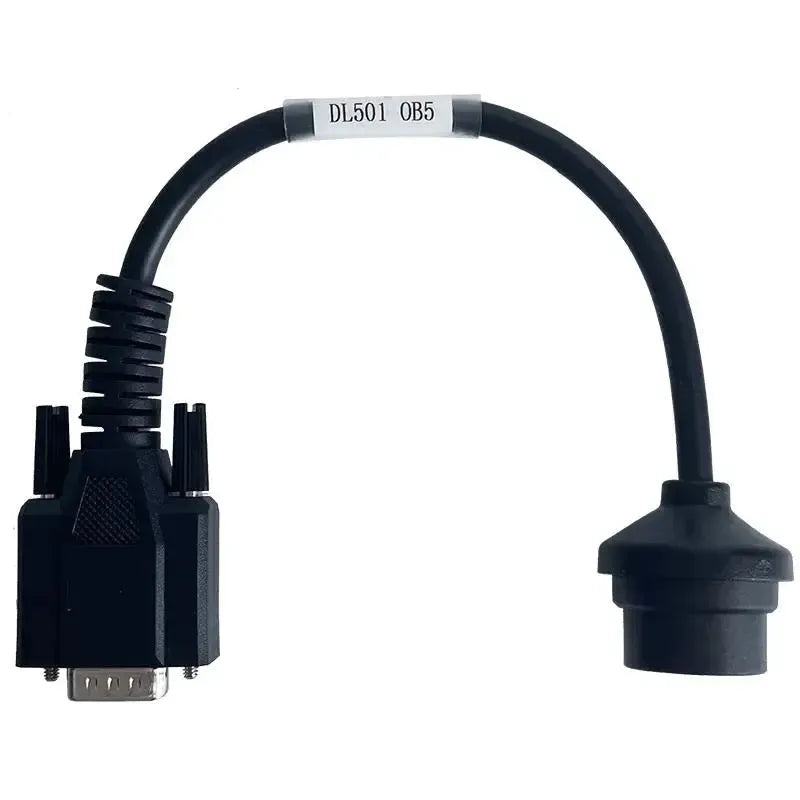

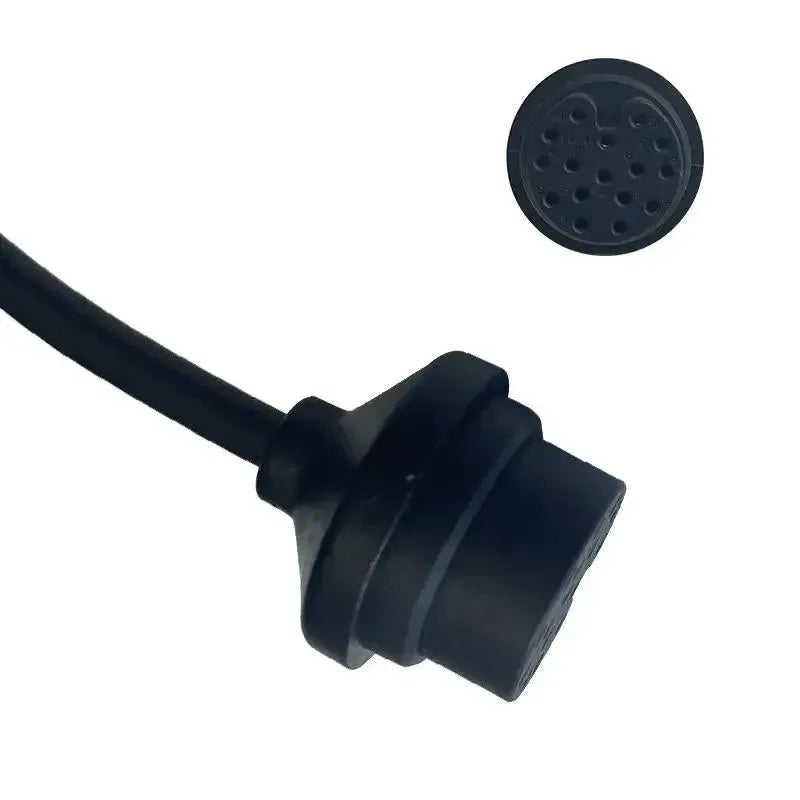

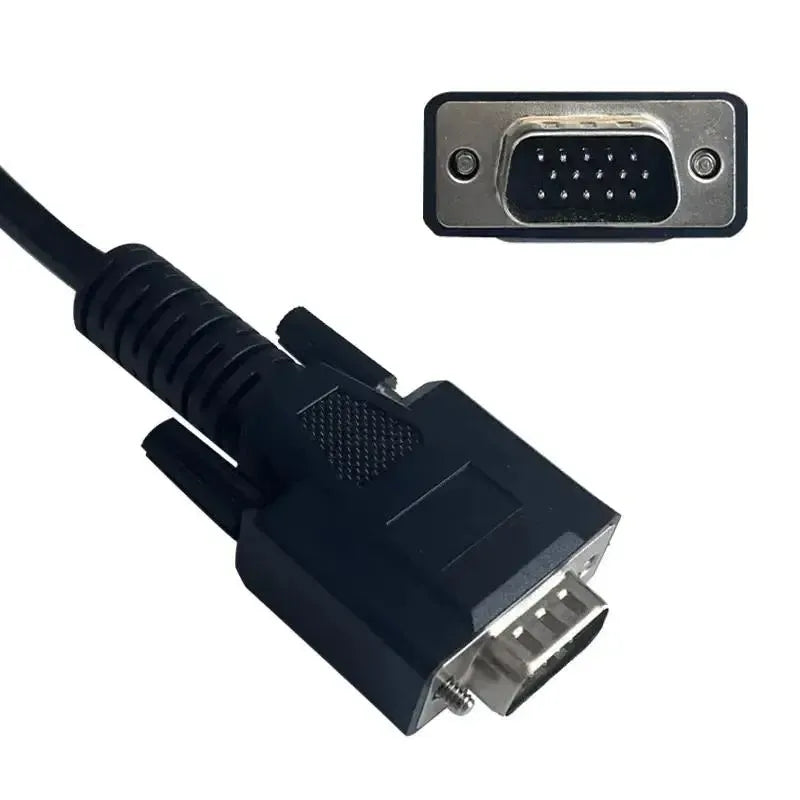

The OBDSTAR TCM-003 connects the 16-pin TCM connector on the Temic DL501 (0B5) on the vehicle side to a 15-pin DB15 connector on the device side. The cable connects directly to the transmission control unit, which is mounted directly on the transmission.

The DL501 is the seven-speed S-tronic dual-clutch automatic gearbox fitted to various Audi Quattro models from the Volkswagen Group. With this cable, OBDSTAR software gains direct access to the memory contents of the control unit, bypassing the standard OBD2 port. The cable construction follows the pinout of the DL501 TCM connector, so no additional adapters are required. The cable makes the unit accessible; reading and reprogramming are functions of your own programmer. It is important to distinguish by gearbox type: the same model series also features the ZF 8HP automatic, which this cable does not support. The model list below specifies the production years and engine options for each model.

ADVANTAGES

✔Direct TCM access — the DL501 connector is accessed directly, without involvement of the standard OBD2 port.

✔Pinout-specific — the construction is tailored to the DL501 (0B5), preventing signal mismatches.

✔Multiple Quattro models — suitable for TCM reading and reprogramming across various Audi Quattro variants.

✔Production years and engines specified — for each model, both the production year range and corresponding engine options are documented.

IMPORTANT NOTES

✕OBDSTAR only — the cable works with OBDSTAR diagnostic devices and programmers, not with equipment from other manufacturers.

✕No additional functionality — what can be read or written is determined by your programmer's software, not by the cable.

✕Confusion with the ZF 8HP — in the same model series, including after facelift, the ZF 8HP automatic transmission is also fitted; this falls outside the scope of this cable.

✕DL501 (0B5) only — other TCM types or transmission manufacturers require a different cable.

Applications and functionality

With a compatible OBDSTAR device, the cable supports the following operations on the DL501 control unit.

Control units you can access

Transmission control module (TCM) Temic DL501: Connected directly via the 16-pin connector on the transmission.
No other vehicle systems: The connection is exclusively for the transmission control module.

What you can do

Read TCM data: Retrieve current software and calibration data from the DL501 S-tronic via the direct 16-pin connection.
Reprogram TCM: Write new software data or calibrations back, for example after unit replacement or for software corrections.
Adapt pinout: Convert the 16-pin DL501 connection to the 15-pin DB15 interface of your equipment.
Determine transmission type: Verify whether the vehicle is fitted with a DL501 and not the ZF 8HP.
Important: Verify the transmission type before connection; both automatic transmissions are found within the same model series.

Compatible vehicles and applications

The determining factor is the Temic DL501 (0B5) with 16-pin TCM connector, not the model or year of manufacture in itself. The vehicles listed below are equipped with this seven-speed S-tronic transmission. Always verify the transmission type before use, as other automatic transmissions are also found within the same model series.

Audi:

A4 (B8 / Type 8K): (2008–2015) — engines: 2.0 TFSI Quattro, 3.0 TFSI Quattro, 2.0 TDI Quattro, 3.0 TDI Quattro
A5 / S5 / RS5 (Type 8T / 8F): (2008–2016) — Quattro models with 2.0 TFSI/TDI up to 3.0 TFSI/TDI, S5 V6T/V8 and RS5 4.2 V8
A6 / S6 (C7 / Type 4G): (2011–2014) — engines: 2.8 FSI, 3.0 TFSI Quattro, 3.0 TDI Quattro (up to 272 bhp; heavier BiTDI uses ZF 8HP)
A7 / S7 Sportback (Type 4G8): (2010–2014) — engines: 2.8 FSI, 3.0 TFSI Quattro, 3.0 TDI Quattro
Q5 / SQ5 (Type 8R): (2008–2012/2013) — engines: 2.0 TFSI, 2.0 TDI, 3.0 TDI Quattro (after 2012/2013 facelift, various versions switched to ZF 8HP)
S4 / RS4 (B8 / Type 8K): (2009–2015) — engines: 3.0 V6 Supercharged (S4), 4.2 V8 naturally aspirated (RS4)

💡

Good to know: The Temic DL501 TCM connector connects directly to the transmission, and the DL501 and ZF 8HP appear in the same model series. Verify the transmission type using the vehicle identification number or the type plate on the gearbox before ordering.

Package contents

1x OBDSTAR (TCM-003) | Temic (DL501) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	TCM-003
Type	Adapter cable
Application	Direct TCM access to the Temic DL501 (0B5) outside the OBD2 port
Vehicle-side connection	Temic (DL501) 16-pin TCM
Device-side connection	15-pin DB15
Control units	DL501 transmission control unit (TCM)
Segment	Passenger vehicle
Supported brands	Audi
Model range	Audi 2008–2016, varies by model (see model list)
Required to use	OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Additionally required	Physical access to the TCM on the transmission
Weight	0.1 kg
