OBDSTAR | SKU: TCM-002A / 7.38.1

OBDSTAR (TCM-002A) | Temic (DQ250) 20-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-002A) | Temic (DQ250) 20-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-002A / 7.38.1
Price: 29.95 EUR
Availability: InStock

€29,95 incl.

€24,75 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

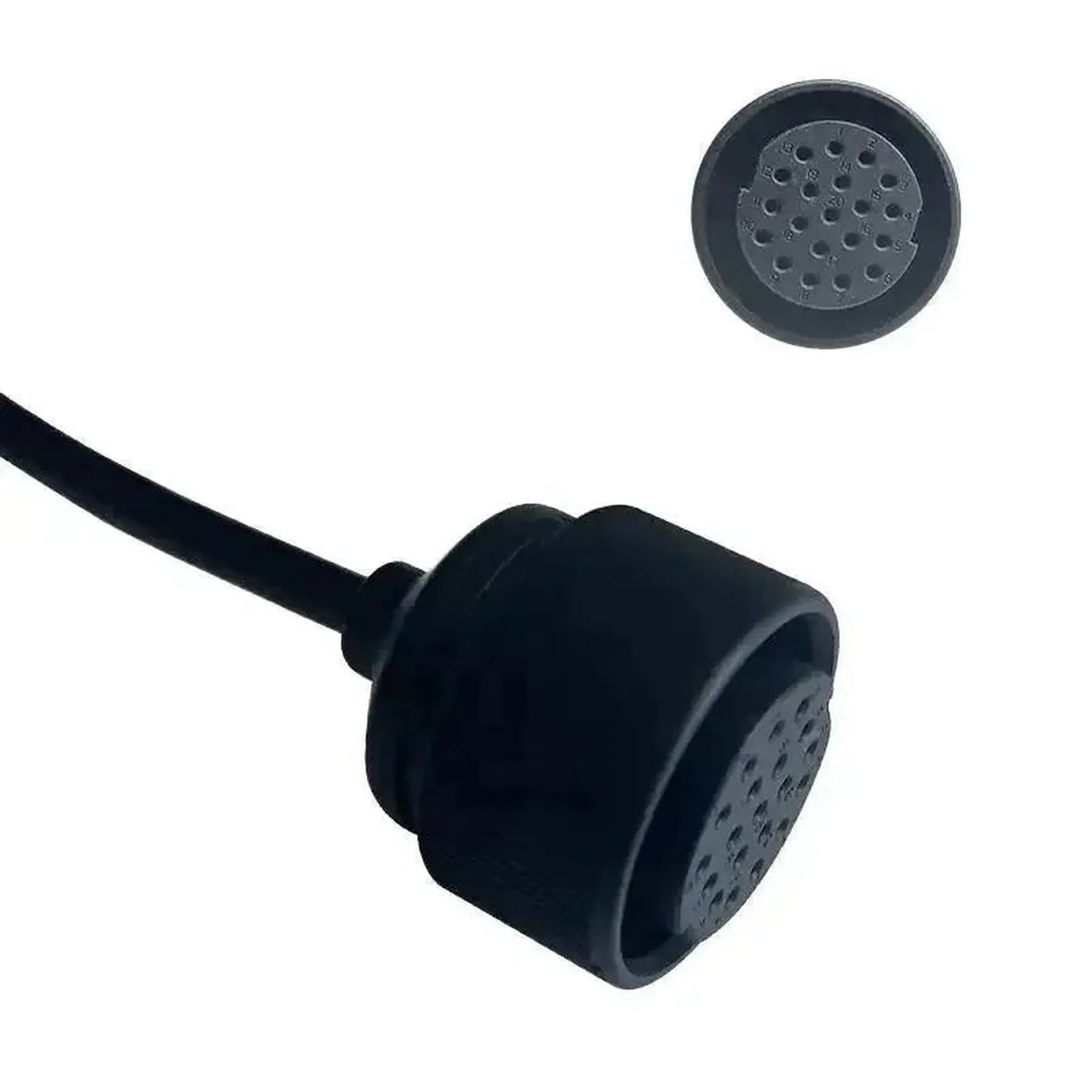

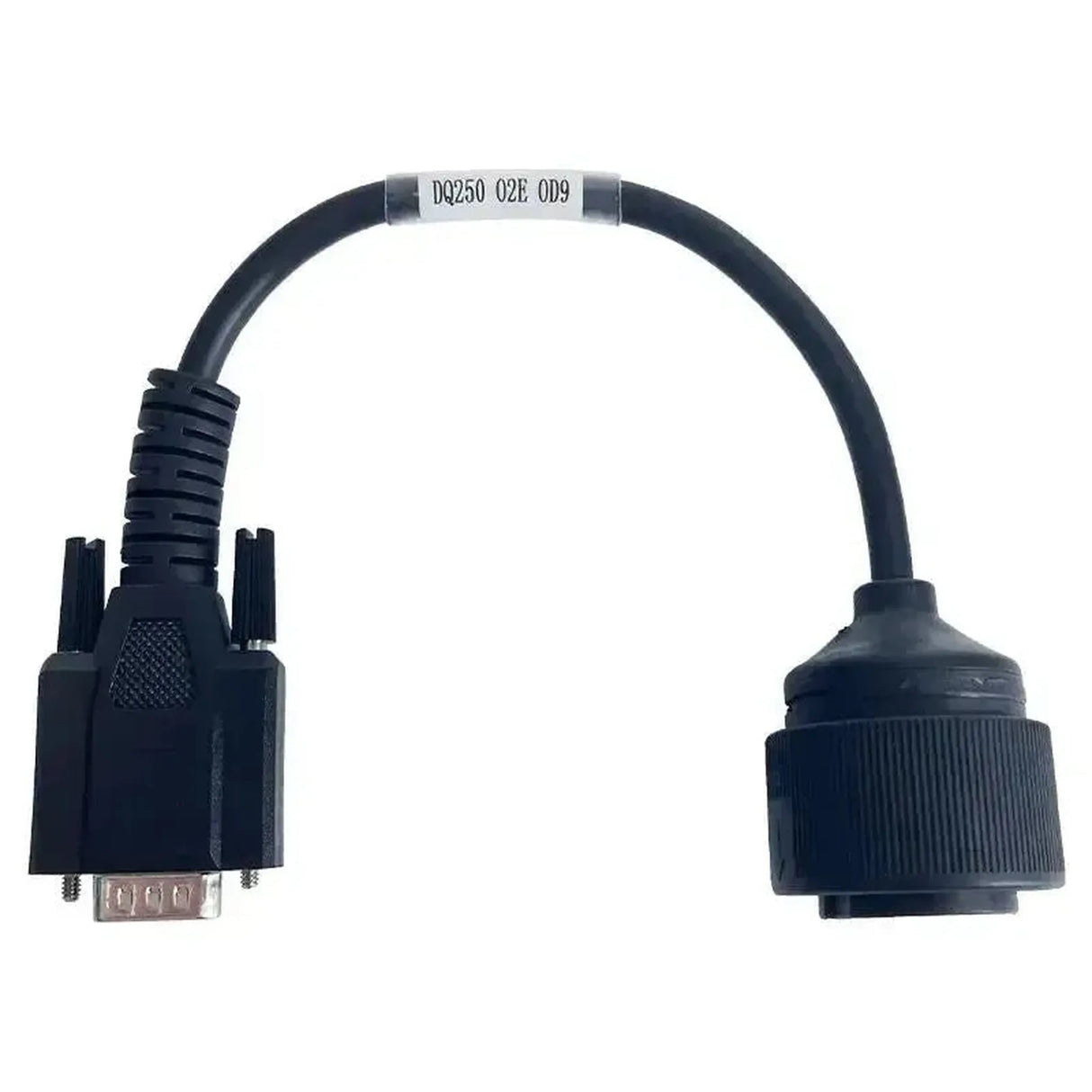

The OBDSTAR TCM-002A adapter cable is designed to establish a direct connection between a 15-pin DB15 interface and the 20-pin connector of Temic DQ250 transmission control units (TCM). This cable enables communication with specific DSG transmissions from the VAG group outside the vehicle, via a bench setup.

When used in a programming environment, the adapter facilitates stable signal transfer for reading and writing TCU data. The pin-out is precisely matched to the power and CAN bus lines of the DQ250 modules (including the 02E, 0D9, and CXX revisions), ensuring safe and interference-free data transfer. According to brand specifications, this cable is exclusively compatible with OBDSTAR programmers and reading devices.

ADVANTAGES

✔ Specifically designed for Temic DQ250 transmission modules.

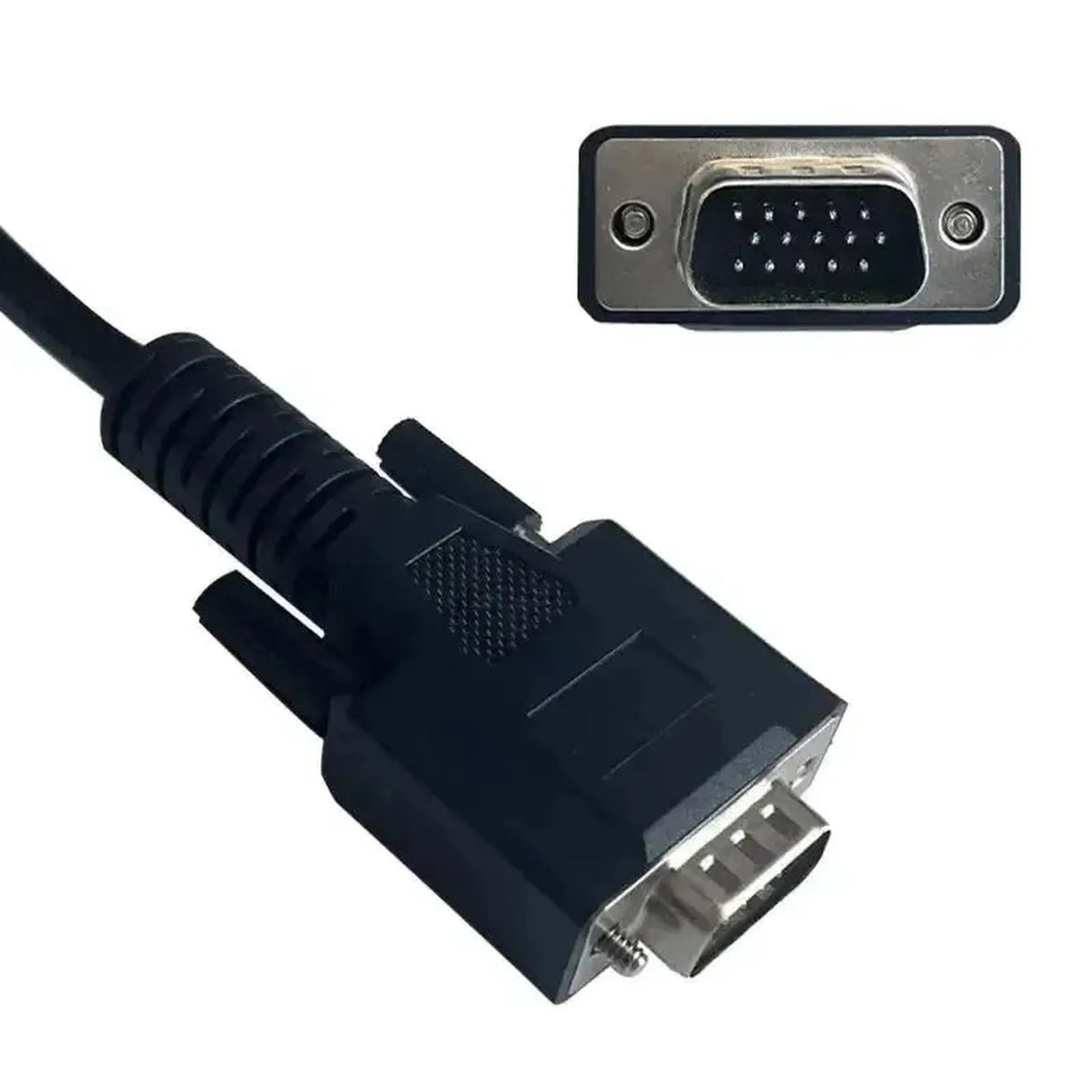

✔ Equipped with a robust 15-pin DB15 connector for hardware communication.

✔ Enables safe and direct bench programming without the vehicle wiring harness.

✔ Supports data transfer for the known 02E, 0D9, and CXX revisions.

ATTENTION POINTS

✕ Only compatible with OBDSTAR programmers and devices.

✕ Not suitable for diagnostics via the standard OBD2 port inside the vehicle.

✕ Requires disassembly of the TCM or direct access to the transmission connector.

Applications and functionalities

This adapter cable supports various technical procedures for managing transmission software, depending on the OBDSTAR device used.

TCU Cloning: Copying the complete datasets from the original to a replacement transmission module.
EEPROM & Flash reading/writing: Direct access to the TCU memory for software updates or parameter changes.
Bench diagnostics: Performing active communication tests with the module outside the vehicle infrastructure.

Compatible vehicles and applications

This adapter cable is specifically designed for Temic DQ250 transmission modules (6-speed DSG), installed in vehicles of the VAG group.

Audi:

A3 8P / 8V: (2003 - 2020)
TT 8J / 8S: (2006 - 2020)

Seat:

Leon 1P / 5F: (2005 - 2020)

Skoda:

Octavia 1Z / 5E: (2004 - 2020)

Volkswagen:

Golf MK5 / MK6 / MK7: (2003 - 2020)
Passat B6 / B7 / B8: (2005 - 2020)

💡

Good to know: When flashing or cloning a DQ250 module via bench, always ensure a stabilized power supply. Voltage drops during the writing process can lead to corruption of the EEPROM data.

Package Contents

1x OBDSTAR (TCM-002A) | Temic (DQ250) 20-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
