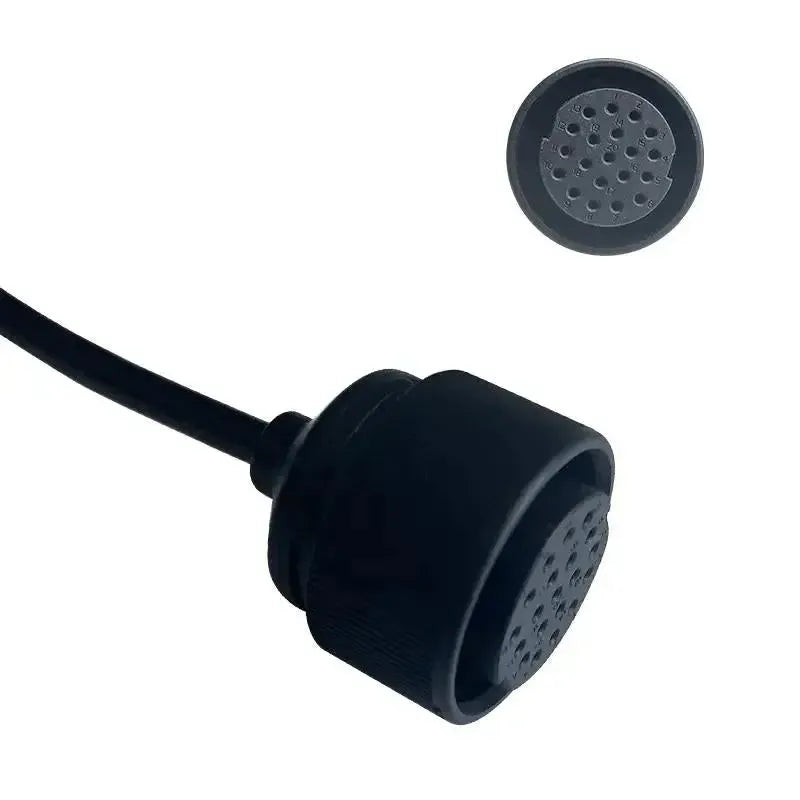

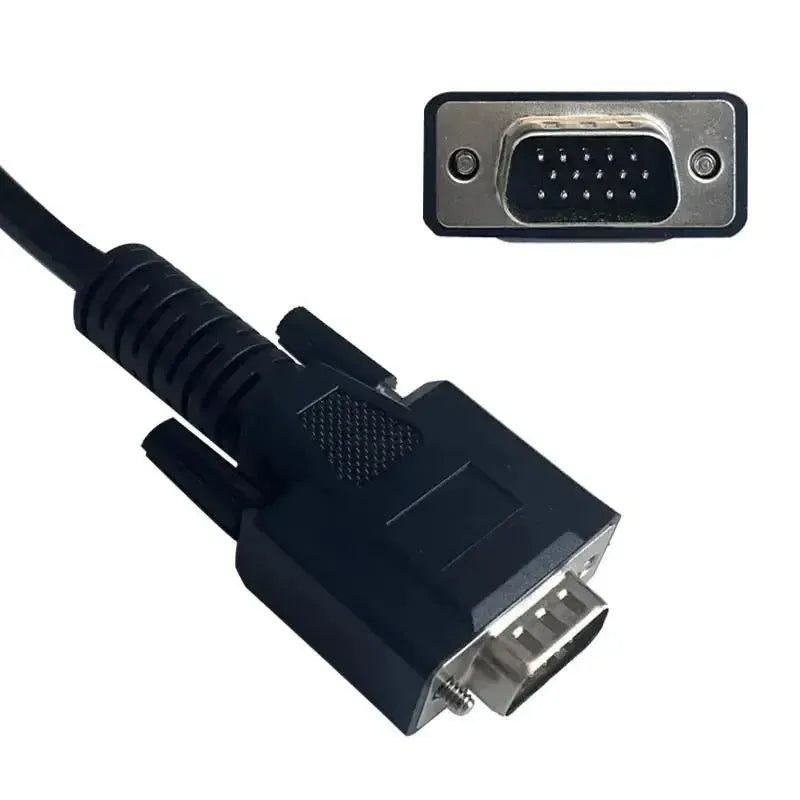

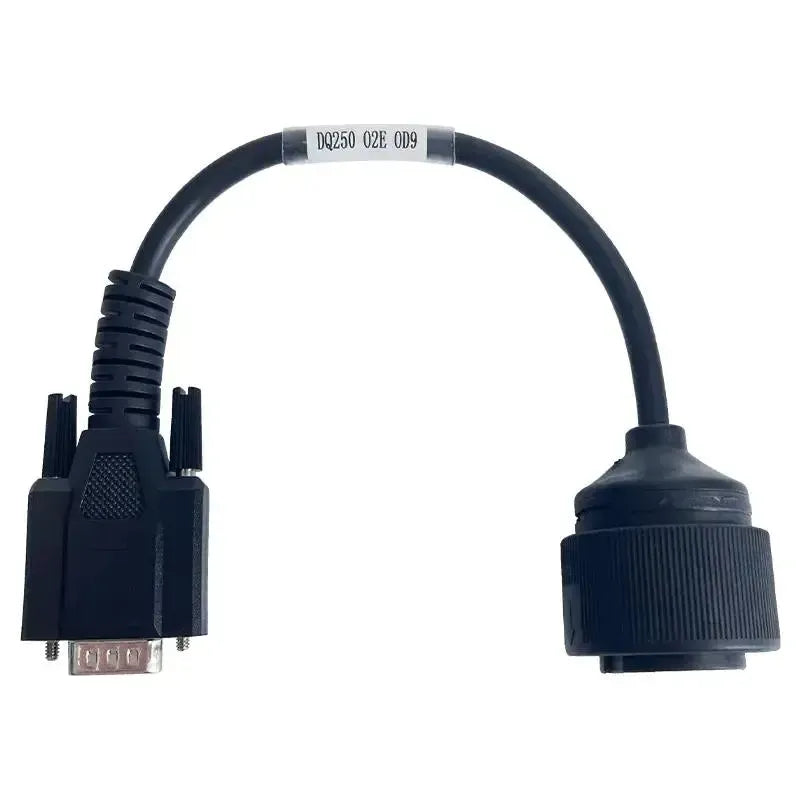

The OBDSTARTCM-002A connects the 20-pin Temic TCM connector for the DQ250at the vehicle end with a15-pin DB15 connectorat the device end. The round 20-pin connector connects directly to the transmission control module socket, which is located in or near the transmission housing.
\nThe DQ250 (02E/0D9/CXX) is the wet six-speed DSG transmission fitted in the Volkswagen This group platform was applied in both petrol and diesel versions. This cable operates outside the standard OBD2 port to: once connected to the factory connector, signal transmission occurs for the reading out or reprogramming TCM data. Direct access to the transmission control module in the vehicle is a prerequisite for this. The cable establishes the connection; the operations are performed by your software programmer. Note the limitation: this cable is specific to the DQ250 and is not compatible with other DSG transmissions such as the DQ381 or DQ500. The vehicle models listed below are specified with engine type but without production years.\n
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
With a compatible OBDSTAR programmer, the cable supports the following operations on the DQ250 control module.
Control units you can access
- Transmission control module (TCM) Temic DQ250: Addressed directly via the 20-pin round connector.
- No other systems: The connection operates outside the vehicle network and does not reach any other control units.
What you can do
- Read TCM data: Retrieve stored calibration data, fault codes and configuration parameters directly.
- Reprogram the TCM: Write new software versions or calibration files to the unit, for example following replacement or a software update.
- Clone TCM contents: Read the complete memory contents and transfer to a replacement unit for reinitialisation.
- Verify gearbox type: Confirm from the retrieved data that it is a DQ250.
- Note: The source does not specify production years per model; rely on the gearbox type designation and the 20-pin connector.
Compatible vehicles and applications
The determining factor is the Temic DQ250 (02E/0D9/CXX) with 20-pin TCM connection, not the model or engine variant. The vehicles listed below are confirmed to have this transmission and connector. Production years are not broken down in the source; other gearboxes are also found within the same series.
Audi:
- A3 / S3 — 8P & 8V: (2.0 TFSI, S3, 3.2 V6, 2.0 TDI)
- Q3 — 8U: (early 2.0 TFSI / 2.0 TDI models)
- TT / TTS — 8J & 8S: (2.0 TFSI, TTS, 3.2 V6)
Seat & Cupra:
- Altea / Toledo / Alhambra: (2.0 TDI)
- Cupra Ateca: (early models)
- Leon — 1P & 5F: (FR, Cupra, Cupra R, 2.0 TDI)
Škoda:
- Karoq: (early 2.0 TDI variants)
- Kodiaq: (early 2.0 TDI variants)
- Octavia — 1Z & 5E: (vRS petrol/diesel, 2.0 TDI)
- Superb — 3T & 3V: (2.0 TDI, 2.0 TSI, 3.6 V6)
Volkswagen:
- Arteon: (early 2.0 TDI / 2.0 TSI models prior to DQ381)
- Caddy: (1.9 TDI through to later 2.0 TDI models)
- Golf — 5, 6 & 7: (GTI, GTD, R, R32, 2.0 TSI, 2.0 TDI)
- Passat — B6, B7, B8 & CC: (2.0 TDI, 2.0 TSI, 3.2 V6, 3.6 FSI)
- Scirocco: (2.0 TSI, R, 2.0 TDI)
- Tiguan — I: (early 2.0 TDI / 2.0 TSI 6-speed DSG models)
- Touran / Sharan: (virtually all 2.0 TDI versions)
Package contents
- 1x OBDSTAR (TCM-002A) | Temic (DQ250) 20-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | TCM-002A |
| Type | Adapter cable |
| Application | Direct TCM access to the Temic DQ250 (02E/0D9/CXX) bypassing the OBD2 port |
| Vehicle-side connection | Temic (DQ250) 20-pin TCM |
| Device-side connection | 15-pin DB15 |
| Control units | DQ250 transmission control module (TCM) |
| Segment | Passenger vehicle |
| Supported manufacturers | Audi, Seat & Cupra, Škoda and Volkswagen |
| Model range | VW Group models with DQ250 and 20-pin TCM connection; production years not specified |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Additional requirements | Physical access to the transmission control module; possible removal of trim panels |
| Weight | 0.1 kg |
