Discover similar products: OBDSTAR, Vehicle OBD Extension Cables & Adapters
OBDSTAR  |  SKU: TCM-001A

OBDSTAR (TCM-001A) | Temic (DQ200) 25-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€31,95 incl.
€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

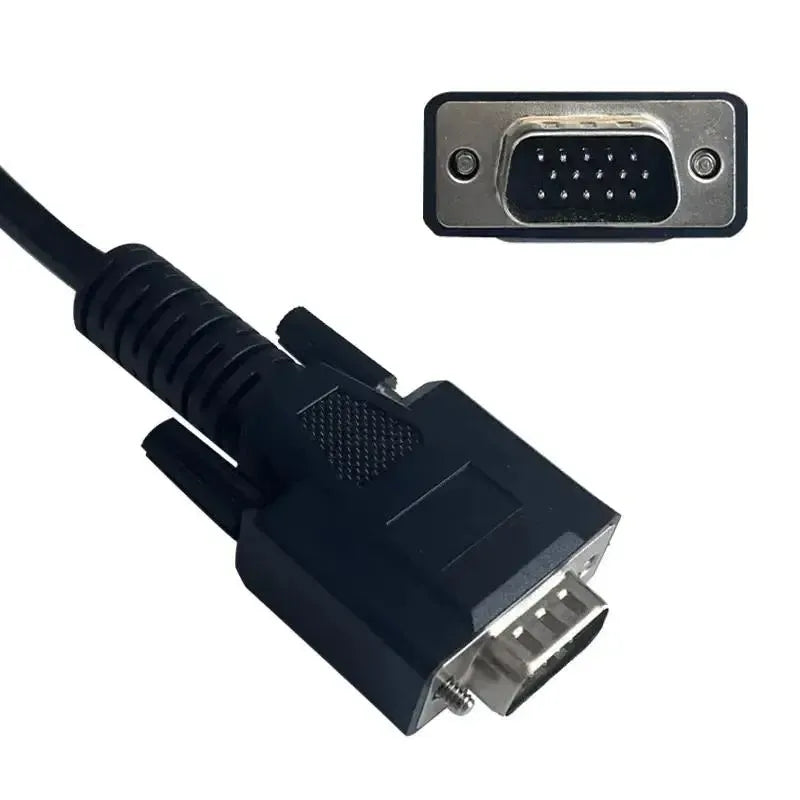

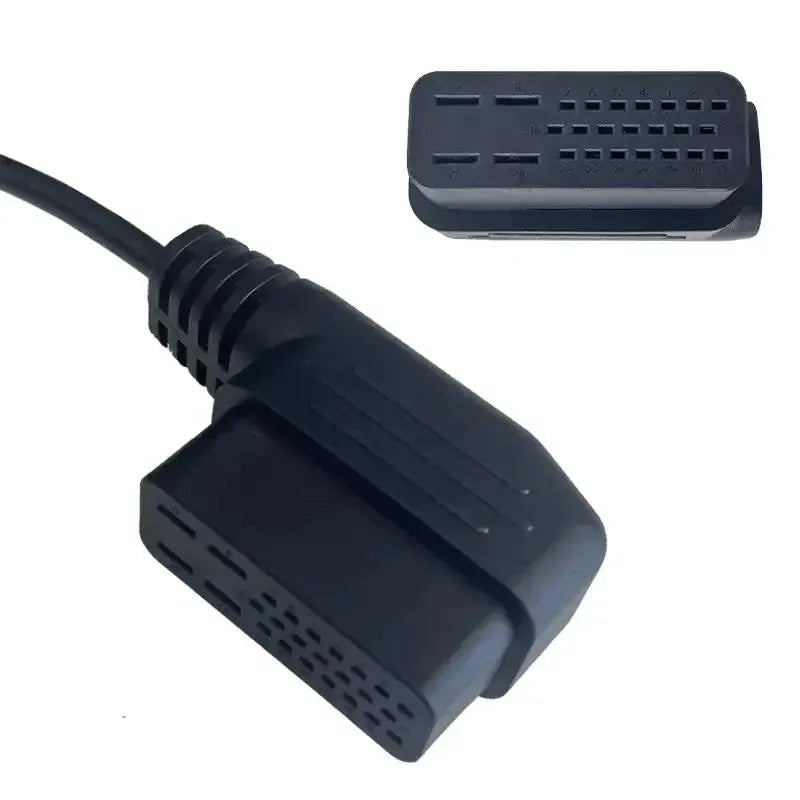

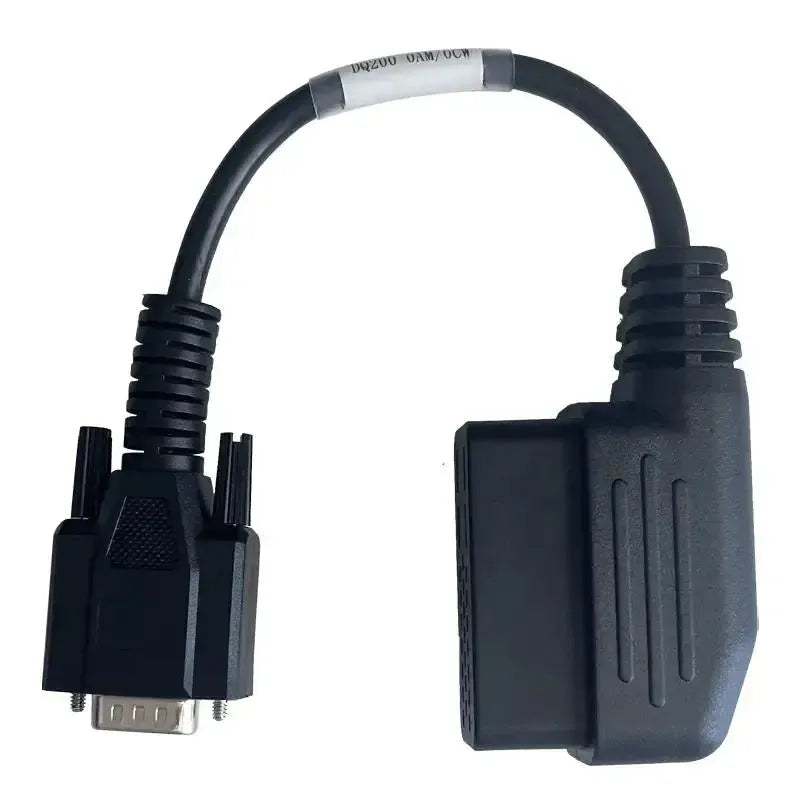

The OBDSTAR TCM-001A connects the 25-pin TCM connector on the Temic DQ200 vehicle side to a 15-pin DB15 connector on the device side. The cable connects directly to the transmission control unit of the DQ200 gearbox (0AM/0CW), which sits directly on the transmission.

The DQ200 is the dry seven-speed DSG/S-tronic deployed extensively across the Volkswagen Group platform. During certain diagnostic and programming operations, the control module is not accessible or only partially accessible via the OBD2 port. This cable therefore establishes a direct connection between the TCM connector and the DB15 input of the OBDSTAR device, routing the signals from the 25-pin connector to the correct pin configuration of the DB15 interface. The cable provides access to the unit; it performs no operations itself. What can subsequently be read, written or programmed depends on the software of your own programmer. The cable is furthermore specific to the DQ200 (0AM/0CW): other gearboxes and TCM types within the same group models fall outside its scope.

ADVANTAGES

✔Operate independently of the OBD2 port — essential for in-depth transmission programming on the DQ200, where the standard diagnostic route is insufficient.
✔0AM and 0CW covered — both variants of the Temic DQ200 are supported, providing broad application across the VW Group.
✔Direct DB15 connection — the conversion from 25 to 15 pins connects directly to OBDSTAR equipment, without intermediate adapters.
✔Comprehensive model list with production years — five manufacturers and dozens of models are specified with engine variants and production years from 2008 onwards.

LIMITATIONS

✕Tied to OBDSTAR — the cable works with OBDSTAR diagnostic and programming devices only, not with equipment from other manufacturers.
✕No additional coverage provided — the cable establishes the connection only; TCM procedures come from your programmer's software.
✕DQ200 (0AM/0CW) only — other gearboxes and TCM types within the VW Group require a different cable, even on the same model.
✕Vehicle disassembly work — the TCM connector is located on the transmission; on many models, partial removal of surrounding components is necessary.

Applications and functionality

Combined with an OBDSTAR programmer, the cable supports the following operations on the DQ200 control unit.

Control units you can access

  • Transmission control module (TCM) Temic DQ200: Connected directly via the 25-pin connector on the transmission.
  • No other control units: The cable provides no access to the rest of the vehicle network; only the TCM is reached.

What you can do

  • Read TCM software: Retrieve the current software version and calibration data directly from the control unit, without using the OBD2 port.
  • Reprogram TCM: Write new or corrected software data to the DQ200 unit via the direct DB15 connection.
  • Process calibration data: Read and write transmission-specific calibration values after replacement or overhaul of the unit.
  • Identify TCM: Obtain hardware number and software version for diagnostics or component verification.
  • Note: First verify which gearbox type is fitted to the vehicle; other transmissions may be present within the same model series.

Compatible vehicles and applications

What matters is the Temic DQ200 (0AM/0CW) with 25-pin TCM connector, not the model or engine variant. The vehicles listed below are equipped with this seven-speed DSG/S-tronic automatic transmission and are therefore eligible. The list covers model years 2008 to present.

Audi:

  • A1 / S1 (8X & GB): 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.5 TFSI (2010–present)
  • A3 (8P, 8V, 8Y): 1.2 TFSI, 1.4 TFSI, 1.5 TFSI/e-TEC, 1.6 TDI, 1.8 TFSI (2008–present)
  • Q2: 1.0 TFSI, 1.4 TFSI, 1.5 TFSI (2016–present)

Cupra:

  • Formentor / Leon: 1.5 TSI entry-level variants (2020–present)

Seat:

  • Alhambra: 1.4 TSI (2010–present)
  • Arona: 1.0 TSI, 1.5 TSI (2017–present)
  • Ateca: 1.4 TSI, 1.5 TSI (2016–present)
  • Ibiza: 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI (2008–present)
  • Leon (1P, 5F, KL): 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 TDI, 1.8 TSI (2008–present)
  • Toledo: 1.4 TSI (2012–2019)

Skoda:

  • Fabia / Scala / Kamiq: 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI (2008–present)
  • Karoq / Kodiaq: 1.4 TSI, 1.5 TSI (2017–present)
  • Octavia (1Z, 5E, NX): 1.2 TSI, 1.4 TSI, 1.5 TSI/e-TEC, 1.6 TDI, 1.8 TSI (2008–present)
  • Superb (3T & 3V): 1.4 TSI, 1.5 TSI, 1.8 TSI (2008–present)

Volkswagen:

  • Arteon: 1.5 TSI (2017–present)
  • Caddy: 1.2 TSI, 1.4 TSI (2010–present)
  • Golf (5, 6, 7, 8): 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 TDI (2008–present)
  • Passat (B6, B7, B8): 1.4 TSI, 1.5 TSI, 1.8 TSI (2008–present)
  • Polo (6R, 6C, AW): 1.0 TSI, 1.2 TSI, 1.4 TSI, BlueGT, GTI 1.4 (2009–present)
  • Sharan: 1.4 TSI (2010–present)
  • T-Cross / T-Roc / Taigo: 1.0 TSI, 1.5 TSI (2017–present)
  • Touran: 1.2 TSI, 1.4 TSI, 1.5 TSI (2010–present)
💡
Good to know: The DQ200 TCM connector is located directly on the transmission. On many VW Group models, it is accessible from the engine bay, but depending on the model, partial removal of surrounding components may be necessary. Verify using the gearbox type designation that the vehicle is indeed equipped with a DQ200 (0AM/0CW) before ordering.

Package contents

  • 1xOBDSTAR (TCM-001A) | Temic (DQ200) 25-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicles

Technical Specifications

Specification Description
Brand OBDSTAR
Part Number TCM-001A
Type Adapter Cable
Application Direct TCM access to the Temic DQ200 (0AM/0CW) transmission control module outside the OBD2 port
Vehicle-side Connection Temic (DQ200) 25-pin TCM
Device-side Connection 15-pin DB15
Control Units DQ200 Transmission Control Unit (TCM)
Segment Passenger Vehicles
Supported Manufacturers Audi, Cupra, Seat, Skoda and Volkswagen
Model Range 2008–present, varies by model (see model list)
Required to Use OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Additional Requirements Physical access to the TCM on the transmission; dismantling work may be necessary
Weight 0.1 kg
