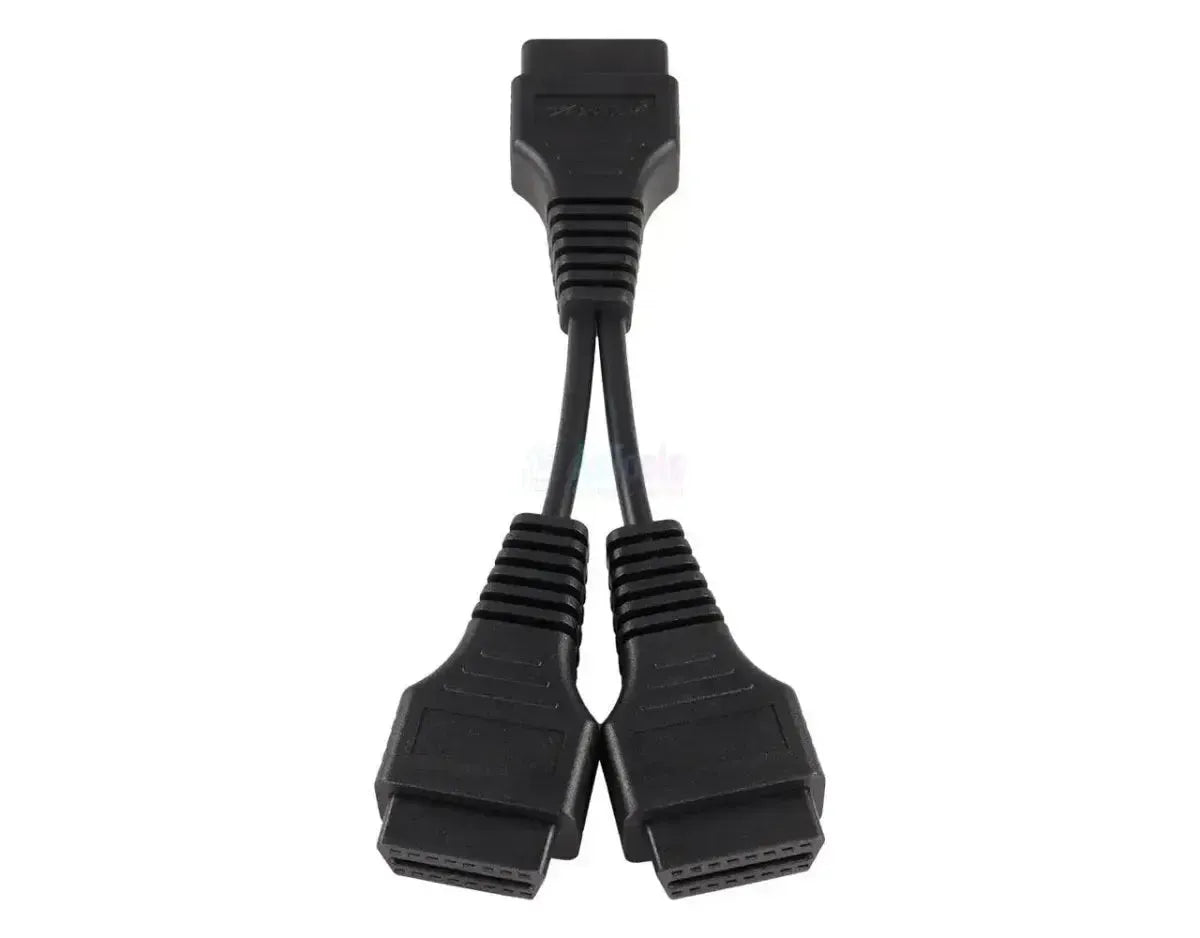

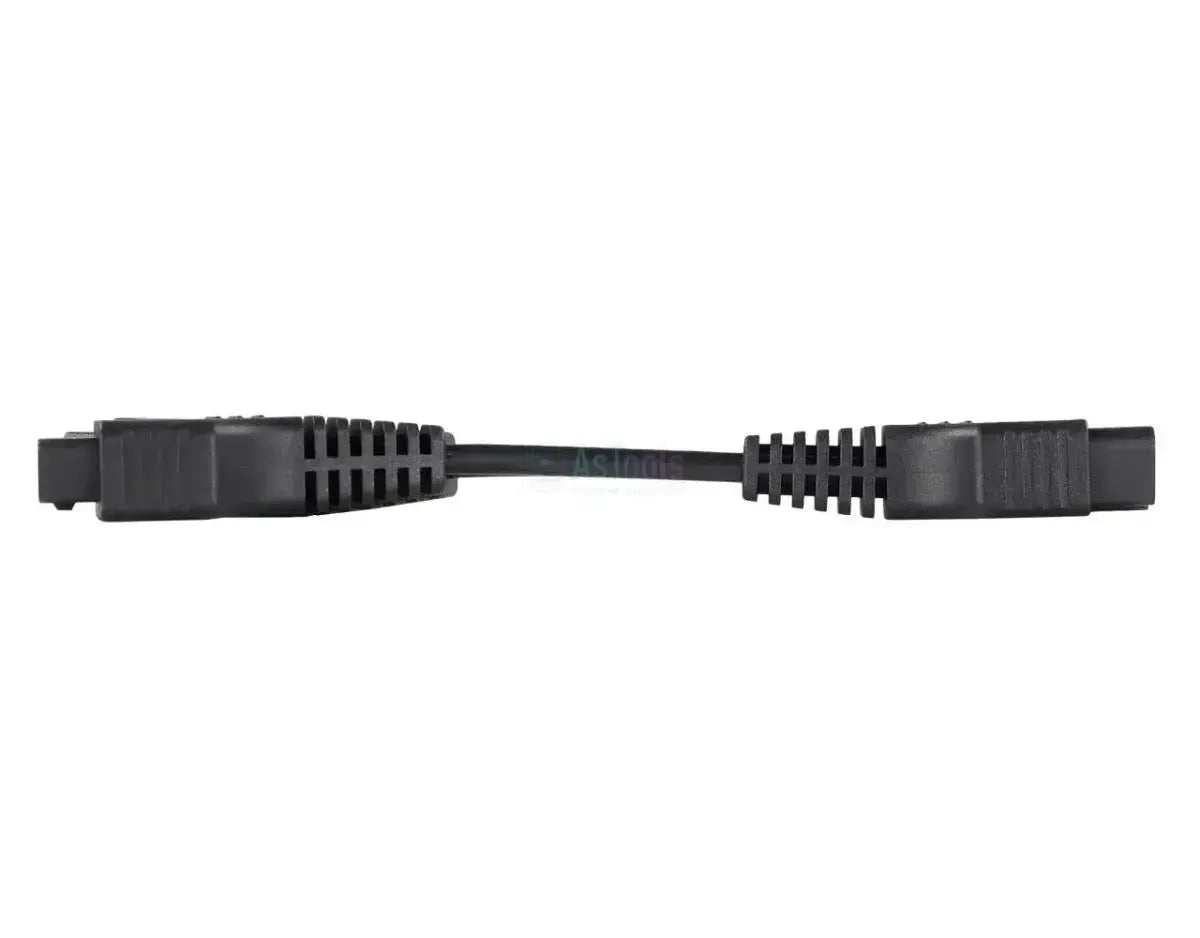

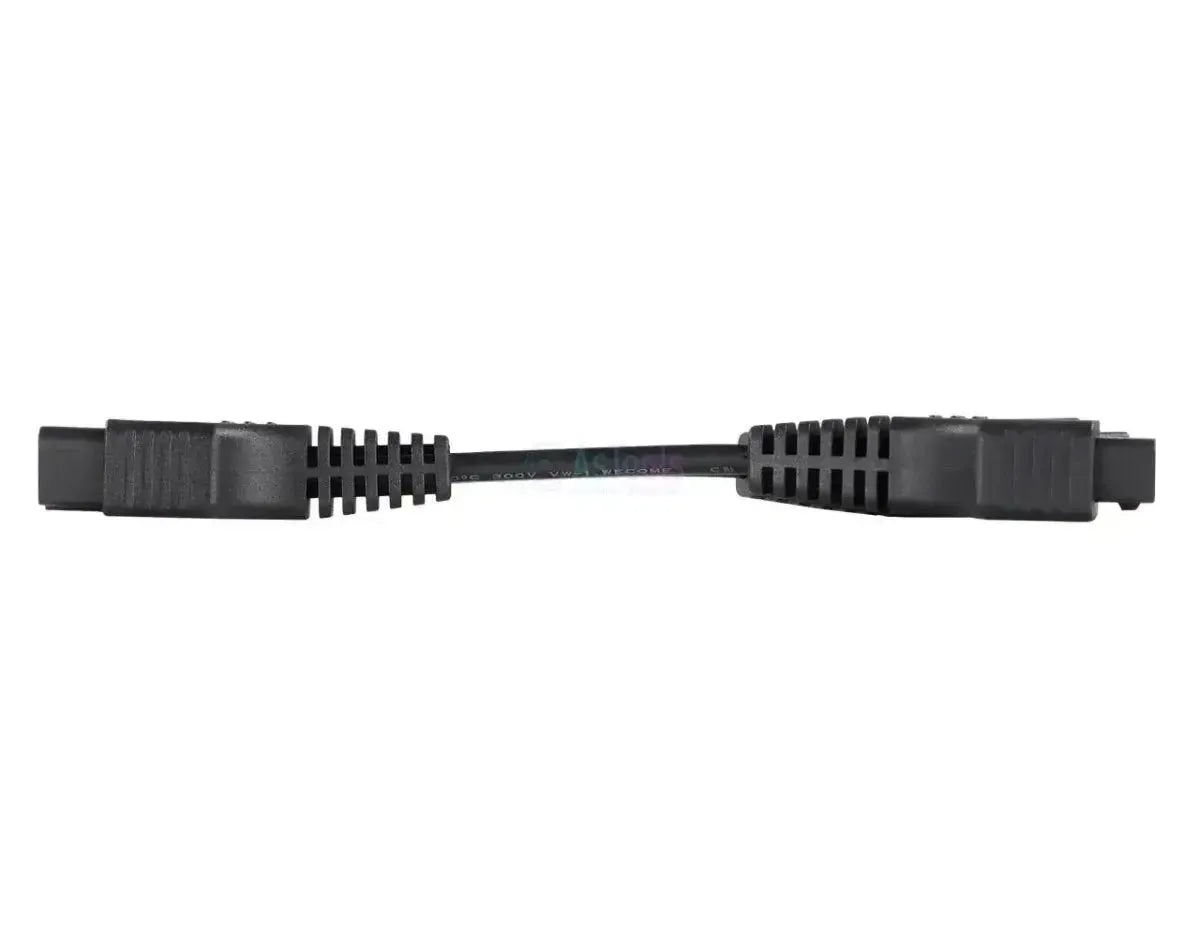

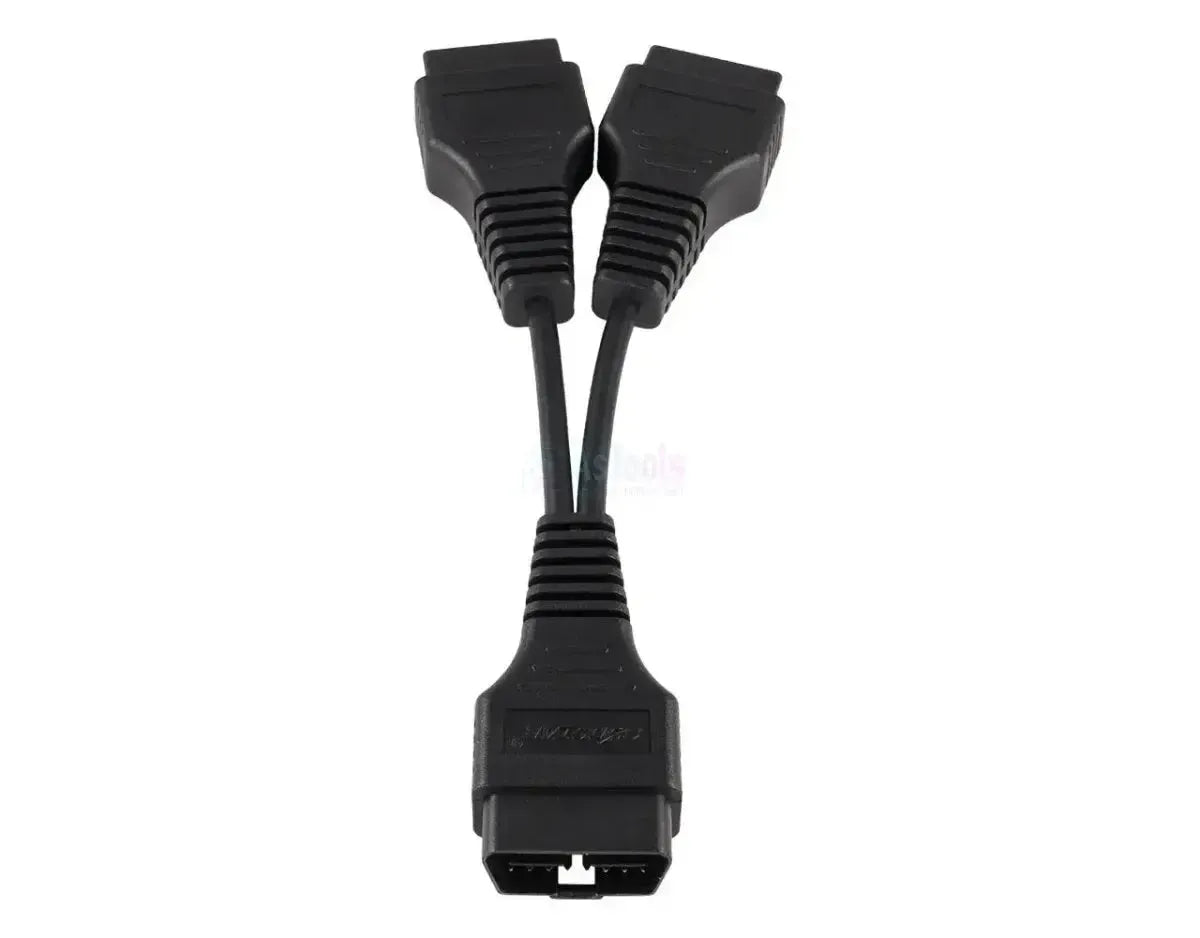

The OBDSTAR T008 is an adapter cable for the ABS module of the Mercedes-Benz 204-chassis, featuring a 15-pin DB15 connector on the device side. The cable is configured as a T-connection: the OBDSTAR diagnostic platform and an additional diagnostic tool can be connected to the system simultaneously.
The ABS module on the C-Class W204 and its derivatives is accessible via a dedicated 15-pin diagnostic interface that is not normally available through the standard OBD2 port. The cable functions as a passive splitter: the signal is distributed to two outputs, allowing a second tool to access the system after the module has been activated via the diagnostic platform. There is no active electronics involved. The cable does not operate independently and provides no general vehicle readout: it is designed specifically for the ABS module on this chassis and works only in combination with the OBDSTAR diagnostic platform. The four body styles listed below are confirmed with model years; what is possible for each vehicle depends on the software of the connected device.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
In combination with OBDSTAR diagnostic readers or programmers, the cable supports the following work on the 204-chassis.
Control units you can access
- ABS module (204-chassis): Accessed via the vehicle's dedicated 15-pin diagnostic interface rather than the standard OBD2 port.
- No other vehicle systems: The cable is designed specifically for the ABS interface on this chassis and does not unlock any other control modules.
What you can do
- Access the ABS module via DB15: Read fault codes and perform diagnostics on the ABS module of the 204-chassis.

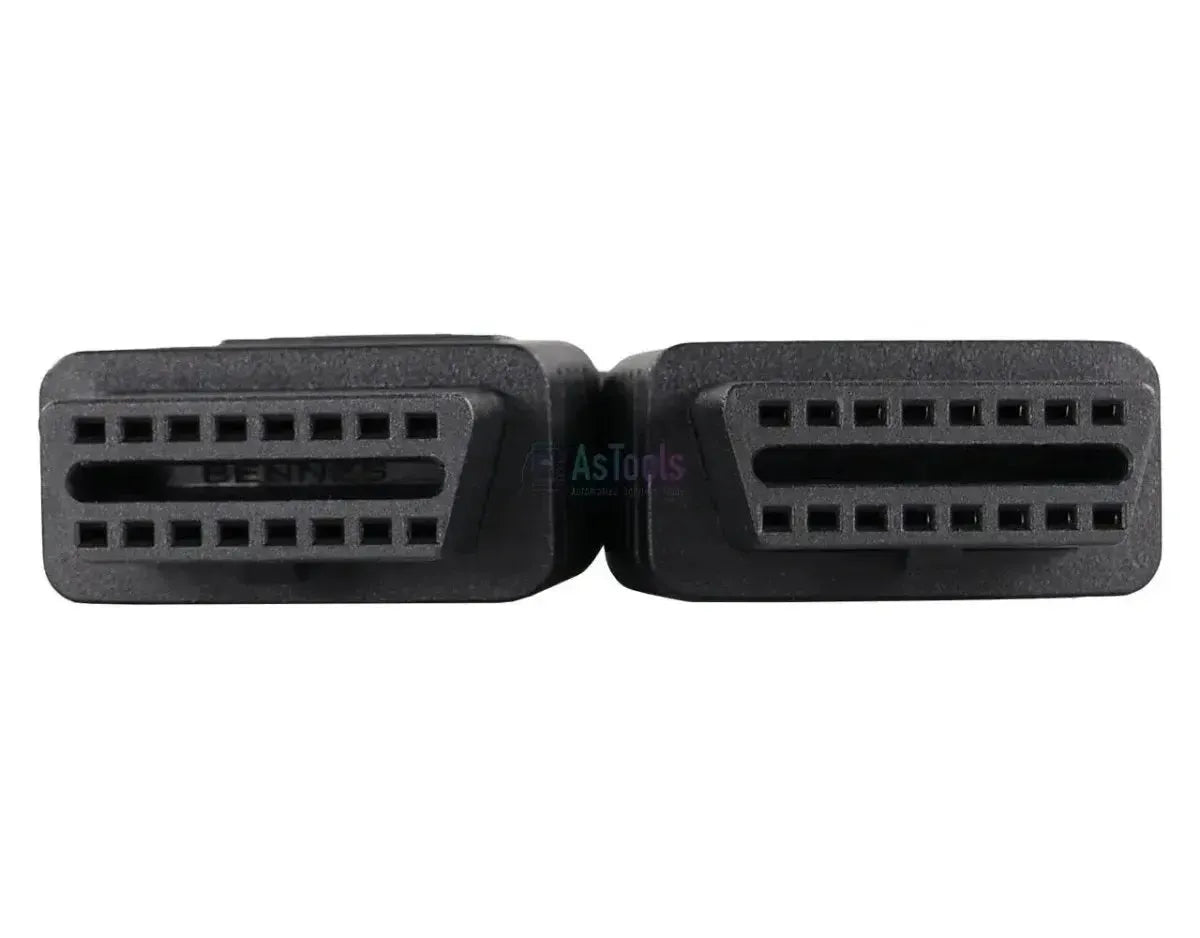

- Connect in parallel: Link the diagnostic platform and an additional diagnostic tool simultaneously to the module.
- Monitor signal after activation: Allow a second instrument to monitor after the module has been actively controlled via the diagnostic platform.
- Operate outside the standard diagnostic port: Use the ABS interface, which is not located at the conventional OBD2 position.
- Important: The cable does not perform procedures independently and always requires use in combination with the OBDSTAR diagnostic platform.
Compatible vehicles and applications
The determining factor is the 204-chassis with its corresponding ABS diagnostic interface, not the model designation C-Class. The body styles listed below are confirmed compatible. Later C-Class models on a different chassis fall outside the scope of this application.
Mercedes-Benz:
- C-Class (W204): (2007–2014)
- C-Class Coupé (C204): (2011–2015)
- C-Class Estate (S204): (2007–2014)
- GLK-Class (X204): (2008–2015)
Package contents
- 1x OBDSTAR (T008) | Mercedes-Benz ABS (204-chassis) – 15-pin DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | T008 |
| Type | Adapter cable |
| Application | ABS diagnostics on Mercedes-Benz 204-chassis via the vehicle's native 15-pin interface |
| Vehicle-side connection | Mercedes-Benz ABS (204-chassis) |

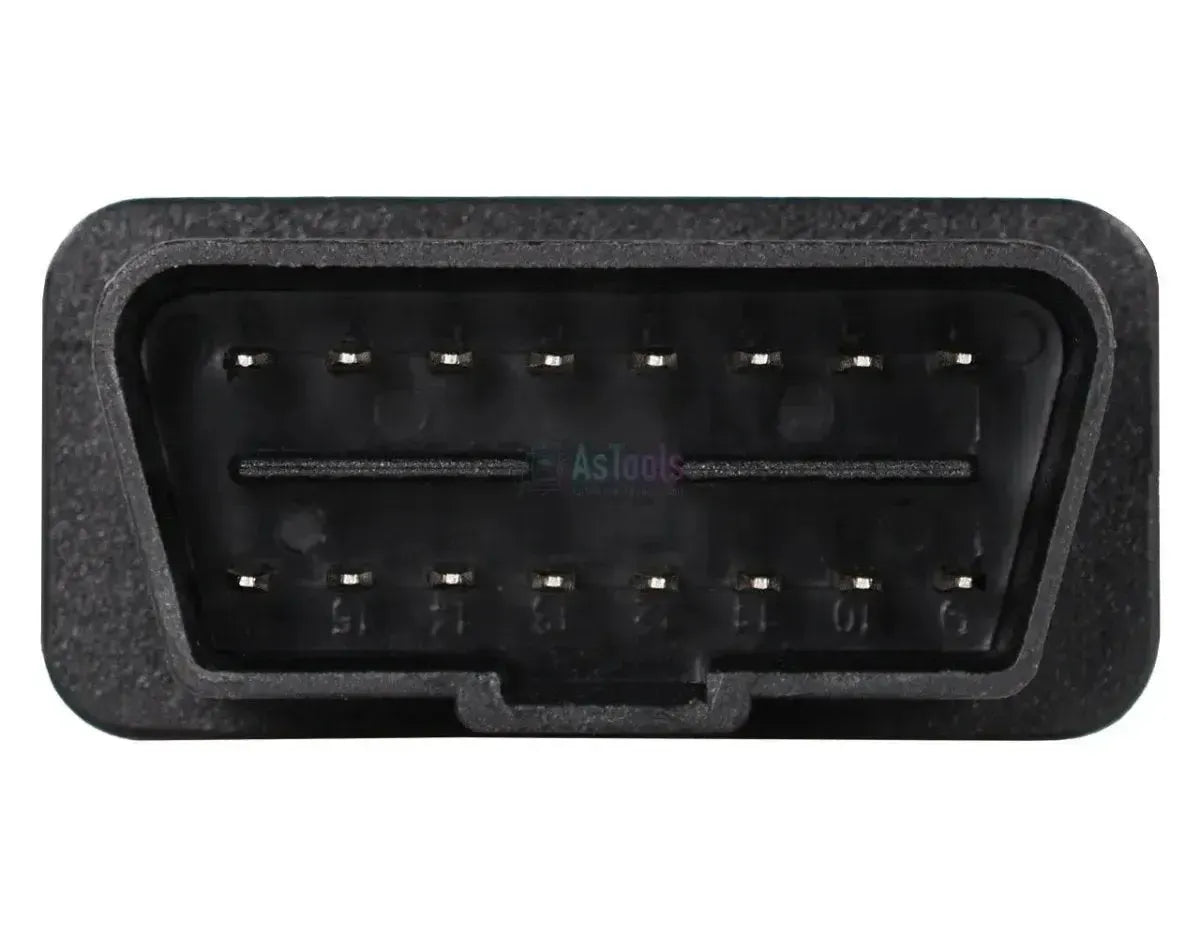

| Device-side connection | 15-pin DB15 |
| Control units | ABS module of the 204-chassis |
| Segment | Passenger vehicle |
| Supported brands | Mercedes-Benz |
| Model range | Mercedes-Benz 204-chassis, 2007–2015 (see model list) |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Additional requirements | OBDSTAR test platform; optionally an additional diagnostic tool for the second branch |
| Weight | 0.1 kg |
