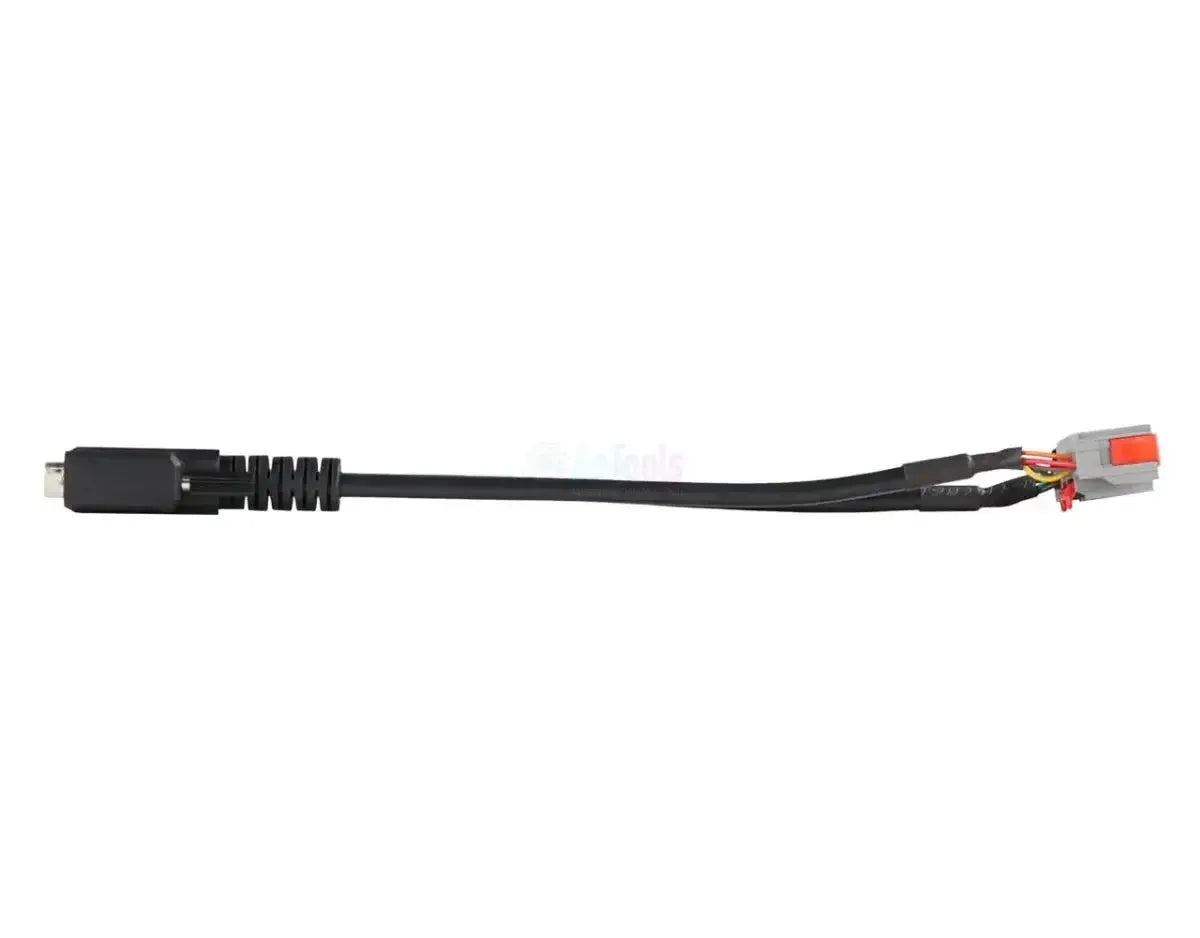

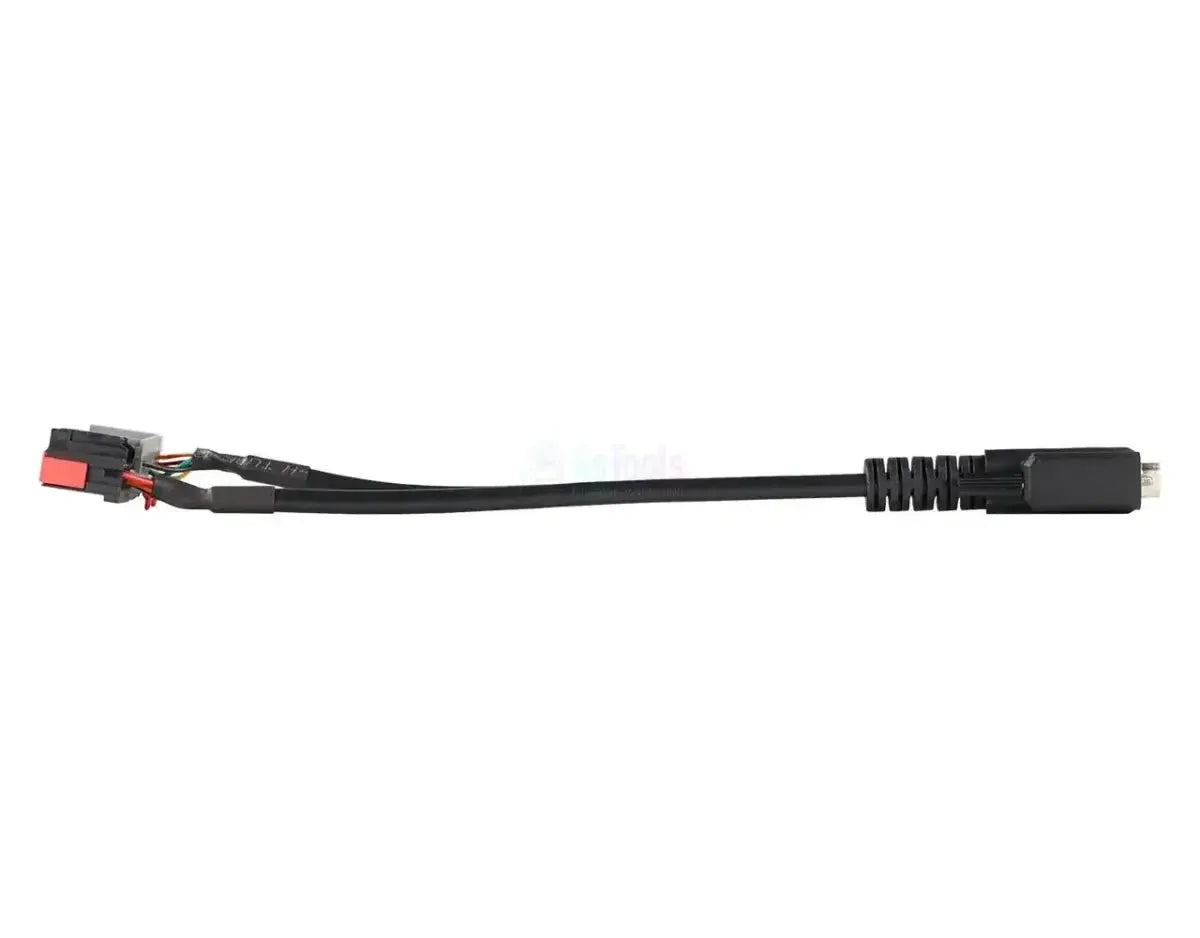

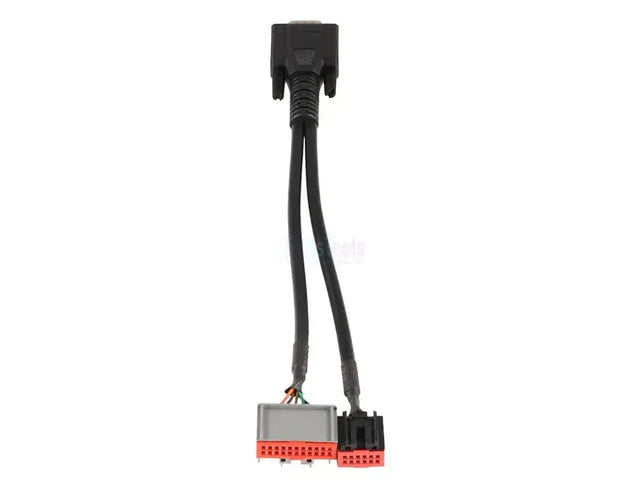

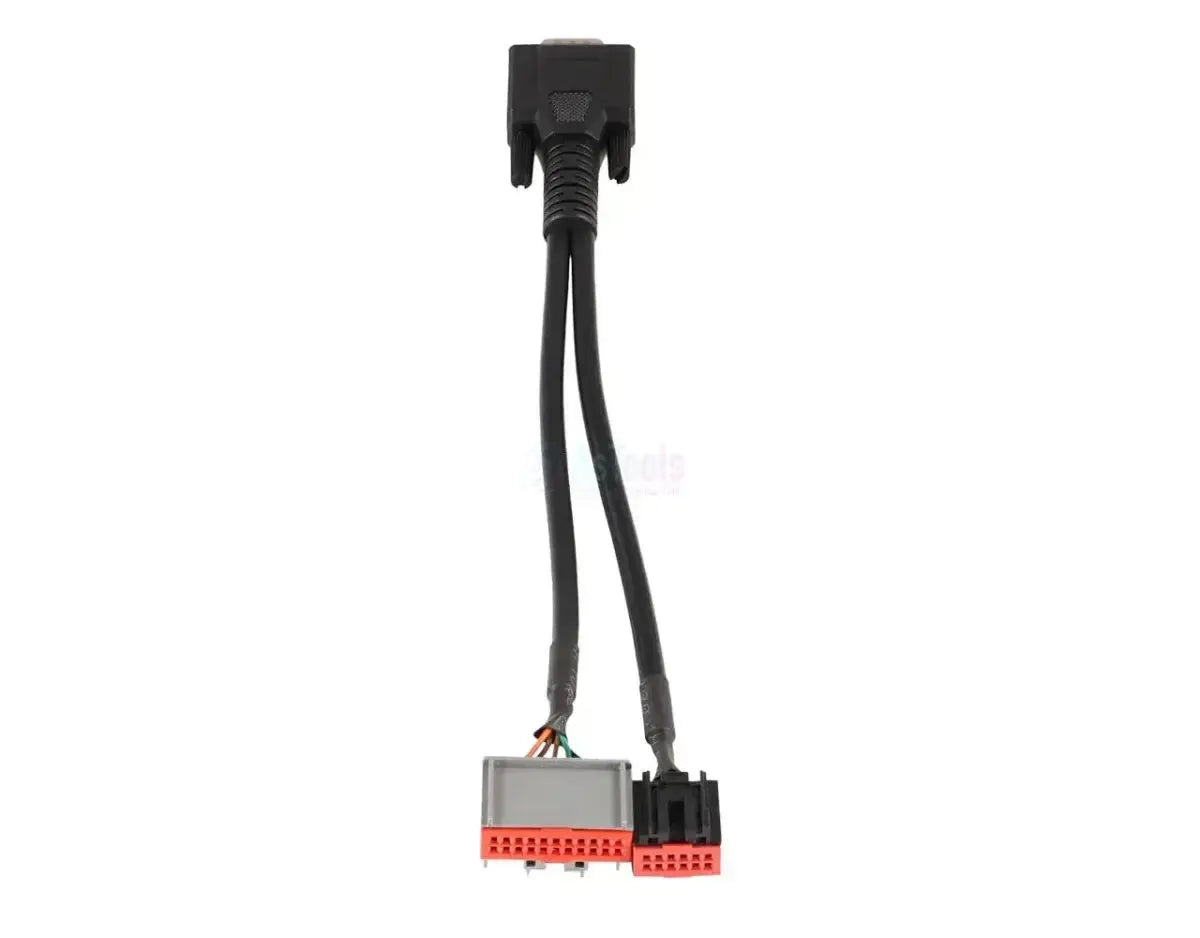

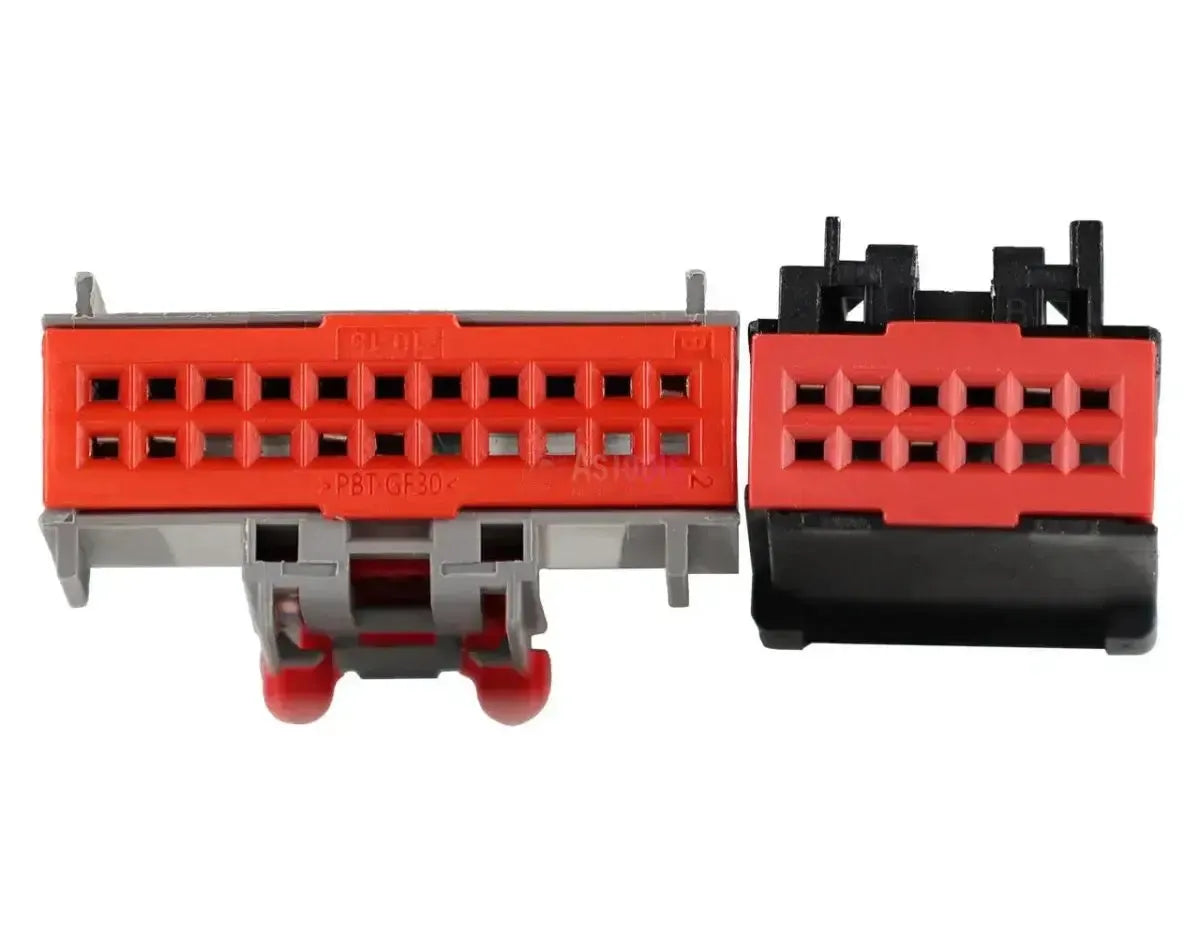

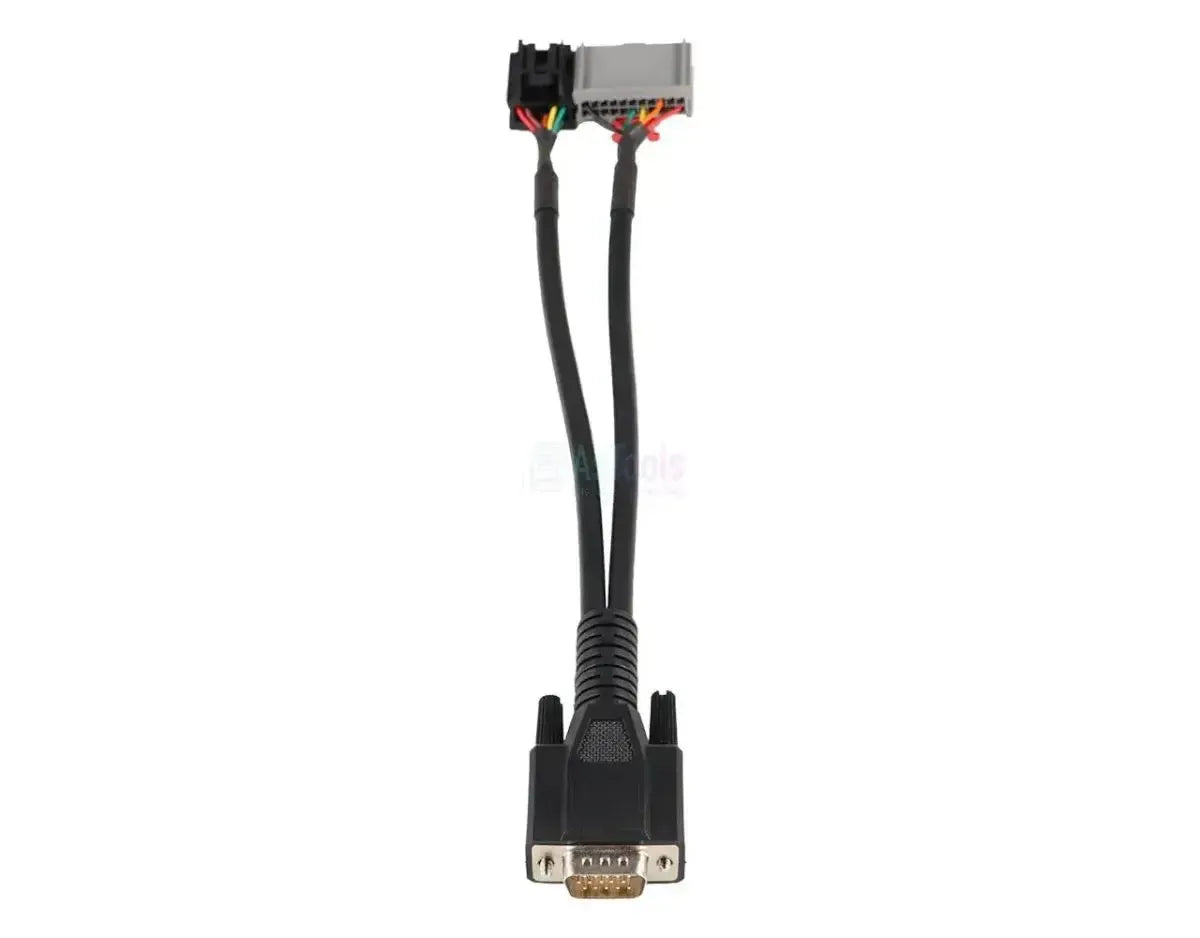

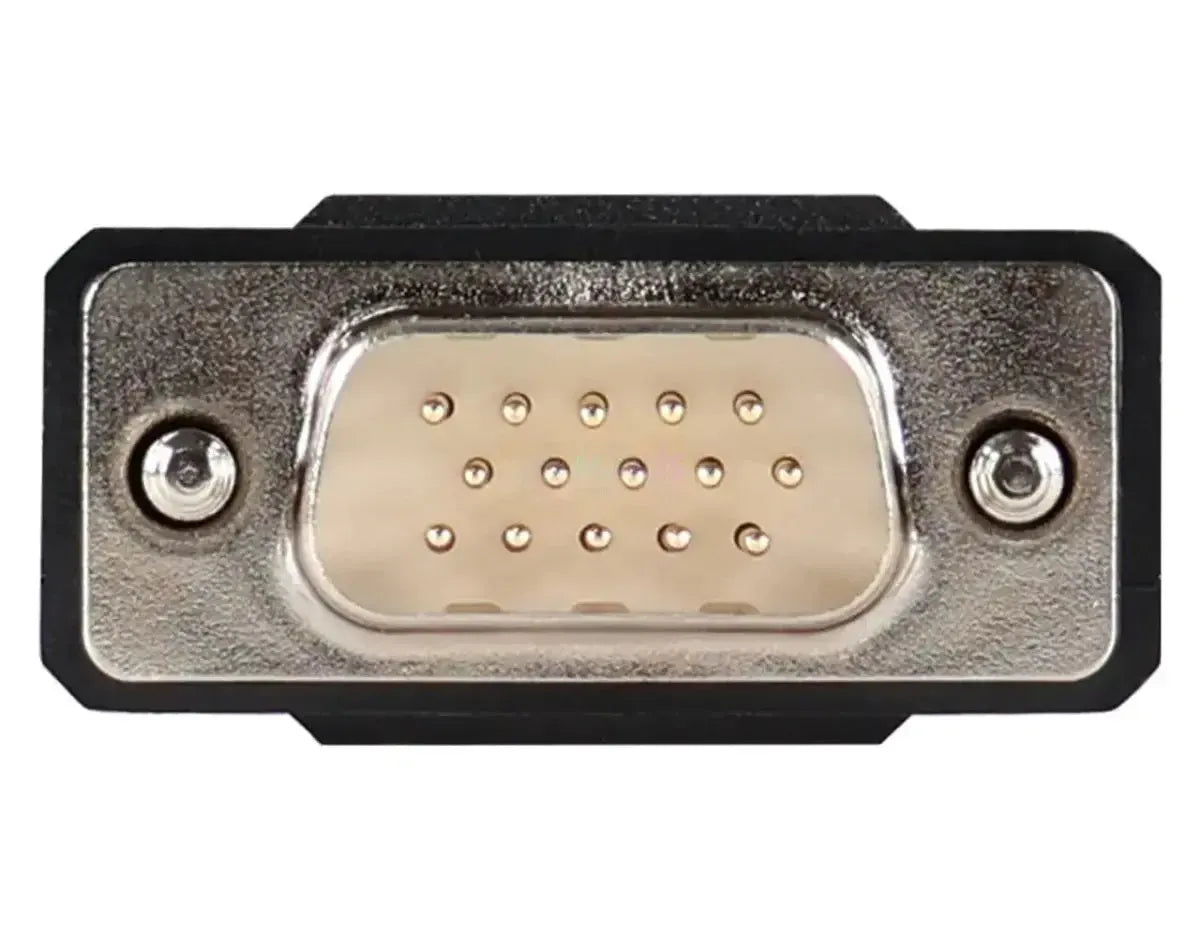

The OBDSTAR T006 features a 15-pin DB15 connector on the device side and splits into a 12-pin and 22-pin GSM connector on the vehicle side. These two connectors connect directly to the wiring of the gear selector module in the centre console of Land Rover and Jaguar vehicles.
The selector module in these vehicles has two separate plugs. With the split cable structure, both are operated simultaneously, allowing the OBDSTAR diagnostic platform to read and control all relevant signals from the selector. The connection bypasses the vehicle network, enabling targeted module testing without CAN-bus intervention. The cable is a test connection for this module only: it provides no OBD2 diagnostics and cannot be used for general vehicle reading. The selector housing must be removed to access the connectors. The models listed below are confirmed with production years; available test functions are determined by your diagnostic platform.
KEY BENEFITS
LIMITATIONS
Applications and functionality
When used with equipment from the OBDSTAR test platform series, this cable supports the following operations on the gear selector module.
Control units you can access
- Gear selector module: Connected directly via the 12-pin and 22-pin GSM connectors in the centre console.
- No other vehicle systems: The connection operates outside the vehicle network, so only the selector module is addressed.
What you can do
- Perform lift test: Electrically control the lift function of the selector and read the module response.
- Perform shift test: Check the shift signals for correct response when changing driving modes.
- Connect module directly: Establish communication with the test platform outside the standard vehicle diagnostic port.
- Assess module before replacement: Determine whether the fault lies with the selector module before proceeding with replacement.
- Note: Verify in advance that the specific model year and variant actually have the 12-pin and 22-pin GSM connection.
Compatible vehicles and applications
The determining factor is the 12-pin and 22-pin GSM connection on the gear selector module, not the model. The vehicles listed below are confirmed compatible. For production runs that are still ongoing, a later variant may use a different module; therefore check the connectors yourself.
Jaguar:
- F-Pace (X761): (2016–present)
- F-Type (X152): (2013–present)
- XE (X760): (2015–present)
- XF (X260): (2015–present)
- XJ (X351): (2009–present)
Land Rover:
- Discovery 5 (L462): (2017–present)
- Discovery Sport (L550): (2015–present)
- Range Rover (L405): (2013–present)
- Range Rover Evoque (L538/L551): (2011–present)
- Range Rover Sport (L494): (2013–present)
- Range Rover Velar (L560): (2017–present)
Package contents
- 1x OBDSTAR (T006) | 12+22-pins GSM - 15-pins DB15 Adapter Cable | Passenger Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | T006 |
| Type | Adapter cable |
| Application | Testing the gear shift module in Jaguar and Land Rover vehicles |
| Vehicle-side connection | 12+22-pin GSM |
| Device-side connection | 15-pin DB15 |
| Communication | Direct module connection, independent of the vehicle's CAN network |
| Control units | Gear shift module |
| Segment | Passenger vehicle |
| Supported brands | Jaguar and Land Rover |
| Model range | Jaguar and Land Rover 2009–present, varies by model (see model list) |
| Required to use | OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit |
| Additional requirements | OBDSTAR test platform; removal of gear shift housing from centre console |
| Weight | 0.1 kg |
