OBDSTAR  |  SKU: N026

OBDSTAR (N026) | SYM 3-pin OBD – 16-pin OBD2 Adapter | Moped

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

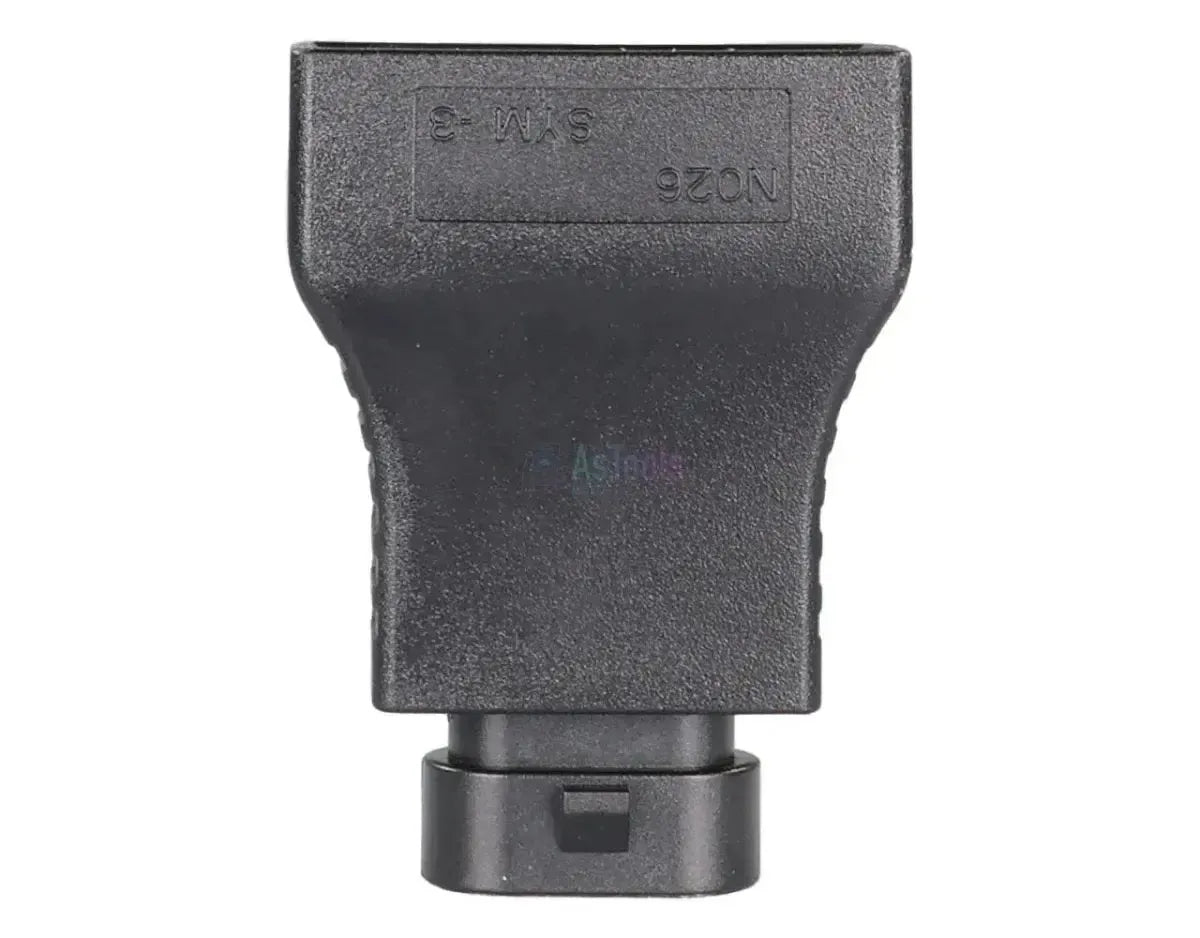

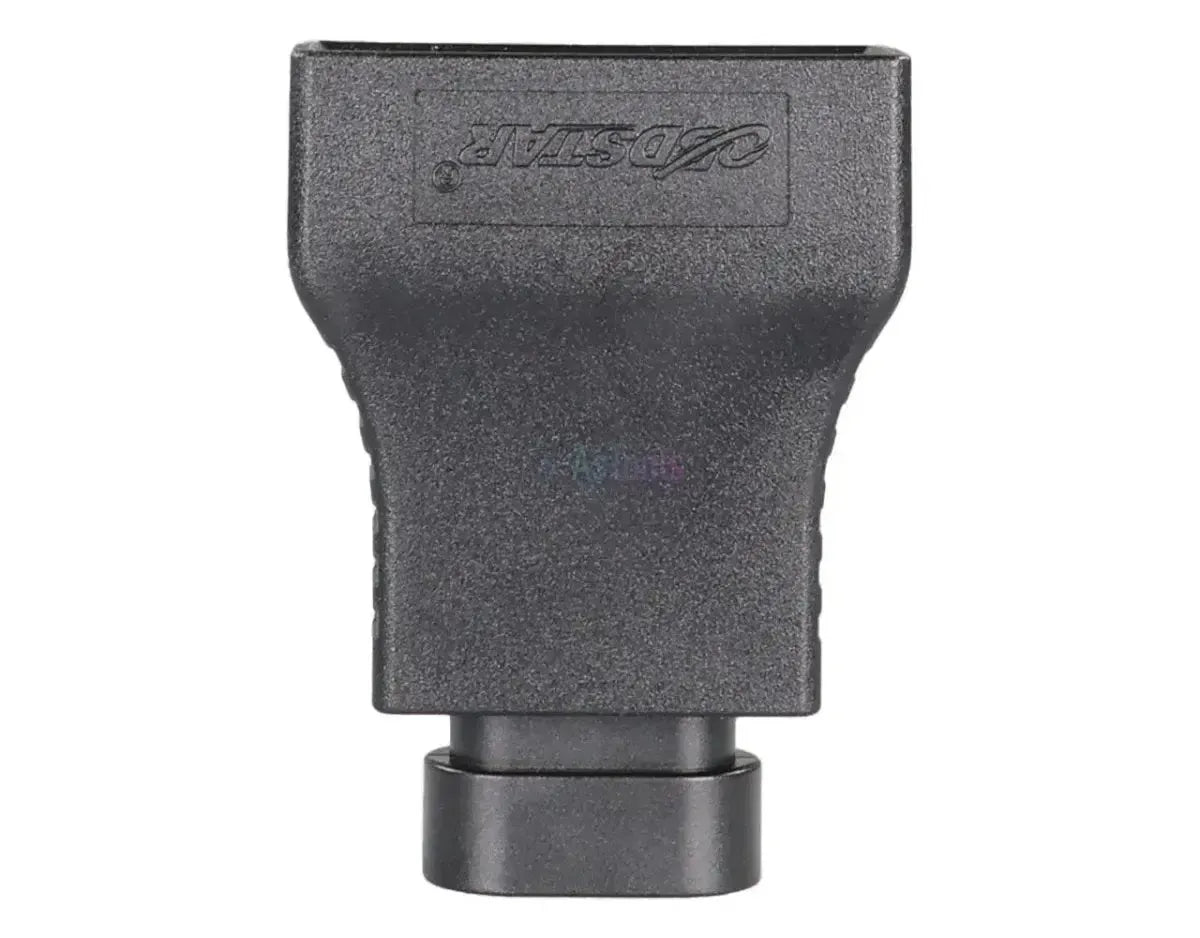

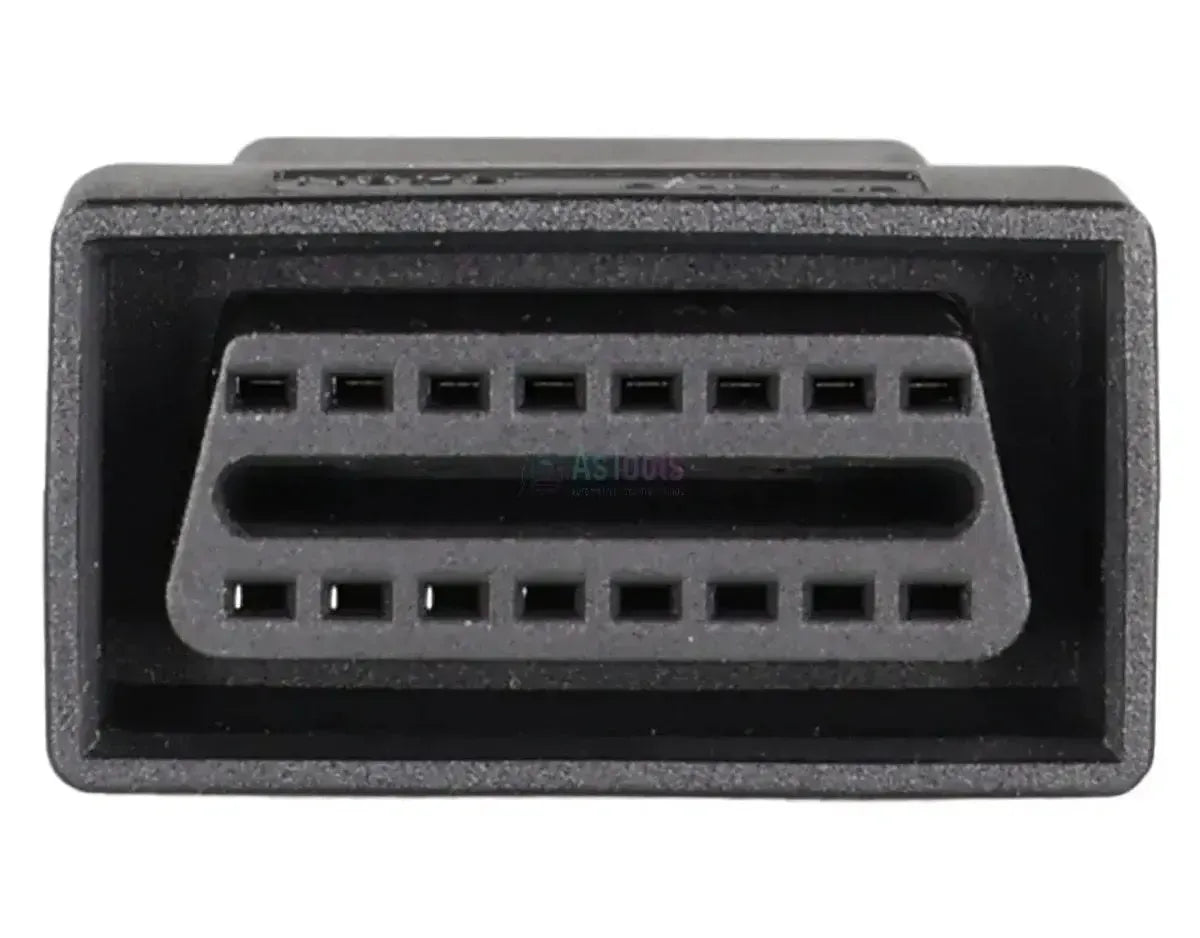

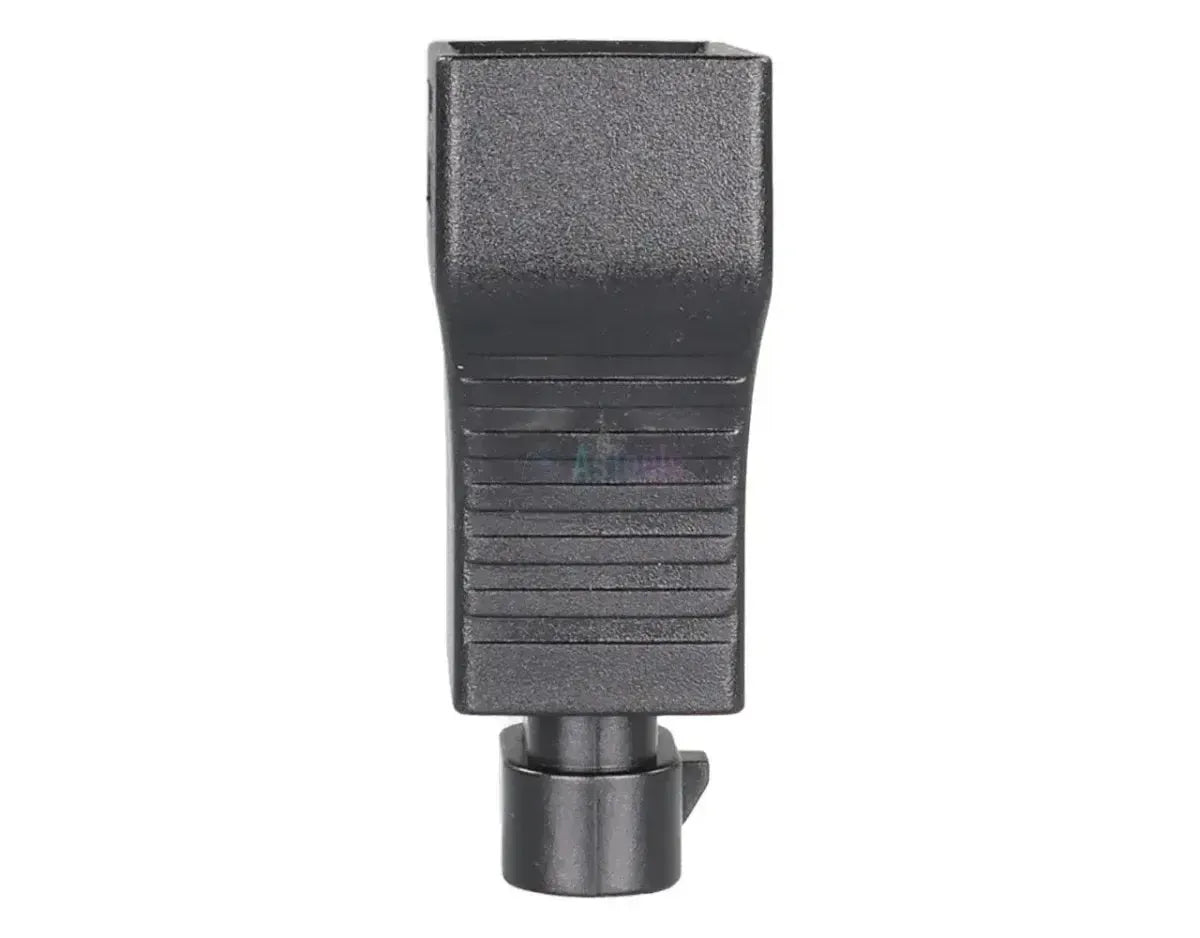

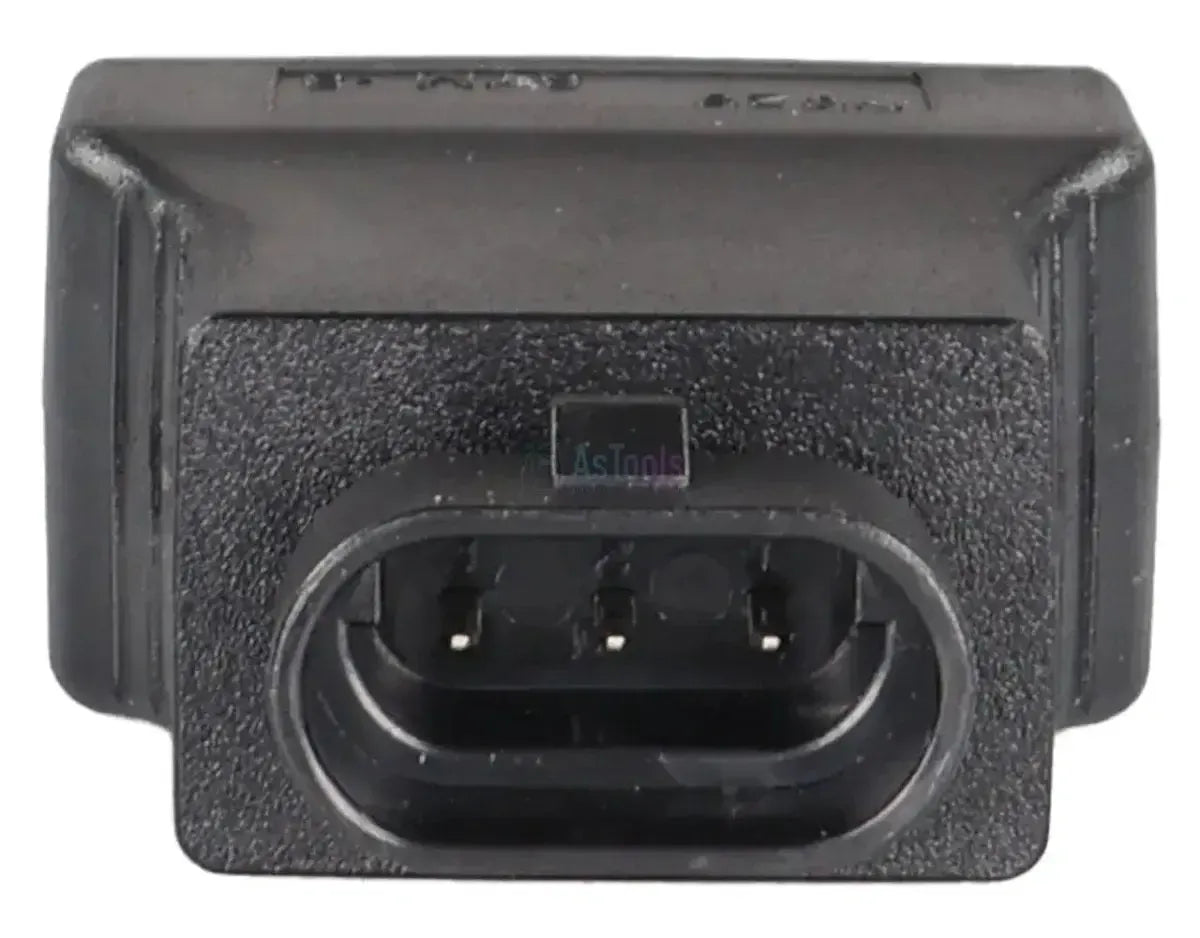

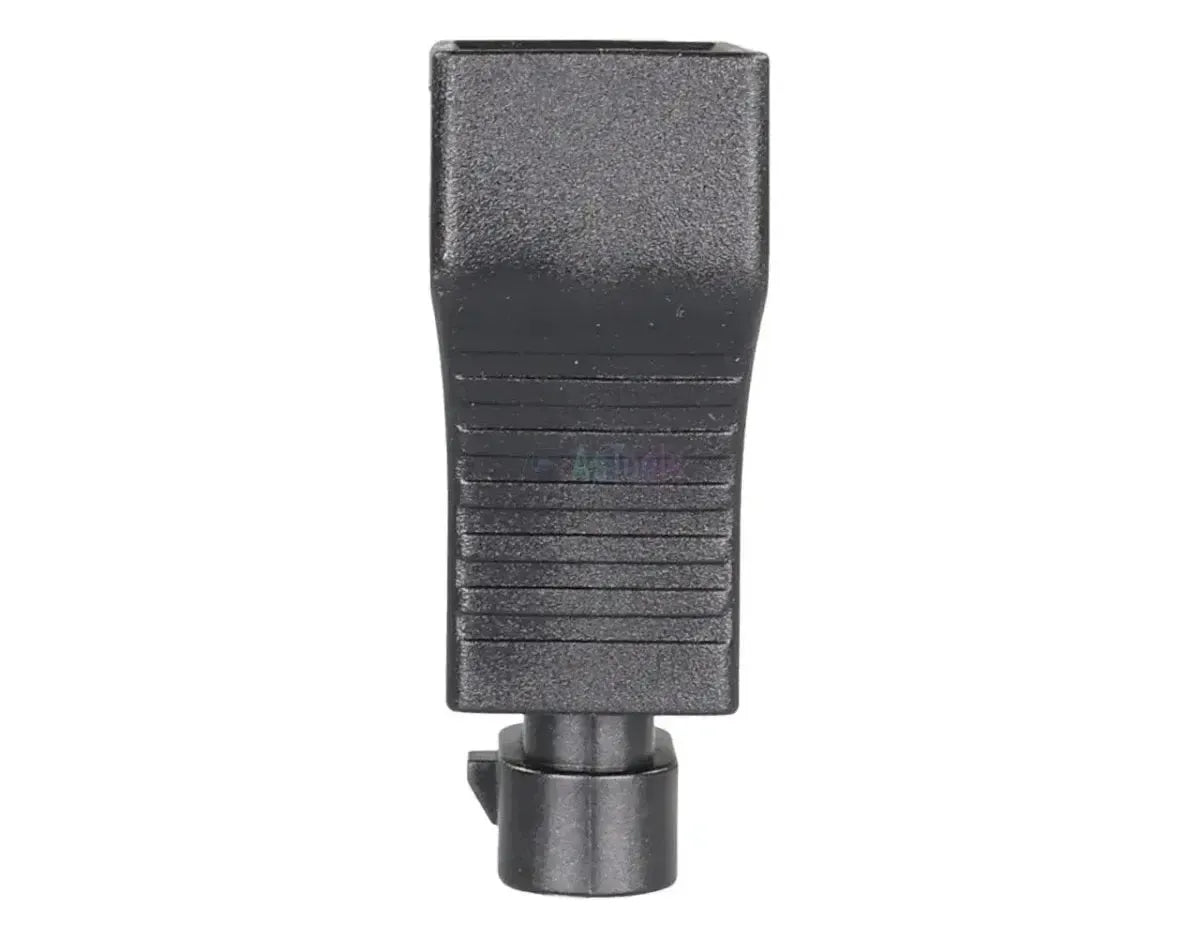

The OBDSTARN026 connects the 3-pin SYM diagnostic connector on the vehicle side to connect to a 16-pin OBD2 port (J1962)at the device end. The housing is compact and fits directly onto the three-pin connector of the moped, which is typically located beneath the seat or behind a panel near the dashboard.

\nMopeds from SYM do not have built-in OBD2 port. The adapter accepts proprietary pin configuration from SYMthrough to the corresponding OBD2 pins, without active electronics in the adapter itself. The signals that are standard in this vehicle category run across these lines, including theK-line; which protocol a specific model uses varies by variant. The adapter makes the port accessible and nothing more. The available functions depend on your OBDSTAR device's software for the relevantSYM-model and year of manufactureThe source lists three model series without production years; outside that specification, only the three-pin connector is decisive.

ADVANTAGES

✔OBD2 diagnostics without an OBD2 port— mopeds without a built-in J1962 connector can now be accessed by your diagnostic device.
✔Passive and power-independent— no active electronics required, so no additional power supply or configuration needed before you start.
✔Correct pass-through— the proprietary SYM pin configuration aligns with the corresponding OBD2 pins.
✔Small footprint— the compact housing fits neatly in tight spaces beneath the seat or behind the dashboard panel.

IMPORTANT NOTES

✕For OBDSTAR equipment only— the adapter is designed for OBDSTAR diagnostic readers and programmers; compatibility with other diagnostic tools is not supported.
✕No expansion of coverage — the adapter does not change what your device can do. Support for the relevant SYM model and year of manufacture is built into the software.
✕3-pin configuration only — mopeds with a different connector type, even from SYM itself, cannot be accessed with this adapter.
✕Models without year of manufacture — the source lists Fiddle, Orbit and Symphony without model years. Within these ranges, variants with different connectors may exist.

Applications and functions

When used with an OBDSTAR device that supports motorcycle diagnostics, the adapter enables the following operations on SYM mopeds with the three-pin port.

Control units you can access

  • Engine management unit: The moped's ECU is accessed via the three-pin diagnostic connector.
  • Vehicle system via K-line: Communication takes place over the looped signal lines; the protocol used varies depending on the variant.

What you can do

  • Read fault codes: Retrieve stored error codes from the engine management unit via your diagnostic device.
  • Clear fault codes: After repairing a fault, remove the stored codes from the ECU memory.
  • Read live data: Monitor real-time operating data such as engine speed, temperature and sensor readings during operation.
  • Connect manufacturer-specific connector: Communicate with the vehicle system via the 3-pin SYM connector without modification to the moped.
  • Please note: Which of these functions are actually available depends on the support your OBDSTAR device provides for that model and year of manufacture.

Compatible vehicles and applications

The determining factor is the three-pin SYM diagnostic connector, not the model name. The source lists three model ranges without years of manufacture. Therefore, check the connector: if it has three pins and is not a 16-pin configuration, this is the correct adapter.

SYM:

  • Fiddle: Moped models with 3-pin OBD connector.
  • Orbit: Moped models with 3-pin OBD connector.
  • Symphony: Moped models with 3-pin OBD connector.
💡
Good to know: The 3-pin diagnostic port on SYM mopeds is typically located under the seat or behind a panel at the dashboard; your vehicle handbook provides the exact location.Verify that the connector has three pins and is not comparable to another manufacturer's configuration before ordering.

Package Contents

  • 1x OBDSTAR (N026) | SYM 3-pin OBD – 16-pin OBD2 Adapter | Moped

Technical Specifications

Specification Description
Brand OBDSTAR
Part Number N026
Type Adapter
Application Diagnostic connection for SYM mopeds with 3-pin OBD connector
Vehicle-side Connection SYM 3-pin OBD
Device-side Connection 16-pin OBD2
Communication K-line; protocol used varies by model
Control Units Engine Management Unit (ECU)
Category Moped
Supported Brands SYM
Model Range Fiddle, Orbit and Symphony with 3-pin OBD connector; model years not specified
Required to Use OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional Requirements Standard 16-pin OBD2 cable from the OBDSTAR device
Weight 0.05 kg
