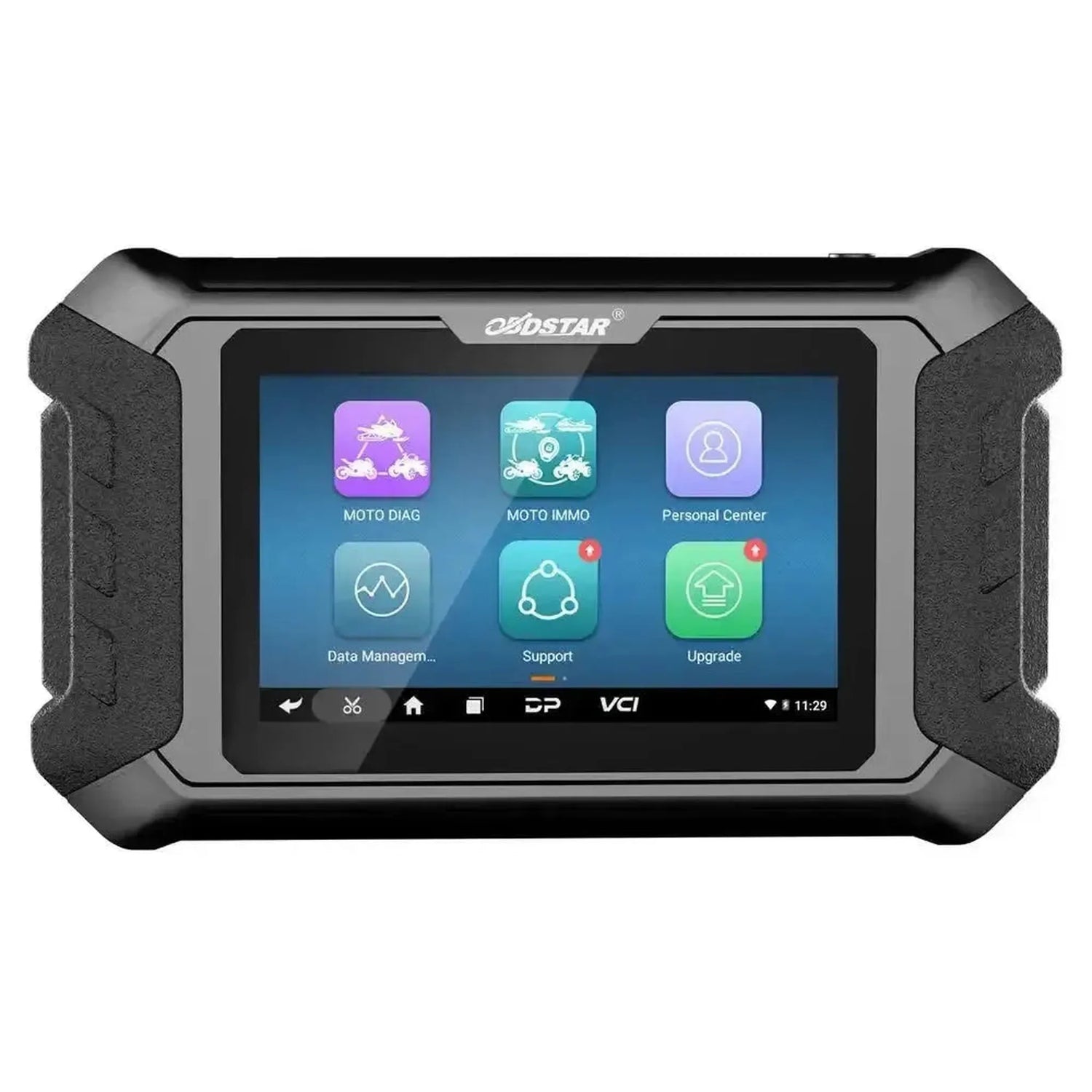

OBDSTAR IScan Suzuki | Diagnostic Tool | Motorcycle

Diagnostic functions

The iScan Suzuki supports full diagnostics on Suzuki motorcycles. Functions may vary by model and year.

• Read fault codes: Reading current and stored fault codes (DTCs) from the control modules.
• Clear fault codes: Removing stored DTCs after repairs have been performed.
• Live data: Real-time display of sensor values in text, graph, or gauge view for quick fault analysis.
• Actuator test: Activating components to check their operation.
• Settings: Adjusting control module parameters within factory specifications.
• Coding: Coding control modules and components after replacement or adjustment.
• Automatic scan: Automatic detection of present systems and fault codes in all control modules.
• Automatic VIN recognition: Automatic identification of the vehicle based on the VIN number.
• Guided fault diagnosis: Step-by-step support with help data and technical bulletins for systematic troubleshooting.
• Data recording and playback: Capturing and reviewing live data for later analysis of intermittent faults.

Key and EEPROM functions

The iScan Suzuki offers basic key programming. For advanced key and EEPROM tasks, the optional P001 programming kit is required.

• Key programming: Learning and programming keys on supported Suzuki motorcycles.
• Read and write EEPROM: In combination with the P001 programming kit, EEPROM data can be read and written for advanced key and immobilizer functions.

Service and maintenance functions

The iScan Suzuki supports multiple service and maintenance functions. Available functions may vary by vehicle model and year.

Engine and drivetrain

• Oil service reset: Resetting the oil maintenance interval after an oil change.
• Idle speed adjustment: Adjusting the engine idle speed.
• Throttle body learning: Teaching the throttle body after cleaning or replacement.
• Throttle position sensor reset: Resetting and calibrating the throttle position sensor.
• Air-fuel ratio reset: Resetting the air-fuel ratio (A/F) after maintenance on the fuel system.
• CO value adjustment: Adjusting the CO value of the exhaust gas within factory specifications.
• ECU reset: Resetting learned values in the engine control module.

Brake and stability systems

• ABS Brake system bleeding: Supports bleeding of the ABS Brake system after brake maintenance.

Steering and chassis

• Steering angle sensor calibration: Calibrating the steering angle sensor after replacement or work on the steering system.

Other service and maintenance functions

• Odometer correction: Adjusting the odometer reading in the instrument panel after replacement.

Special functions and capabilities

In addition to standard diagnostics, the iScan Suzuki offers several special functions for more efficient workshop work.

• Guided fault diagnosis: First fault guidance with help data, technical bulletins, and diag-socket information for systematic troubleshooting.
• Multiple live data display: Live data can be shown as text, graph, and instrument display for faster fault analysis.
• One-click software update: Instantly update software via a WiFi connection.
• Remote assistance: One-click remote function allowing OBDSTAR technical staff to provide remote support.
• Data recording and playback: Capturing and reviewing real-time data for analysis of intermittent faults.
• EOL mode: End-of-line mode for specific factory procedures.
• Memory functions: Transmission memory reset and clear computer memory for deleting stored memory data.

Supported vehicle brands

The iScan Suzuki is specifically developed for diagnostics on motorcycles of a single brand.

• Asian: Suzuki

Optional additions and expansions

The functionality of the iScan Suzuki can be expanded with optional hardware for advanced key and ECU work.

Hardware modules and accessories

• P001 Programming kit: Programming kit for advanced key and immobilizer functions, including reading and writing EEPROM data.
• P003+ Adapter kit: Adapter used in combination with the P001 programming kit for reading ECU data on the workbench (bench mode).

License information

The iScan Suzuki comes with a software license that allows downloading software updates during the license period. Updates can add new vehicles, features, and improvements. After the license expires, the diagnostic tool continues to work with the software installed at that time.

• License period: 1 year of software updates included from activation.
• Software updates: Updates can add new vehicles and features.
• Extended functions: Some functions require an active license.
• After license expiration: The device continues to work with the existing installed software.

Package Contents

• 1x OBDSTAR iScan Suzuki diagnostic tool
• 1x 12V/2A charger
• 1x M001A main cable
• 1x N012A Suzuki adapter
• 1x N041 OBD adapter
