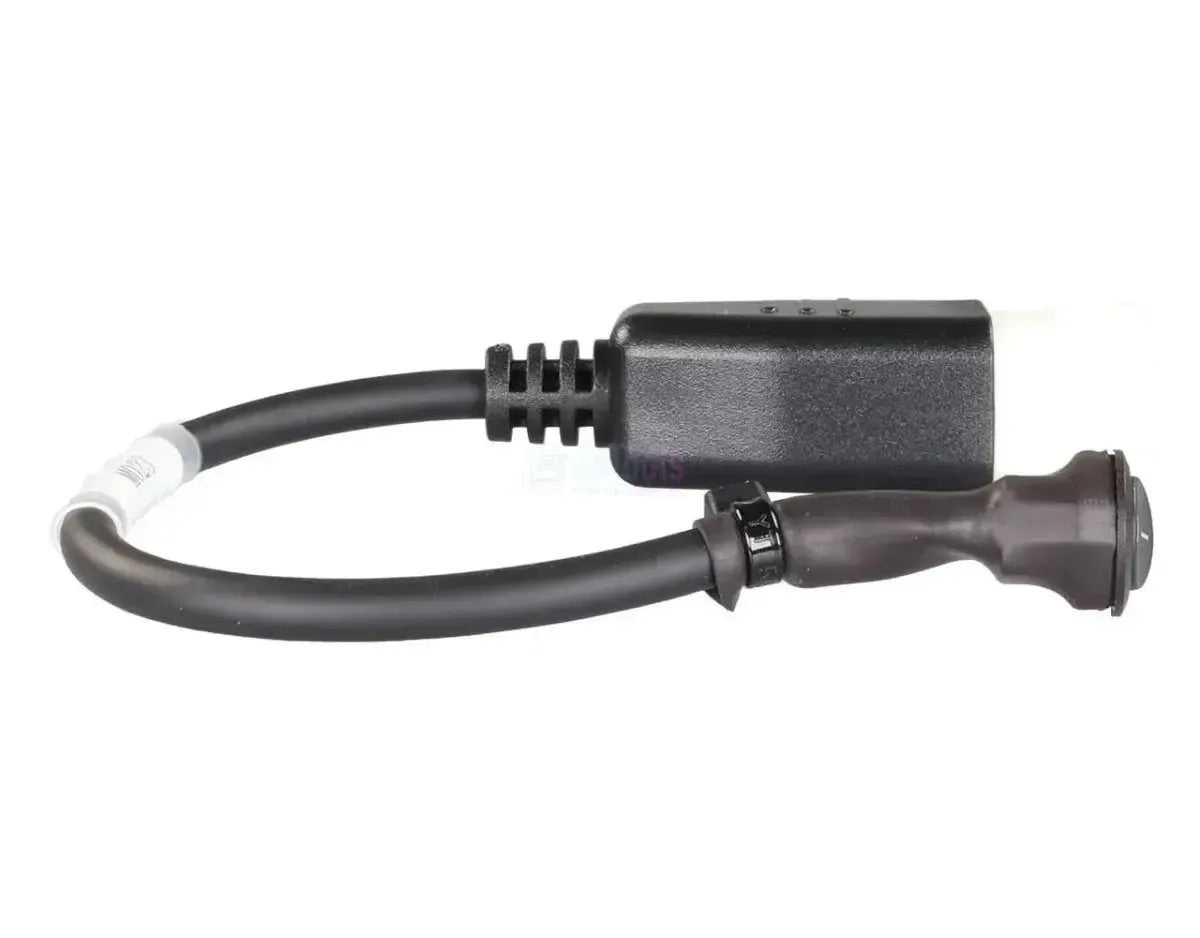

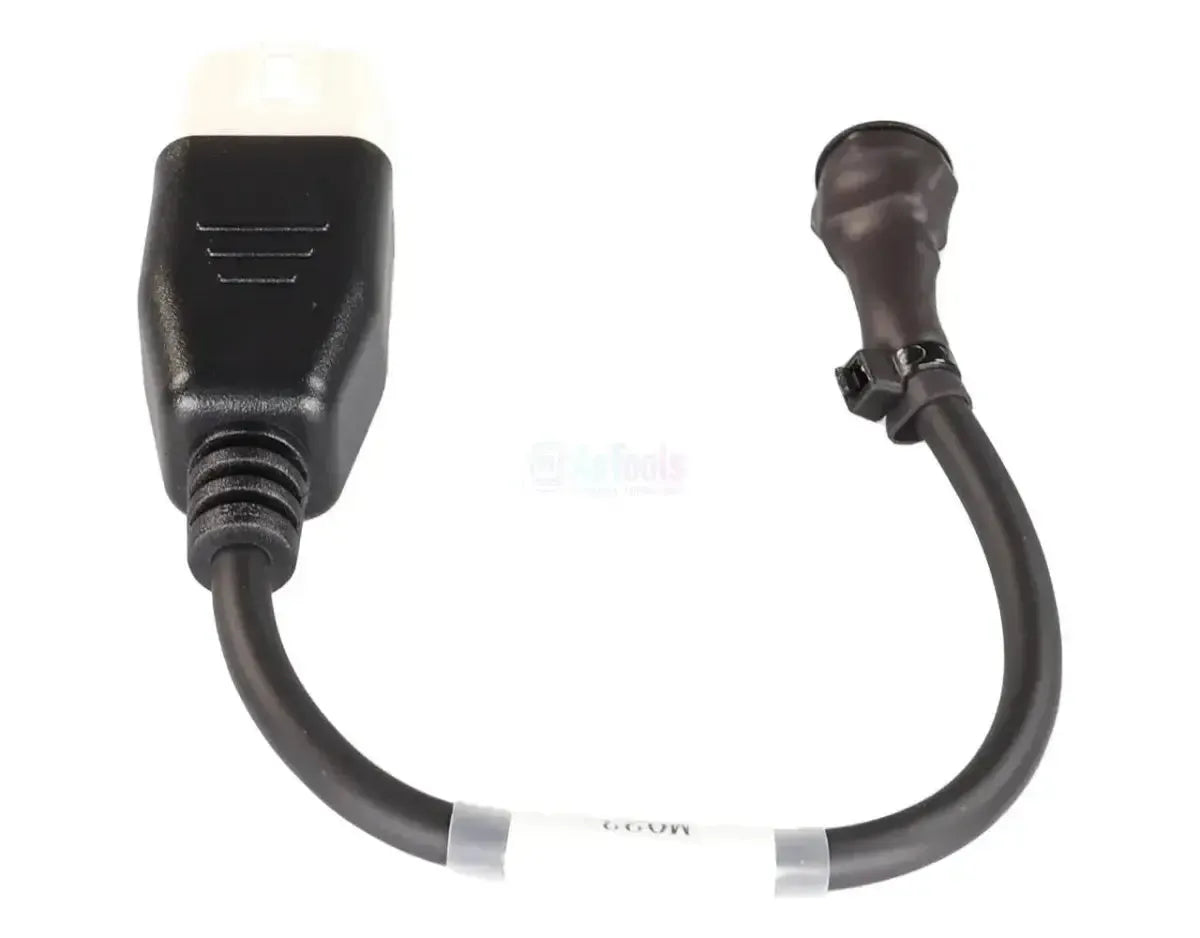

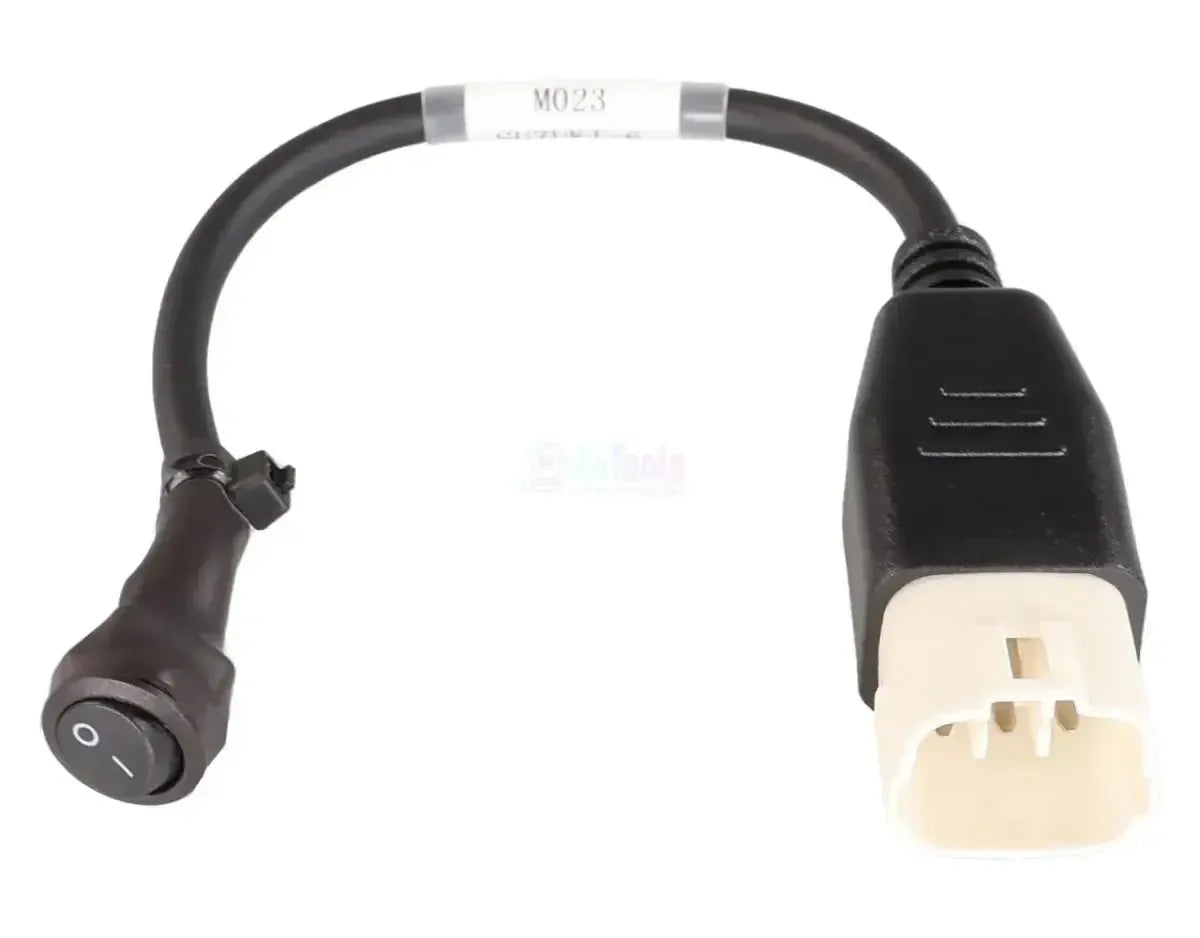

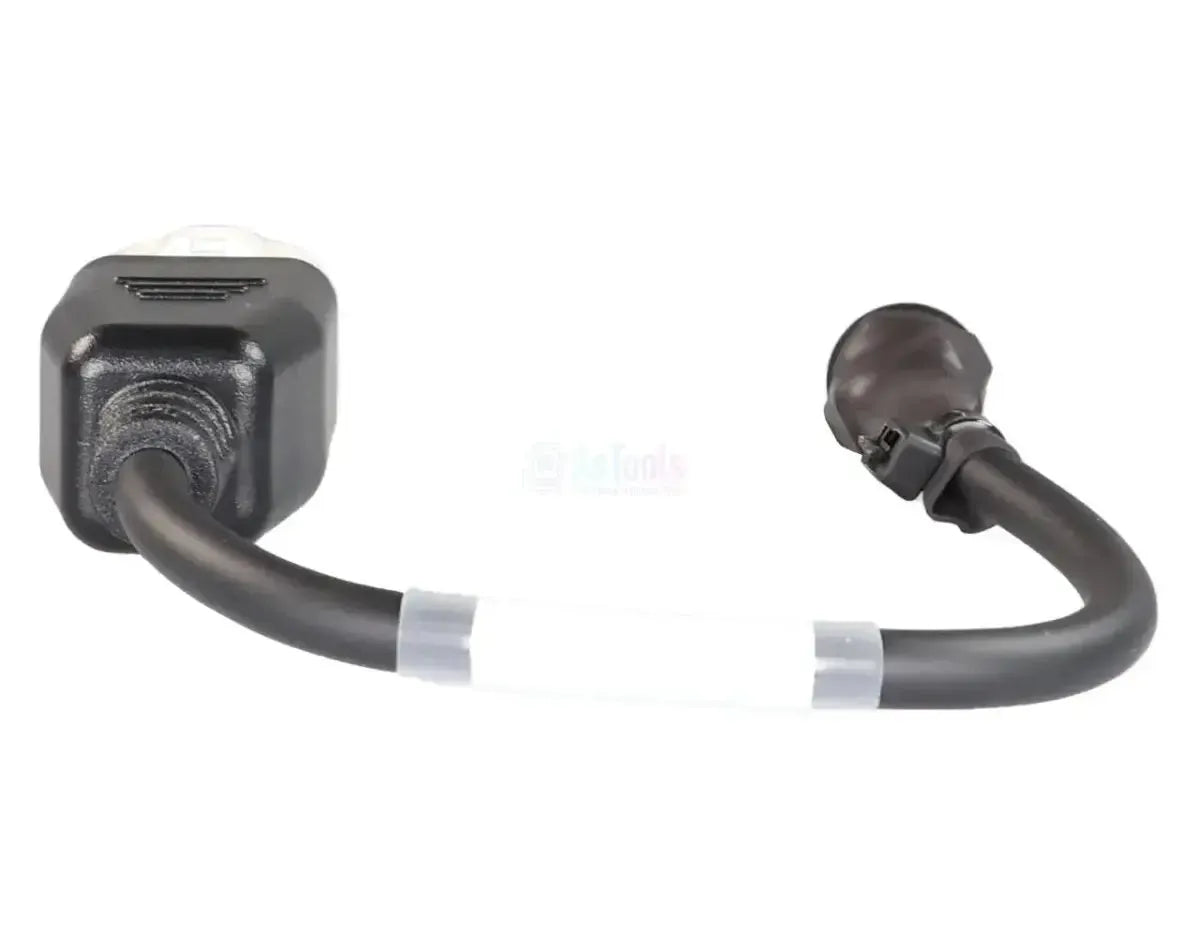

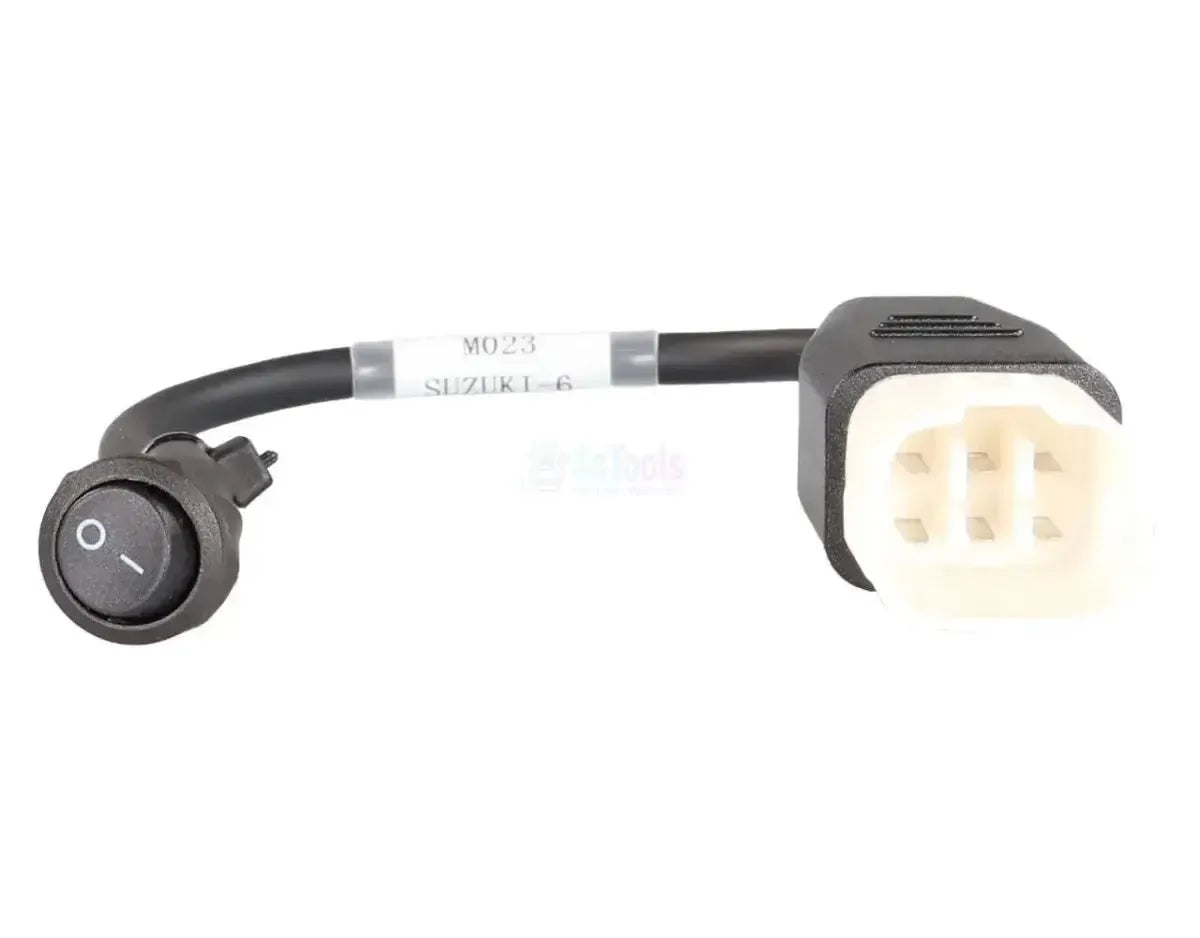

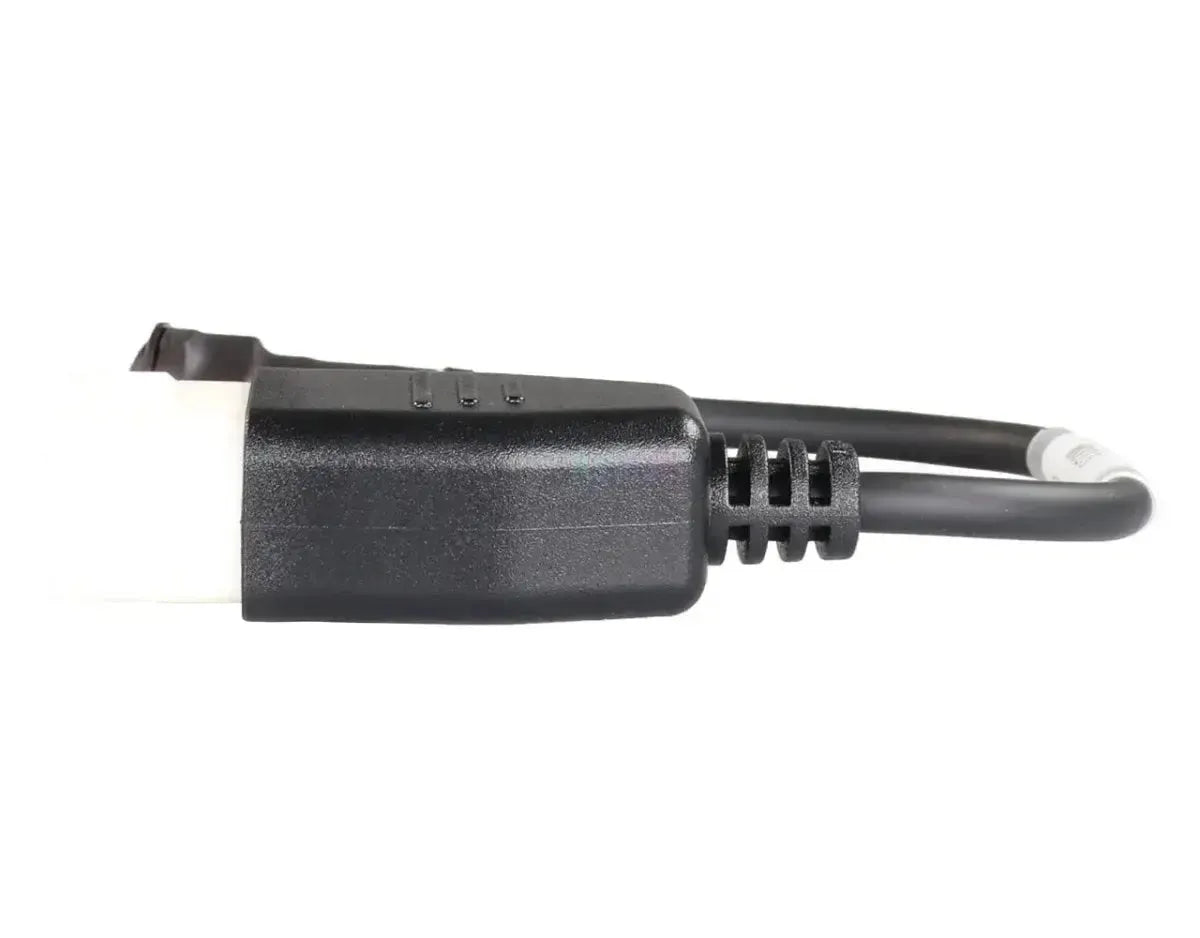

The OBDSTAR M023 is the Suzuki cable for the 6-pin diagnostic port, featuring a built-in dealer/mode switch. The 6-pin side connects to the motorcycle's factory diagnostic port; on the other end, you connect your OBDSTAR device.
Suzuki does not expose all diagnostic functions on this port in the same mode. The switch allows you to manually toggle the connection between standard diagnostic mode and dealer mode, where protected systems and certain adjustments become accessible. Signal transmission runs via the K-line. The cable therefore unlocks both the connection and mode switching. Which system functions are available depends on your device's software; the cable itself adds no coverage and works only with OBDSTAR equipment.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Via the 6-pin port, you access the engine control unit of the Suzuki motorcycle, in standard mode or dealer mode.
Control units you can reach
- Engine control unit: The control unit connected via K-line to the 6-pin port.
- Systems in dealer mode: Protected systems that become accessible only after switching to dealer mode.
What you can do
- Fault code management: Read and clear diagnostic trouble codes from the engine control unit via K-line connection.
- Activate dealer mode: Use the switch to enter dealer diagnostic mode for more comprehensive system control.
- Monitor live data: View real-time vehicle data, such as engine speed, temperature and sensor readings.
- Adjust system settings: Perform adjustments and calibrations on supported Suzuki engine systems via dealer mode.
- Please note: Available adjustments and calibrations vary by model and OBDSTAR device.
Compatible vehicles and applications
The 6-pin diagnostic port is what matters, not the model name. The Suzuki series listed below are specified as application areas; production years are not specified, only the presence of the port.
Suzuki:
- GSX-R series: Models with 6-pin OBD diagnostic port
- V-Strom series: Models with 6-pin OBD diagnostic port
- Burgman series: Models with 6-pin OBD diagnostic port
- SFV / Gladius series: Models with 6-pin OBD diagnostic port
Package contents
- 1x OBDSTAR (M023) | Suzuki 6-pins OBD – Dealer/Modus Switch Adapter Cable | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M023 |
| Type | Adapter cable |
| Application | Suzuki motorcycles with 6-pin diagnostic port and dealer mode |
| Vehicle-side connection | Suzuki 6-pins OBD |
| Device-side connection | Dealer/Modus Switch |
| Communication | K-line |
| Control units | Engine control unit; additional Suzuki systems in dealer mode |
| Segment | Motorcycle |
| Supported brands | Suzuki |
| Model range | Suzuki motorcycles in the specified series with 6-pin port; model years not specified |
| Required to use | OBDSTAR diagnostic device with motorcycle coverage, such as MS50, MS70 or MotoMaster |
| Additional requirements | None; the switch is integrated into the cable and requires no separate power supply |
| Weight | 0.1 kg |
