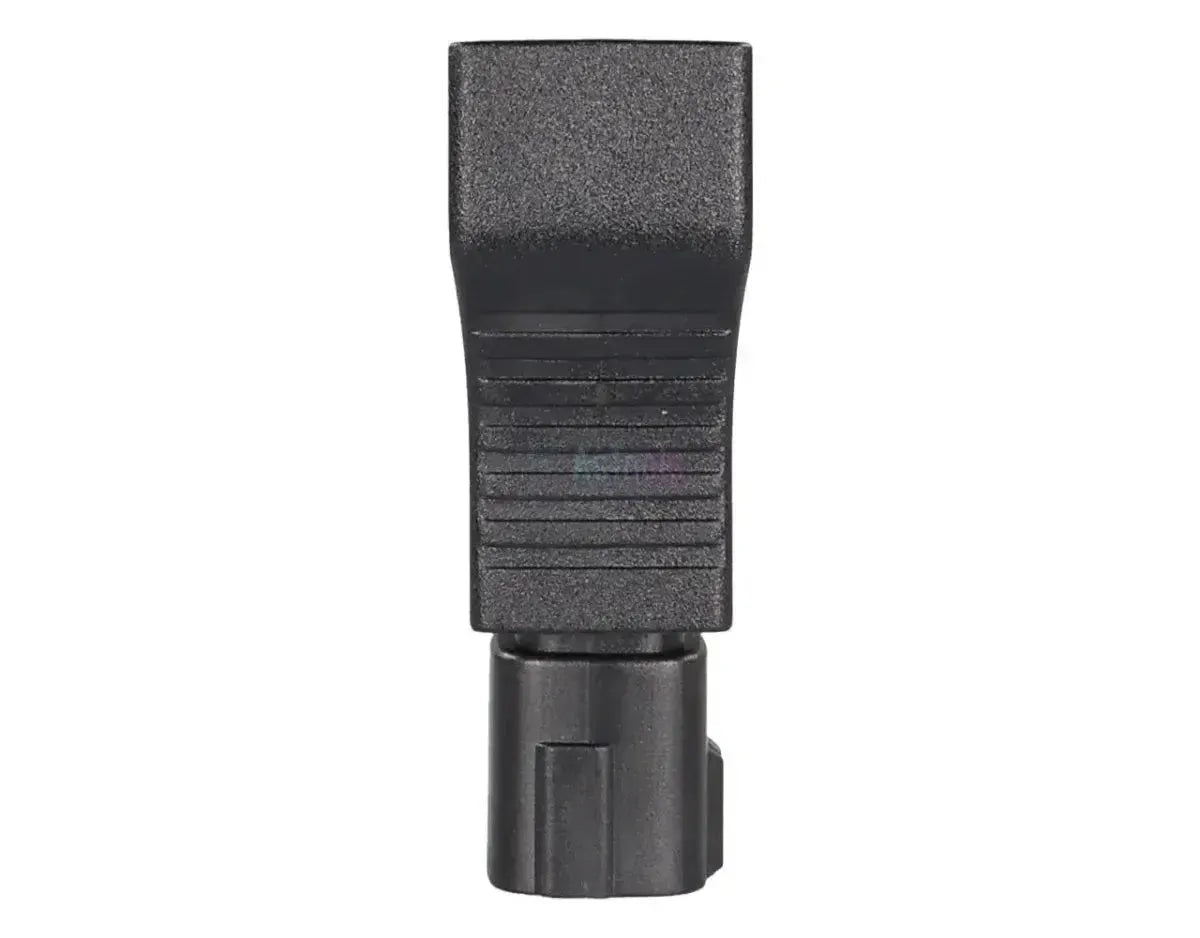

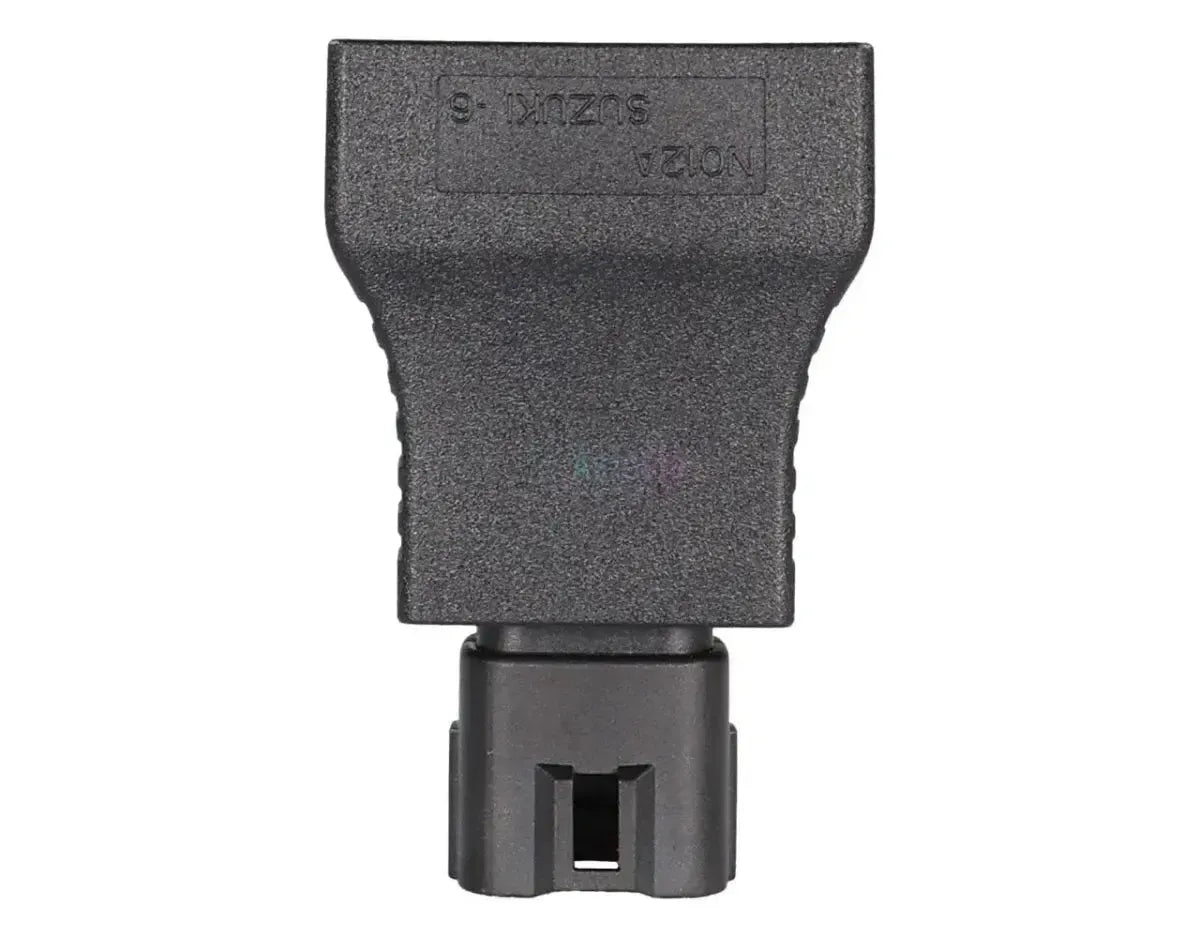

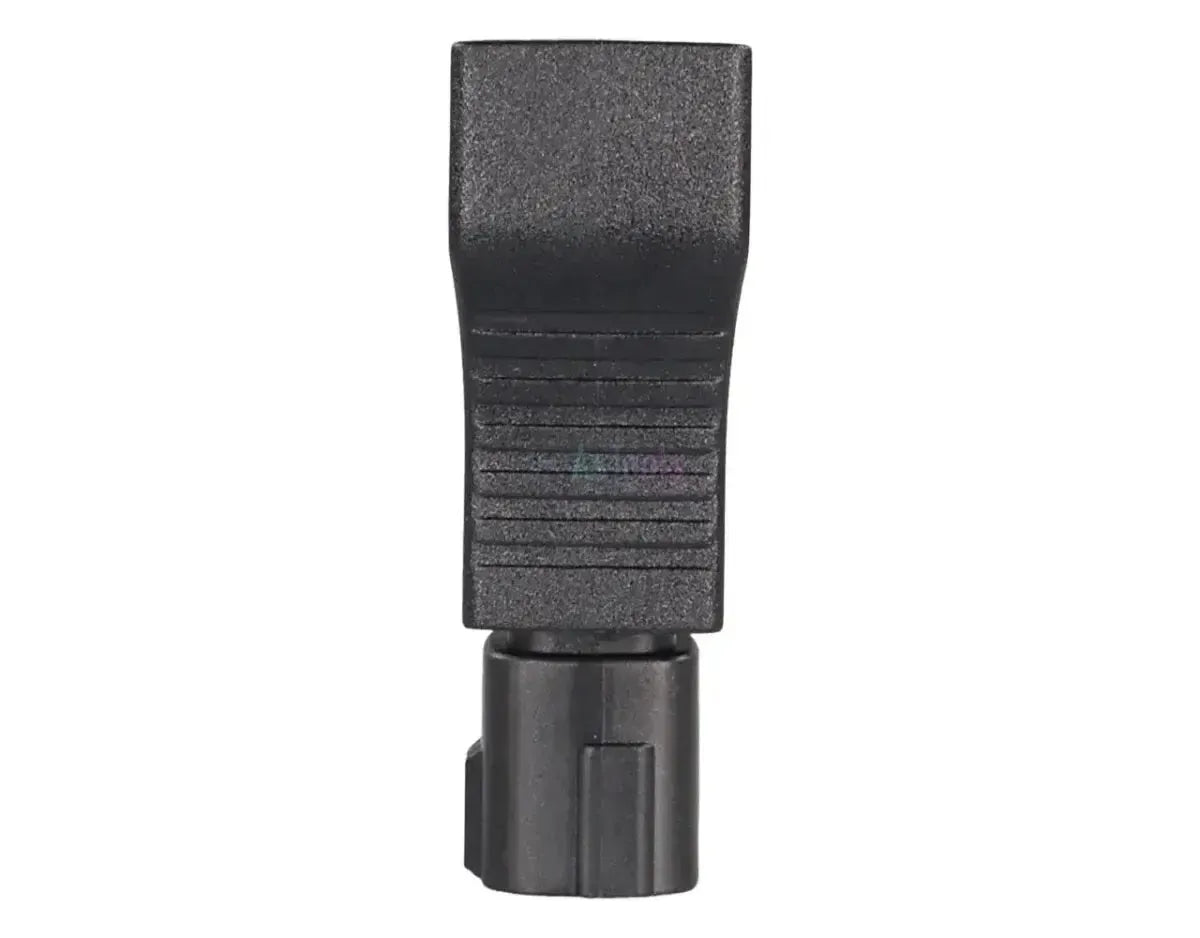

The OBDSTAR N012A is a pass-through adapter featuring a Suzuki 6-pin diagnostic connector on the vehicle side and a 16-pin OBD2 socket (J1962) on the device side. The adapter connects directly to the manufacturer-specific 6-pin diagnostic socket on Suzuki motorcycles, typically located beneath the seat or behind a cover panel.
Suzuki has not fitted a 16-pin OBD2 connection to all of its motorcycles; instead, some models use a proprietary 6-pin connector. The pin configuration of the N012A is matched to Suzuki communication lines, ensuring correct signal transmission between the motorcycle and diagnostic equipment without any wiring modifications. The adapter is compact and cable-free, providing a stable connection in the confined space beneath the seat. The adapter makes the manufacturer socket accessible and nothing more: it positions your OBDSTAR device physically on the motorcycle but adds no functions or vehicle coverage. Which systems you can actually read and which operations are available depends on your device's software for the specific model. Current product information does not list individual Suzuki models; only the presence of the 6-pin socket is relevant.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
When combined with an OBDSTAR device with motorcycle coverage, the adapter provides access to the motorcycle's diagnostic communication.
Control units you can reach
- Engine management: The motorcycle's engine control unit is accessed via the 6-pin Suzuki connector.
- Other control units: Which additional systems are accessible varies by model; the current product information does not list them separately.
What you can do
- Read fault codes: Retrieve stored and active diagnostic trouble codes (DTCs) from the engine control unit.
- Clear fault codes: After diagnosis and repair, remove stored DTCs from memory.
- View live data: Monitor current sensor readings and operating parameters on the connected OBDSTAR device.
- Perform system diagnostics: Establish communication with engine management via the manufacturer-specific pin configuration of the 6-pin connector.
- Note: The adapter performs no function on its own. The connected device and its associated software determine what is available for your specific Suzuki.
Compatible vehicles and applications
The determining factor is the 6-pin Suzuki diagnostic connector on the motorcycle, not the model. If there is a six-pin manufacturer-specific connector under the seat instead of a 16-pin OBD2 connection, this is the correct adapter. The current product information does not provide a detailed model list.
Suzuki:
- Motorcycles with 6-pin manufacturer-specific diagnostic port: Models not equipped with a standard 16-pin OBD2 connection that use the Suzuki 6-pin connector for diagnostic communication.
Package contents
- 1x OBDSTAR (N012A) | Suzuki 6-pins OBD – 16-pins OBD2 Adapter | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | N012A |
| Type | Adapter |
| Application | Diagnostic connector for Suzuki motorcycles with proprietary 6-pin port |
| Vehicle-side connector | Suzuki 6-pin OBD |
| Device-side connector | 16-pin OBD2 |
| Control units | Engine management (ECU) |
| Category | Motorcycle |
| Supported brands | Suzuki |
| Model range | Suzuki motorcycles with 6-pin diagnostic port; no model list provided |
| Required to use | OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster |
| Additional requirement | Standard 16-pin OBD2 cable from the OBDSTAR device |
| Weight | 0.05 kg |
