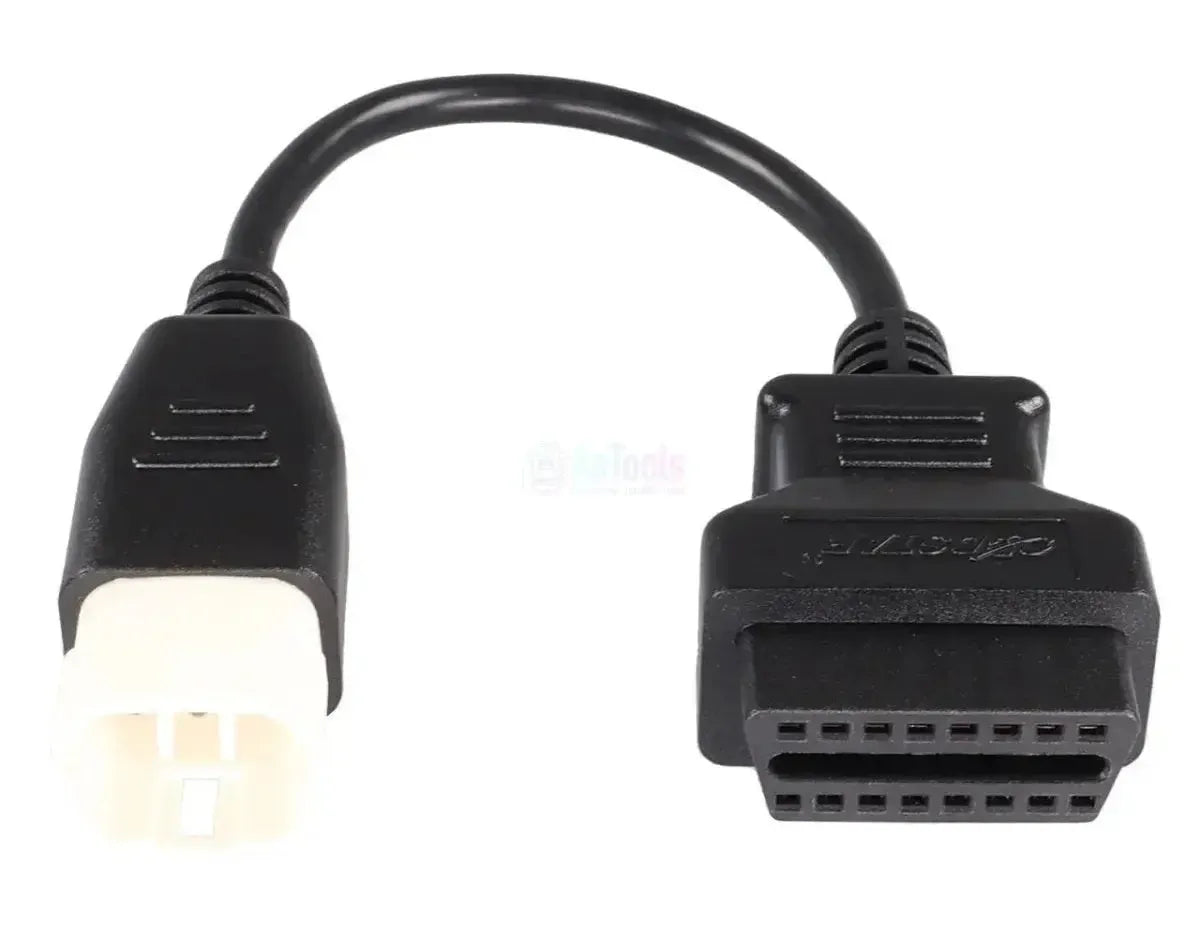

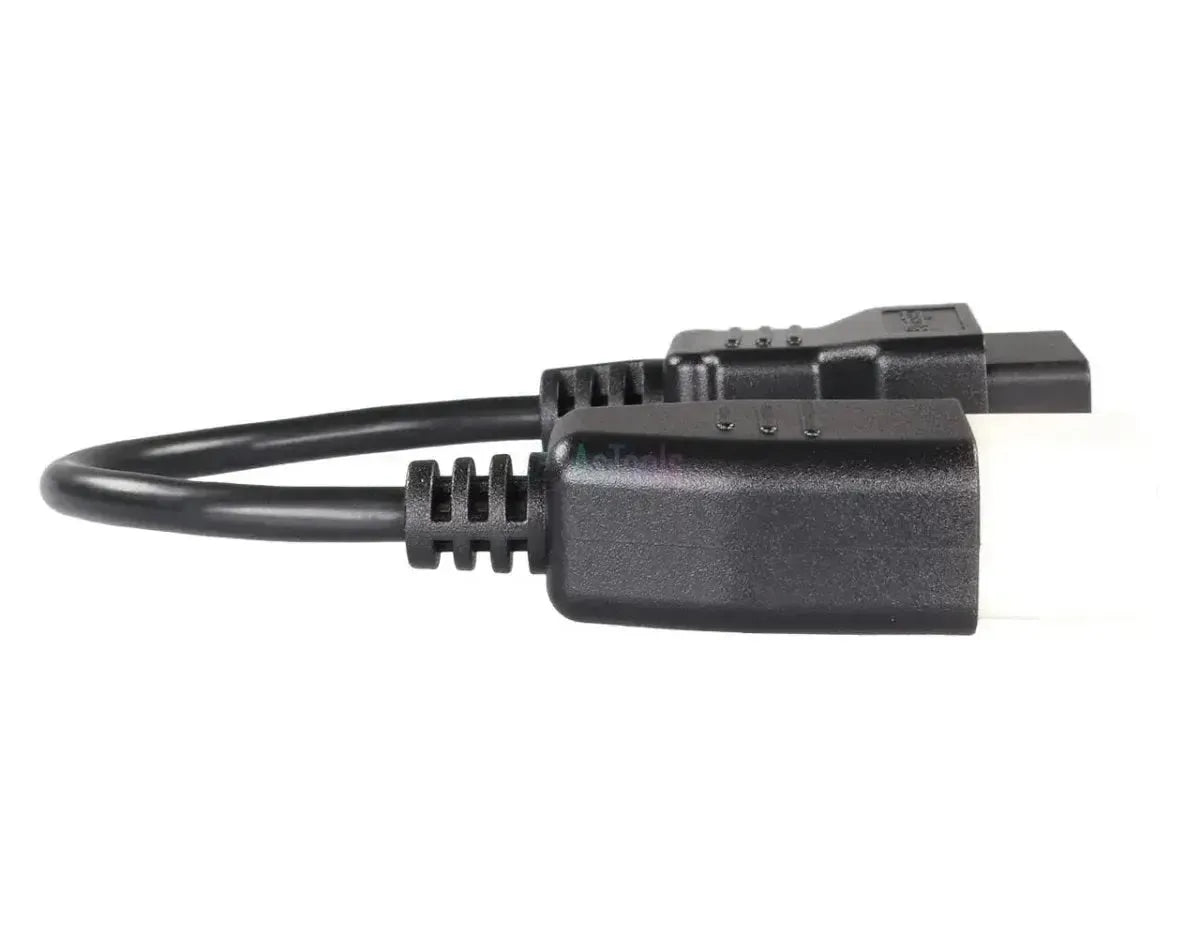

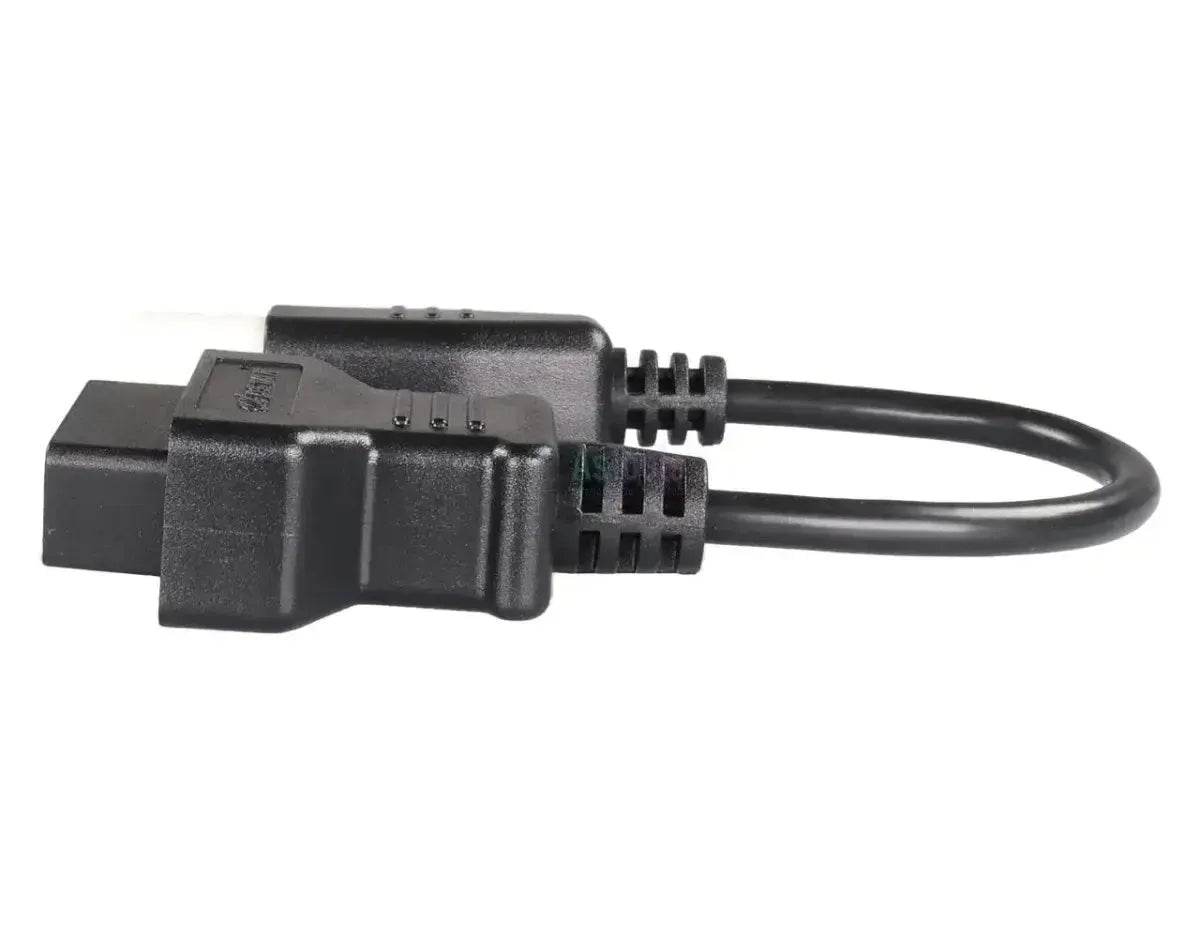

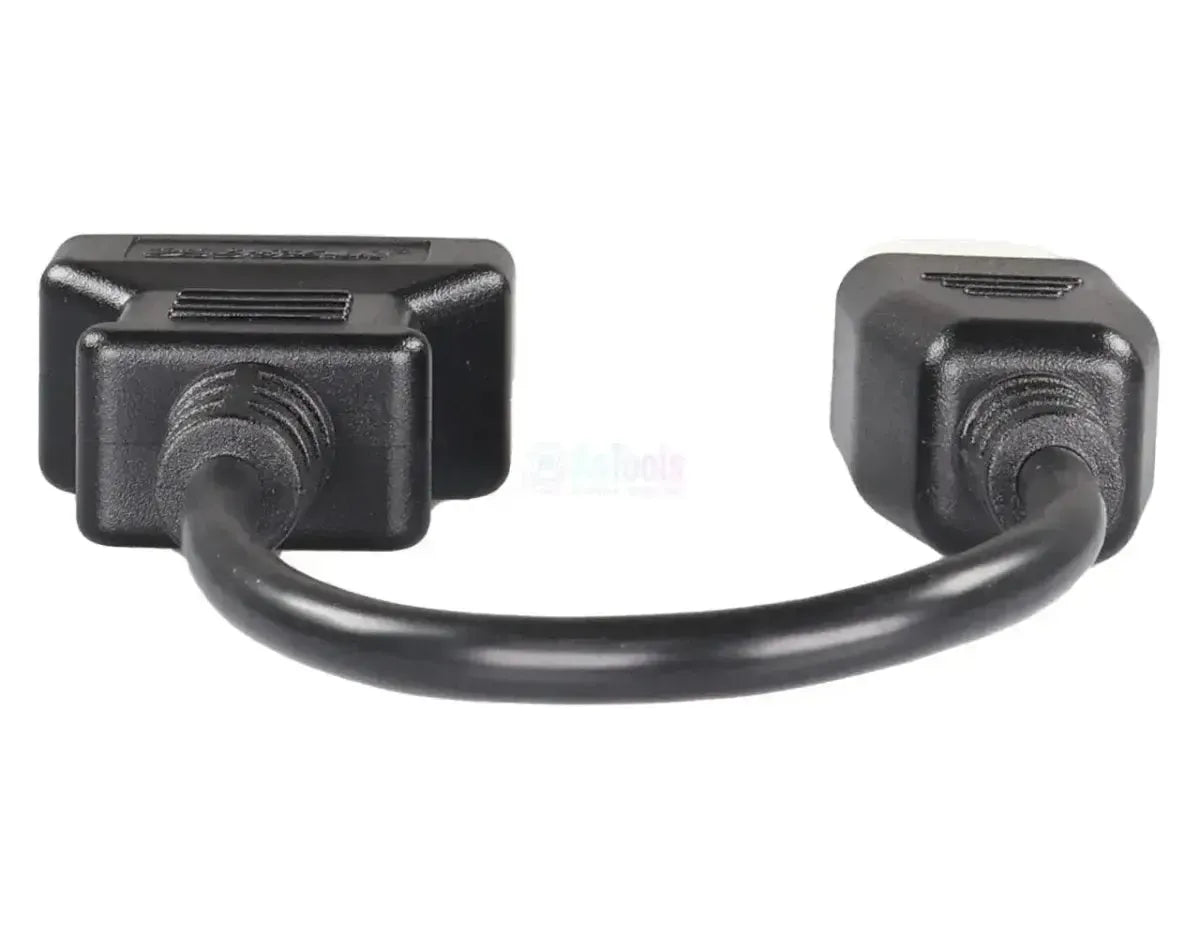

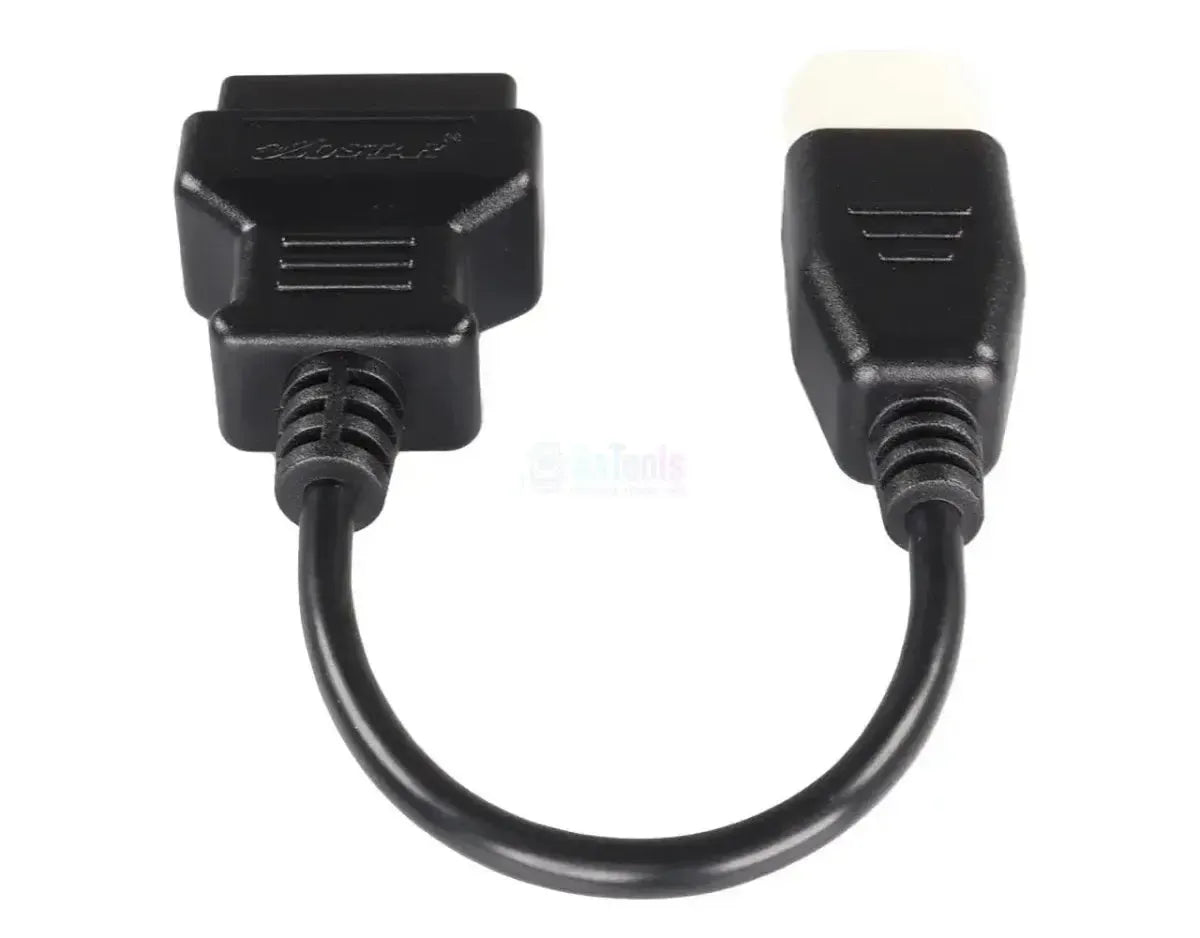

The OBDSTAR M069 is the adapter cable for the 8-pin diagnostic port on outboard motors. On the engine side, it connects to that 8-pin port on the motor; on the device side, it connects to the 16-pin OBD2 (J1962)-connector of your OBDSTAR diagnostic equipment.
Outboard motors do not have standard automotive OBD2 ports. Manufacturers such as Suzuki, Evinrude, Johnson and Selva use their own proprietary 8-pin diagnostic connector instead. The pin configuration of this cable is matched to the engine-specific communication protocols of these brands, ensuring signals reach the diagnostic reader unaltered. The exact protocol varies by manufacturer and engine model. The cable provides access to the outboard motor control unit—nothing more. What you can do with the data depends on your own device's software; the cable itself adds no additional functionality. It is not intended for road vehicles.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
This connection gives you access to the engine electronics of the outboard motor.
Control units you can reach
- Engine control unit: The control unit of the outboard motor, which is connected to the 8-pin port.
- Other modules: Whether anything beyond engine control is accessible varies by motor and device.
What you can do
- Read fault codes: Retrieve stored and active fault codes from the engine control unit.
- Clear fault codes: Empty the fault memory once the cause has been resolved.
- View live data: Real-time values such as engine speed, temperature and sensor readings while running.
- Note: Which functions are available varies by motor and OBDSTAR device.
Compatible vehicles and applications
The determining factor is the 8-pin diagnostic port on the motor, not the model. For these brands, no separate engine models or model years are specified; what matters is whether the outboard motor is equipped with the 8-pin port.
- Evinrude: Outboard motors with 8-pin diagnostic port.
- Johnson: Outboard motors with 8-pin diagnostic port.
- Selva: Outboard motors with 8-pin diagnostic port.
- Suzuki: Outboard motors with 8-pin diagnostic port.
Package contents
- 1xOBDSTAR (M069) | Universal 8-pin OBD to 16-pin OBD2 Adapter Cable | Marine
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M069 |
| Type | Adapter cable |
| Application | Outboard motors with universal 8-pin diagnostic port |
| Vehicle-side connector | Universal 8-pin OBD |
| Device-side connector | 16-pin OBD2 (J1962) |
| Control units | Outboard motor engine control unit |
| Segment | Marine |
| Supported brands | Evinrude, Johnson, Selva and Suzuki |
| Model range | Outboard motors with the 8-pin diagnostic port; specific models and production years are not specified |
| Required to use | OBDSTAR diagnostic device with marine coverage, such as the Marine Master or an iScan variant |
| Additional requirements | None; the cable operates without adapter or separate power supply |
| Weight | 0.1 kg |
