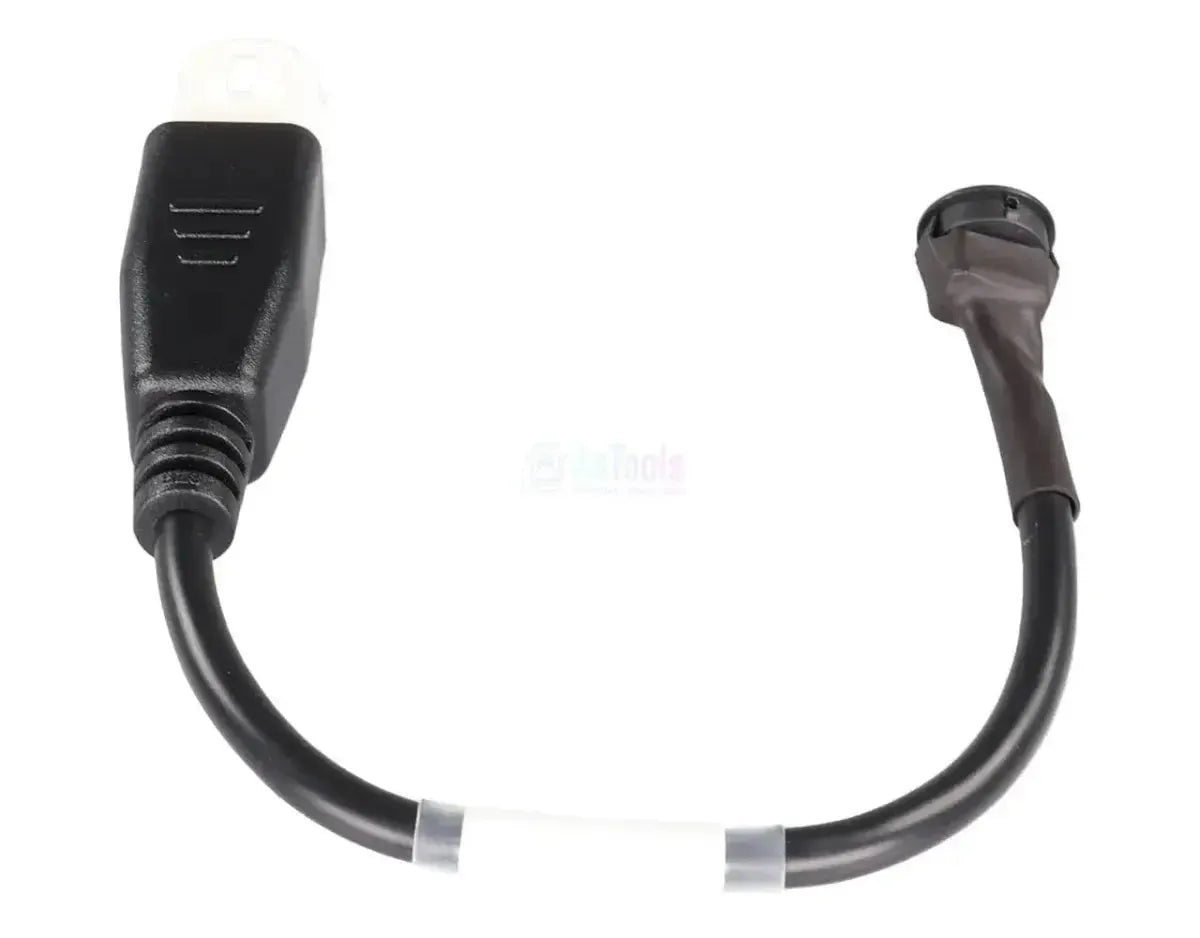

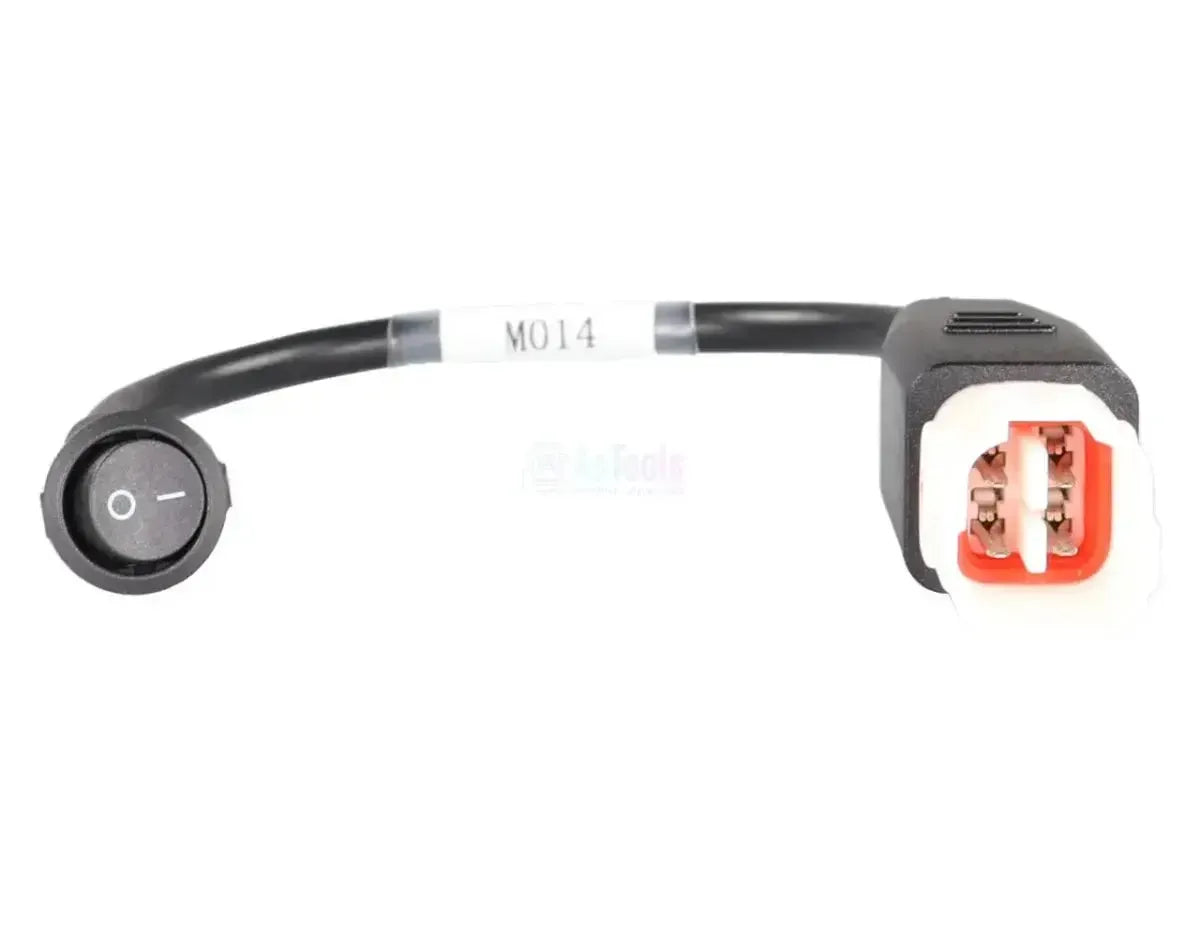

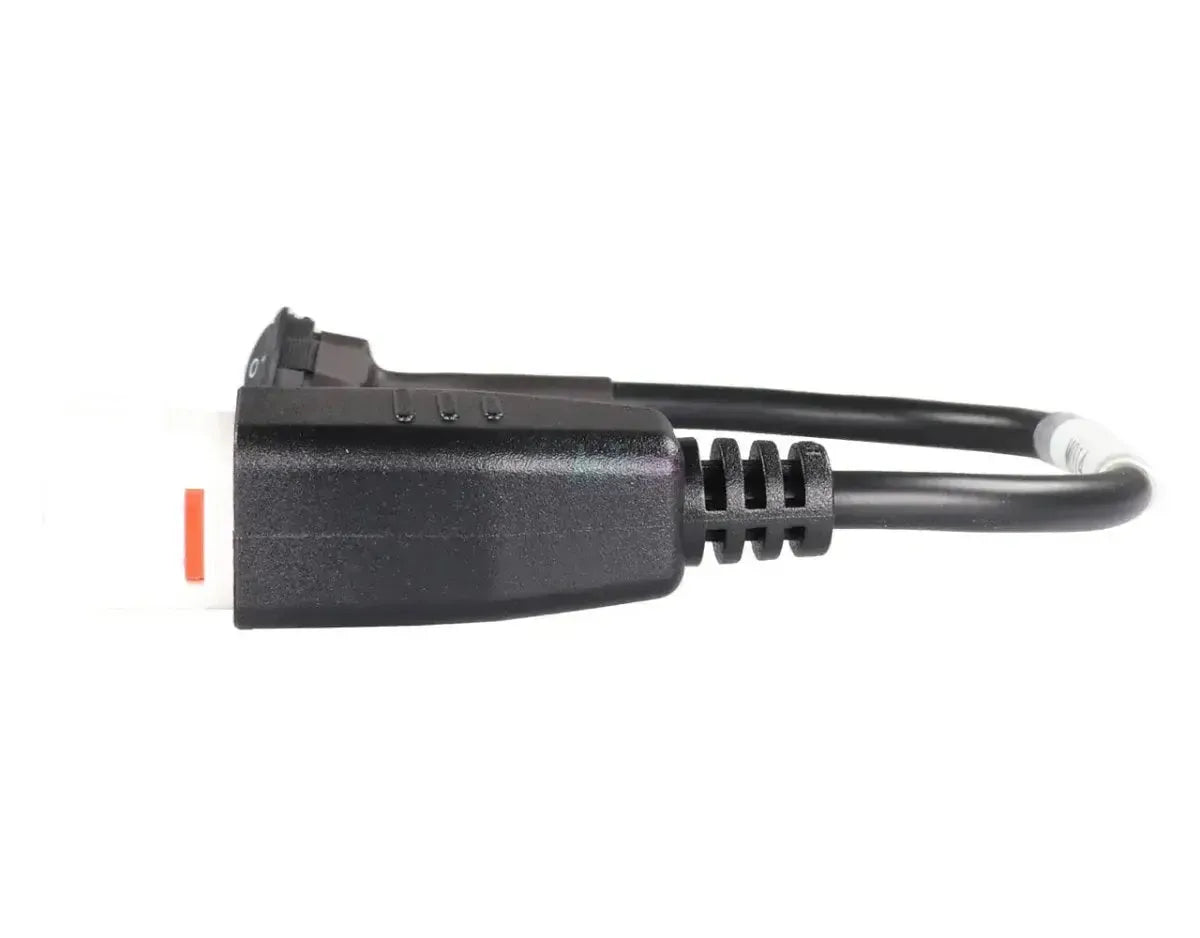

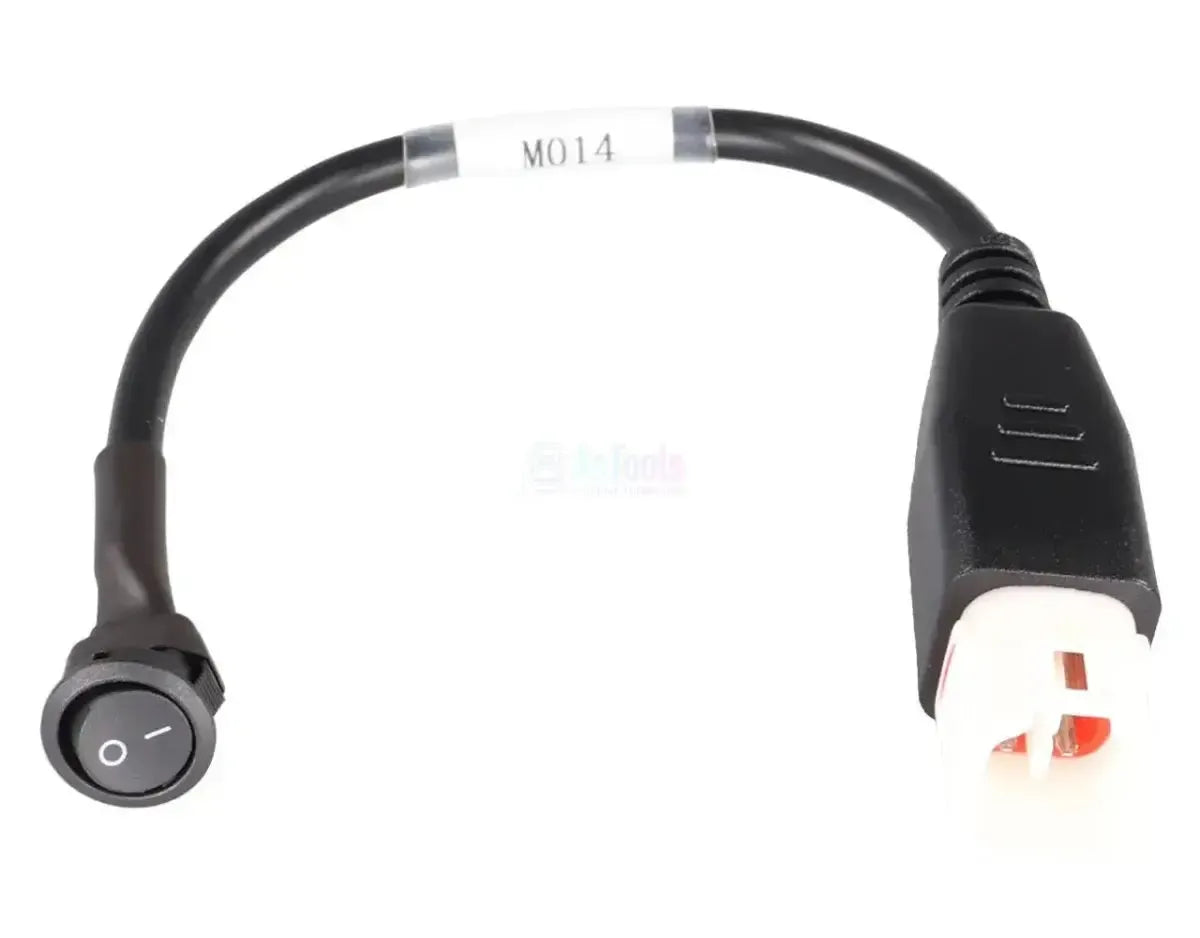

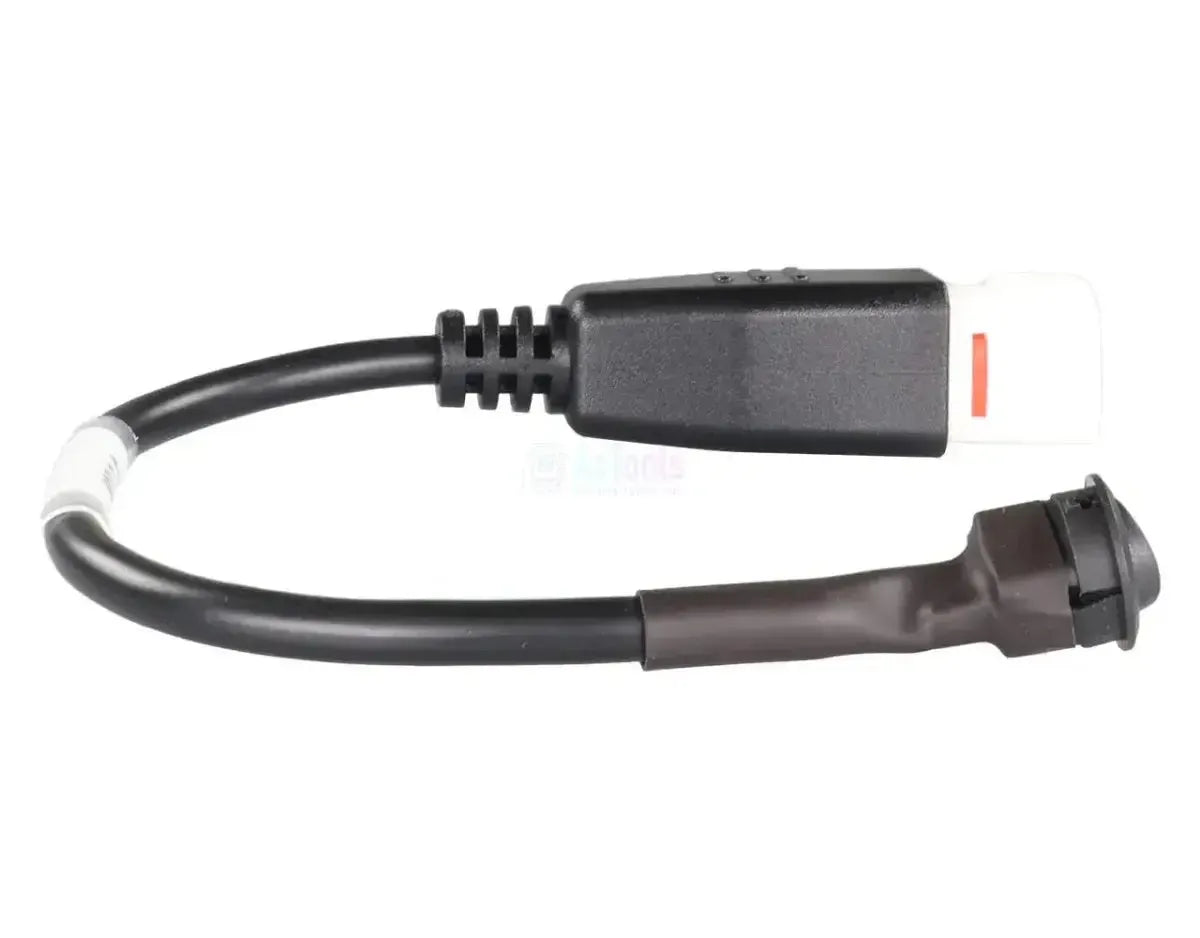

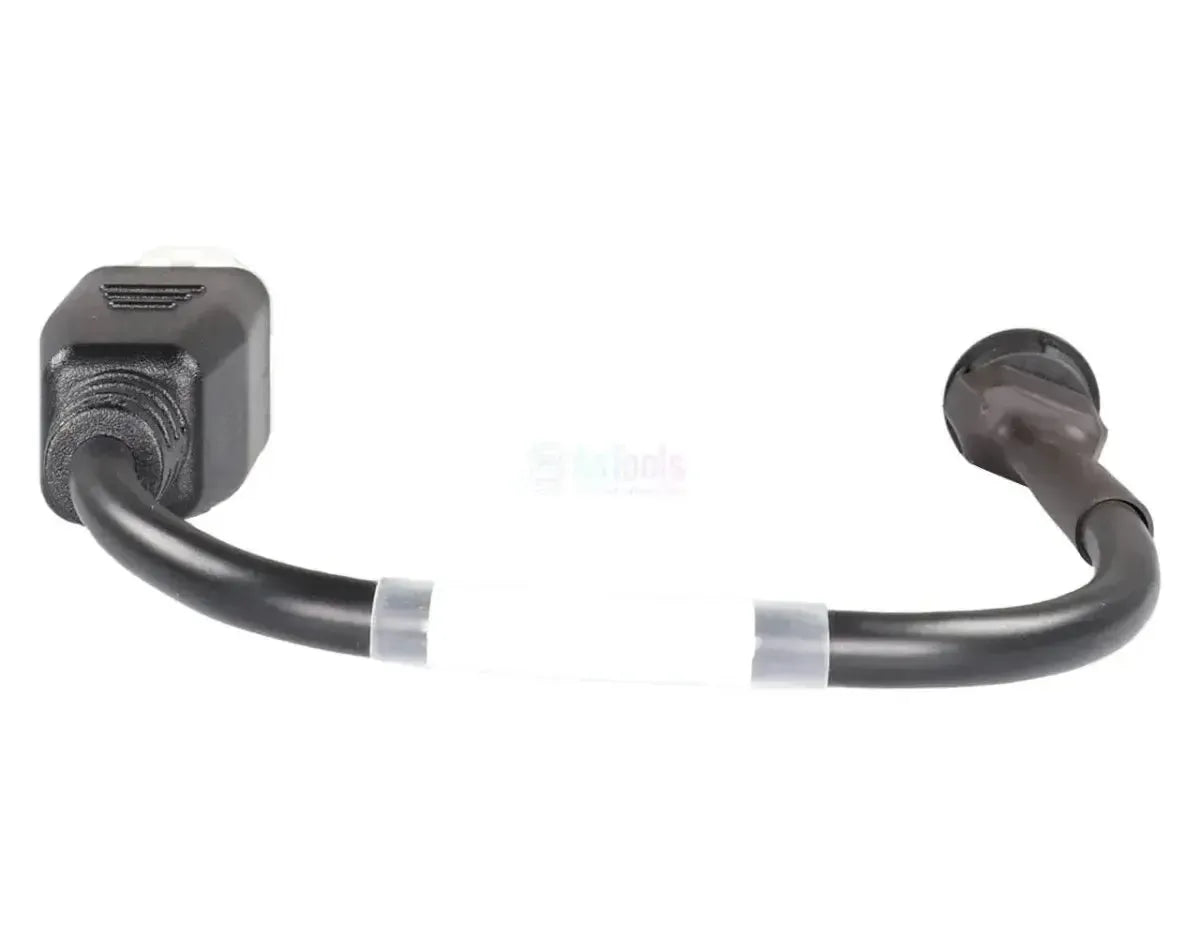

The OBDSTAR M014 is the Suzuki cable with dealer/mode switch. On the vehicle side, it features the 4-pin Suzuki connector that connects to the diagnostic socket on the motorcycle; on the other end, the connection to your OBDSTAR diagnostic device or programmer, with the switch integrated into the cable.
Suzuki uses its own 4-pin diagnostic connector on its motorcycles and operates with two communication modes. Using the built-in switch, you can toggle between dealer mode and standard diagnostic mode; this switching may be necessary to access certain vehicle systems and diagnostic ECUs within the Suzuki platform. The cable contains no active components: signals travel over fixed wiring. The cable provides access to the connector and mode switching—nothing more. Which functions are actually available in each mode depends on your device and the supported software version for the relevant Suzuki model.
KEY BENEFITS
KEY POINTS
Applications and functionality
This connection gives you access to the engine control unit of the Suzuki motorcycle, in standard mode or dealer mode.
Control units you can reach
- Engine control unit (ECU): The control unit connected to the 4-pin diagnostic connector.
- Diagnostic ECUs in dealer mode: Systems within the Suzuki platform that are only accessible in dealer mode.
What you can do
- Read fault codes: Retrieve stored and active diagnostic trouble codes from the motorcycle's ECU.
- Clear fault codes: Erase the fault memory after inspection or repair of the fault.
- Read live data: Monitor sensor readings and operating parameters during idle or whilst riding.
- Activate dealer mode: Switch to dealer mode to access extended diagnostic or programming options.
- Note: Which options appear in dealer mode depends on the connected device and software version for the model.
Compatible vehicles and applications
The 4-pin Suzuki diagnostic connector is the determining factor, not the model. No specific Suzuki models or model years are listed for this cable; model information is found in the OBDSTAR compatibility list.
- Suzuki: Motorcycles with 4-pin OBD diagnostic connector; consult the OBDSTAR compatibility list for specific models and model years.
Package contents
- 1x OBDSTAR (M014) | Suzuki 4-pin OBD – Dealer/Mode Switch Adapter Cable | Motorcycle
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part number | M014 |
| Type | Adapter cable |
| Application | Suzuki motorcycles with 4-pin diagnostic connector and dealer mode |
| Vehicle-side connection | Suzuki 4-pin OBD |
| Device-side connection | Dealer/Mode Switch |
| Control units | Engine control unit (ECU) and diagnostic ECUs accessible in dealer mode |
| Segment | Motorcycle |
| Supported brands | Suzuki |
| Model range | Suzuki motorcycles with the 4-pin diagnostic connector; specific models and model years are not specified |
| Required to use | OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster |
| Additional requirements | None; the switch is integrated into the cable and requires no separate power supply |
| Weight | 0.1 kg |
