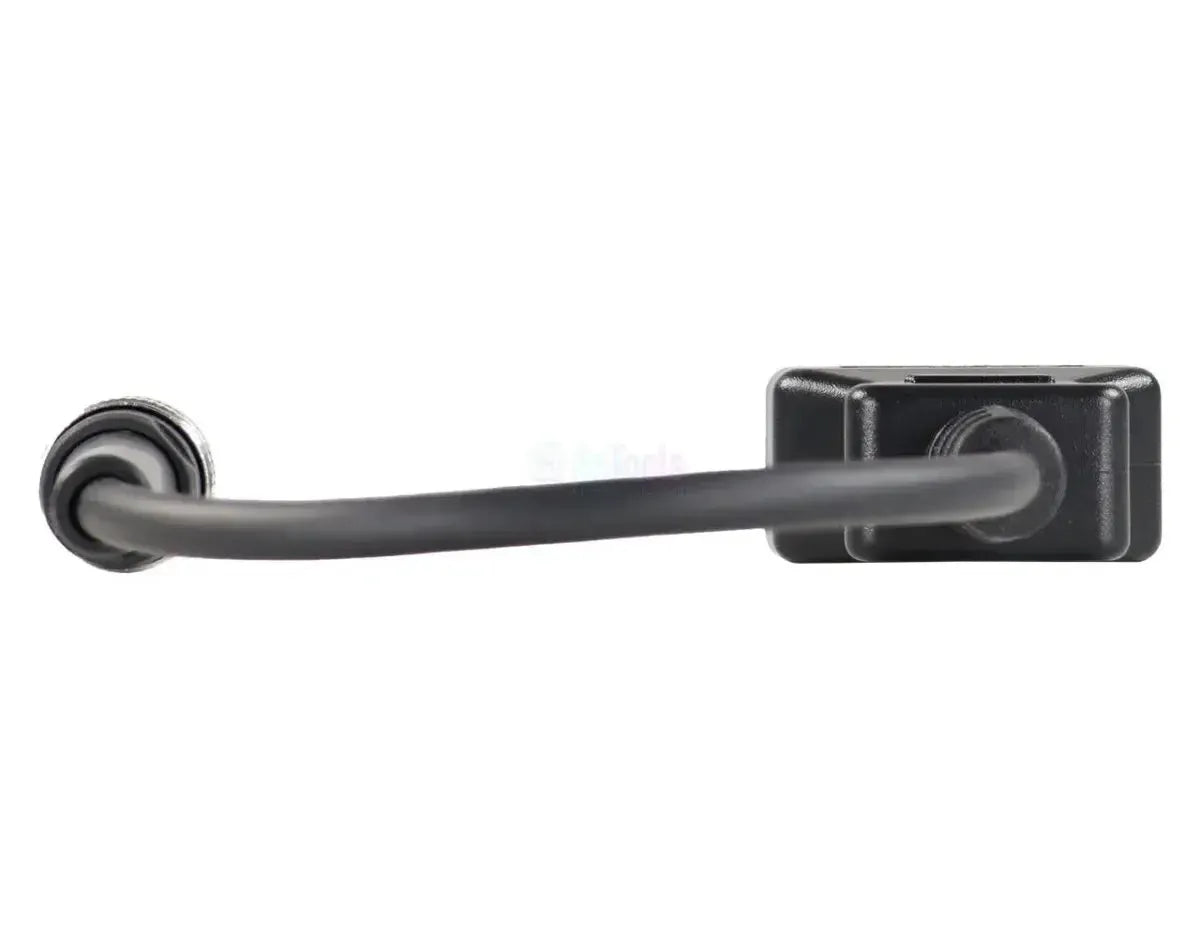

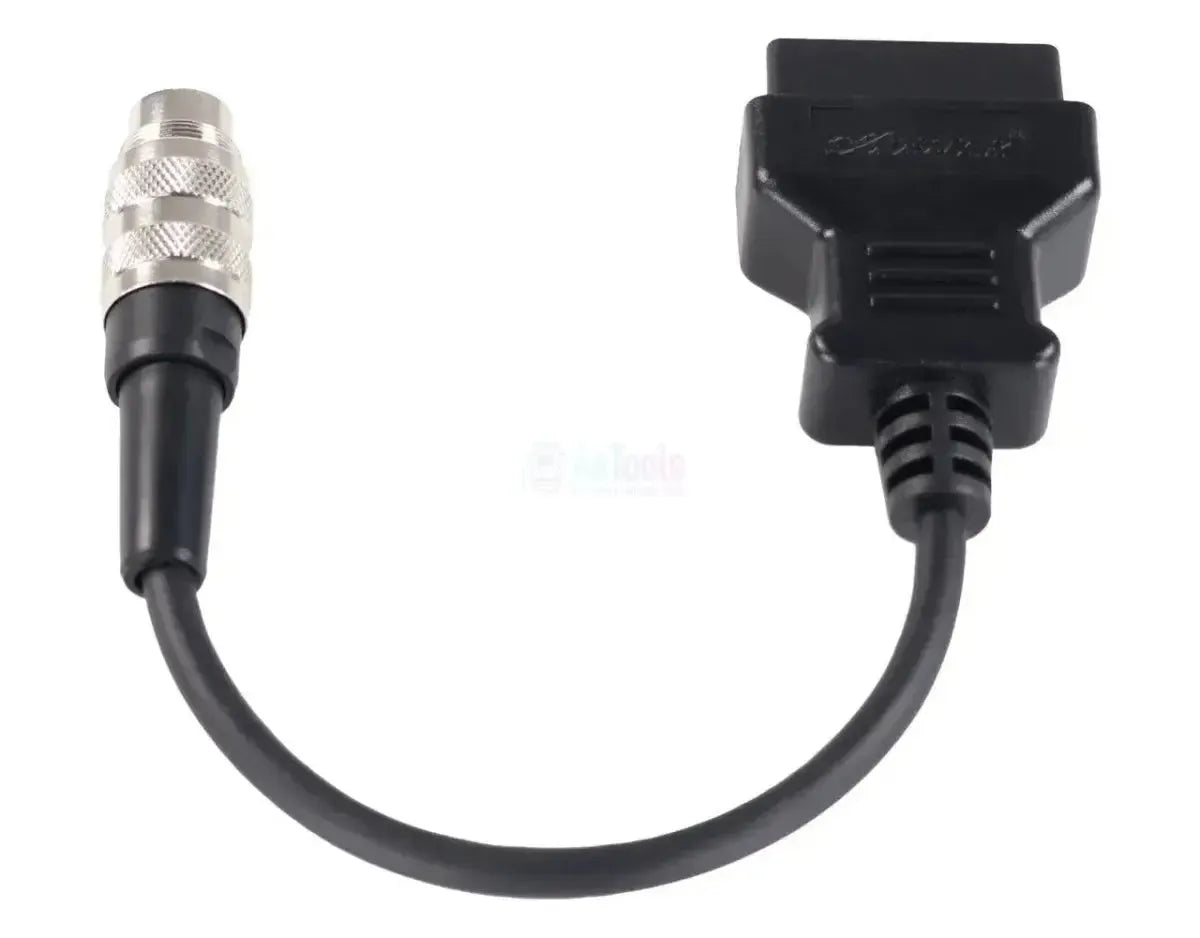

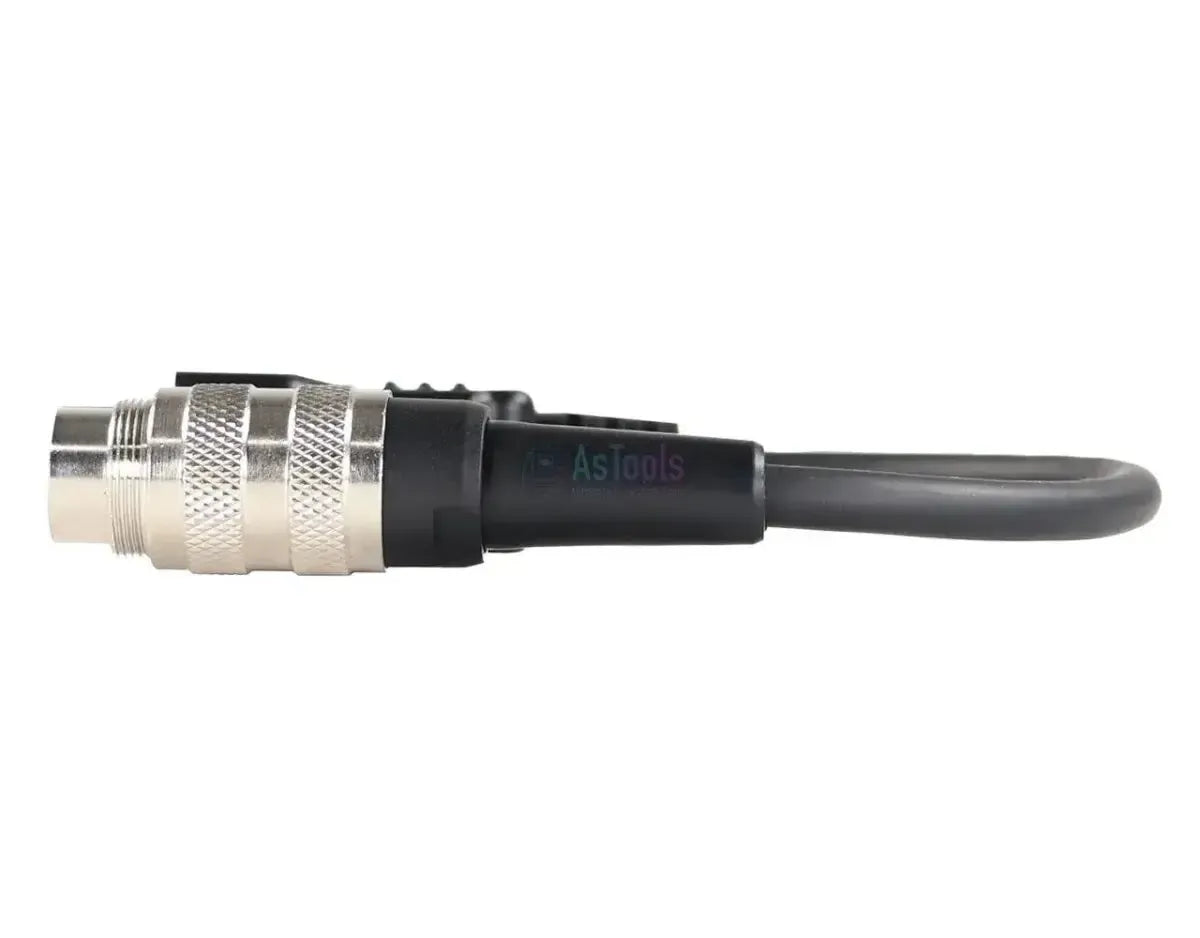

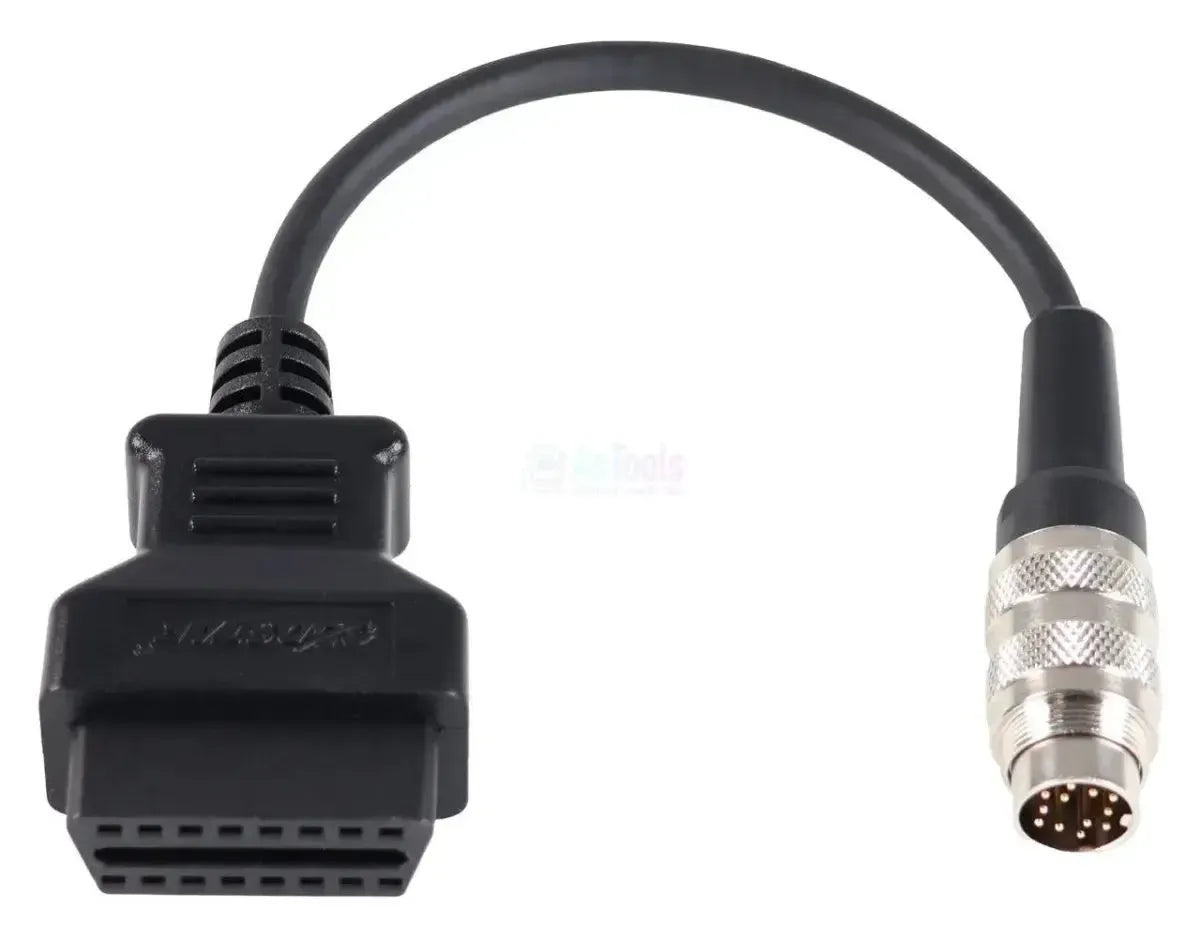

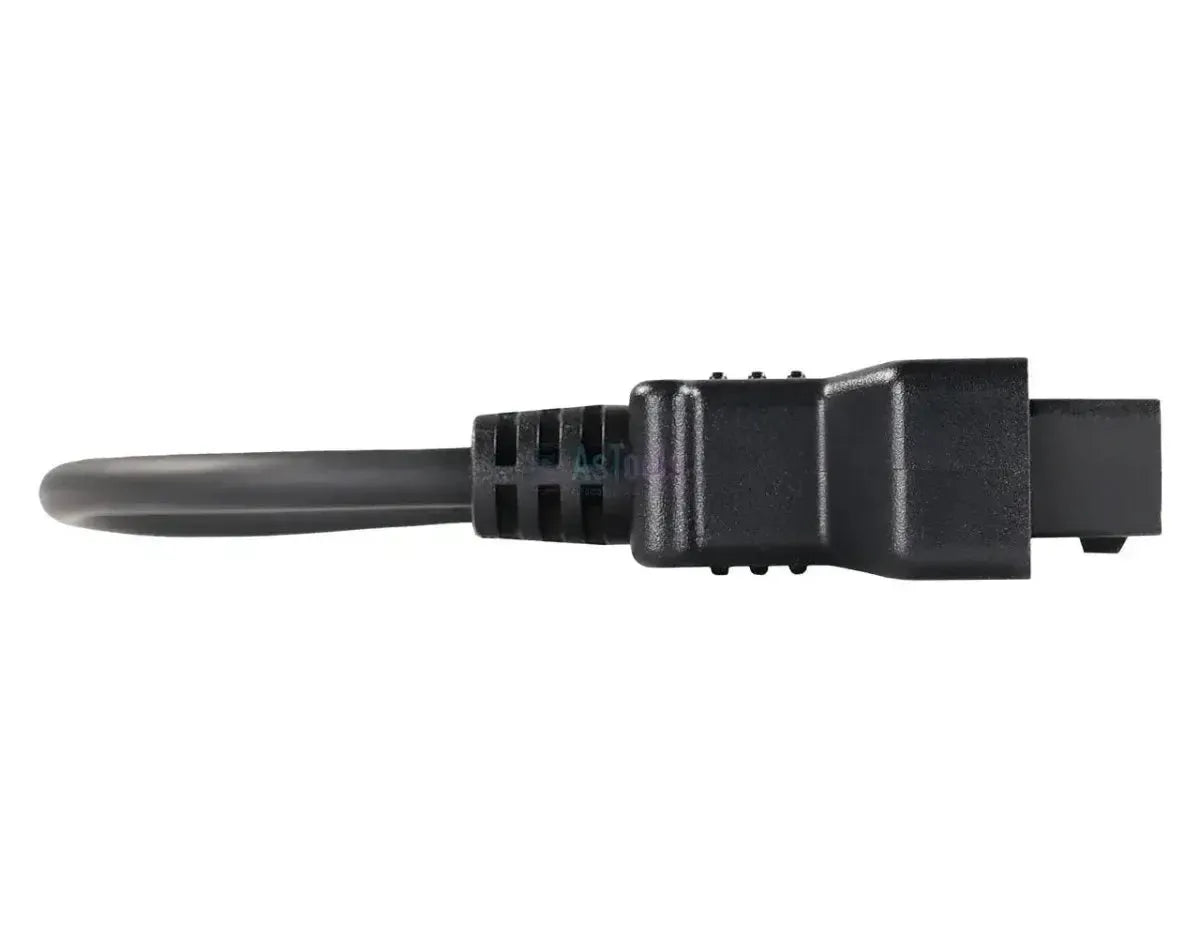

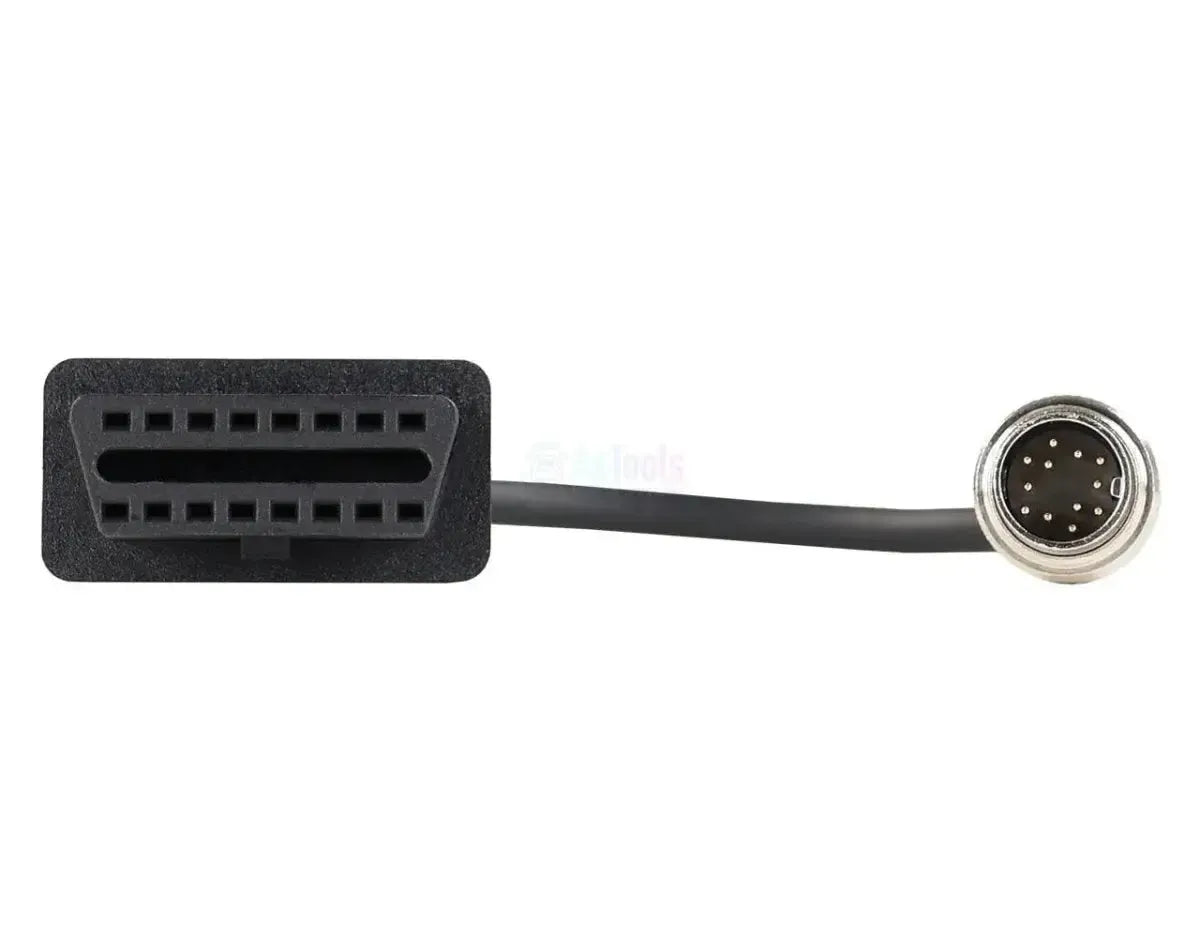

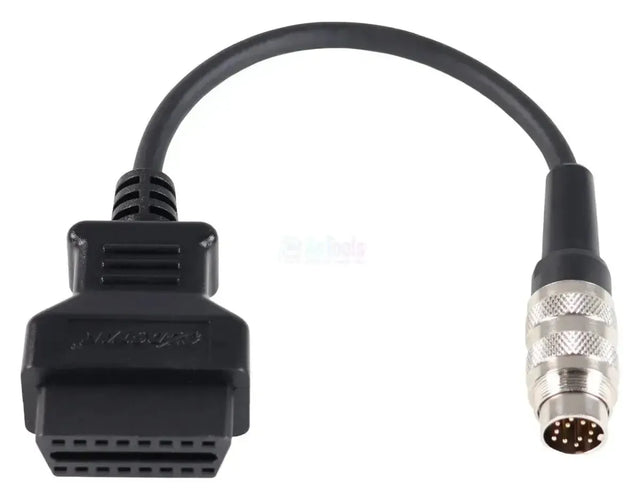

The OBDSTAR M085 connects the 12-pin round MTU diagnostic connector on the engine to a 16-pin OBD2 (J1962) port for your OBDSTAR diagnostic equipment. The engine-side connector features a cylindrical housing with a locking ring, characteristic of MTU systems in marine environments.
MTU marine engines in motorboat applications do not have a standard OBD2 port. The cable converts the pin configuration of the 12-pin connector to the corresponding OBD2 pins, ensuring communication protocols such as CAN-bus or K-line reach the diagnostic reader correctly. What the cable unlocks is the engine management system of the MTU engine: fault memory, engine parameters and system data. The cable is designed exclusively for OBDSTAR diagnostic readers and programmers, and the coverage of that device determines what is actually available.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Via the 12-pin connector you access the engine management system of the MTU marine engine.
Control units you can reach
- Engine management system: The engine control of the MTU marine engine behind the 12-pin round connector.
- Other modules: Which additional units are accessible on board depends on the installation configuration.
What you can do
- Read fault memory: Retrieve stored fault codes from the engine management system to trace faults in engine components.
- Clear fault codes: Remove stored codes after diagnosis and repair, with the cable providing the communication link.
- Monitor live data: Read real-time engine parameters such as engine speed, temperature and pressure via the CAN-bus or K-line connection.
- Marine engine system diagnostics: Access to the engine system of MTU engines in marine engine application via the 12-pin round connector.
- Please note: What you can actually perform depends on the OBDSTAR device and its associated software.
Compatible vehicles and applications
The 12-pin round MTU connector is the determining factor, not the engine type. Compatibility is based on available source data; specific engine types with production years are not listed.
- MTU (Motoren und Turbinen-Union): Marine engines with 12-pin round OBD connector, marine engine application
Package contents
- 1x OBDSTAR (M085) | MTU 12-pin OBD – 16-pin OBD2 Adapter Cable | Marine Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | M085 |
| Type | Adapter Cable |
| Application | MTU 12-pin round diagnostic connector for marine engines |
| Vehicle-side Connection | MTU 12-pins OBD |
| Device-side Connection | 16-pins OBD2 |
| Communication | CAN-bus and K-line |
| Control Units | Marine engine management system |
| Segment | Marine Engine |
| Supported Manufacturers | MTU (Motoren und Turbinen-Union) |
| Model Range | Not limited by year of manufacture; determined by the presence of the 12-pin round MTU connector |
| Required to Use | OBDSTAR diagnostic device with marine coverage, such as the Marine Master or an iScan variant |
| Additional Requirements | None; the cable operates without adapter or power supply |
| Weight | 0.1 kg |
