OBDSTAR | SKU: N027

OBDSTAR (N027) | Kymco/Kawasaki 3-pin OBD – 16-pin OBD2 Adapter | Motorcycle

Name: OBDSTAR (N027) | Kymco/Kawasaki 3-pin OBD – 16-pin OBD2 Adapter | Motorcycle
Brand: OBDSTAR
SKU: N027
Price: 24.95 EUR
Availability: InStock

€24,95 incl.

€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

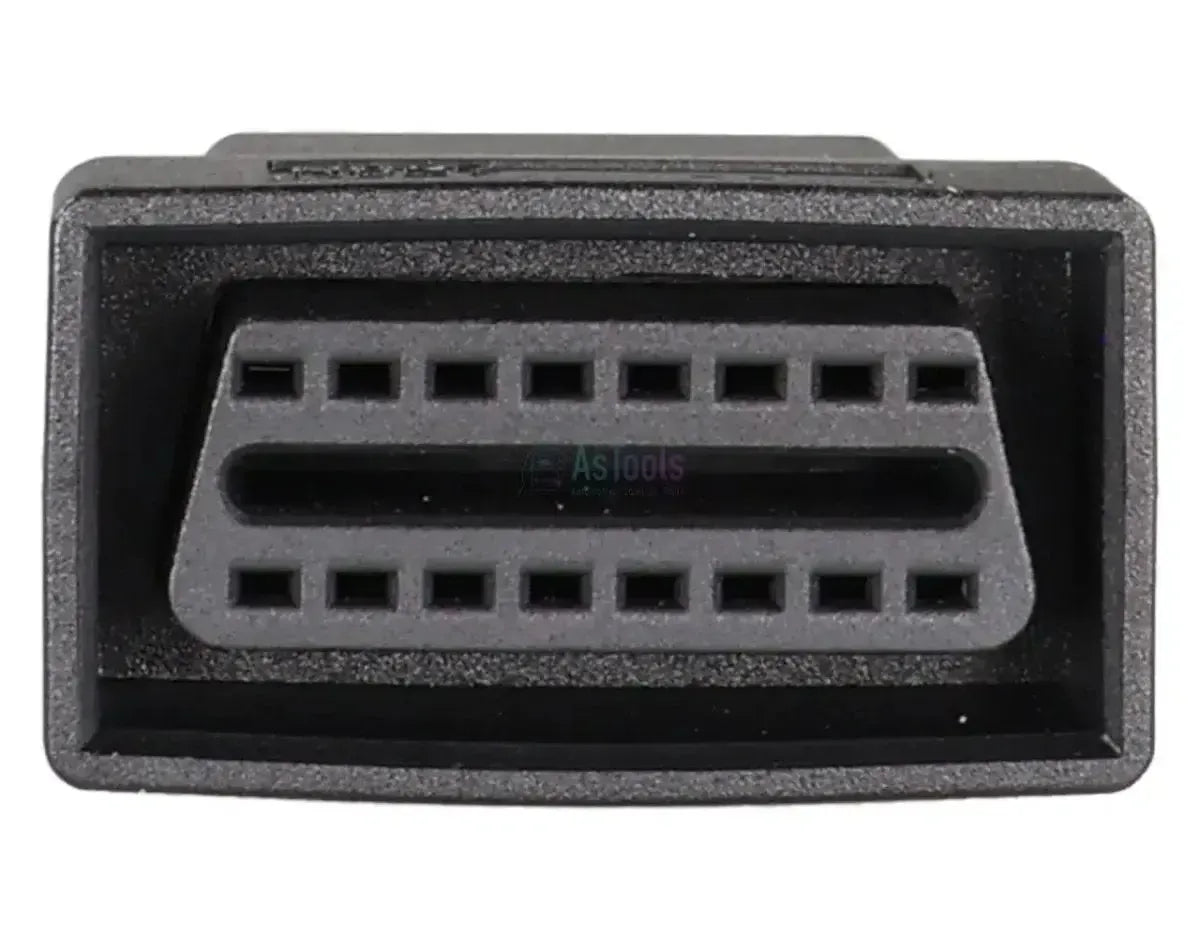

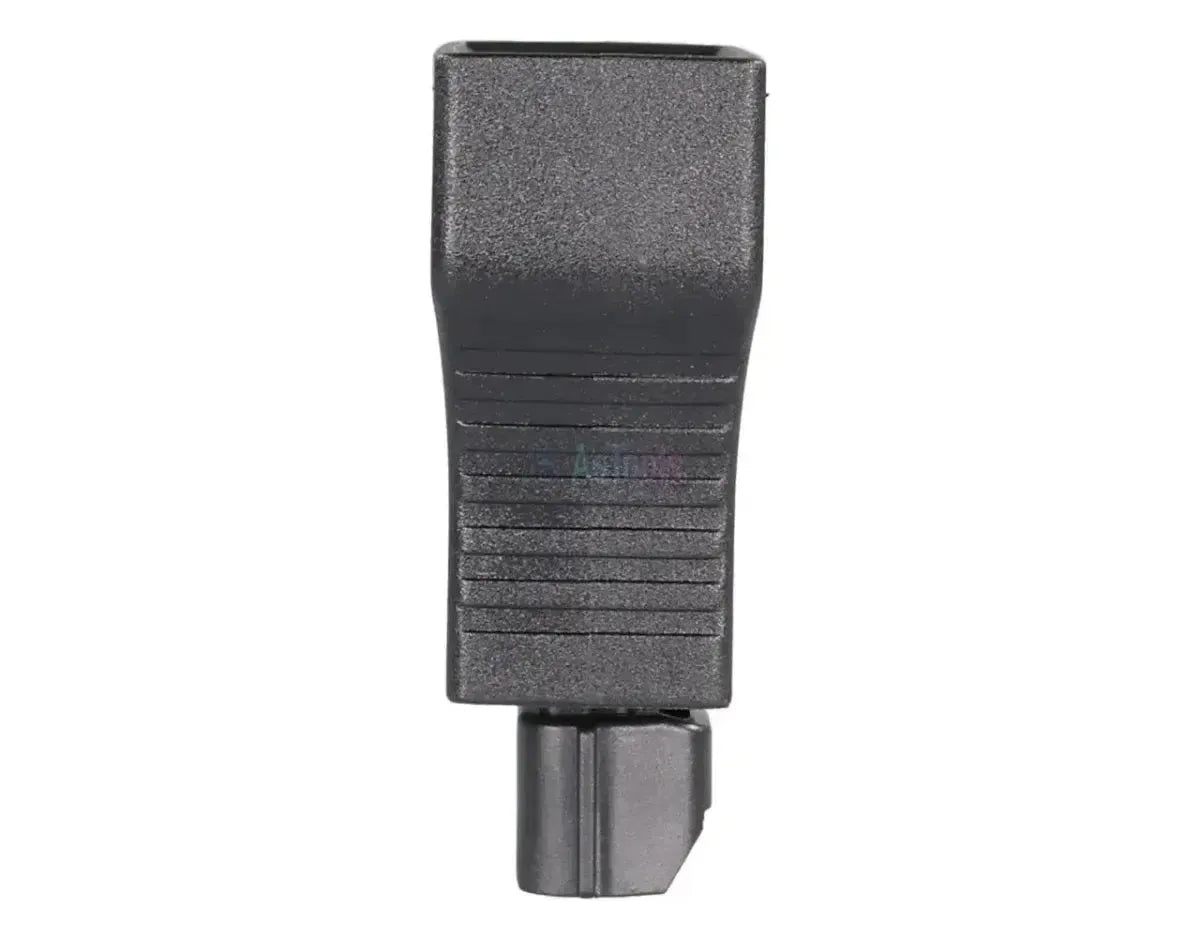

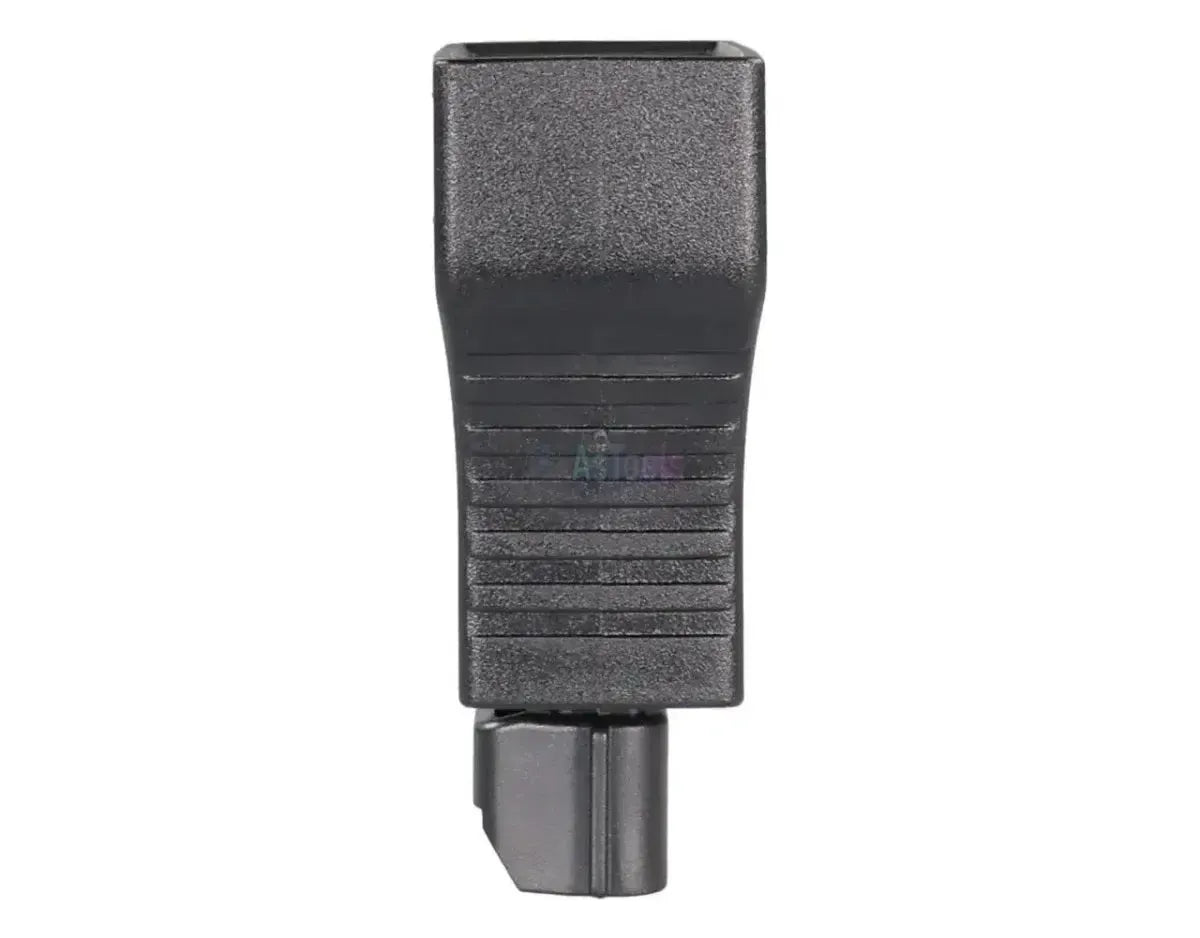

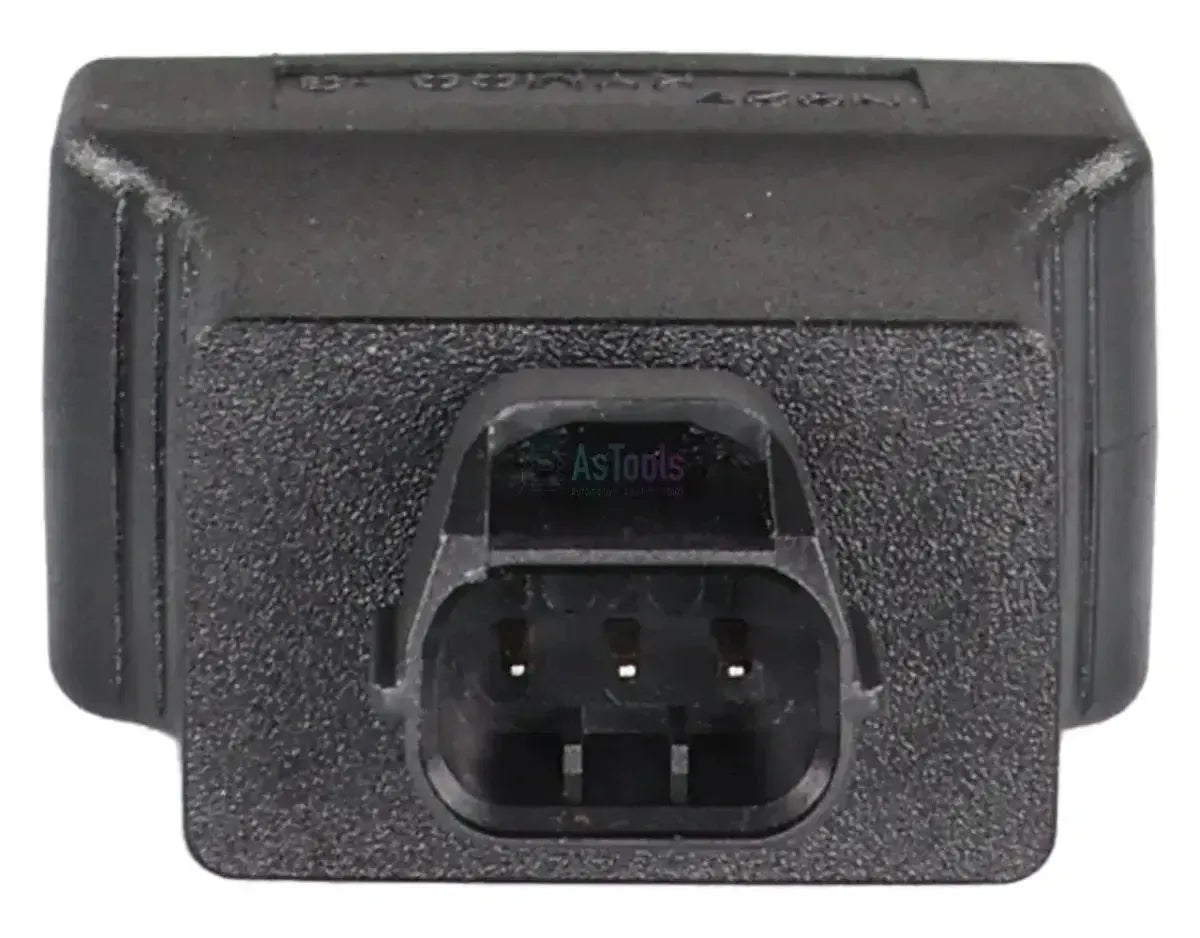

The OBDSTAR N027 connects a 3-pin OBD connector on the vehicle side to a 16-pin OBD2 connector (J1962) on the device side. The adapter fits the manufacturer's proprietary three-pin diagnostic port on Kymco and Kawasaki motorcycles, typically located beneath the seat or behind a cover panel near the handlebars.

Both manufacturers use the same three-pin diagnostic port across a range of models instead of a full OBD2 connection. The pin configuration on the vehicle side is matched to the electrical layout of that port, with the relevant signal lines — including the K-line — routed to the corresponding OBD2 pins. The connection is established without any modification to the vehicle's wiring. The adapter provides access to the port; it does not unlock functions. For the specified Kawasaki and Kymco models, model years are listed below, but whether a particular operation is possible depends on the coverage in your own OBDSTAR device for that model and model year.

KEY BENEFITS

✔Two brands with one adapter — both Kymco and Kawasaki models with the three-pin port are supported by the same adapter.

✔Direct, stable connection — the compact design requires no loose cabling, keeping the connection secure during diagnostics.

✔Aligned with the K-line — the pin configuration follows the signal line these models use for diagnostic communication.

✔Specified model year ranges — concrete build year ranges are documented for the listed Kawasaki and Kymco models, making pre-checks straightforward.

IMPORTANT NOTES

✕OBDSTAR only — the adapter works with OBDSTAR diagnostic devices and programmers, not with diagnostic hardware from other manufacturers.

✕No coverage expansion — the adapter does not add models or functions to your device; its software remains the determining factor.

✕Three-pin connector only — motorcycles from these brands with a different connector configuration fall outside the scope of application.

✕Build year limits are strict — models such as the ER-6n/ER-6f (2012–2016) and the Z800 (2013–2016) have defined end dates; a newer example of the same name may have a different connection.

Applications and functionality

When used with an OBDSTAR diagnostic device that supports motorcycles, the adapter enables the following operations.

Control units you can access

Engine management system: The engine control unit is accessed via the three-pin connector for fault codes and live data.
Vehicle and system information: Identification data such as the control unit type and ECU software version are read out.

What you can do

Manage fault codes: Read stored and current fault codes from the engine management system and clear them after repair.
Read live data: Monitor sensor values and engine parameters in real time to trace deviations in riding behaviour or engine operation.
Identify the system: Query the control unit type and ECU software version.
Verify build year: Use the read data to confirm whether the vehicle falls within the specified range.
Note: The adapter does not determine what is possible; that is determined by the software of the connected OBDSTAR device for the relevant model and build year.

Compatible vehicles and applications

What matters is the 3-pin diagnostic connector on the motorcycle, not the model name on the fairing. The models listed below are specified with this connector. For models with an open build year range, a later version may differ; always check the connector itself.

Kawasaki:

ER-6n / ER-6f: (2012–2016)
Ninja 300: (2013–2017)
Ninja 400: (2018–present)
Ninja 650: (2012–present)
Versys 650: (2012–present)
Z650: (2017–present)
Z800: (2013–2016)
Z900: (2017–present)

Kymco:

AK 550: (2017–present)
Downtown 350i: (2015–present)
K-XCT 300i: (2013–present)
Xciting 400i: (2013–present)

💡

Good to know: The 3-pin diagnostic port on these models is typically located beneath the seat or behind a cover panel near the steering area; consult your motorcycle handbook for the exact location. Verify the model year and connector type of your motorcycle against the list above before ordering.

Package contents

1x OBDSTAR (N027) | Kymco/Kawasaki 3-pin OBD – 16-pin OBD2 Adapter | Motorcycle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	N027
Type	Adapter
Application	Diagnostic connection for Kymco and Kawasaki motorcycles with 3-pin OBD port
Vehicle-side connection	Kymco/Kawasaki 3-pin OBD
Device-side connection	16-pin OBD2
Communication	K-line, routed to corresponding OBD2 pins
Control units	Engine management system (ECU)
Segment	Motorcycle
Supported brands	Kawasaki and Kymco
Model range	Kawasaki 2012–present and Kymco 2013–present, varies by model
Required to use	OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirement	Standard 16-pin OBD2 cable from the OBDSTAR device
Weight	0.05 kg
