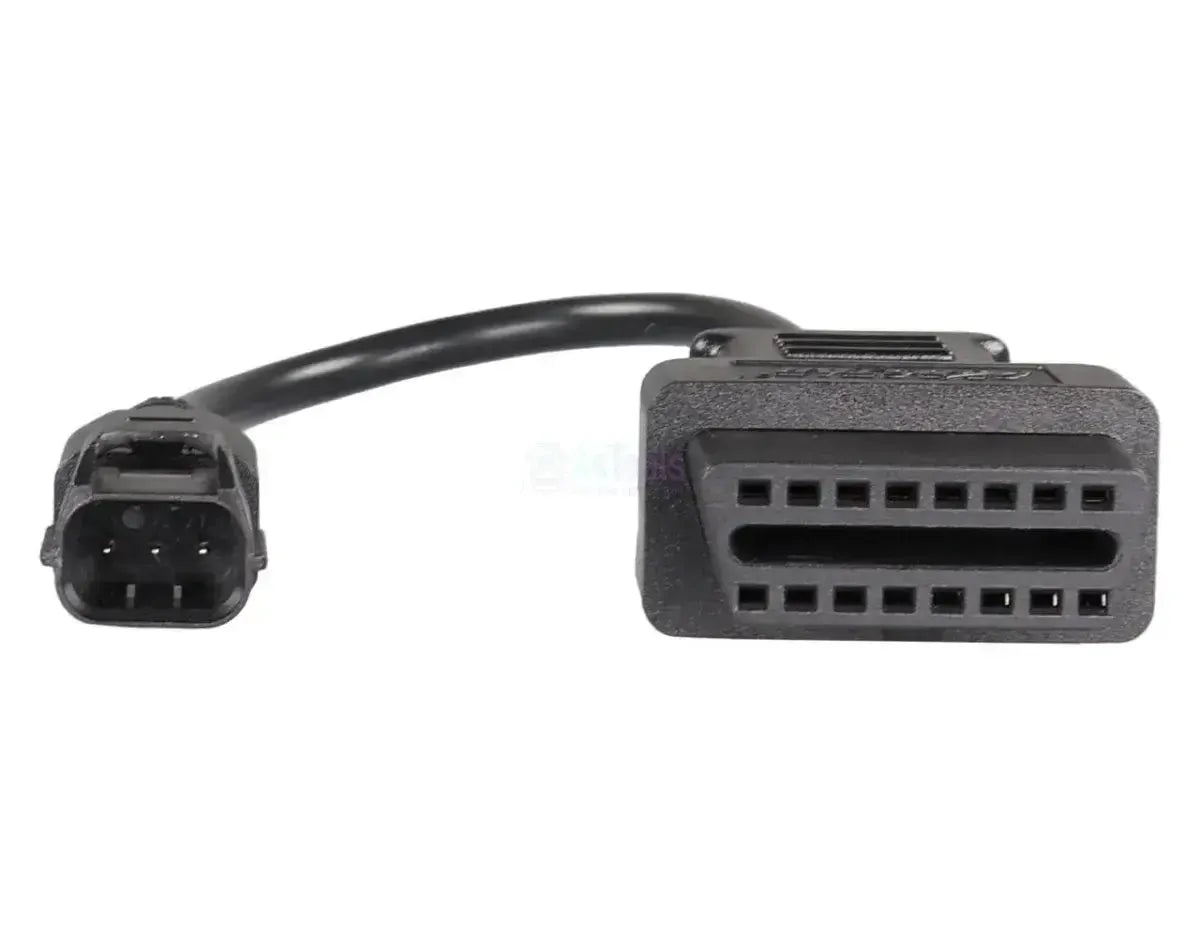

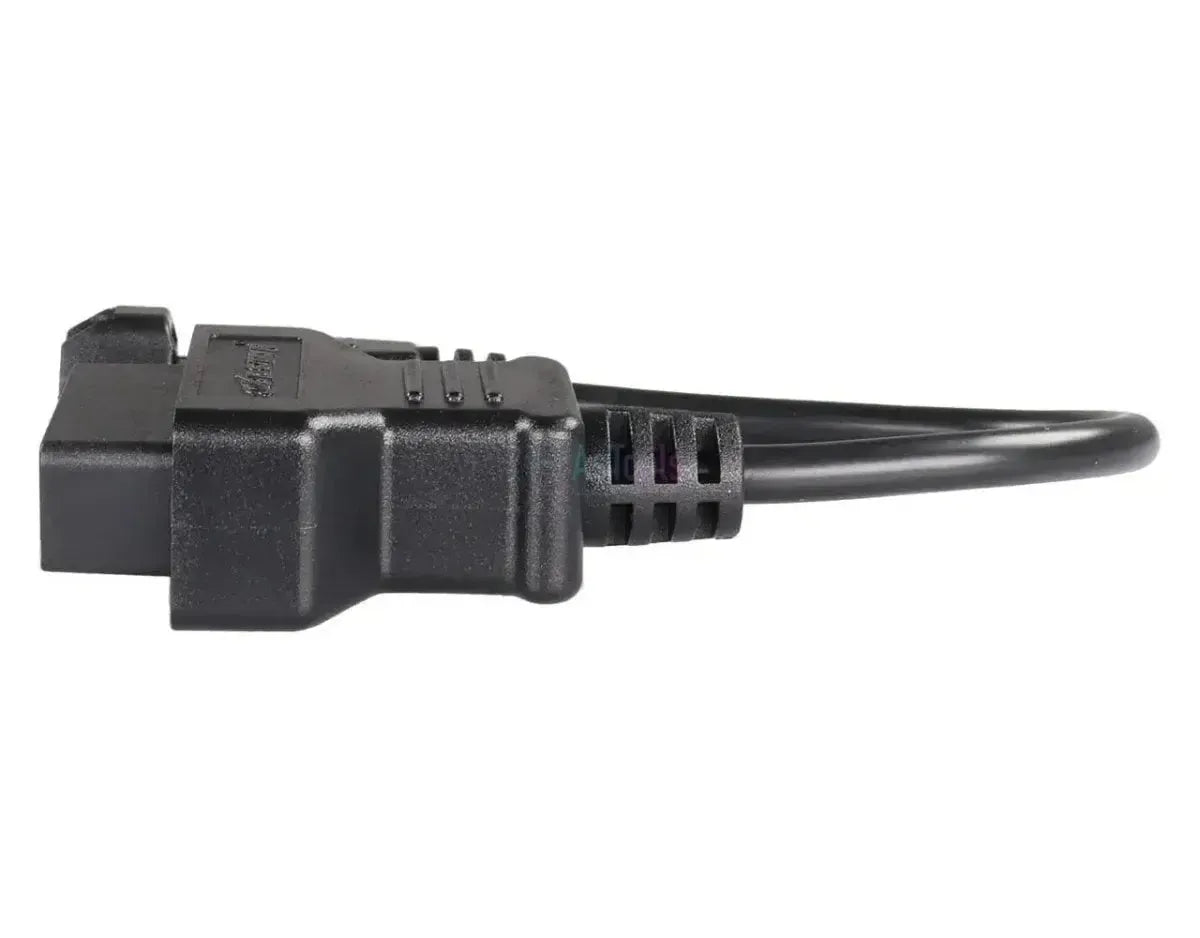

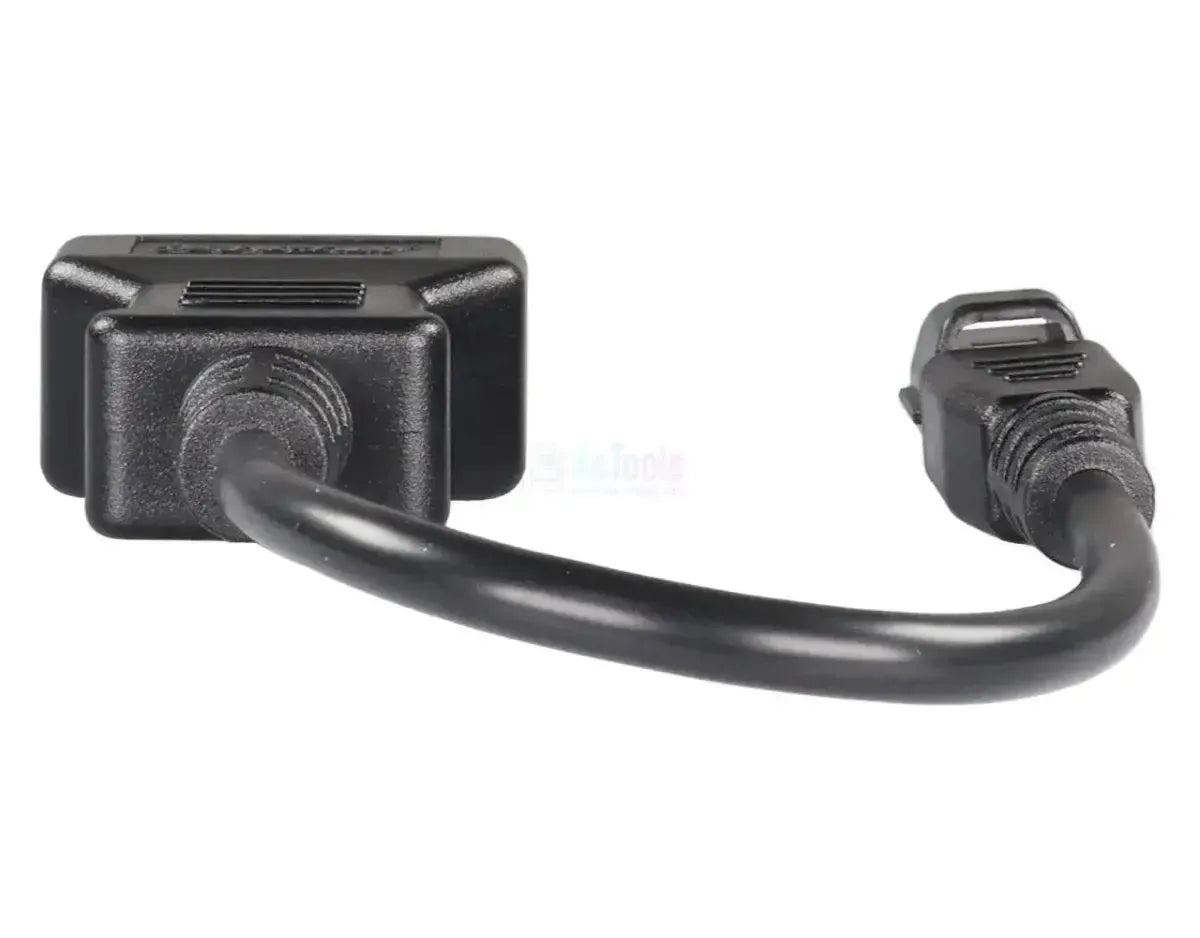

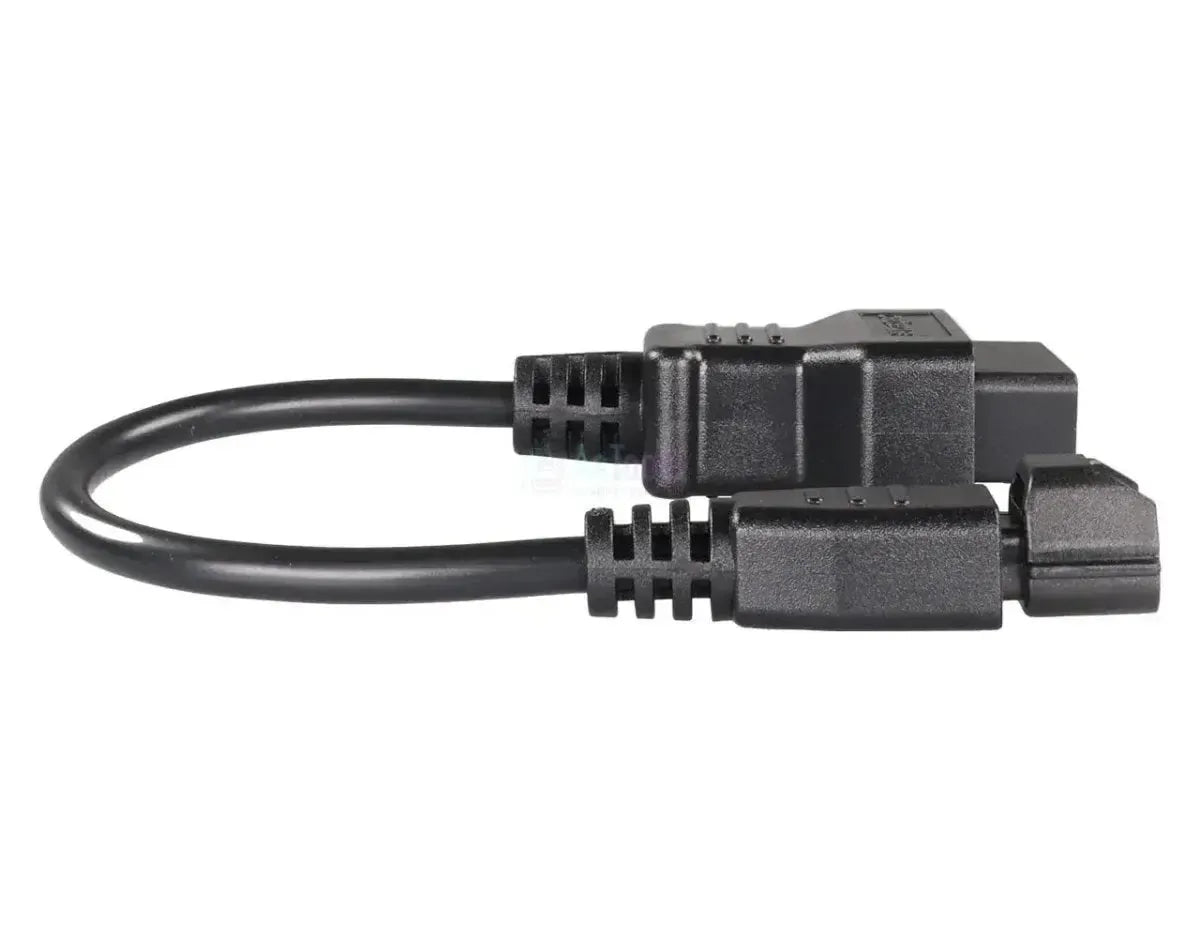

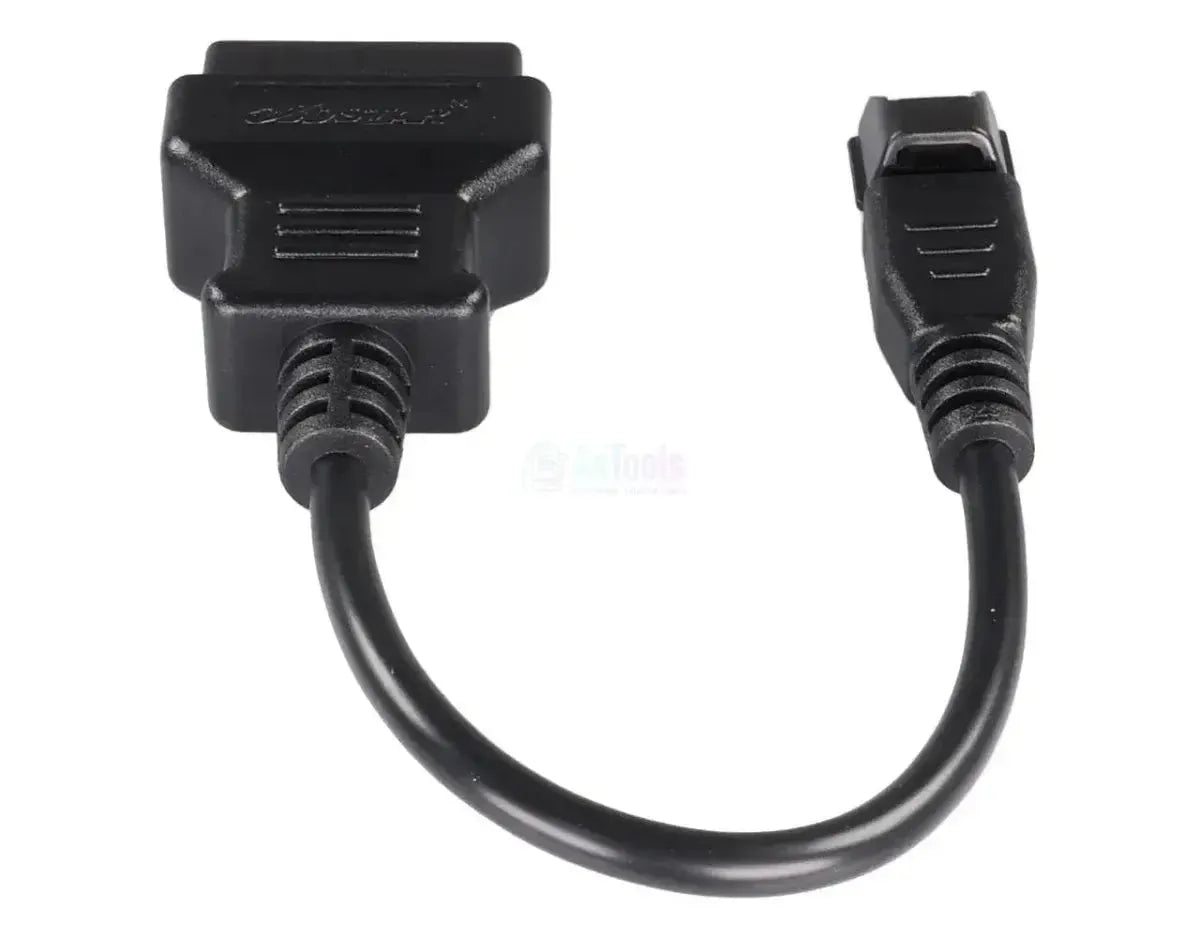

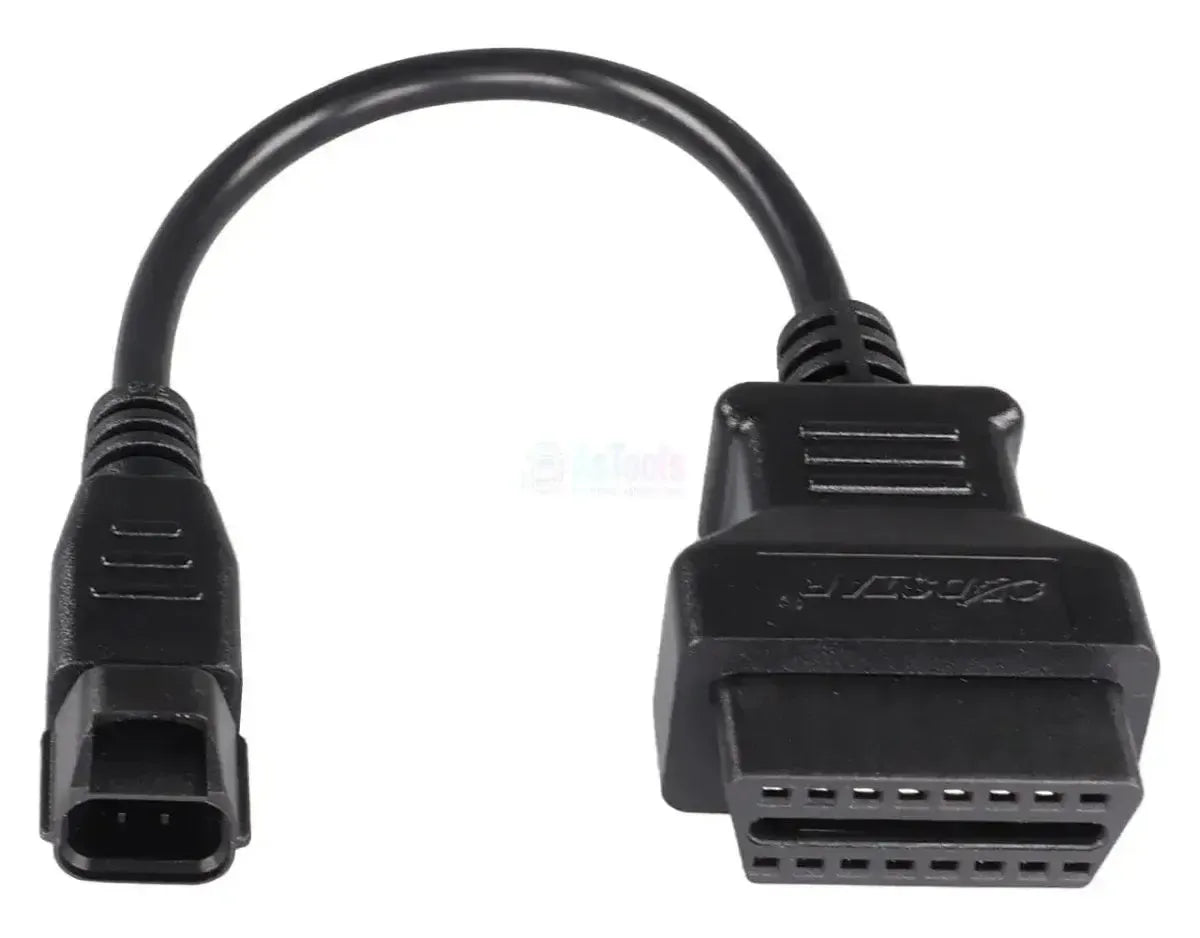

The OBDSTAR M027 converts the 3-pin diagnostic connector found on Kymco and Kawasaki motorcycles to the standard 16-pin OBD2 (J1962) interface. The 3-pin connector housing is manufactured to factory specifications and fits mechanically onto the diagnostic socket of the relevant models.
Both manufacturers used this 3-pin connector on models without a dedicated OBD2 port. The signal pins are internally wired to the corresponding contacts on the 16-pin side, preserving K-line or CAN communication. No vehicle modifications are required. Through the cable, you gain access to the engine control units behind that port. What you can do with them is determined by the software of your own OBDSTAR diagnostic device.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Via the 3-pin diagnostic port, you can access the control units of the motorcycle or scooter.
Control units you can reach
- Electronic control units: The units connected to the 3-pin port, including engine management.
- Other systems: Which modules are accessible per model varies and depends on your device's coverage.
What you can do
- Read fault codes: Retrieve stored and active fault codes (DTCs) from the control units.
- Clear fault codes: Remove the codes from the control unit, after which the system performs its self-diagnosis again.
- Request live data: Monitor real-time values from sensors and actuators during idle or whilst driving.
- System identification: Request vehicle and system information, such as the control unit type and software version.
- Please note: Available functions differ per model and per OBDSTAR device.
Compatible vehicles and applications
The determining factor is the 3-pin diagnostic port, not the model or year of manufacture. The models listed below are equipped with a 3-pin port that is mechanically and electrically compatible with this cable's connector.
Kawasaki:
- Z750 / Z750R: (2007–2012)
- Z1000 / Z1000SX: (2007–2013)
- Ninja ZX-6R: (2007–2012)
- Ninja ZX-10R: (2008–2013)
- Versys 650: (2010–2014)
- ER-6n / ER-6f: (2009–2011)
Kymco:
- AK 550: (2017–present)
- Downtown 350i: (2015–present)
- Xciting 400i: (2013–present)
- Xciting S 400: (2018–present)
Package contents
- 1x OBDSTAR (M027) | Kymco/Kawasaki 3-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- OBDSTAR
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
- The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Motorcycle and scooter
Suitable for
- The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
- OBDSTAR
- Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required
- No
Connections
- The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
- 3-pin OBD
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
- The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
- K-line
- CAN-bus
Size and weight
- The weight of the cable or adapter.Weight
- 0.1 kg
- Control units
- Electronic control units of the vehicle
Other specifications
- Application
- Kymco and Kawasaki models with 3-pin diagnostic port
- Device-side connector
- 16-pin OBD2 (J1962)
- Communication
- K-line or CAN, depending on the vehicle
- Supported brands
- Kawasaki and Kymco
- Model range
- Kawasaki models 2007–2014 and Kymco models from 2013 onwards, provided they feature the 3-pin port
- Required to use
- OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
- Additional requirements
- None; the cable operates without an adapter or separate power supply
