OBDSTAR | SKU: M066 / 7.25.2

OBDSTAR (M066) | Kawasaki 8+8-pins OBD – Power Cable | Jet Ski

Name: OBDSTAR (M066) | Kawasaki 8+8-pins OBD – Power Cable | Jet Ski
Brand: OBDSTAR
SKU: M066 / 7.25.2
Price: 24.95 EUR
Availability: InStock

€24,95 incl.

€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

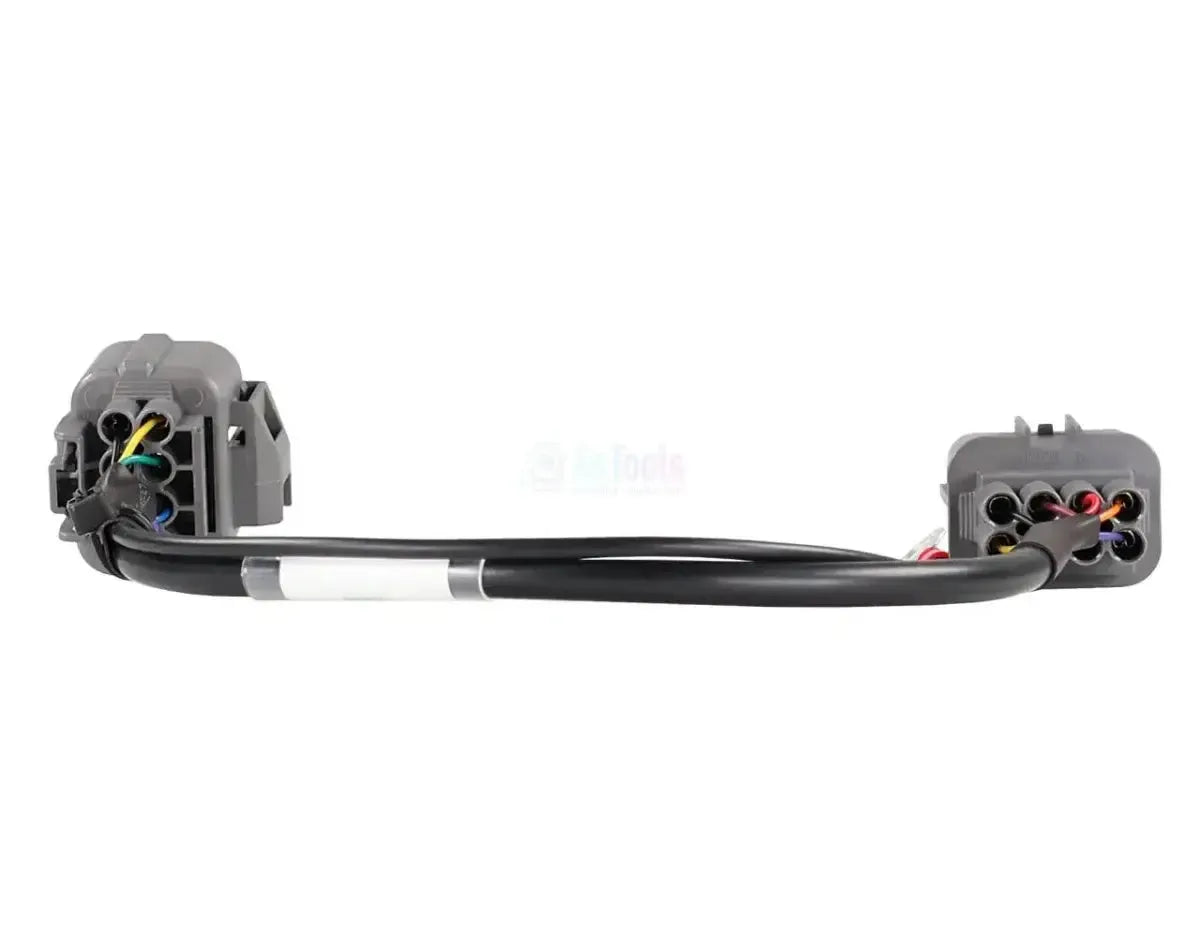

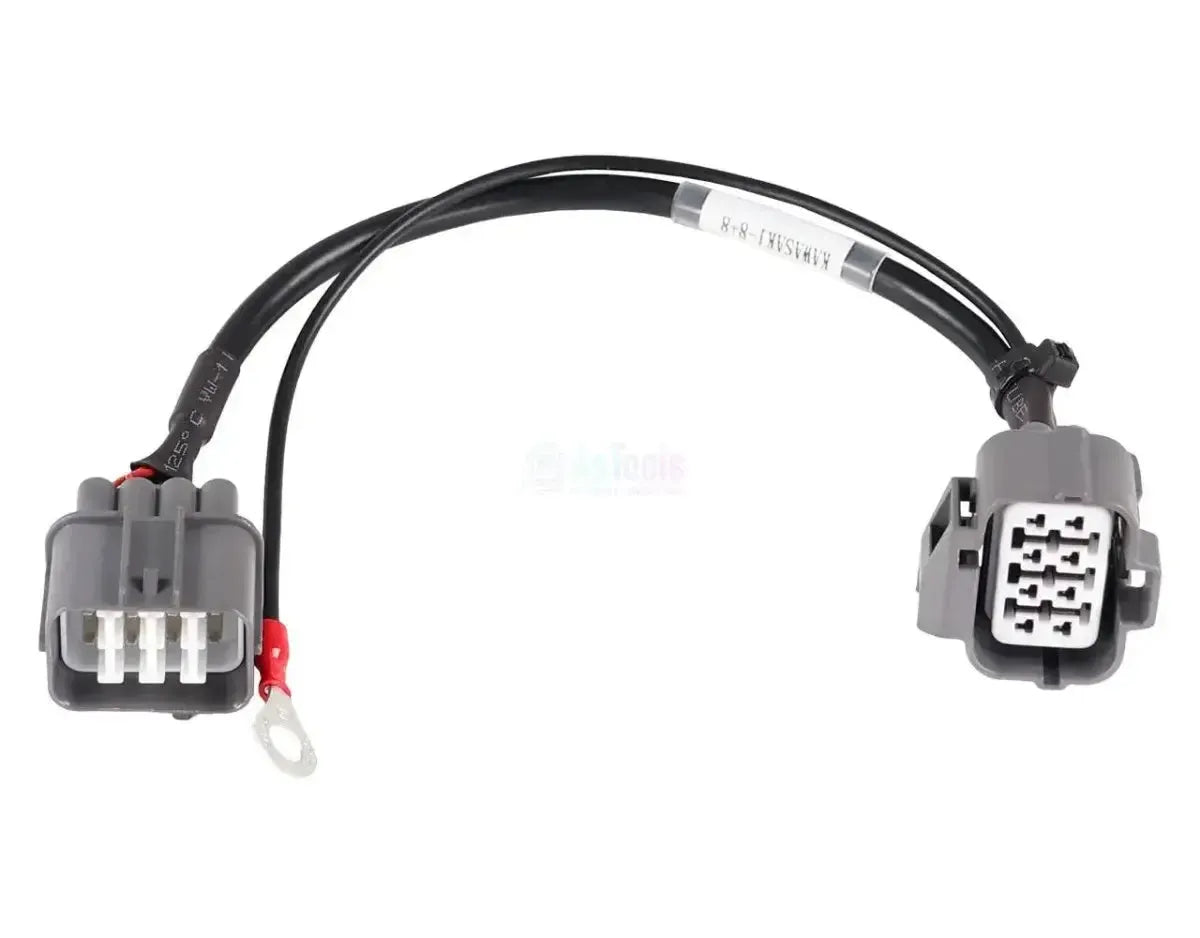

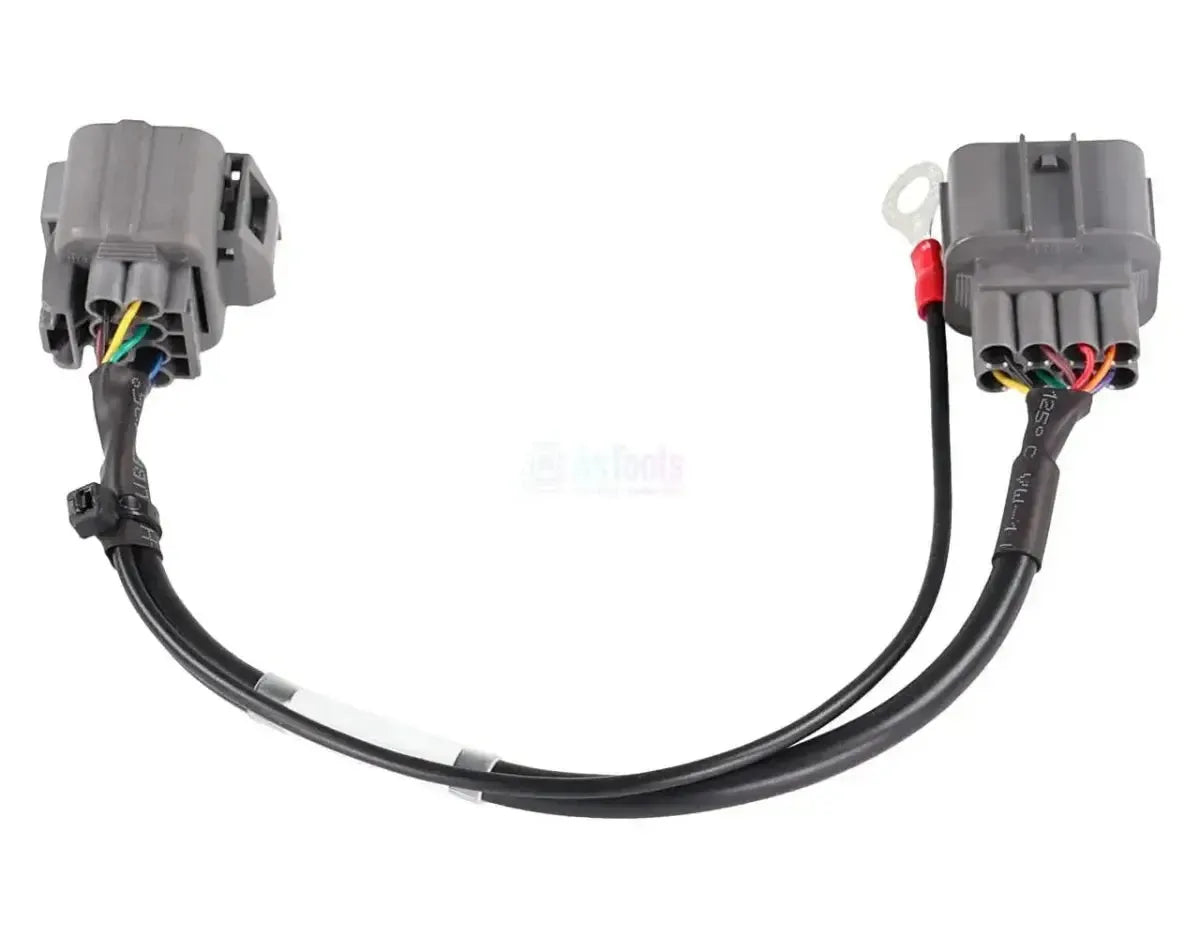

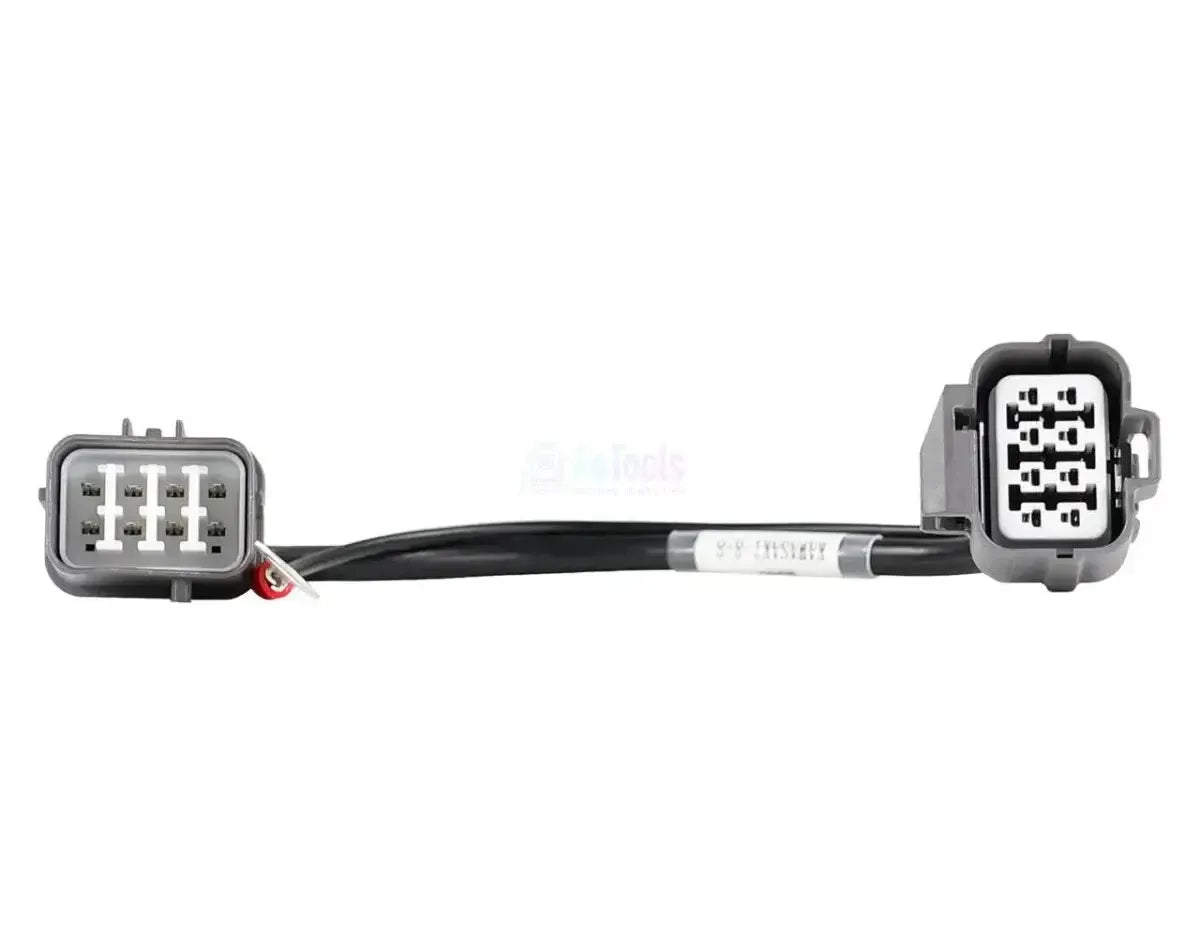

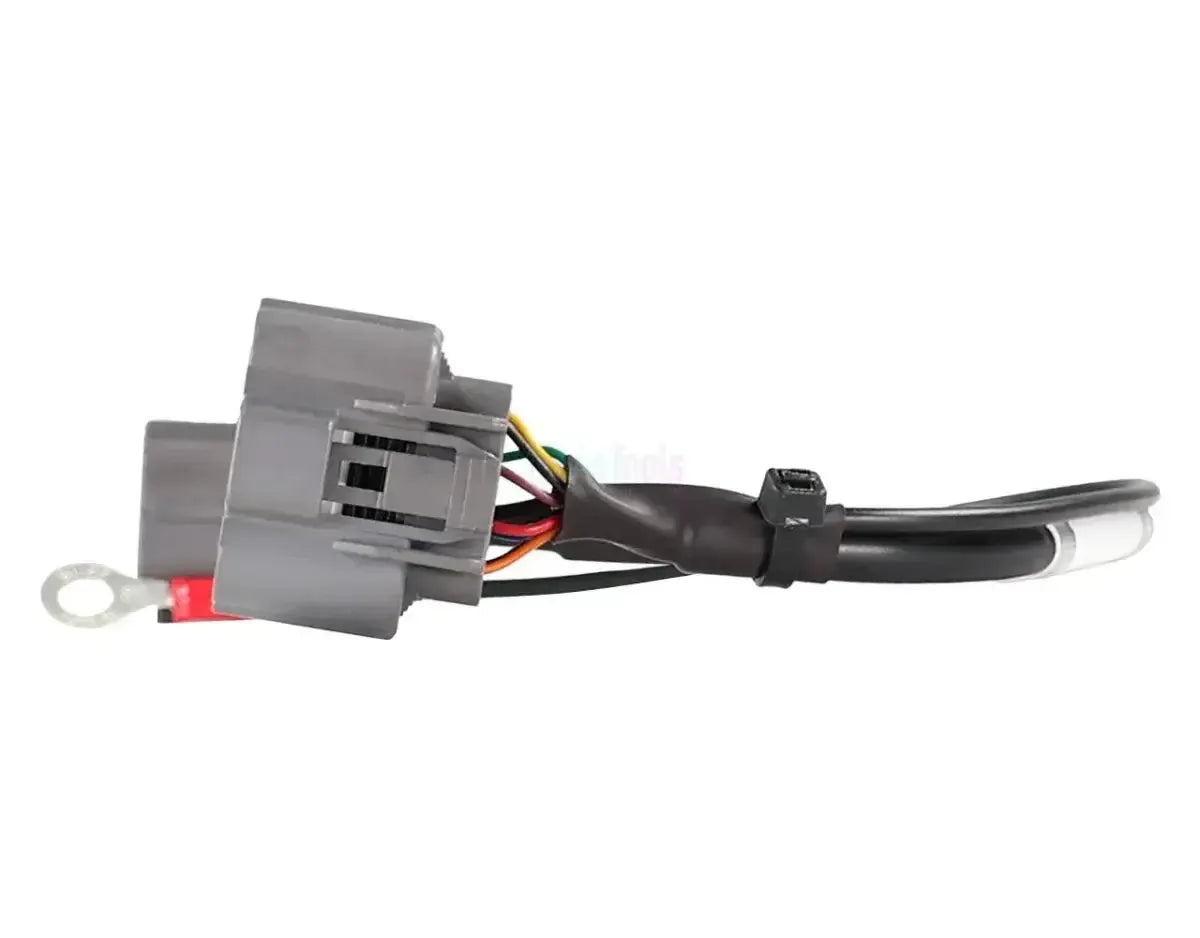

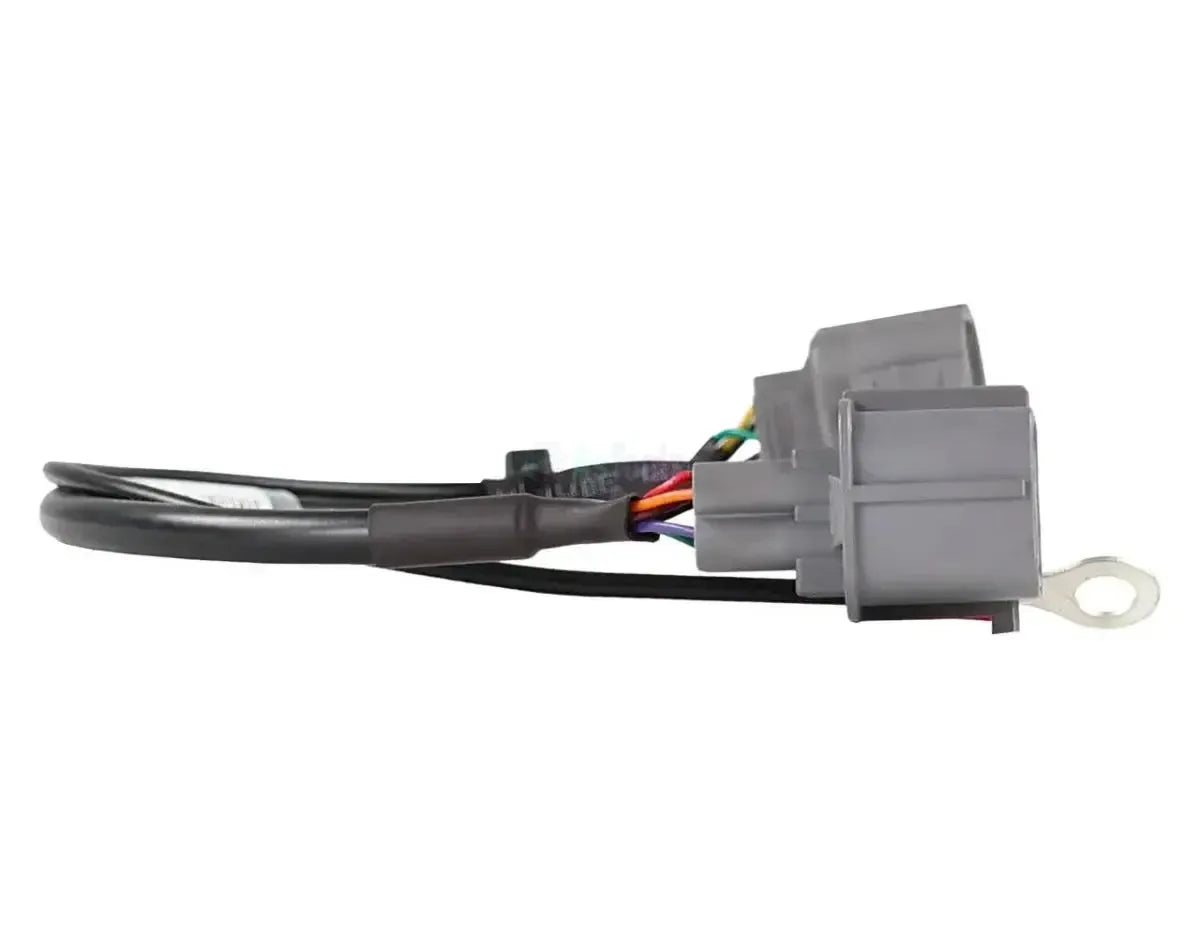

The OBDSTAR M066 is a power cable with an 8+8-pin OBD connector, specifically designed for use with Kawasaki jet skis. The cable provides external power to the diagnostic hardware via the vehicle’s diagnostic port and is intended for use with OBDSTAR readers or programmers. The connector consists of two 8-pin blocks that together form the proprietary Kawasaki diagnostic interface, as used on jet skis from the Kawasaki range.

The M066 acts as a power adapter that supplies the necessary power to the connected OBDSTAR device when the vehicle lacks a standard OBD2 J1962 port. Through the 8+8-pin connector, a direct electrical connection is established with the jet ski’s diagnostic system, after which the OBDSTAR device receives the required power supply to initiate communication with the vehicle electronics. The cable is specifically matched to the pin layout and signal assignment of Kawasaki jet skis.

ADVANTAGES

✔ The 8+8-pin connector is specifically tailored to the pin layout of Kawasaki jet skis, ensuring a correct connection.

✔ Enables diagnostics on jet skis without a standard OBD2 J1962 port via external power supplied through the cable.

✔ Direct compatibility with the OBDSTAR ecosystem, allowing the cable to be used with supported devices without modifications.

KEY POINTS

✕ Only suitable for use with OBDSTAR readers or programmers; not compatible with diagnostic hardware from other brands.

✕ The cable is specifically designed for Kawasaki jet skis and is not applicable to other vehicle categories or brands.

✕ Functionality depends on the software version and license of the connected OBDSTAR device.

Applications and functionalities

The M066 power cable supports the following diagnostic applications on Kawasaki jet skis in combination with OBDSTAR equipment.

Power supply via diagnostic port: The cable provides external power supply to the OBDSTAR device through the 8+8-pin Kawasaki connector, allowing communication with the vehicle system without a standard OBD2 port.
Connection to vehicle electronics: Enables the OBDSTAR device to establish a direct communication line with the jet ski’s onboard computer for reading or programming.
Immobilizer programming support: When used with compatible OBDSTAR programmers, the cable supports reading and writing immobilizer systems on supported Kawasaki models.

Compatible vehicles and applications

The Kawasaki jet skis listed below are compatible with the OBDSTAR M066 power cable when used with supported OBDSTAR equipment.

Kawasaki:

Jet Ski STX-15F: (2004–2017)
Jet Ski Ultra 260X / 260LX: (2009–2011)
Jet Ski Ultra 300X / 300LX: (2011–2013)
Jet Ski Ultra 310X / 310LX / 310R: (2014–present)

💡

Good to know: The diagnostic port on Kawasaki jet skis is usually located under the front hood or in the handlebar compartment. Refer to the service manual of the specific model for the exact location.

Package Contents

1x OBDSTAR (M066) | Kawasaki 8+8-pin OBD – Power Cable | Jet Ski
