OBDSTAR | SKU:
M068
OBDSTAR (M068) | Kawasaki 4-pins OBD – 16-pins OBD2 Adapter Cable | Jet Ski
Regular price
€26,95 incl.
€22,27 excl.
Unavailable
Sign up and receive an email as soon as it is back in stock.
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

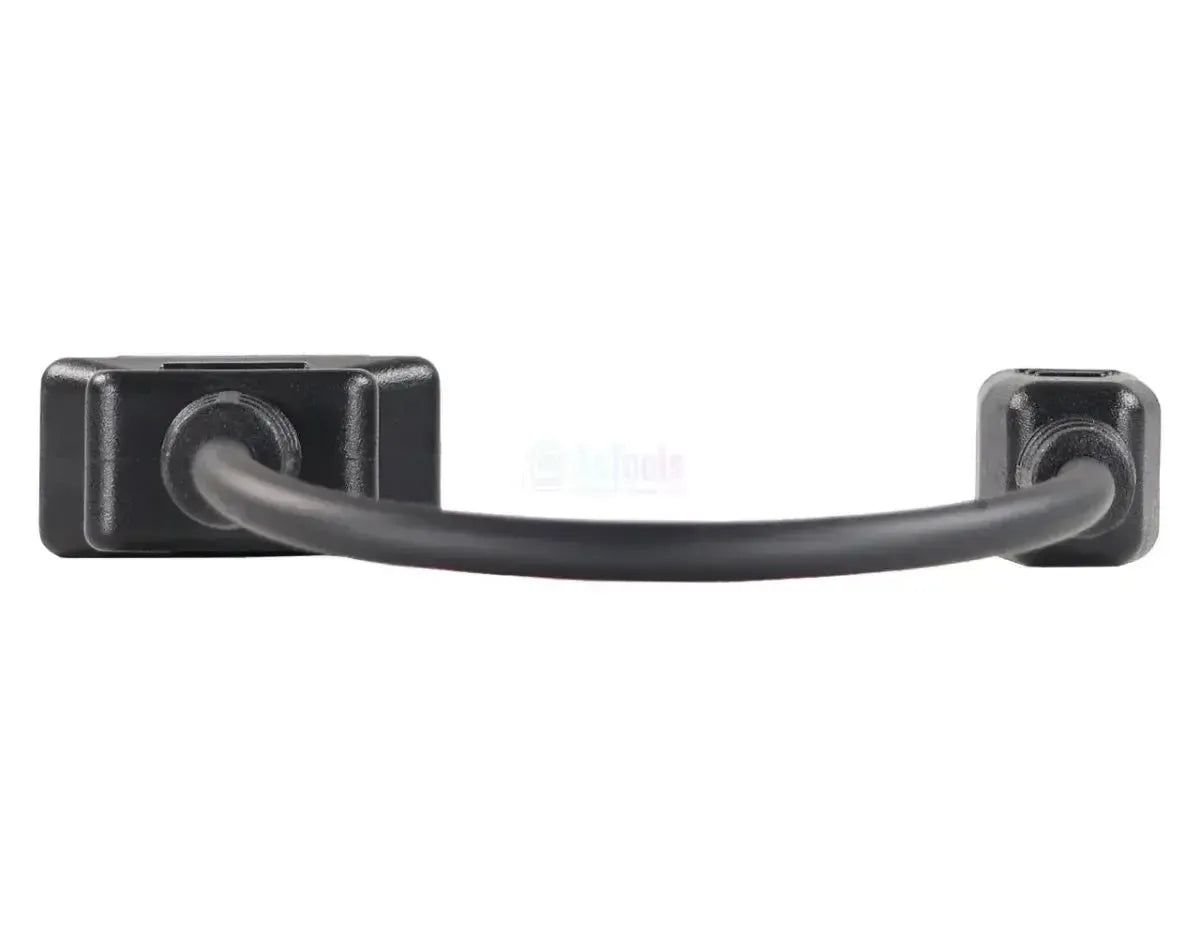

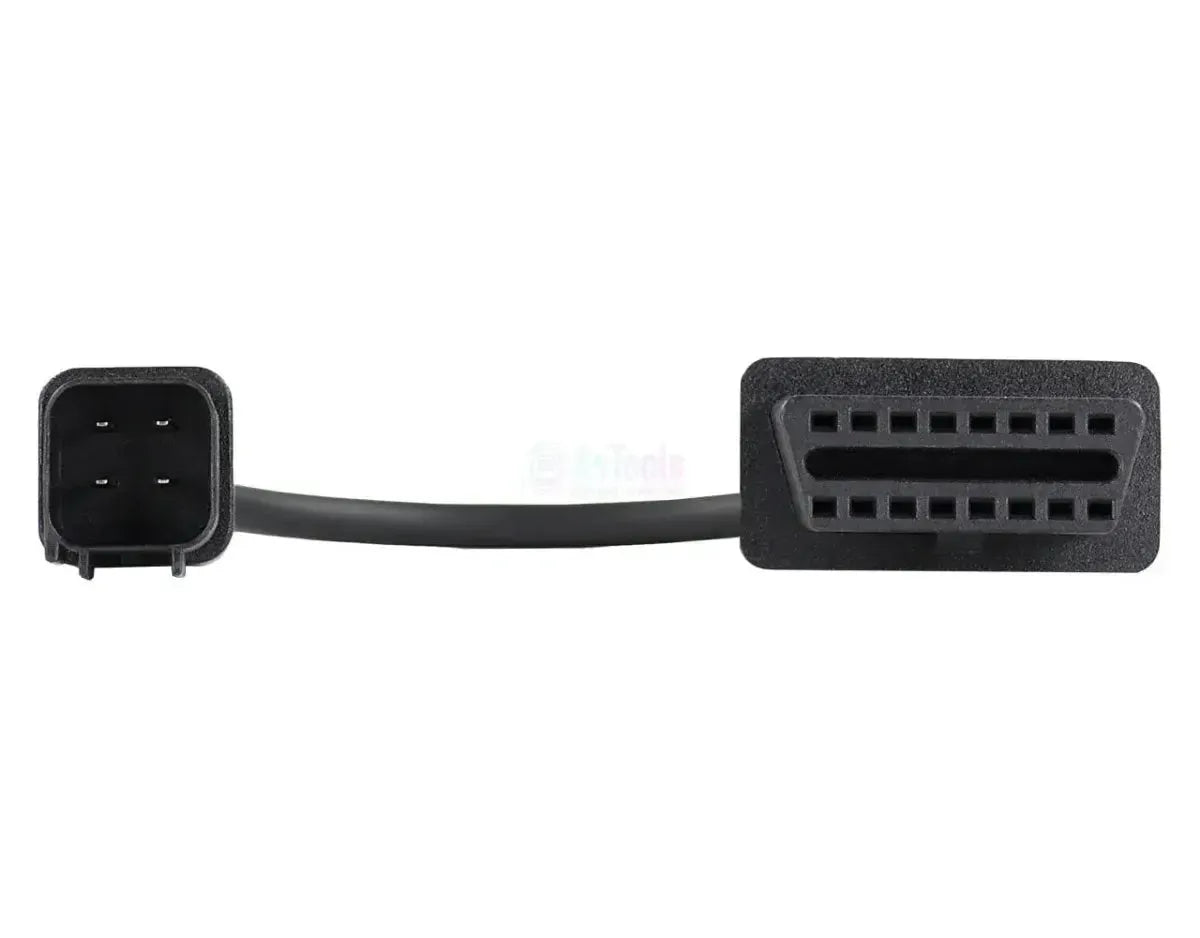

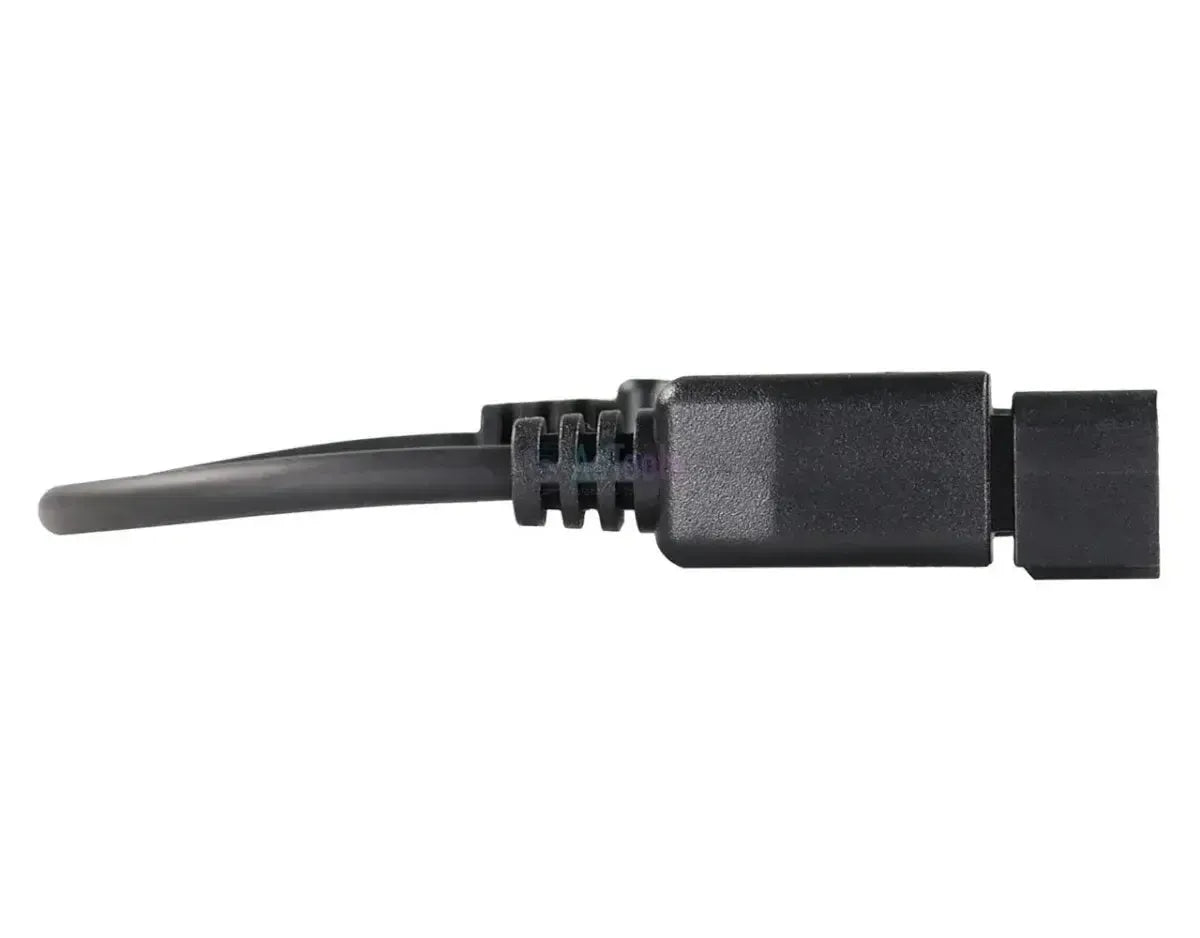

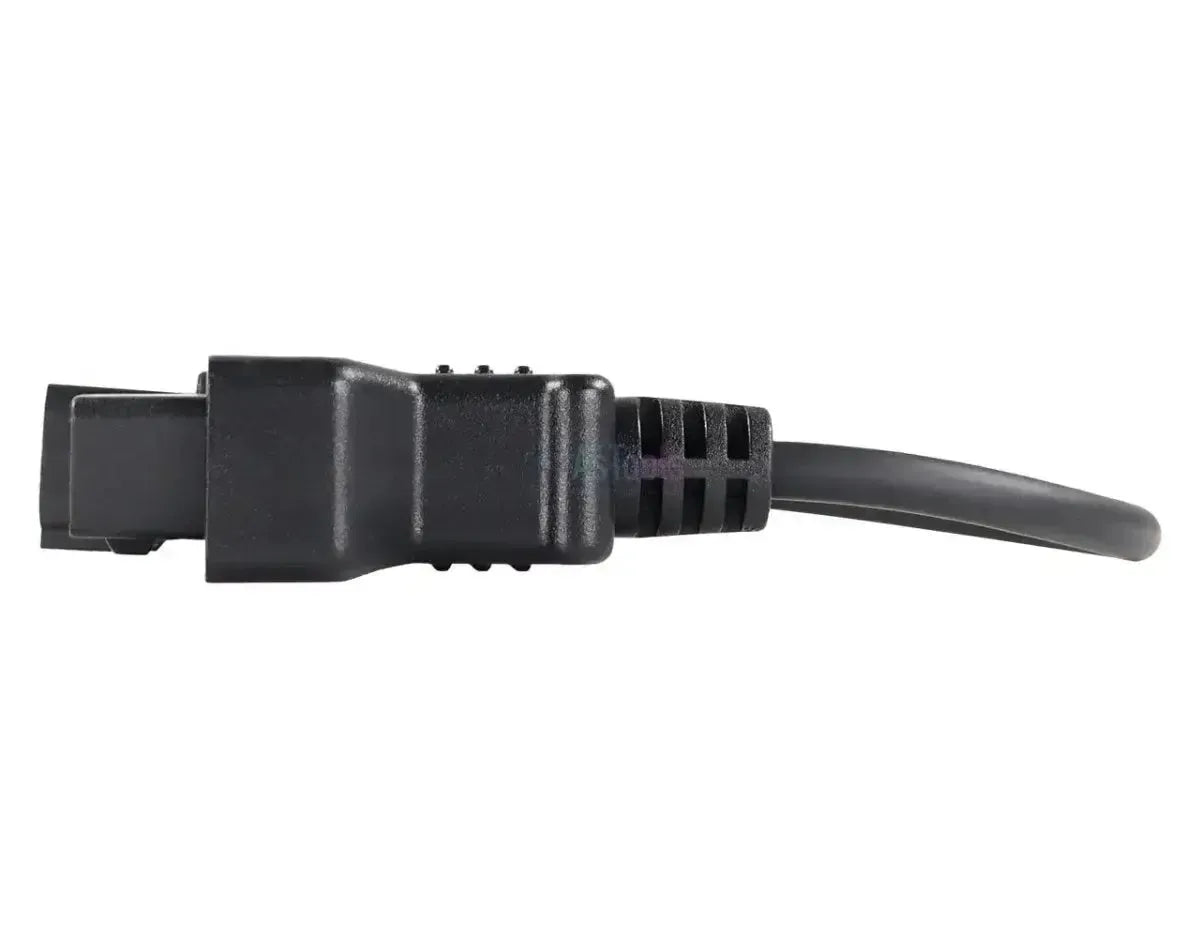

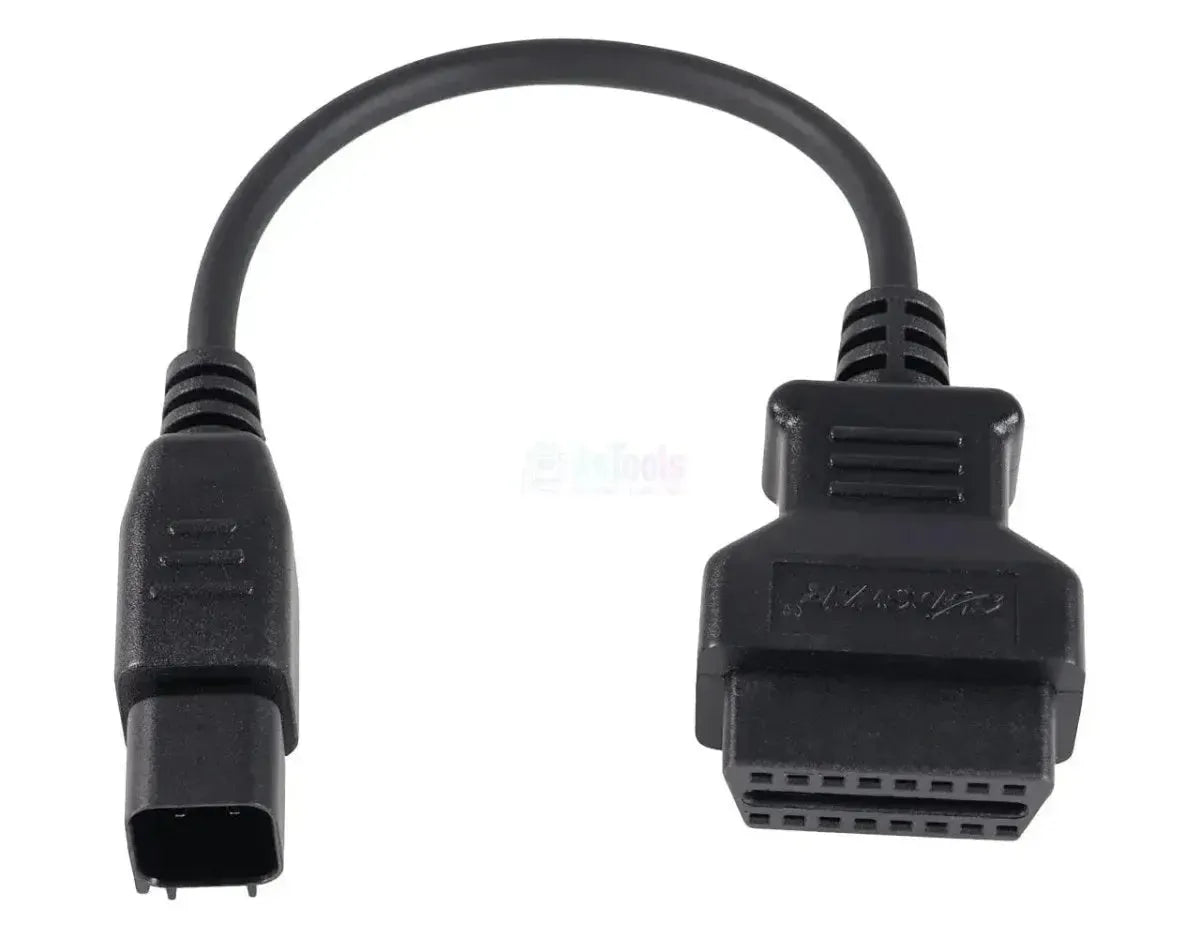

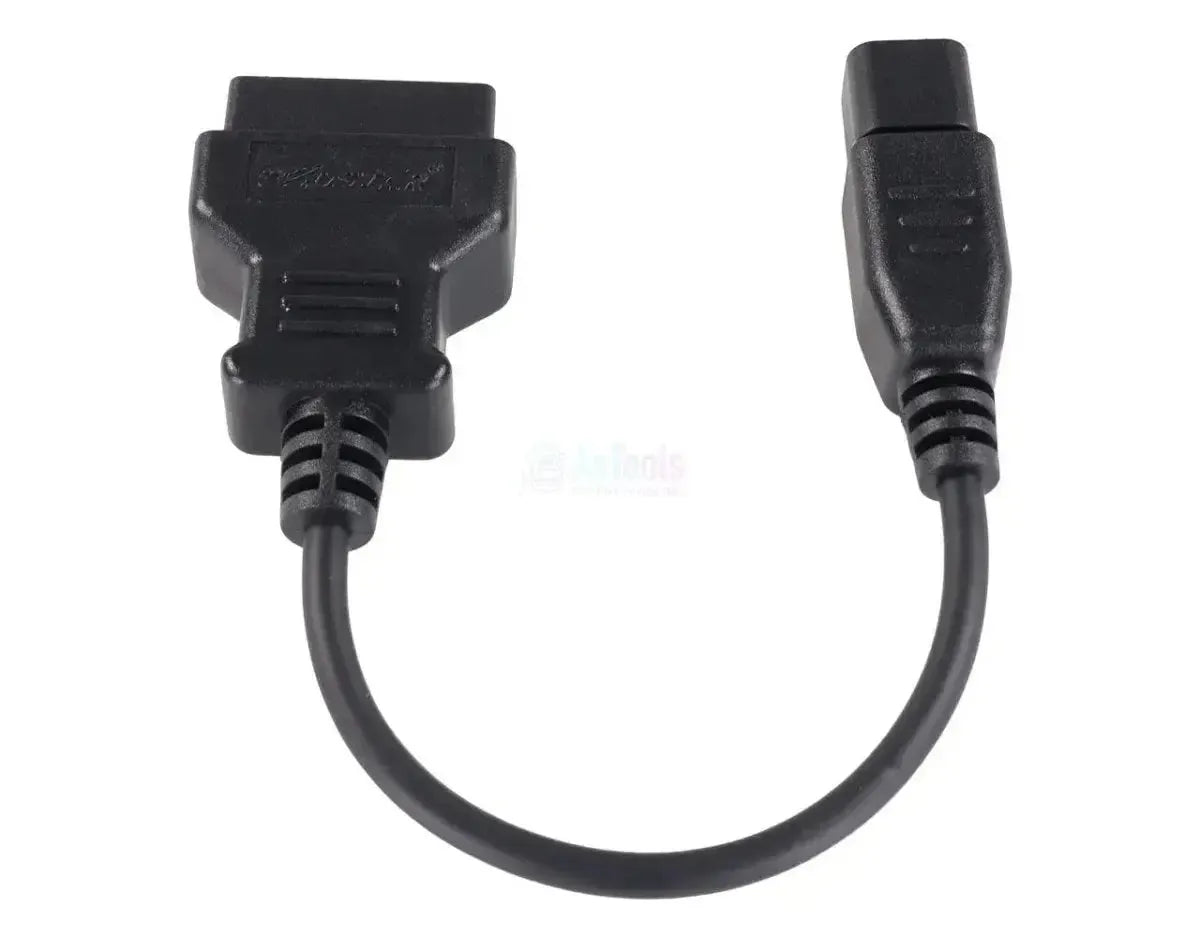

The OBDSTAR M068 is the adapter cable for the 4-pin diagnostic port on Kawasaki jet skis. One end features the manufacturer's proprietary 4-pin connector, whilst the other end connects to the 16-pin OBD2 (J1962) connector of your OBDSTAR diagnostic equipment. On the vehicle side, the cable connects to the diagnostic port of the jet ski, which provides access to the engine control system.
Kawasaki has never fitted the standard automotive OBD2 connector to its jet ski range, instead using a proprietary 4-pin connector. The pin configuration is manufacturer-specific and differs from the international OBD2 standard; consequently, a standard OBD2 cable cannot be used here, and this adapter cable is essential for correct signal transmission. The cable establishes connection only with the jet ski's engine control system. Which fault codes, sensor readings and other functions you can actually access depends on the software of your own OBDSTAR device and the supported protocols of the specific model — the cable itself adds no additional coverage.
KEY BENEFITS
✔Direct connection to the 4-pin jet ski port — the cable connects without requiring any modification or alteration to the vessel.
✔Standard OBD2 connector — the 16-pin end plugs directly into the diagnostic port of your OBDSTAR device; no intermediate adapter is needed.
✔Covers an extensive model range — from the STX-15F in 2004 through to recent Ultra 310 and SX-R variants, Kawasaki maintained the same 4-pin connection.
✔For a segment without standardised ports — in jet ski diagnostics, standard OBD2 cables cannot be used due to the different connector type.
IMPORTANT CONSIDERATIONS
✕Not for Kawasaki motorcycles — the cable is designed exclusively for jet skis with the 4-pin port; different cables are required for the brand's motorcycle connections.
✕Year and model are not decisive — the presence of the 4-pin connector is what matters; verify it on the vessel itself before making your choice.
✕OBDSTAR equipment only — the cable is designed for OBDSTAR devices and programmers and is not compatible with diagnostic systems from other manufacturers.
✕No additional vehicle coverage — available functions depend on your own device and the protocols supported for each model; the cable provides the connection only.
Applications and functionality
This connection provides access to the jet ski's engine electronics.
Control units you can reach
- Engine management system: The control unit connected to the 4-pin diagnostic port on the jet ski.
- Other modules: Whether additional control units are accessible alongside the engine management system varies by model and device.
What you can do
- Read fault codes: Retrieve diagnostic trouble codes (DTC) from the jet ski's engine management system via the converted 4-pin connection.
- Clear fault codes: Remove stored codes once diagnosis is complete.
- Request live data: Monitor sensor readings and system parameters in real time for diagnostic purposes.
- Signal conversion: The manufacturer-specific 4-pin signal is converted to 16-pin OBD2 format to enable OBDSTAR communication.
- Important: What is available for each jet ski depends on the model and the OBDSTAR device used.
Compatible vehicles and applications
The 4-pin OBD port is the determining factor, not the model. The Kawasaki jet skis listed below are equipped with this port. Before use, verify that your specific model and year actually has a 4-pin OBD port.
Kawasaki:
- STX-15F: (2004–2015)
- Ultra 260X / 260LX: (2009–2010)
- Ultra 300X / 300LX: (2011–2013)
- Ultra 310X / 310LX / 310R: (2014–present)
- SX-R 1500: (2017–present)
💡
Good to know: On Kawasaki jet skis, the 4-pin diagnostic port is typically located under a cover in the front compartment of the hull; consult the model's workshop manual for the exact location. Verify that your jet ski has the 4-pin connector before ordering.
Package contents
- 1x OBDSTAR (M068) | Kawasaki 4-pins OBD – 16-pins OBD2 Adapter Cable | Jet Ski
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- OBDSTAR
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
Suitable for
- The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
- OBDSTAR
- Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required
- No
Connections
- The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
- 4-pin OBD
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2
Size and weight
- The weight of the cable or adapter.Weight
- 0.1 kg
- Control units
- Engine management system
Other specifications
- Application
- Kawasaki 4-pin diagnostic port on jet skis
- Device-side connector
- 16-pin OBD2
- Model range
- STX-15F from 2004 through current Ultra 310 and SX-R 1500 variants, provided they feature the 4-pin connector
- Required to use
- OBDSTAR diagnostic reader with marine coverage, such as the Marine Master or an iScan variant
- Additional requirements
- None; the cable operates without adapter or power supply
