OBDSTAR | SKU: M006

OBDSTAR (M006) | Kawasaki 4+4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

Name: OBDSTAR (M006) | Kawasaki 4+4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle
Brand: OBDSTAR
SKU: M006
Price: 34.95 EUR
Availability: InStock

€34,95 incl.

€28,88 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

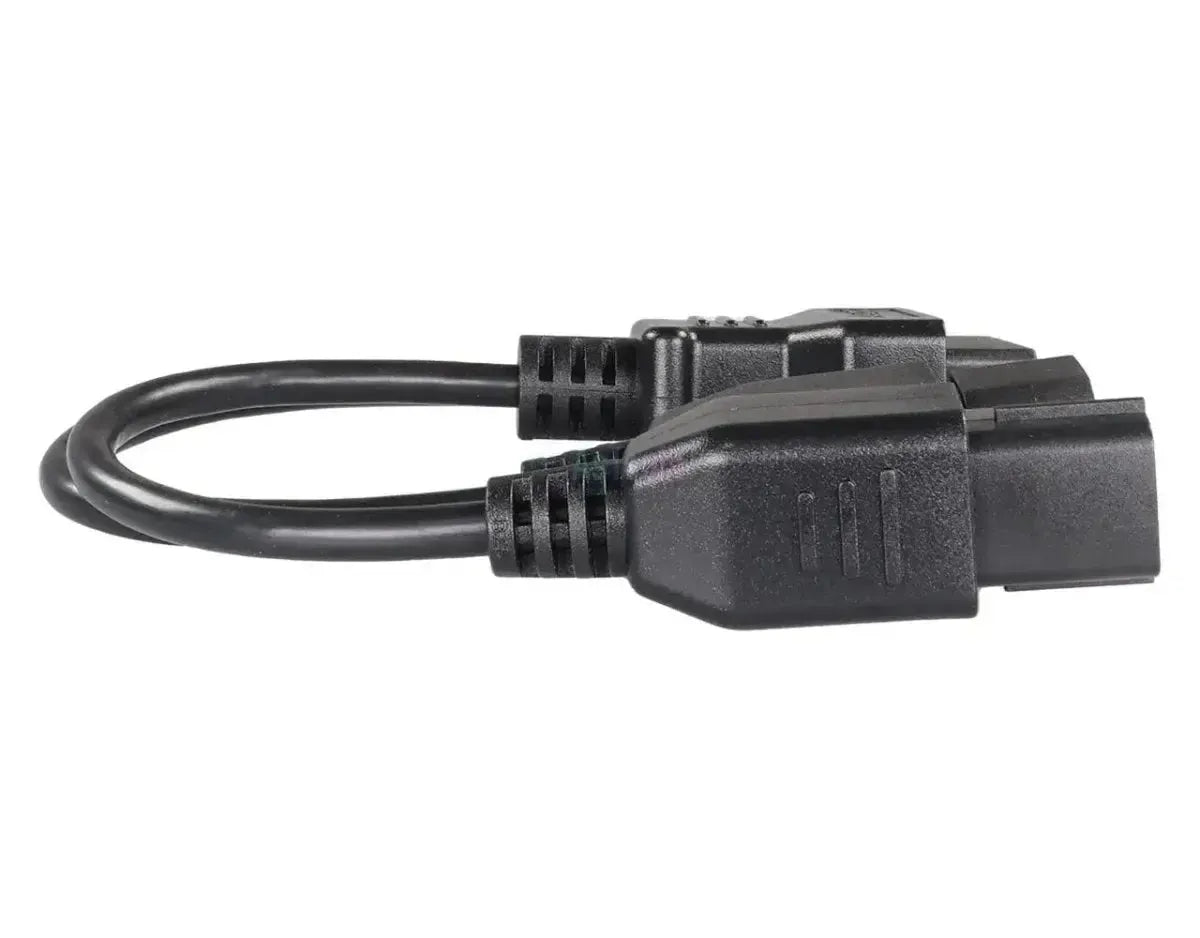

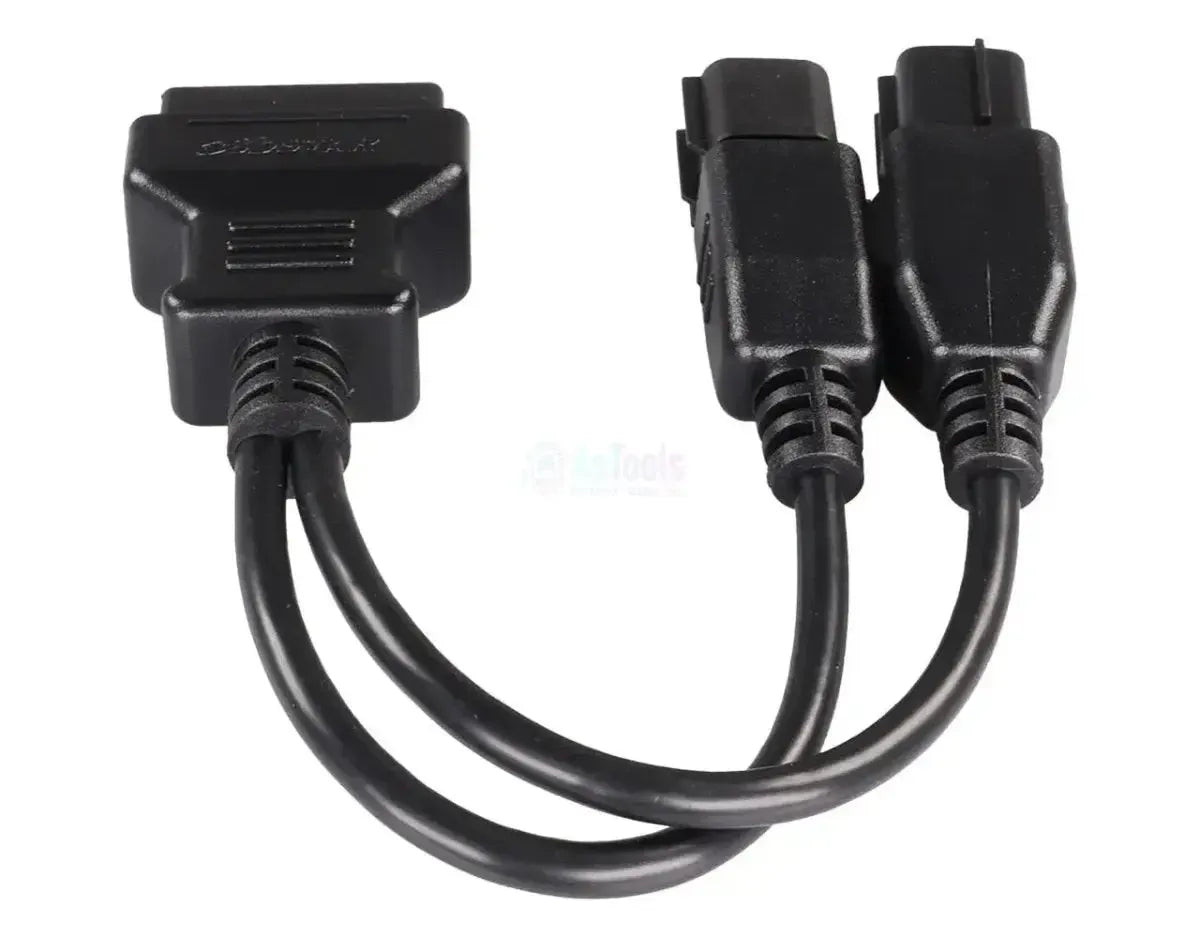

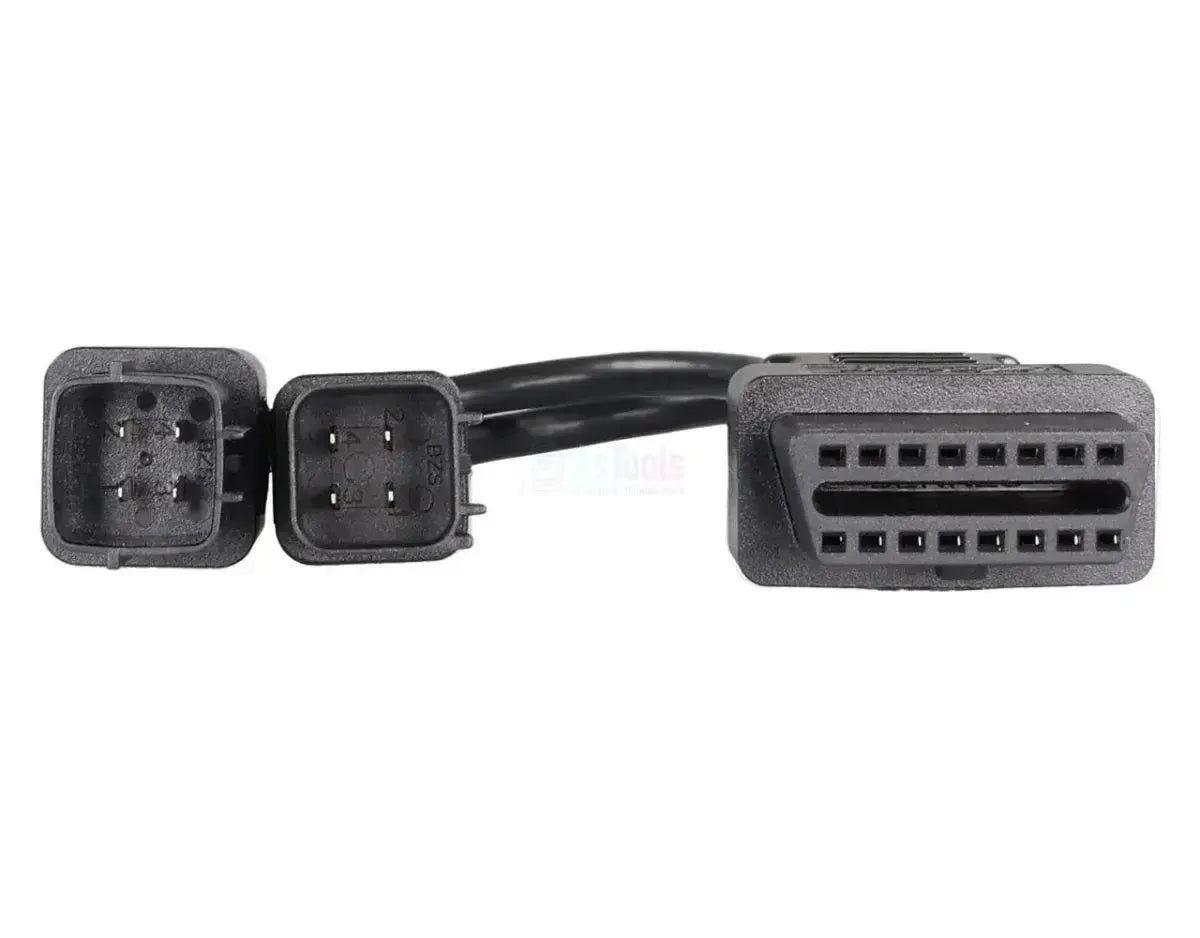

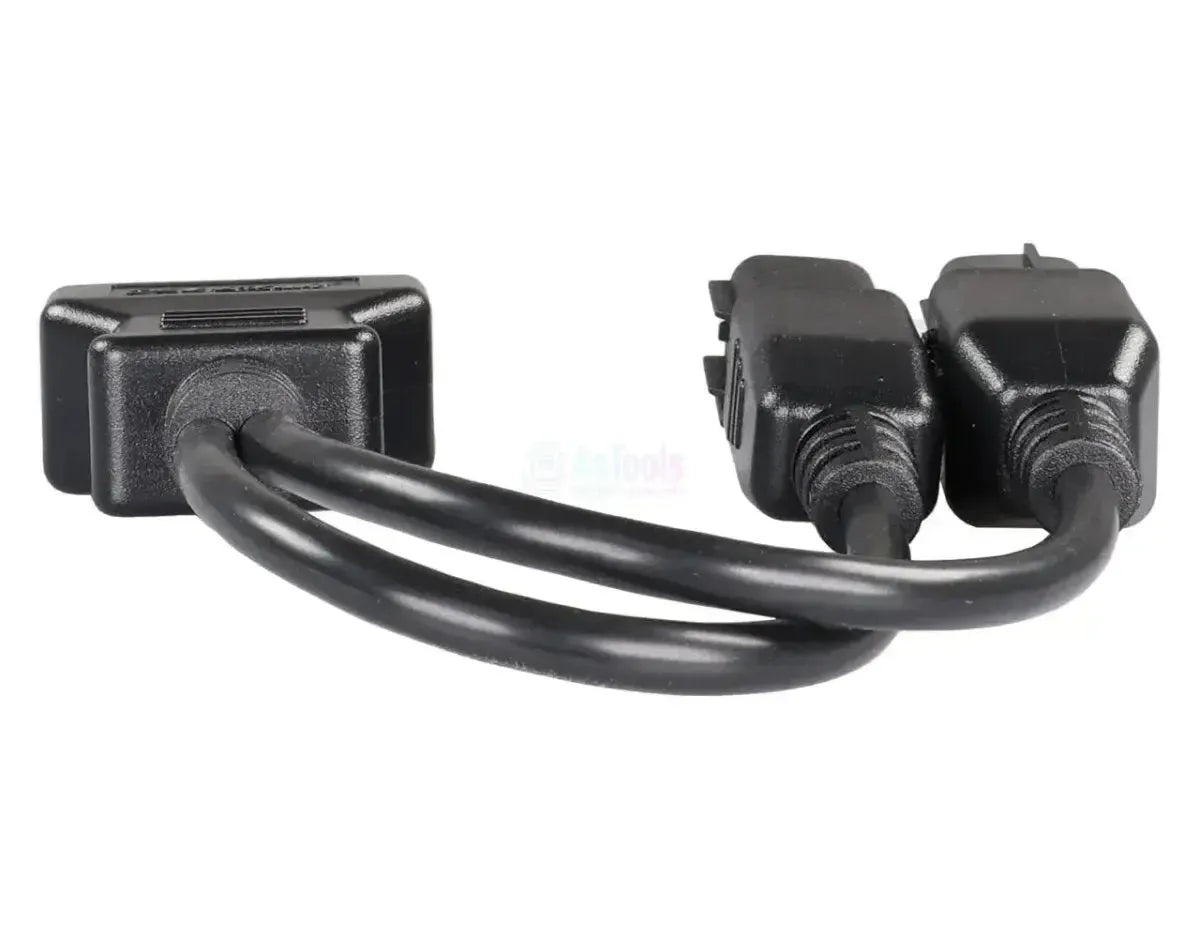

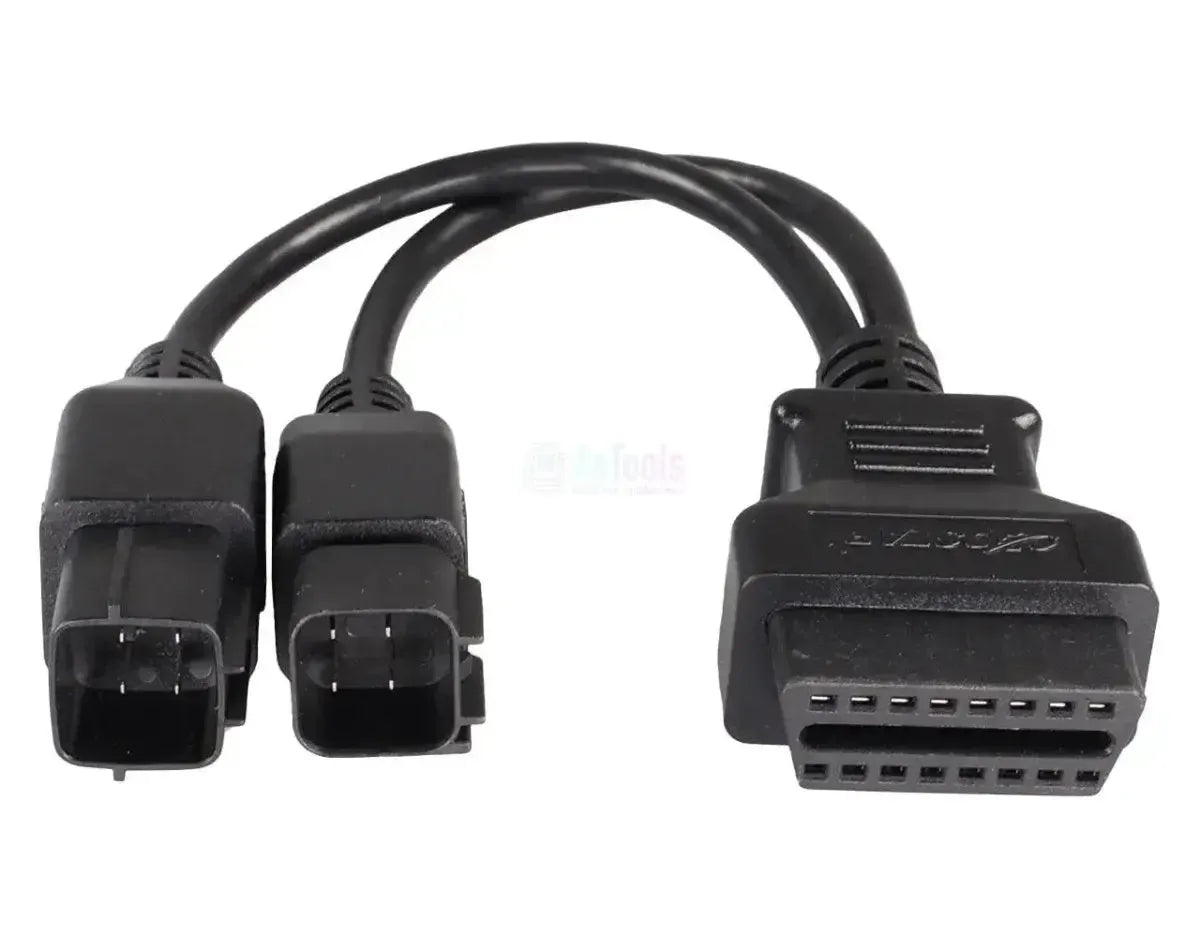

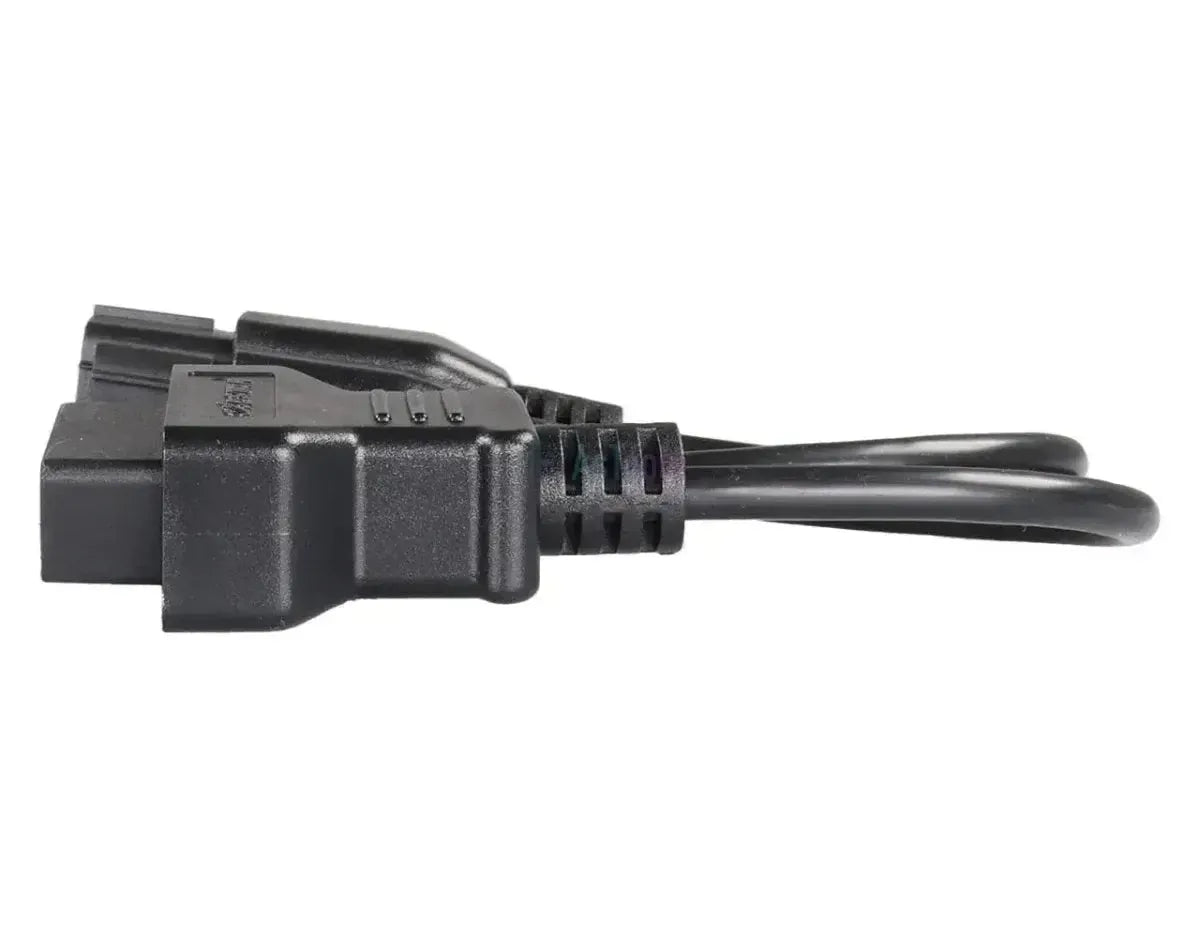

The OBDSTAR M006 is the adapter cable for the Kawasaki 4+4-pin diagnostic connector: two separate 4-pin plugs on the vehicle side that combine into a single 16-pin OBD2 connector (J1962). These two connectors attach to the diagnostic ports in the motorcycle's wiring harness.

The Y-split configuration is necessary because Kawasaki distributes the diagnostic lines across two connectors in this design. The cable carries those lines — including the K-line or other vehicle-specific communication lines — through to the OBD2 interface of your device. No signal processing occurs: the conversion is purely mechanical and electrical. Since the cable performs no protocol translation, your own device must support the Kawasaki diagnostic protocol. The cable adds no models or functions of its own.

KEY FEATURES

✔Two vehicle connectors bundled — the Y-split structure brings both 4-pin connectors together on a single OBD2 plug.

✔No vehicle modification — the cable connects directly to the existing diagnostic ports in the harness.

✔Part of the M-series — the cable integrates with OBDSTAR's existing motorcycle adapter kit.

✔Wide model coverage — from the 2012 ER-6n through to the Ninja 400 and Z900 currently in production.

IMPORTANT NOTES

✕4+4-pin configuration only — motorcycles with a single 4-pin, 6-pin or 8-pin connector require a different cable.

✕No protocol translation — the cable provides connection only; your device must support the Kawasaki diagnostic protocol itself.

✕OBDSTAR equipment only — use with diagnostic equipment from other manufacturers is not supported.

✕Does not add vehicle coverage — which functions are available is determined by your own device's software.

Applications and functionality

Via the dual diagnostic connector, you access the motorcycle's control units.

Control units you can reach

Engine system: The control unit from which fault codes and measurement data are retrieved.
Immobiliser system: Key and immobiliser data are accessible, depending on the OBDSTAR device used.
Other control units: Which additional modules respond varies by model and specification.

What you can do

Read and clear fault codes: Retrieve DTCs from the control units, clear them and reassess fault status.
Display live data: View real-time sensor values and ride data from the engine system.
Read control unit: Request ECU information such as software version and system parameters.
Perform immobiliser work: Access key and immobiliser data for programming or diagnostic work on the anti-theft system.
Please note: Which of these functions are available depends on the model and your OBDSTAR device.

Compatible vehicles and applications

The 4+4-pin diagnostic connector is what matters, not the model or year of manufacture. The Kawasaki models listed below are confirmed in the product data with that connector. Overlapping years do occur, so if in doubt, first check the connectors on the motorcycle itself.

Kawasaki:

ER-6n / ER-6f: (2012–2016)
Ninja 300 (EX300): (2013–2017)
Ninja 400 (EX400): (2018–present)
Ninja 650 (EX650): (2012–present)
Ninja 1000 / Ninja 1000SX: (2011–present)
Versys 650: (2015–present)
Versys 1000: (2012–present)
Z650: (2017–present)
Z800: (2013–2016)
Z900: (2017–present)
Z1000: (2010–present)
ZX-6R (Ninja ZX-6R): (2013–present)
ZX-10R (Ninja ZX-10R): (2011–present)
ZX-14R (Ninja ZX-14R): (2012–present)

💡

Good to know: The 4+4-pin diagnostic connectors are typically located beneath the fairing or seat; consult the model's service manual for the exact location. Before ordering, verify that your motorcycle has two 4-pin connectors rather than a single connector.

Package contents

1x OBDSTAR (M006) | Kawasaki 4+4-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	M006
Type	Adapter cable
Application	Kawasaki 4+4-pin diagnostic coupling
Vehicle-side connector	Kawasaki 4+4-pin OBD (two connectors)
Device-side connector	16-pin OBD2
Communication	K-line or other vehicle-specific communication protocols
Control units	Engine system and immobiliser system
Segment	Motorcycle
Supported brands	Kawasaki
Model range	From 2010 onwards, provided with 4+4-pin connector
Required to use	OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirements	None; the cable operates without adapter or power supply
Weight	0.1 kg
