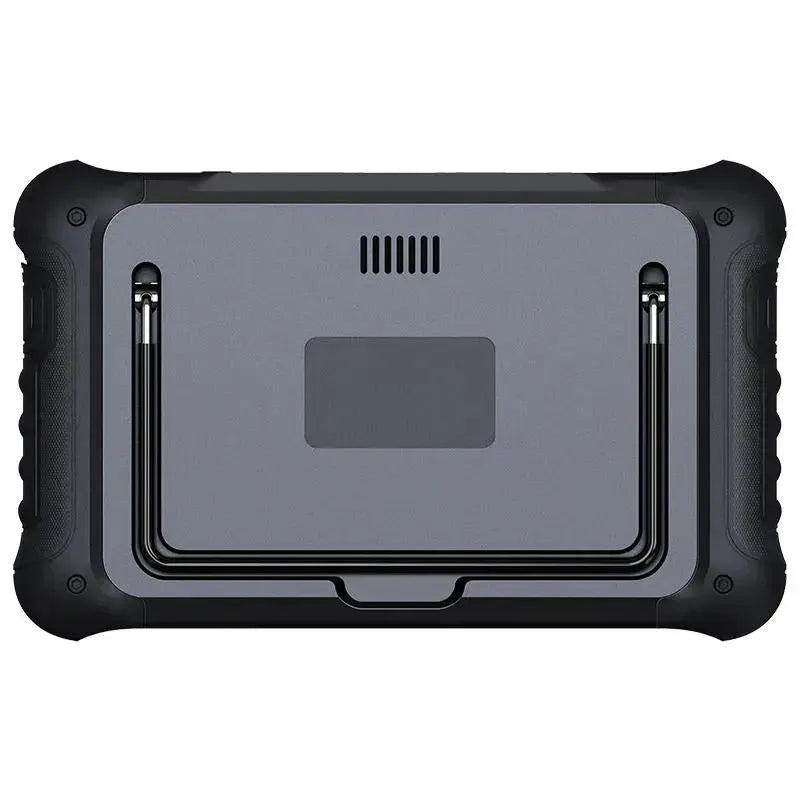

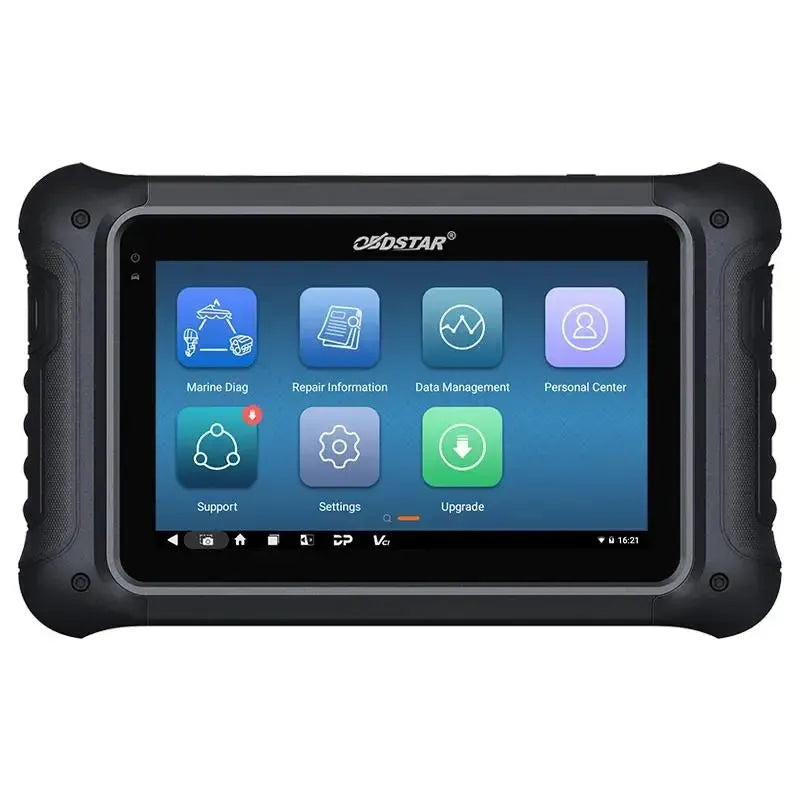

The OBDSTAR IScan Pro Yanmar (Marine) is a diagnostic device specifically developed for diagnosing Yanmar marine engines. The device is designed as a portable tablet with a 7-inch capacitive touchscreen with a resolution of 1024x600 pixels and runs on Android 5.1.1. The hardware is built around a RK3128 quad-core ARM Cortex A7 processor, with 16 GB internal storage and support for expansion via a 32 GB micro-SD card. The license duration is 2 years and the diagnostic functions include reading and clearing fault codes, live data streams, action tests, coding, and component programming.
The diagnostic device features WiFi connectivity allowing software updates to be installed directly via the internet. Through the one-button remote support, the OBDSTAR technical team can remotely view and assist. Additionally, there is a mobile OBDSTAR app available that integrates functions such as locating diagnostic connectors and technical bulletins to perform more accurate diagnostics together with the IScan Pro. Live data can be displayed as text, graph, or gauge view, and the device supports a DC24V input matching the voltage levels of maritime applications.
ADVANTAGES
KEY POINTS
Diagnostic functions
The IScan Pro Yanmar offers a range of diagnostic functions for reading and analyzing electronic systems on Yanmar marine engines. The functions below are confirmed in the source data.
- Read fault codes: Reading stored fault codes from the engine control unit to identify malfunctions.
- Clear fault codes: Removing stored fault codes after repairs or maintenance.
- Live data stream: Real-time display of sensor and component values, shown as text, graph, or gauge view for quick fault analysis.
- Data recording and playback: Recording and reviewing live data streams to accurately locate intermittent faults and component errors.
- Actuation tests: Controlling actuators and components to check operation without disassembly.
- Setting: Adjusting parameters within the engine control unit according to system specifications.
- Coding: Programming components and settings in the engine control unit.
Service and maintenance functions
The IScan Pro Yanmar supports multiple service and maintenance functions for Yanmar marine engines. The availability of functions may vary by engine series, model, and year of manufacture.
Engine and drivetrain
- Service reset: Reset service intervals after performing maintenance work on the engine.
- Idle speed adjustment: Adjust and calibrate the idle speed for stable engine operation at no load.
Special features and capabilities
In addition to standard diagnostic and service functions, the reader device has additional capabilities for more efficient work in maritime environments.
- One-button remote support: Direct connection to the OBDSTAR technical team for remote assistance with complex diagnostics.
- OBDSTAR mobile app integration: Access to diagnostic port locations and technical bulletins used together with the IScan Pro for more efficient maritime diagnostics.
- Multiple data visualization: Live data can be displayed as text, waveform graph, or gauge view for faster fault analysis.
- Online software updates: Update the software via WiFi to have the latest diagnostic information.
- DC24V support: Power supply via 24V systems, matching maritime voltage levels.
Supported vehicle brands
The IScan Pro Yanmar is specifically developed for diagnostics on Yanmar marine engines. Support includes a wide range of models within the Yanmar series.
- Asian: Yanmar (including 4BY2-150/150Z, 4BY2-180/180Z, 4BY3-150/150Z, 4BY3-180/180Z, 4JH110, 4JH45, 4JH57, 4JH80, 4LV150, 4LV170, 4LV195, 4LV230, 4LV250, 6BY2-220/220Z, 6BY2-260/260Z, 6BY3-220/220Z, 6BY3-260/260Z, 6LY3_ETA, 6LY3_ETP, 6LY3_STA, 6LY3_STB, 6LY3_STP, 6LY3_UTP, 8LV-320/320Z, 8LV-350/350Z, 8LV-370/370Z and other models)
License information
The IScan Pro Yanmar comes with a software license specifically tailored to the Yanmar engine series. The license governs access to software updates and additional diagnostic functions during its term.
- License period: Included upon purchase for a period of 2 years.
- Software updates: Updates add support for newer Yanmar engine models, expand diagnostic functions, and include optimizations and bug fixes in the existing software.
- Extended features: An active license is required to access the latest diagnostic data, new model expansions, and online features such as one-button remote support.
- After license expiration: The device will continue to operate with the last installed software version, but new updates and expansions will only be available again after renewing the license.

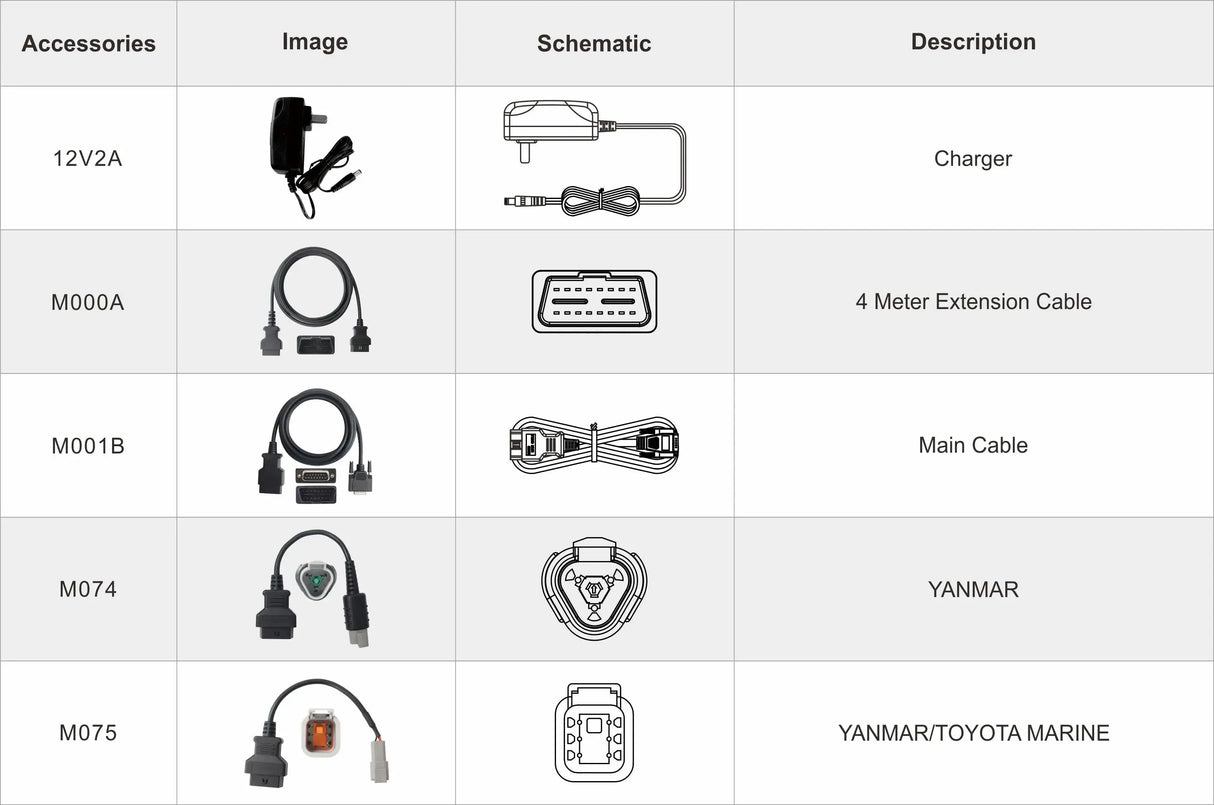

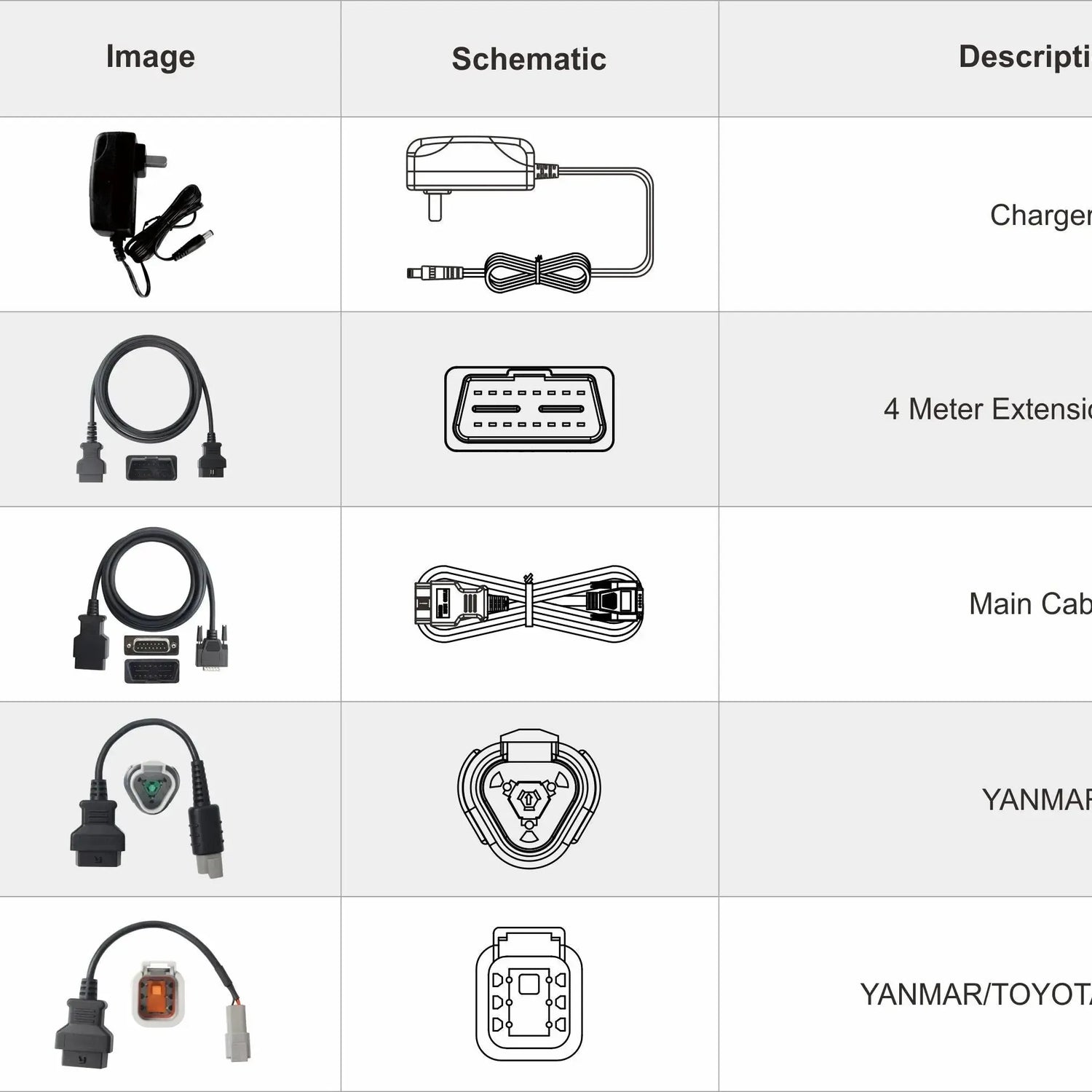

Package Contents
- 1x OBDSTAR IScan Pro Yanmar (Marine) diagnostic tool
- 1x 12V2A charger
- 1x M000A extension cable (4 meters)
- 1x M001B main cable
- 1x M074 Yanmar adapter
- 1x M075 Yanmar/Toyota Marine adapter
Technical specifications
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | IScan Pro Yanmar (Marine) |
| Product category | Diagnostic Tool |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Internal storage | 16 GB |
| Memory expansion | Supports micro-SD (TF) up to 32 GB |
| Battery | 3700 mAh rechargeable polymer lithium battery |
| Screen | 7.0 inch capacitive touchscreen |
| Screen resolution | 1024 x 600 pixels |
| Wireless connectivity | WiFi |
| Power input | DC24V support |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Weight | Approximately 0.766 kg |
| Dimensions | 243 x 148 x 36 mm |
