OBDSTAR IScan Pro Volvo (Marine) | Diagnostic Tool | Motorboat

Diagnostic functions

The OBDSTAR IScan Pro Volvo (Marine) scanner offers a range of diagnostic functions for performing system checks and analyses of Volvo Marine engines. This includes, among other things, reading and clearing fault codes, displaying live data, and performing actuator tests.

• Read fault codes: Accessing and displaying active, stored, and permanent fault codes (DTCs) with detailed descriptions.
• Clear fault codes: Removing fault codes from the ECU memory after repairs or inspections.

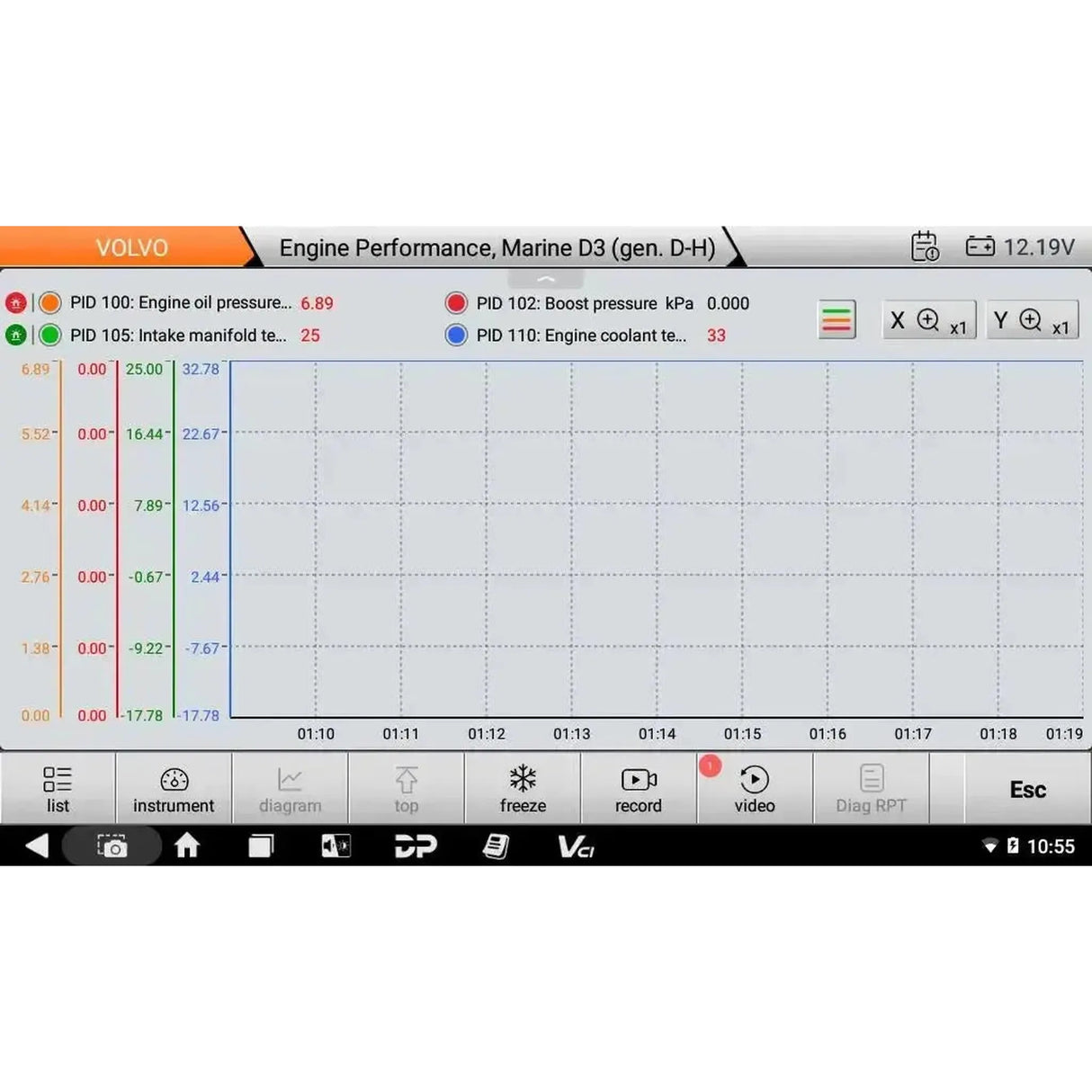

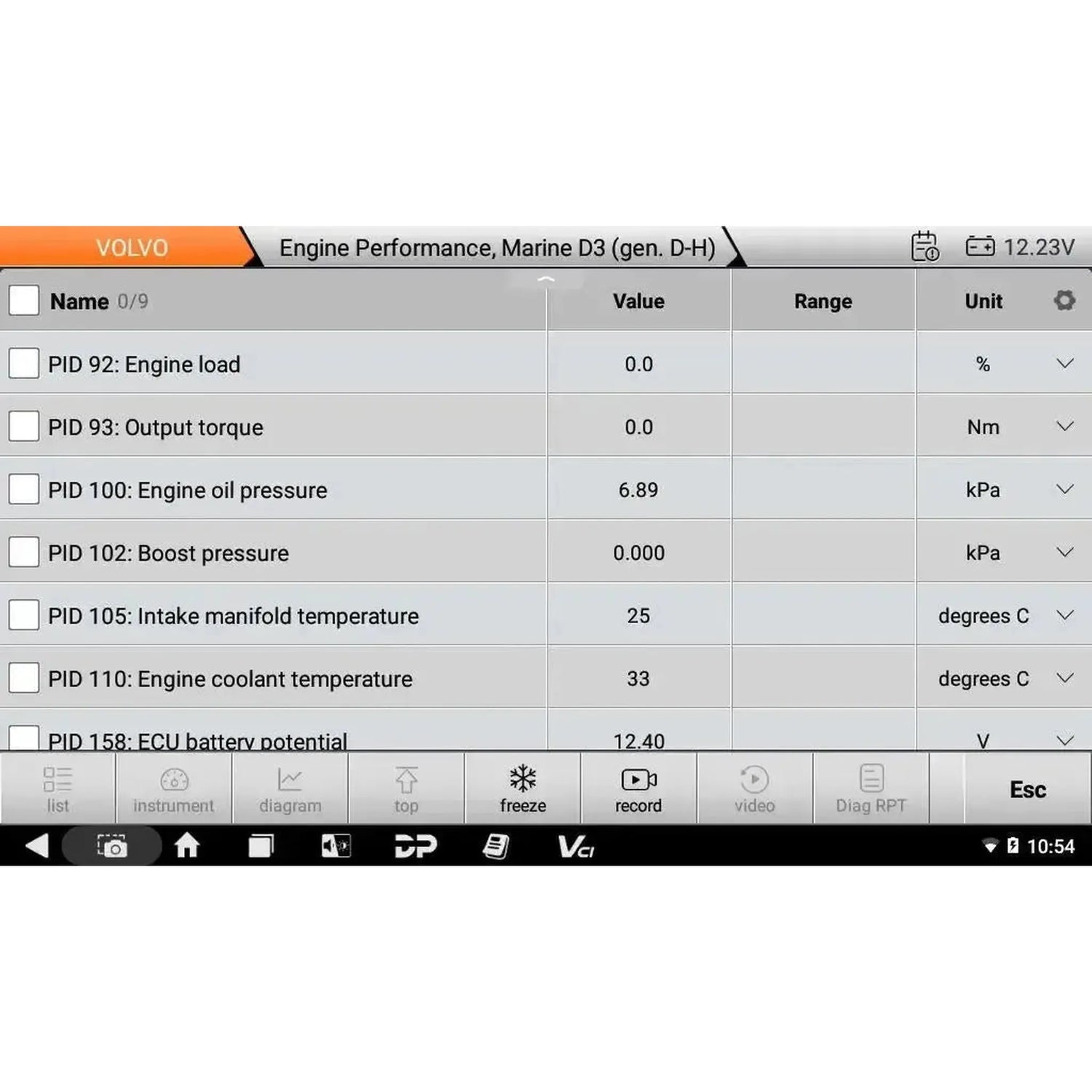

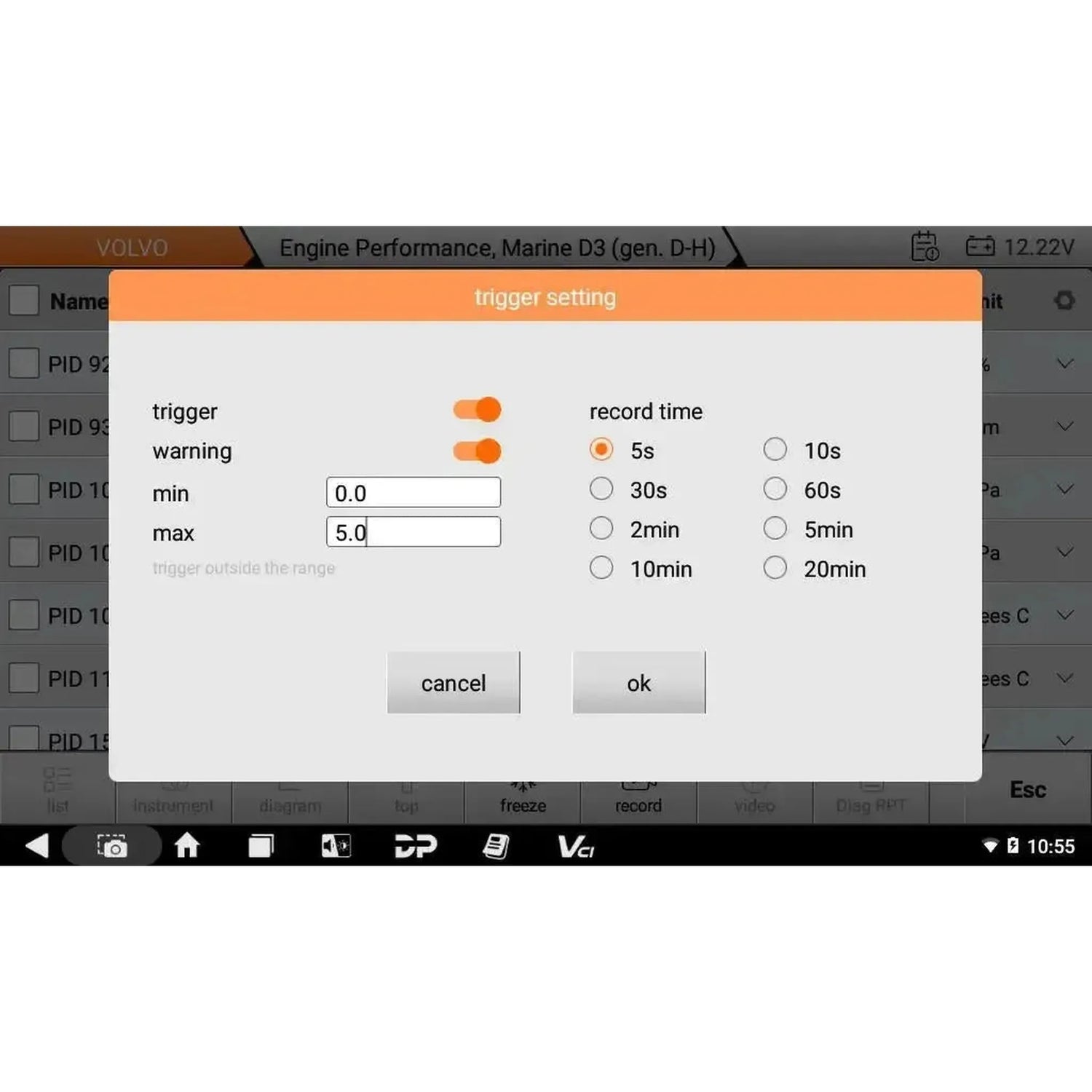

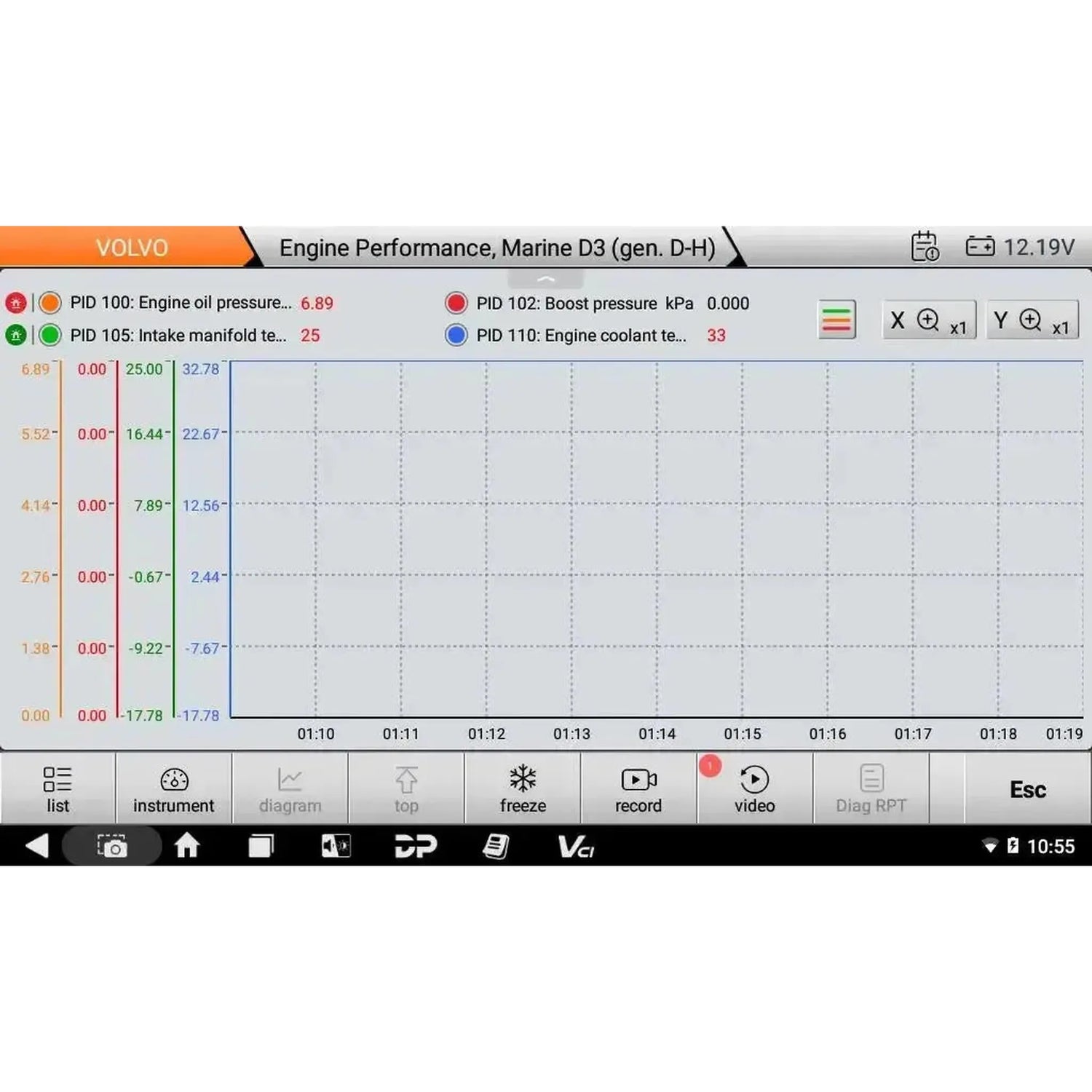

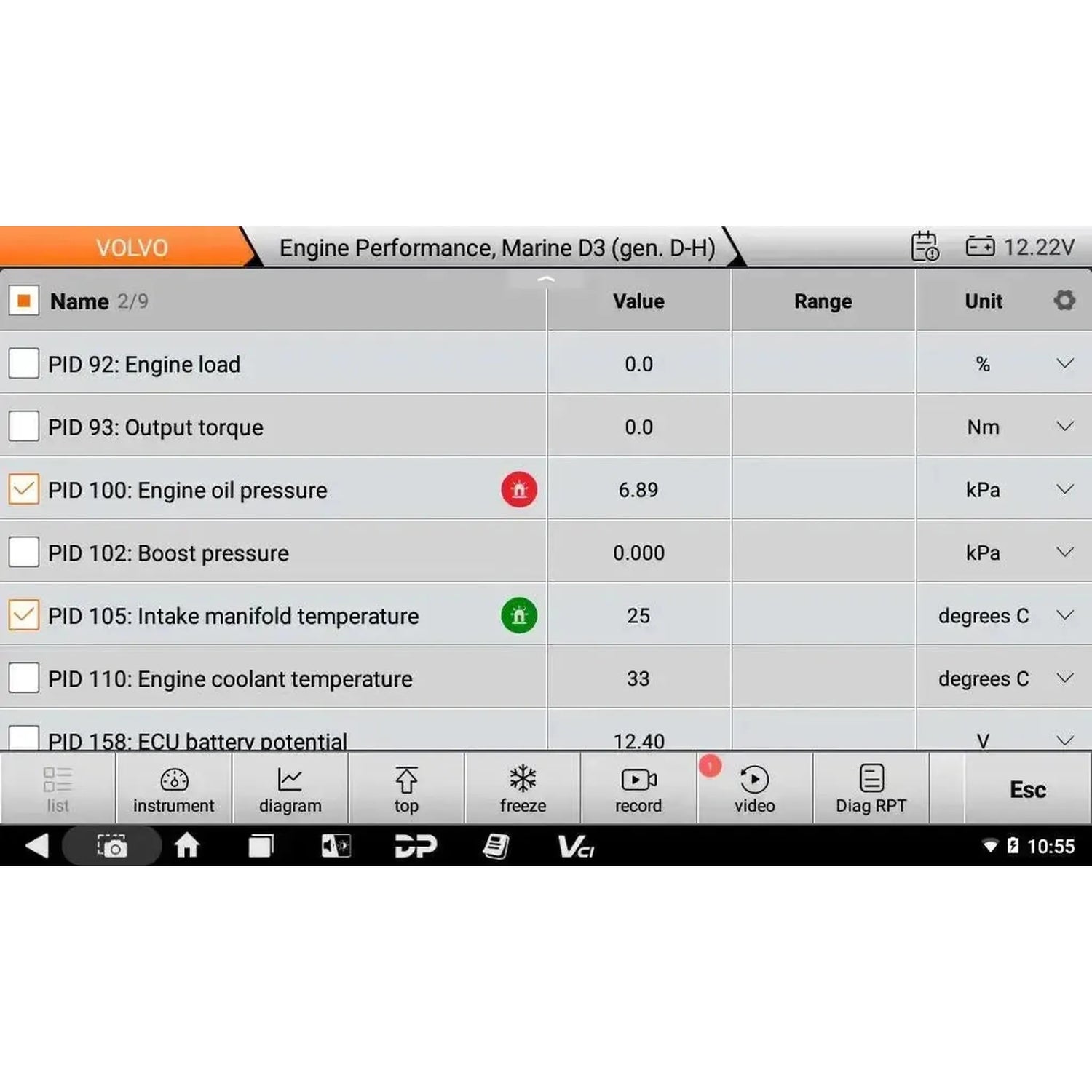

• Live data: Real-time display of sensor values and parameters such as engine speed, temperatures, pressures, and VGT turbo speed.
• Freeze frame data: Recording engine parameters at the moment a fault code was detected.
• Actuator tests: Activating specific components (actuators) to test and validate their functionality.
• ECU information: Displaying identification data of the control unit, including hardware and software version.
• Full system diagnosis: Comprehensive diagnosis of all available electronic systems within the Volvo Marine engine.

Service and maintenance functions

The OBDSTAR IScan Pro Volvo (Marine) diagnostic tool supports multiple service and maintenance functions, crucial for managing and repairing Volvo Marine engines. Available functions may vary depending on the specific vehicle model and year of manufacture.

Engine and drivetrain

• Oil service reset: Resetting the oil maintenance indicator after an oil change.
• Diesel particulate filter regeneration: Initiating a regeneration cycle for the diesel particulate filter (DPF) to remove accumulated soot particles.
• Throttle valve initialization: Teaching the baseline setting of the electronic throttle valve for optimal airflow control.
• Injector coding: Entering compensation values for new or refurbished fuel injectors to optimize fuel delivery.
• Compression test: Performing a test to measure the compression of individual cylinders and assess engine condition.
• Cylinder balance test: Monitoring the contribution of each cylinder to the total engine power to identify irregularities.
• Injector shutdown test: Shutting down individual injectors to assess the impact on engine operation and injector functionality.

Electrical and safety systems

• Battery registration: Registering a new battery in the vehicle system to correctly set the charging parameters.

Steering system and control

• Steering system calibration: Calibrating the steering angle sensor or the entire steering system for accurate steering response.
• Neutral position calibration: Calibrating the neutral position of the throttle or steering for a correct baseline setting.
• Compass calibration: Calibrating the digital compass for accurate navigation information.

Marine-specific functions

• Trim reset: Resetting the trim position indication of the outboard motor or stern drive.
• Propeller calibration: Calibrating parameters related to the propeller for optimal performance and efficiency.
• Steering station configuration: Configuring the settings of the steering station for personalized control.
• Joystick calibration: Calibrating the control parameters of the joystick control system for precise maneuverability.

Special features and capabilities

The OBDSTAR IScan Pro Volvo (Marine) is equipped with special features that further support the diagnosis and maintenance of Volvo Marine engines, including AI diagnosis and cloud service.

• AI diagnosis: Use of artificial intelligence for automated analysis and assistance in diagnosing issues.
• Cloud service: Access to an online database for technical information, software updates, and possible remote support.
• One-key upgrade: Simplified procedure for performing software updates with one press of a button.
• Automatic VIN identification: Automatically reads and recognizes the vehicle identification number (VIN) for quick and accurate vehicle selection.

Supported vehicle brands

The OBDSTAR IScan Pro Volvo (Marine) is specifically designed to provide diagnosis and service for Volvo Marine engines.

• European: Volvo (Marine)

License information

The software license of the OBDSTAR IScan Pro Volvo (Marine) diagnostic tool determines the duration of free software updates and access to certain online features. After the license period ends, the device remains functional with the last installed software.

• License period: 2 years of free software updates and access to online features.
• Software updates: Updates can add new vehicles, features, and bug fixes and are essential to keep up with the latest developments.
• Extended features: Access to certain online or advanced features may depend on an active license.
• After license expiration: The device will continue to operate with the software version it had at the time the license expired, without further updates or access to online services requiring an active license.

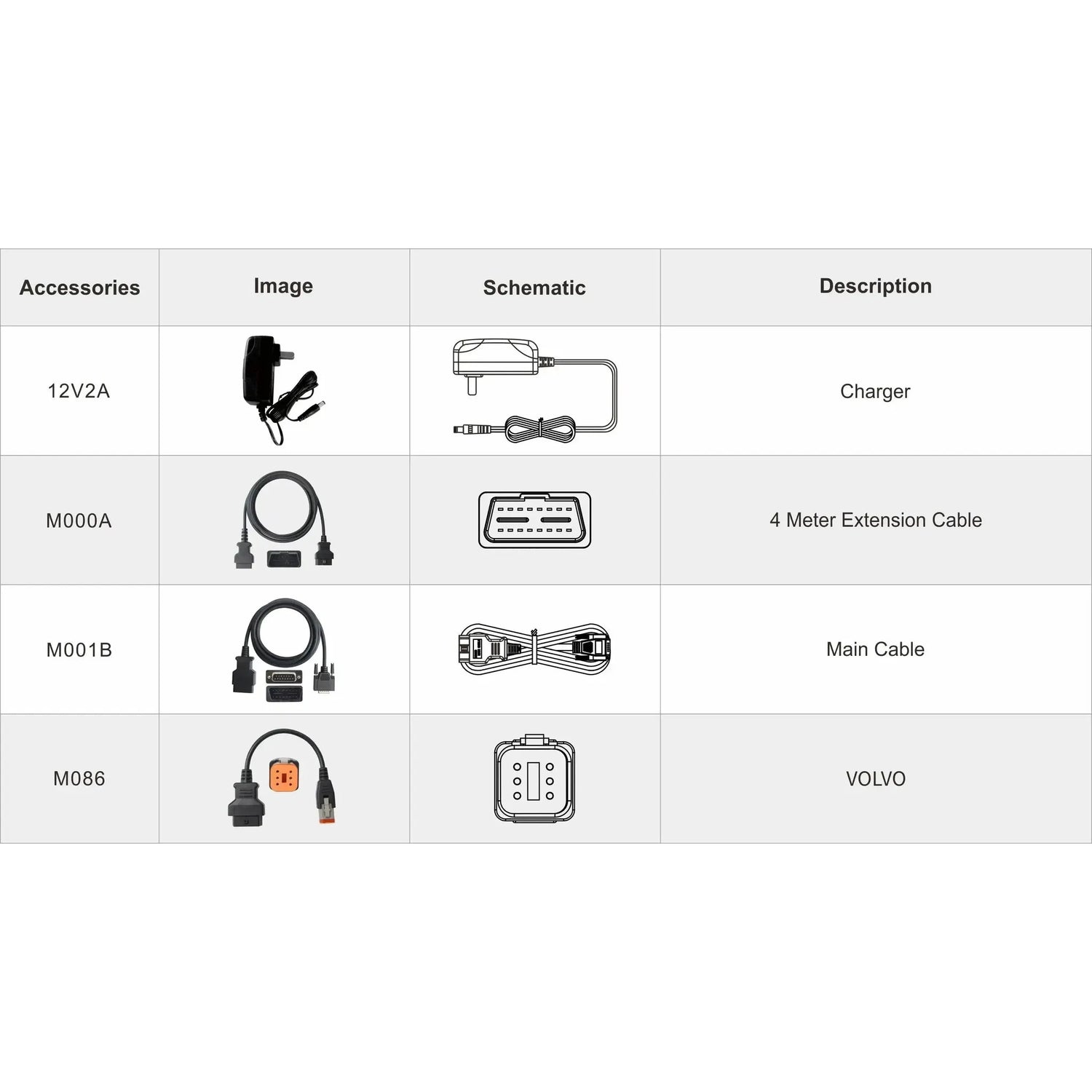

Package Contents

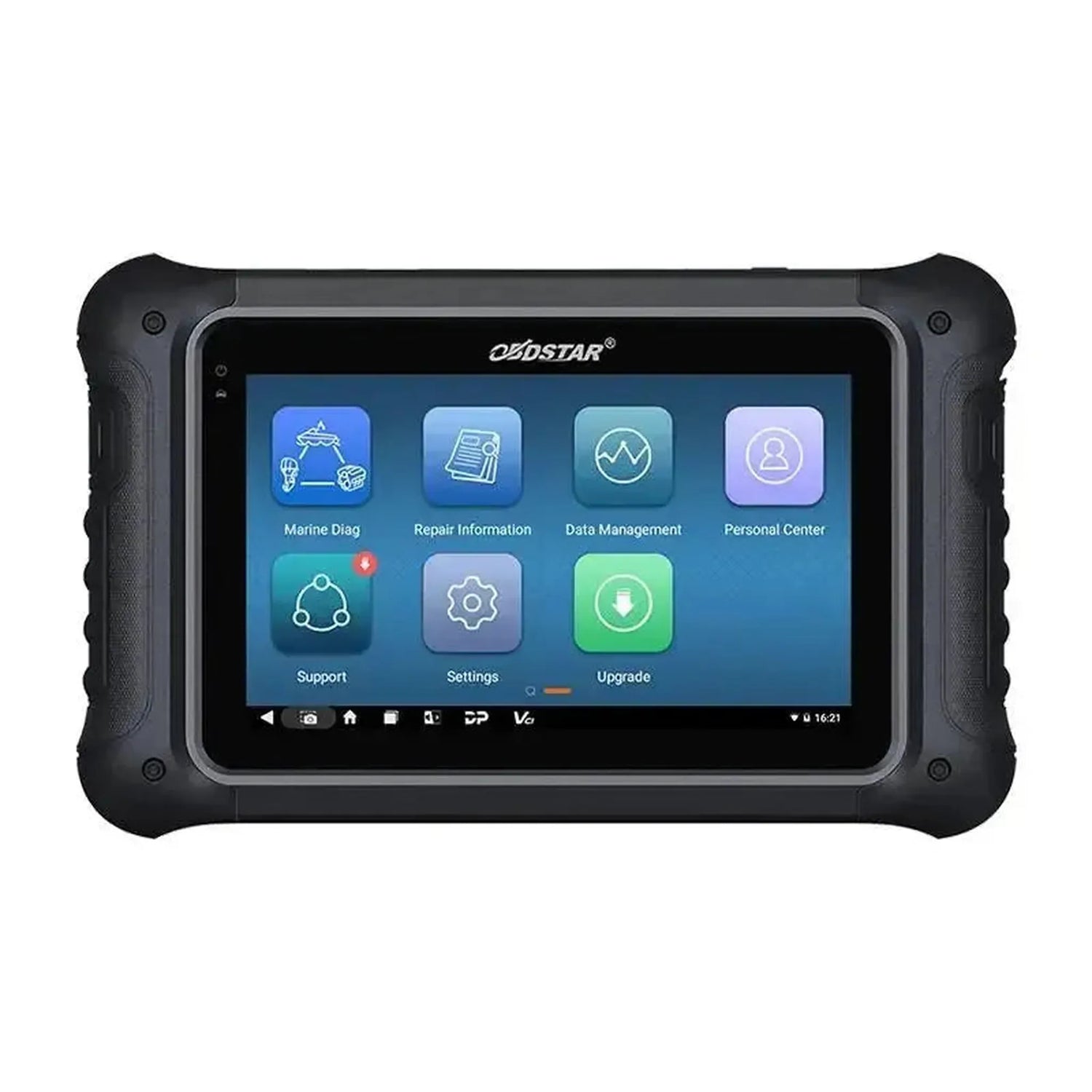

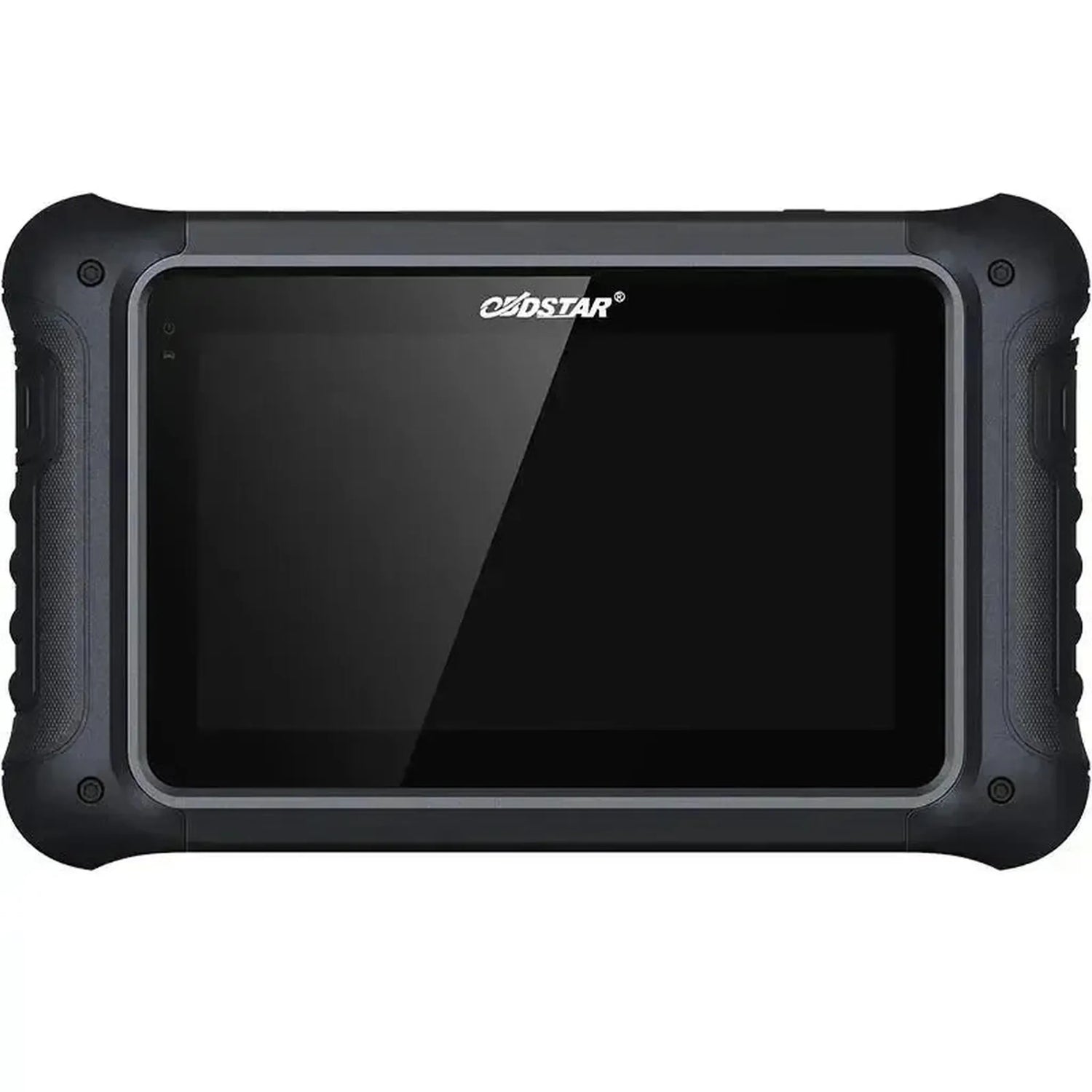

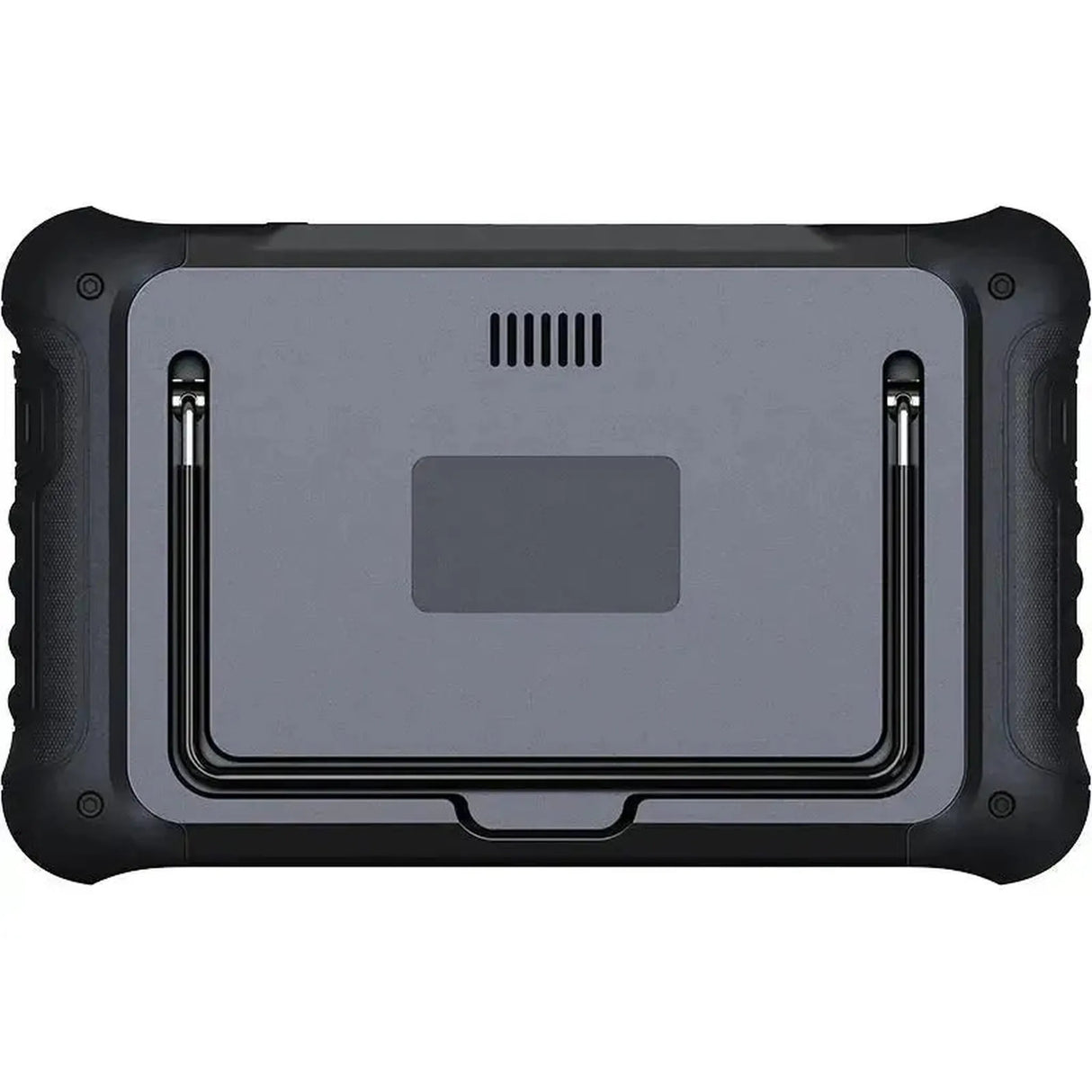

• 1x OBDSTAR IScan Pro Volvo (Marine) diagnostic tool
• 1x Charger (12V2A)
• 1x 4 meter extension cable (M000A)
• 1x Main cable (M001B)
• 1x Volvo connector (M086)
