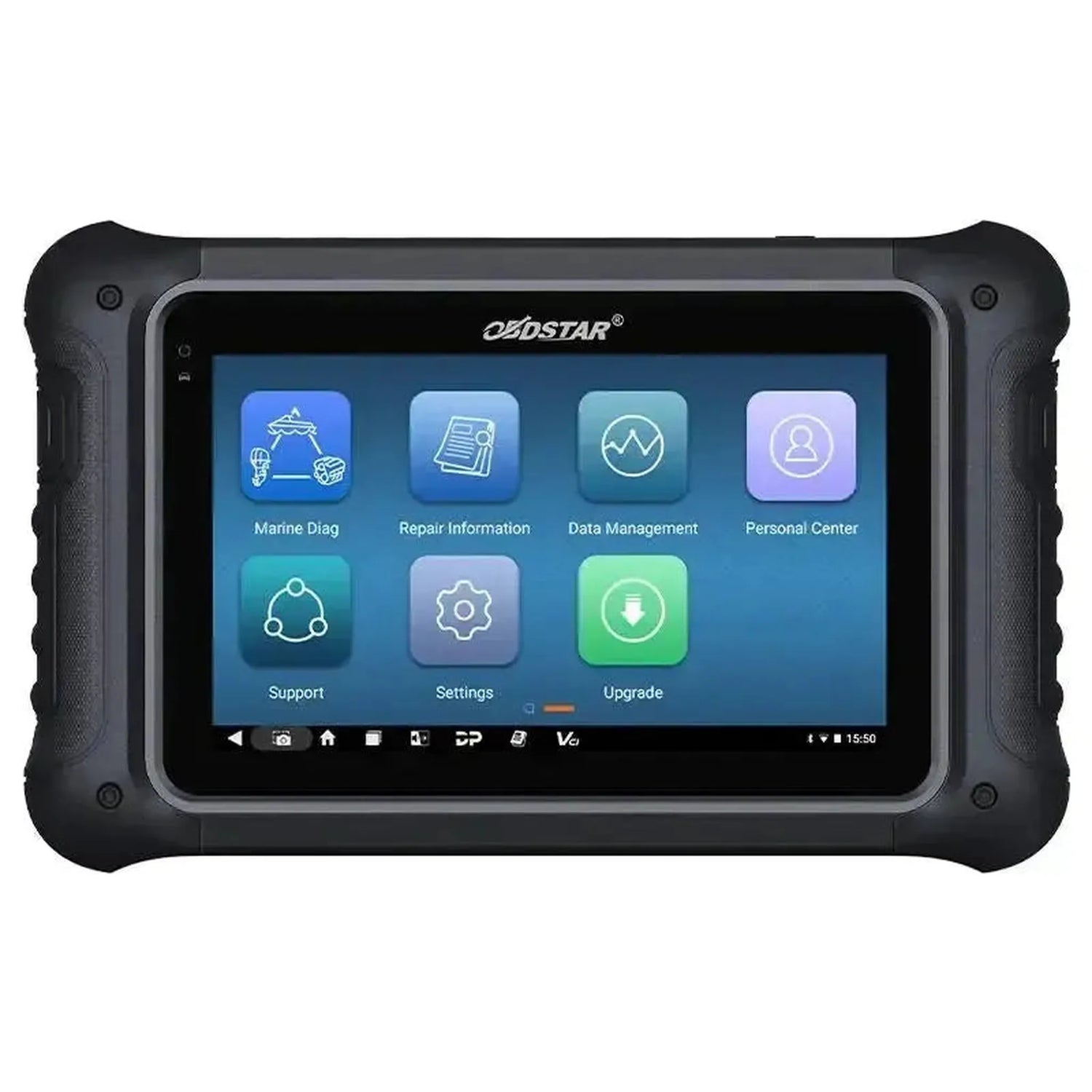

OBDSTAR IScan Pro Indmar (Marine) | Diagnostic Tool | Motorboat

Diagnostic functions

The OBDSTAR IScan Pro Indmar (Marine) scanner offers extensive diagnostic functions for Indmar marine engines. These functions enable technicians to identify system faults, monitor live data, and test specific components.

• Read fault codes: Reads generic and manufacturer-specific diagnostic trouble codes (DTCs) from the engine management system.
• Clear fault codes: Clears stored fault codes and turns off warning lights after repairs are performed.

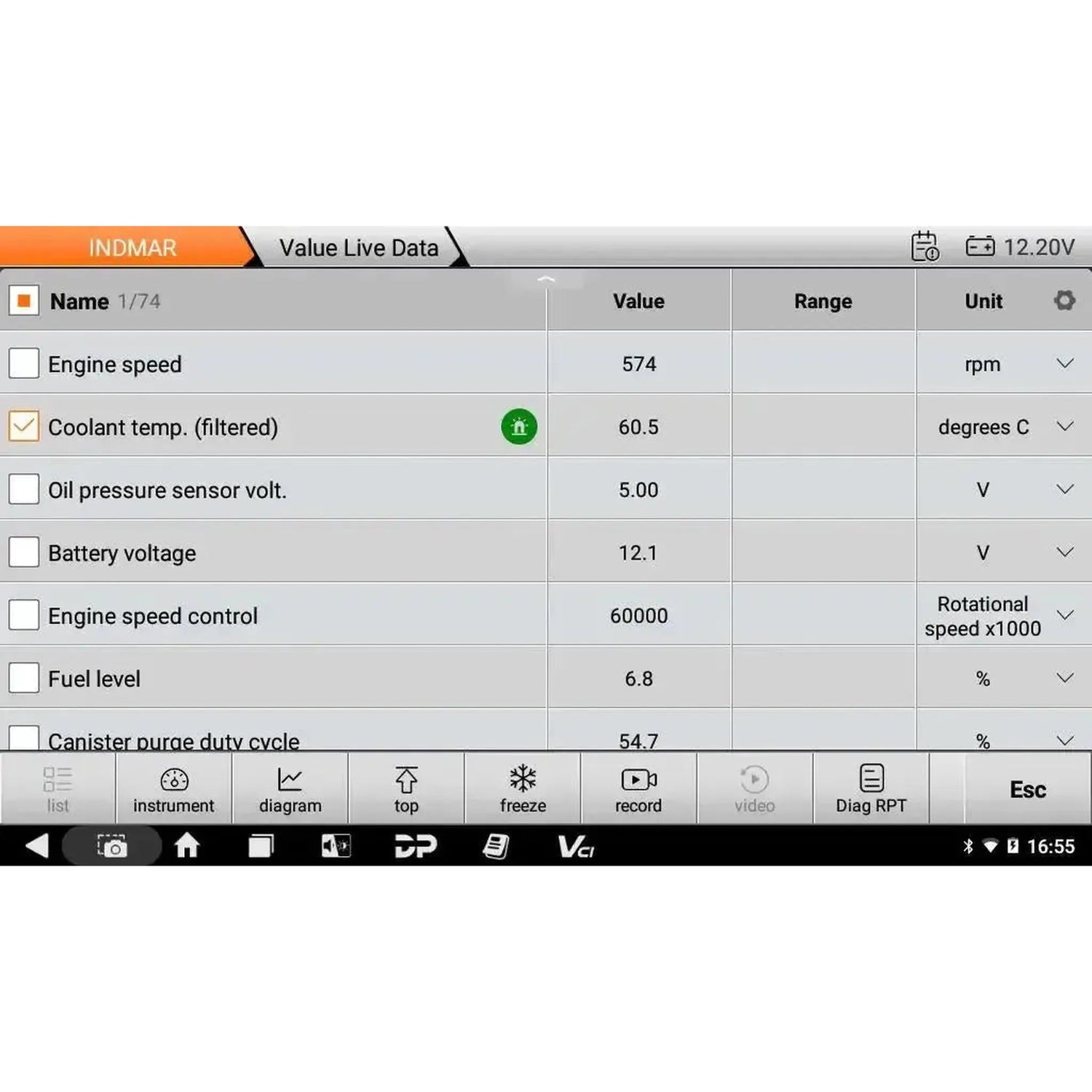

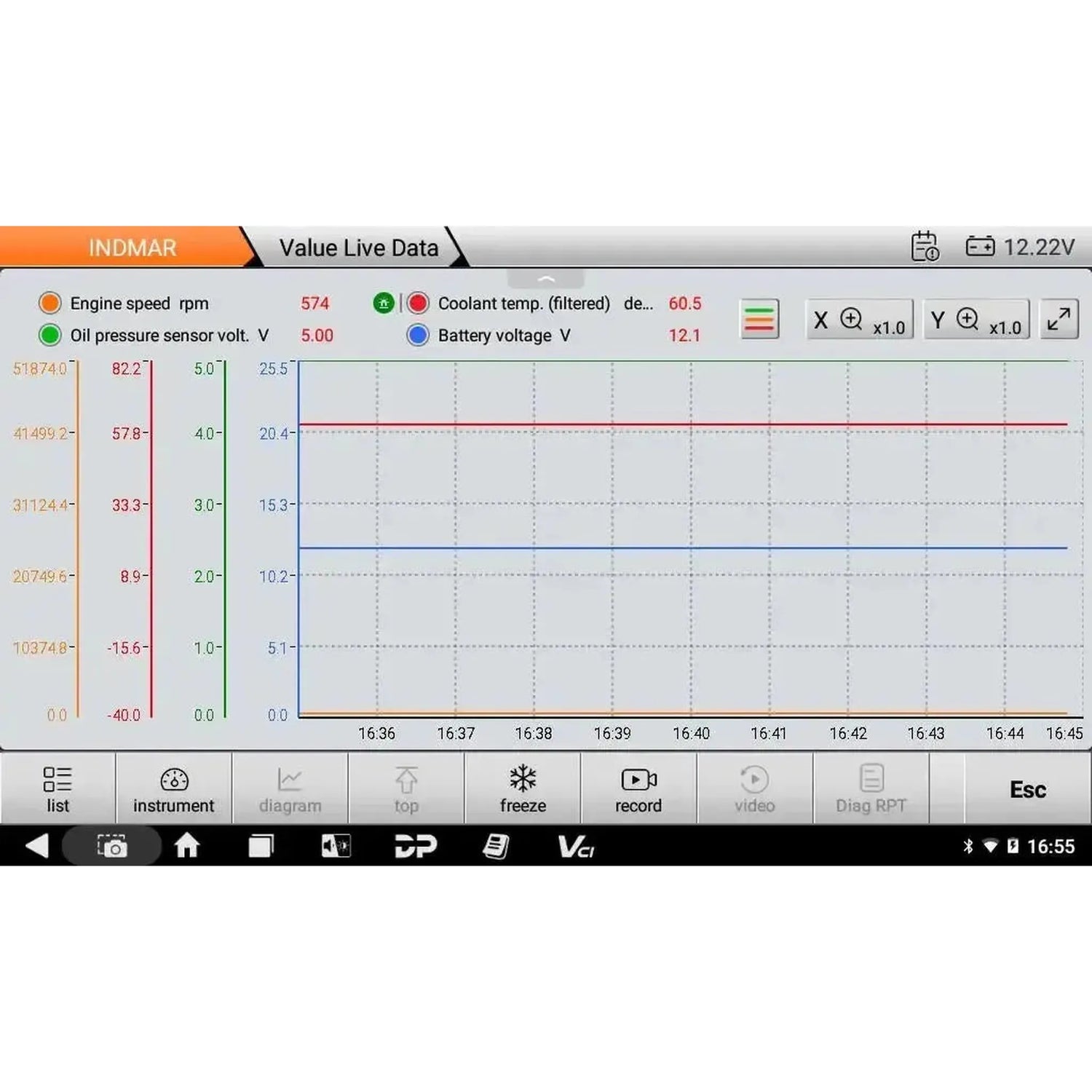

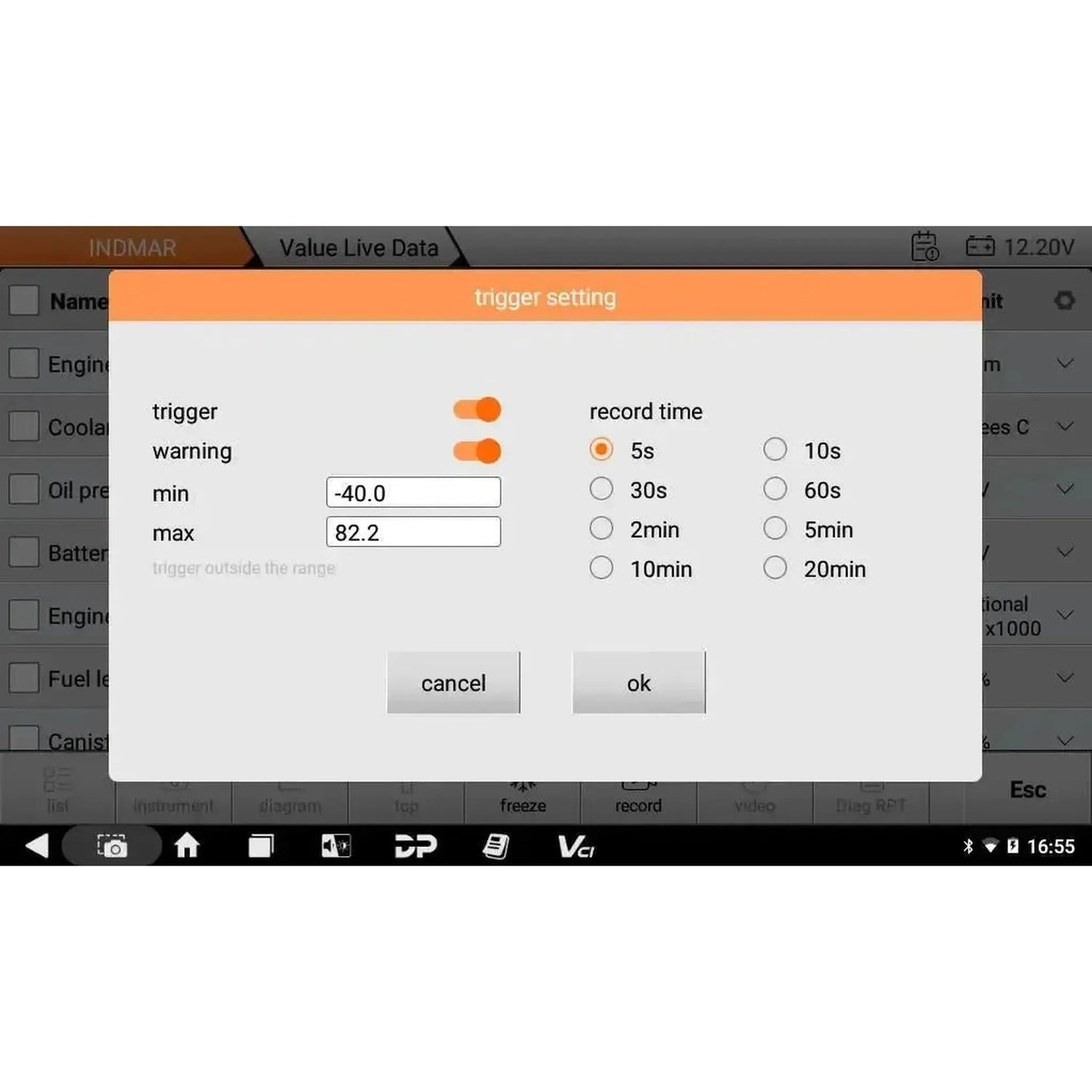

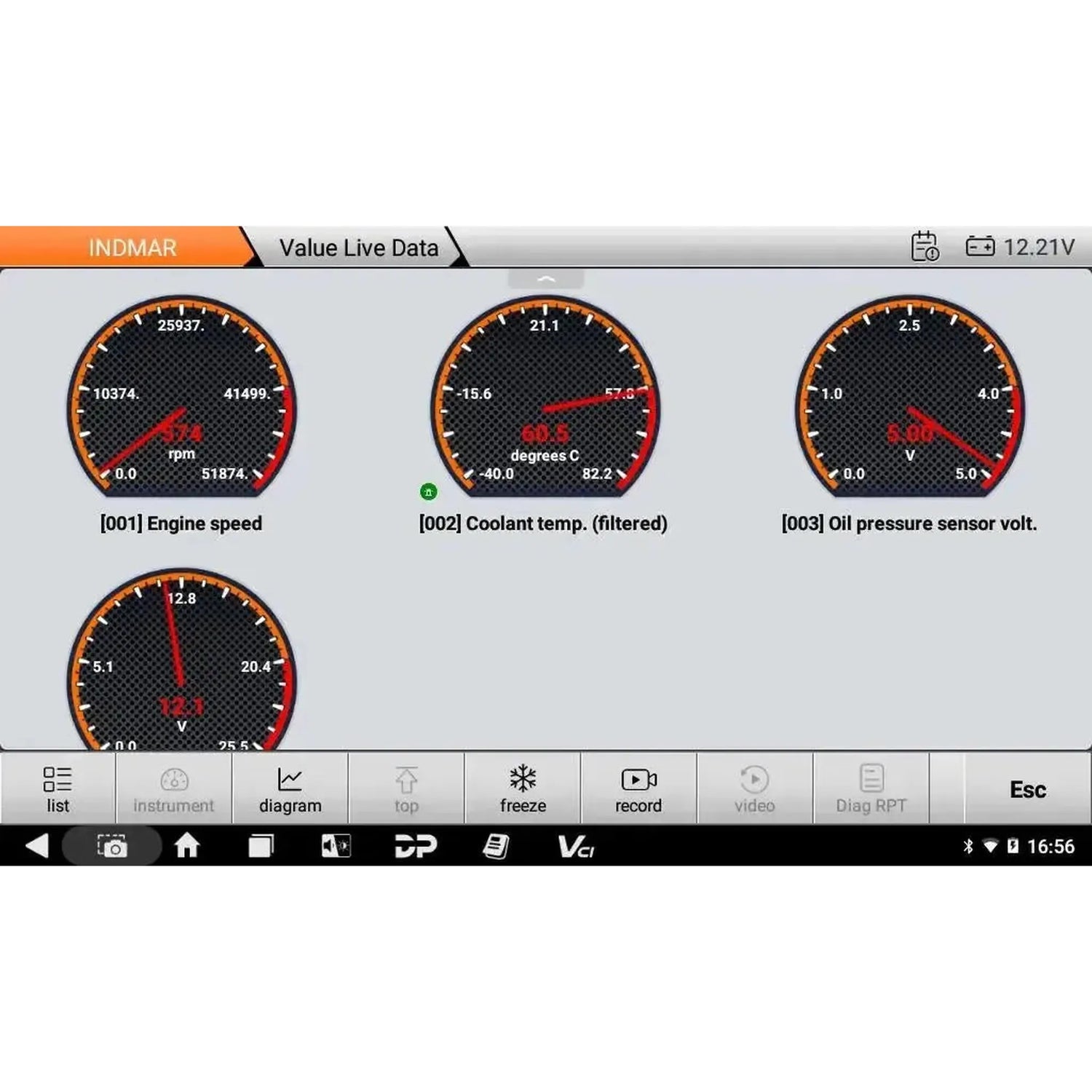

• Display live data: Shows real-time parameters of the engine and other systems, such as engine speed, coolant temperature, sensor voltages, and fuel pressure.
• Freeze frame data: Shows the engine operating conditions at the time a fault code was stored.
• Component tests: Performs active tests on specific components to check their functionality.
• Module information: Displays details of the installed control units, such as software version and hardware number.

Service and maintenance functions

The reader supports multiple service and maintenance functions specifically for Indmar marine engines. However, available functions may vary depending on the Indmar engine series, model, and year of manufacture.

Engine and drivetrain

• Throttle body reset: Resets the base position of the electronic throttle body.
• Throttle position sensor reset: Resets the adaptation values of the throttle position sensor.
• Engine control unit reset: Resets the engine management system to factory settings or clears adaptive values.
• Idle speed adjustment: Adjusts the engine's idle speed.
• Ignition timing adjustment: Adjusts the engine's ignition timing.
• Parameter reset: Resets various engine parameters to their default values.
• Initialization: Initializes certain engine components after replacement or repair.
• Calibration: Calibrates sensors or actuators in the engine management system.

Other service and maintenance functions

• Service light reset: Resets the service indicator light after maintenance.
• Self-test: Performs an automated self-test of various systems.
• Trim reset: Resets the trim position of the outboard motor or stern drive.
• Oil pressure reset: Resets the oil pressure warning or oil pressure sensor.
• Set total operating hours: Records or sets the total number of operating hours.
• Set maintenance interval: Sets the intervals for periodic maintenance.

Special features and capabilities

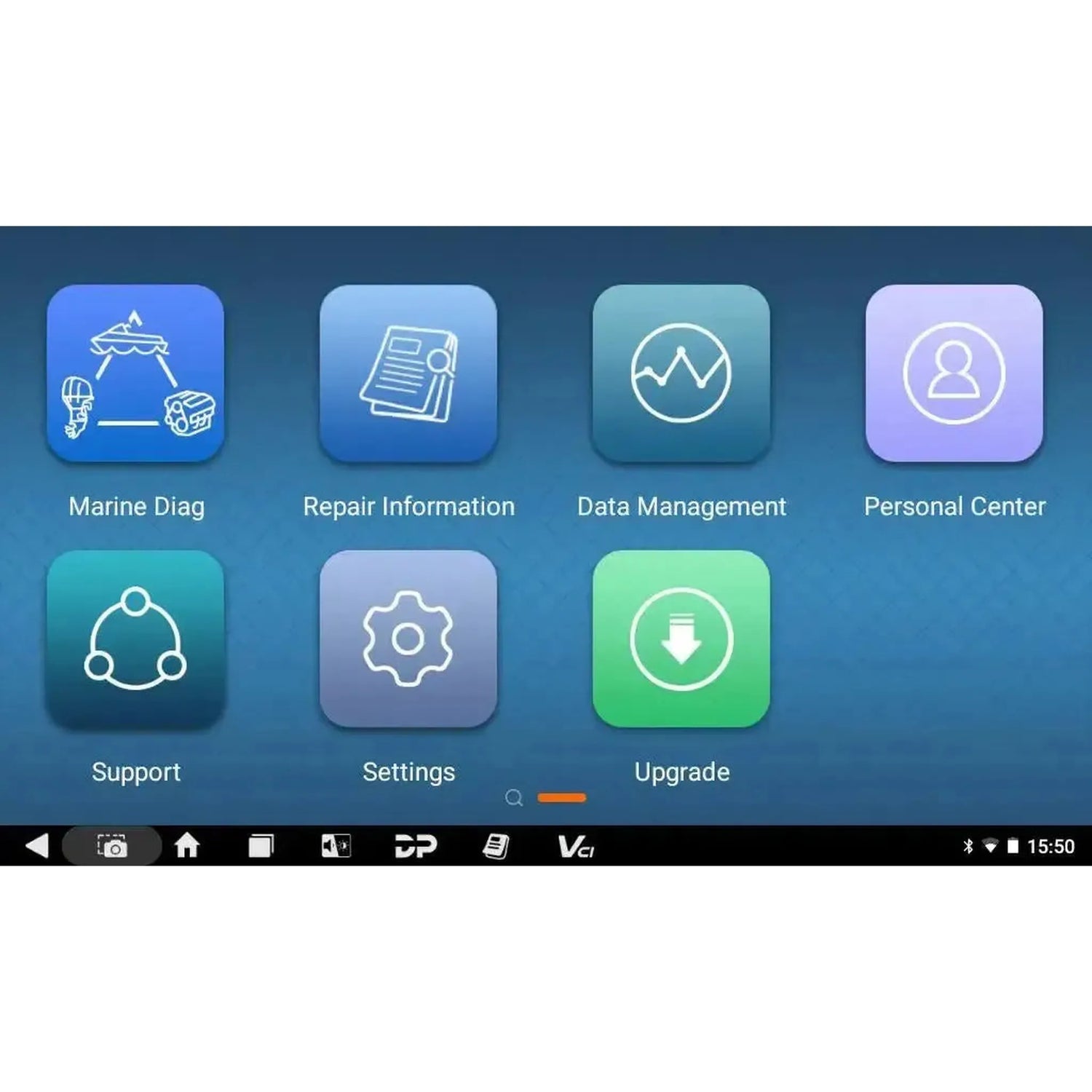

The OBDSTAR IScan Pro Indmar (Marine) reader is equipped with specific functionalities to ensure efficient and in-depth diagnostics and maintenance of Indmar marine engines, including one-click upgrade via Wi-Fi and data management.

• One-click upgrade: Enables software updates and firmware upgrades with one press of a button via Wi-Fi.
• Data management: Offers functionality for storing, managing, and reviewing diagnostic reports and live data recordings.
• Diagnostic report: Generates and displays detailed diagnostic reports of performed scans and tests.
• Help function: Provides built-in help and information about diagnostics and functions.

Supported vehicle brands

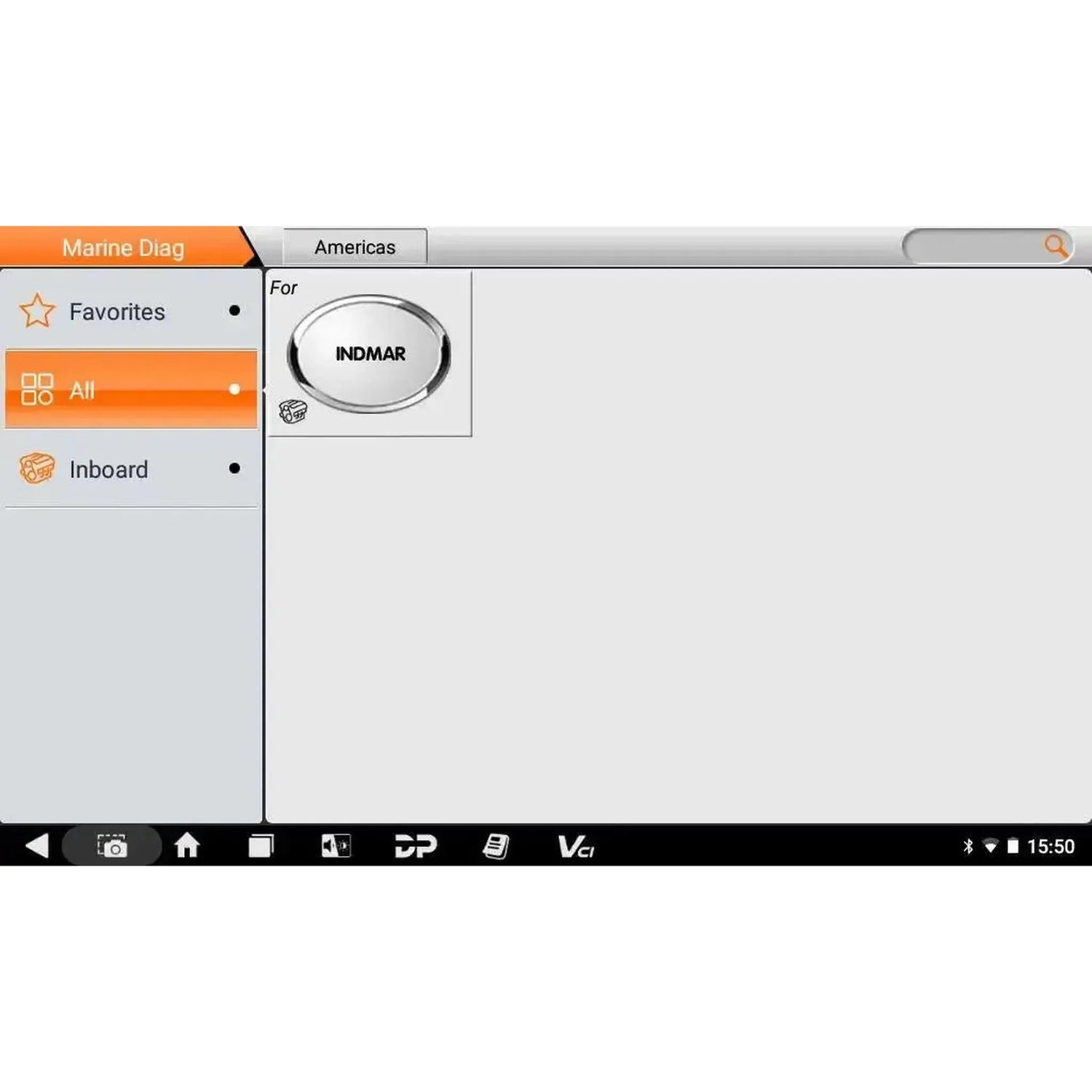

The OBDSTAR IScan Pro Indmar (Marine) diagnostic tool is specifically developed for the diagnosis and maintenance of Indmar marine engines.

• American: Indmar (exclusively Indmar marine engines)

Optional additions and expansions

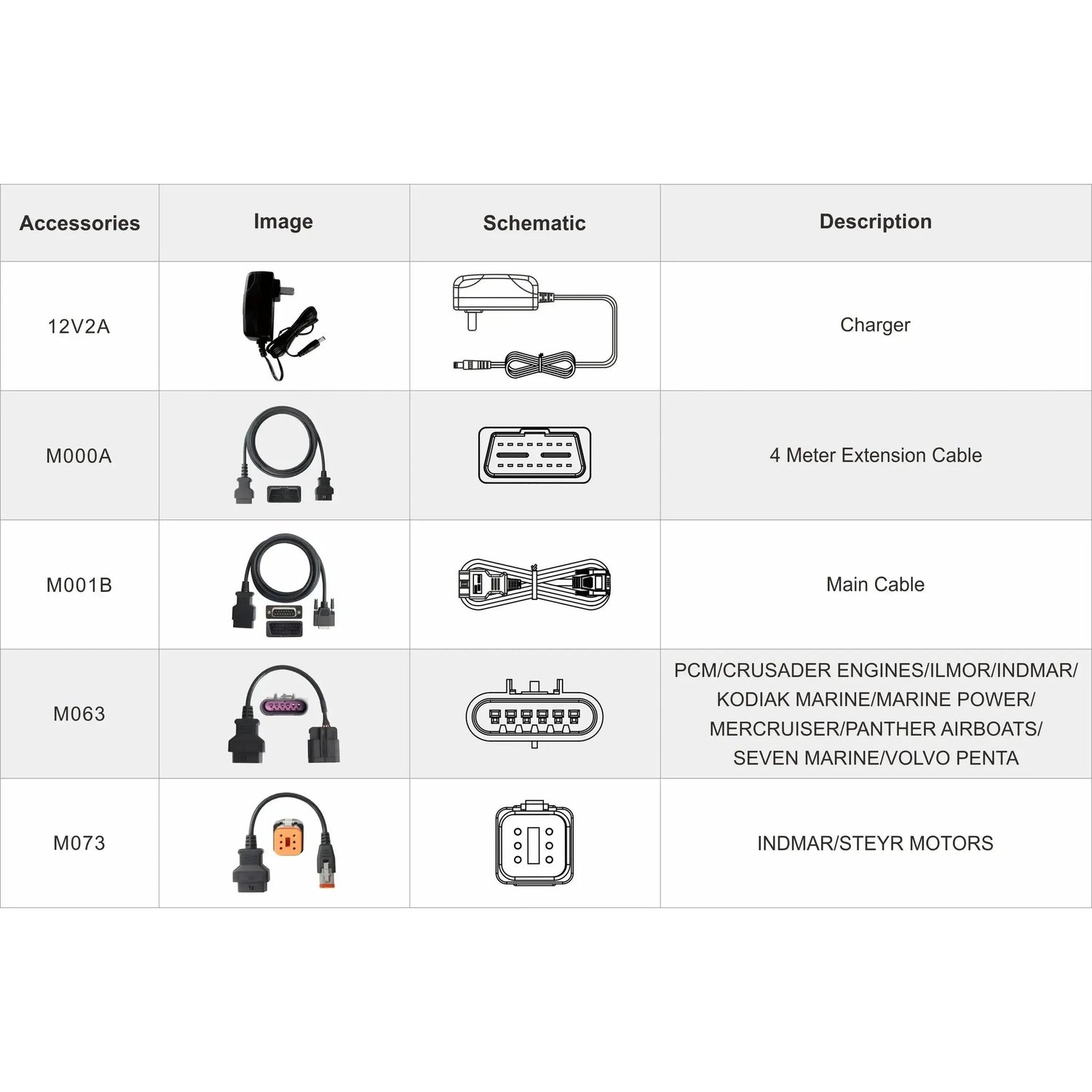

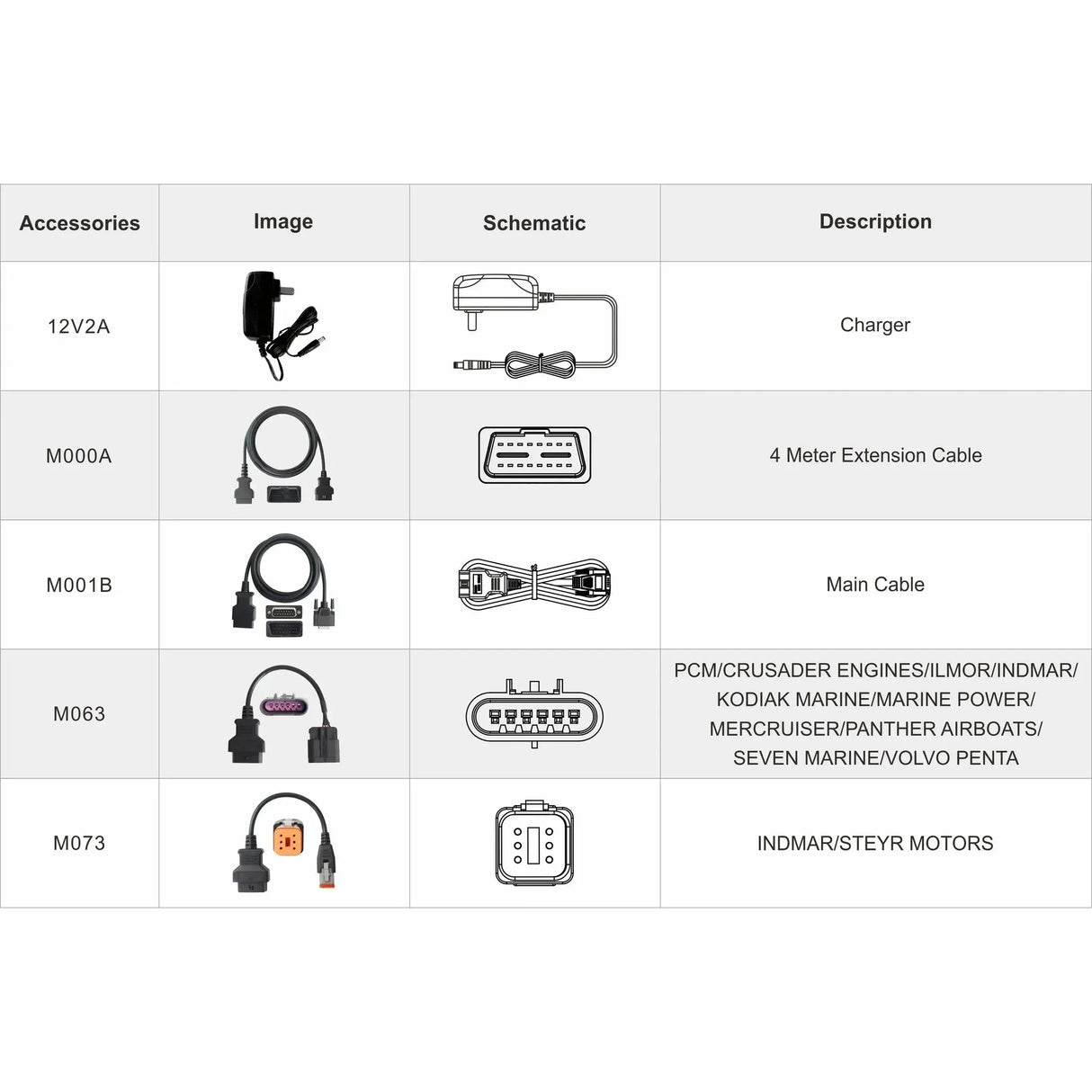

Various accessories and cables are available for the OBDSTAR IScan Pro Indmar (Marine) diagnostic tool to support connectivity and functionality.

• 12V2A charger: Standard charger for charging the device.
• M000A (4 meter extension cable): A 4-meter extension cable for the main cable.
• M001B (main cable): The primary diagnostic cable for connection to the engine interface.
• M063 Adapter: Diagnostic adapter for PCM/Crusader Engines/Ilmor/Indmar/Kodiak Marine/Marine Power/Mercruiser/Panther Airboats/Seven Marine/Volvo Penta engines.
• M073 Adapter: Diagnostic adapter for Indmar/Steyr Engines.

License Information

The software license of the diagnostic tool determines the duration of free software updates and access to certain online functionalities. After the license period expires, the device continues to function with the last installed software version but no longer has access to new updates or additional features that require an active license.

• License period: Two years of free software updates.
• Software updates: Updates can add new vehicle models, features, and performance improvements.
• Advanced features: Some advanced functions or online services require an active license.
• After license expiration: The diagnostic tool remains usable with the software version last installed.

Package Contents

• 1x OBDSTAR IScan Pro Indmar (Marine) diagnostic tool
• 1x 12V2A charger
• 1x M000A (4 meter extension cable)
• 1x M001B (main cable)
• 1x M063 Adapter
• 1x M073 Adapter
