The OBDSTAR IScan Pro FPT (Marine) is a diagnostic tool for FPT marine engines (Fiat Powertrain), such as the Cursor and NEF series. You can read fault codes and live data, run actuation tests, adjust settings and carry out coding. In addition, after replacement you can also learn the rail pressure control valve, rail pressure sensor and boost pressure sensor, among others.

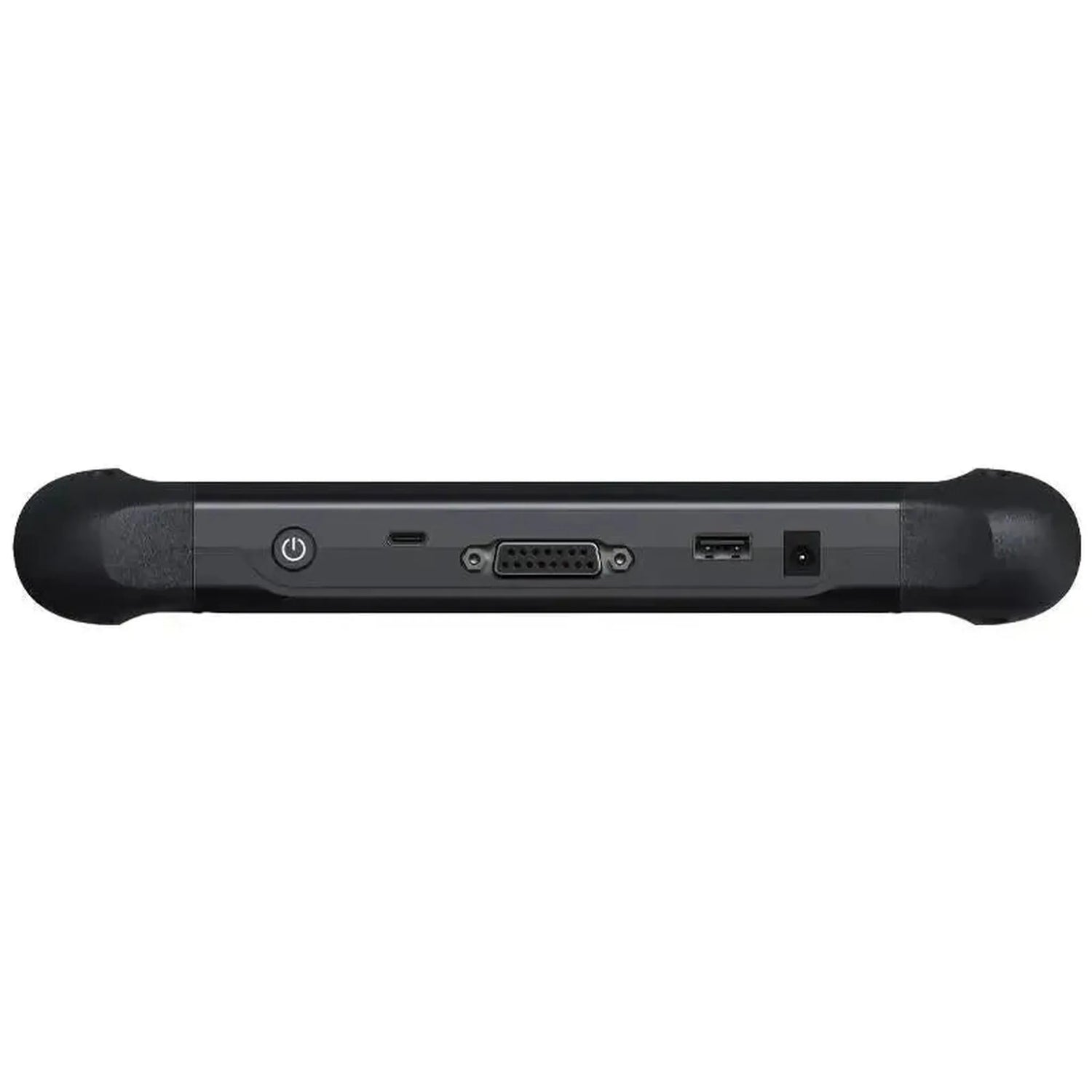

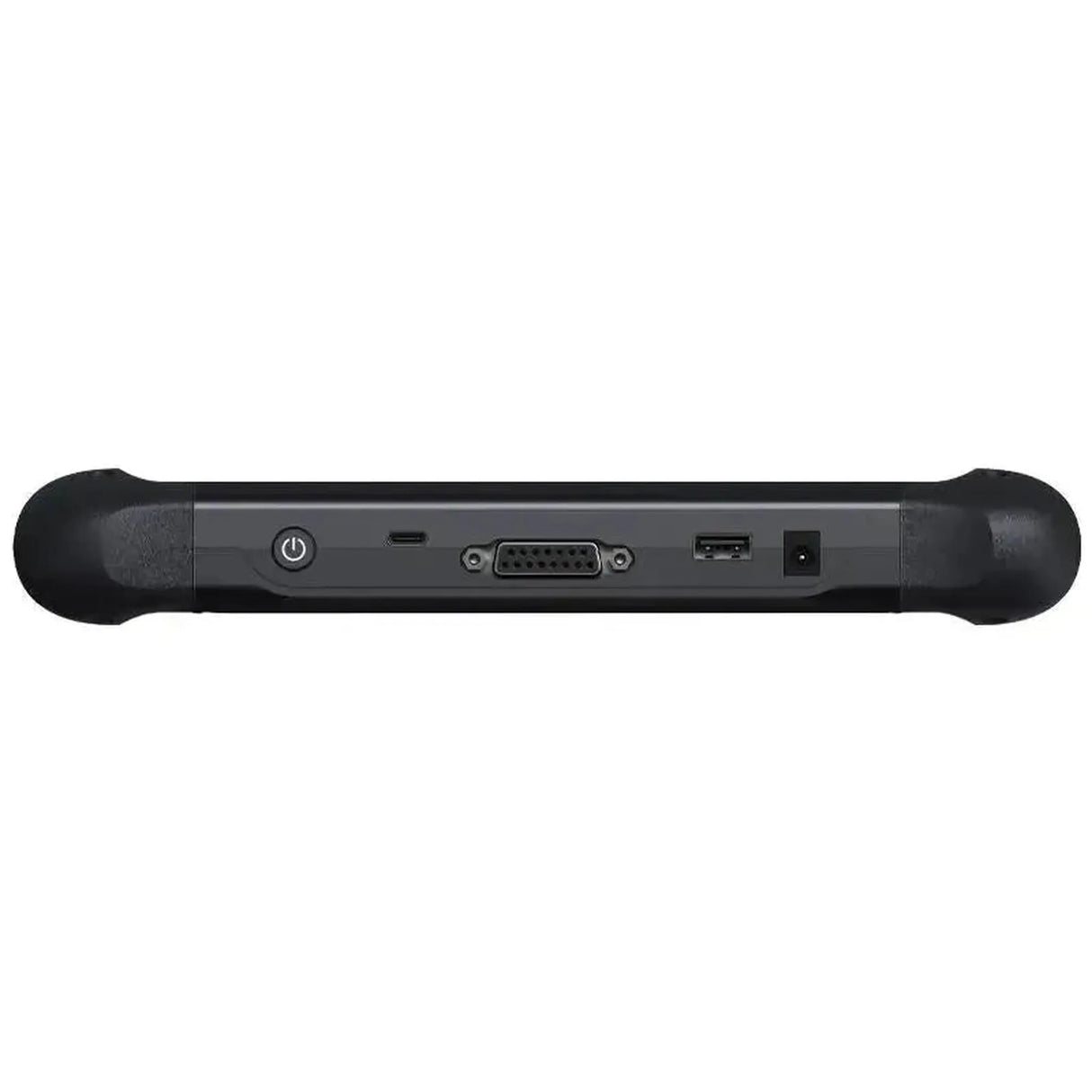

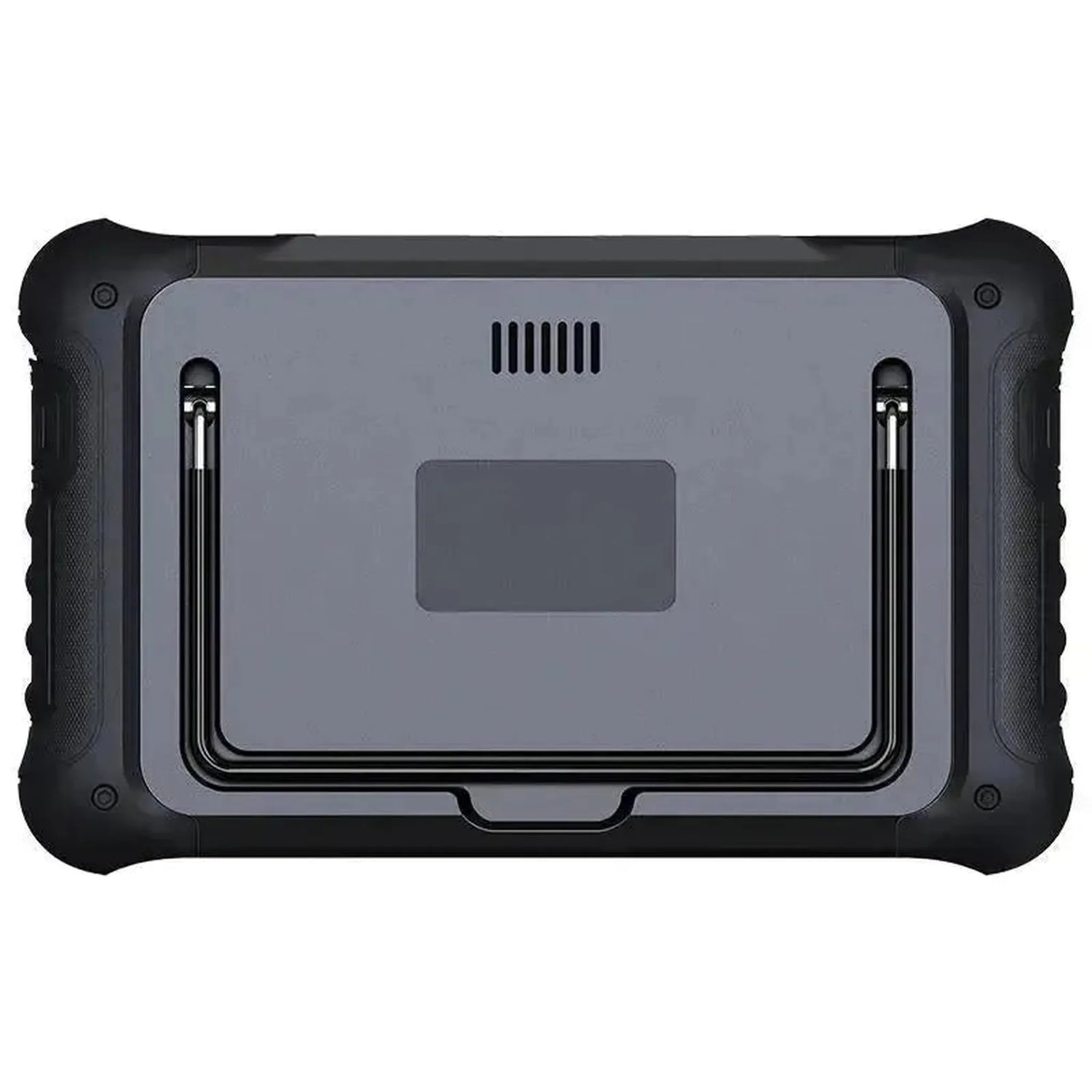

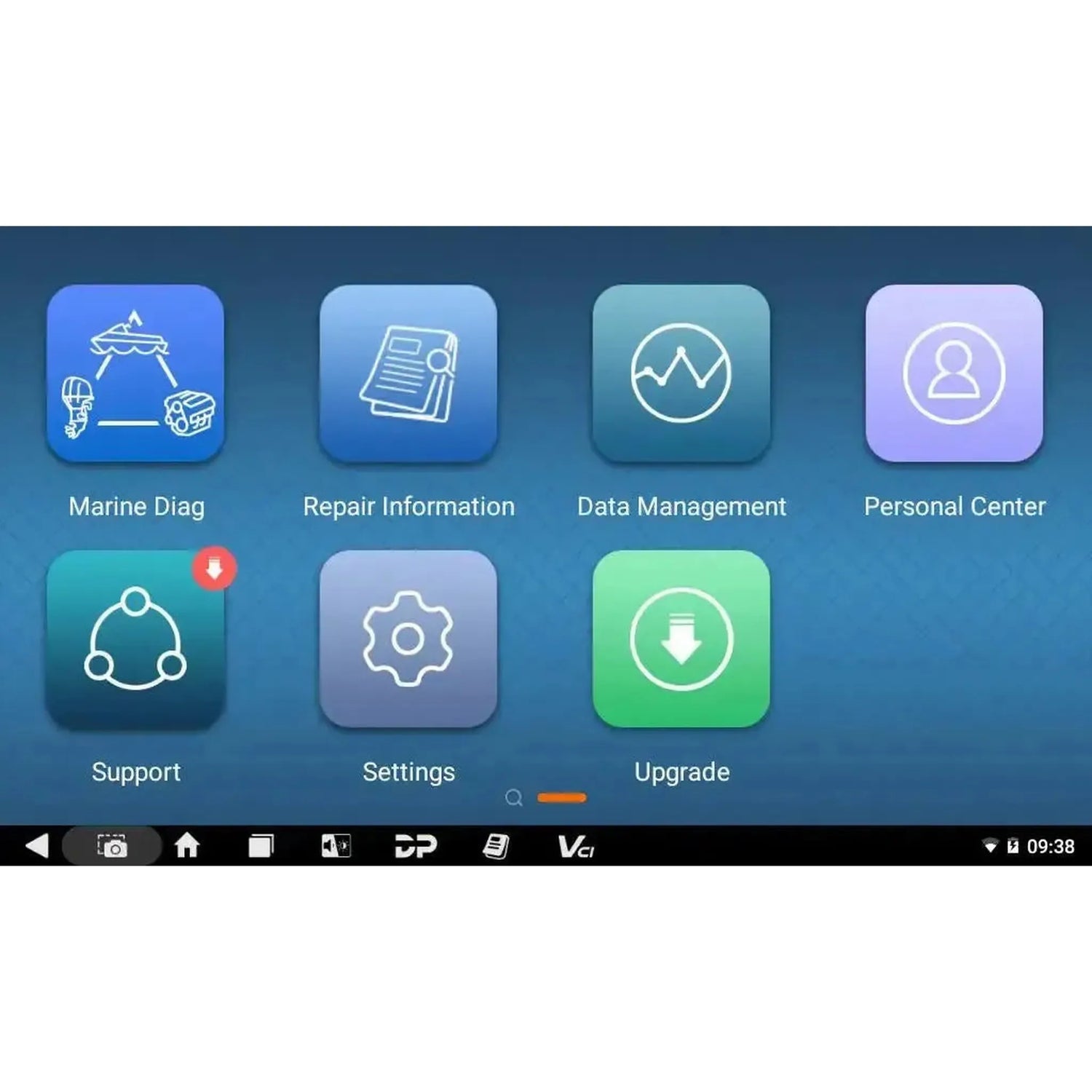

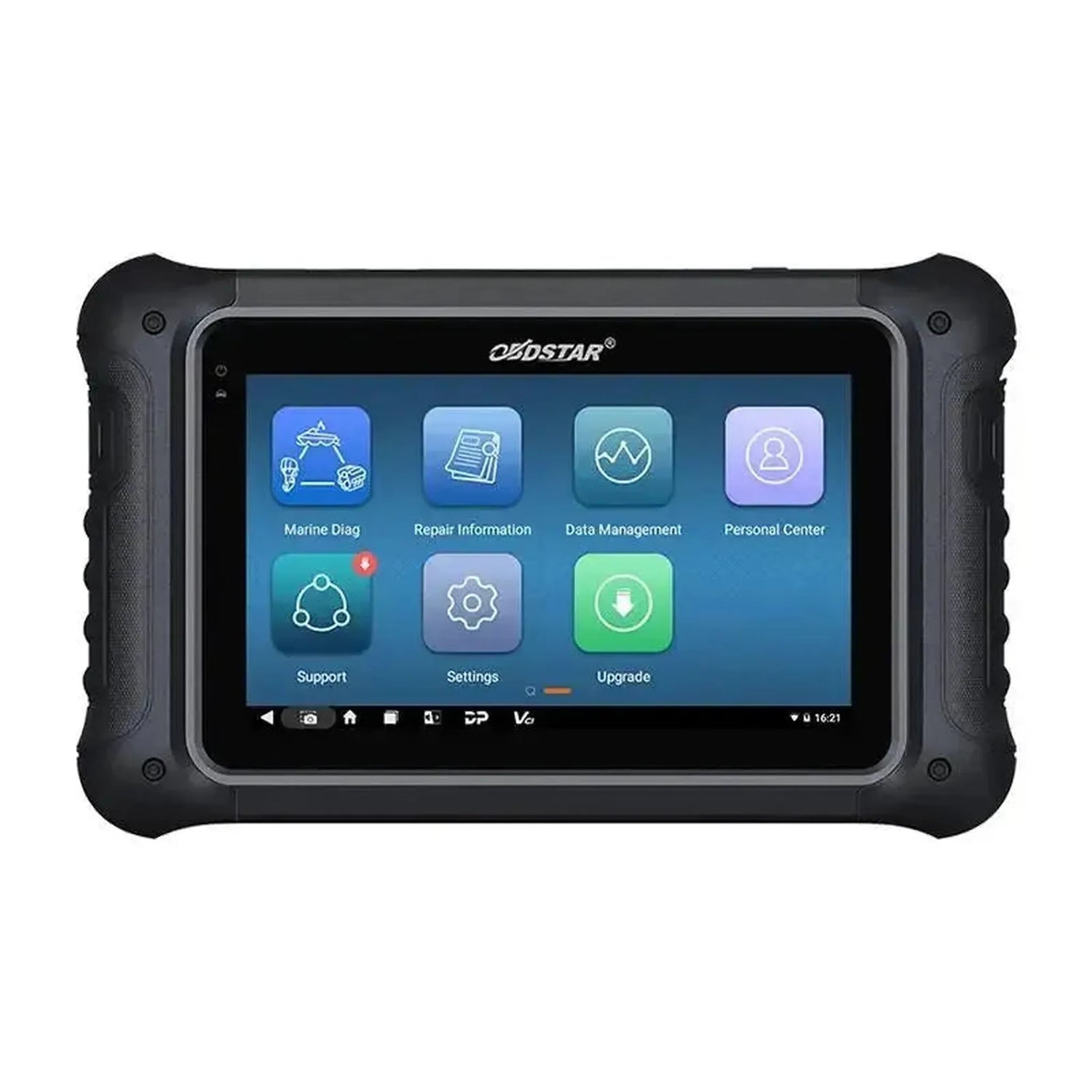

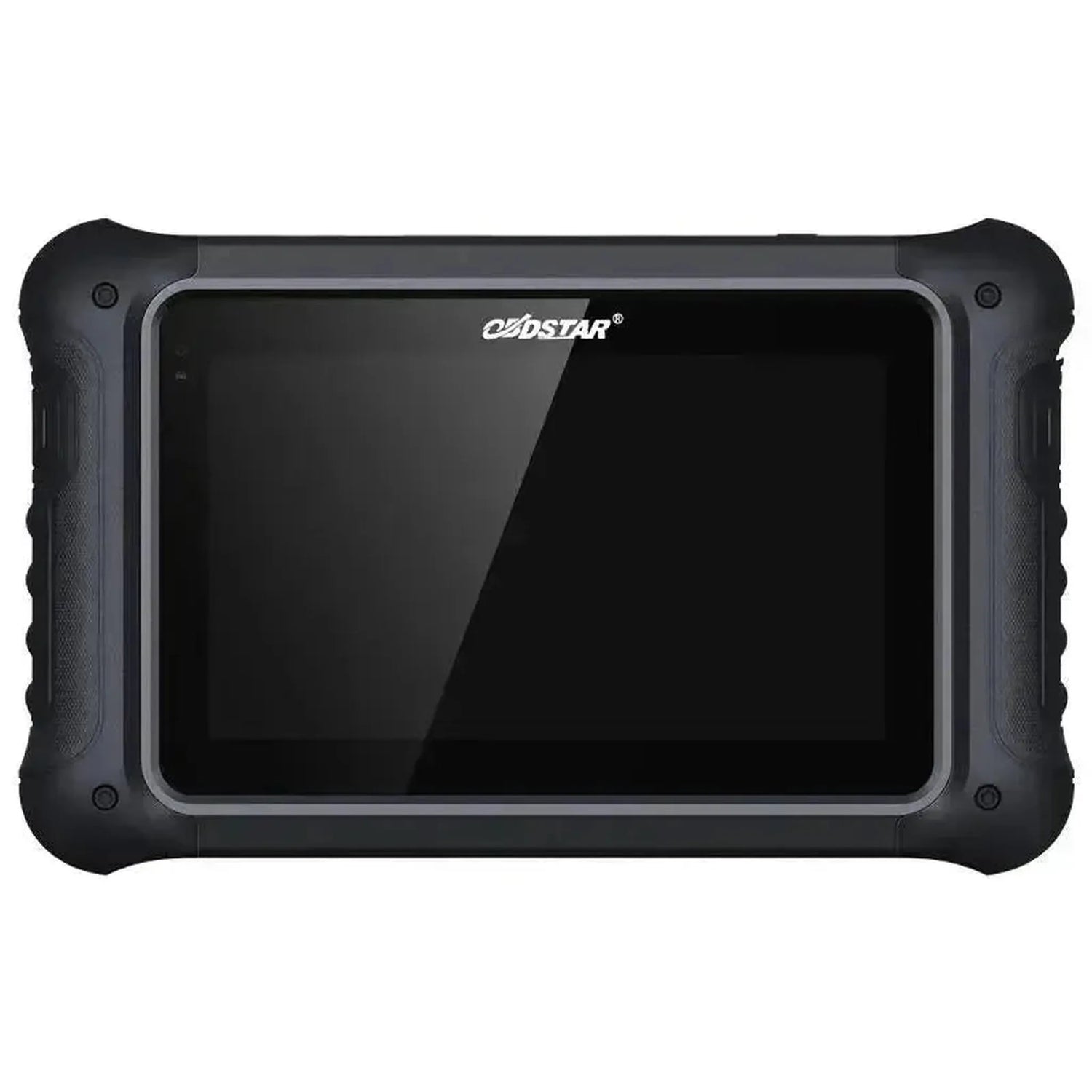

It is a tablet with a 7-inch touchscreen (1024 x 600), Android 5.1.1, an RK3128 quad-core processor, 16 GB storage and a 3,700 mAh battery. The device supports 24 V, updates via Wi-Fi and offers remote assistance from OBDSTAR. When purchased via AsTools, you receive 2 years of software updates and assistance via TeamViewer.
ADVANTAGES
POINTS TO NOTE
Applications and functions
The IScan Pro FPT is intended for boatyards, mechanics and boat operators with an FPT diesel engine. Below is an overview of what the tool can do.
Diagnostic functions
- Reading fault codes: Stored fault codes from the engine ECU.
- Clear fault codes: Clear codes after repair.

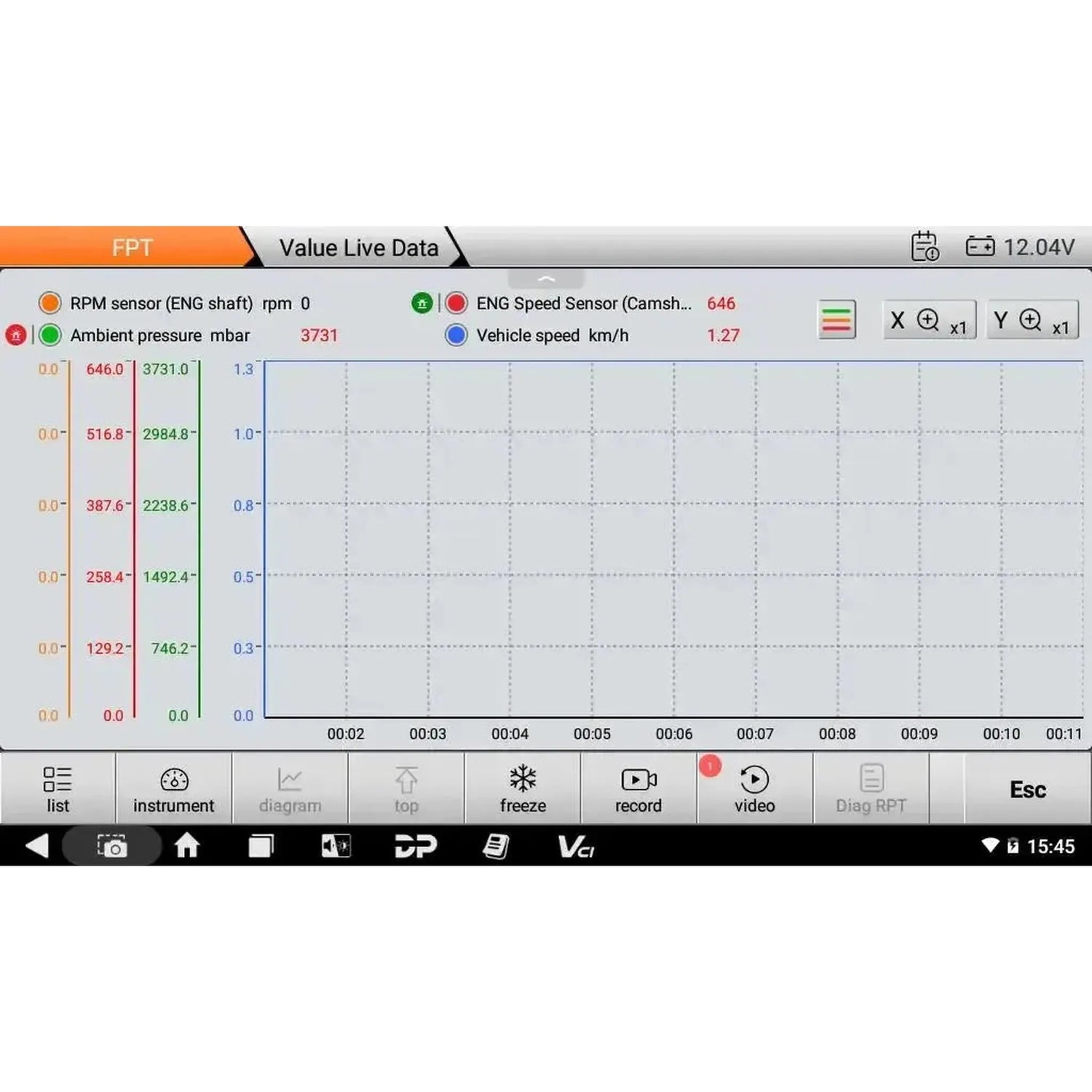

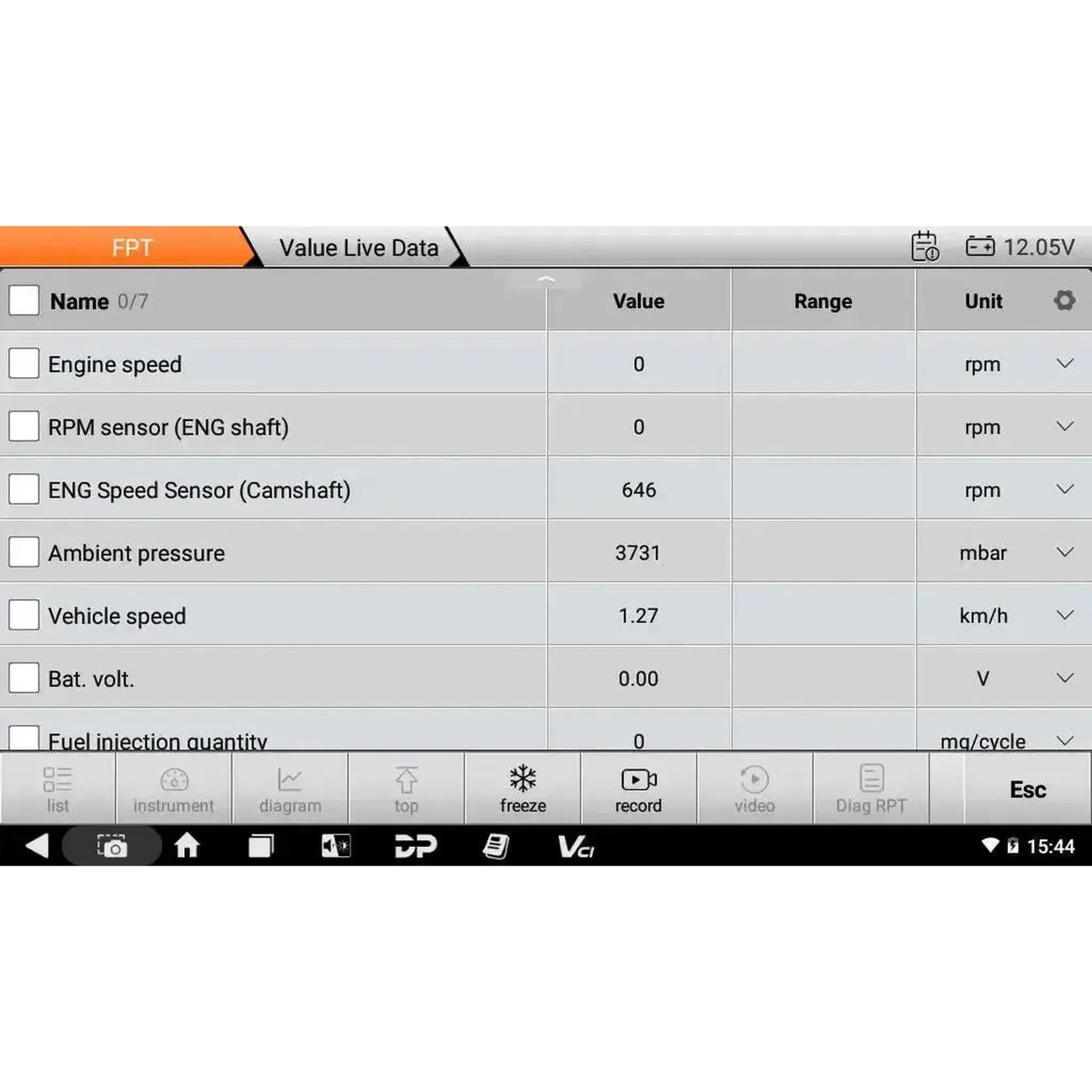

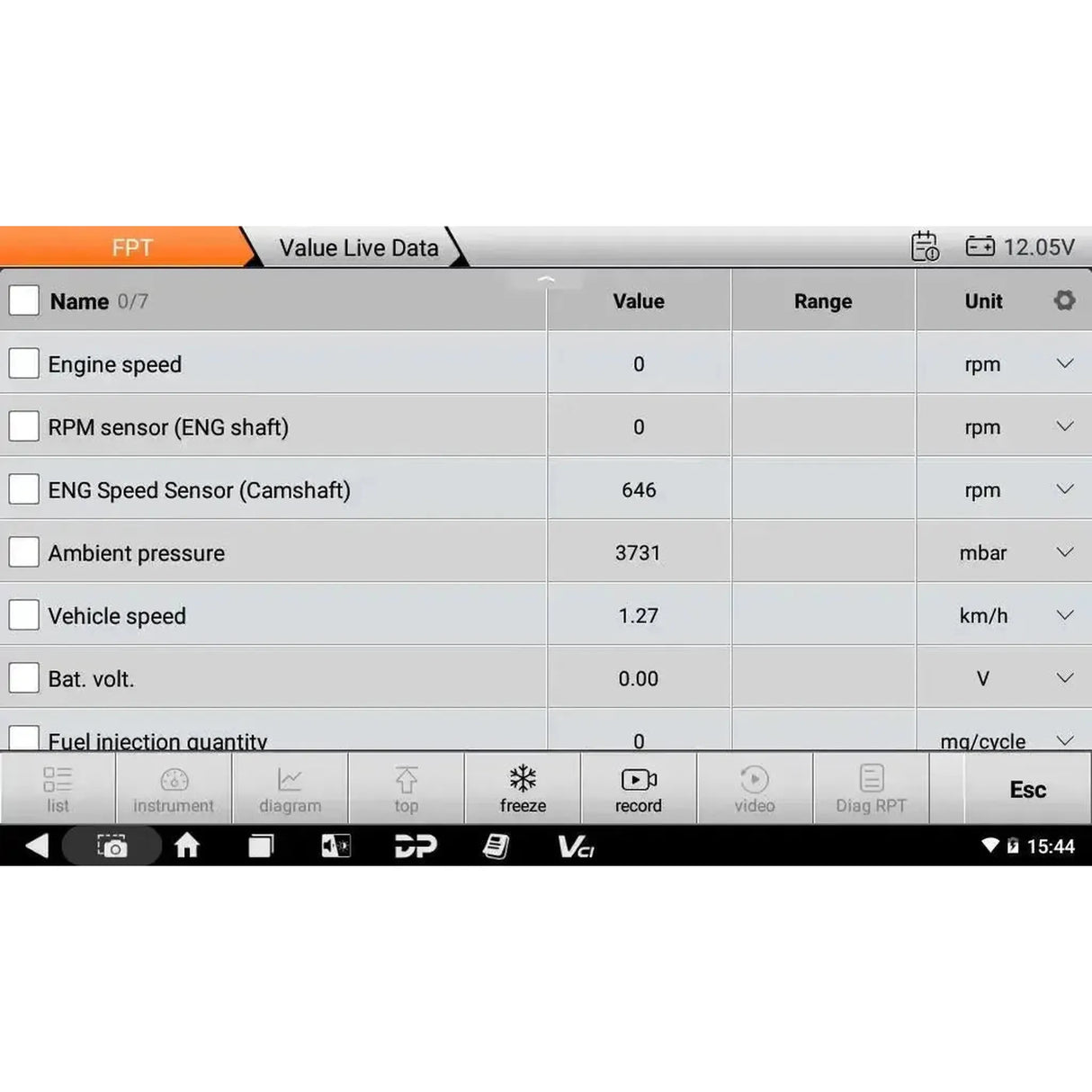

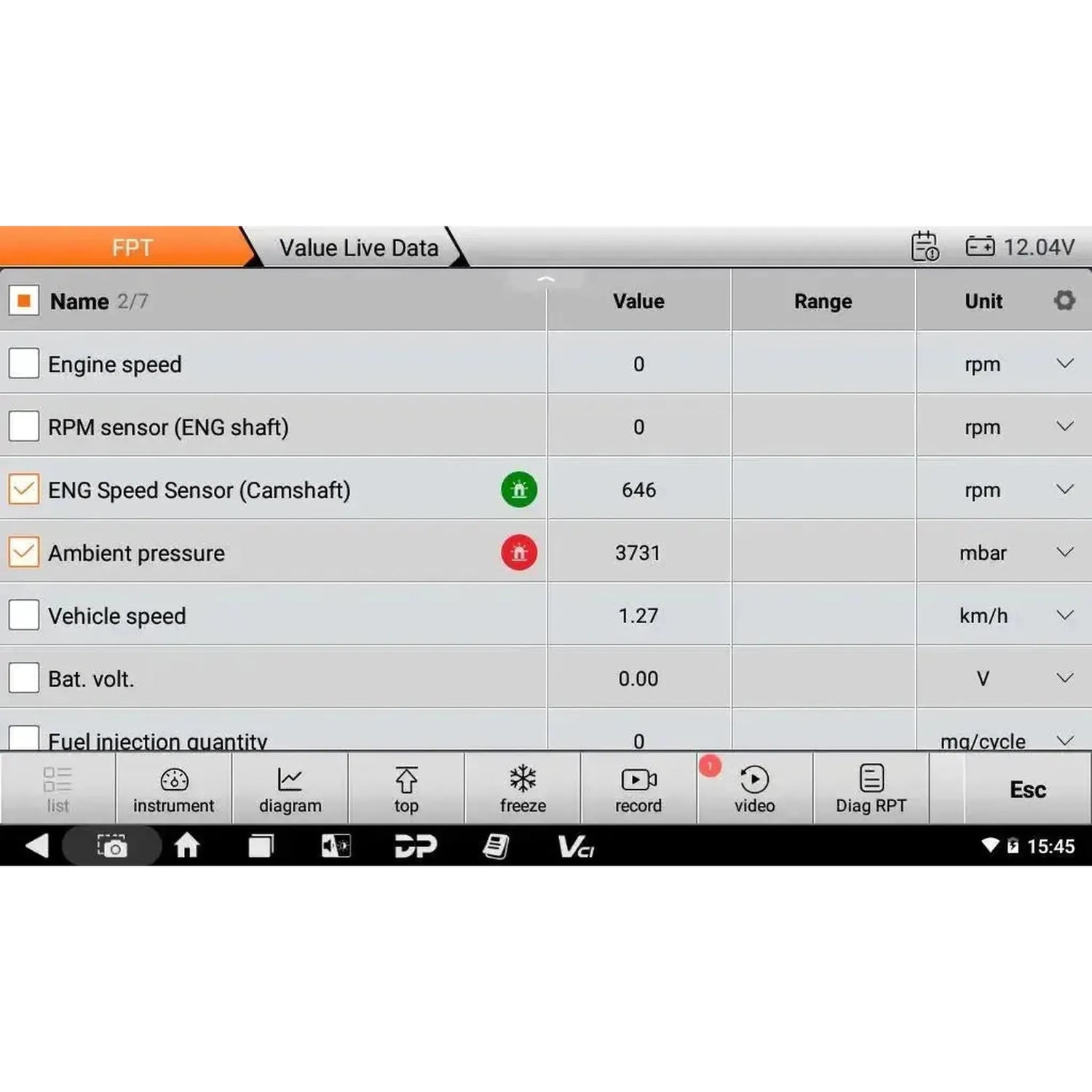

- Live data: As text, graph or gauge.

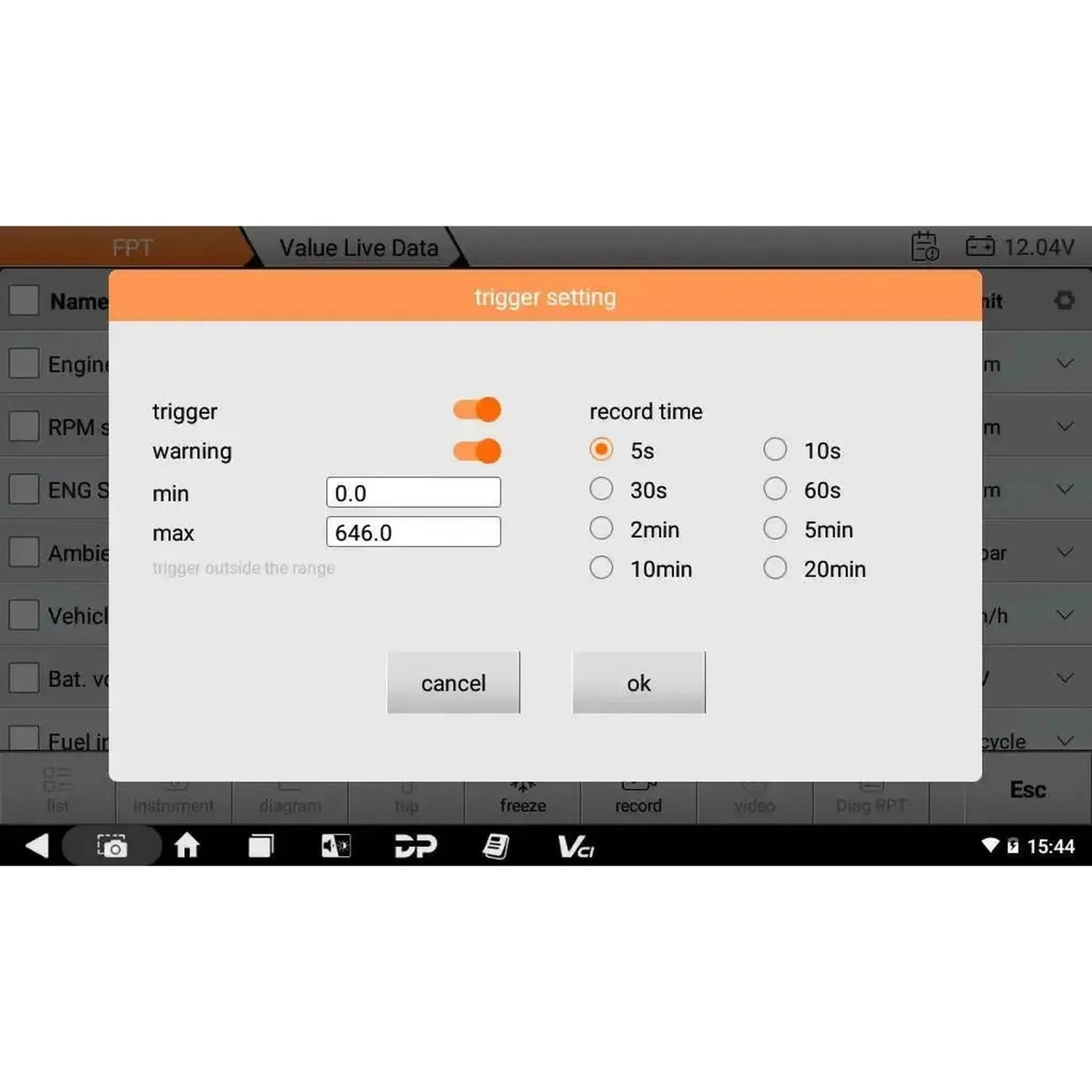

- Data recording: Record live data and review it.
- Actuation tests: Activate components to test them.
- Settings: Adjust parameters in the engine ECU.
- Coding: Code components and settings.
Software and app
- Remote assistance: At the touch of a button, help from OBDSTAR technicians.
- OBDSTAR app: Location of the diagnostic connector.
- Technical bulletins: Via the OBDSTAR app.
- Software update: With one button via Wi-Fi.
How to use it
- Registration: Register the device and update it via Wi-Fi.
- Connecting: Connect the M001B and the M077 adapter to the engine.

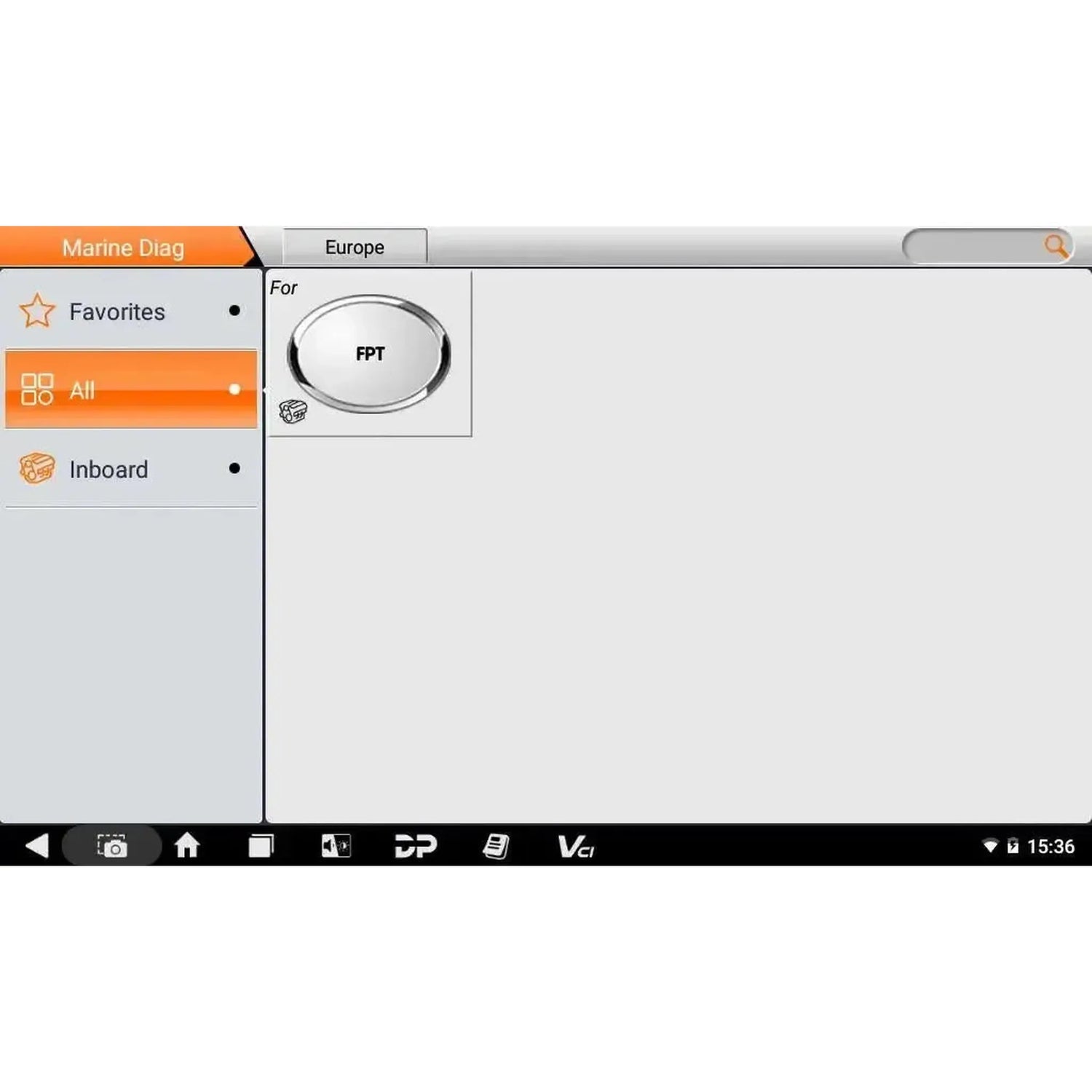

- Selecting the engine: Choose the engine series from the menu.
- Reading: Read out fault codes and live data.
- Repairing: Use tests and service functions and erase the codes.
Service and maintenance functions
The IScan Pro FPT offers the following service functions. Which function works depends on engine series and year of manufacture.
Engine and fuel
- Oil service reset: Reset the oil indicator after an oil change.
- Rail pressure control valve: Learn after replacement.
- Rail pressure sensor: Learn after replacement.
- Injector classification: Write the codes of new injectors.
Air and exhaust
- Boost pressure sensor: Learn after replacement.
- Crankcase pressure sensor: Learn after replacement.
- Exhaust valve: Learn after replacement.
Special functions and capabilities
In addition to diagnostics and service:
- Data presentation: Live data as text, graph or gauge.
- 24 V input: Power supply from a 24 V on-board network.
Supported vehicle brands
What matters is the combination of engine series, specification and year of manufacture, not the brand alone. Coverage differs per function; check in advance that your engine and the function you need are included.
Supported FPT engines
OBDSTAR lists these series, among others.
- European: FPT: Cursor C13 (ENS M33, ENT M50, ENT M77, ENT M82), Cursor C16 ENT MP, Cursor C78 (ENT M30, M50, M55), Cursor C87 (ENT M38, M62, M65), NEF N40 ENT M25, NEF N60 (M37, M40, M48), NEF N67 (550, 570 EVO, ENT M45, M56, M57), S30 ENT M23 and other models
OBDSTAR updates the coverage with software updates and publishes the current coverage list on the product page.
Licence information
When purchasing via AsTools, you receive 2 years of software updates.
- On purchase: Register the device and update it via Wi-Fi.
- Two years of updates: New engines, functions and corrections, via Wi-Fi.
- Purchase support: We help you get started remotely via TeamViewer.
- Extending: With the OBDSTAR IScan Pro FPT (Marine) update licence, sold separately in our webshop.

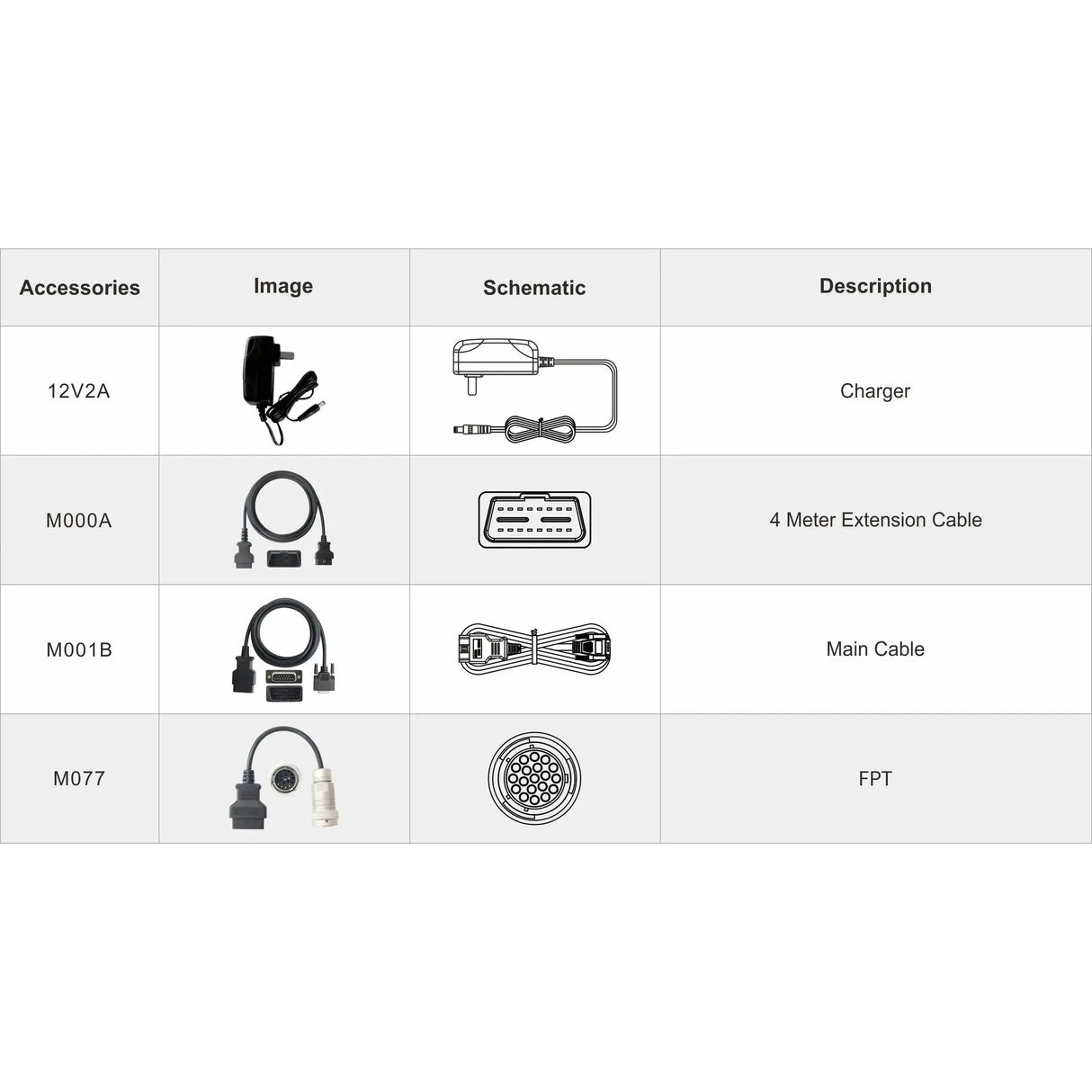

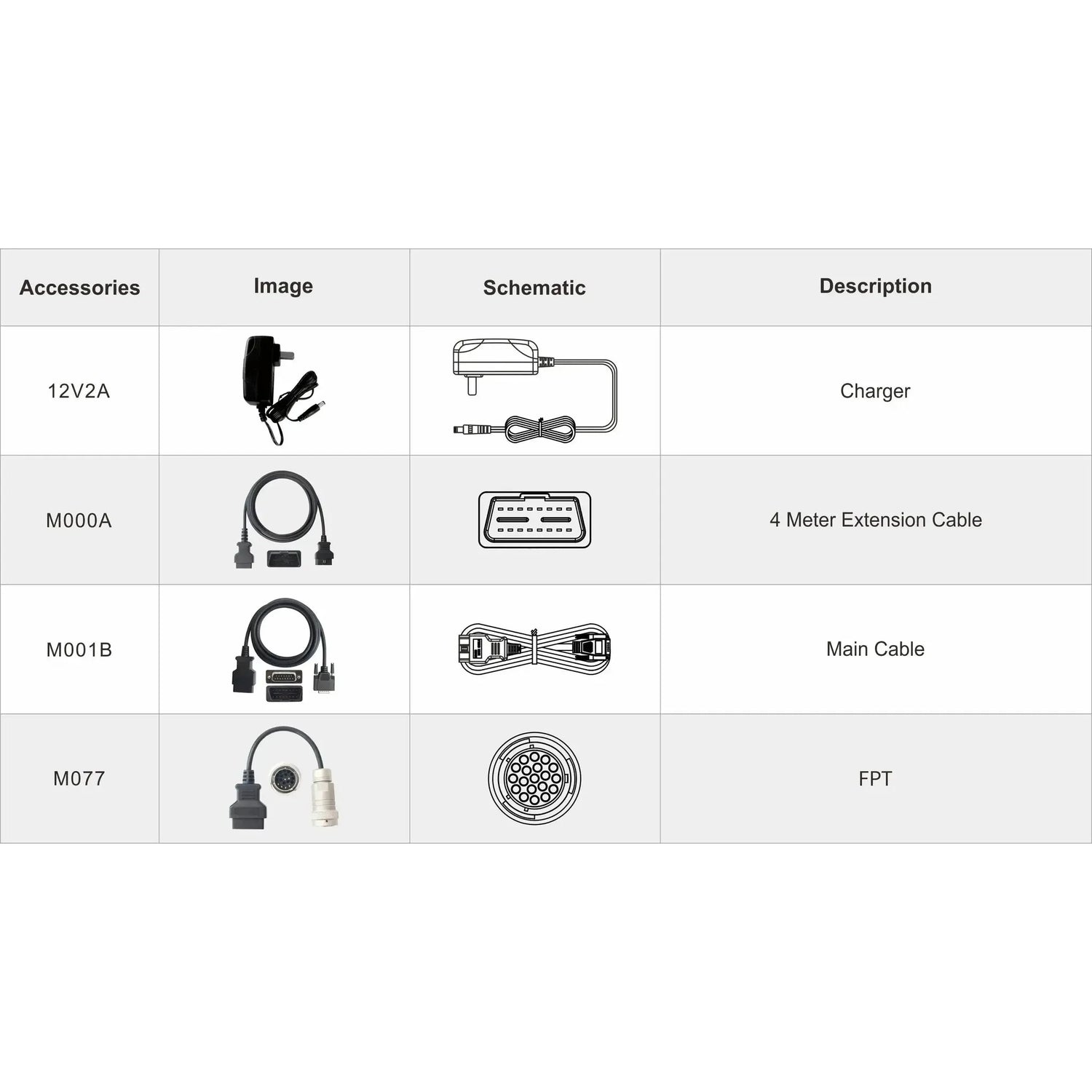

Package contents
- 1x OBDSTAR IScan Pro FPT (Marine) diagnostic tool
- 1x 12 V / 2 A charger
- 1x M000A extension cable (4 metres)
- 1x M001B main cable
- 1x M077 FPT adapter cable
| Reference | Connection |
|---|---|
| M001B main cable | From the device to the adapter cable |
| M000A extension cable | 4-metre extension to the engine |
| M077 adapter cable | FPT |
Update licence (renewal after the free period)
Renewal after the free period: Renewal price on request (contact us)
Technical specifications
General
- The manufacturer of the diagnostic device. Useful if you already know which brand works well in your workshop.Brand
- OBDSTAR
- Whether it is a tablet, a standalone handheld unit, a dongle with an app, or an interface for a PC.Type of device
- Diagnostic tablet
- Which types of vehicles or machines the device supports. An engine tester, for example, will not work on a truck.Vehicle types
- Boats and jet skis
- How many vehicle brands the device can read. The more brands, the more often it can be used in a workshop with a wide range of vehicles.Number of brands
- 1 brand
- Which parts of the world the supported brands come from. This shows whether American or Chinese vehicles are also covered.Brand origin
- European brands
Diagnostics
- The device shows sensor readings while the engine is running. This lets you check whether a component is working correctly.Live data
- Yes
- The device can operate components directly, such as a fan or valve. This allows you to test them without removal.Active tests
- Yes
Special functions
- Adjusting control unit settings, for example after replacing a component. Required for more than just reading data.ECU coding
- Yes
- A technician from the manufacturer can view and assist remotely via the internet. Useful for difficult faults.Remote assistance
- Yes
Service and maintenance
- Resetting the service light and maintenance interval after an oil change. One of the most commonly used functions in a workshop.Oil reset
- Yes
- Entering the code of new injectors into the engine control unit so the engine runs correctly after replacement.Injector coding
- Yes
Hardware
- The system the device or app runs on. For a dongle, this determines compatibility with your phone.Operating system
- Android 5.1.1
- The screen size. A larger screen is easier to read, while a smaller device is more convenient in the vehicle.Screen size
- 7.0 inch
- The number of pixels on the screen. The higher this is, the sharper graphs and text appear.Screen resolution
- 1024 x 600 pixels
- The number of cores and the speed of the processor. A faster processor loads menus and scans more quickly.Processor
- 4-core
- How much space is available for software, vehicle data and reports.Storage
- 16 GB
- The maximum size of a memory card you can add. Useful if you want to store many reports or large amounts of data.Memory expansion
- Micro-SD (TF) up to 32 GB
- How much energy the built-in battery holds. A larger battery lasts longer between charges.Battery capacity
- 3,700 mAh
- Whether the device has Wi-Fi. This allows you to install updates and share reports without a cable.Wi-Fi
- Yes
Licence
- How long you receive free new software and vehicle coverage. After this, updates often require payment.Free updates
- 2 years
Dimensions and weight
- The length, width and height of the device, showing how well it fits in your hand or toolbox.Dimensions
- 243 x 148 x 36 mm
- How heavy the device is. A light device is more comfortable to hold for long periods.Weight
- 0.766 kg
Other specifications
- Model
- IScan Pro FPT (Marine)
- Application
- FPT marine engines
- Processor
- RK3128 quad-core ARM Cortex-A7
- Power supply
- DC 24 V supported
- Operating temperature
- -10 °C to 55 °C
- Storage temperature
- -20 °C to 70 °C
- Shipping weight
- 3.25 kg
