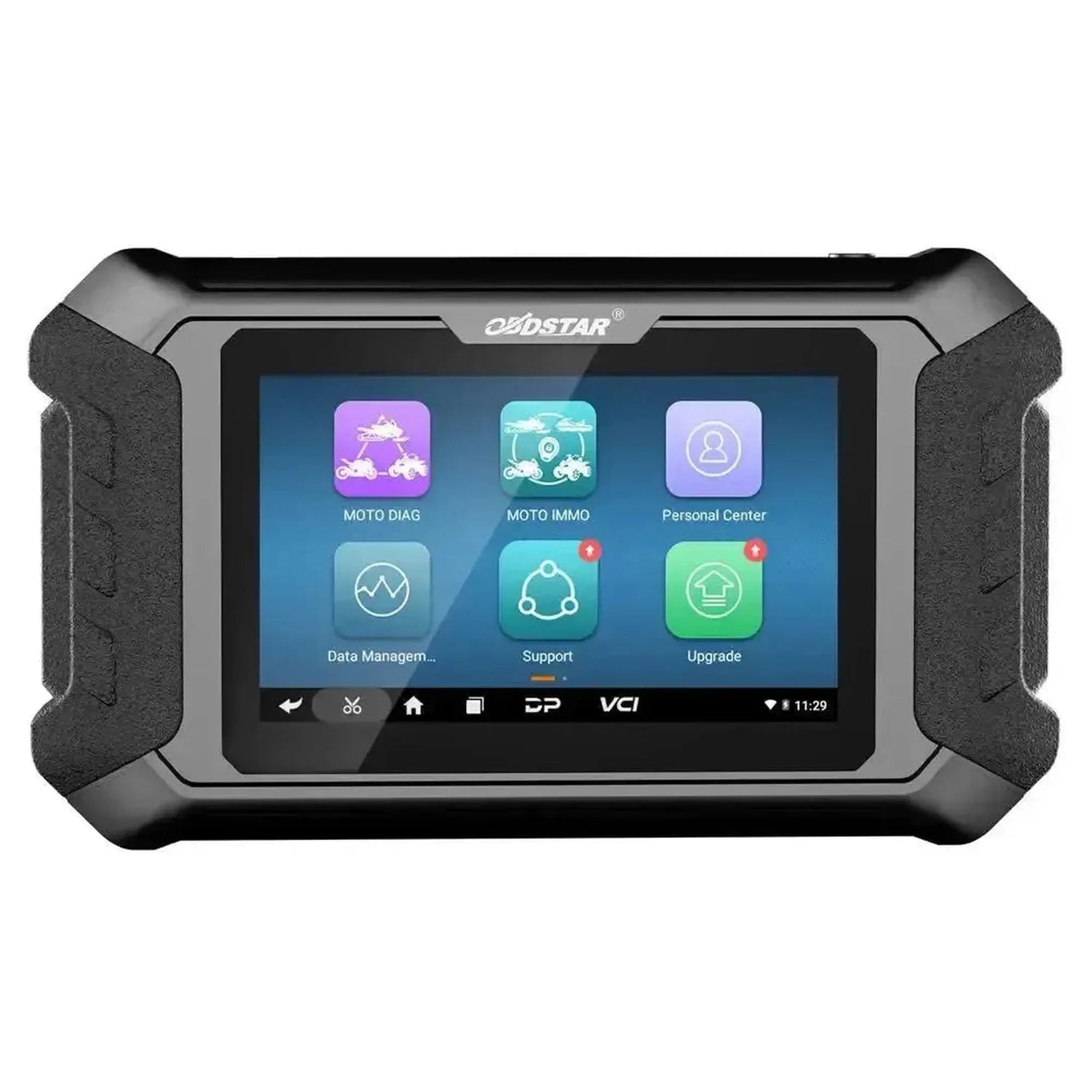

OBDSTAR IScan Gilera | Diagnostic Tool | Moped/Motorcycle

Diagnostic functions

The reader device supports the full diagnostic functions needed to read and analyze control modules on Gilera two-wheelers.

• Read fault codes: Reading active and stored fault codes (DTCs) from available control modules.
• Clear fault codes: Removing fault codes after repairs have been performed.
• Live data: Real-time display of sensor and component values in text, waveform, or instrument diagram.
• Live data recording: Capturing and replaying data streams for later analysis of intermittent faults.
• Actuator test: Controlling actuators and components to check operation.
• Settings and coding: Adjusting parameters and coding control modules.
• Automatic scanning: Complete scan of all control modules present on the vehicle.
• Automatic VIN recognition: Automatic identification of the vehicle via the chassis number.
• First fault guidance: Targeted instructions for the first detected fault to speed up diagnosis.
• Technical bulletins: Access to repair information and technical documentation to support diagnosis.

Key and EEPROM functions

The reading device offers key programming for Gilera two-wheelers.

• Program key: Learning and programming new or replacement keys on the immobilizer system of Gilera vehicles.

Service and maintenance functions

The reading device supports multiple service and maintenance functions. The availability of these functions may vary by vehicle model and year.

Engine and drivetrain

• Throttle position sensor reset: Resetting and relearning the base position of the throttle position sensor.
• CO adjustment: Adjusting the CO value of the fuel mixture for correct exhaust emissions.
• Adjust idle speed: Adjusting the engine's idle speed.
• Reset adaptation values: Clearing learned adaptation values in the engine control module.

Brake and stability systems

• ABS Brake system bleeding: Bleeding the ABS hydraulic system via controlled activation of the pump and valves.

Body and comfort systems

• Odometer correction: Adjusting the mileage on the instrument panel.

Other service and maintenance functions

• Service interval reset: Resetting the maintenance indicator after performing a service.

Special functions and capabilities

In addition to diagnosis and service, the reading device offers additional functions that support the workflow.

• Diverse data flow displays: Live data can be displayed as text, waveform, or instrument diagram for various analysis methods.
• WiFi software update: Update software via WiFi with one click.
• Remote assistance: Remote support by OBDSTAR technical staff.
• Diagnostic socket information: Help information about the location and pinout of diagnostic connectors on the vehicle.
• Memory expansion: Support for a 32 GB micro SD (TF) card for extra storage space.

Supported vehicle brands

The diagnostic tool is specifically developed for one brand of two-wheelers.

• European: Gilera

Optional additions and expansions

The diagnostic tool can be expanded with additional hardware for extra connection options.

Hardware modules and accessories

• Multi-Functional Jumper (M003A): Adapter Cable for various connections on vehicles with different diagnostic connectors.

License information

The diagnostic tool comes with a software license that provides access to software updates and extended features. After the license period expires, the device generally continues to operate with the software installed at that time, but new updates are no longer available without renewal.

• License period: 1 year of free software updates from activation.
• Software updates: Updates can add new vehicle support and features.
• Extended functions: Some functions require an active license.
• After license expiration: The device usually continues to work with existing functions and installed software.

Package Contents

• 1x OBDSTAR ISCAN Gilera diagnostic tool
• 1x 12V 2A charger
• 1x Main Cable (M001A)
• 1x Power Cable (M002)
• 1x Gilera connector (N004)
• 1x OBD connector (N041)
