OBDSTAR | SKU: FCA 12+8 CABLE

OBDSTAR FCA (SGW) 12+8-pins - 16-pins OBD2 Adapter Cable | Passenger Car

Name: OBDSTAR FCA (SGW) 12+8-pins - 16-pins OBD2 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: FCA 12+8 CABLE
Price: 27.95 EUR
Availability: InStock

€27,95 incl.

€23,10 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

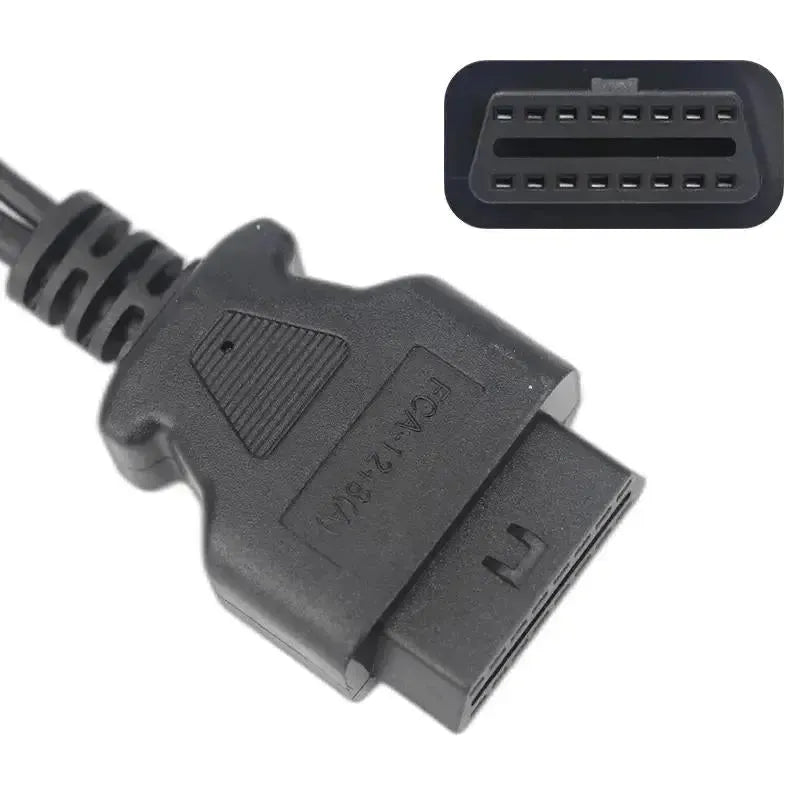

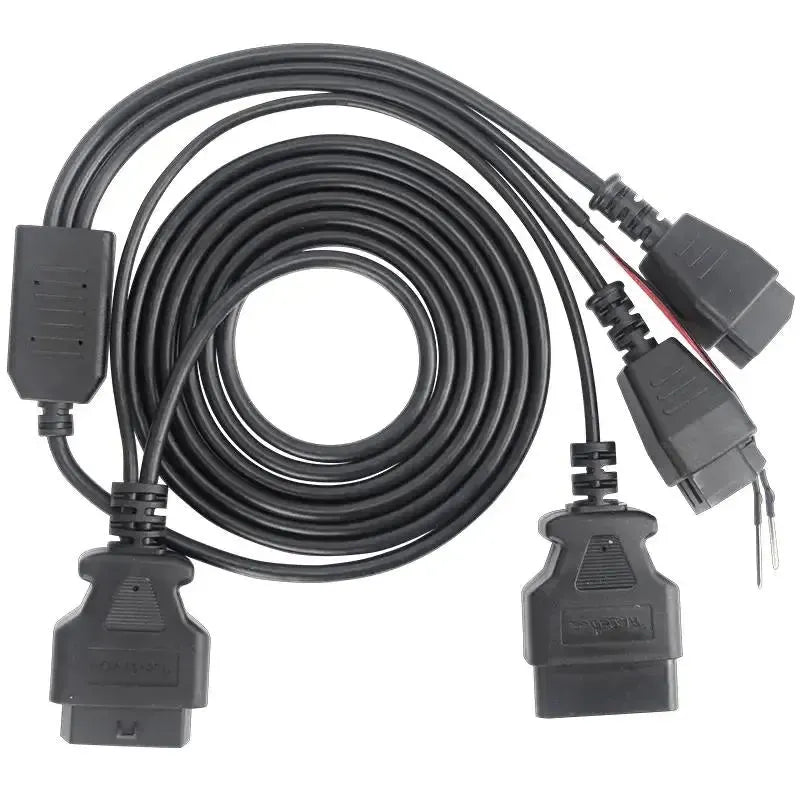

The OBDSTAR FCA 12+8 is the adapter cable for vehicles in the FCA group equipped with a Security Gateway Module (SGW). On the vehicle side, you connect the 12-pin and 8-pin connectors to the SGW module wiring in the dashboard; on the device side, the cable terminates in a 16-pin OBD2 connector for your OBDSTAR diagnostic equipment.

From model year 2018 onwards, FCA installed a security module between the OBD2 port and the vehicle network. This module permits reading but blocks write access. By connecting directly to the module's wiring, this restriction is physically bypassed, granting full access to the CAN-bus network, with communication protocols passed through unchanged to the OBD2 connector. The cable provides access to the network behind the gateway; it does not itself encode or programme anything. Which functions you can perform depends on your own device's software and licences.

KEY BENEFITS

✔Write access on FCA vehicles with SGW — clearing fault codes and running active tests becomes possible again on vehicles where the gateway blocks this via the OBD2 port.

✔Physical gateway bypass — connection is made directly to the SGW module wiring itself, not via a software workaround.

✔Both connectors on one cable — the 12-pin and 8-pin connectors are combined on the vehicle side, as the module wiring requires.

✔Genuine OBDSTAR accessory — the cable is manufactured for OBDSTAR's own diagnostic devices and programmers with 16-pin OBD2 input.

IMPORTANT NOTES

✕Disassembly required beforehand — you must first gain access to the SGW module: it is located behind the dashboard and cannot be reached without removal.

✕Not for models without gateway— vehicles manufactured before 2018 do not have an SGW; in those cases you simply connect to the OBD2 port and this cable is not required.

✕Exclusively for OBDSTAR equipment — the cable is not compatible with diagnostic equipment from other manufacturers.

✕Adds no vehicle coverage— the cable opens the network; which functions become available thereafter is determined by your device's own software.

Applications and functionality

Via the bypass, you can reach the control modules located behind the Security Gateway.

Control units you can access

Control modules behind the gateway:The modules on the CAN-bus network for which the gateway normally permits read-only access.
Modules with write access:The control units on which coding, resetting and active testing becomes possible once the lock-out is bypassed.

What you can do

The gateway bypass:Bypass the security firewall physically to obtain write access.
Active component testing:Actuate relays and solenoids for diagnostic purposes.
Error code clearing:Remove permanent DTCs from memory, which is often blocked via the standard OBD port.
Oil and service interval reset:Reset service indicators after a maintenance appointment.
Perform system coding:ECU configuration programming and adjustment.
Please note:Which of these functions are actually available varies depending on the model and the OBDSTAR device.

Compatible vehicles and applications

Determining factor is the presence of the Security Gateway Module, not the model.The cable is designed for vehicles from the FCA group manufactured from 2018 onwards that are equipped with an SGW. The models listed below have been confirmed in the product data.

Alfa Romeo:

Giulia:(2018+)
Stelvio:(2018+)

Chrysler:

300:(2018+)
Pacifica: (2018+)

Dodge:

Challenger: (2018+)
Charger: (2018+)
Durango: (2018+)
Journey: (2018+)

Fiat:

500X: (2018+)
500L: (2018+)
Doblo: (2018+)

Jeep:

Cherokee: (2018+)
Compass: (2018+)
Grand Cherokee: (2018+)
Renegade: (2018+)
Wrangler (JL): (2018+)

RAM:

1500: (2018+)
2500: (2018+)
3500: (2018+)
Promaster: (2018+)

💡

Useful to know:The SGW module is located in various positions depending on the model: typically behind the radio unit, behind the dashboard panel or near the steering column.Verify before ordering that your vehicle actually has a Security Gateway and that you can access the module.

Package contents

1xOBDSTAR FCA (SGW) 12+8-pins - 16-pins OBD2 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	FCA 12+8 CABLE
Type	Adapter cable
Application	Physical bypass of the FCA Security Gateway Module

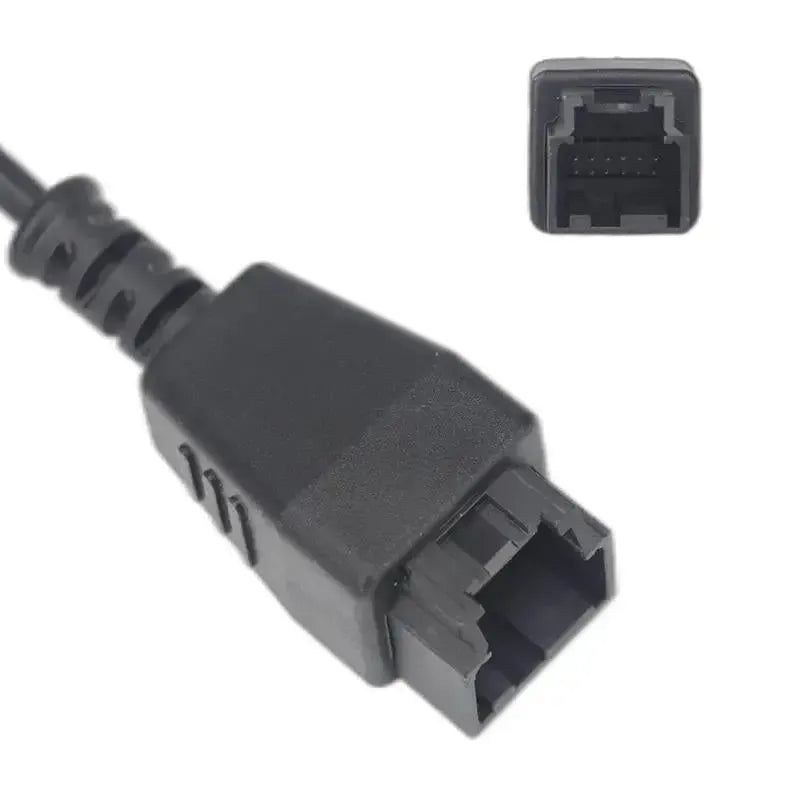

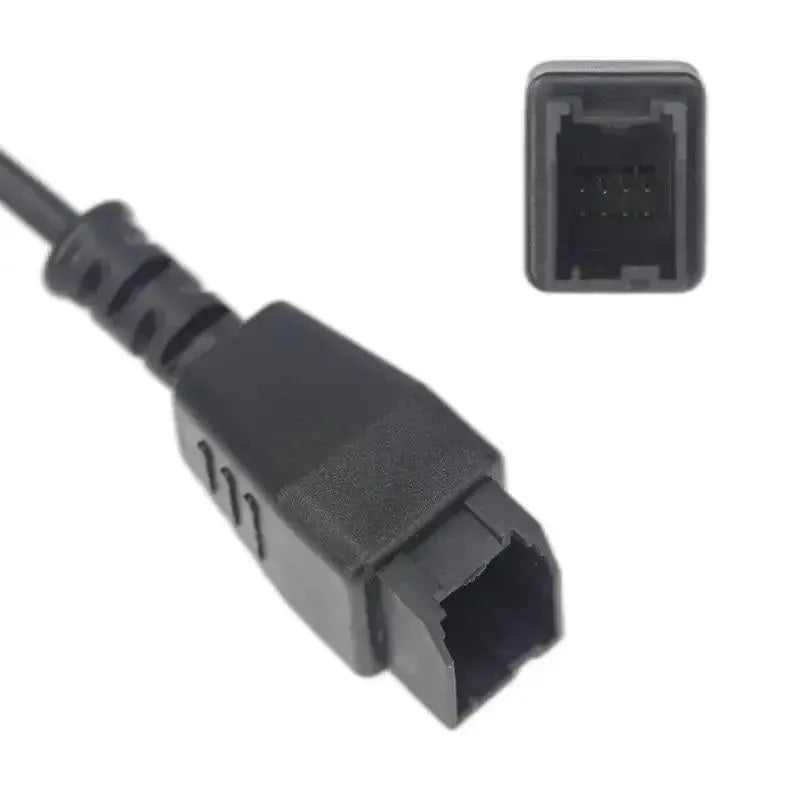

Vehicle-side connector	FCA (SGW) 12+8-pins

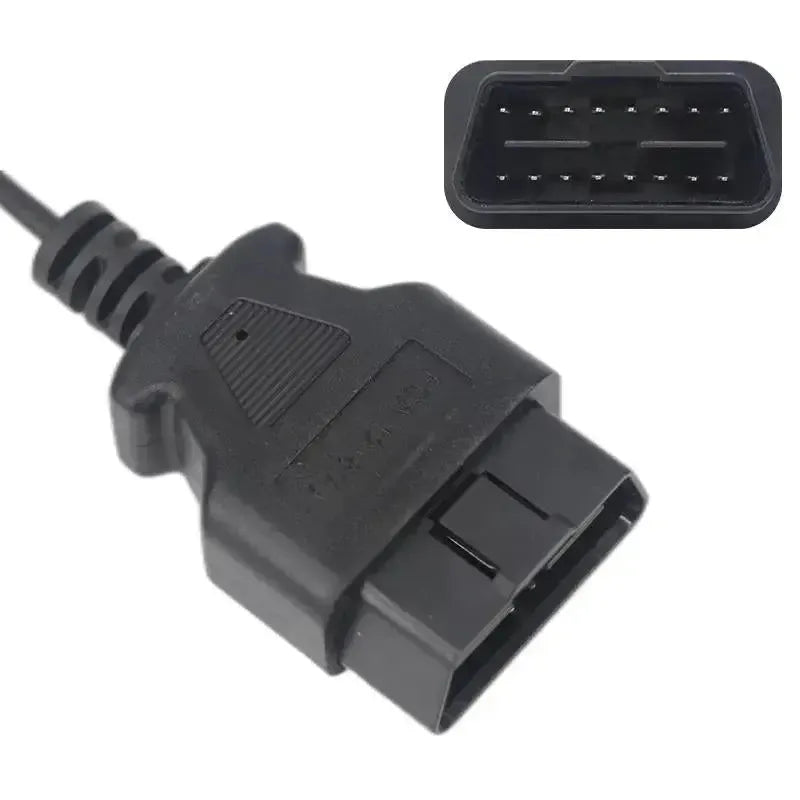

Device-side connector	16-pins OBD2
Communication	CAN-bus
Control units	Control modules behind the Security Gateway
Segment	Passenger vehicle
Supported brands	Alfa Romeo, Chrysler, Dodge, Fiat, Jeep and RAM
Model range	From 2018 onwards, provided with a Security Gateway Module
Required to use	OBDSTAR diagnostic device or programmer with 16-pins OBD2 connector
Additional requirement	Access to the SGW module in the dashboard
Weight	0.2 kg
