OBDSTAR  |  SKU: M065

OBDSTAR (M065) | Evinrude 3-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat

€42,95 incl.
€35,50 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

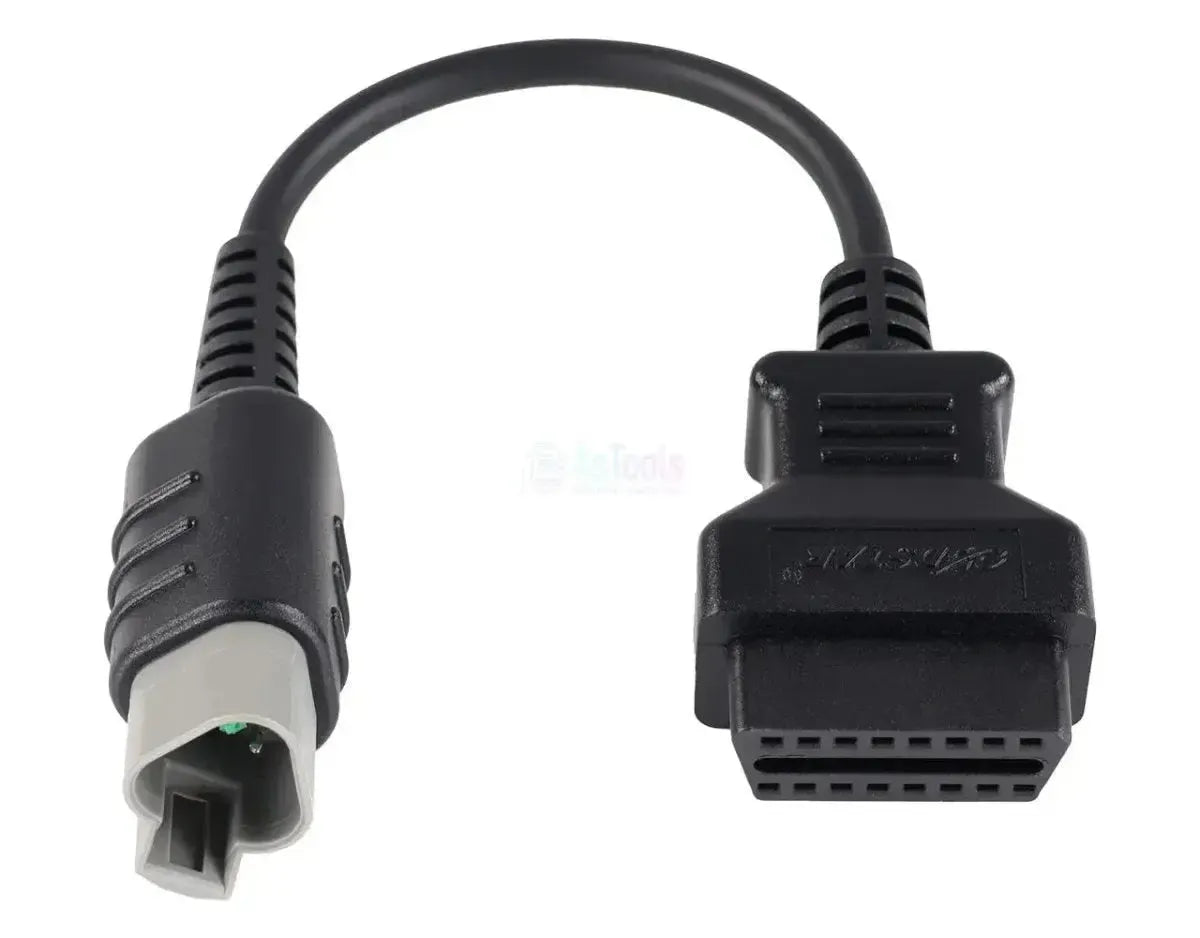

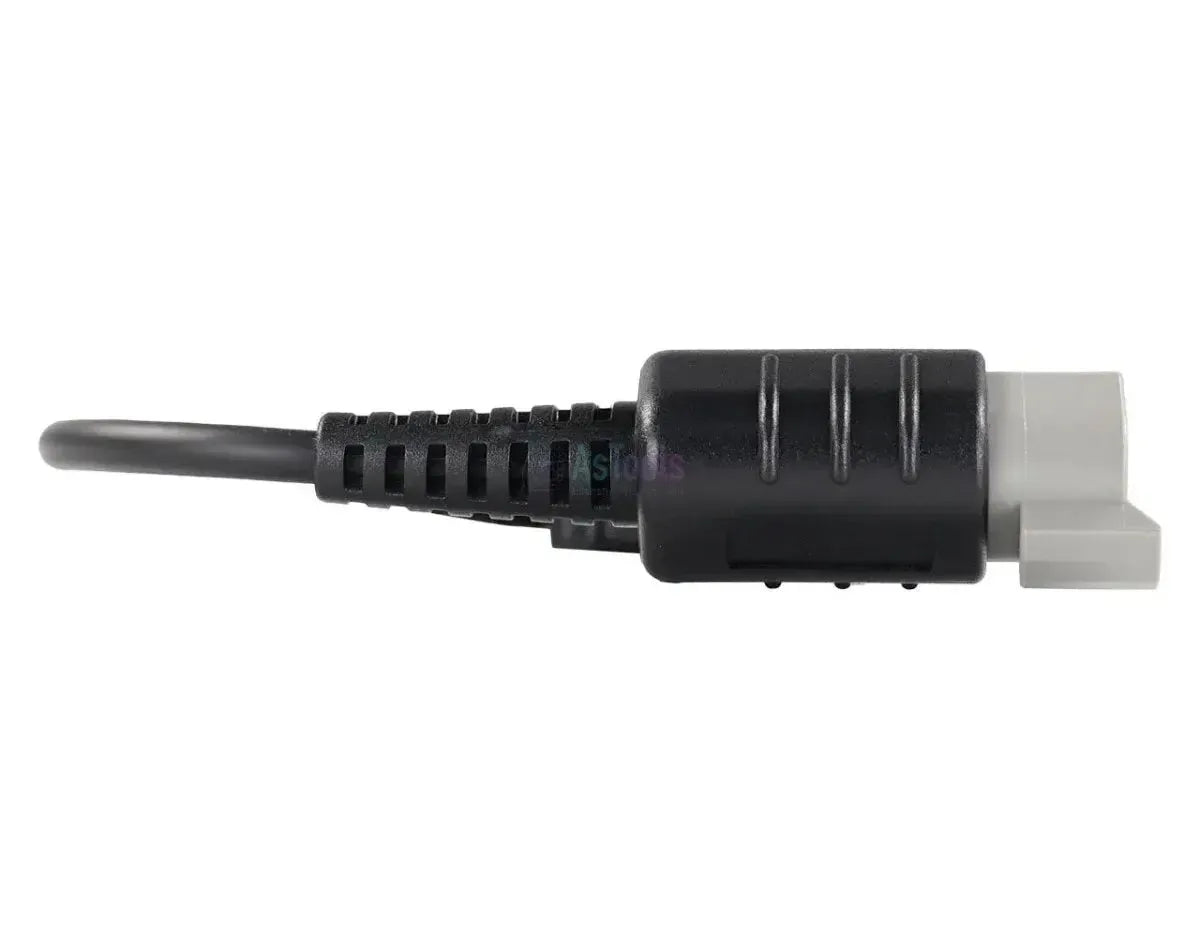

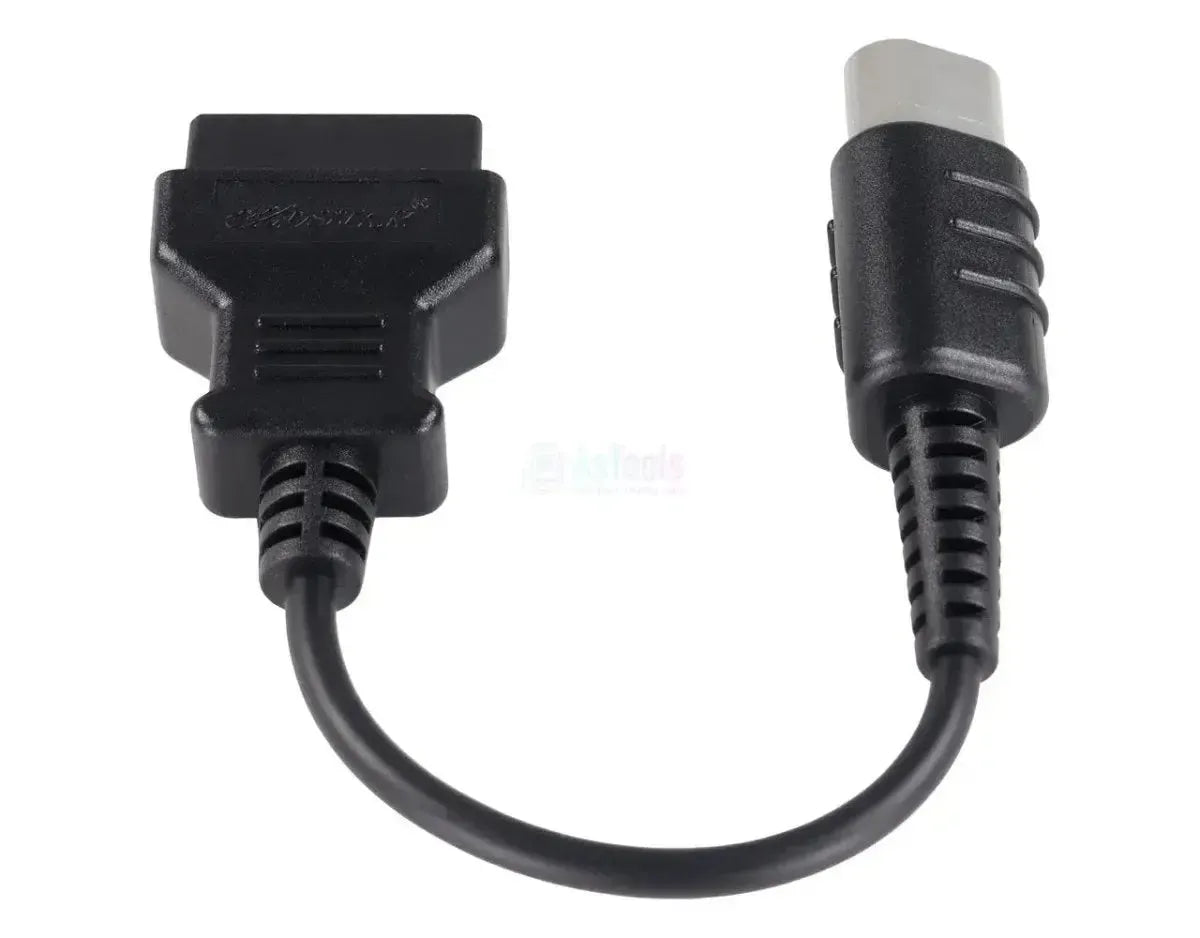

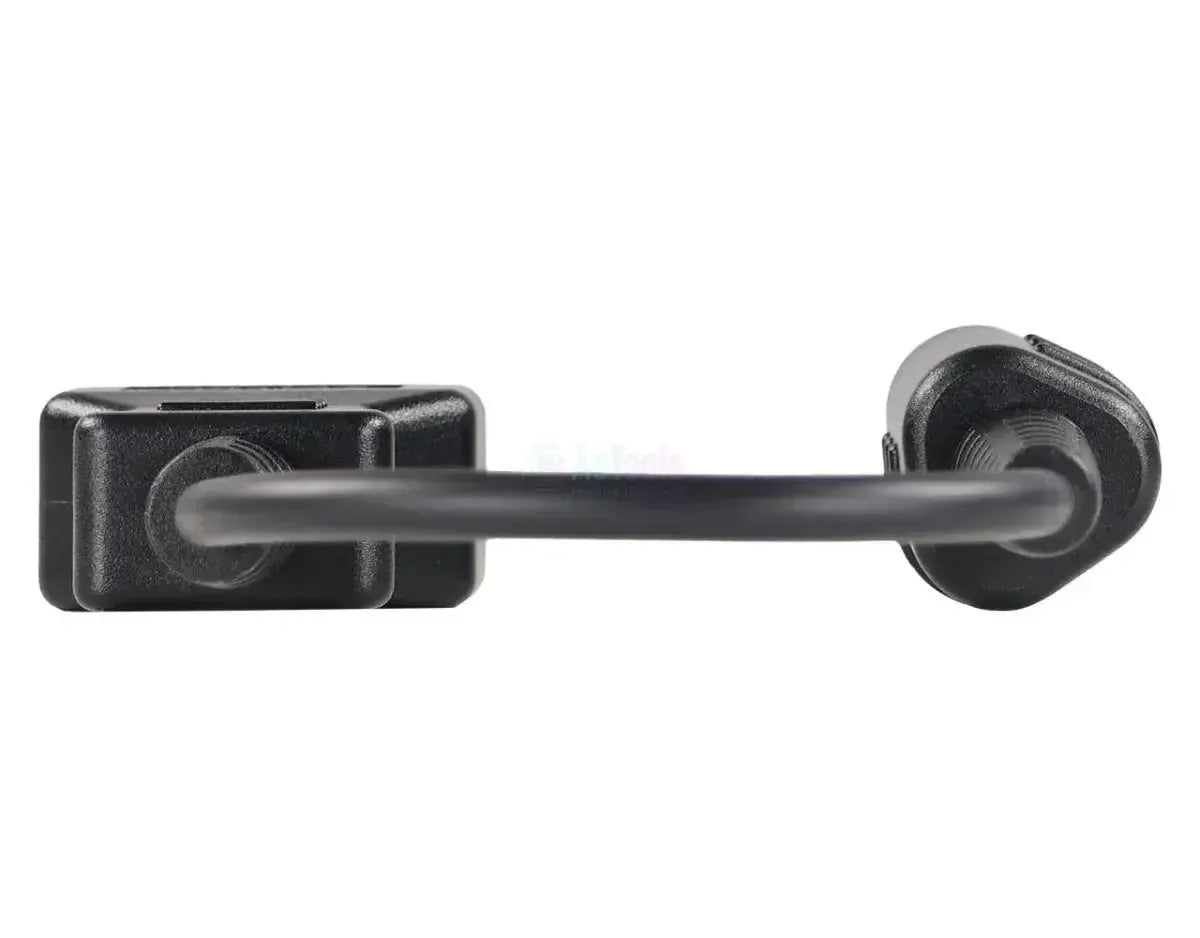

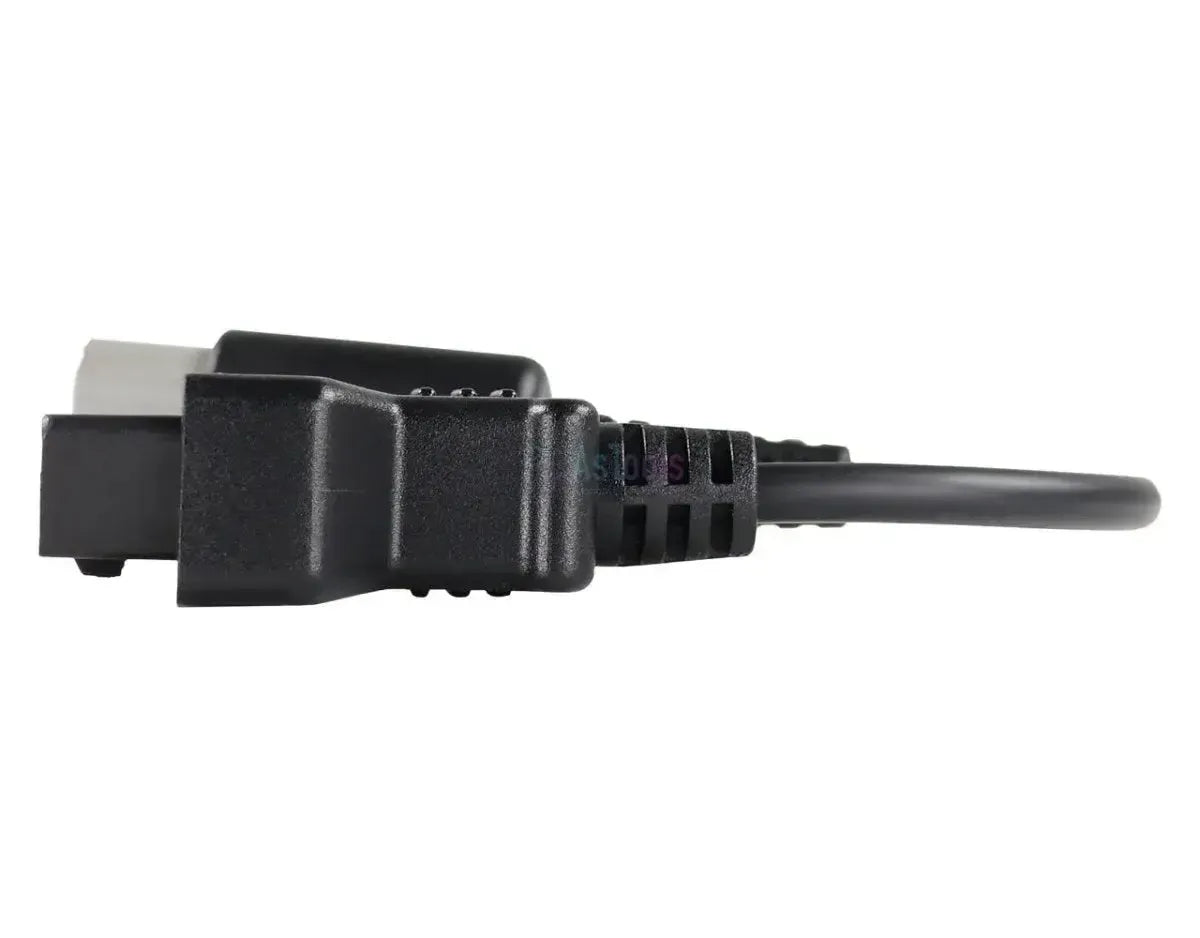

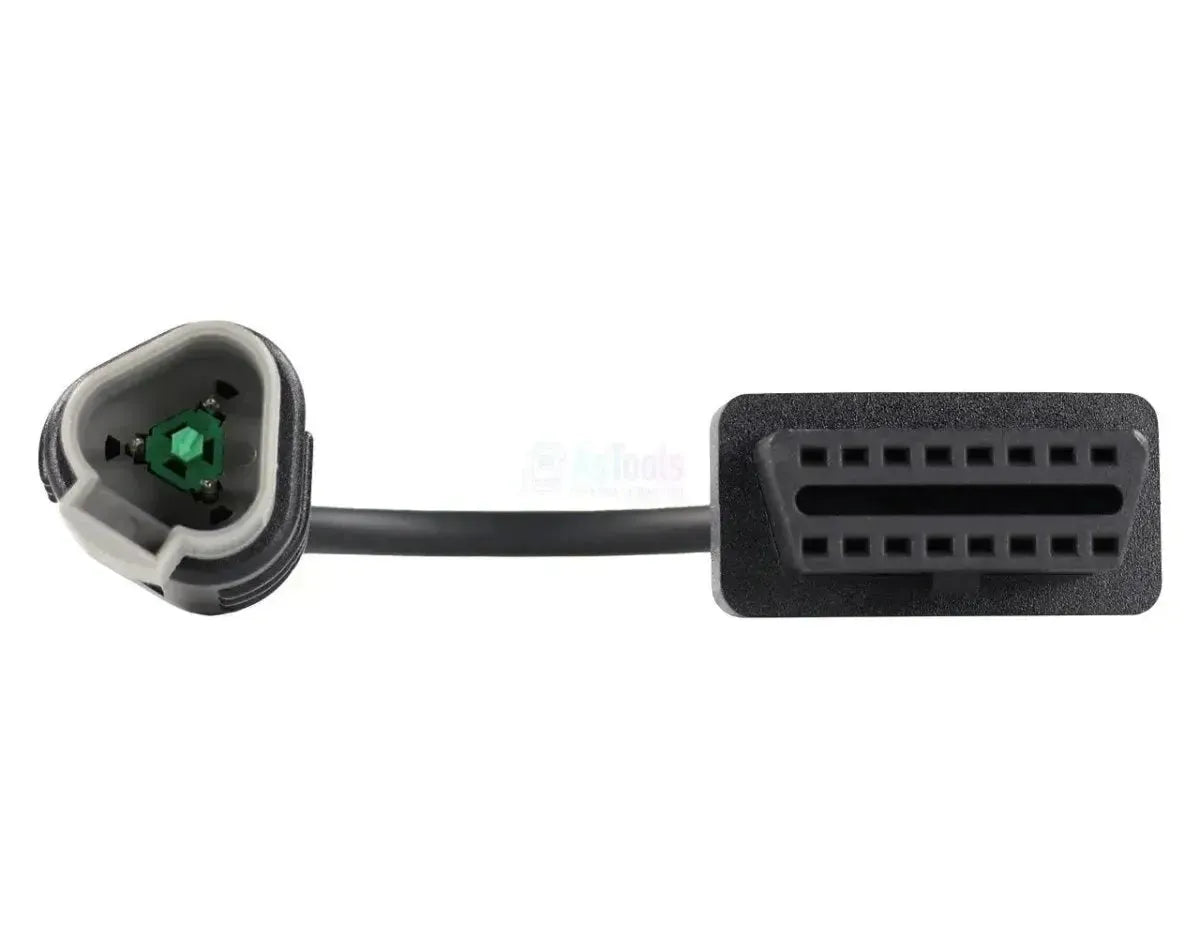

The OBDSTAR M065 is an adapter cable for the 3-pin diagnostic connector on Evinrude outboard motors. The 3-pin plug connects to the factory diagnostic port on the engine, whilst the other end features a 16-pin OBD2 (J1962)-connector for your diagnostic device.

Evinrude designed its own 3-pin port geometry for its outboard motors. This cable converts that connector to the standard OBD2 pinout that OBDSTAR equipment reads, functioning purely as a passive mechanical and electrical adapter; all signal processing occurs in the connected device. Through this connection, you link the engine management electronics to your diagnostic tool, including E-TEC and similar electronically controlled outboard motors. Which diagnostic functions are available depends on your device and its software support for Evinrude.

KEY BENEFITS

✔Direct connection to the factory diagnostic port — Connection is made without intermediate adapters to the port as fitted to the motor.
✔Matched port geometry — The 3-pin connector follows the Evinrude port design, providing a mechanically stable connection.
✔Marine application for your device — Extends the scope of OBDSTAR equipment to outboard motors.
✔Passive conversion — The cable contains no electronics and requires no separate power supply or configuration.

LIMITATIONS

✕No engine list with model years — Only confirmed for Evinrude motors with a 3-pin diagnostic port, including E-TEC variants.
✕Evinrude 3-pin port only — Outboard motors from other manufacturers are not supported.
✕OBDSTAR equipment only — The cable is not compatible with diagnostic devices from other manufacturers.
✕Does not add vehicle coverage — Available diagnostic functions are determined by your device and software support for Evinrude.

Applications and functionality

Via this connection you can access the engine management of the Evinrude outboard motor.

Control units you can reach

  • Engine management: The control unit of the electronically controlled outboard motor behind the 3-pin port.
  • Other systems: Whether more than engine management is accessible depends on the motor and your device.

What you can do

  • Read fault codes: Retrieve stored and active fault codes from engine management via the 3-pin connection.
  • Clear fault codes: Remove fault codes from the engine management system after repair work has been completed.
  • Read live engine data: Request real-time parameters such as engine speed, temperature and sensor values.
  • Connect to OBDSTAR equipment: Convert the Evinrude 3-pin port to the 16-pin OBD2 interface supported by diagnostic programmers.
  • Please note: Which functions you can use depends on the marine coverage of your own device.

Compatible vehicles and applications

The determining factor is the 3-pin diagnostic port, not the engine model. Support is defined at the connection level; specific engine models and model years are not included.

Evinrude:

  • E-TEC outboard motors (2-stroke direct injection): (models with 3-pin diagnostic port)
  • Evinrude outboard motors with electronic engine management: (models with 3-pin diagnostic connection)
💡
Good to know: The diagnostic port on Evinrude outboard motors is typically located on or near the engine housing; consult the engine manual for the exact location on your motor model. Before ordering, check that your motor has the 3-pin port and that your device supports Evinrude.

Package contents

  • 1x OBDSTAR (M065) | Evinrude 3-pin OBD – 16-pin OBD2 Adapter Cable | Outboard Motor

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
3-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)

Size and weight

The weight of the cable or adapter.Weight
0.1 kg
Control units
Outboard engine management

Other specifications

Application
Evinrude 3-pin diagnostic port on outboard motors
Device-side connector
16-pin OBD2 (J1962)
Segment
Marine vessel
Model range
Evinrude outboard motors with 3-pin diagnostic port, including E-TEC; production years not documented
Required to use
OBDSTAR diagnostic device with marine coverage, such as Marine Master or an IScan variant
Additional requirements
None; the cable operates without adapter or power supply
