OBDSTAR D800 (Full) Motorboat Diagnostic Tool

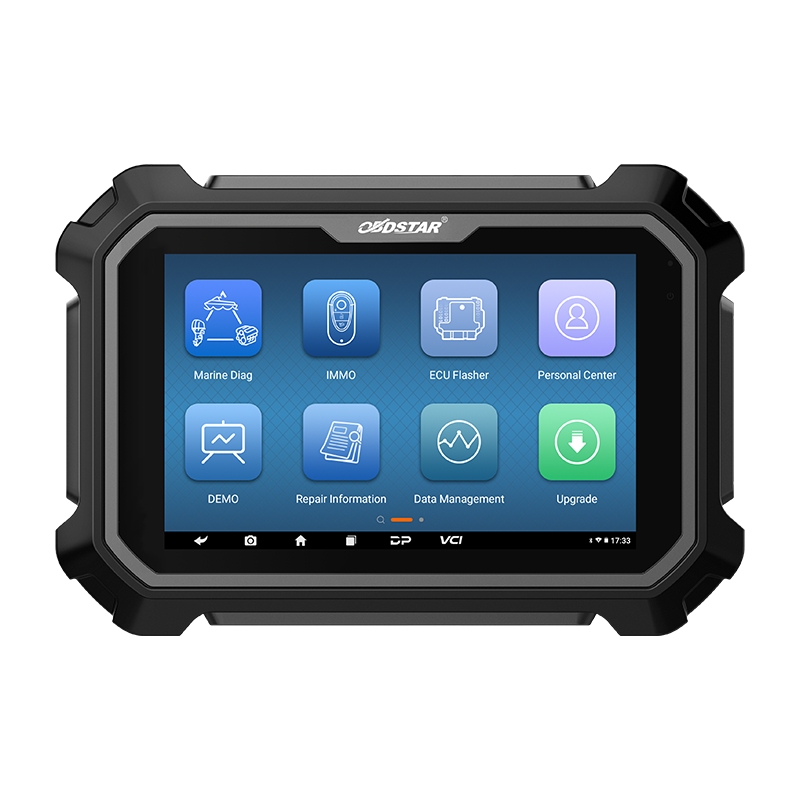

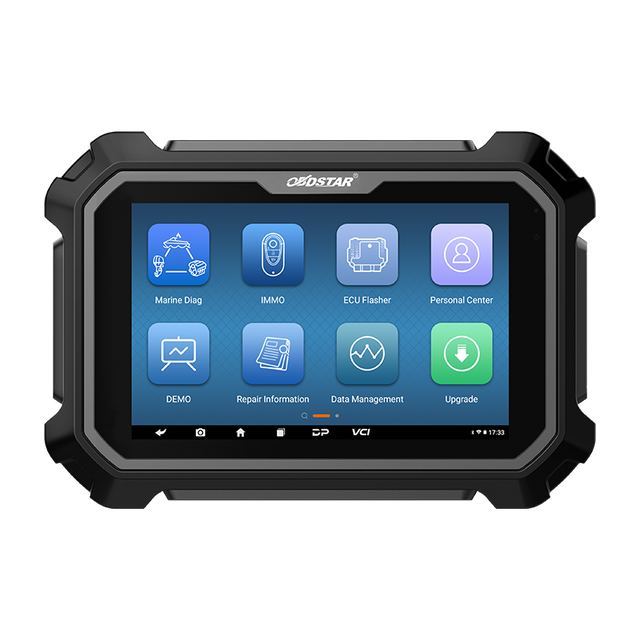

The OBDSTAR D800 (Full A+B+C+D) is an advanced and professional wired Diagnostic Tool, specially developed for full OE-level diagnosis of motorboats, inboard and outboard engines, jetskis (PWC) and marine generators. The system is built around a robust 8-inch Android tablet, designed for daily use in demanding conditions on board. The diagnosis is carried out via a wired OBD connection, ensuring stable and reliable communication during testing and maintenance work on the water.

The D800 offers extensive diagnostic capabilities, including reading and clearing fault codes (DTCs), viewing live data, system scans, actuator testing, and retrieving ECU information. Additionally, the device supports AutoVIN, interactive wiring diagrams, fault code explanations, and access to technical bulletins. Reporting and software updates are easily done via Wi-Fi, directly from the device. With broad brand support and a modular design, the D800 is an ideal solution for watersport workshops and marine technicians striving for maximum accuracy and efficiency.

Diagnostic functions:

The OBDSTAR D800 offers in-depth OE-level diagnosis for a wide range of marine applications, including motorboats, outboard motors, inboard motors, jet skis (PWC), and generators. The device supports both basic functions and advanced diagnostic capabilities for efficient fault analysis and system control.

• Full system diagnosis: Reads and clears fault codes (DTCs) from all available electronic control units, such as engine control (ECU), fuel system, cooling, instrument panel, and other subsystems.
• Live data stream: Displays real-time data from sensors and control units. The data is visible in various display modes (text, waveform, analog) and can be recorded and replayed for in-depth analysis.
• Actuator tests (component control): Manually activates components (such as fuel pump, injectors, cooling fans) to actively check subsystem operation.
• AutoVIN & AutoScan: Automatically identifies the vehicle via the chassis number and performs a full system scan to quickly obtain an overview of the vehicle status.
• Freeze Frame & I/M readiness: Displays system status at the time of a fault code (DTC) and provides an overview of emission-related components.
• Read ECU information: Retrieves basic data from the connected ECU, such as software version, serial number, and part number.
• Report generation: Diagnostic results can be saved and exported as a professional report via the built-in data system.

Maintenance and service functions:

The OBDSTAR D800 supports a wide range of maintenance and calibration functions, aimed at professionally performing service tasks on motorboats, outboard motors, jet skis, and marine generators. These functions enable independent and accurate execution of regular maintenance work, system resets, and adjustments.

• Service interval reset: Resets maintenance intervals after oil changes or scheduled service.
• Battery initialization: Registers or resets the Battery management system after replacement or power loss.
• Injector coding: Programs new injector codes into the ECU to ensure correct fuel atomization.
• Throttle body calibration: Relearns the electronic throttle after cleaning or sensor replacement.
• Sensor learning: Performs calibration of sensors such as MAP, IAT, TPS, or RPM sensor after repair or malfunction.
• Cooling system control: Tests and regulates electric water pumps, thermostats, and cooling fans.
• Trim configuration: Calibrates electronic trim systems for proper navigation and engine coupling.
• Joystick settings: Initialization and adjustment of electronic joystick control for vessels with advanced steering.
• Helm setup: Configuration of dual or parallel helm stations, including synchronization of electronic controls.
• System initialization: Resets certain subsystems (fuel, ignition, injection) to factory settings after component replacement.


Programming and coding functions:

The OBDSTAR D800 offers various functions for programming and coding modules, allowing brand-specific modifications and replacements. This makes the device suitable for advanced users and specialized workshops in the marine sector.

• ECU adjustments: Supports brand-specific parameter settings in the ECU, such as adjustments of RPM limits, sensor configurations, or system behavior (if supported).
• Key programming (limited): For selected brands, the device can learn new keys or remotes, for example with jet skis featuring electronic start systems.
• Reset module settings: Performs initialization or adjustment of new control units after replacement, ensuring proper communication with the vehicle network.
• Component coding: Resets certain functions or features after replacing sensors, throttle valves, actuators, or ECU-related modules (if supported).
• CAN system matching: Supports system matching via CAN bus, ensuring newly installed modules correctly cooperate with existing vehicle architecture.

Cloud and reporting features:

The OBDSTAR D800 features integrated functions for report management and cloud support, enabling technicians to work more efficiently and better document fault information.

• Save and export diagnostic reports: All test results are automatically saved as structured reports. These can be easily viewed, shared, or printed.
• Cloud-back-up: Reports and vehicle data can be synchronized with the OBDSTAR cloud environment, ensuring they are securely stored and accessible on multiple devices.
• Remote support via cloud connection: Thanks to the cloud infrastructure, remote technical support can view the device for immediate assistance with complex faults.
• Data management: Access to a clear report history with filters by vehicle, date, or function, for quick feedback on recurring faults.
• Automatic synchronization: When connected to Wi-Fi, stored reports are automatically uploaded to the cloud environment without extra actions.

Additional features:

The OBDSTAR D800 includes various additional features that contribute to efficient workflows and improved support for maritime diagnostic and maintenance tasks.

• Interactive wiring diagrams: Displays clear, brand-specific electrical diagrams for quick fault location and visual support during repair.
• Fault code explanation and technical bulletins: Provides direct access to an extensive library of fault code descriptions, technical service bulletins, and causes of malfunctions.
• One-click updates via Wi-Fi: Keeps the software automatically up-to-date with one press of a button, without the need for a computer.

Supported vehicle brands:

• Jet Ski: Honda, Kawasaki, Sea-Doo (BRP), Yamaha
• Inboard engines: Caterpillar, CFMoto, Crusader, Cummins, Cummins MerCruiser Diesel, Daedong, DAF, Flagship, FNM, Ford, FPT, Hyundai, Ilmor, Indmar, Kodiak, Lombardini, Malibu, MAN, Marine Power, MerCruiser, Mercury, Mercury Diesel, MTU, OMC, OMC Diesel, Panther, PCM, Perkins, Scania, Sea-Doo (BRP), Sisu, Steyr Motors, Toyota, Turnkey, Vetus, VM Motori, Volkswagen, Volvo, Yanmar
• Outboard motors: Aiqidi, Evinrude, Hidea, Honda, Johnson, Mariner, Mercury, Mercury Diesel, Parsun, Selva, Seven, Suzuki, Tohatsu, Vanguard, Yamaha
• Stationary engines: Cummins, Kohler, Volvo

Package contents:

• OBDSTAR D800 Diagnostic Tool
• OBDSTAR 4 Meter Extension Cable

• OBDSTAR 15 Pins DB15 - 16 Pins OBD2 Adapter Cable

• OBDSTAR 6 Meter Power Cable

• OBDSTAR Multifunctional Jumper Adapter Cable

• OBDSTAR BRP OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Caterpillar 9 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Cummins 9 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Evinrude OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Honda OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Indmar 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Kawasaki 4+6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR MAN 8 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Mercury OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Mercury Diesel 9 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR MerCruiser 10 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Parsun OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR PCM 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Scania 4 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Suzuki OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Tohatsu OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Volvo 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Yamaha OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Yanmar 3 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Yanmar 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Power Adapter

• OBDSTAR Storage Case

License information

• Includes 1 year of updates: A 12-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The Diagnostic Tool remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
