OBDSTAR  |  SKU: M080 / 7.32.1

OBDSTAR (M080) | Caterpillar/Perkins 9-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

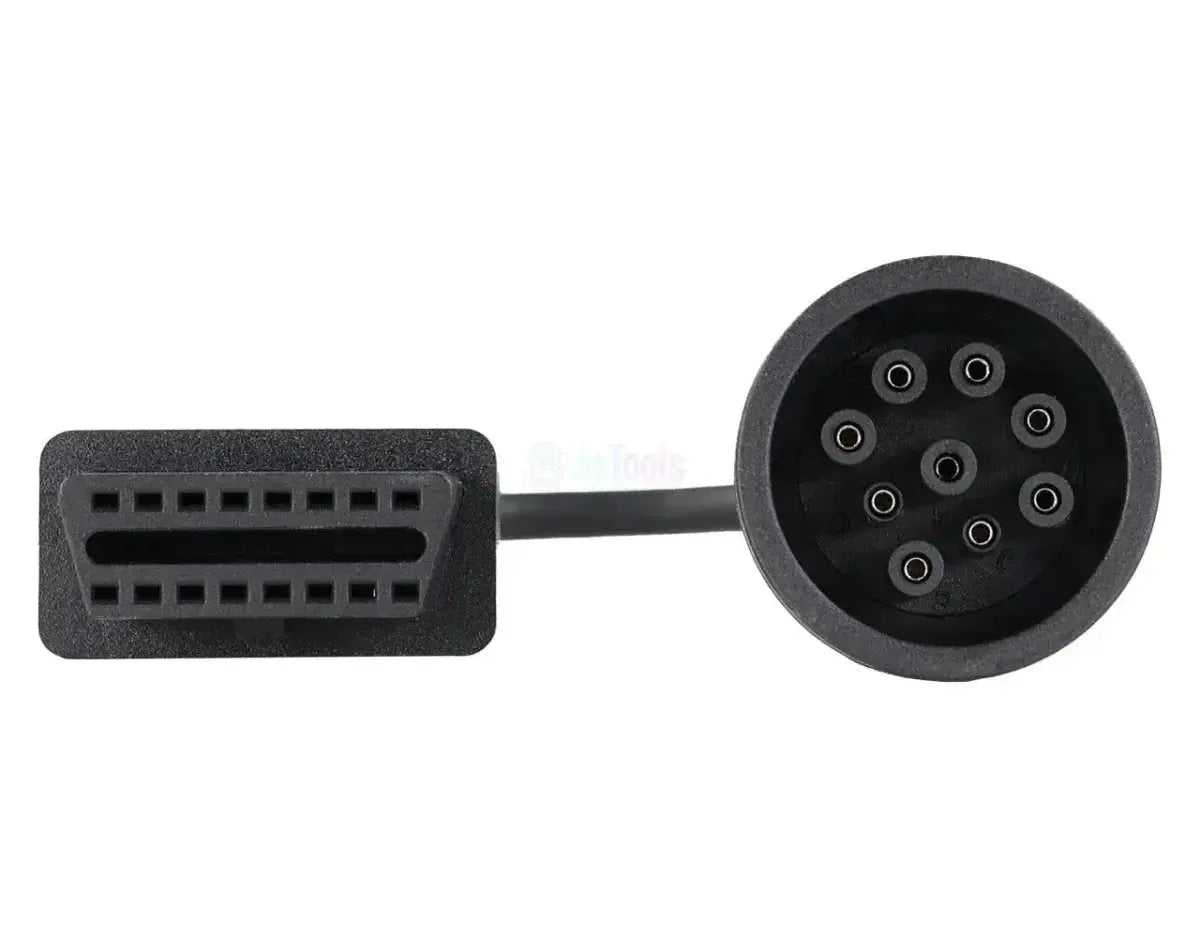

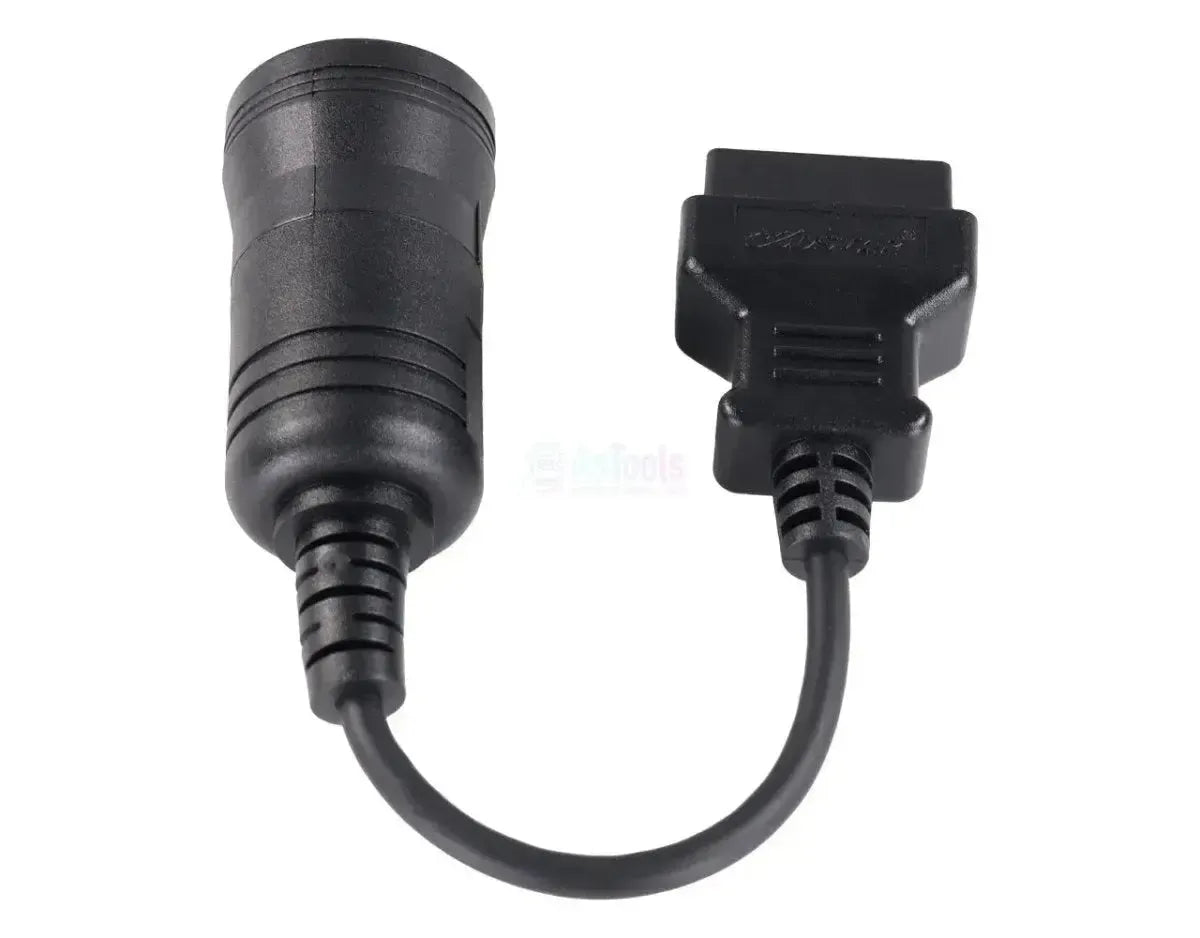

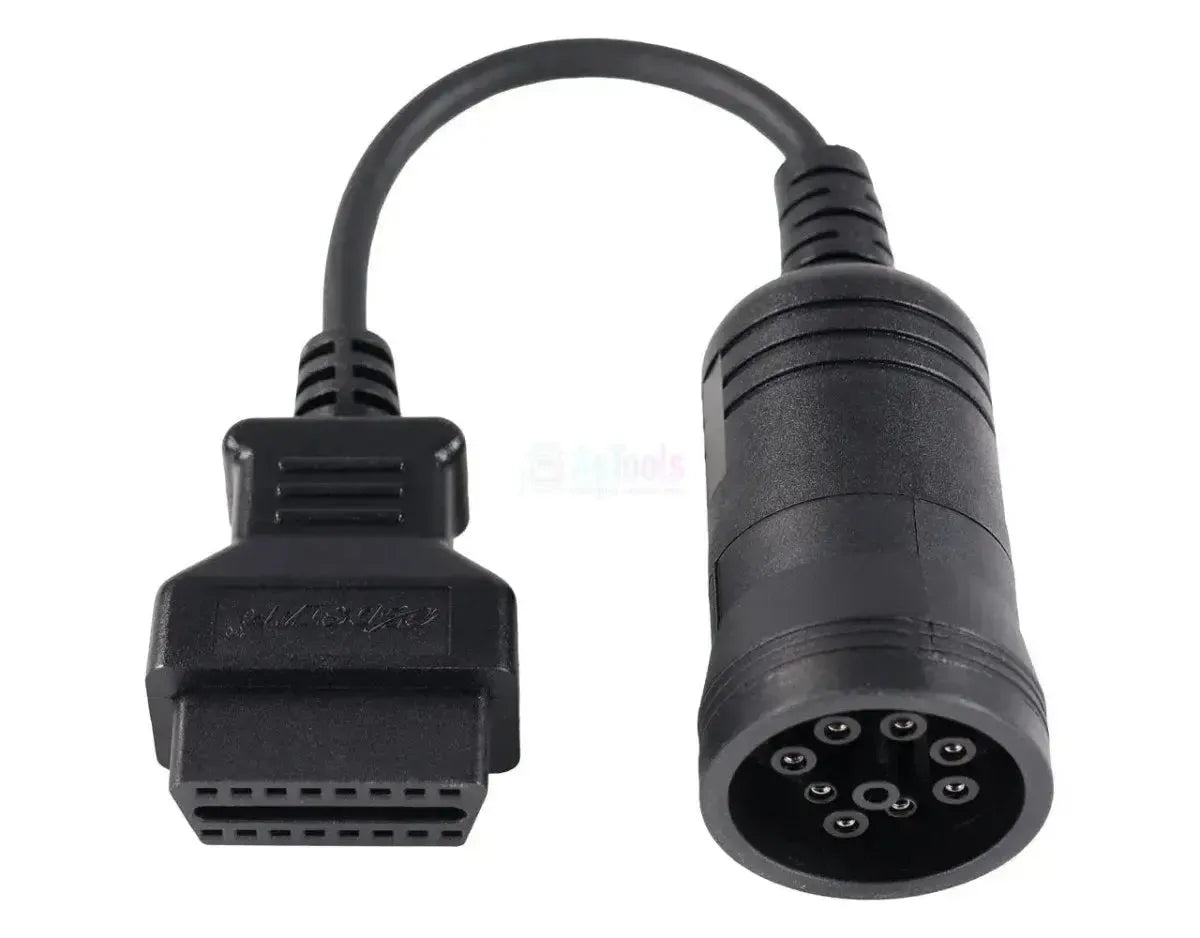

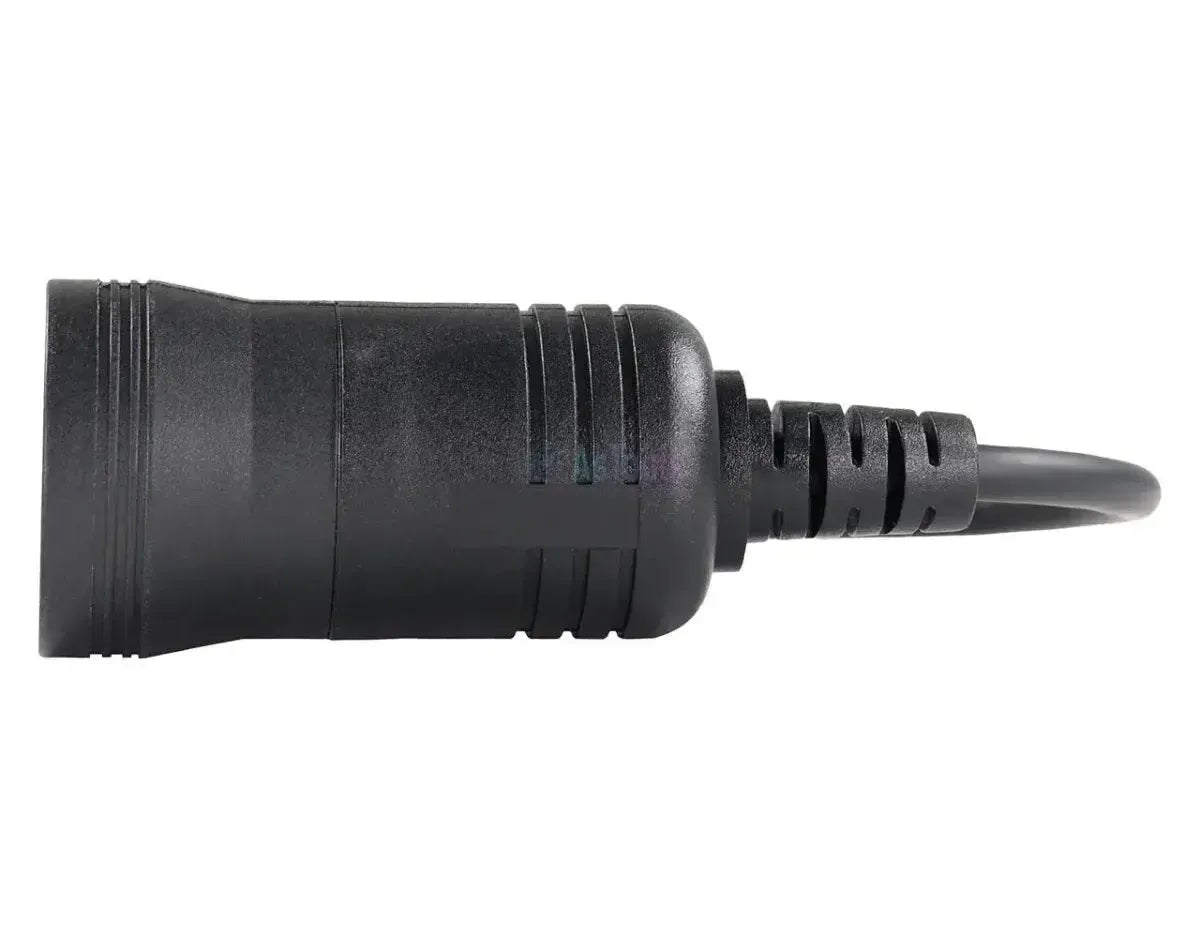

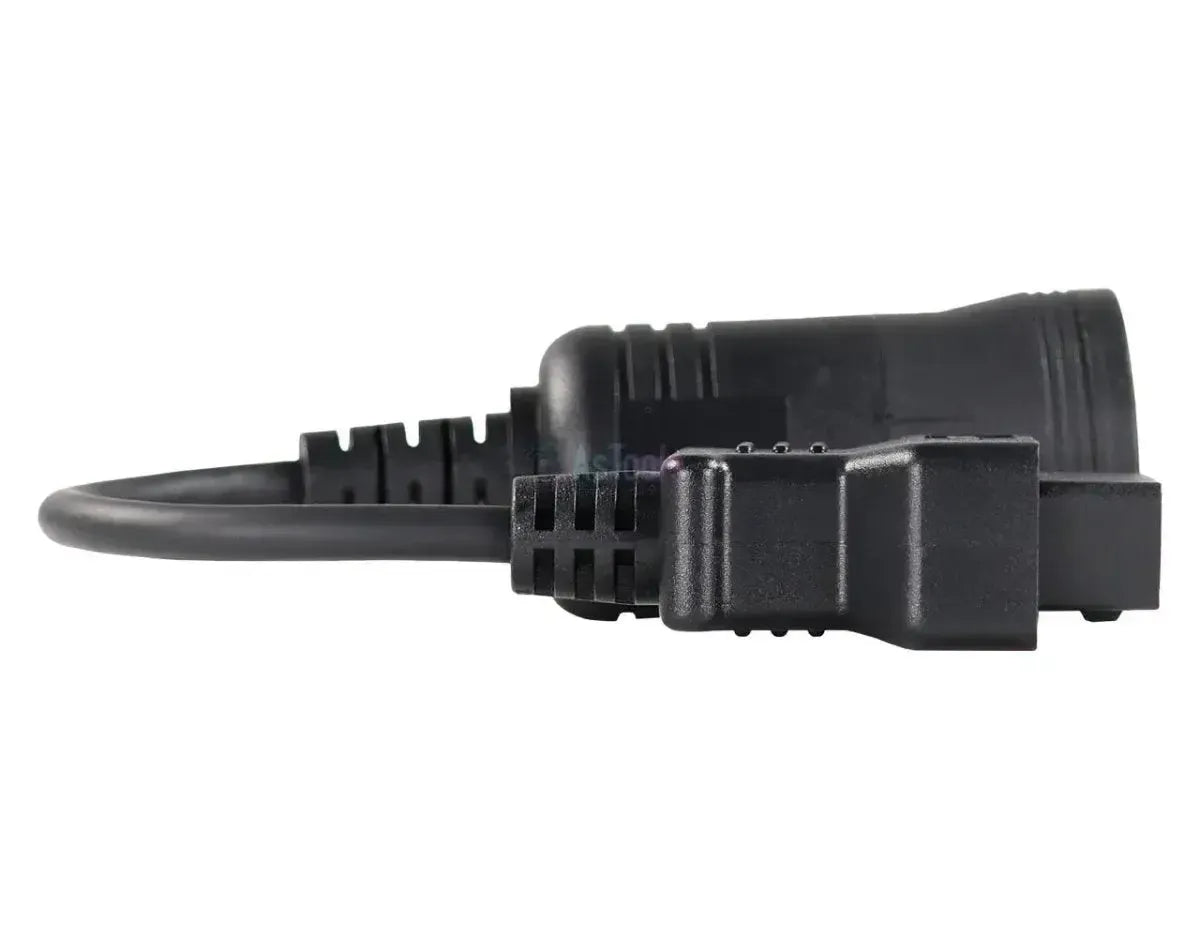

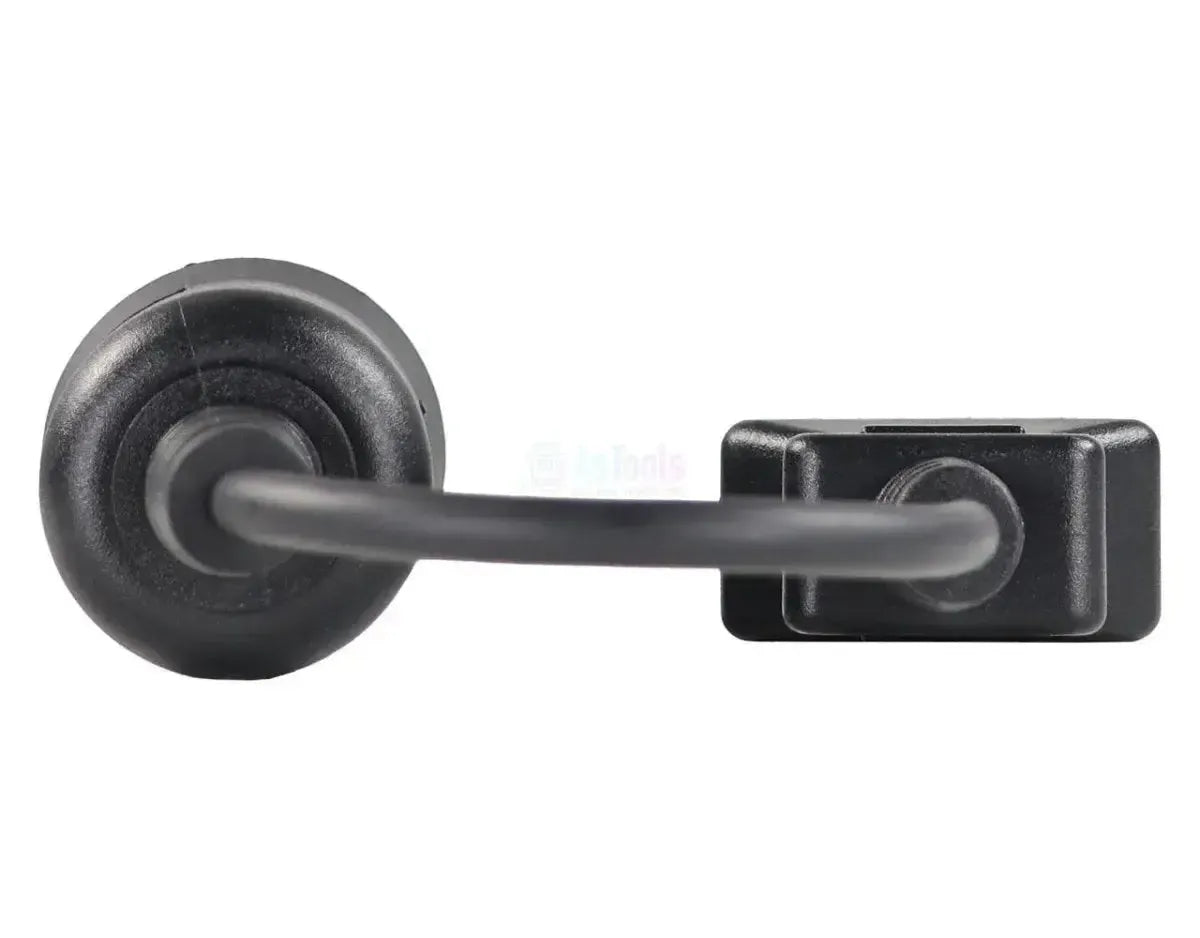

The OBDSTAR M080 is an adapter cable that converts a 9-pin Caterpillar/Perkins OBD connection to a standard 16-pin OBD2 connector (J1962). The cable is intended for use with OBDSTAR readers or programmers and is specifically designed for diagnosing marine engines and marine applications with Caterpillar or Perkins engine management. The 9-pin connection on one end connects to the diagnostic plug of the engine management system, while the 16-pin OBD2 plug on the other end connects to the diagnostic device.

The adapter cable converts the pin configuration and signal assignment of the Caterpillar/Perkins interface to the OBD2 format, allowing the connected OBDSTAR device to communicate with the engine management system using the usual diagnostic protocol. This connection enables diagnostic functions such as reading fault codes and accessing sensor data. The cable contains no active electronics — the signal transmission occurs passively through the fixed pin connections between the two connectors.

ADVANTAGES

✔ Enables diagnostics on Caterpillar and Perkins engine management via the standard OBD2 interface of the OBDSTAR device.
✔ Passive pin conversion without active electronics, requiring no additional power or configuration.
✔ Specifically developed for marine applications, including motorboat installations with Caterpillar or Perkins engines.

KEY POINTS

✕ Only compatible with OBDSTAR readers or programmers; use with diagnostic equipment from other brands is not supported.
✕ Not suitable for vehicle applications outside the Caterpillar and Perkins engine range with a 9-pin OBD diagnostic plug.
✕ The available diagnostic functions depend on the capabilities of the connected OBDSTAR device and the supported protocols per engine type.

Applications and functionalities

The M080 Adapter Cable supports the following diagnostic functions on Caterpillar and Perkins engine management via a compatible OBDSTAR device.

  • Reading fault codes: The engine management system is queried via the 9-pin OBD connection for stored and active fault codes, which are then displayed on the OBDSTAR device.
  • Clearing fault codes: After diagnosis and repair, stored fault codes in the engine management system can be cleared via the connected OBDSTAR device.
  • Reading live sensor data: Current sensor measurements in the engine system are read and displayed in real time, providing insight into the operation of the engine management system during operation.
  • Request system information: Data such as software versions and system identification of the engine control unit are retrieved via the diagnostic cable.

Compatible vehicles and applications

The engine types and applications listed below are confirmed compatible with the OBDSTAR M080 Adapter Cable, provided it is used in combination with a supported OBDSTAR device.

Caterpillar:

  • Marine ship engines with 9-pin OBD diagnostic plug

Perkins:

  • Marine ship engines with 9-pin OBD diagnostic plug
💡
Good to know: The 9-pin Caterpillar/Perkins OBD diagnostic plug is usually located directly on or near the engine control unit in the engine compartment of the boat. Consult the engine documentation for the exact location.

Package Contents

  • 1x OBDSTAR (M080) | Caterpillar/Perkins 9-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat
