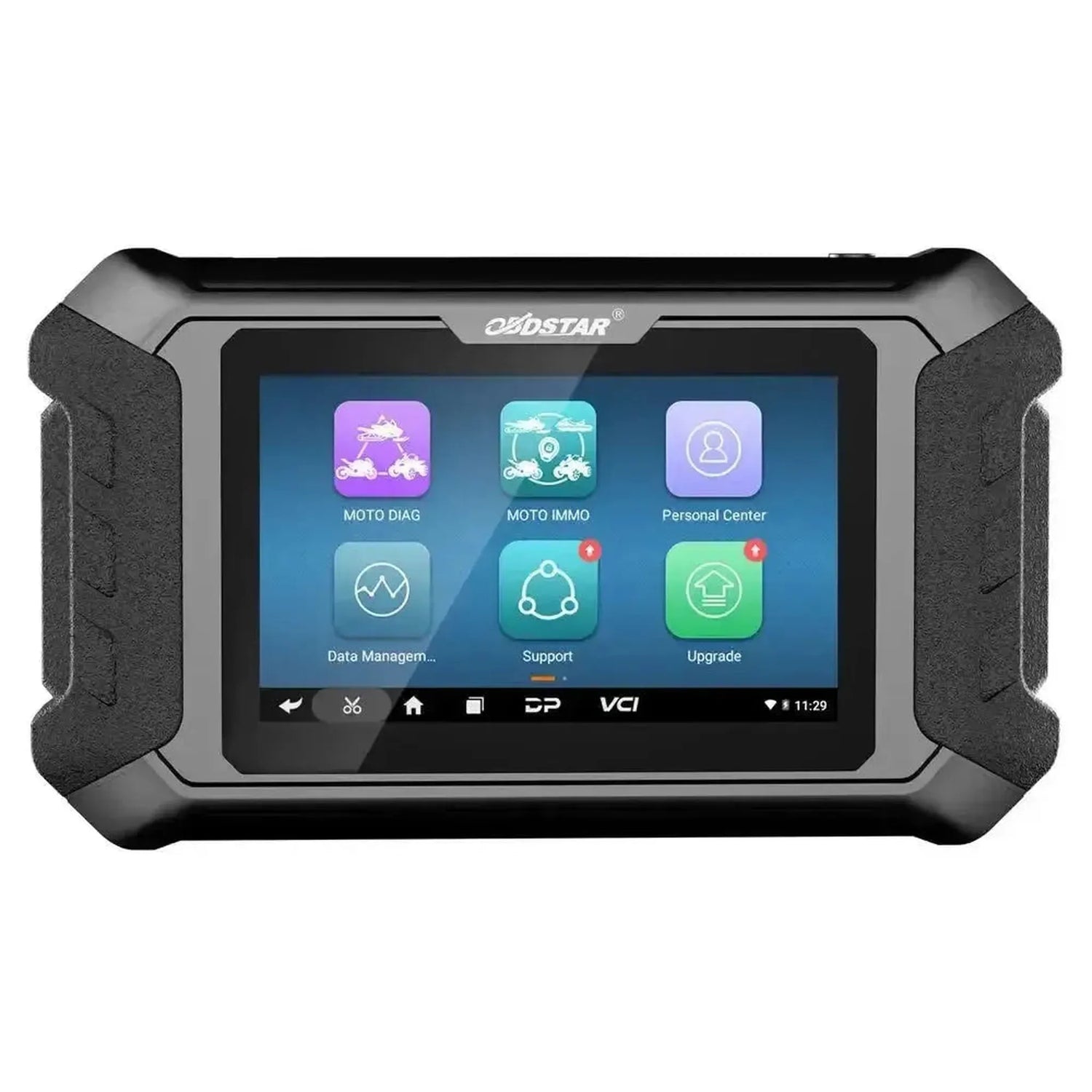

The OBDSTAR iScan Benelli is a portable diagnostic device specifically developed for diagnosing Benelli motorcycles. The device is designed as a tablet with a 5.0 inch capacitive touchscreen with a resolution of 800x480 pixels and runs on Android 5.1.1. Inside the housing is a RK3128 quad-core ARM Cortex A7 processor combined with a 2600 mAh rechargeable lithium-polymer battery and support for a 32 GB micro SD card for storage expansion. The software license is valid for 1 year and provides access to diagnostic functions such as reading and clearing fault codes, displaying live data streams, action tests, settings, and coding.
The device supports additional functions such as automatic VIN recognition, automatic scanning, and coding of control modules. Data streams can be displayed as text, waveform, or instrument view, and recorded data can be played back for later analysis. Via the WiFi connection, software updates can be installed with one click, and OBDSTAR remote support allows remote assistance by technical staff.
ADVANTAGES
KEY POINTS
Diagnostic functions
The OBDSTAR iScan Benelli offers diagnostic functions focused on reading, analyzing, and operating control modules in Benelli motorcycles. Available functions may vary by model and year.
- Read fault codes: Reading stored and active fault codes from the control modules of the motorcycle.
- Clear fault codes: Removing stored fault codes after the cause has been fixed.
- Live data stream: Real-time display of sensor values and component data, shown as text, waveform, or instrument diagram.
- Record and playback data stream: Recording data streams for later analysis to accurately locate sensor and component faults.
- Actuation tests: Activating actuators and components to check their operation.
- Settings: Adjusting control module settings within supported models.
- Coding: Coding control modules after replacement or adjustment.
- Automatic VIN recognition: Automatically identifying the vehicle via the vehicle identification number.
- Automatic scanning: Complete scan of available control modules on the motorcycle.
Service and maintenance functions
The OBDSTAR iScan Benelli supports multiple service and maintenance functions for Benelli motorcycles. The availability of functions may vary by model and year.
Engine and drivetrain
- Throttle body learning: Teaching the throttle position after cleaning or replacing the throttle body.
- Idle learning value reset: Resetting the learned idle values of the engine.
- Adaptive values reset: Clearing adaptive learning values in the control unit.
- CO value adjustment: Adjusting the CO value for correct exhaust emissions.
- Air-fuel ratio reset: Resetting the learned air-fuel ratio.
- ECU reset: Resetting the engine control unit to default settings.
Maintenance and service intervals
- Oil service reset: Resetting the interval for the next oil change after maintenance.
Brake and stability systems
- ABS Brake system bleeding: Bleeding the ABS system after maintenance on the Brake system.
Electrical and safety systems
- Key programming: Programming new keys for supported Benelli motorcycles.
Special features and capabilities
The OBDSTAR iScan Benelli has some special features that support diagnosis and use.
- Remote support: One-click function for remote support by technical staff from OBDSTAR.
- Software update via WiFi: Updating the software via a direct internet connection on the device.
- Help data: Access to help data and technical information to support diagnosis.
- Multiple display modes: Data streams can be displayed as text, waveform diagram, or instrument diagram.
Supported vehicle brands
The OBDSTAR iScan Benelli is specifically developed for motorcycles of the Italian brand Benelli.
- European: Benelli
Optional additions and expansions
Various optional hardware accessories are available for the OBDSTAR iScan Benelli that expand the device’s usability.
Hardware modules and accessories
- M002A GND cable: Power cable with battery clamps for external power supply of the diagnostic tool.
- M003A multi-functional jumper: Jumper cable for various diagnostic connections.
- M020 AEON/BENELLI/BENELLI DSK cable: Diagnostic Adapter cable for AEON and Benelli motorcycles.
- M022A BENELLI/BENELLI DSK cable: Diagnostic Adapter cable for Benelli motorcycles.
- N041 OBD Adapter: Adapter cable for the standard OBD connector.
License information
The OBDSTAR iScan Benelli comes with a software license that provides access to software updates during the license period. Updates can add new vehicle support and additional features.
- License period: 1 year of free software updates from activation.
- Software updates: Updates can add new vehicles and functions to the device.
- Extended functions: Some functions require an active license to remain available.
- After license expiration: The device usually continues to work with existing functions and vehicle coverage.
Package Contents
- 1x OBDSTAR iScan Benelli diagnostic tool
- 1x 12V2A charger
- 1x M001A main cable
- 1x N021A AEON/BENELLI/BENELLI DSK/QJBENELLI Adapter cable
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Model | iScan Benelli |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Battery | 2600 mAh rechargeable lithium-polymer battery |
| Memory expansion | Support for 32 GB micro SD (TF) card |
| Screen | 5.0 inch capacitive touchscreen |
| Screen resolution | 800x480 pixels |
| WiFi | Supported |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 198 x 115 x 31 mm |
| Weight | Approximately 700 grams |
