OBDSTAR  |  SKU: M022A

OBDSTAR (M022A) | Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

€25,95 incl.
€21,45 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

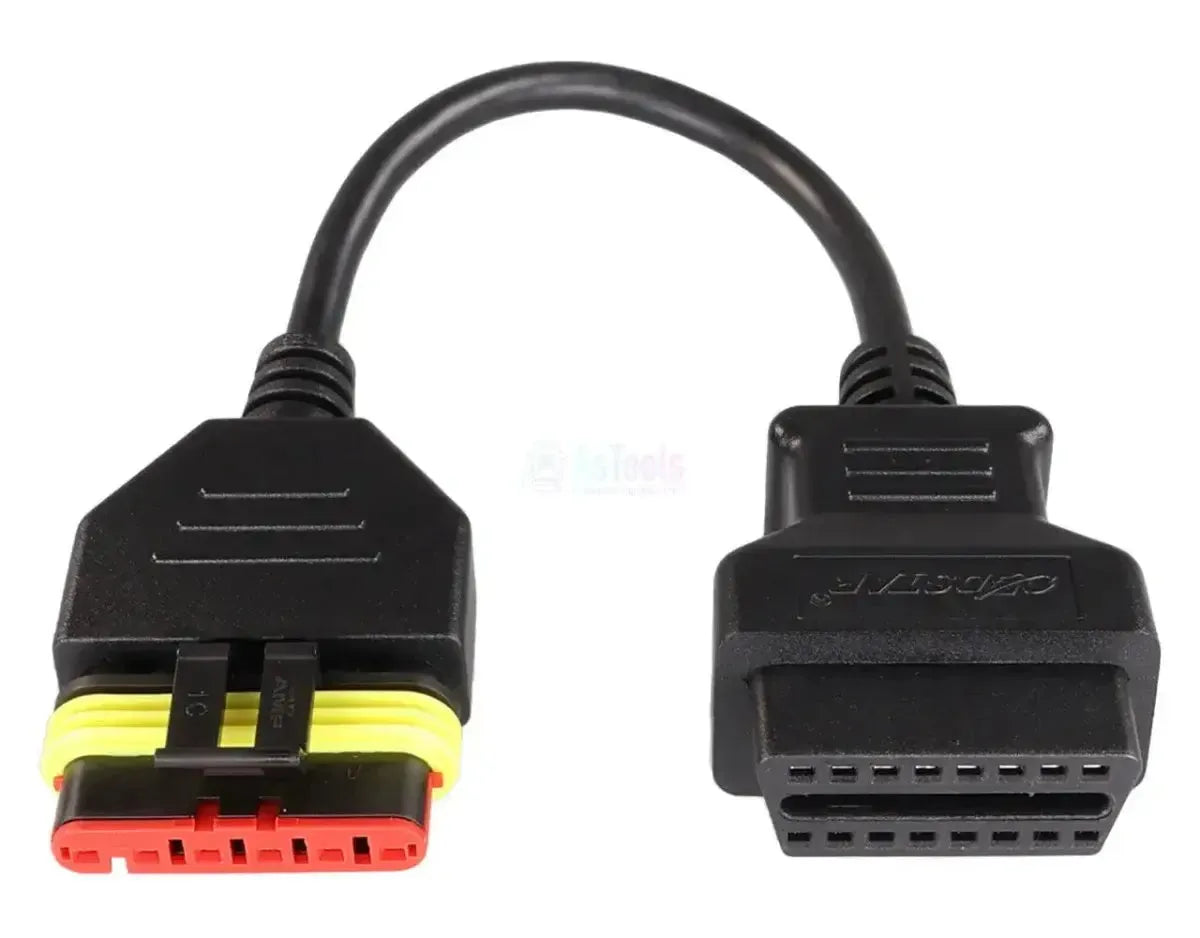

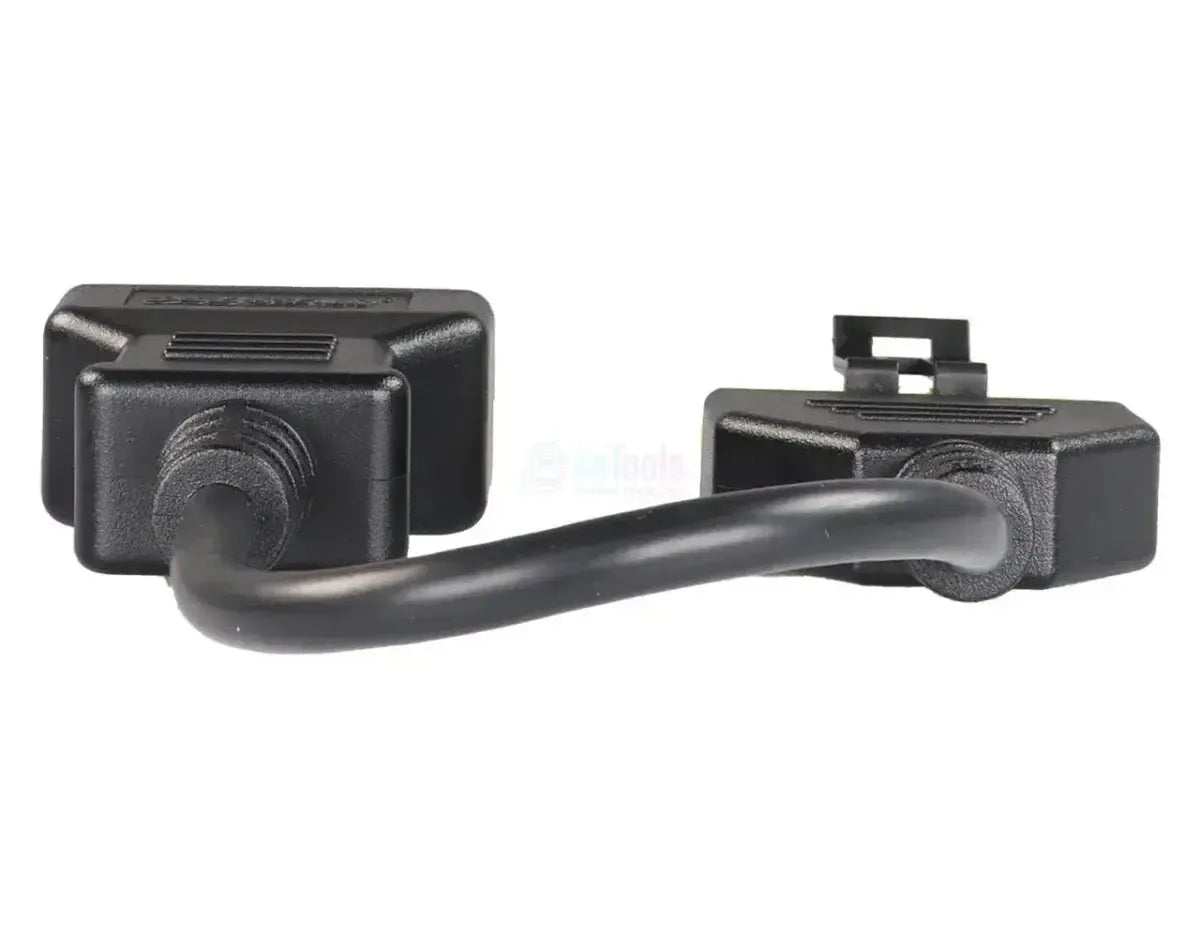

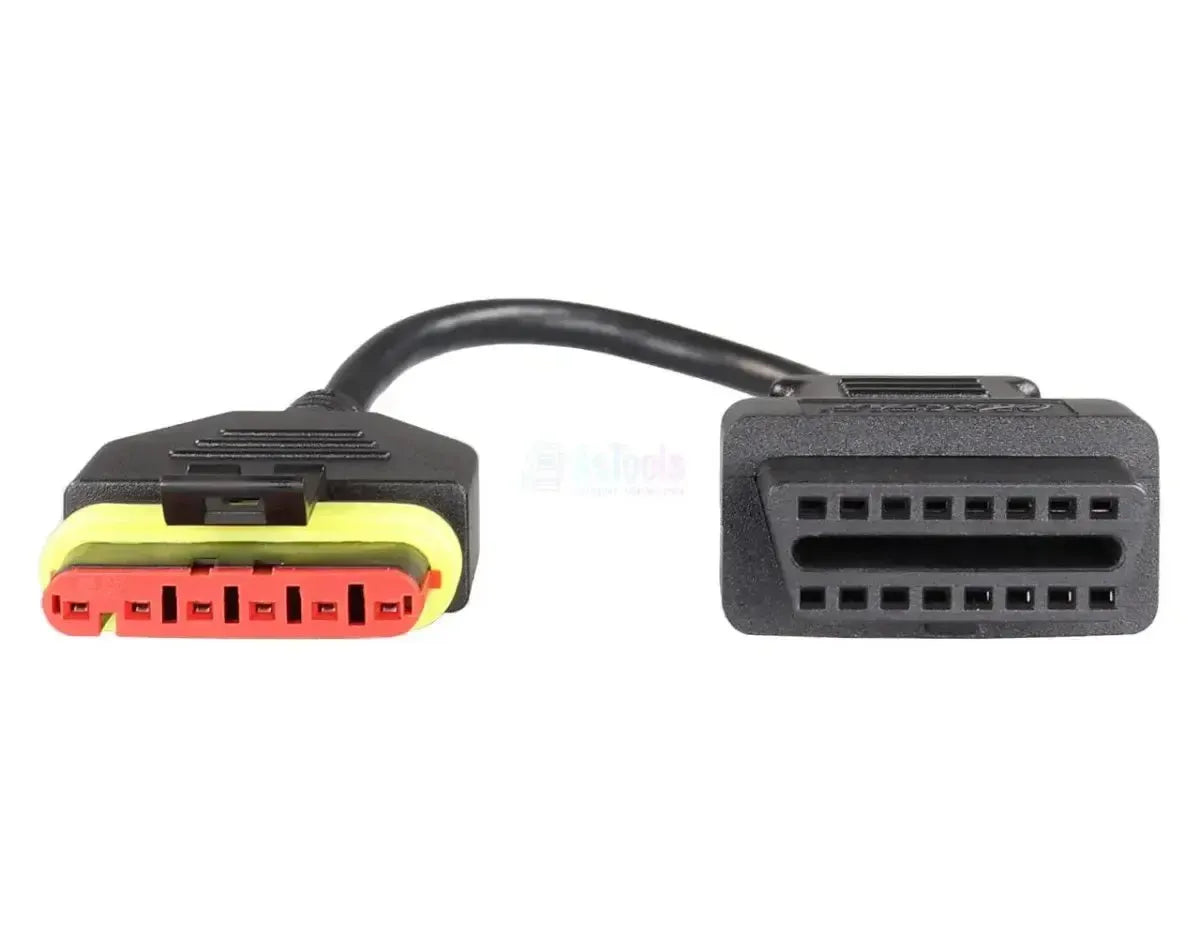

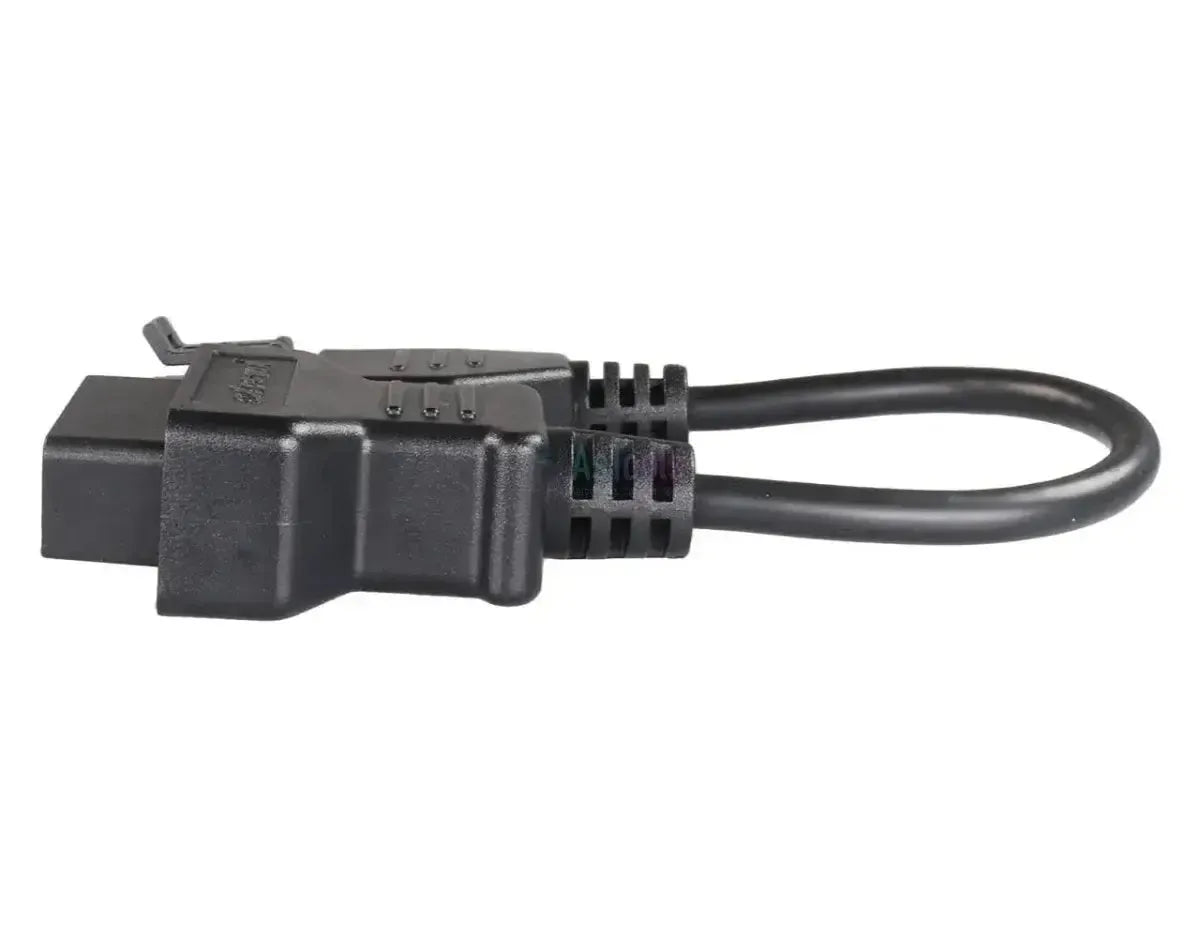

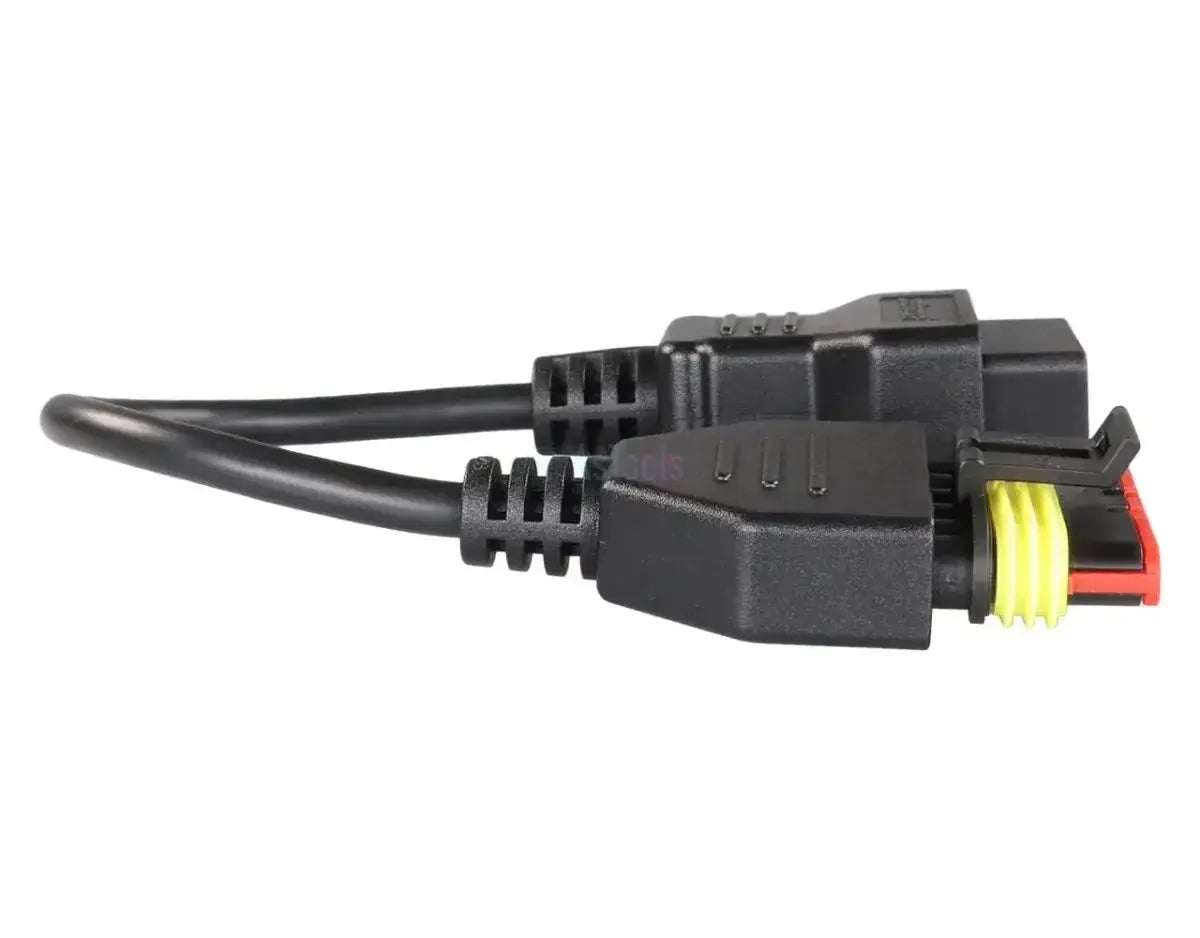

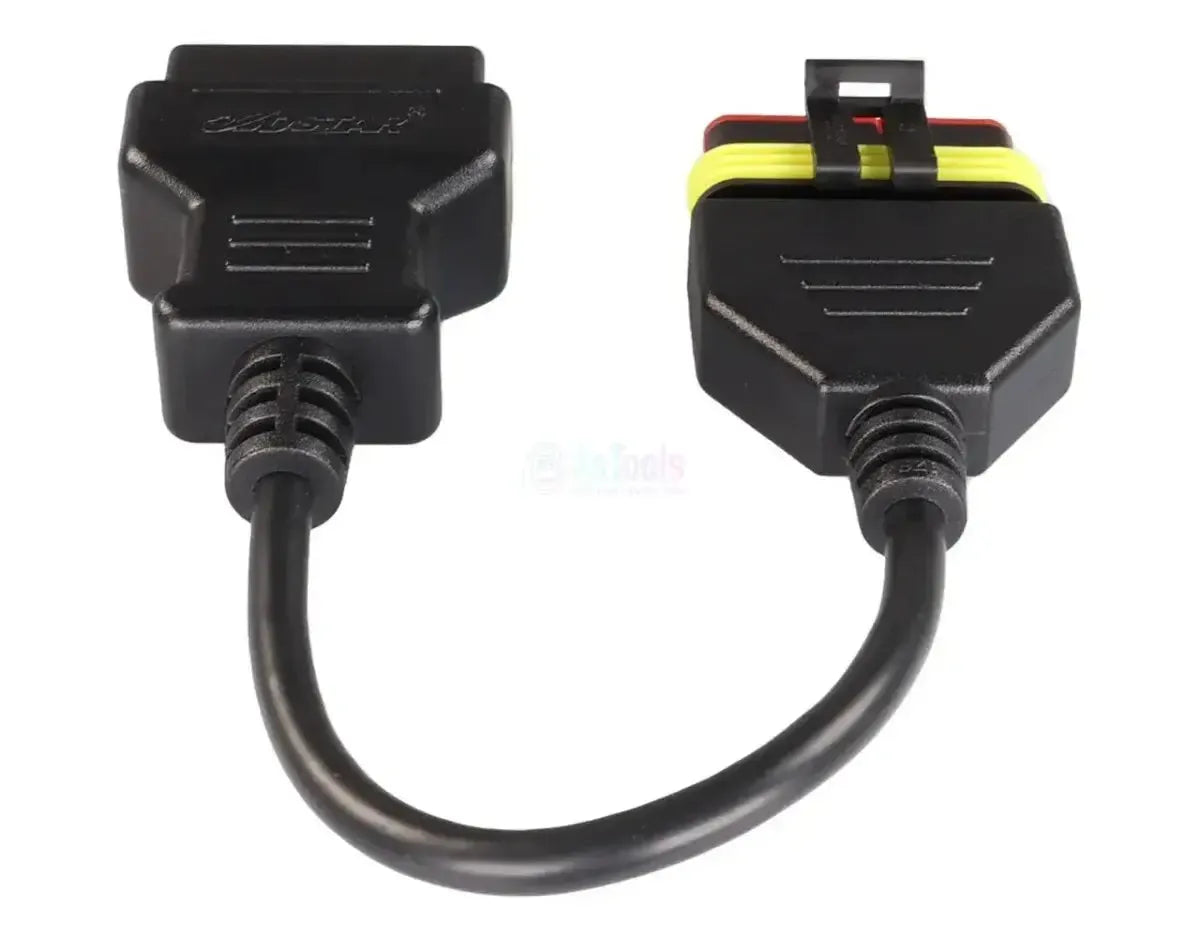

The OBDSTAR M022A is the manufacturer-specific cable for the 6-pin diagnostic connector on Benelli motorcycles. It connects that connector to the 16-pin OBD2 (J1962)port on your OBDSTAR diagnostic equipment; the 6-pin side plugs into the diagnostic port of the motorcycle.

Benelli and Benelli DSK use a proprietary 6-pin connector that does not fit a standard OBD2 interface. The cable functions as passive pin conversion: the correct pins from the Benelliconnector are wired to the corresponding contacts on the OBD2 plug, with no intermediate processing. Diagnostic data flows over the K-line or CAN-bus, depending on what is present in the vehicle. This enables communication with the engine control units of the motorcycle. Which functions you can perform depends on the software and licences of your own OBDSTAR device; the cable adds nothing beyond that.

KEY BENEFITS

✔Manufacturer-specific design — the connector is tailored to the Benelli 6-pin diagnostic port, with no additional hardware in between.
✔Compatible with Benelli DSK — both variants are operated with the same cable.
✔Passive pin conversion — no extra signal processing step is introduced, so the communication line remains intact.
✔Works with K-line and CAN — the connection passes both communication protocols through, depending on what the vehicle supports.

IMPORTANT NOTES

✕Not needed for OBD2 port — if the motorcycle already has a standard OBD2 connector, this cable is not required.
✕Benelli 6-pin connector only — other connector types within the brand fall outside the scope of this cable.
✕OBDSTAR equipment only — equipment from other manufacturers is not supported.
✕Does not add vehicle coverage — available diagnostic functions depend on your device's software and licences.

Applications and functionality

Via this connection you can access the control units of the Benelli motorcycle.

Control units you can reach

  • Electronic control units: The units connected to the 6-pin diagnostic connector.
  • Other systems: Which units are accessible per model varies and depends on your device's coverage.

What you can do

  • Read fault codes: Retrieve stored and active fault codes from the control units and display them on the device.
  • Clear fault codes: After inspection or repair, clear the fault memory of the control unit.
  • Live data display: Monitor sensor readings and system parameters during operation.
  • Vehicle identification: Read the vehicle identification number (VIN) and other vehicle-related data.
  • Please note: What is available is determined by the software and licences of the connected OBDSTAR device.

Compatible vehicles and applications

The Benelli 6-pin diagnostic connector is what matters, not the model. Individual models and model years are not listed; these are found in the OBDSTAR compatibility list.

  • Benelli: Motorcycles with 6-pin OBD connector (Benelli / Benelli DSK); consult the OBDSTAR compatibility list for specific models and model years.
💡
Good to know: The 6-pin diagnostic port on Benelli motorcycles is typically located under the seat or behind a cover panel; the vehicle's service manual provides the exact location. Verify that your motorcycle has the 6-pin Benelli connector and does not already have an OBD2 port before ordering.

Package contents

  • 1x OBDSTAR (M022A) | Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • K-line
  • CAN-bus

Size and weight

The weight of the cable or adapter.Weight
0.1 kg
Control units
Electronic control units of the motorcycle

Other specifications

Application
Benelli motorcycles with 6-pin diagnostic connector
Device-side connector
16-pin OBD2 (J1962)
Communication
K-line or CAN-bus, depending on the vehicle
Model Range
Benelli and Benelli DSK motorcycles with the 6-pin connector; model years not specified
Required to Use
OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional Requirements
None; the cable operates without adapter or separate power supply
