OBDSTAR  |  SKU: M020

OBDSTAR (M020) | Aeon/Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

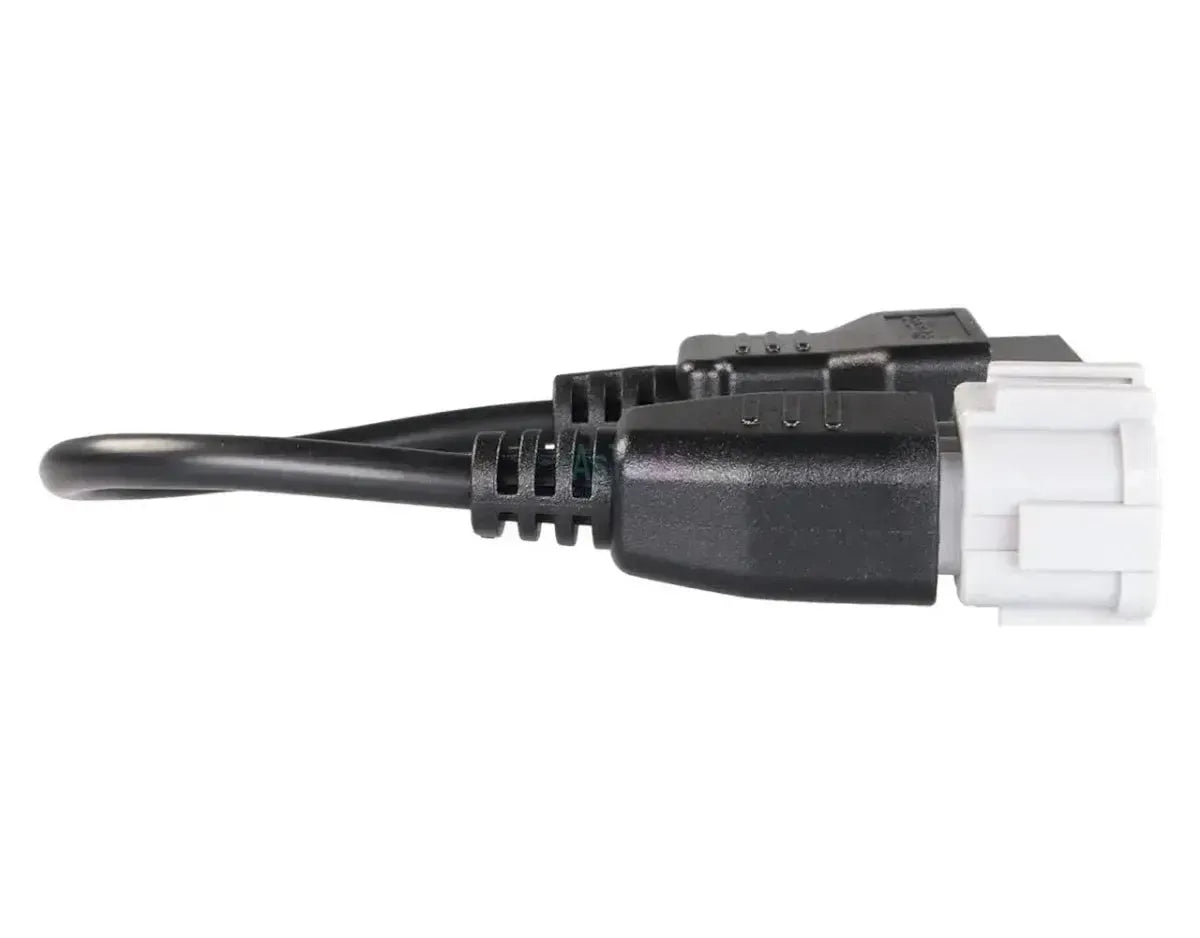

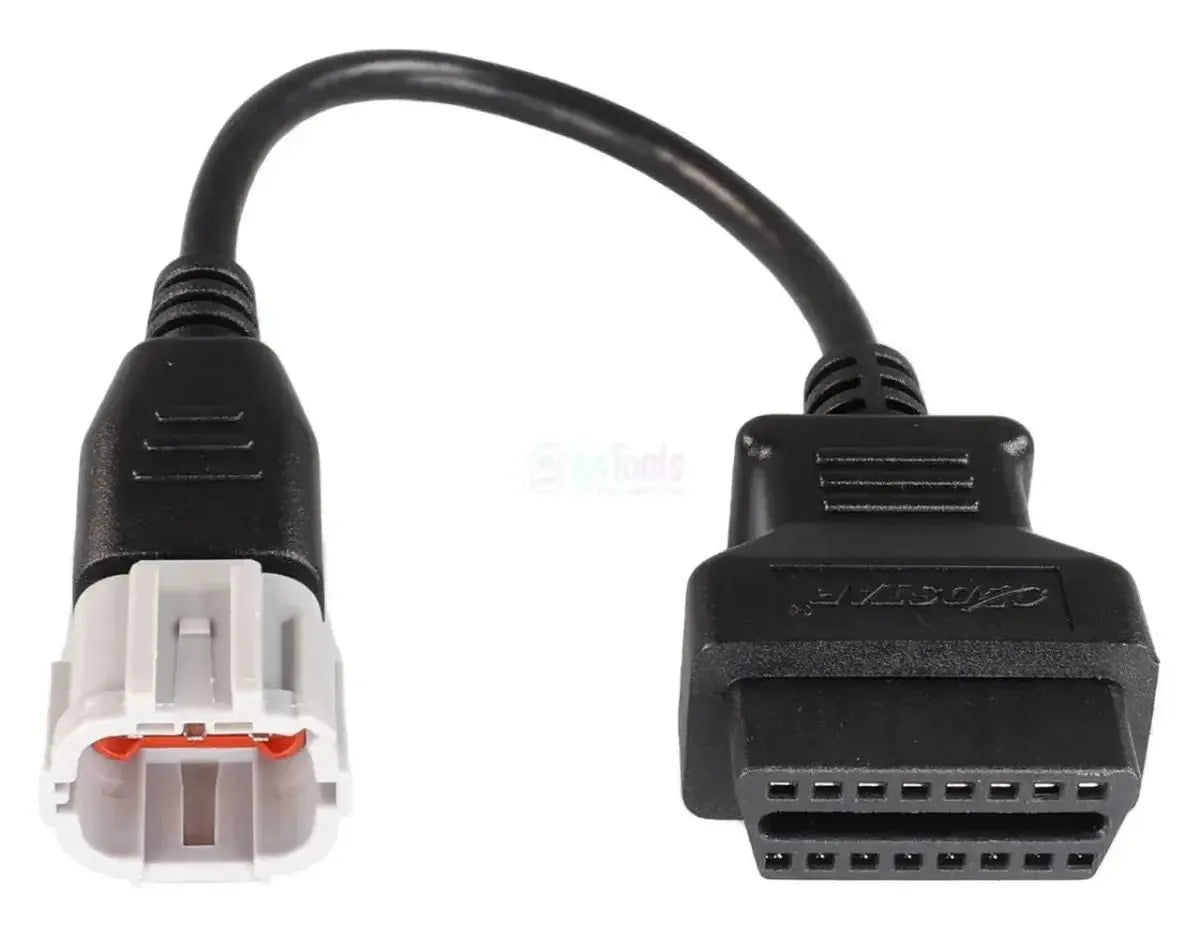

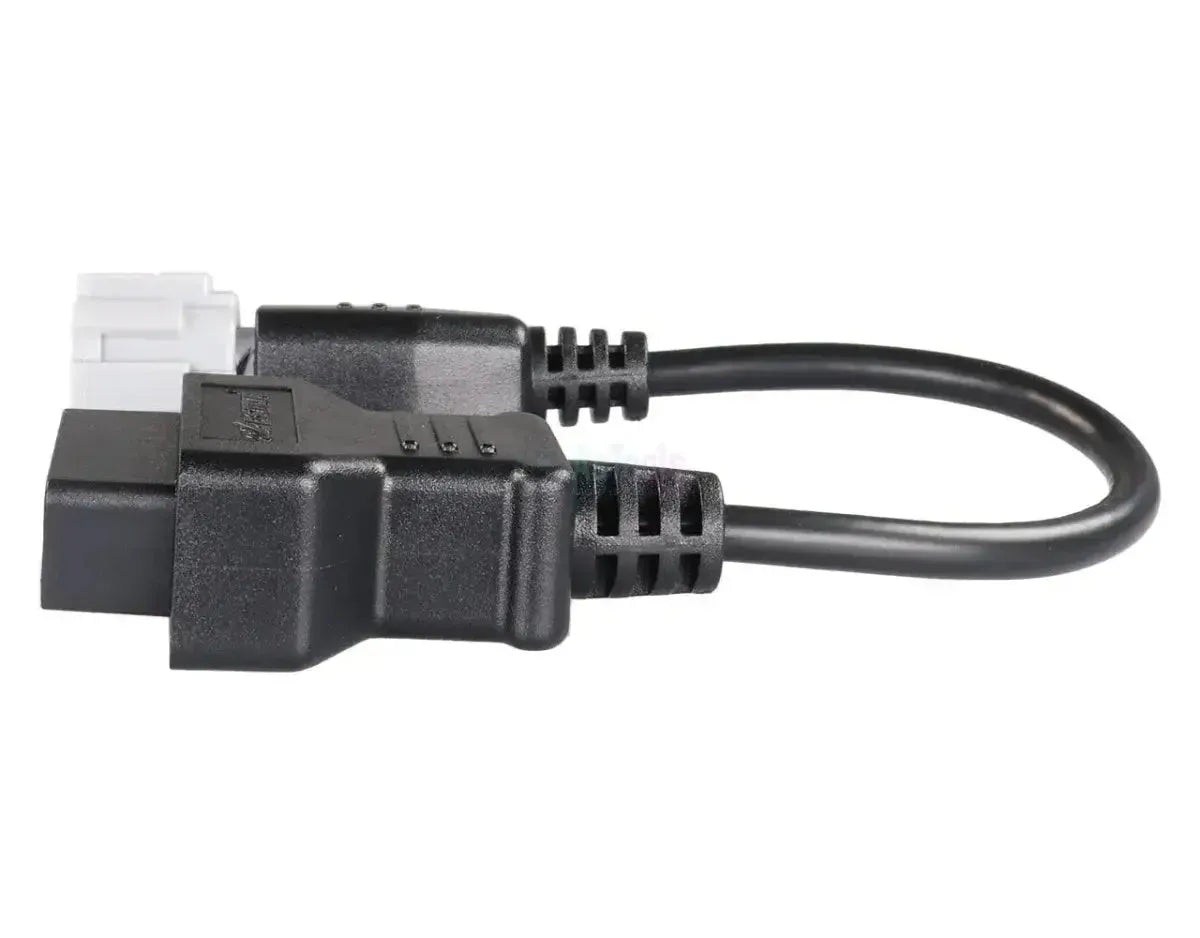

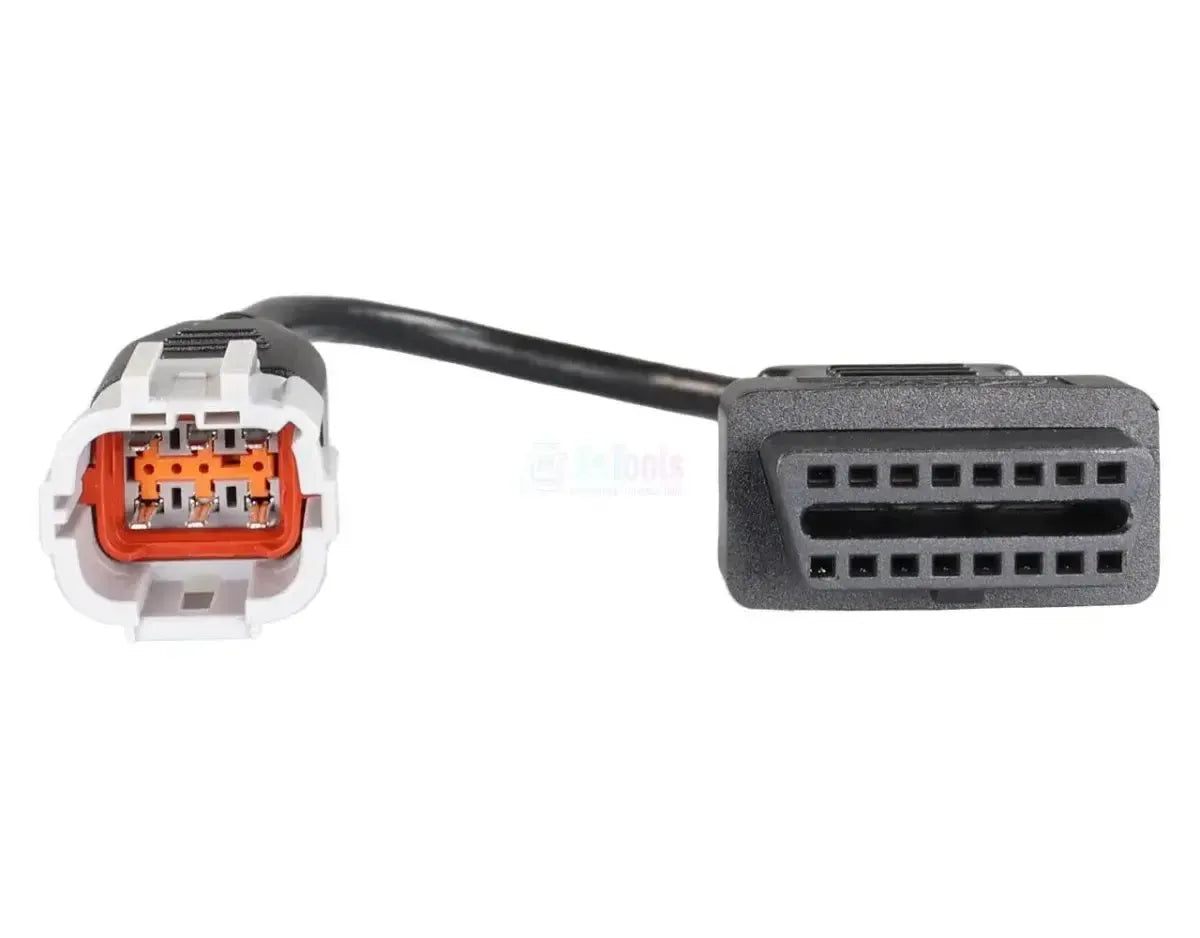

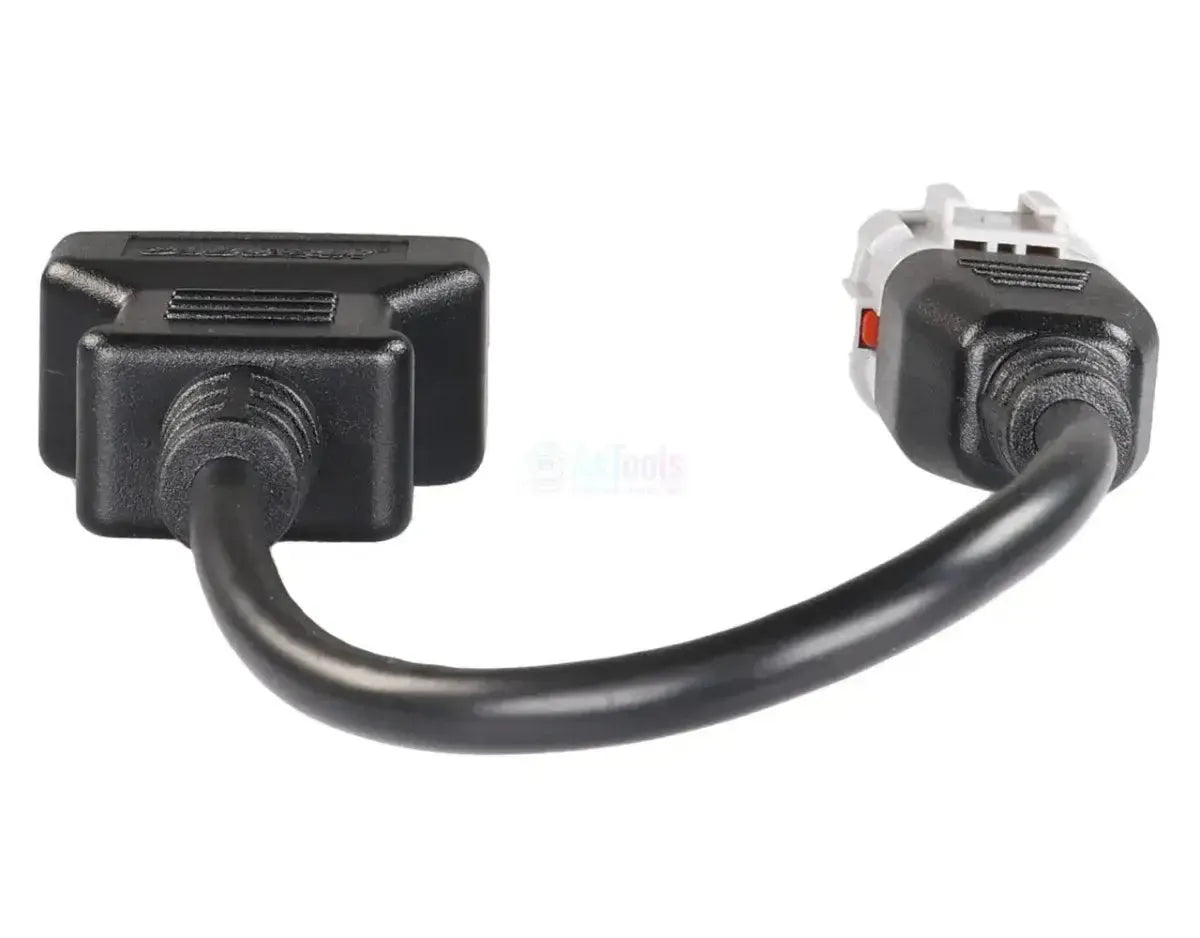

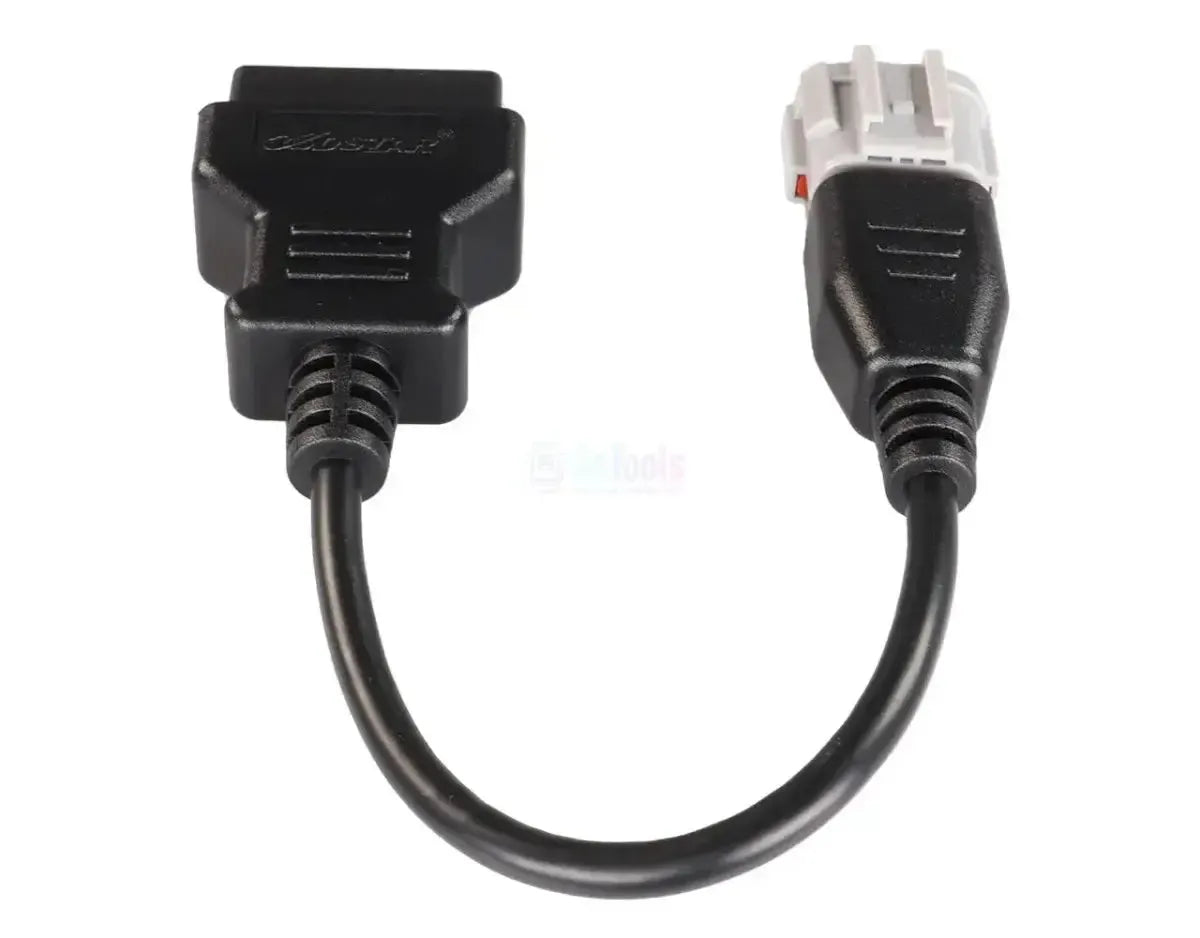

\nThe OBDSTAR M020 connects the 6-pin motorcycle connector for Aeon/Benelli models to 16-pin OBD2 (J1962)-connection for your OBDSTAR equipment. The 6-pin side connects to the diagnostic connectorfrom the motorcycle, the 16-pin connector on the device.\n

Aeon and Benelli, including the Benelli DSK-platform, use a manufacturer-specific 6-pin diagnostic pinout that does not fit into an OBD2 port. This cable converts that pinout to the standardisedJ1962 connector pinout. Diagnostic signals are transmitted via the K-lineof via another supported protocol present in the motorcycle; which one depends on the specific model. The cable provides thephysical and electrical connection and performs no signal conversion itself. What you can reading, is determined by the OBDSTAR software on your own device.\n

KEY FEATURES

✔Aeon and Benelli with single cable type — including the Benelli DSK platform, provided the motorcycle features the 6-pin diagnostic connector.
✔Converted to J1962 connector layout— the manufacturer-specific pinout is converted to the standard format expected by the device.
✔Directly onto the OBD2 port— the J1962 connector on the device side connects directly to compatible OBDSTAR equipment without an intermediate adapter.
✔No active electronics— the connection is passive, which eliminates the cable as a potential source of interference.

IMPORTANT NOTES

✕Protocol varies by motorcycle — the cable does not translate protocols; which protocol is available depends on the vehicle.
✕6-pin Aeon/Benelli connector only — motorcycles with a different connector configuration cannot be connected with this cable.
✕OBDSTAR equipment only — use with diagnostic equipment from other manufacturers is not supported.
✕Does not add vehicle coverage — available functions depend on the OBDSTAR software on your device, not on the cable.

Applications and functionality

Via the 6-pin diagnostic pinout, you access the engine electronics of the Aeon or Benelli motorcycle.

Control units you can reach

  • Engine control unit (ECU): The control unit connected to the 6-pin diagnostic connector.
  • Other control units: Whether additional units are accessible varies by motorcycle and device.

What you can do

  • Read fault codes: Retrieve stored and active diagnostic trouble codes (DTCs) from the engine control unit.
  • Clear fault codes: Remove read codes from the ECU memory after diagnosis or repair.
  • Display live data: Monitor sensor values and operating parameters, such as engine speed, temperature and throttle position.
  • Vehicle identification: Request vehicle-specific data, such as software version number and ECU identification.
  • Note: Which protocol and functions are available depends on the vehicle and the OBDSTAR software used.

Compatible vehicles and applications

The 6-pin Aeon/Benelli diagnostic connector is the determining factor, not the model. For these brands, no separate models or model years are specified; only vehicles with this diagnostic connector are supported.

  • Aeon: Motorcycles with 6-pin OBD diagnostic connector.
  • Benelli: Motorcycles with 6-pin OBD diagnostic connector.
  • Benelli DSK: Motorcycles with 6-pin OBD diagnostic connector.
💡
Good to know: The 6-pin diagnostic connector on Aeon and Benelli motorcycles is typically located beneath the seat or near the handlebars; consult your vehicle's service manual for the exact position. Verify that the diagnostic socket on your motorcycle has six pins before placing your order.

Package contents

  • 1x OBDSTAR (M020) | Aeon/Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

Specification Description
Brand OBDSTAR
Part number M020
Type Adapter cable
Application Aeon and Benelli motorcycles with 6-pin diagnostic connector
Vehicle-side connection Aeon/Benelli 6-pin OBD
Device-side connection 16-pin OBD2 (J1962)
Communication K-line or other protocol present in the vehicle
Control units Motorcycle engine control unit (ECU)
Segment Motorcycle
Supported brands Aeon, Benelli and Benelli DSK
Model range Aeon and Benelli motorcycles with the 6-pin diagnostic connector; specific models and production years are not specified
Required to use OBDSTAR diagnostic reader with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirements None; the cable operates without adapter or separate power supply
Weight 0.1 kg
