OBDSTAR  |  SKU: TCM-009 / 7.51.1

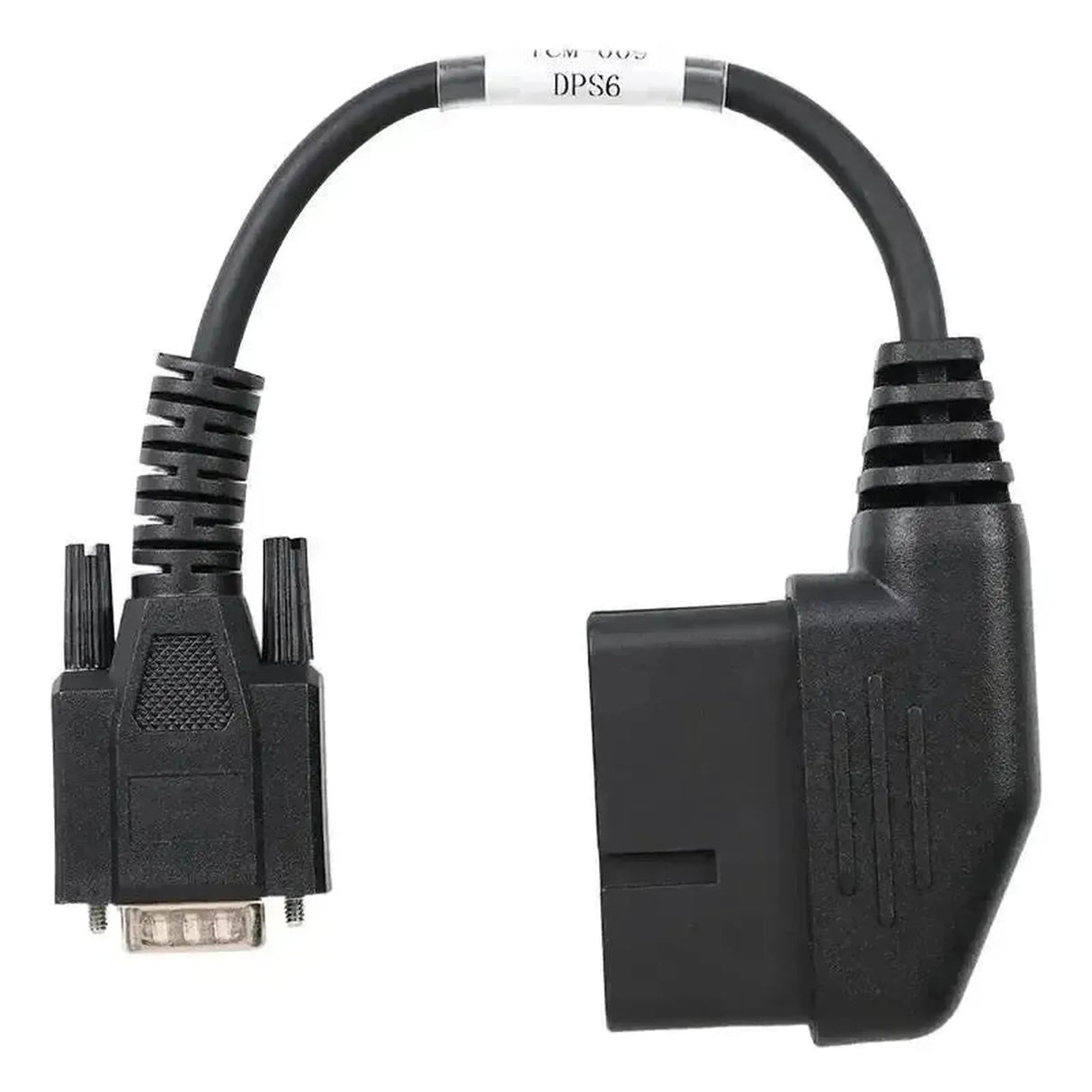

OBDSTAR (TCM-009) | Getrag (DPS6) 58-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car

€24,75 incl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The OBDSTAR TCM-009 adapter cable is specifically designed to connect a Getrag DPS6 transmission control unit (TCM) with diagnostic and programming equipment. This cable bridges the vehicle-specific 58-pin TCM connection to a standard 15-pin DB15 connector. This allows a direct hardware connection on the workbench (bench mode) for in-depth diagnosis and reprogramming of the automatic transmission.

The internal wiring ensures stable transmission of CAN-bus signals and power lines required for reading and writing data to the mechatronics. The pin-out is precisely configured for the communication protocols of the DPS6 transmission, preventing signal loss or communication errors during flash procedures. This adapter is exclusively compatible with OBDSTAR diagnostic devices or programmers and does not work with interfaces from other manufacturers.

ADVANTAGES

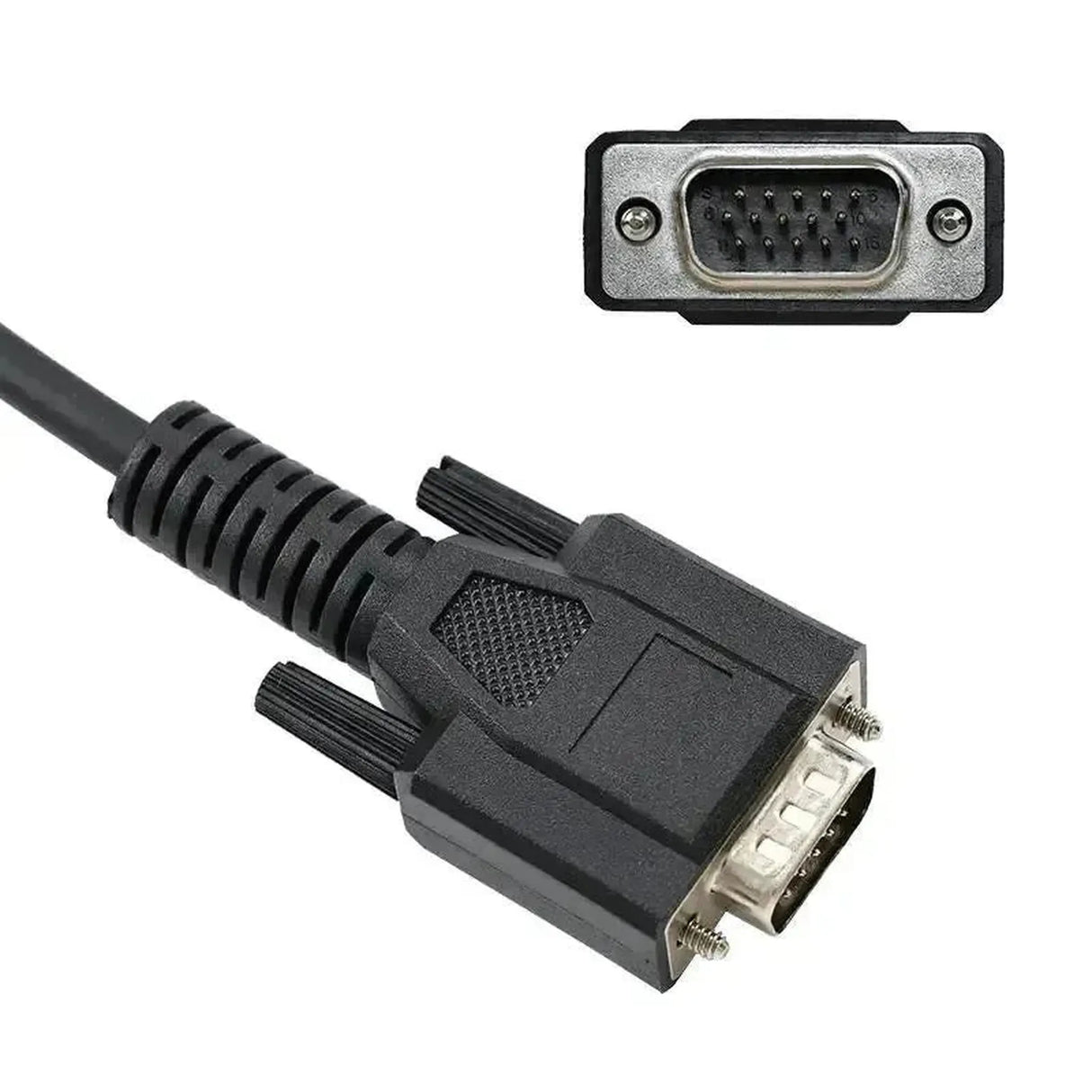

✔ Enables direct bench programming via the standard 15-pin DB15 interface.

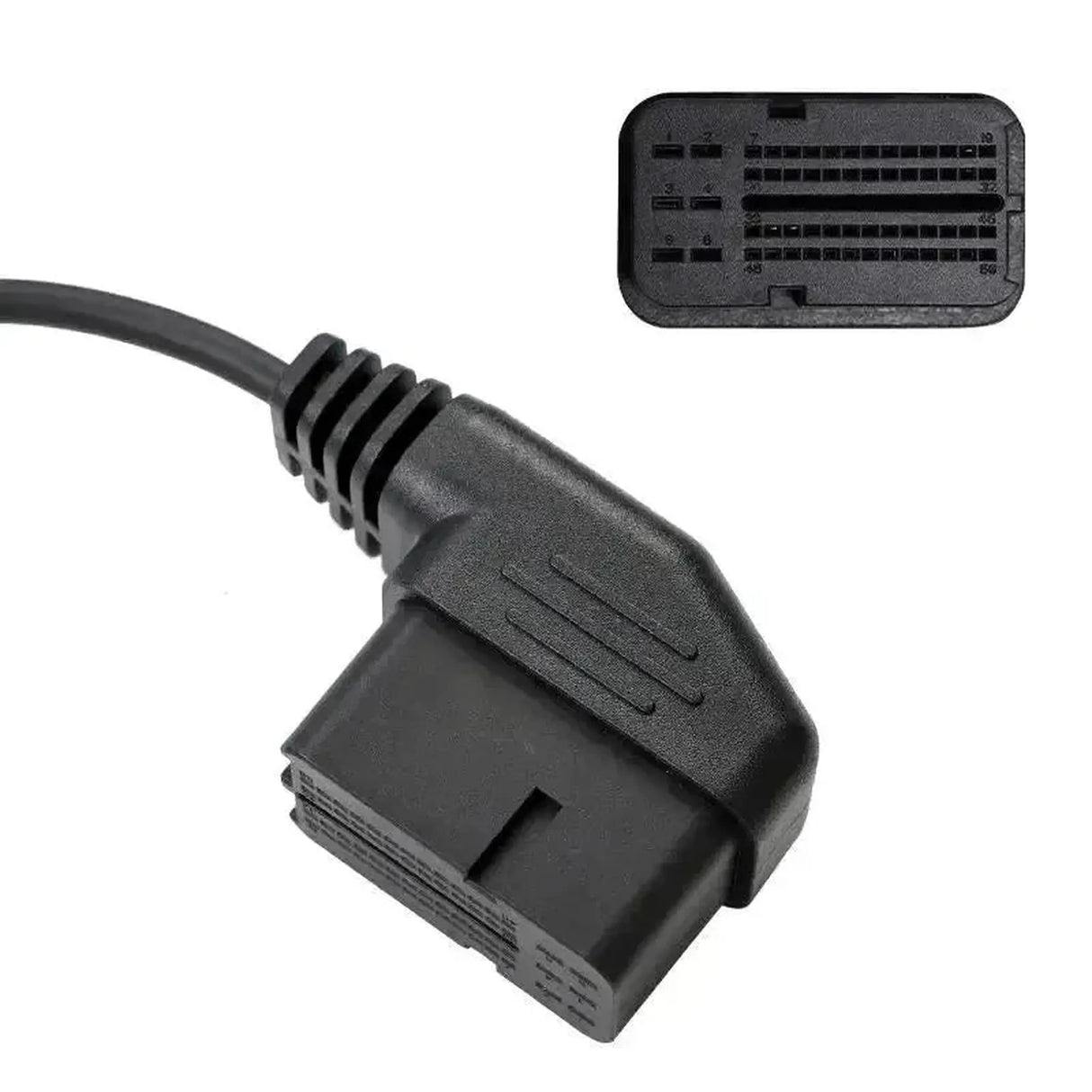

✔ Equipped with a robust 58-pin TCM connector for a loss-free hardware connection.
✔ Guaranteed stable signal transmission over the critical CAN-bus communication lines.

KEY POINTS

✕ This adapter cable is exclusively compatible with OBDSTAR diagnostic devices or programmers.
✕ Requires complete physical removal of the TCM module from the vehicle for use on the workbench.

Applications and functionalities

This adapter cable facilitates various maintenance and programming tasks on the transmission control unit outside the vehicle, provided a compatible OBDSTAR programmer is connected.

  • Bench diagnosis: Directly reading and clearing diagnostic trouble codes on the disconnected control unit.
  • Software calibration: Safely flashing or updating the transmission software via the DB15 connection.
  • Module cloning: Reading and copying EEPROM and flash memory data to a replacement TCM.
  • Live data analysis: Checking incoming and outgoing mechatronic parameters in a controlled test environment.

Compatible vehicles and applications

This adapter cable is designed for passenger cars equipped with the Getrag DPS6 (PowerShift) dual-clutch transmission with the 58-pin TCM configuration.

Ford:

  • B-Max 1st Generation: (2012 - 2017)
  • EcoSport 2nd Generation: (2013 - 2021)
  • Fiesta 6th Generation: (2008 - 2017)
  • Focus 3rd Generation: (2011 - 2018)
💡
Good to know: Always ensure a stable and constant external power source on the OBDSTAR device during bench applications to prevent voltage dips and resulting write or read errors in the TCM memory.

Package Contents

  • 1x OBDSTAR (TCM-009) | Getrag (DPS6) 58-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
