OBDSTAR | SKU: TCM-010 / 7.51.2

OBDSTAR (TCM-010) | Getrag (VGS2-FDCT) 12-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-010) | Getrag (VGS2-FDCT) 12-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-010 / 7.51.2
Price: 24.75 EUR
Availability: OutOfStock

€24,75 incl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

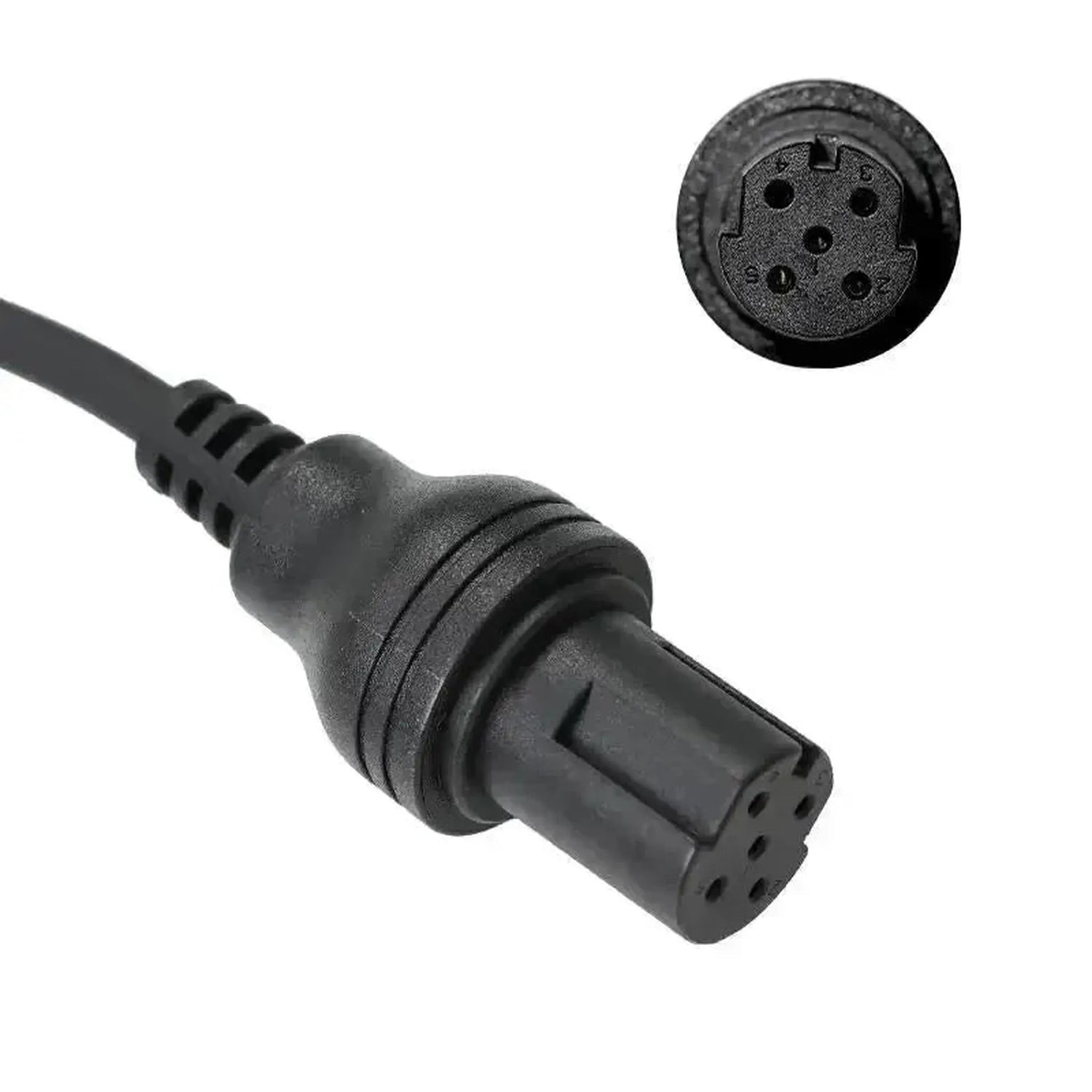

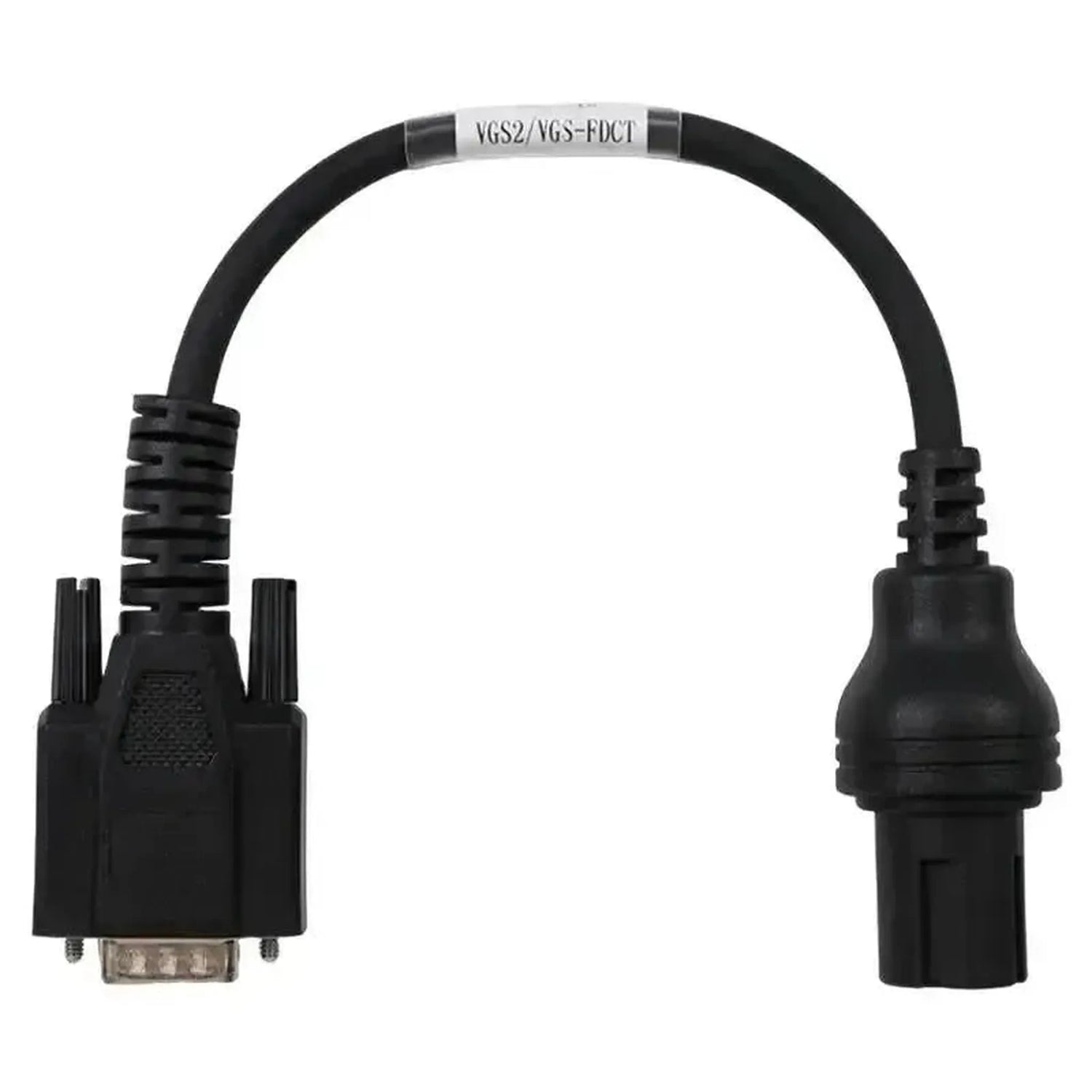

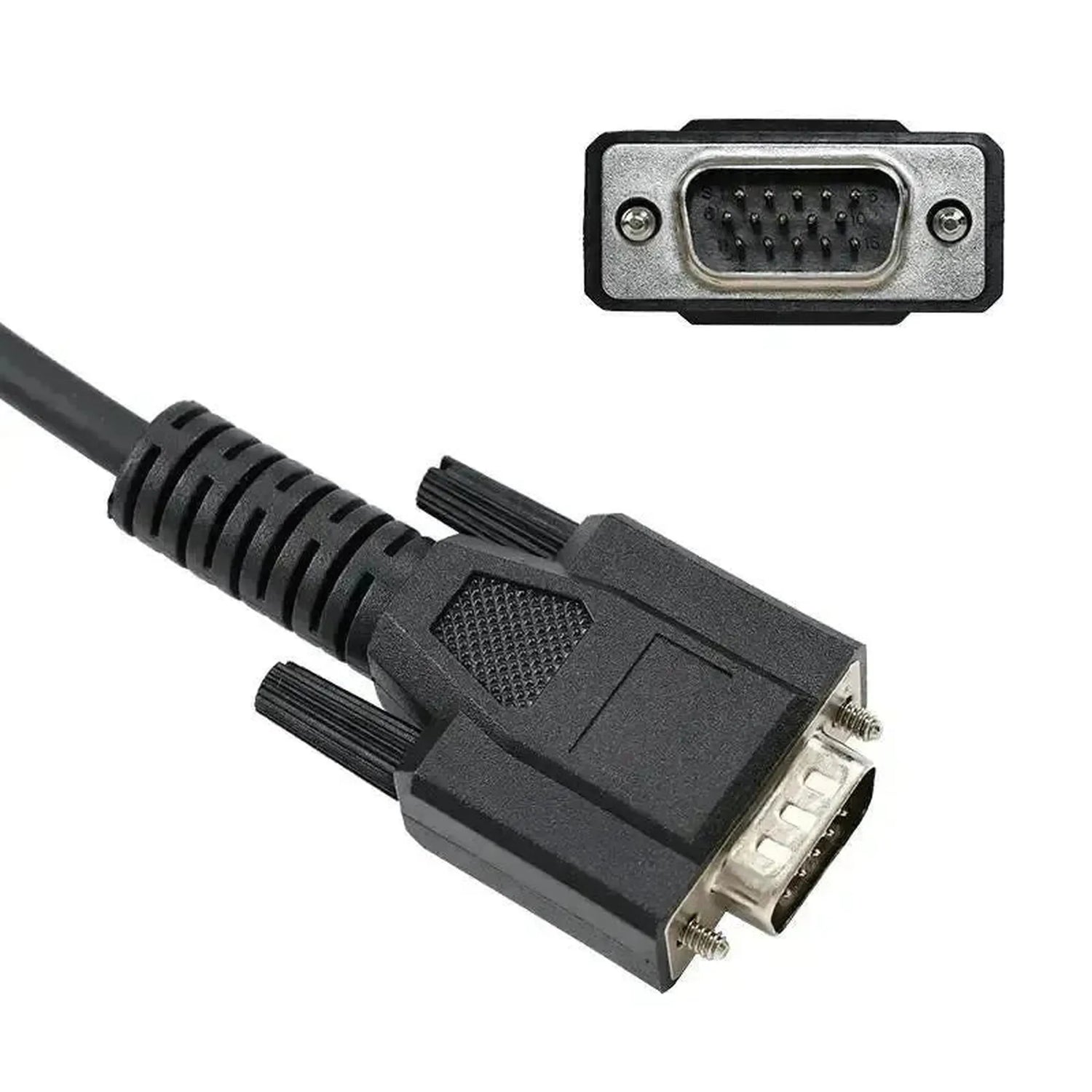

The OBDSTAR TCM-010 adapter cable is specifically designed for direct connection of OBDSTAR programming equipment to the Transmission Control Module (TCM) of Getrag VGS-FDCT and VGS2-FDCT automatic transmissions. The cable features a 15-pin DB15 connector on one end for interface connection and a brand-specific 12-pin TCM plug on the other. This physical connection is essential for bench operations requiring direct access to the transmission control unit in various Mercedes-Benz and Infiniti passenger cars.

The adapter facilitates stable signal transmission and uninterrupted power supply outside the vehicle, allowing the technician to safely perform memory manipulations. The internal pin configuration routes the necessary CAN-bus signals directly from the mechatronics to the diagnostic interface without interference from the surrounding vehicle network. This minimizes communication errors during reading, writing, or resetting EEPROM and flash data.

ADVANTAGES

✔ Direct connection to the TCM for bench operations without dependence on the vehicle's power circuit.

✔ Preconfigured pin-out prevents incorrect connections to the sensitive mechatronics pins.

✔ Stable CAN-bus communication for safe reading and writing of transmission data.

KEY POINTS

✕ Only compatible with OBDSTAR readers and programmers.

✕ Not intended for in-vehicle vehicle diagnostics via the regular OBD2 port.

✕ Supports only Getrag transmissions of the VGS-FDCT and VGS2-FDCT types.

Applications and functionalities

This adapter cable supports various advanced tasks on the transmission control unit when physically connected outside the vehicle to a compatible OBDSTAR interface.

TCM cloning: Reading and overwriting the complete EEPROM and flash memory sections to duplicate or replace a defective control unit.
Bench programming: Direct data exchange with the transmission module to perform software updates and specific calibrations without a vehicle interface.
Module reset (Virginizing): Erasing stored immobilizer keys or chassis numbers in the TCM to prepare the module for installation in another vehicle.
Direct data extraction: Locally reading current configuration files and error codes directly from the mechatronics.

Compatible vehicles and applications

The adapter cable is compatible with the vehicle models listed below equipped with a Getrag 7-speed automatic transmission (VGS-FDCT or VGS2-FDCT).

Infiniti:

Q30: (2015 - 2019)
QX30: (2016 - 2019)

Mercedes-Benz:

A-Class (W176): (2012 - 2018)
B-Class (W246): (2011 - 2018)
CLA-Class (C117): (2013 - 2019)
GLA-Class (X156): (2013 - 2019)

💡

Good to know: For stable data transfer, it is essential to check that the pins on the mechatronics are completely free of transmission oil. Contamination increases resistance, which directly disrupts CAN-bus communication with the programmer.

Package Contents

1x OBDSTAR (TCM-010) | Getrag (VGS2-FDCT) 12-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
