OBDSTAR  |  SKU: T007

OBDSTAR (T007) | Volkswagen A/C Connector – 15-pins DB15 Adapter Cable | Passenger Car

€15,95 incl.
€13,18 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

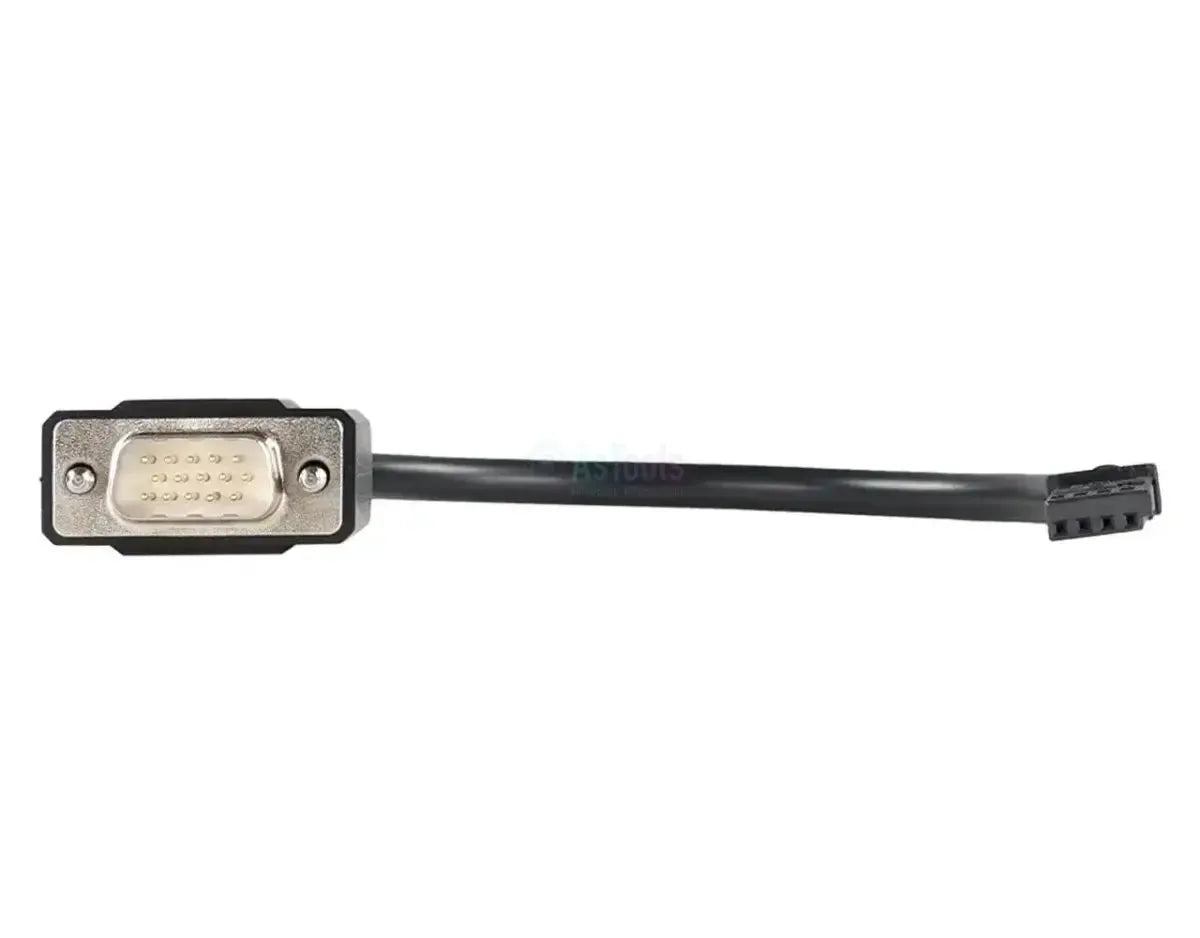

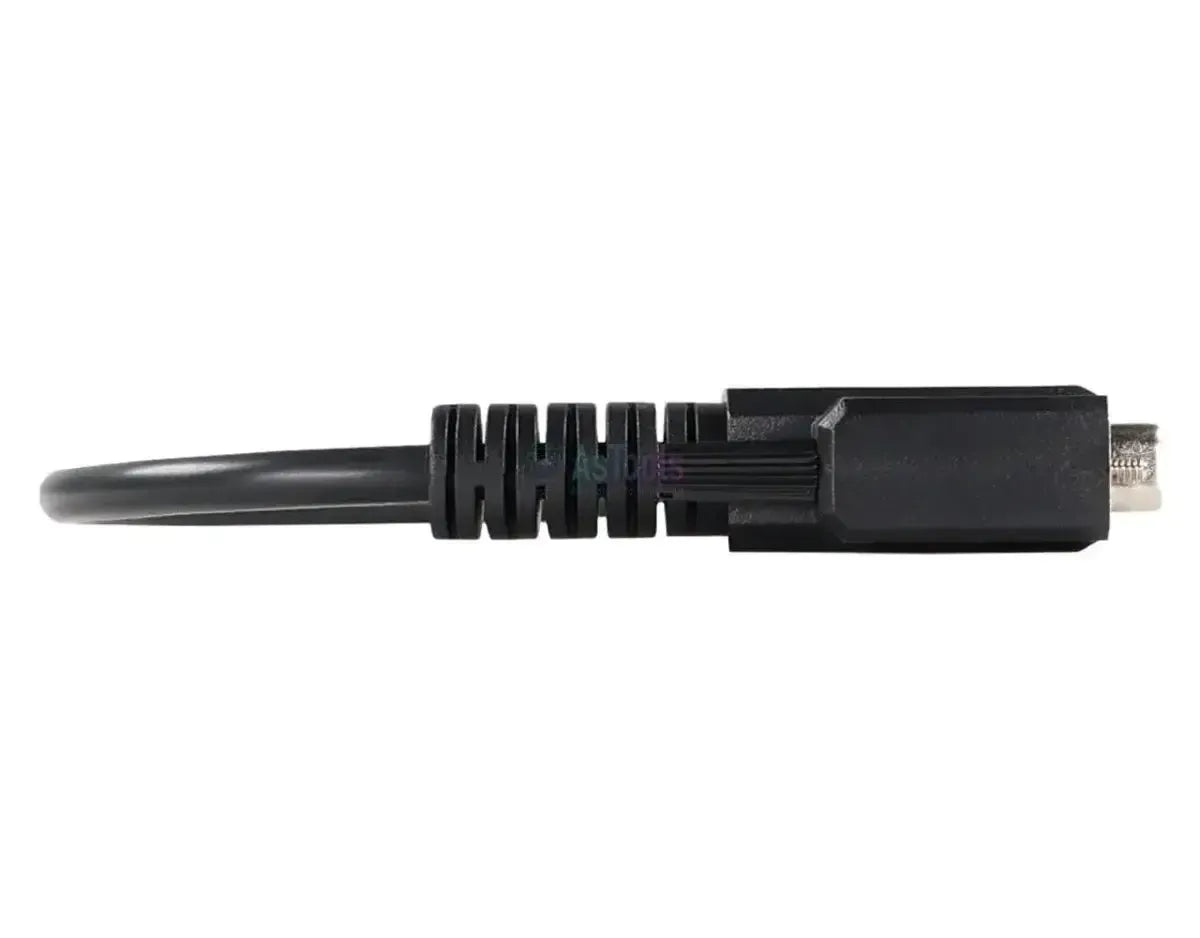

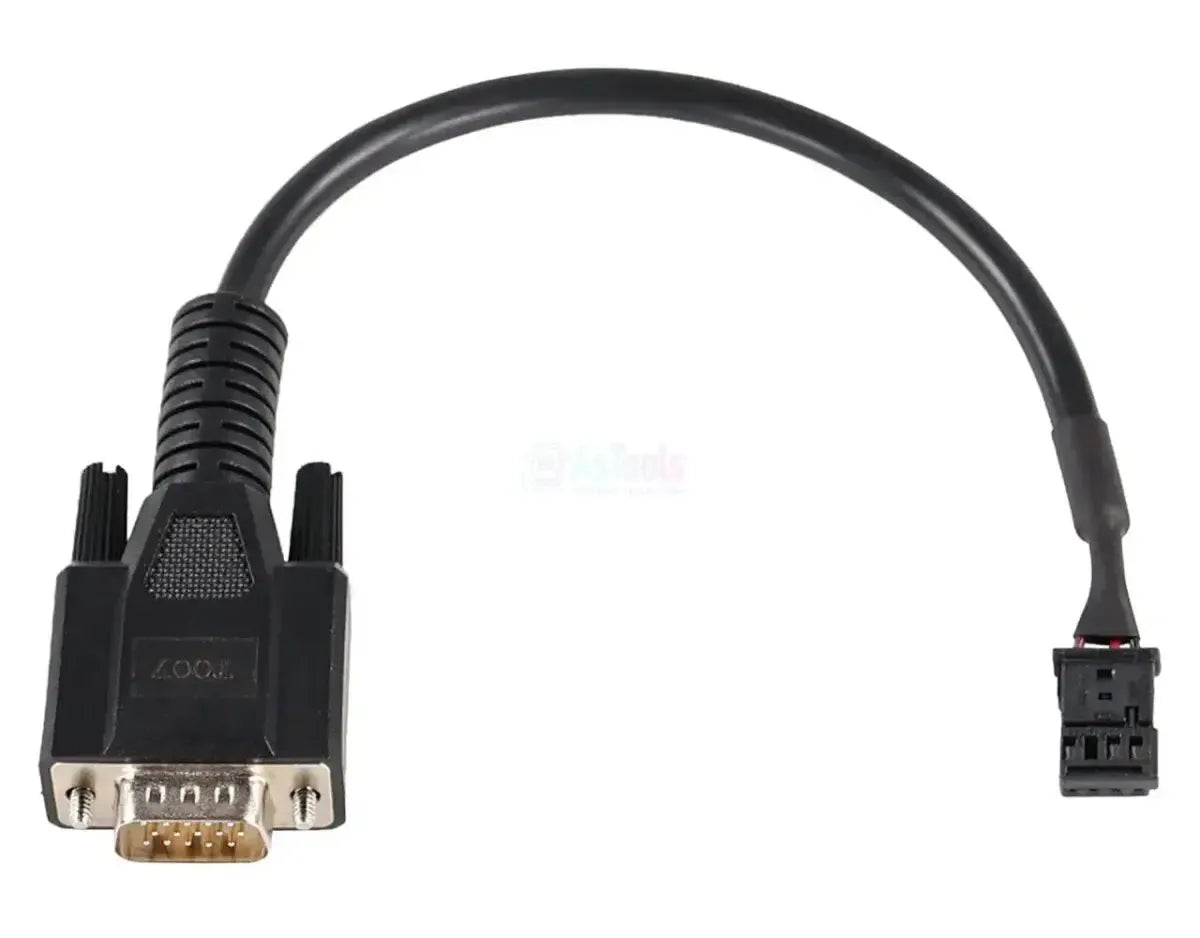

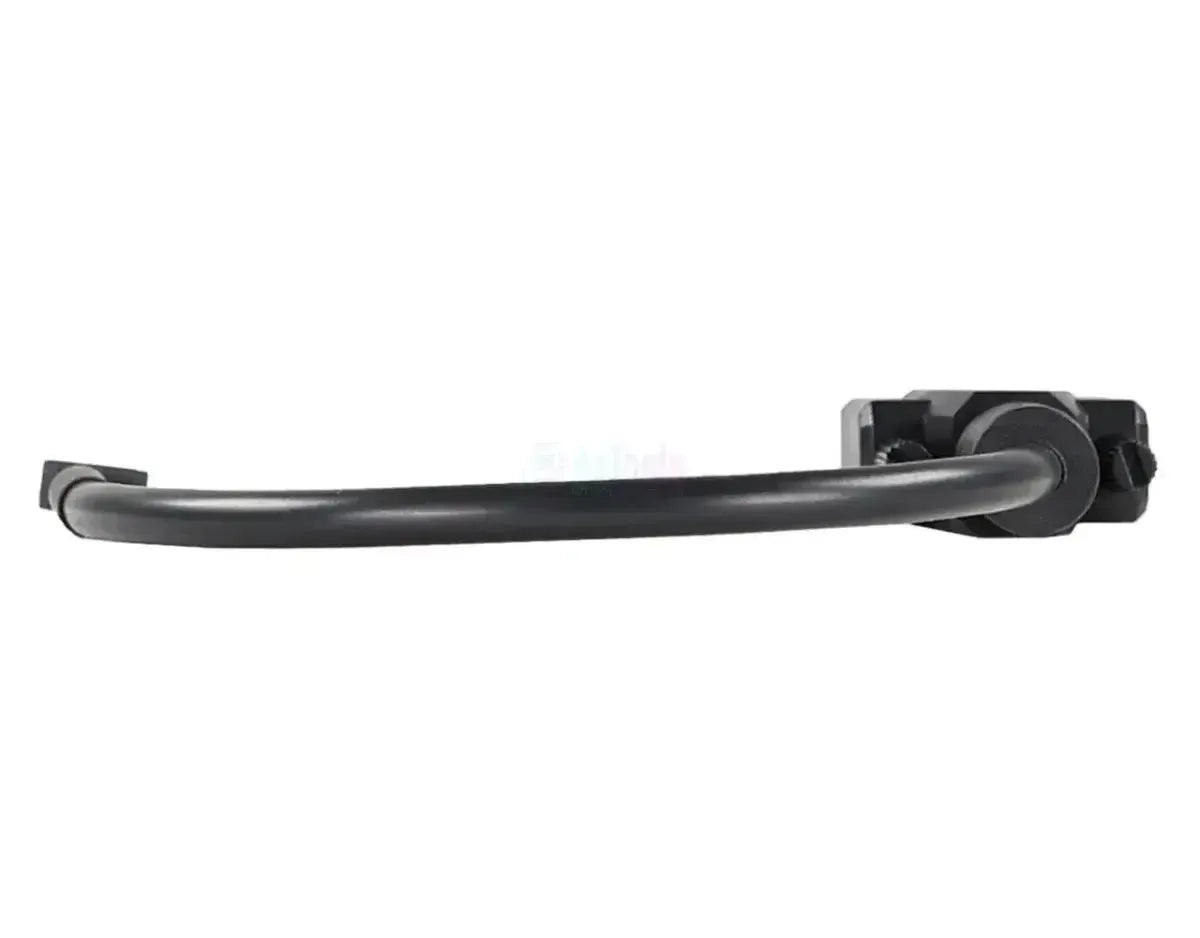

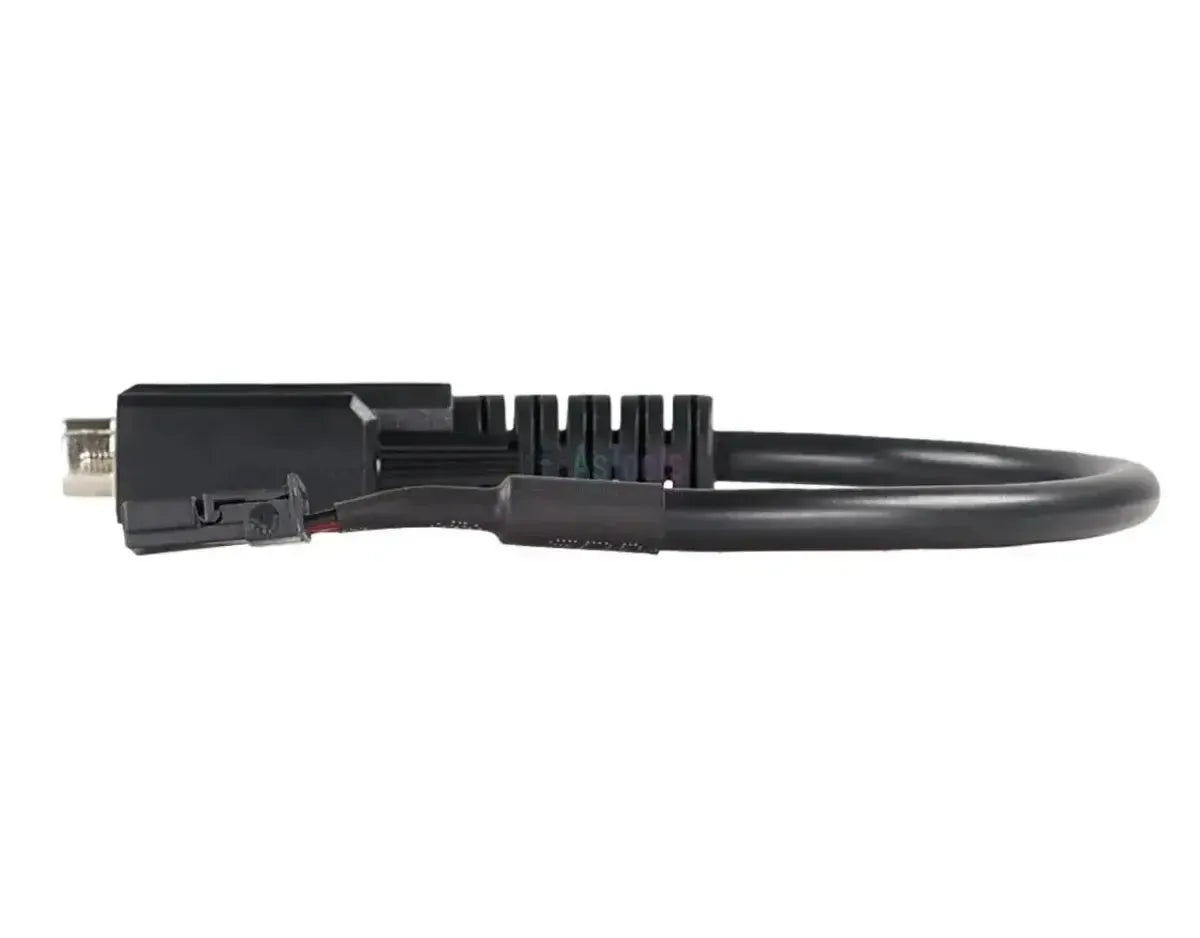

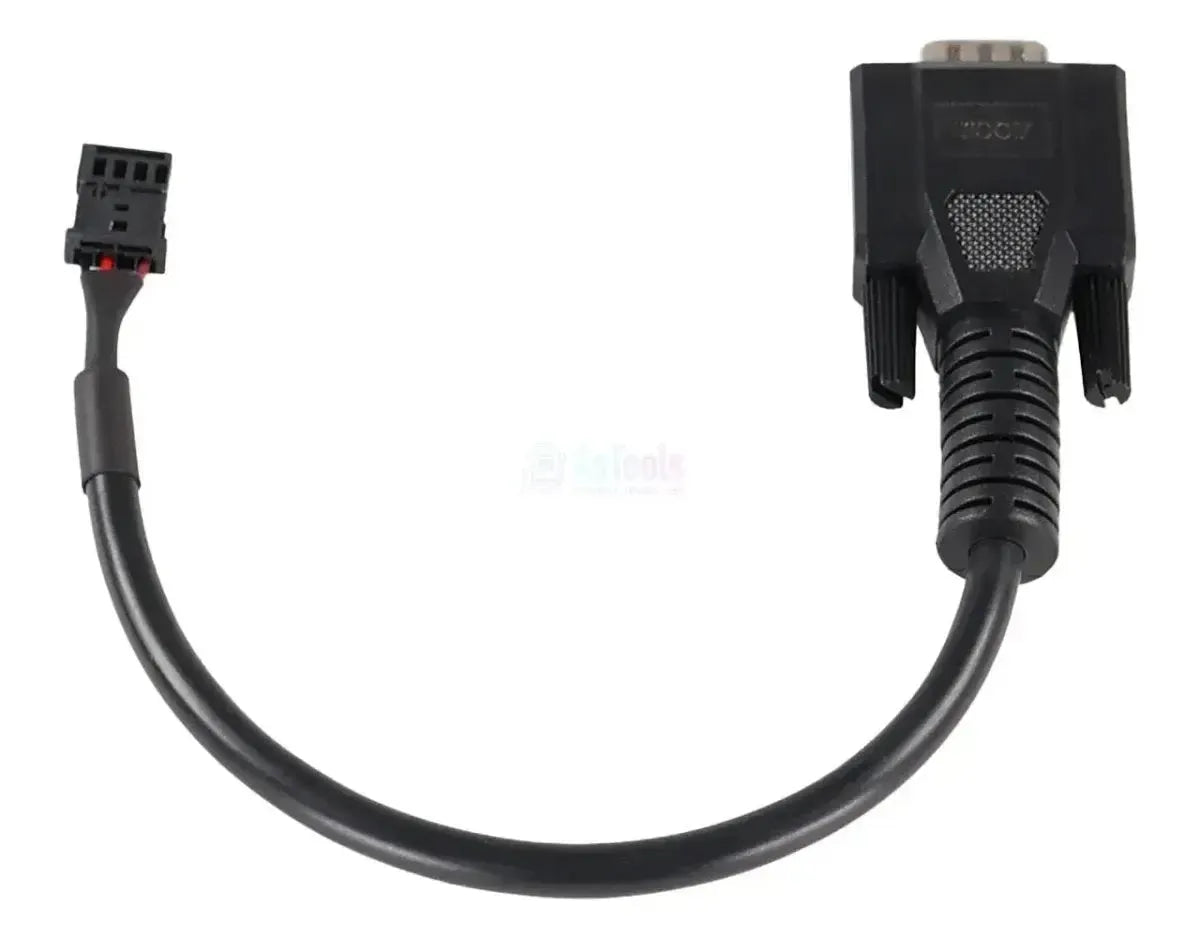

The OBDSTAR T007 connects a 15-pin DB15 connector on the device side to a vehicle-specific air conditioning connector on the vehicle side. This connector is located behind or directly on the air conditioning control panel in the dashboard of Volkswagen passenger vehicles.

The A/C control panel is a separate module that is not accessed via the standard diagnostic route. This cable provides a direct connection between the OBDSTAR diagnostic platform and the panel module, bypassing the OBD2 port of the vehicle. This allows testing of the control panel illumination and associated signal lines, amongst other functions. The cable provides access to this module only; general vehicle diagnostics remain outside its scope. The panel must be removed from the dashboard to make the connection. The source does not specify particular Volkswagen models or model years: only vehicles with a matching A/C connector are compatible, and which tests are available depends on your diagnostic platform.

ADVANTAGES

✔Direct panel module access — the vehicle-specific connector connects without modification to the vehicle wiring.
✔Illumination testing supported — the operation of the individual panel lighting can be tested directly.
✔Fits directly to the diagnostic platform — the DB15 connector connects directly to the platform port of compatible OBDSTAR equipment.
✔Independent of the OBD2 port — the module is assessed without the vehicle network interfering.

LIMITATIONS

✕OBDSTAR only — the cable does not work with diagnostic equipment from other manufacturers.
✕No extended coverage — the cable makes the connection only; which panel tests can be performed depends on your diagnostic platform.
✕Dashboard removal required — the connection does not run through the OBD2 port: the control panel must be removed first.
✕No model or year information available — the source refers only to 'models with A/C connector'. Verify the connector type before assuming your vehicle is compatible.

Applications and functionality

Via the OBDSTAR test platform, the cable supports the following operations on the A/C panel module.

Control units you can access

  • A/C panel module:The air conditioning control module is connected directly via the DB15 connection.
  • No other control units:The connection does not route through the OBD2 port and therefore does not access other vehicle systems.

What you can do

  • A/C panel illumination test:Check the operation of the panel lighting through direct communication with the module.
  • Module function test:Control functions of the A/C panel module and assess the response of individual components.
  • Evaluate module before replacement:Determine whether the panel itself is causing the fault.
  • Operate outside the vehicle network:Test the module without using the OBD2 port.
  • Important note:The cable is vehicle-specific; outside the confirmed Volkswagen application with matching A/C connector, it cannot be used.

Compatible vehicles and applications

The A/C connector on the control panel is the determining factor, not the model or year of manufacture.The source does not provide a detailed model list. Only vehicles with a matching connector behind the panel are suitable.

Volkswagen:

  • Models with A/C connector (15-pin DB15 connection):Consult the OBDSTAR compatibility list for exact models and years of manufacture.
💡
Good to know:The A/C panel connector is located behind or directly on the control panel in the dashboard; the panel must be removed to connect the cable.Check the shape of the panel connector in your vehicle before ordering.

Package contents

  • 1xOBDSTAR (T007) | Volkswagen A/C Connector – 15-pin DB15 Adapter Cable | Passenger vehicle

Technical specifications

Specification Description
Brand OBDSTAR
Part number T007
Type Adapter cable
Application Testing the A/C panel module in Volkswagen passenger vehicles
Vehicle-side connection Volkswagen A/C Connector
Device-side connection 15-pins DB15
Control units A/C panel module (air conditioning control panel)
Segment Passenger vehicle
Supported brands Volkswagen
Model range Volkswagen models with matching A/C connector; no production years specified
Required to use OBDSTAR programmer with 15-pins DB15 interface, such as the DC706 with MP001 kit
Additional requirements OBDSTAR test platform; removal of the A/C control panel
Weight 0.1 kg
