OBDSTAR | SKU: TCM-004

OBDSTAR (TCM-004) | Temic (DL382) 23-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

Name: OBDSTAR (TCM-004) | Temic (DL382) 23-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car
Brand: OBDSTAR
SKU: TCM-004
Price: 31.95 EUR
Availability: InStock

€31,95 incl.

€26,40 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

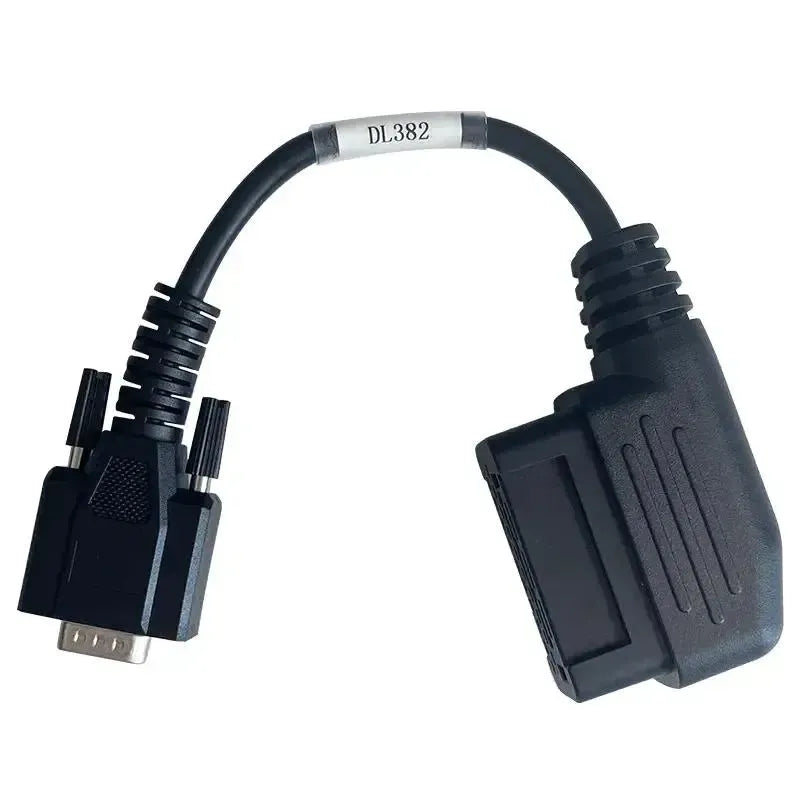

The OBDSTAR TCM-004 connects the 23-pin connector of the Temic DL382 transmission control unit on the vehicle side to the 15-pin DB15 interface of OBDSTAR programmers. The TCM is typically located on or directly adjacent to the transmission housing, where the cable is physically connected to the 23-pin connector.

The DL382 is the seven-speed automatic transmission used by the Volkswagen Group on the MLB Evo platform, among others. The cable enables communication with the control unit independently of the vehicle network, allowing the programmer to read and write directly to the memory chip of the control module. This opens up operations that are not accessible via the OBD2 port due to security layers or communication restrictions in the vehicle network. The cable provides access to the transmission control unit and nothing else; the rest of the vehicle network remains isolated. Which operations are actually executable depends on your programmer. The Audi models listed below are specified with model year and engine variant; compatibility depends on the transmission variant for each engine configuration.

ADVANTAGES

✔Operations outside OBD2 — the direct connection enables actions that are not accessible via the diagnostic port.

✔Read and write to the unit — transmission data is accessed directly on the control module memory.

✔Independent of the CAN network — communication restrictions in the vehicle network do not affect the connection.

✔Models with model year — for five Audi models, the model year and corresponding engine variants are specified.

LIMITATIONS

✕Exclusively via the DB15 interface of OBDSTAR — equipment from other manufacturers is not supported.

✕No extended coverage — the cable establishes the connection; your device's programming software determines the outcome.

✕DL382 with 23-pin connector only — other transmission types or connector configurations fall outside the scope of application.

✕Dismantling work required — the TCM must be physically accessible on the transmission, which involves work on the vehicle.

Applications and functionality

In combination with OBDSTAR programming equipment, the cable supports the following operations on the DL382 unit.

Control units you can access

Transmission control module (TCM) Temic DL382: Connected directly via the 23-pin connector on or adjacent to the transmission housing.
No other control units: The connection operates independently of the vehicle CAN network and accesses only the TCM.

What you can do

Read TCM data: Retrieve the complete memory contents, including data not available through the standard diagnostic connection.
Write TCM data: Restore modified or replacement transmission data when replacing or repairing the unit.
Identify transmission: Read configuration data and version information from the DL382 for identification and diagnostics.
Operate without vehicle network: Access the unit without relying on communication via the OBD2 port.
Note: Compatibility depends on the transmission variant for each engine configuration; verify this before purchase.

Compatible vehicles and applications

What matters is the Temic DL382 with 23-pin TCM connector, not the Audi model or year of manufacture. The vehicles listed below have been confirmed based on the presence of this control unit. Compatibility depends on the transmission variant used for each engine configuration.

Audi:

A4 (B9 / Type 8W): (From 2015) — 2.0 TFSI, 2.0 TDI, 3.0 TDI (up to 218 bhp variants)
A5 (F5 / Type 8W6): (From 2016) — 2.0 TFSI, 2.0 TDI, 3.0 TDI (lower-output variants)
A6 (C8 / Type 4K): (From 2018) — 35 TFSI, 40 TFSI, 45 TFSI, 35 TDI, 40 TDI
A7 Sportback (C8 / Type 4K8): (From 2018) — 40 TFSI, 45 TFSI, 40 TDI
Q5 (FY / Type 80A): (From 2017) — 2.0 TFSI, 2.0 TDI

💡

Good to know: The Temic DL382 TCM is typically mounted on or directly adjacent to the transmission housing; vehicle documentation provides the exact location and removal instructions specific to each model and production year. Verify the transmission variant for your engine configuration before ordering.

Package contents

1x OBDSTAR (TCM-004) | Temic (DL382) 23-pin TCM – 15-pin DB15 Adapter Cable | Passenger Vehicle

Technical specifications

Specification	Description
Brand	OBDSTAR
Part number	TCM-004
Type	Adapter cable
Application	Direct TCM access to the Temic DL382 independent of the vehicle network

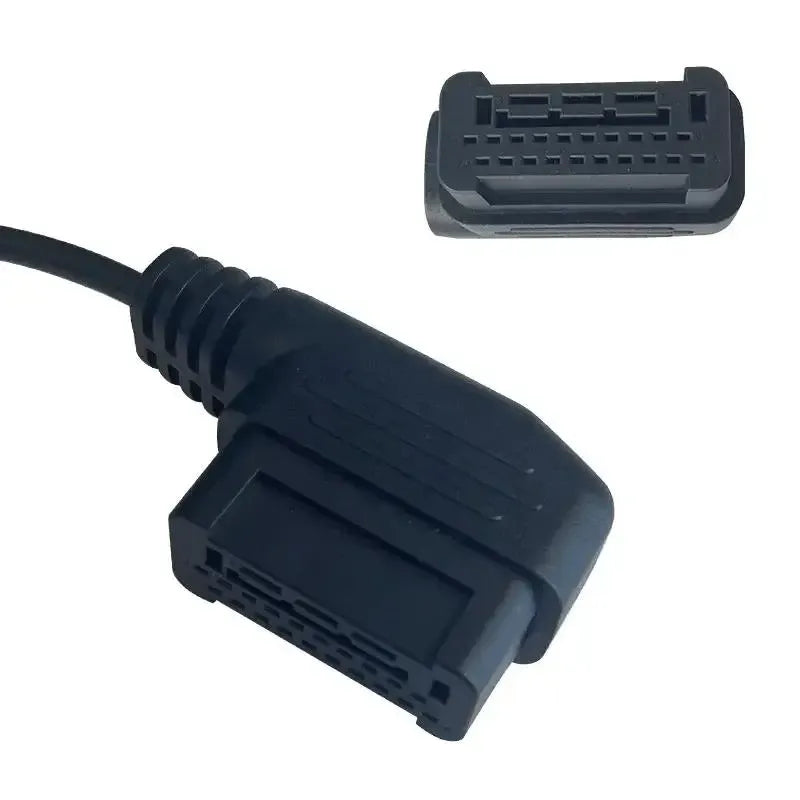

Vehicle-side connection	Temic (DL382) 23-pin TCM

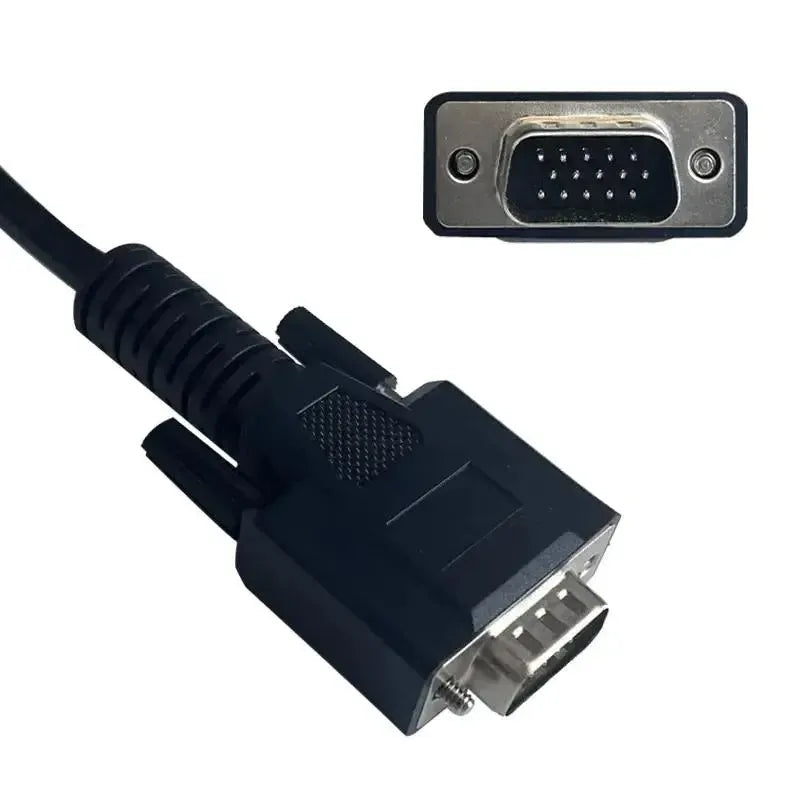

Device-side connection	15-pin DB15
Communication	Direct connection to the TCM, independent of the vehicle CAN network
Control units	DL382 transmission control unit (TCM)
Segment	Passenger vehicle
Supported brands	Audi
Model range	Audi from 2015 onwards, varies by model (see model list)
Required to use	OBDSTAR programmer with 15-pin DB15 interface, such as the DC706 with MP001 kit
Additionally required	Physical access to the TCM on the transmission; vehicle disassembly work
Weight	0.1 kg
