Mercedes SD Connect C4 Multiplexer – Banana Plugs Adapter Cable Int...
The Mercedes Banana Plug adapter cable is a specialized adapter that allows reading classic Mercedes-Benz vehicles with the SD Connect C4 multiplexer. These models are not equipped with a modern diagnostic port but use a diagnostic box with separate test buses in the engine compartment.

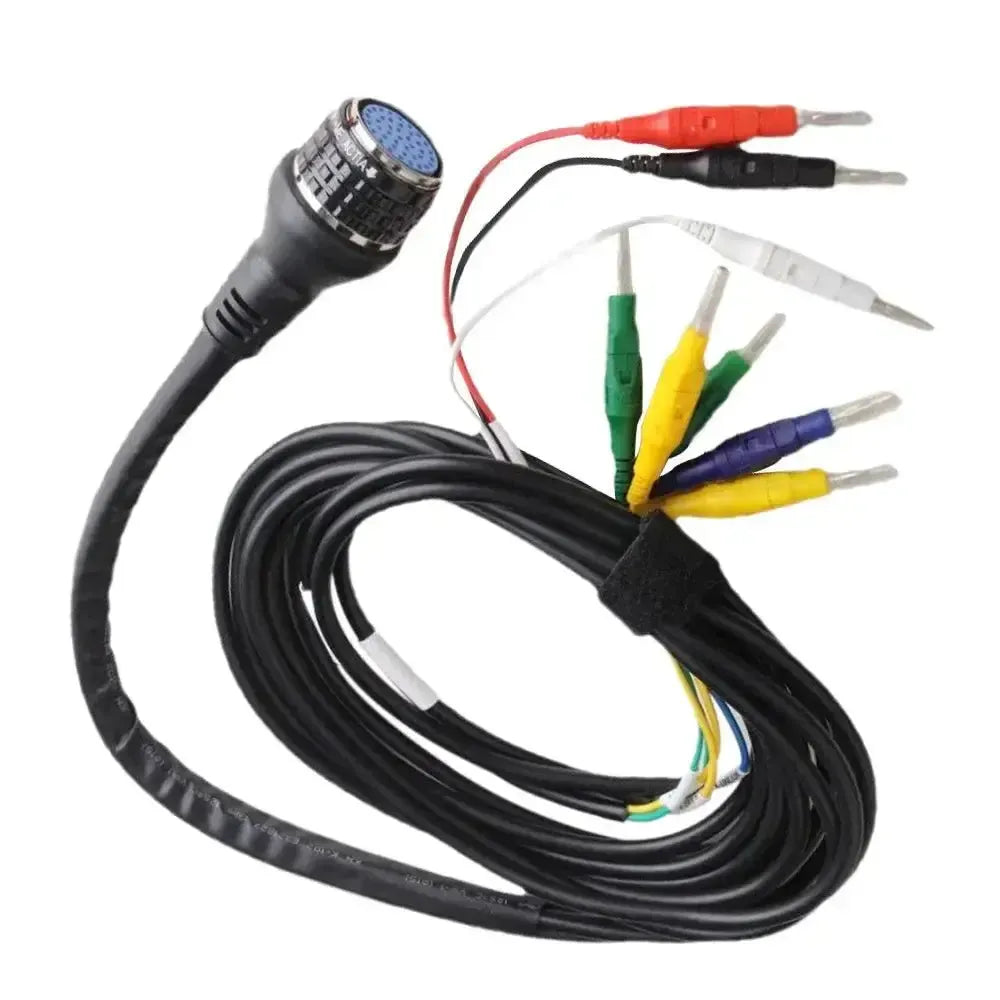

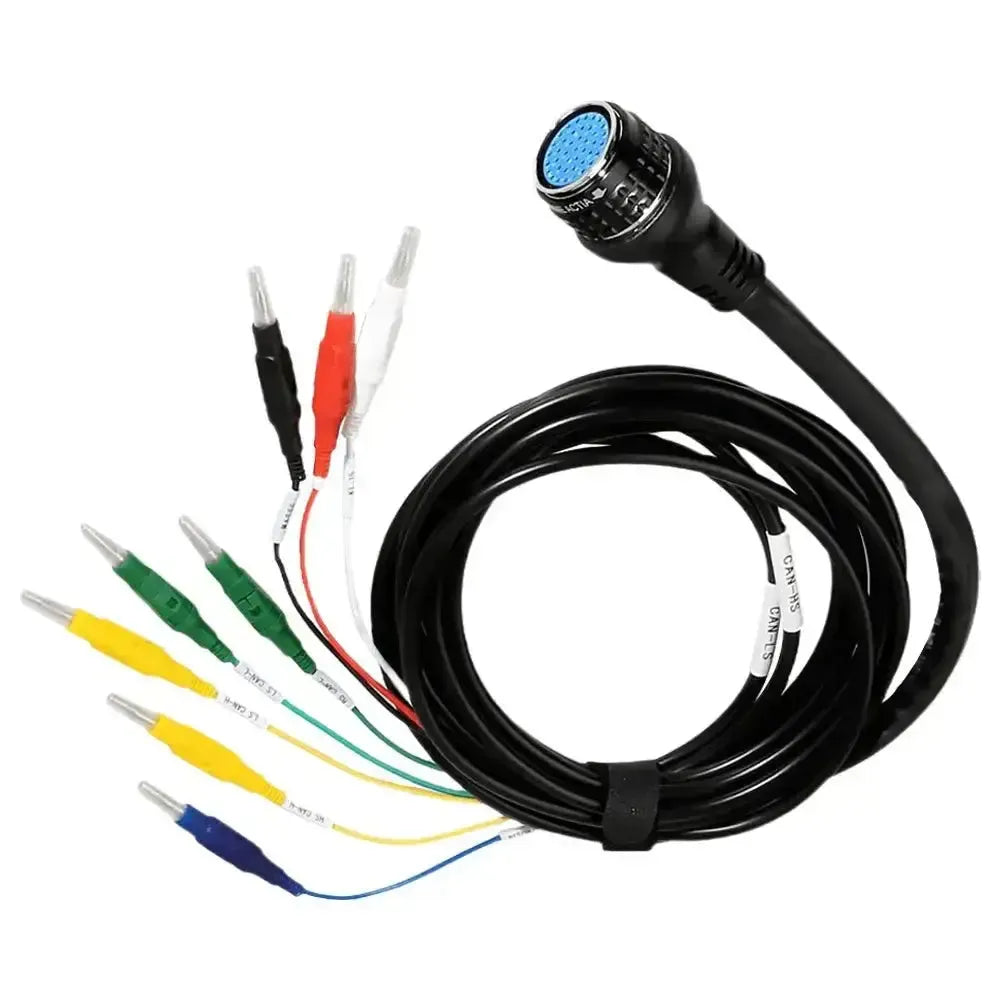

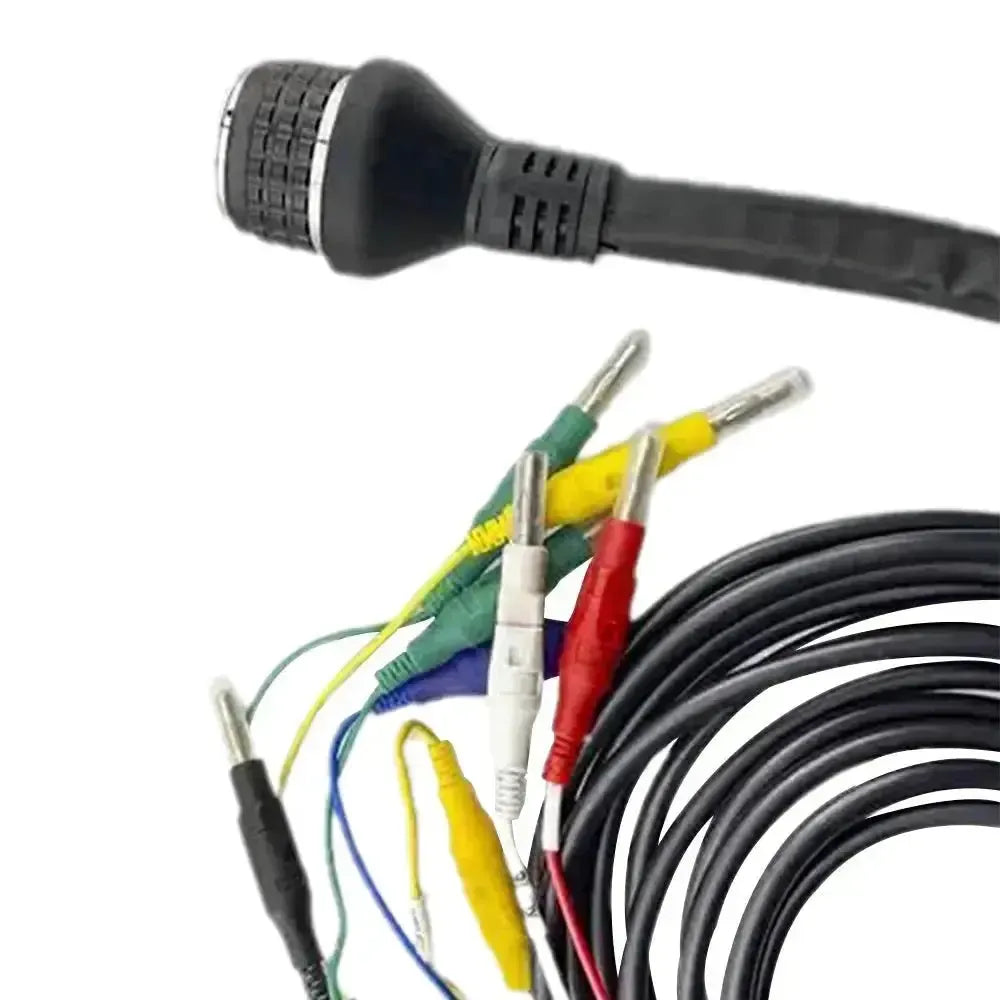

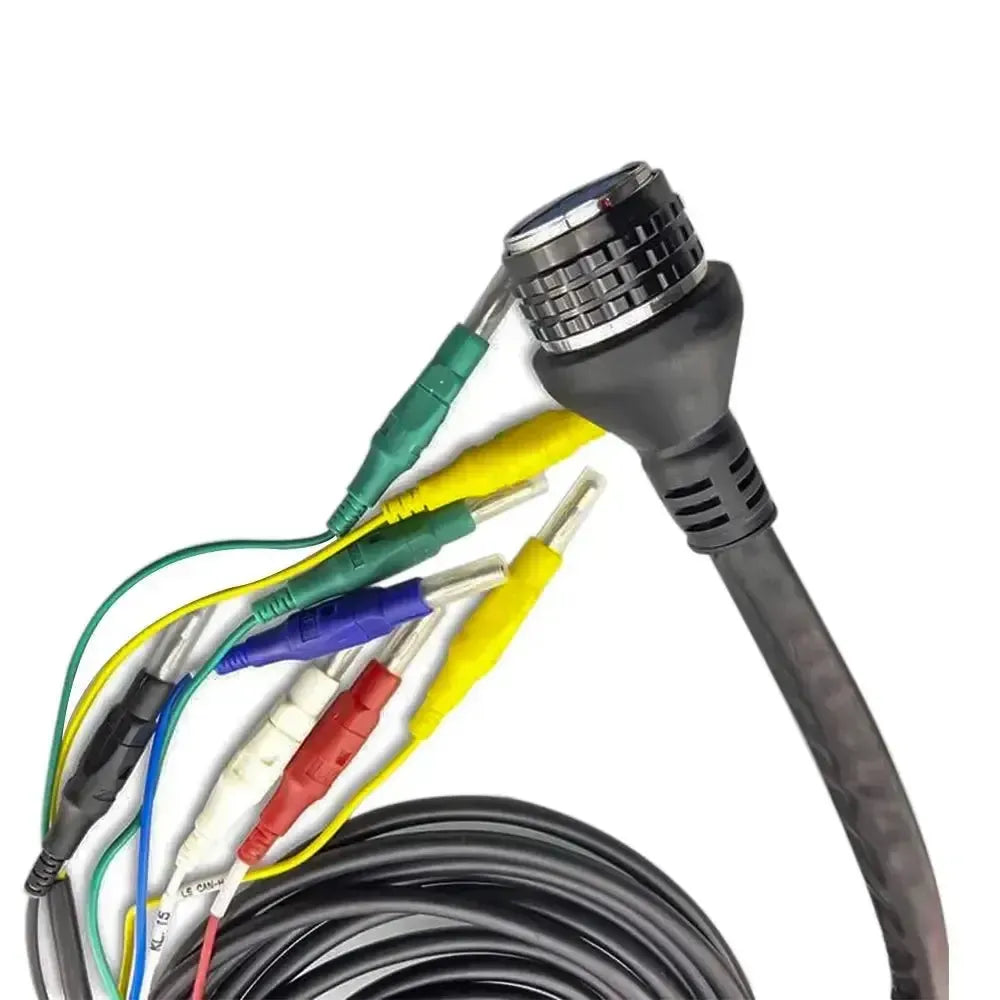

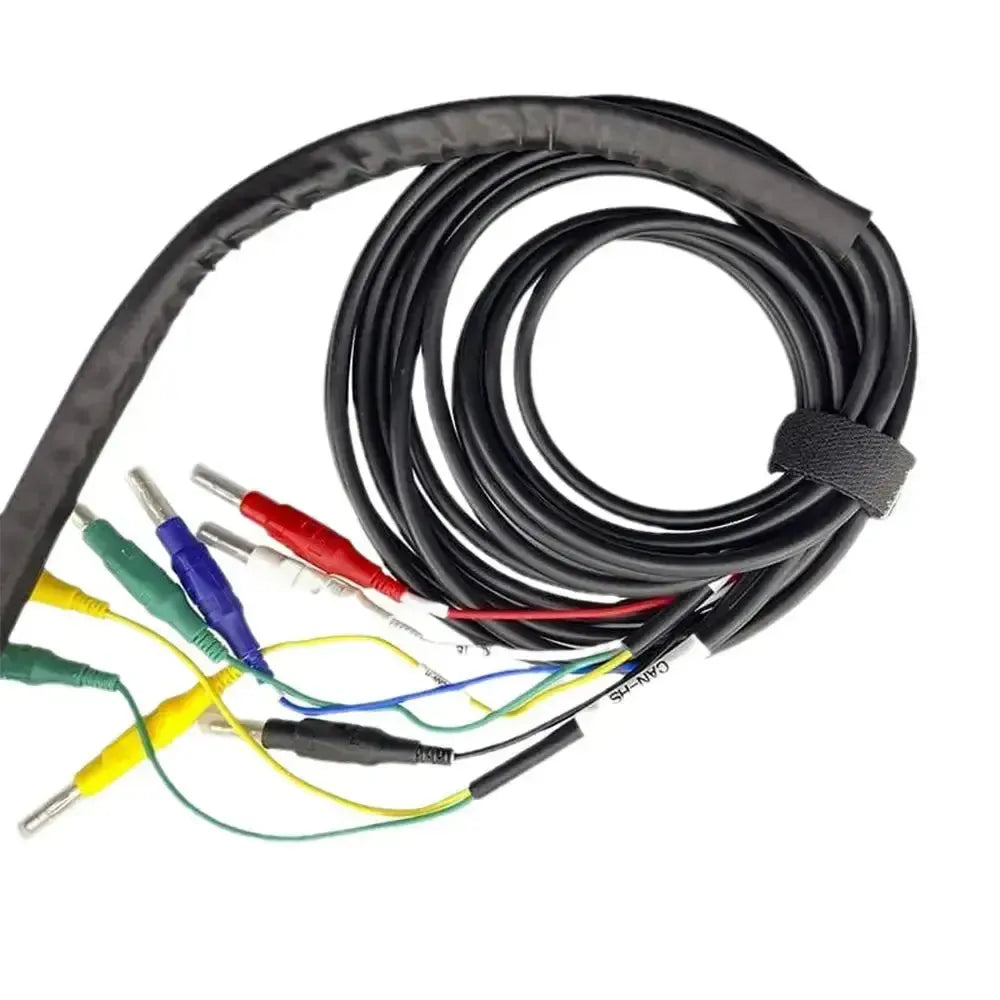

The cable features a robust C4 connector on one side and color-coded 4mm banana plugs on the other side. This allows the user to manually select the correct signal line, enabling communication via HHT-WIN or Xentry – including reading flashing codes and performing basic diagnostic tests.
Application and functionality:
This cable enables manual diagnosis on older vehicles without standardized OBD connection. Applications include:
- 12V power supply: Red plug for battery power
- Ground connection: Black plug for chassis/engine block
- K-Line signal: Connect yellow or green plug to desired test bus (e.g. engine management, ABS, airbag)
Use in combination with HHT-WIN via Xentry/DAS software or standalone tools with K-Line functionality.
Compatibility:
Hardware compatibility:
- Mercedes-Benz SD Connect C4 multiplexer (original or high-quality clone)
Vehicle compatibility: Classic models with diagnostic box (test sockets) – mostly produced before approx. 1994:
- W124 (E-Class, early versions)
- W126 (S-Class)
- W201 (190 series)
- R107 (SL-Class, late models)
Note: Not suitable for vehicles with a 38-pin or 14-pin diagnostic port.
Package Contents:
- 1x Mercedes Banana Plug Adapter Cable for SD Connect C4
Technical specifications:
| Specification | Description |
|---|---|
| Connector A | Mercedes SD Connect C4-specific circular male connector |
| Connector B | Multiple 4mm banana plugs (red, black, yellow/green) |
| Cable type | Passive diagnostic adapter cable for classic vehicles |
| Cable length | Approximately 1 meter (depending on manufacturer) |
| Pinout | Power, ground, and signal pins to be connected manually via test sockets |
