Mercedes SD Connect C4 Multiplexer – 38-pins OBD1 Adapter Cable Int...

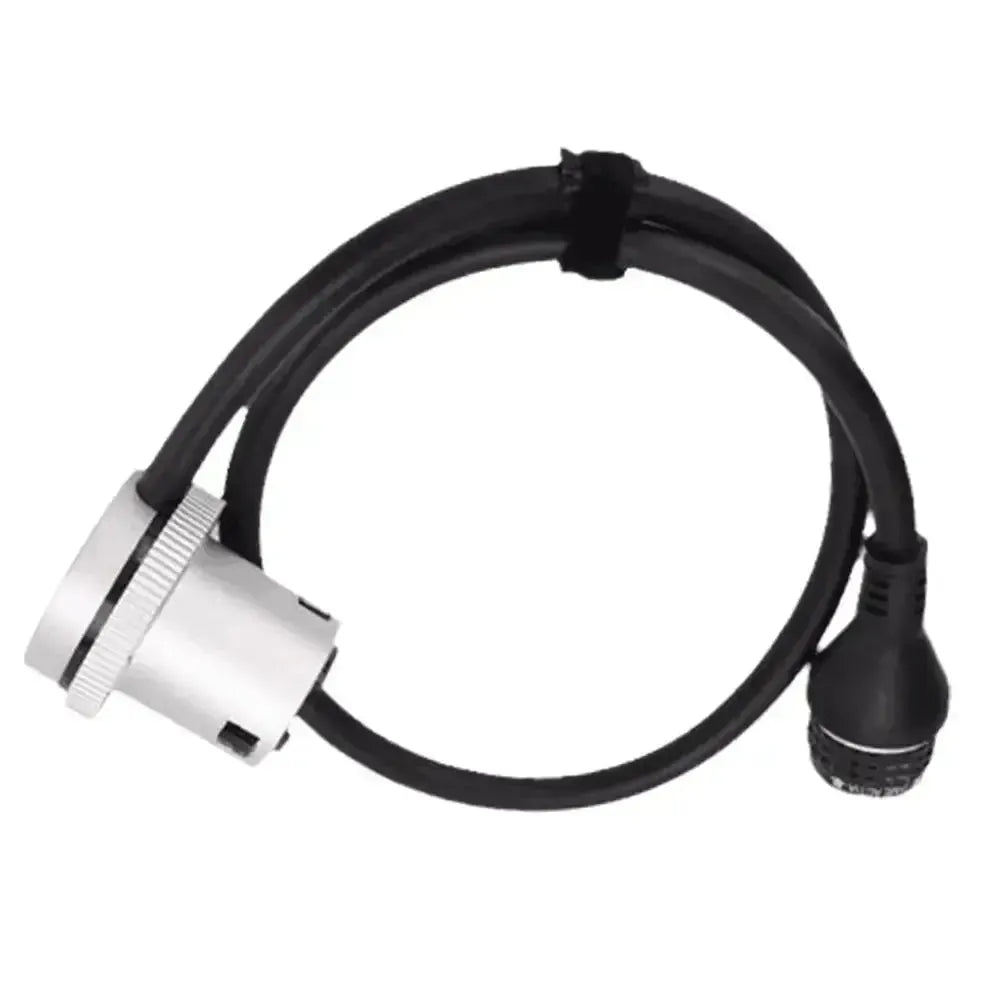

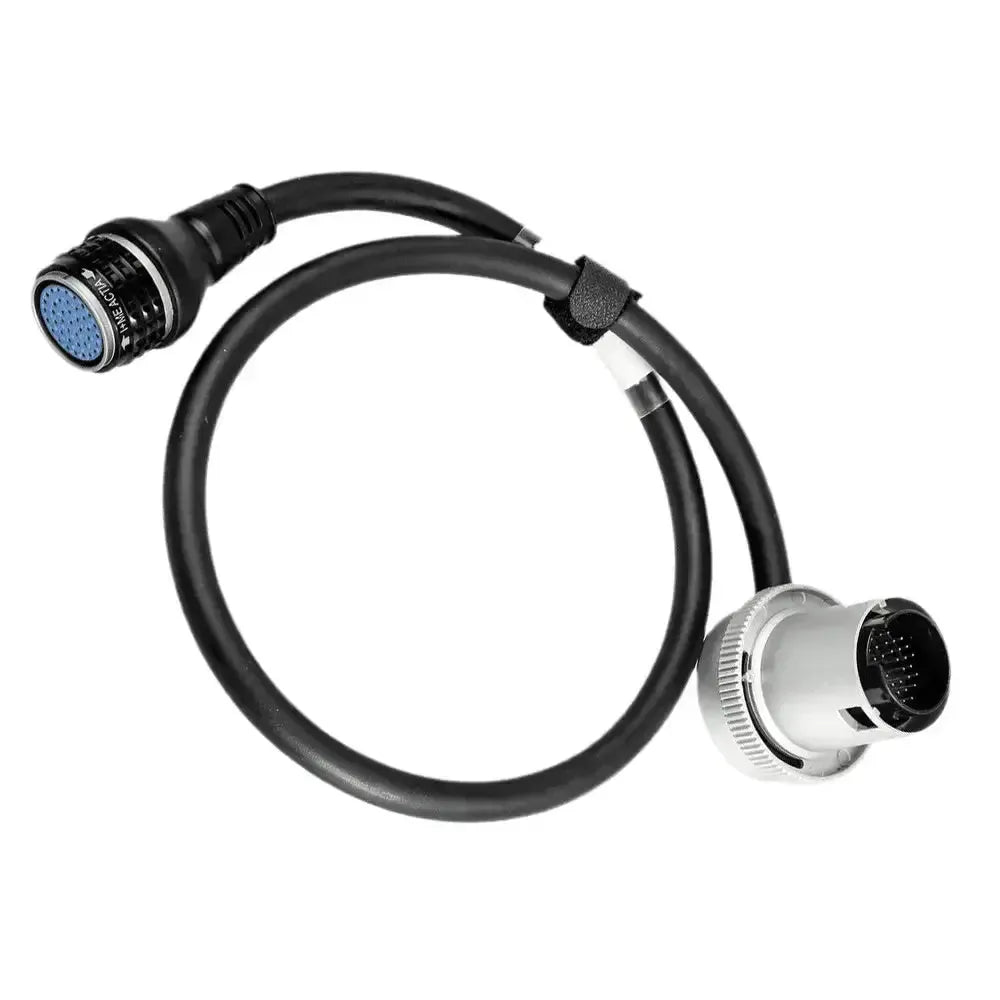

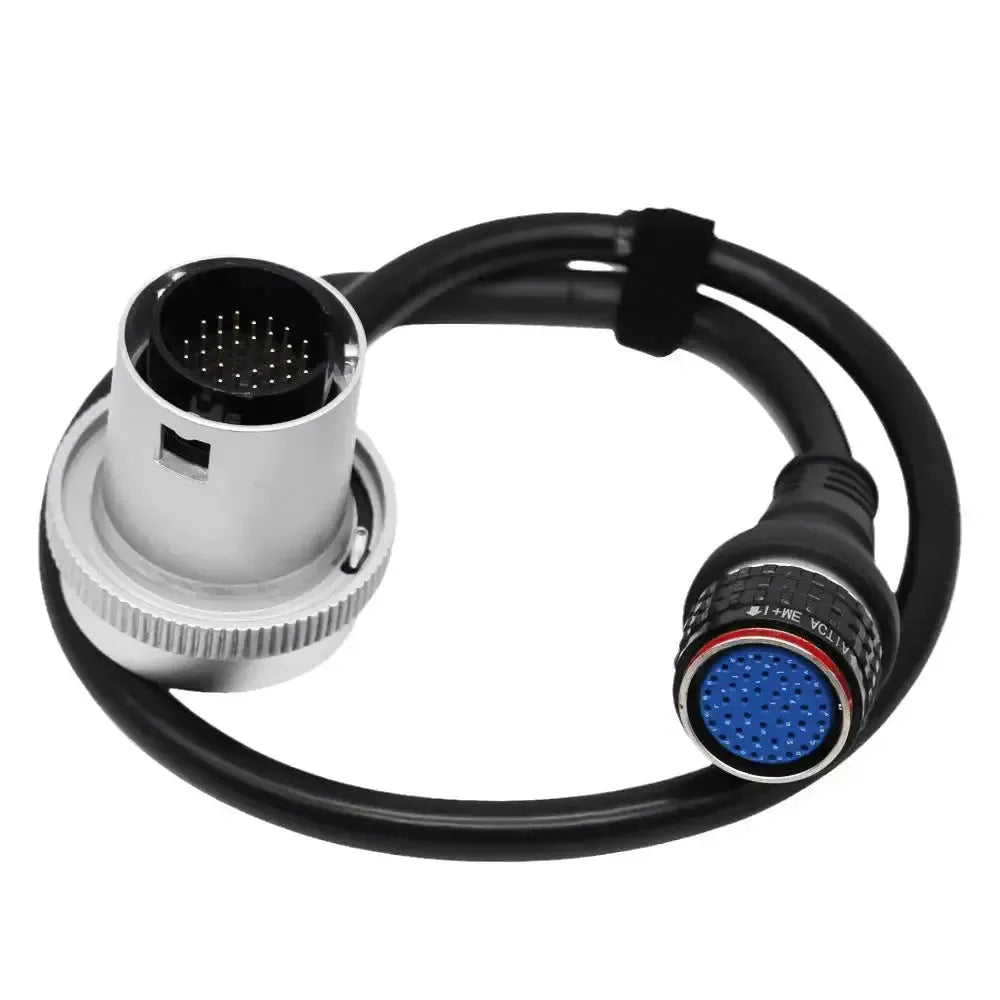

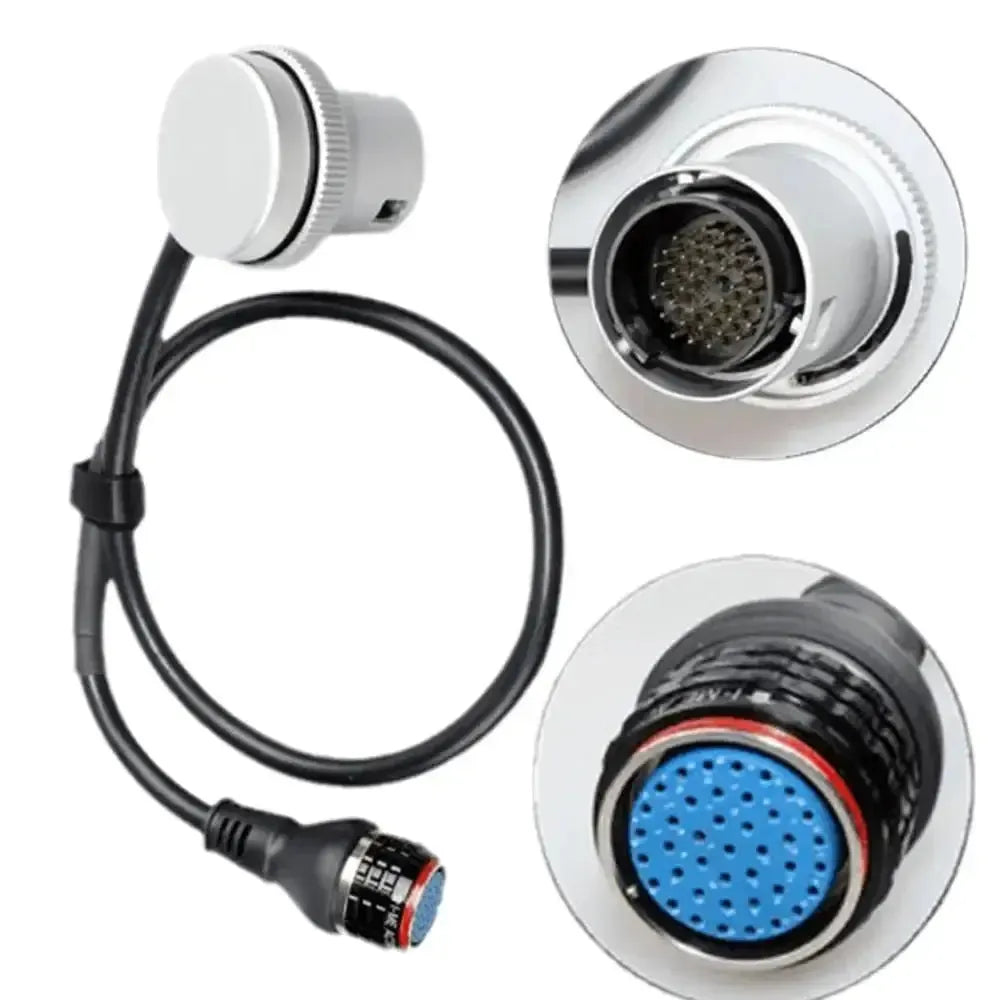

The Mercedes 38-pin OBD1 adapter cable is an indispensable adapter for connecting the SD Connect C4 multiplexer to older Mercedes-Benz passenger cars and early vans. These vehicles use a round 38-pin diagnostic connector instead of the later 16-pin OBD2 connector. The cable forms the necessary bridge between the 38-pin port in the engine compartment and the 16-pin interface cable of the C4 multiplexer.
Thanks to the correct internal pin translation, all system lines (multiple K-lines, power and ground) can be correctly transmitted, enabling extensive dealer diagnostics via Xentry/DAS.
Application and functionality:
The cable enables full communication with vehicles equipped with a 38-pin diagnostic port. Typical applications:
- Read and clear fault codes: Support for engine, ABS, SRS, transmission, comfort modules
- View live data: Monitoring of real-time values and sensors
- Perform actuations: Control and test components via DAS
- Full module coverage: Via various K-lines to individual ECUs
The cable is used in combination with the standard OBD2 main cable of the SD Connect C4.
Compatibility:
Hardware compatibility:
- Mercedes-Benz SD Connect C4 (original or high-quality clone)
- To be used with the standard 16-pin C4 interface cable
Vehicle compatibility (1994–2002):
- C-Class: W202
- E-Class: W124 (late), W210
- S-Class: W140
- SL-Class: R129
- Sprinter: W901–W905 (if equipped with 38-pin port)
- Vito: W638 (some versions with 38-pin port)
Note: some vans from this period have a 14-pin port. Check this visually beforehand.
Package Contents:
- 1x Mercedes 38-pin OBD1 to 16-pin adapter cable
Technical specifications:
| Specification | Description |
|---|---|

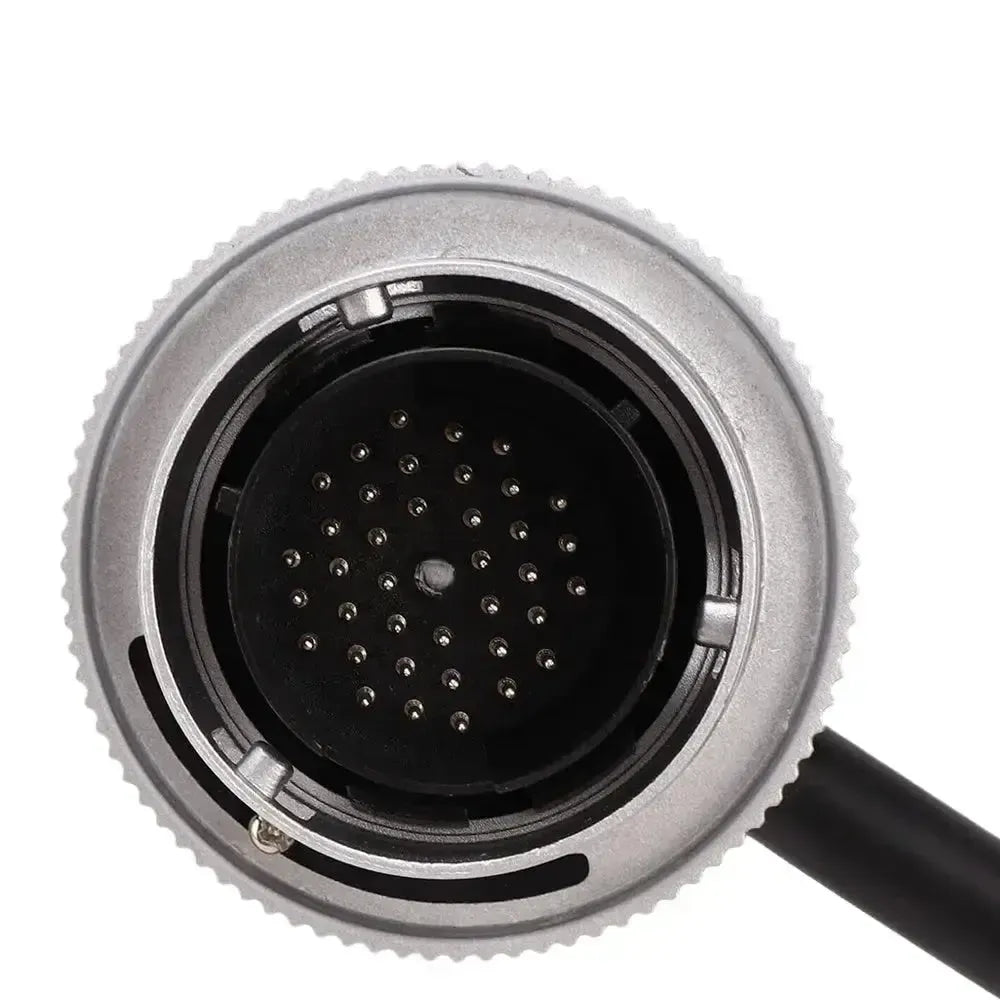

| Connector A | Mercedes 38-pin round male connector (passenger car specific) |
| Connector B | Standard 16-pin OBD2 female (J1962) – for connection to SD Connect C4 main cable |
| Cable type | Passive diagnostic adapter cable |
| Cable length | Approximately 40 cm (depending on manufacturer) |
| Pinout | Multiple K-lines, power and ground pins correctly connected |
