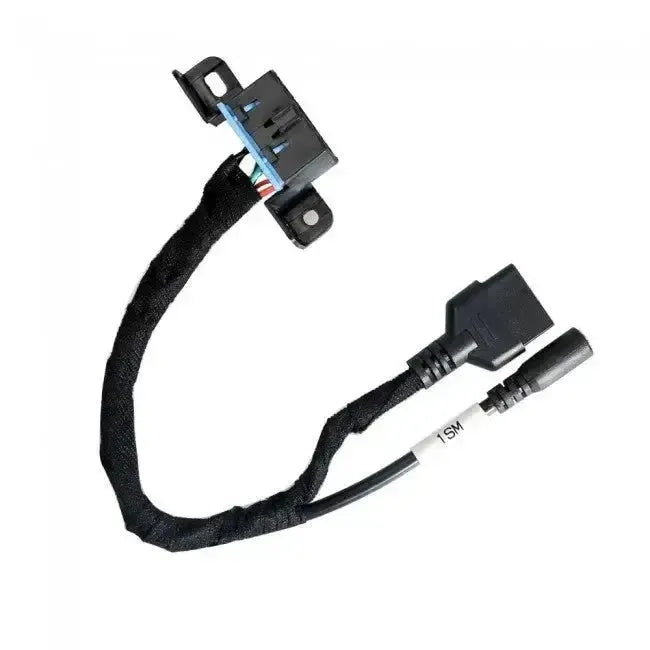

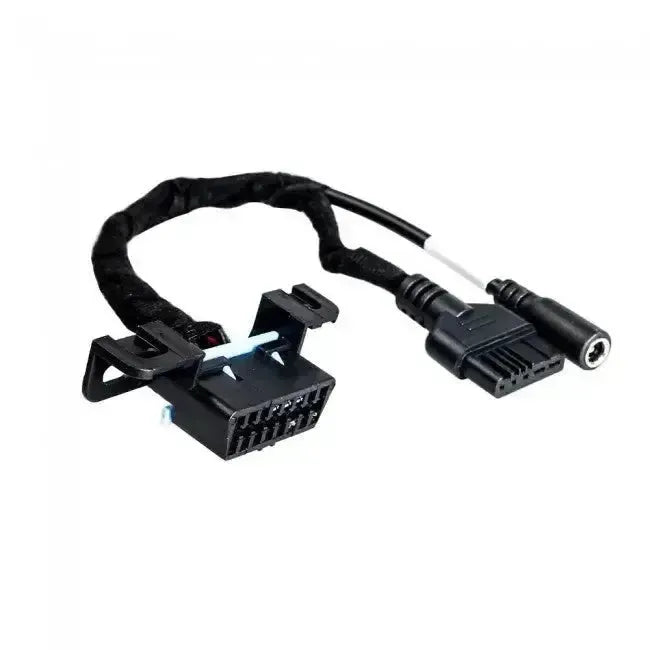

Mercedes ISM to 16-pin OBD2 Adapter Cable
The Mercedes ISM to 16-pin OBD2 adapter cable is a specialized diagnostic and programming adapter designed for direct communication with the Intelligent Servo Module (ISM) of the 7G-Tronic (722.9) automatic transmission. This module, also known as the A80 module, controls the electronic gear selection. The cable is not intended for standard vehicle diagnostics, but for on-bench programming of a disassembled ISM.
This direct connection is necessary for operations such as renewing a used ISM module, data transfer to a donor unit, or personalization of a new ISM. The cable supplies power and provides a stable CAN-bus communication line with programming tools, bypassing the rest of the vehicle electronics.
Application and functionality:
The cable is used in combination with specialized tools such as CGDI MB, Autel IM608, Xhorse VVDI MB, Abrites etc. for the following tasks:
- Renew: Reset a used ISM to factory settings
- Data cloning: Read data from a defective ISM and transfer it to a replacement unit
- Personalization and activation: Pair a new ISM with the vehicle
- Fault diagnosis: Test the ISM on the workbench without installation in the car
Professional equipment and experience are required. Not for use via the standard OBD2 port.
Compatible with the following vehicle makes and models:
This cable is compatible with Mercedes-Benz vehicles equipped with a 7G-Tronic (722.9) transmission and corresponding Intelligent Servo Module (ISM). Compatible models include:
- C-Class: W204
- E-Class: W211, W212
- S-Class: W221
- ML-Class: W164
- R-Class: W251
- CLK: W209
- CLS: W219
- SLK: R171
- SL: R230
Package Contents:
- 1x Mercedes ISM to 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Connector A | Vehicle-specific connector for connection to the ISM module (A80) |
| Connector B | Standard 16-pin OBD2 (J1962) female connector |
| Cable type | Programming cable for "on-bench" use |
| Function | Supplies power and establishes direct CAN bus connection with the ISM |
| Required equipment | Compatible with professional tools such as Autel, CGDI, Xhorse, Abrites |
