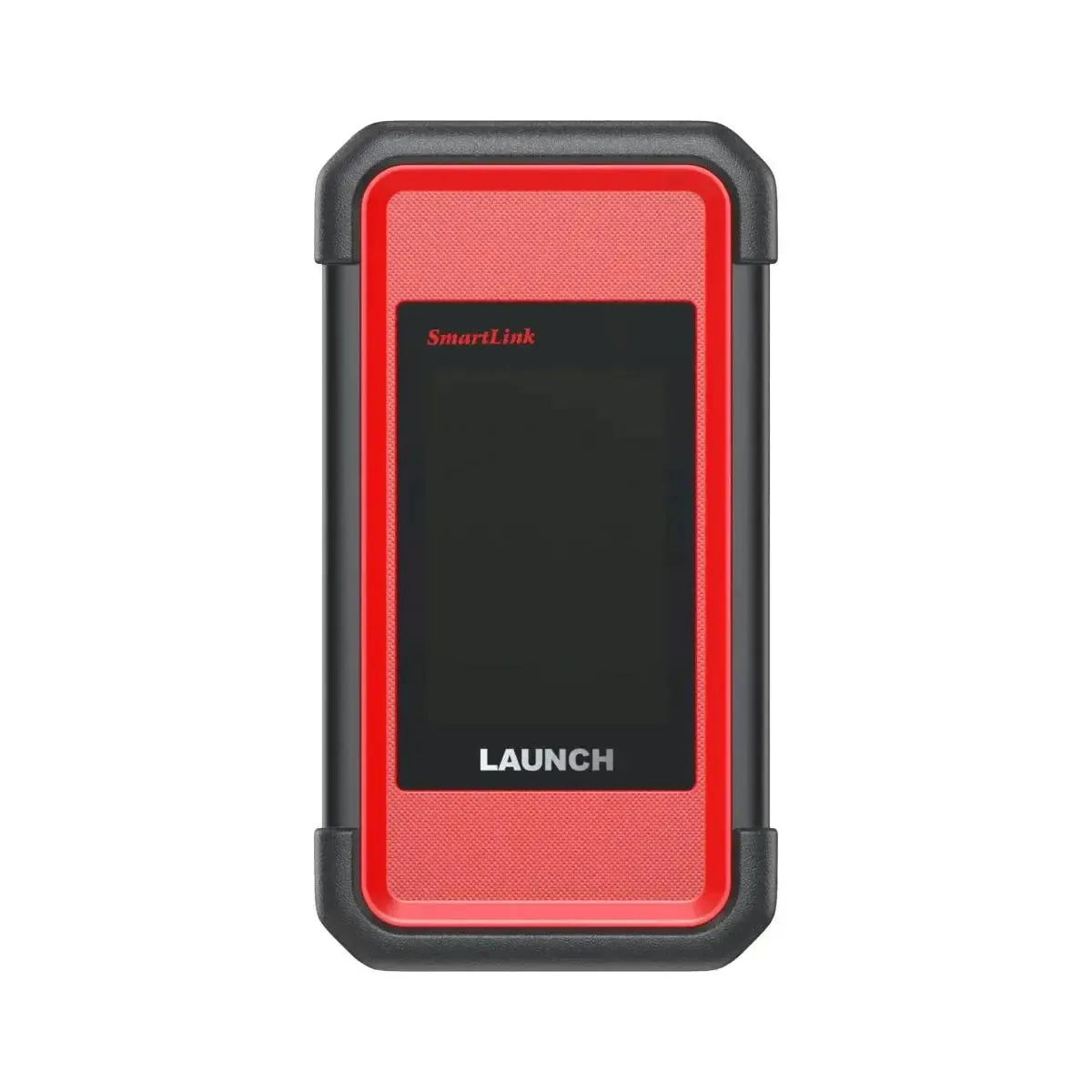

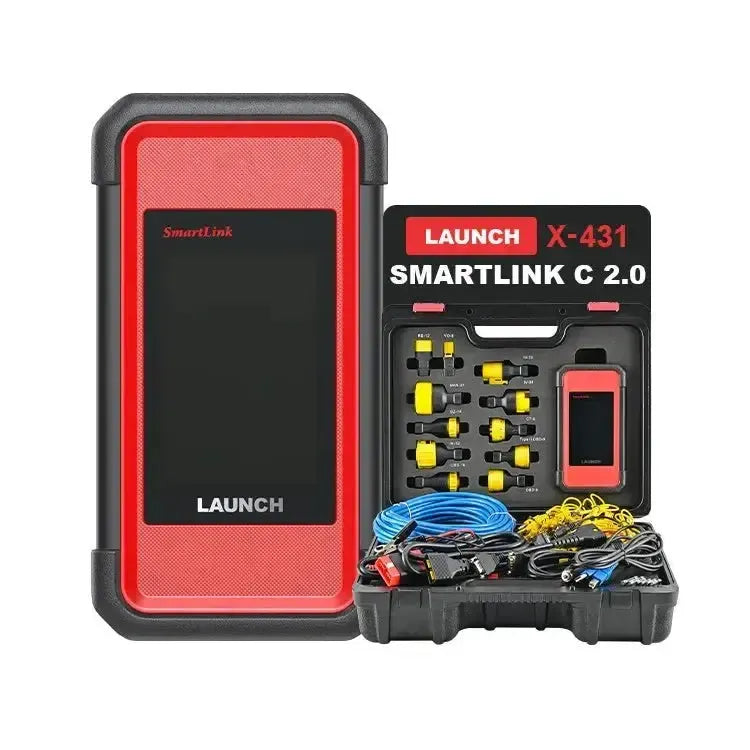

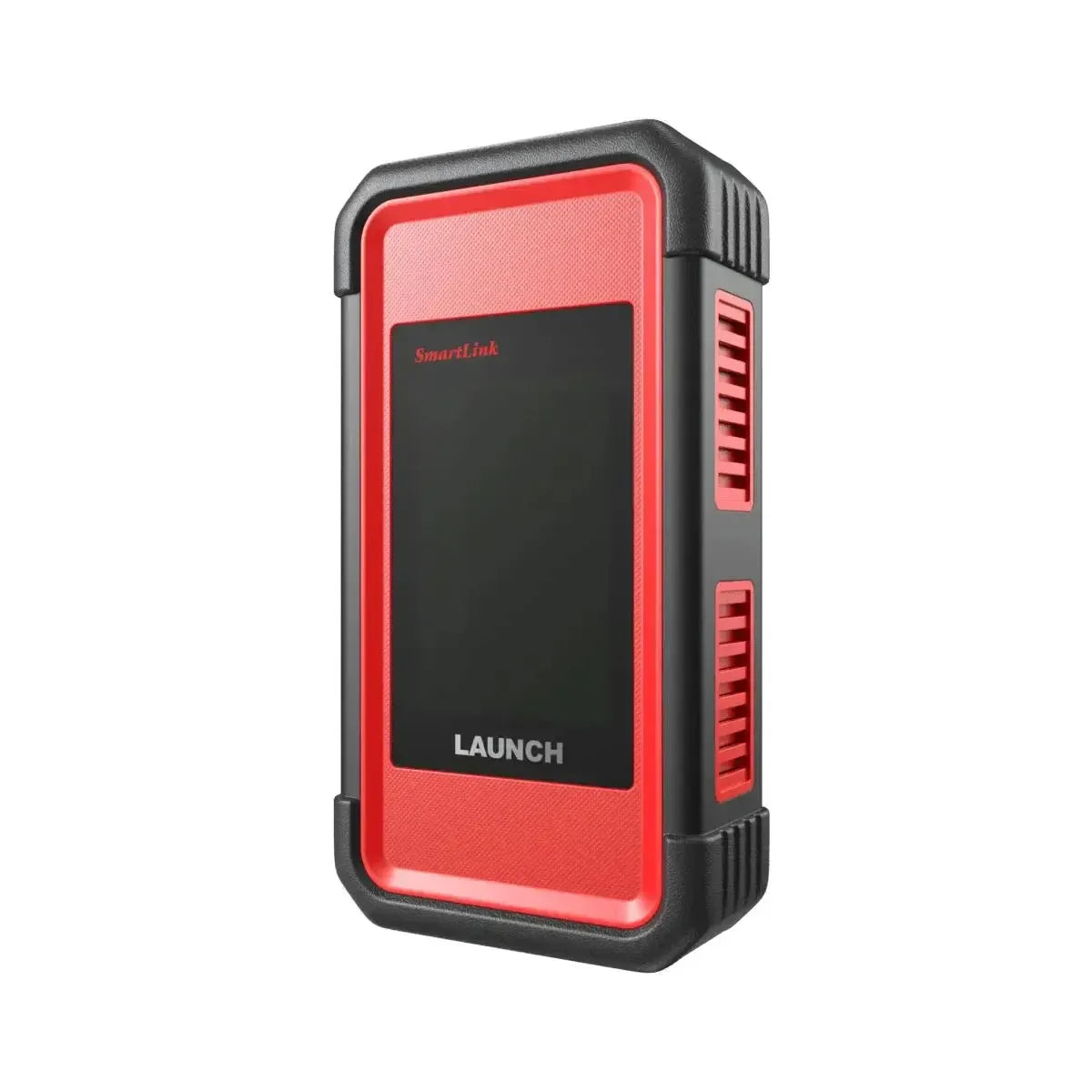

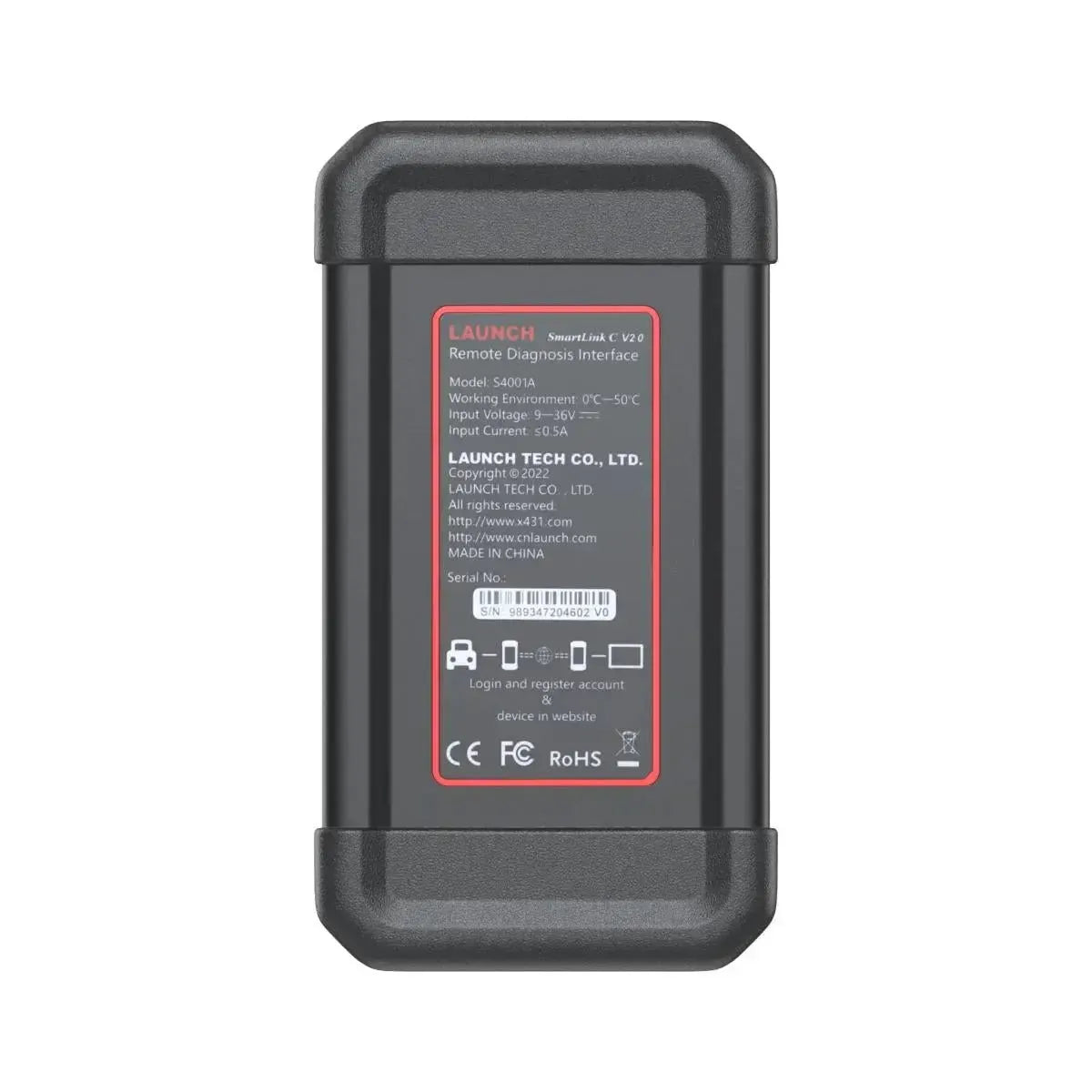

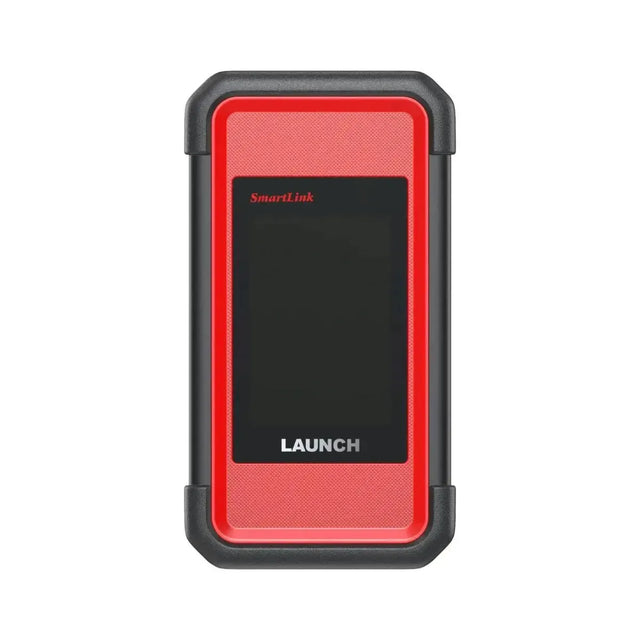

Launch X-431 SmartLink C Truck Diagnostic Tool

The Launch X-431 SmartLink C is a powerful, multifunctional diagnostic tool designed for professional technicians and workshops working with heavy vehicles such as trucks, buses, agricultural machinery, construction equipment, and ships. Thanks to advanced features, extensive vehicle coverage, and smart technologies, this tool ensures fast and effective diagnosis and service work. With its user-friendly design and intuitive interface, this tool is ideal for both experienced specialists and technicians looking to elevate their diagnostic capabilities.

This diagnostic module offers full access to vehicles via multiple communication protocols, including J2534, DoIP, CAN FD, and RP1210. Thanks to integrated remote diagnostic functions (via the SmartLink platform), you can diagnose vehicles remotely anywhere in the world, saving time and operational costs. With a robust housing and a bright 3.95-inch screen, the Launch X-431 SmartLink C is built for intensive use in the workshop or on-site.

Diagnostic functions:

• Complete vehicle diagnosis: Automatically scans all present vehicle modules, including engine, transmission, ABS, SRS, and other systems.
• Read and clear fault codes: Quickly read and clear diagnostic trouble codes (DTCs).
• Live data analysis: Real-time display and graphical analysis of vehicle data to gain immediate insight into system status and performance.
• Freeze frame data: Viewing snapshots of vehicle data at the time of faults.
• Active tests: Performing bidirectional control tests to specifically check components such as actuators and sensors.

Maintenance and service functions:

• Oil and service reset: Reset service indicators after maintenance.
• Battery management: Registration and management of vehicle batteries after replacement or repair.
• Diesel Particulate Filter (DPF) regeneration: Active regeneration of diesel particulate filters to prevent or clear blockages.
• Brake system (EPB) reset and calibration: Support for resetting and calibrating electronic parking brakes.
• Steering Angle Sensor (SAS) calibration: Calibration after replacement or adjustment of steering components.

Special functions:

• Remote diagnosis via SmartLink: Perform diagnostics on vehicles remotely, increasing flexibility and efficiency.
• ECU reprogramming and coding: Extensive capabilities for coding and reprogramming vehicle modules via J2534 protocol.
• Extensive protocol support: Compatible with new generation protocols such as DoIP, CAN FD, and D-PDU.
• Versatile connectivity: Communication via Wi-Fi, Bluetooth, Ethernet, and USB ensures optimal flexibility in different work situations.
• Broad vehicle compatibility: Suitable for trucks, buses, agricultural machines, construction machines, and ships from various brands and manufacturers.

Supported vehicle brands:

Buses: Ashok Leyland, Bonluck, Credo, ERF, Ford, Freightliner, FUSO, Golden Dragon, Higer, HINO, Hyundai, International, Irisbus, Irizar, Isuzu, Iveco, JMC, Kinglong, MAN, Mercedes-Benz, Mitsubishi, Neoplan, Nissan, Renault, Scania, Setra, Sitcar, Sunlong, Sunwin, Tata, Toyota, Volvo, Yutong, Zhongtong

Trucks: Ashok Leyland, Astra, Bremach, Caterpillar, DAF, DFL, ERF, FAW, Ford, Freightliner, Foton, FUSO, HINO, Hyundai, International, Isuzu, Iveco, JAC, JMC, Kenworth, Mack, MAN, Mercedes-Benz, Mitsubishi, Nissan, Peterbilt, Renault, Scania, Sinotruk, Sterling, Tata, Toyota, UD, Volvo, Western Star

Trailers: Trailer, Wabco

Agricultural machines: Astra, CASE, Caterpillar, DEUTZ, Doosan, HINO, Iveco, JCB, MAN, Mercedes-Benz, Perkins, Scania, Shangchai, Steyr, Volvo, Yuchai

Off-road and construction machines: CASE, Caterpillar, DEUTZ, Flexi-Coil, JCB, Miller, Renault, Steyr

Combustion engines: Caterpillar, Cummins, Iveco, MAN, Scania, Steyr

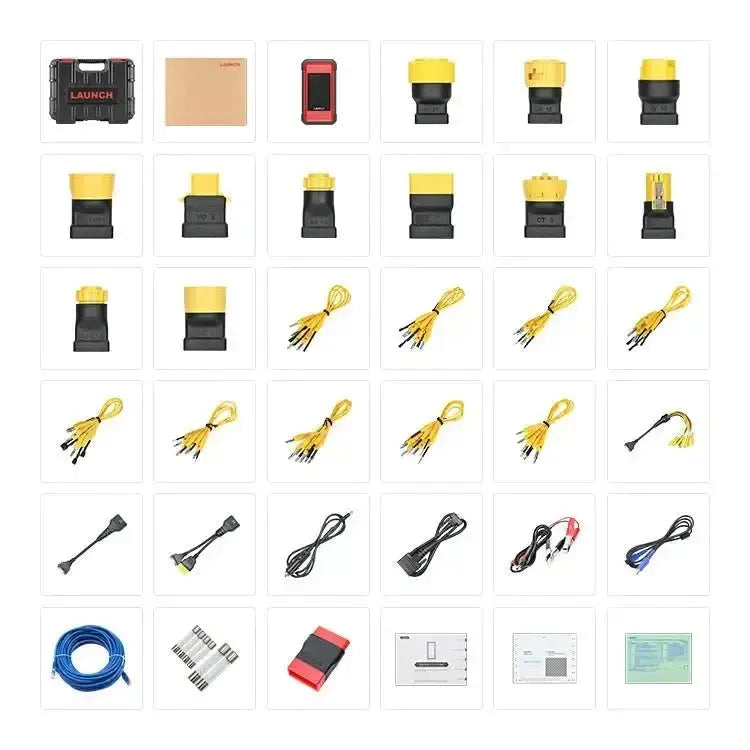

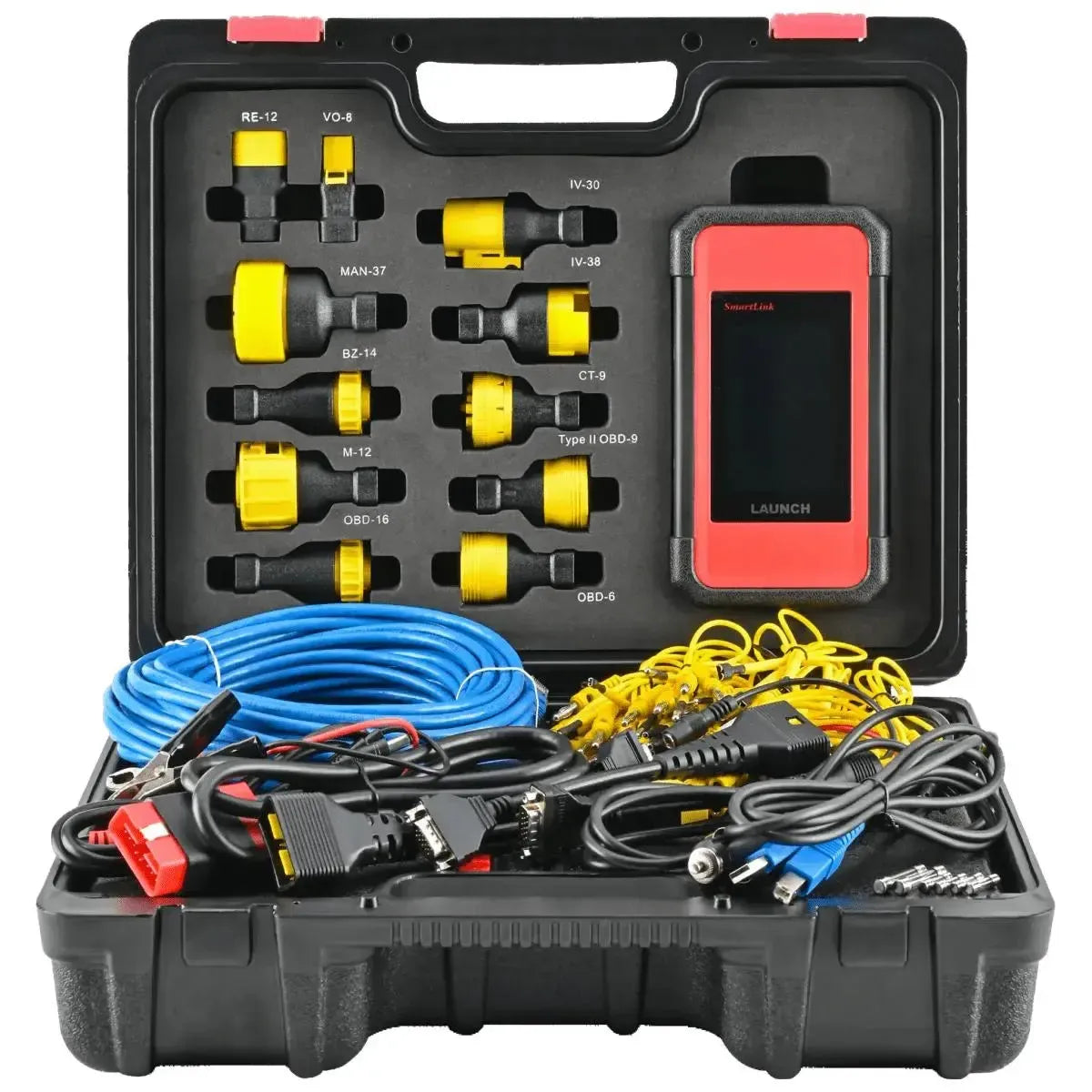

Package contents:

• Launch X-431 SmartLink C Interface
• Launch 15 Pins DB15 Extension cable
• Launch 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-B - Micro-USB Adapter cable
• RJ45 Network cable
• Manual
• Storage case
• Launch Battery Clamp Power Cable
• Launch Cigarette Lighter Power Cable
• Launch 6 Pins J1708 - 15 Pins DB15 Adapter
• Launch Volvo 8 Pins OBD1 - 15 Pins DB15 Adapter
• Launch 9 Pins J1939 - 15 Pins DB15 Adapter
• Launch CAT 9 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Renault 12 Pins OBD1 - 15 Pins DB15 Adapter
• Launch MAN 12 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Mitsubishi/Hyundai 12 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Mercedes-Benz 14 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Hyundai 16 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Scania 16 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Iveco 30 Pins OBD1 - 15 Pins DB15 Adapter
• Launch MAN 37 Pins OBD1 - 15 Pins DB15 Adapter
• Launch Multifunctional OBD - 15 Pins DB15 Adapter
• Launch Electrically Controlled Switching Line 1 (4 pieces)
• Launch Electrically Controlled Switching Line 2 (4 pieces)
• Launch Electrically Controlled Switching Line 3 (4 pieces)
• Launch Electrically Controlled Switching Line 4 (4 pieces)
• Launch Electrically Controlled Switching Line 5 (4 pieces)
• Launch Electrically Controlled Switching Line 6 (4 pieces)
• Launch Electrically Controlled Switching Line 7 (4 pieces)
• Launch Electrically Controlled Switching Line 8 (4 pieces)
• Launch Electrically Controlled Switching Line 9 (4 pieces)

License information:

When purchasing the Launch X-431 SmartLink C 2.0, you receive two years of free software updates. After this period, an annual update license is required to continue accessing the latest vehicle support and features.
