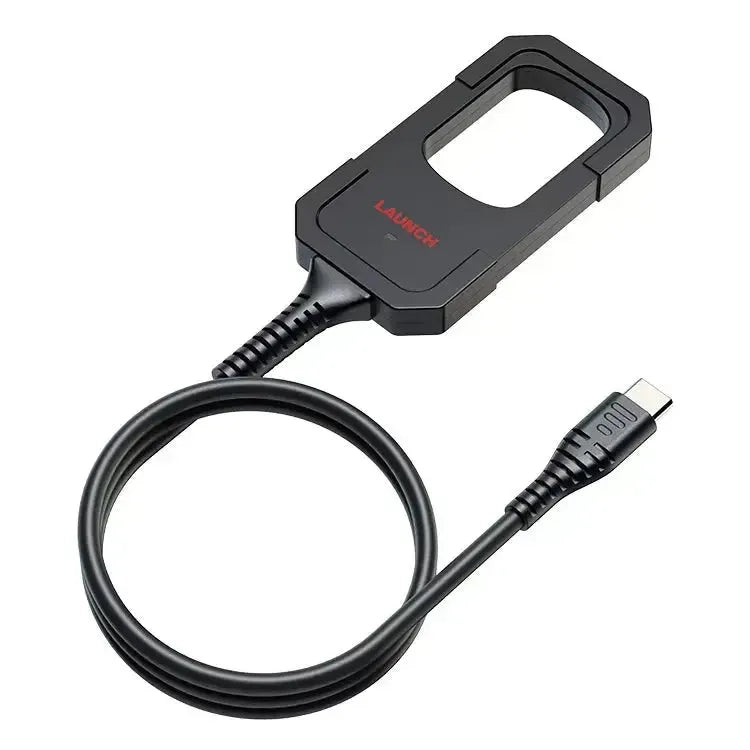

Launch X-431 Key Programmer | Key Programmer

The Launch X-431 Key Programmer is a key programmer designed for reading, generating, and cloning transponders for vehicle keys. This device works in conjunction with a compatible Launch X-431 diagnostic tester to provide a complete solution for anti-theft systems. It can detect key frequencies in a range from 300 to 900 MHz and supports a low frequency of 125 kHz for transponder communication.

The programmer supports a wide range of transponder types, including 8A/8C, 43, 46, 4D, and MQB variants. Features include reading the anti-theft password, matching keys, and pairing remote controls. The device is compatible with the Launch Super Chip and the VVDI Super Chip. A specific function is the ability to unlock Toyota smart keys and set the type of Super Chip for various applications.

Application and functionality:

The X-431 Key Programmer offers various functions for managing vehicle keys and anti-theft systems:

• Transponder management: Reading, generating, and writing key chip data and cloning transponders.
• Key programming: Pairing new keys and remotes to the vehicle in combination with an X-431 diagnostic tester.
• Frequency detection: Identifying the radio frequency (300-900 MHz) of a remote control.
• Signal detection: Checking the signal from the ignition coil to verify communication with the transponder.
• Data reading: Reading anti-theft data from the vehicle, including passwords for certain models.
• Remote generation: Creating functions for Launch universal remotes.
• Anti-theft system identification: Recognizing the type of anti-theft system installed in a vehicle.

Compatibility:

This key programmer operates in combination with the following Launch X-431 diagnostic testers:

• X-431 IMMO Elite
• X-431 IMMO Plus
• X-431 IMMO PRO
• X-431 PAD V
• X-431 PAD VII

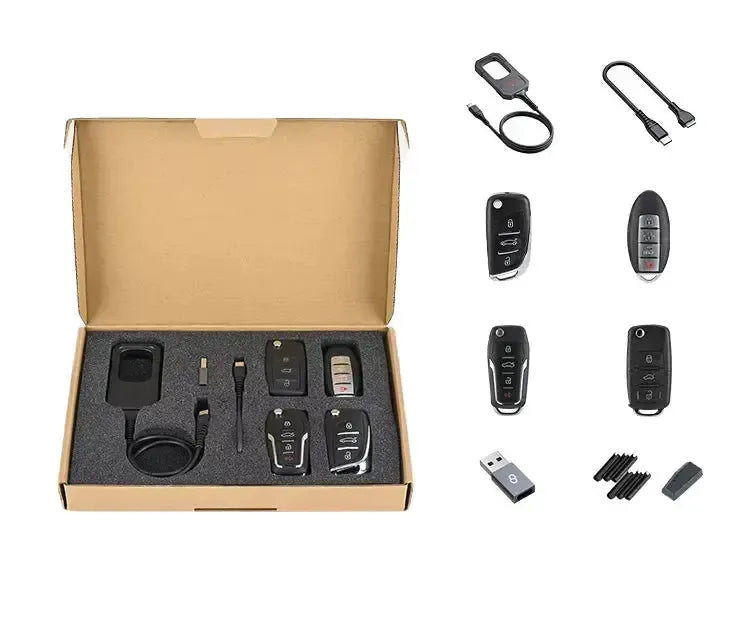

Package Contents:

• 1x Launch X-431 Key Programmer
• 1x USB-A to USB-C cable
• 4x Universal smart key
• 1x USB stick
• 1x Set of key pins
• 1x Package Contents

Technical specifications:
