Topdon UltraDiag Moto | Diagnostic Tool | Motorcycle

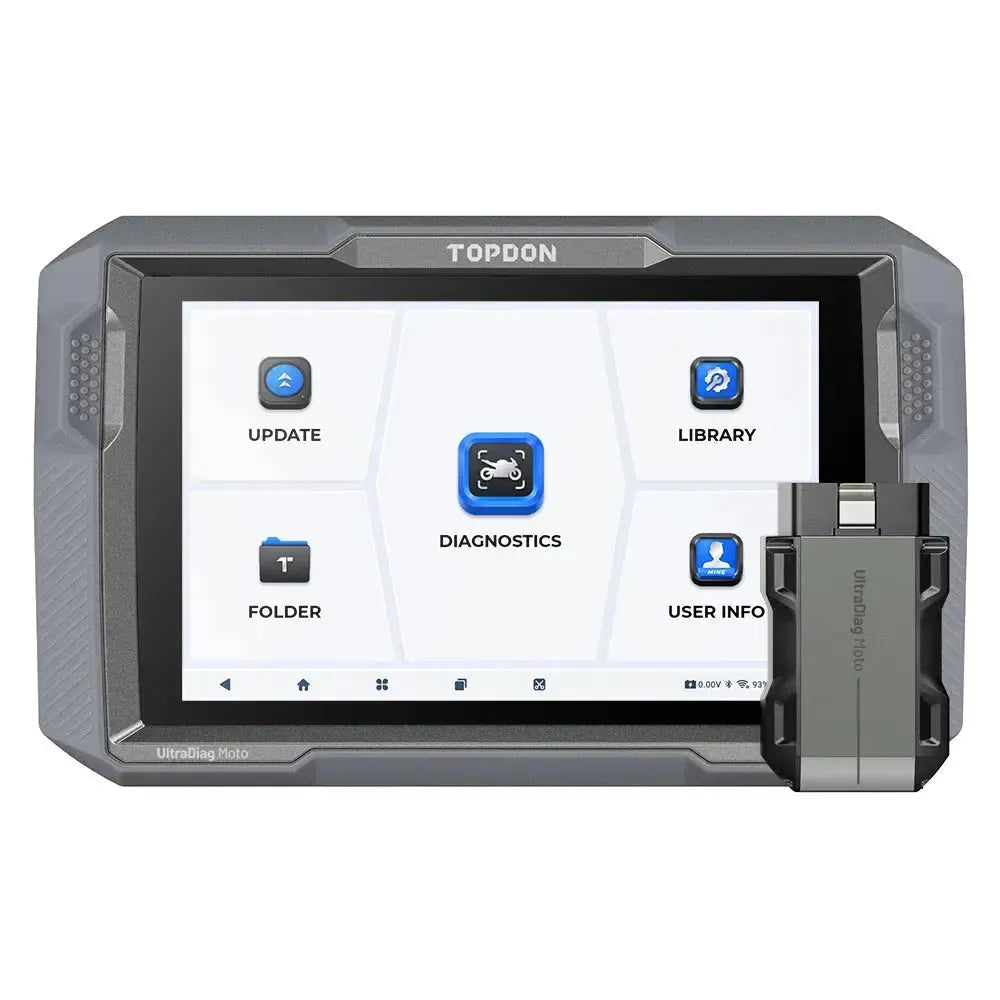

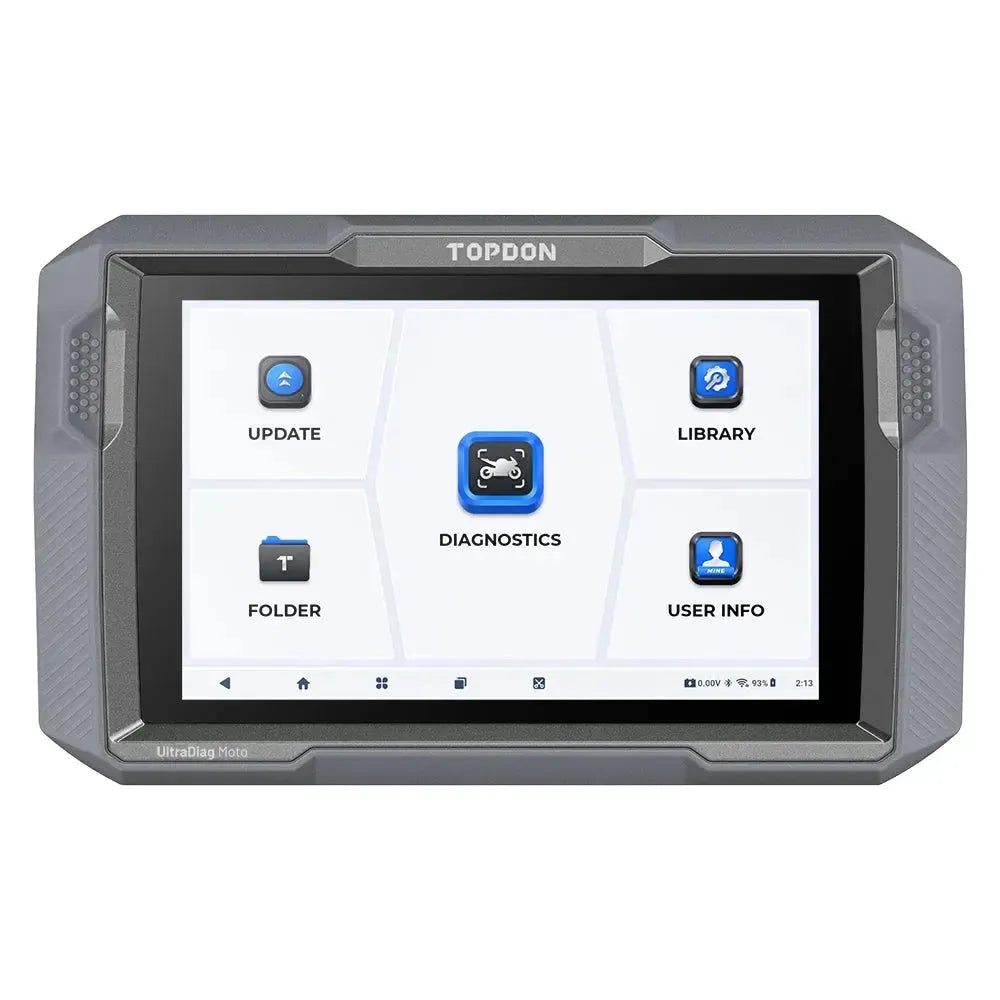

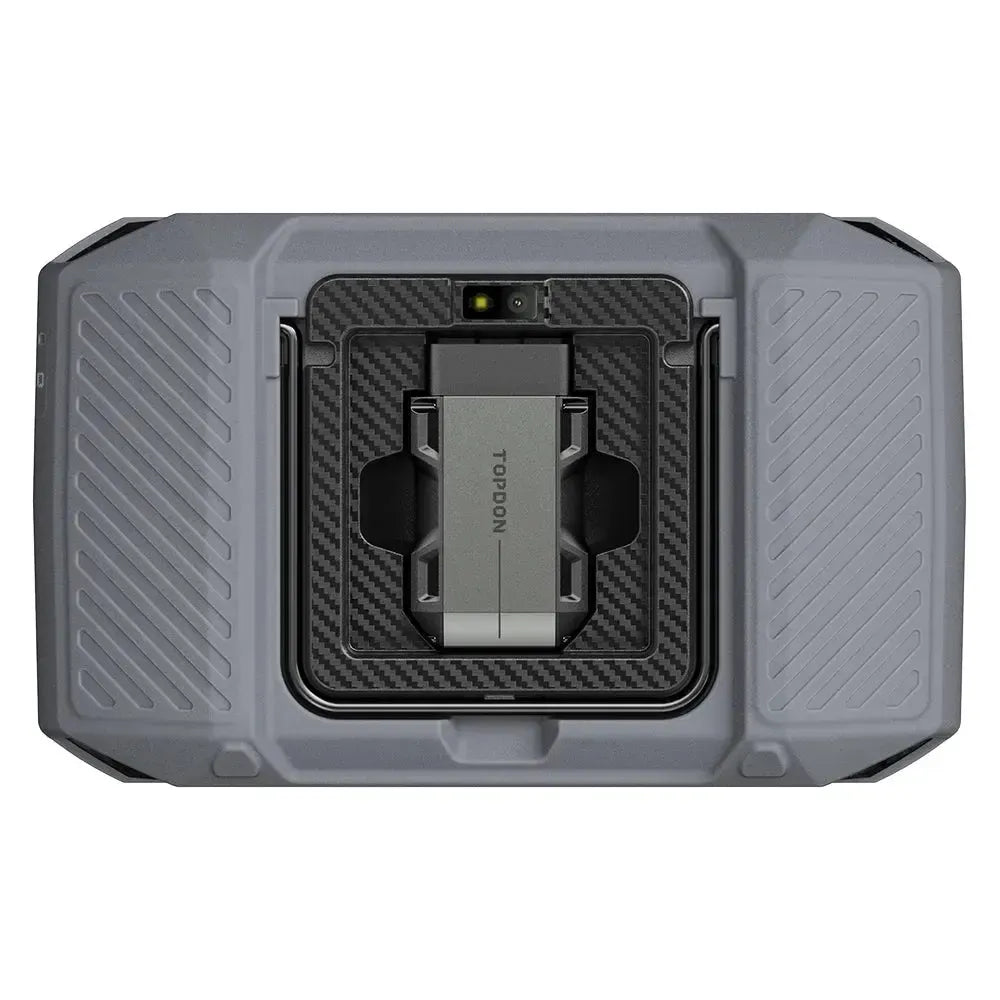

The Topdon UltraDiag Moto is a diagnostic device specifically developed for motorcycle diagnosis. The system, running on Android 11, supports more than 80 brands and communicates with the vehicle via a Bluetooth VCI. The tablet features an 8-inch touchscreen, a 4-core processor, and a 10,000 mAh Battery. The main functionalities include performing a full system diagnosis, bidirectional control, and various service functions. A software license for 1 year is included with the purchase.

The UltraDiag Moto offers advanced features such as a topology map that provides a visual overview of all electronic control units and their communication status. The device can display live data in various formats, including graphs, and supports AutoVIN for automatic vehicle identification. The software also includes access to technical service bulletins (TSB) and a DLC locator to quickly find the vehicle's diagnostic port.

---

Diagnostic functions:

The UltraDiag Moto performs diagnostics on all electronic systems present in the motorcycle, such as the engine, ABS, transmission, and instrument panel.

• Read and clear fault codes: Reads and removes fault codes (DTCs) from all available control units.
• Live data: Displays real-time data from sensors and components in various views, such as text and graphs.
• Actuator test: Allows specific components and systems, such as injectors or fans, to be directly controlled to check functionality. This is also called bidirectional control.
• AutoVIN: Automatically identifies the motorcycle based on the Vehicle Identification Number (VIN).
• Read ECU information: Requests detailed information from the electronic control unit, such as software version and part numbers.
• Topology map: Provides a graphical representation of the vehicle's network structure, including the status of all control units and their intercommunication.

---

Service and maintenance functions:

This device supports more than 14 service and maintenance functions for motorcycles. The availability of specific functions may vary by brand, model, and vehicle year.

Engine and drivetrain:

• Air/fuel ratio reset (A/F): Resets the parameters for the air-fuel mixture to factory settings.
• CO Adjustment: Calibrates the carbon monoxide (CO) emissions to comply with emission standards and ensure optimal engine operation.
• Idle speed adjustment: Adjusts and stabilizes the engine speed in idle condition.
• Throttle valve adaptation: Recalibrates the throttle valve actuator after replacement or cleaning to ensure correct response.
• Clutch adaptation: Performs the initial settings or adaptations for the clutch actuator.

Brakes:

• Bleed ABS: Performs an automated procedure to remove air bubbles from the ABS brake system after maintenance.

Steering system:

• Steering angle sensor initialization (SAS): Calibrates the sensor that measures the steering angle, necessary for systems like traction control.

Bodywork and electronics:

• Battery management system reset (BMS): Registers a new Battery in the vehicle system and resets the charging parameters.
• Tire Pressure Monitoring System reset (TPMS): Relearns sensors and resets warnings after a tire change or sensor replacement.
• Odometer reset (ODO): Sets or calibrates the odometer after replacing the instrument panel.
• Maintenance interval reset: Resets the service message on the dashboard after performing maintenance.
• Reset control unit: Restores an electronic control unit (ECU) to default or factory settings.
• Vehicle Identification Number (VIN): Reads or writes the unique identification number of the vehicle in a control unit.

Other features:

• Customize: Enables adjustment of specific, manufacturer-supported vehicle settings or preferences.

---

Special features and capabilities:

The device offers various advanced capabilities for a more efficient diagnostic process.

Cloud and reporting features:

• Diagnostic reporting: Generates detailed reports of the performed diagnostics, which can be saved or shared.
• Remote assistance: Provides the ability for remote technical support via the Remote Desktop feature.

Documentation and diagrams:

• DLC location finder: Helps locate the Data Link Connector (DLC) on the motorcycle.
• Technical Service Bulletins (TSB): Provides access to official service bulletins and manufacturer repair information.

---

Supported vehicle brands:

The Topdon UltraDiag Moto supports a wide range of motorcycle brands from various regions, including Europe, Asia, America, and China.

• European: ADIVA, AGUSTA, AJP, Aprilia, Benelli, BENELLIDSK, BMW, Brixton, Brose, Brough, Derbi, Ducati, Fantic, FBMondi, Generic, Geon, GGTechnik, Gilera, Goes, HM, Husqvarna, Italjet, KL, KSRMOTO, KTM, Lambretta, Lexmoto, Macbor, Malaguti, Mash, MBK, MBP, MH, Minsk, Mitt, Morini, Moto Guzzi, Motron, Mutt, Overbikes, Peugeot, Piaggio, Qooder, Quadro, Rieju, Sherco, Sinnis, Stels, SWM, Triumph, Trmotor, Ural, Vent, Verve, Vespa, Wottan
• Asian: Aeon, Bajaj, Daelim, Enfield, Hartford, Honda, Kawasaki, Kymco, PGO, Suzuki, SYM, TGB, TVS, Yamaha
• American: AKT, Arctic Cat, BRP, Coleman, CSC, Dafra, Harley, Indian, Keller, Polaris, RVM, UM, Victory
• Chinese: CFMOTO, Haojue, Hisun, Keeway, Voge, Zeeho

---

Package Contents:

• 1x Topdon UltraDiag Moto tablet
• 1x VCI (Vehicle Communication Interface)
• 1x Set of motorcycle diagnostic cables
• 1x Power adapter with multiple plugs
• 1x Manual
• 1x Storage case

---

License information:

• Includes 1 year of updates: A software update license for 12 months is included with the purchase.

After the license period expires, the device will continue to operate based on the last installed software version. Access to new updates and online features requires the purchase of a new license.

---

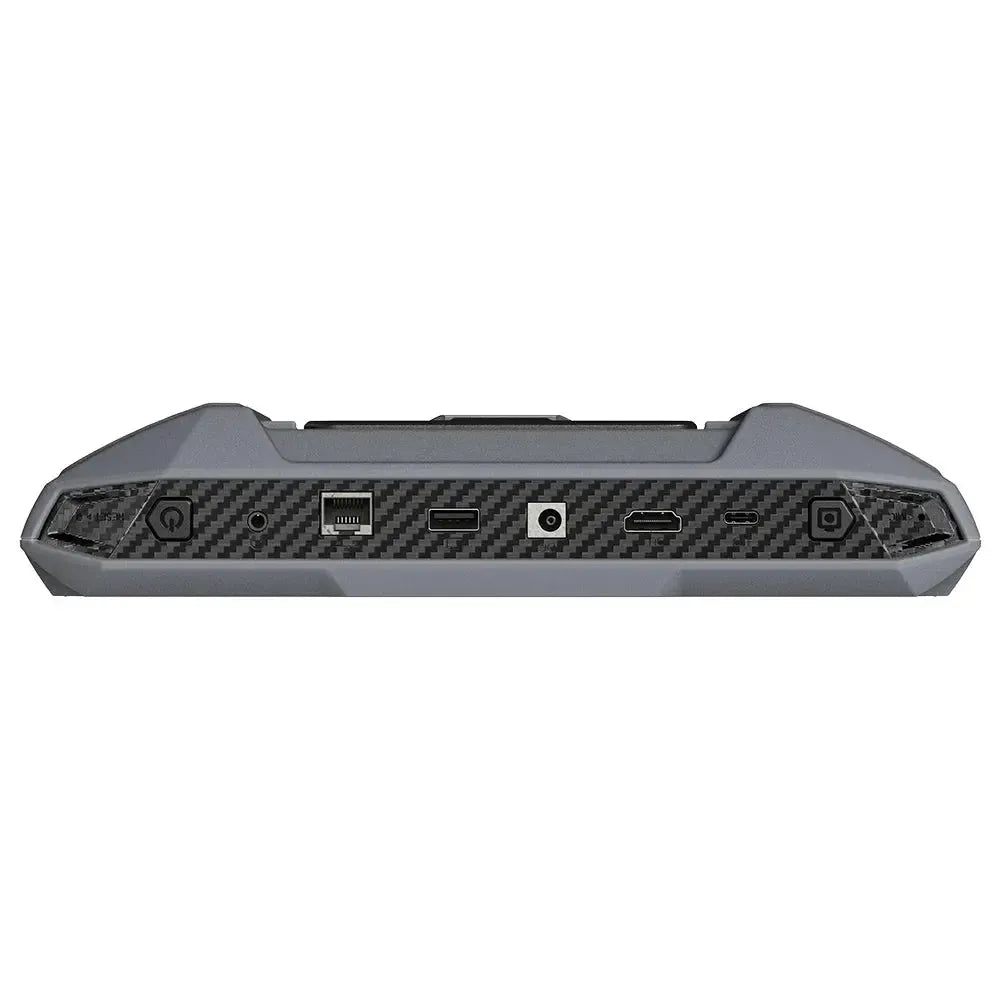

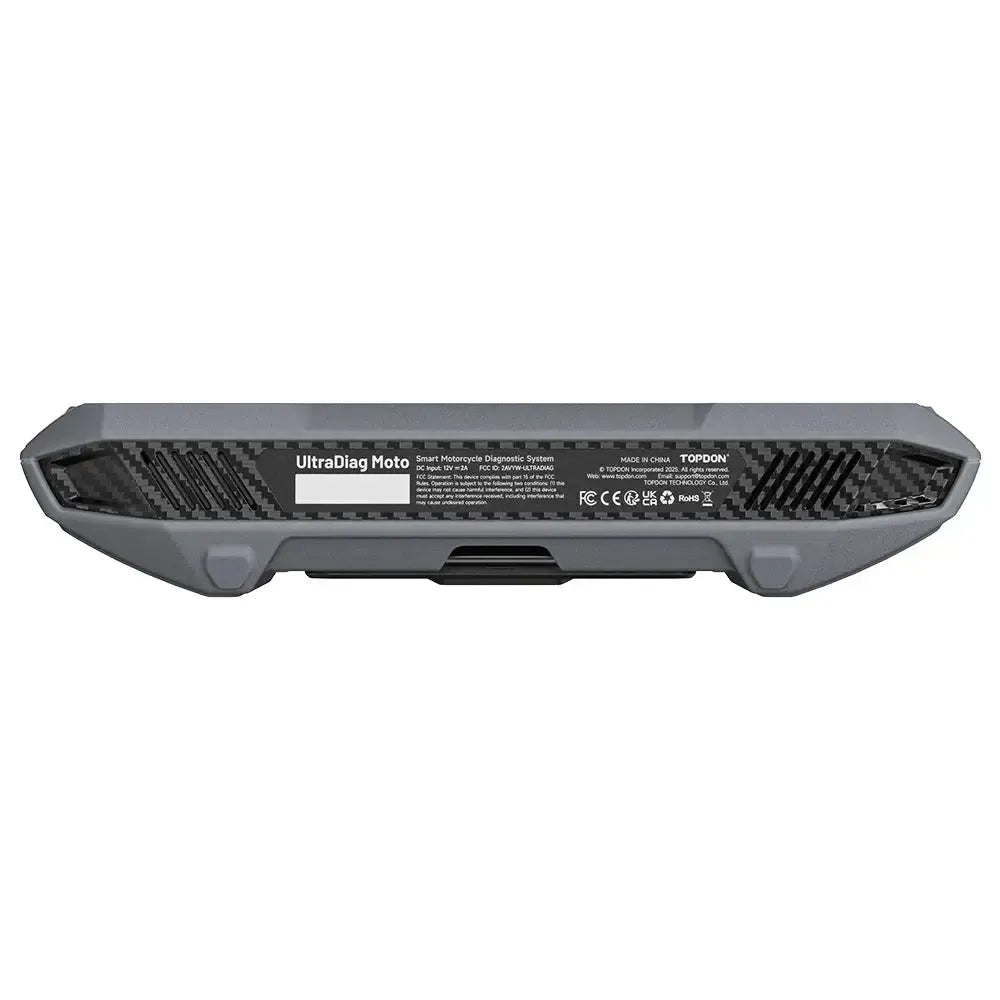

Technical specifications:

Specification	Description
Product Brand	Topdon
Product Model	UltraDiag Moto
Operating System	Android 11.0
Screen Size	8 inch (20.3 cm)
Screen Resolution	1280x800
Processor	4-Core 1.8GHz
RAM Memory	2 GB
Storage Memory	32 GB
Connectivity	Wi-Fi (2.4 & 5 GHz), Bluetooth
Camera	Rear 5.0 MP
Battery	10,000 mAh / 3.7V
