Julie Ford/Mazda | IMMO OFF | Emulator

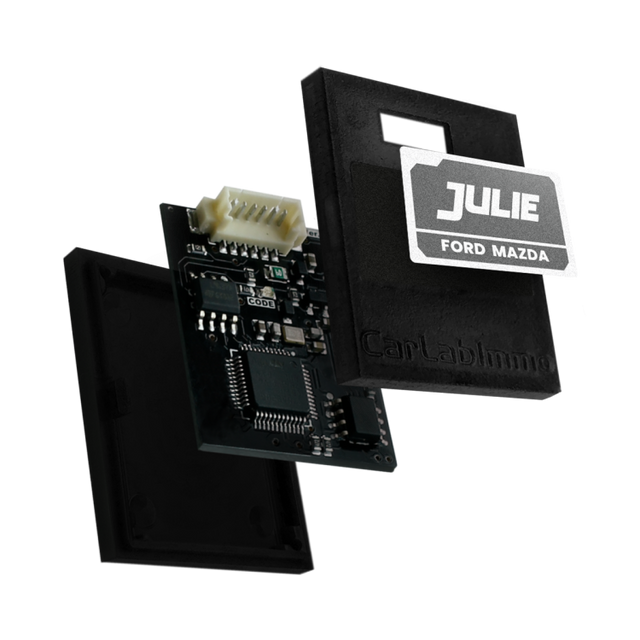

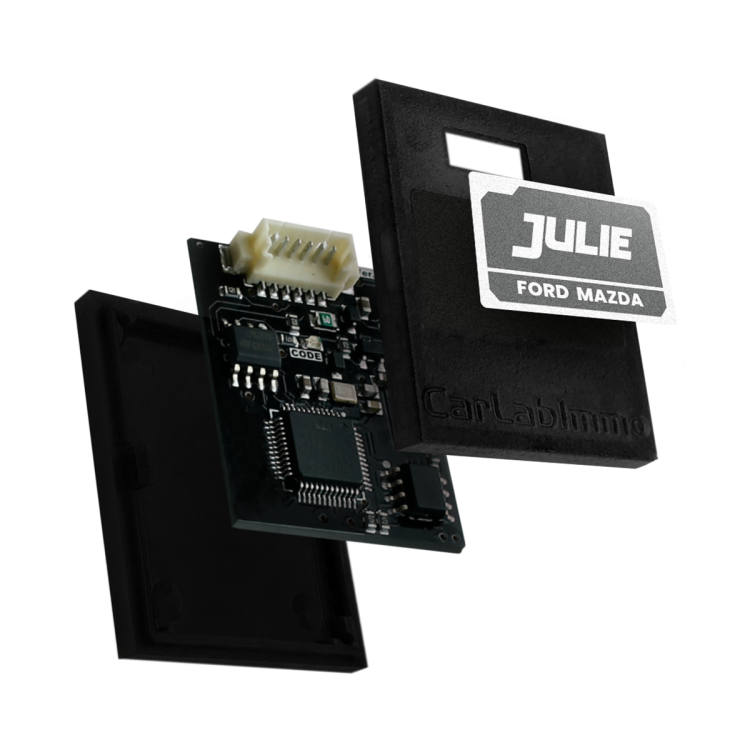

The Julie Ford/Mazda | IMMO OFF | Emulator is an electronic module designed for the permanent disabling of the original IMMO system in specific Ford and Mazda vehicles. The primary function is to replace the signal of the factory immobilizer, releasing the ECU (Engine Control Unit) and allowing the engine to start. This is applied during diagnosis or repair when the original immobilizer components, such as the transponder key or the receiving module, are defective and cause a start lockout.

The emulator is compatible with a range of ECU types, including Siemens SID, Visteon DCU, and certain Bosch EDC systems used in Ford and Mazda models. Installation of the Julie Ford/Mazda | IMMO OFF | Emulator is intended solely for testing and workshop purposes. Permanently disabling the IMMO system may reduce the vehicle's theft protection and may be subject to legal restrictions. Use requires technical knowledge of vehicle electronics and the associated control units.

---

Applications and functionalities:

The Julie Ford/Mazda emulator is a specialized module for diagnosis, testing, and repair of immobilizer systems in specific Ford and Mazda vehicles. The module is used to replace the functionality of the original immobilizer system (IMMO).

• IMMO OFF (permanent disable): The primary Application is the permanent deactivation of the factory immobilizer. The emulator generates and sends a specific digital signal via the CAN bus to the ECU, replicating the authorization code of the original IMMO module. This is a solution when original components are defective. Compatibility includes the following engine control units:
  • Ford: ECUs with CAN communication, including Siemens SIM22, SIM210, Visteon ESU-131 / ESU-411 / ESU-418 and Bosch EDC16C34.
  • Mazda: ECUs with CAN communication, including various Denso and Bosch types used in models such as the Mazda 3, 5, and 6.
• Testing the engine control unit (ECU): The emulator can be used to check an ECU on the test bench. By simulating the IMMO signal, the functionality of the ECU can be verified without all original vehicle components needing to be present.
• Fault isolation: By temporarily installing the emulator, a technician can determine if a starting problem is related to the IMMO system. If the vehicle starts with the emulator, the cause of the malfunction is within the original immobilizer circuit.

Installation usually requires a modification in the memory (EEPROM or FLASH) of the ECU. Permanently disabling the immobilizer system can reduce the vehicle's theft protection and is intended solely for diagnostic and repair use by qualified professionals.

---

Supported vehicle brands and applications:

The Julie Ford | Mazda IMMO OFF Emulator is designed for use with Ford- and Mazda vehicles with various engine control units (ECUs). The emulator supports both CAN-bus and K-line communication and is suitable for different immobilizer systems depending on the vehicle type and ECU configuration.

The application is divided into five groups, each with specific ECU types and conditions.



1. Ford with immo module in the dashboard

This version is suitable for Ford vehicles where the immobilizer is located in the dashboard. The emulator works when the vehicle is equipped with a mechanical ignition lock or when only the ECU is replaced.

Supported ECUs:

• Siemens SID202
• Siemens SID206
• Siemens VDO SID803 / SID803A

Siemens SID803 / SID803A

• ECU number: 5WS40557A-T | 6M51-12A550-AEA (Ford Focus 2.0 TDCi 136 hp 2007)

• Application: Ford Focus (2004–2008)

Siemens SID206

• ECU number: 5WS40584B-T | 8V21-12A650-EB (Ford Fiesta 1.4 TDCi 70 hp 2010)

• Application: Ford Fiesta (2010–2012)

Siemens SID202

• ECU number: 5WS40512A-T | 6M51-12A650-YA (Ford Focus 1.8 TDCi 115 hp 2006)

• Application: Ford Focus (2004–2010)

---

2. Ford with immo module in BCU

In some Ford vehicles, the immobilizer is located in the BCU (Body Control Unit). In this case, the emulator can only be used for project vehicles, such as engine conversion in a race car or boat.

Supported ECU:

• Visteon DCU-101

Donor vehicle:

• Ford Transit

---

3. Ford with ABS ID and immo in BCU

This variant applies to vehicles where the immobilizer in the BCU is integrated and the ABS identification code is part of the security system. This type is also used exclusively for project applications.

Donor vehicles:

• Ford Galaxy (2007–2016)
• Ford Mondeo (2007–2016)
• Ford S-Max (2007–2016)

---

4. Ford with PATS module and 4C transponder key

This version is suitable for older Ford models with a PATS system and 4C-type transponder key.

Supported ECUs:

• DUDE 97FB-12A650-HB (Ford Puma 1.7 125 hp 1997)
• FIFA XS5F-12A650-FA (Ford KA 1.3 60 hp 1999)
• GWP1 98BB-12A650-BVB (Ford Mondeo II 2.0 131 hp 1998)
• MUFF 97FB-12A650-HC (Ford Puma 1.7 125 hp 1998)
• SHAY XS6F-12A650-AKB (Ford Fiesta 1.3 60 hp 1999)
• TPM8 F7FF-12A650-FJ (Mazda 626 2.0 136 hp 2000)
• USES 98BB-12A650-AAE (Ford Mondeo II 2.5 170 hp 1999)
• USSR 98BB-12A650-AAC (Ford Cougar 2.5 170 hp 1998)

Supported vehicles:

• Ford Cougar 2.5 170 hp (1998–2002)
• Ford Fiesta 1.3 60 hp (1995–2001)
• Ford KA 1.3 60 hp (1996–2002)
• Ford Mondeo II 2.0 131–170 hp (1996–1999)
• Ford Puma 1.7 125 hp (1997–2001)
• Mazda 626 2.0 136 hp (1997–2002)

---

5. Mazda

This emulator supports various Mazda vehicles equipped with Denso-, Lucas- and Mitsubishi ECUs. The systems are used in both gasoline and diesel engines of compact and mid-size models from the period 1990–2010.

Supported ECUs:

• Denso B33M 18 881A
• Denso B34A 18 881B
• Denso B34B 18 881A
• Denso B35B 18 881C
• Denso B35J 18 881B
• Denso B5F3 18 881C
• Denso B5F4 18 881B
• Denso B6MM 18 881A
• Denso B6MU 18 881B
• Denso BP5C 18 881A
• Denso BP5D 18 881A
• Denso BP6J 18 881C
• Denso BP6M 18 881B
• Denso BP7P 18 881C
• Denso FP87 18 881B
• Denso FP88 18 881B
• Denso FPG6 18 881B
• Denso RF3R 18 881A
• Denso RF4D 18 881
• Denso RF4F 18 881D
• Denso RF4P 18 881C
• Denso RF4S 18 881B
• Denso RF4W 18 881C
• Denso RF5W 18 881A
• Denso RF6A 18 881B
• Denso ZM39 18 881C
• Denso ZM40 18 881C
• Denso ZMWM 18 881A
• Lucas ZL13 18 881A
• Lucas ZL05 18 881A
• Mitsubishi WLE7 18 881A
• Mitsubishi WLF2 18 881A

Supported vehicles:

• Mazda 323
• Mazda 323F
• Mazda 6
• Mazda Demio
• Mazda 626
• Mazda MX-5
• Mazda MPV
• Mazda Premacy

---

Package Contents:

• 1x Julie Ford/Mazda | IMMO OFF | Emulator
