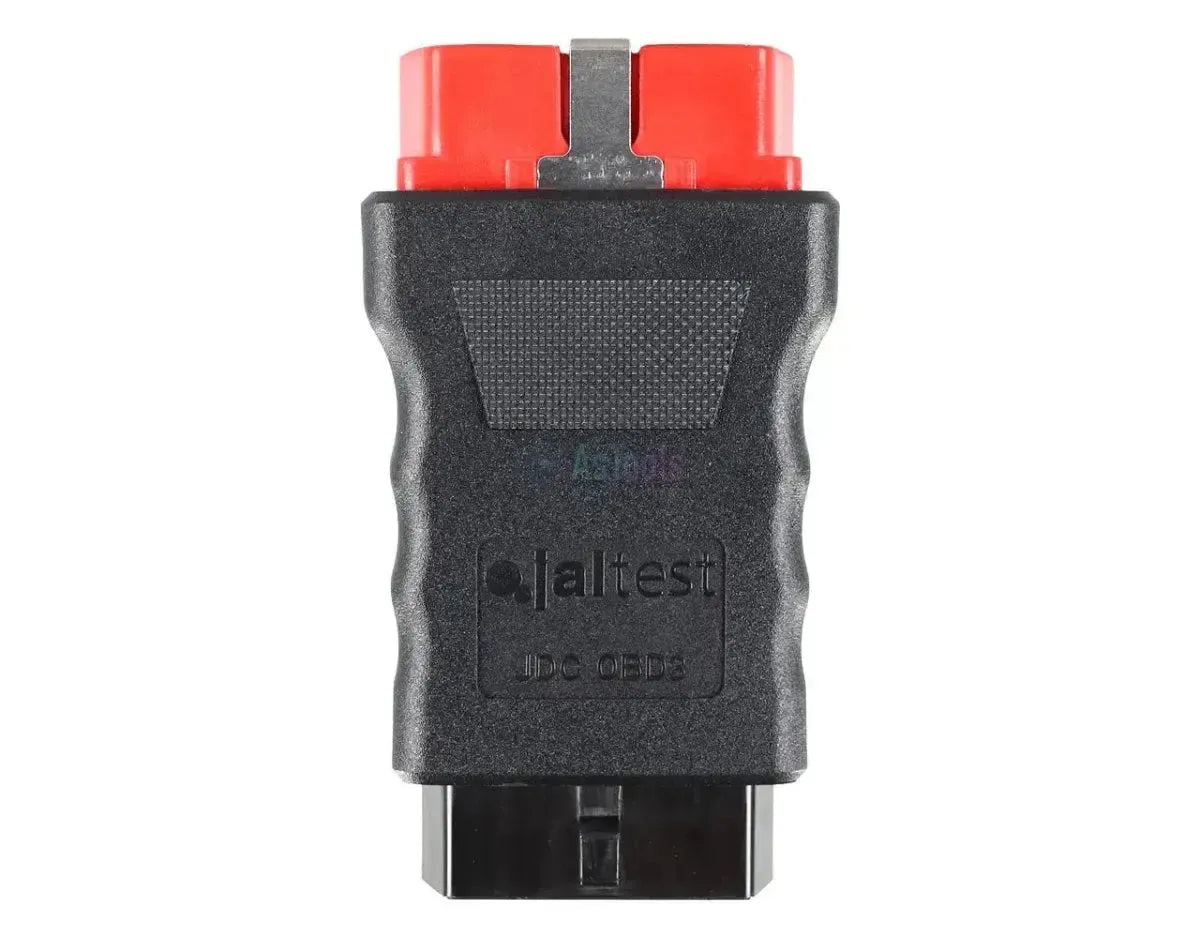

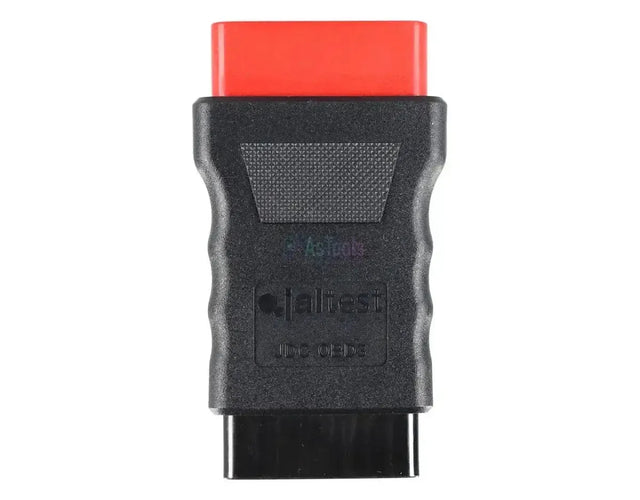

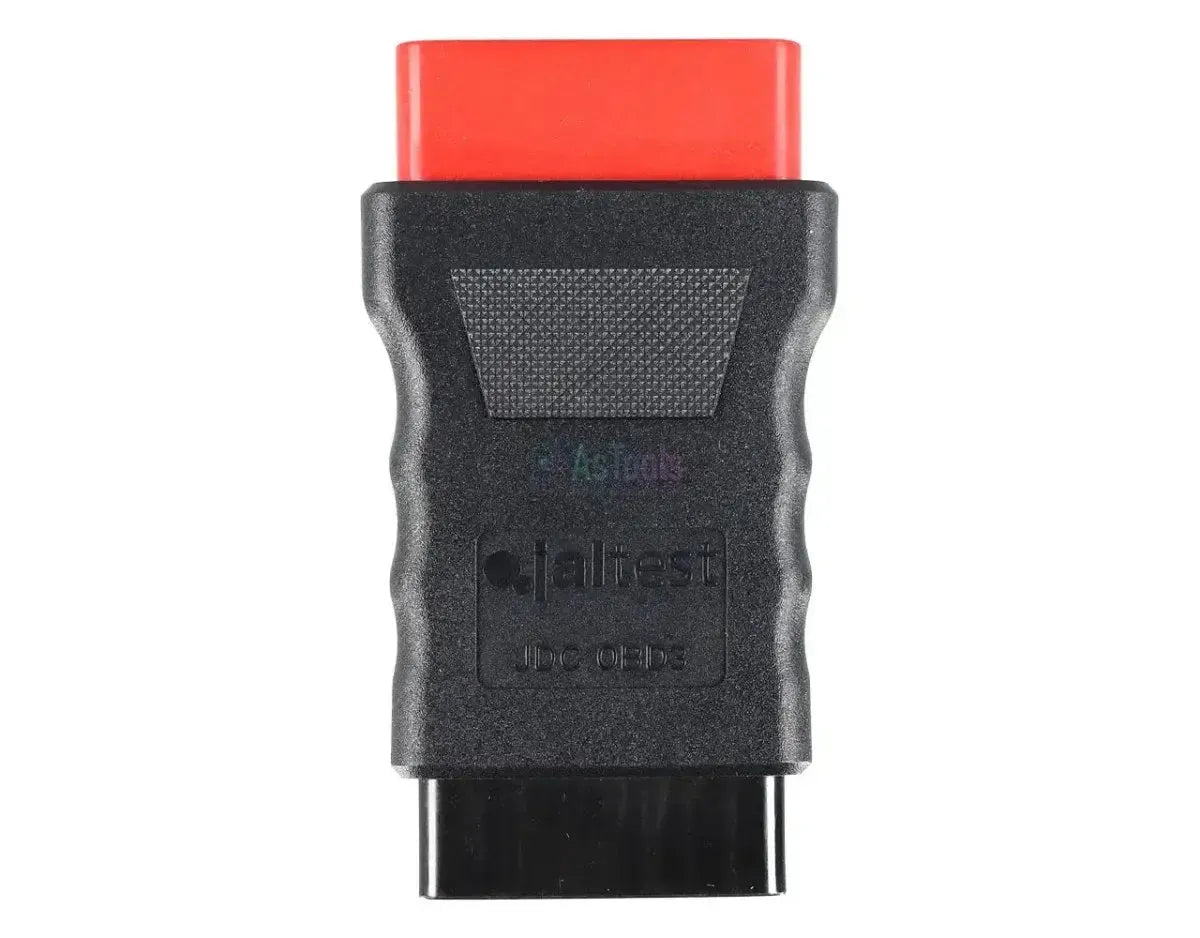

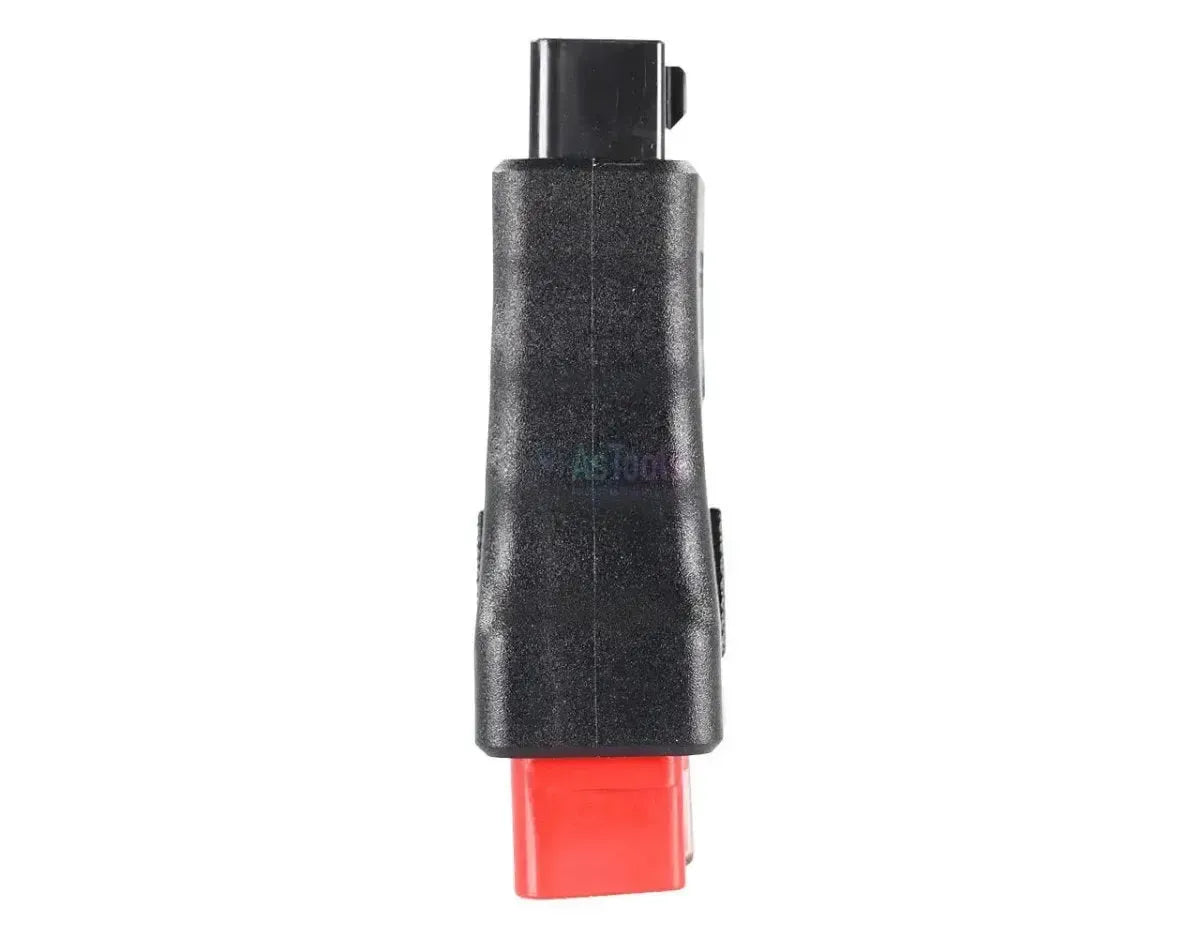

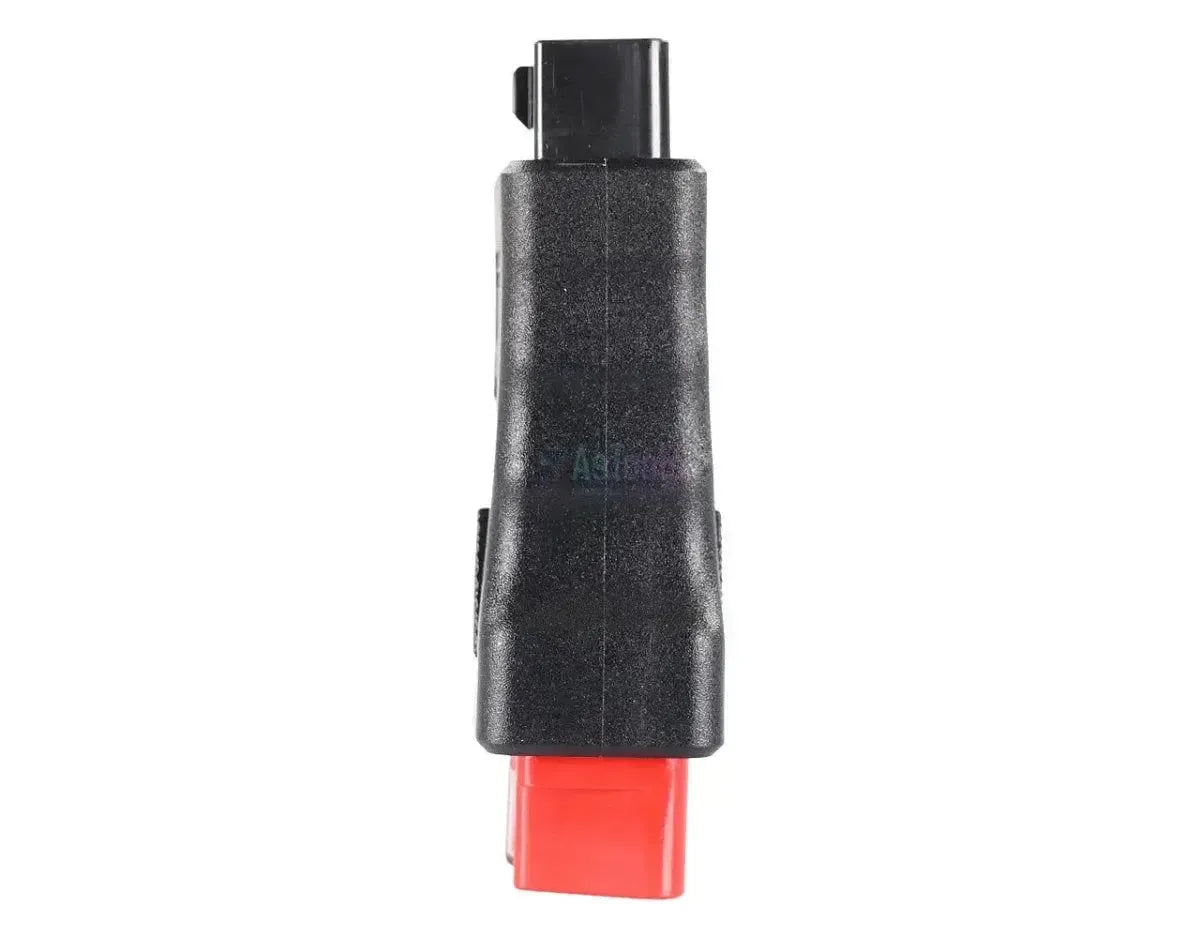

The Jaltest JDCOBD3 is a diagnostic adapter for Tata-Daewoo vehicles with a non-standard 16-pin OBD2 connector layout; the vehicle side features the proprietary connector, while the interface side provides the standard 16-pin OBD2. You connect it between your vehicle's diagnostic port and the 16-pin OBD2 cable of the Jaltest Link; it doesn't replace the cable but sits between them.
Once connected, the Jaltest software gains access to the vehicle network that would otherwise remain unreachable, since the signals don't align with the expected pins. From there, the software unlocks full vehicle diagnostics: read and clear fault codes, monitor live data, control actuators, and — depending on the system and coverage — perform maintenance and calibration routines. Which control modules appear depends on your active license and installed software version. The adapter is used within Jaltest CV (commercial vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and Features
With this adapter, you access the vehicle's control modules using Jaltest software.
Control units you can access
- The systems Jaltest can read on your vehicle: This converter adapts the non-standard wiring configuration, allowing the Jaltest Link to reach the control units behind that connector.
- Which units are available: This depends on your vehicle, your active Jaltest license, and the installed software version.
What you can do
- Read and clear fault codes: Current, permanent, and intermittent codes with original OE descriptions.
- View live data: Real-time sensor readings and parameter values.
- Perform actuator tests: Targeted control of components to verify operation.
- Maintenance and calibration: System-specific service and reset procedures, depending on coverage.
Compatible vehicles and applications
The connector type is what matters, not the model. This converter is designed for Tata-Daewoo commercial vehicles with a non-standard 16-pin diagnostic connector in the light commercial vehicle segment. The exact models and model years supported depend on your active Jaltest license and the installed software version.
Package contents
- 1x Jaltest (JDCOBD3) | Tata-Daewoo 16-pin OBD2 Converter Adapter | Light Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDCOBD3 |
| Type | OBD2 converter / pass-through adapter |
| Application | Tata-Daewoo with non-standard 16-pin diagnostic connector |

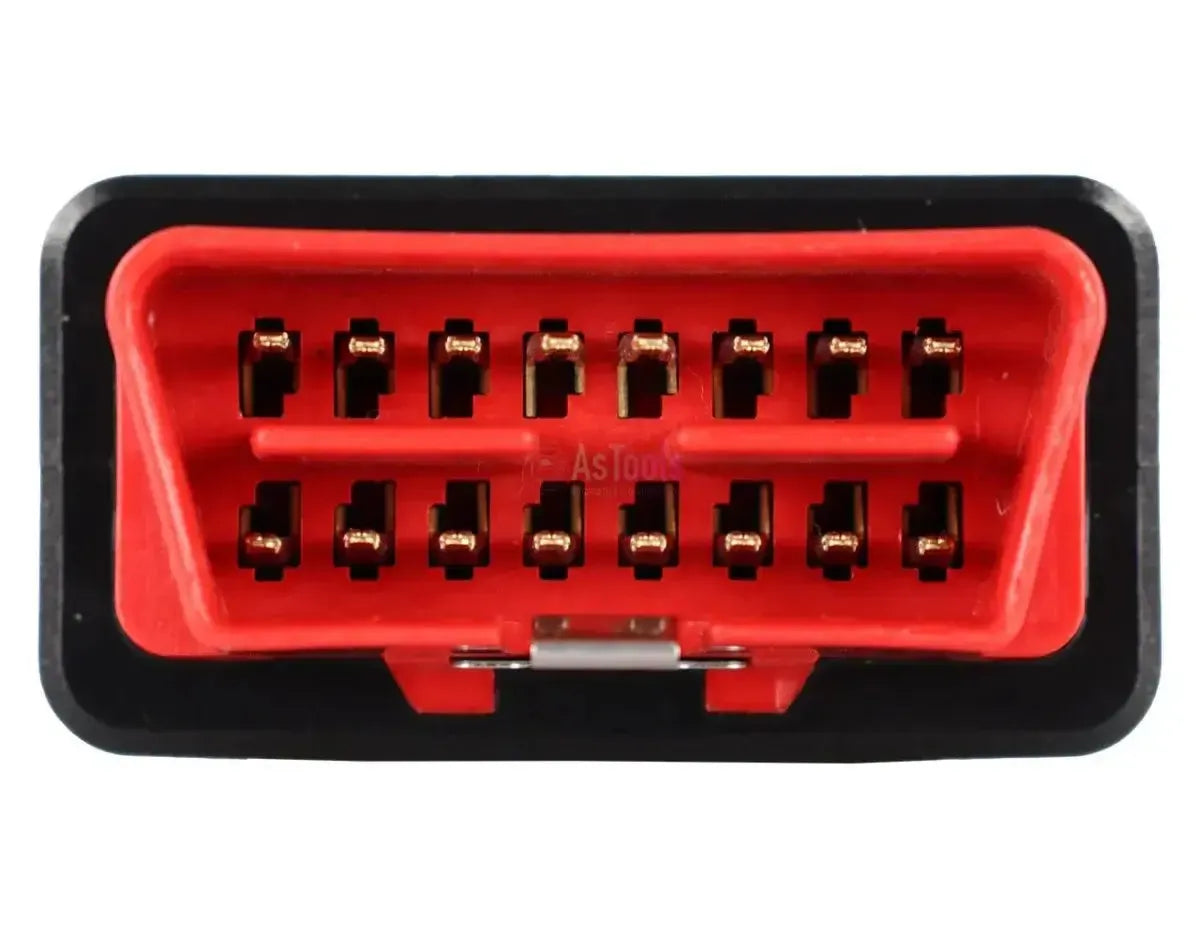

| Vehicle-side connector | 16-pin OBD2 with non-standard pin configuration |

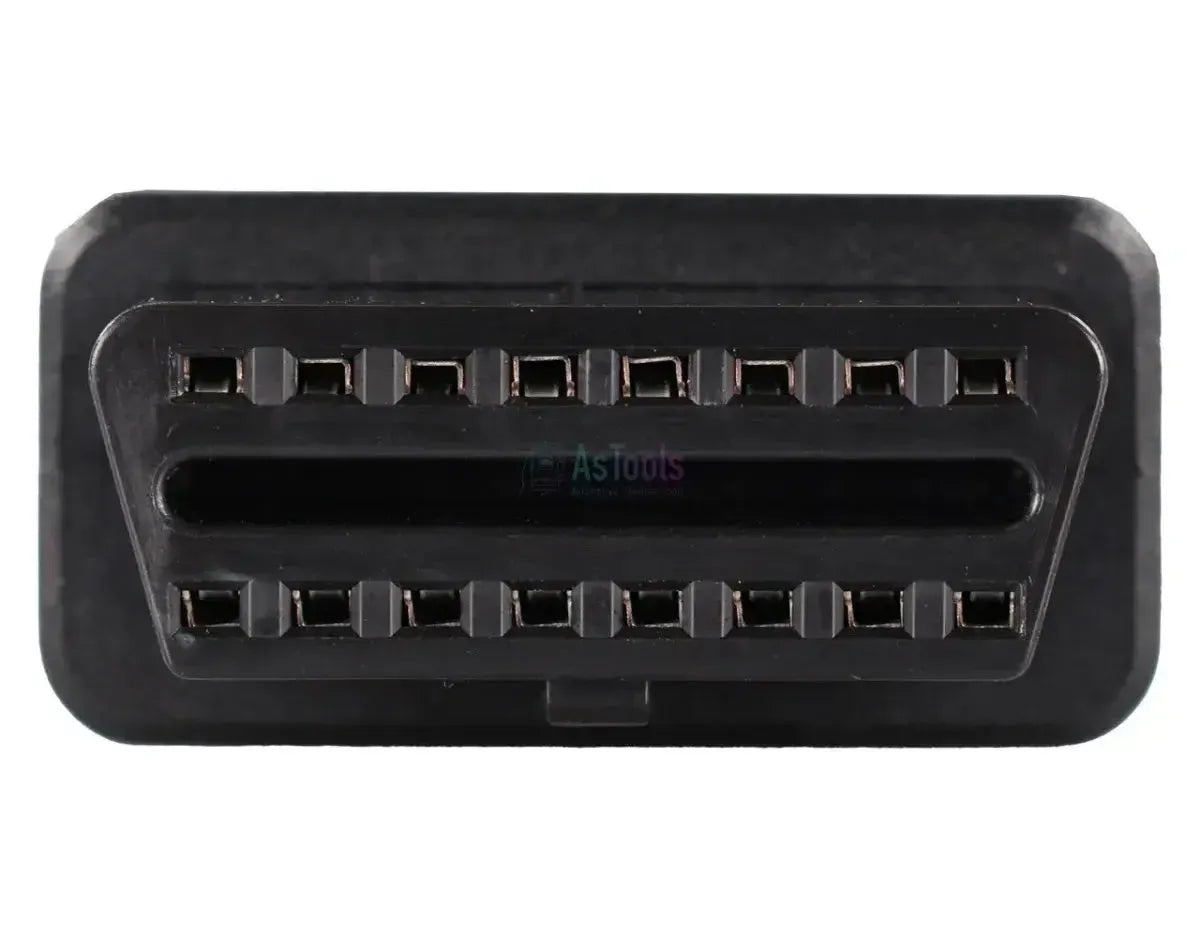

| Interface connection side | 16-pin OBD2 (standard) |
| Control units | The systems Jaltest runs for the vehicle, depending on license and software version |
| Segment | Light commercial vehicle |
| Jaltest module | Jaltest CV (commercial vehicles) |
| Required to use | Jaltest Link + 16-pin OBD2 cable + valid software license |
