Jaltest (74001001) | OHW | Software upgrade

Applications and functionality

Jaltest OHW is Jaltest diagnostic coverage for heavy and compact earthmoving and road construction equipment. This upgrade unlocks that segment alongside the segments you already use. What you do with it subsequently depends on the vehicle and the connection you use.

What you can do with it

• Systems and fault codes: The software recognises the control units present and reads out the fault codes, with their descriptions.
• Live readings: Read parameters whilst the vehicle is running, from engine speed and pressure to temperature.
• Actuation: Direct actuation of components to verify they respond.
• Calibrations and settings: The calibrations and parameter settings that Jaltest offers per system.
• Symptom-based fault finding: Guided search paths that start from the complaint rather than the fault code.
• Technical information: Releases, procedures and manual diagnostics for the systems you access.
• Expert mode: Select a control unit manually when automatic selection is not suitable.

Compatible vehicles and applications

After the upgrade, your Jaltest software also works on heavy and compact earthmoving and road construction equipment. The brands listed below are added; what you already diagnose remains unchanged.

Heavy equipment

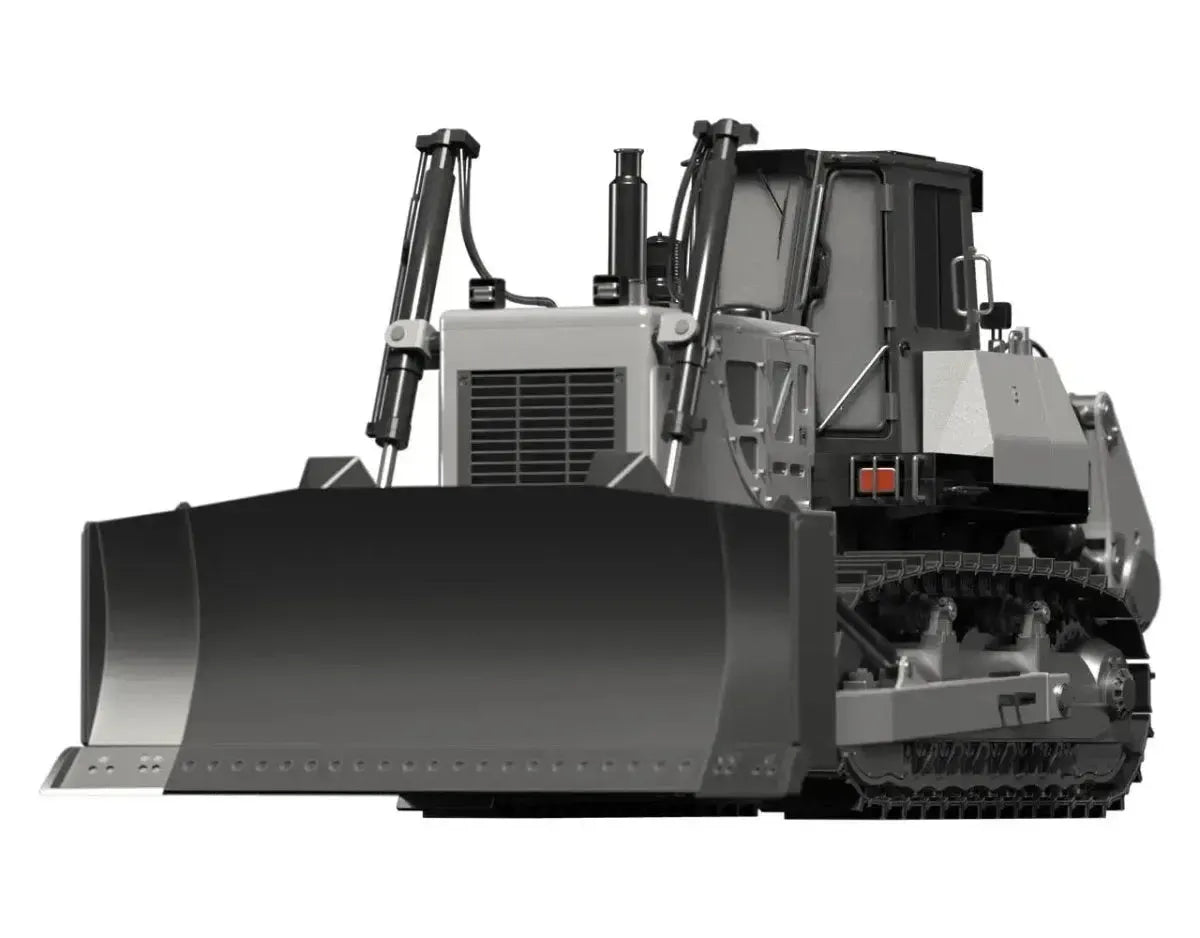

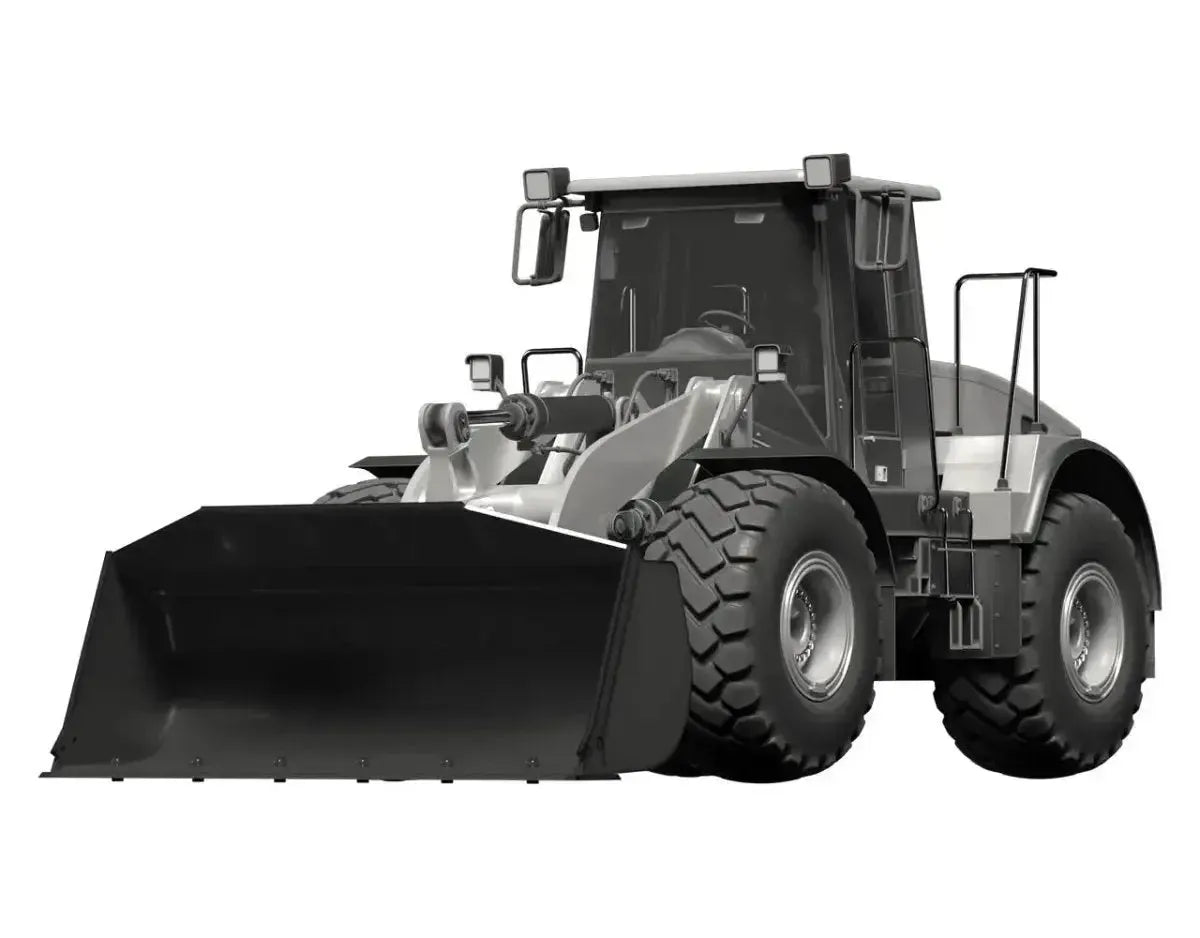

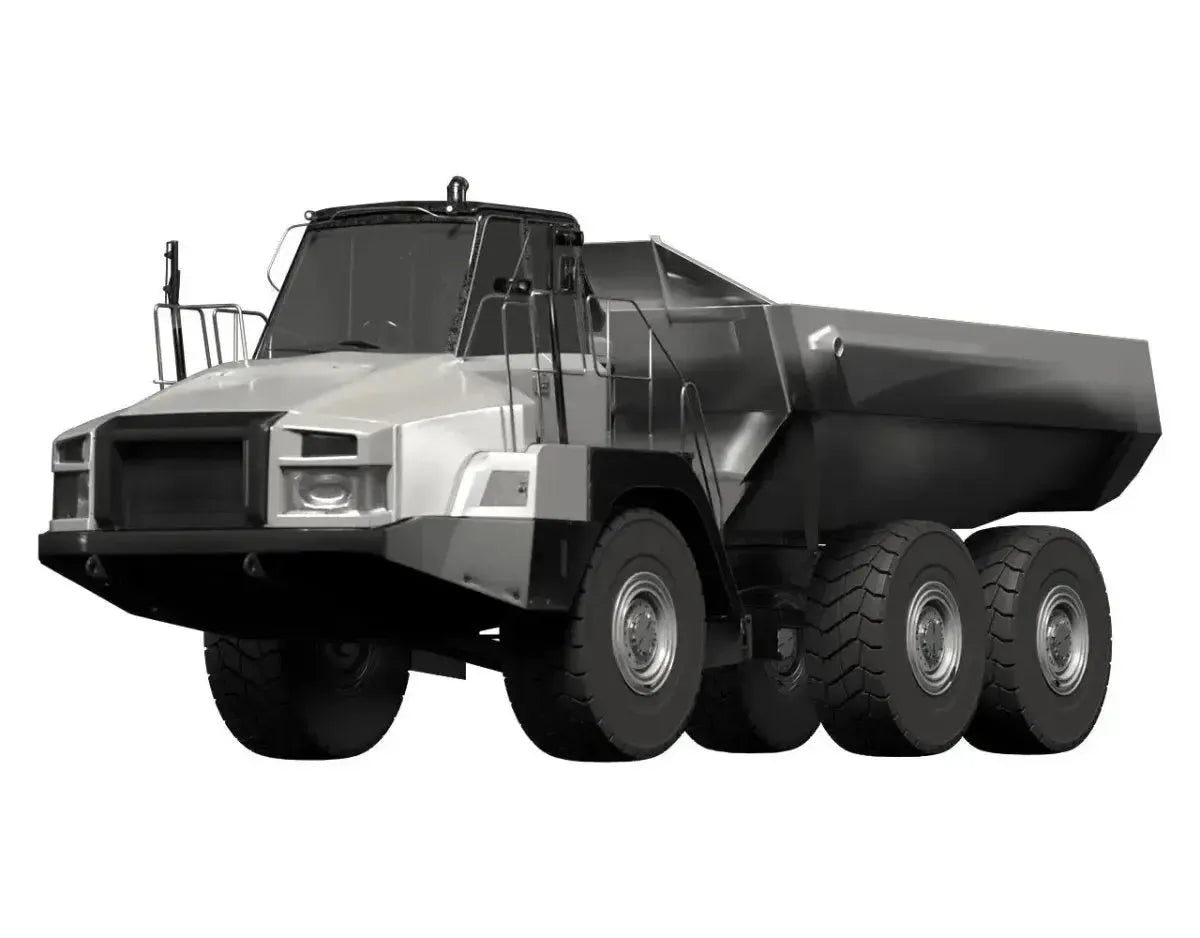

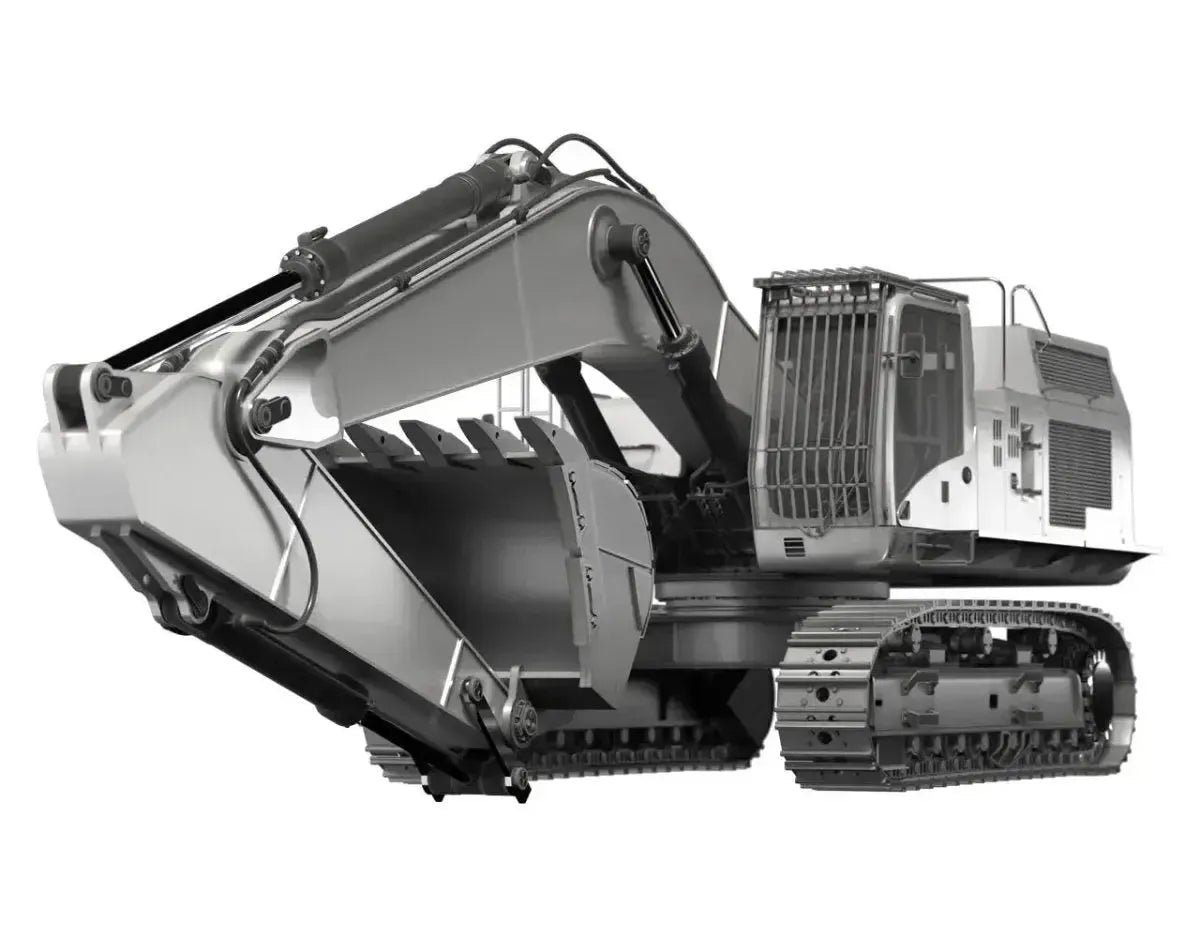

Excavators, wheel loaders, dumpers, bulldozers, cranes and road construction machinery, from eighty brands.

• Brands: Ammann, Ascod, Astra, Atlas, BAE Systems, Bell, Bergmann, Bomag, Bosch Rexroth, Bushmaster, Case CE, Caterpillar, Claas, Cometto, Daewoo, Demag, Develon, Ditch Witch, Doosan, Dressta, Dynapac, FFG, Fiat Kobelco, Fuchs, Gradall, Grove, Haas, Hamm, Hidromek, Hitachi, Hydrema, Hyundai CE, JCB, John Deere, Kalmar, Kässbohrer Geländefahrzeug, Kato, Kawasaki KCM, Kobelco, Komatsu, Leeboy, Liebherr, Link-Belt, Liugong, Ljungby Maskin, Manitowoc, Max Com, Mercedes-Benz, MST, New Holland CE, O&K, Paus, Perlini, Pettibone, Ponsse, Powerscreen, Prinoth, Sakai, Sandvik, Sany, Sennebogen, Spierings, Sumitomo, Sunward, Tadano Faun, Taylor, Terberg, Terex, Terex Finlay, Tigercat, URO, Vermeer, Vögele, Volvo CE, Weiler, Weycor, Wirtgen, Wollard, XCMG and Zoomlion.

Compact equipment

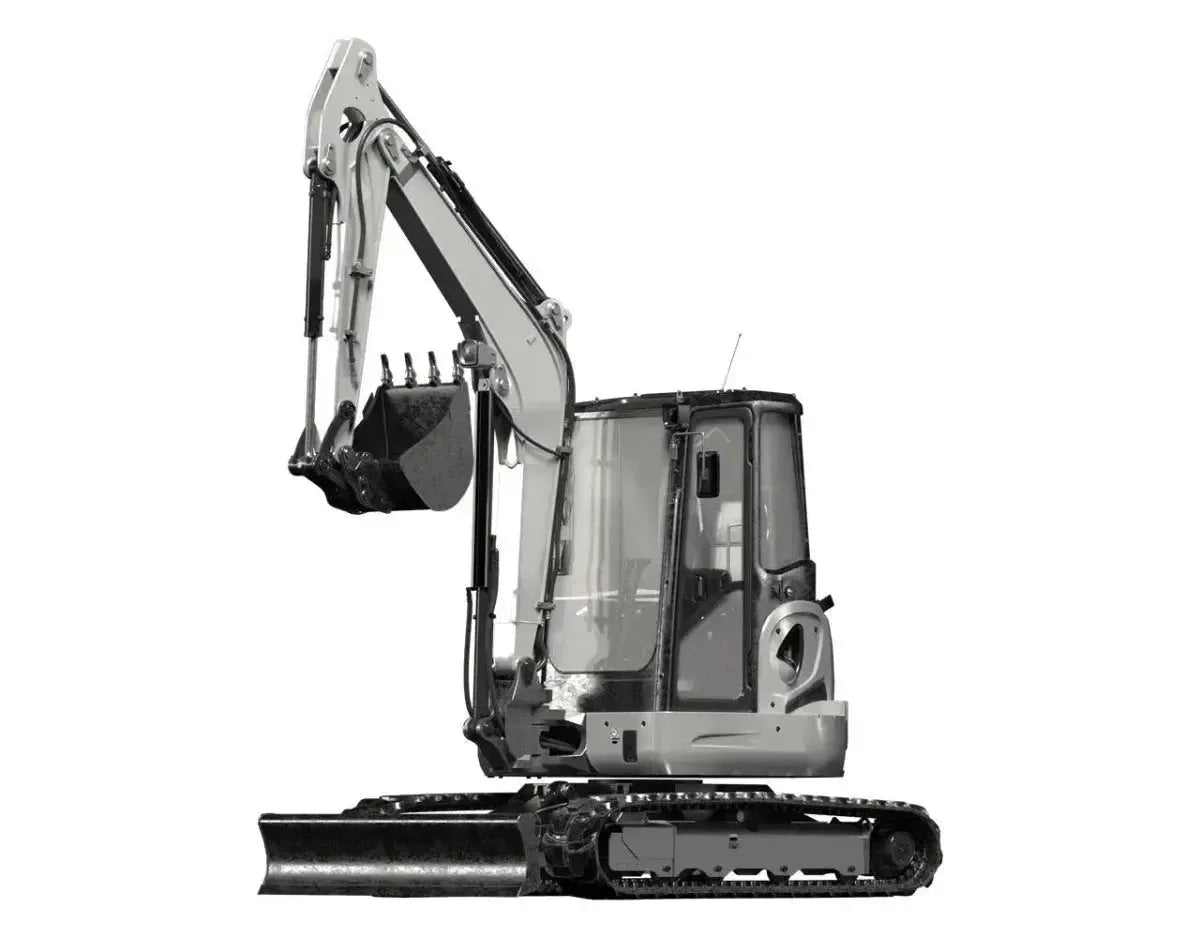

Mini excavators, skid steer loaders, telehandlers and compact rolling and compacting equipment, from seventy-seven brands.

• Brands: Agrimac, Ahlmann, Ammann, ASV, Atlas, Ausa, Avant, Bell, Bobcat, Bomag, Case CE, Caterpillar, Claas, Daewoo, Develon, Dieci, Ditch Witch, Doosan, Dressta, Dynapac, Eurocomach, Eurotrac, Gehl, Giant, Hamm, Hansa, Hidromek, Hitachi, Holder, Hydrema, Hyundai CE, JCB, John Deere, Kato, Kawasaki KCM, Knikmops, Kobelco, Komatsu, Kramer, Kubota, Leeboy, Liebherr, Link-Belt, Liugong, Ljungby Maskin, Manitou, Mecalac, Menzi Muck, Merlo, MST, MultiOne, Mustang by Manitou, New Holland CE, Paus, Piquersa, Randon, SAE Standard, Sakai, Sany, Schaeff, Schäffer, Sumitomo, Sunward, Takeuchi, Terex, Thaler, Thwaites, Venieri, Vermeer, VM Loader, Volvo CE, Wacker Neuson, Weidemann, Weycor, XCMG, Yanmar and Zoomlion.

Four editions

Jaltest OHW is available in four configurations with identical coverage. The difference lies in what you purchase – a one-time purchase, the first year of use included, a renewal or an upgrade to software you already have – not in what you can do with it.

What you need

To perform diagnostics with Jaltest OHW, you need more than this product. The complete setup is detailed below.

• Jaltest Link: The diagnostic interface. Required, even to start the software on a PC.
• The module itself (74001001): This product. It adds Jaltest OHW to Jaltest software you already use for another segment.
• Update licence (29760): Twelve months' renewal, from the second year onwards.
• Adapter cables (optional): Cable set OHW new (70002029) and Cable set OHW basic (70002030). If you do not have them, you can connect using the multipin set from your Jaltest case.

What's included

• 1x Jaltest (74001001) | OHW | Software upgrade, a one-time expansion of your Jaltest software, delivered digitally to your Jaltest Link serial number

How does it work in practice?

From order to extended software takes four steps. Your installation remains in place; the serial number is the only thing you need to find yourself.

1. Provide the serial number: When ordering, specify the serial number of the Jaltest Link where your current Jaltest software is installed.
2. We perform the upgrade: We apply the upgrade to that serial number, typically within one working day of your order.
3. Email confirmation: We will contact you once Jaltest OHW has been added to your software package.
4. Update software: Launch Jaltest Diagnostics and retrieve the expansion; Jaltest OHW appears alongside your existing segments in the startup menu.
